Military Rugged Laptop

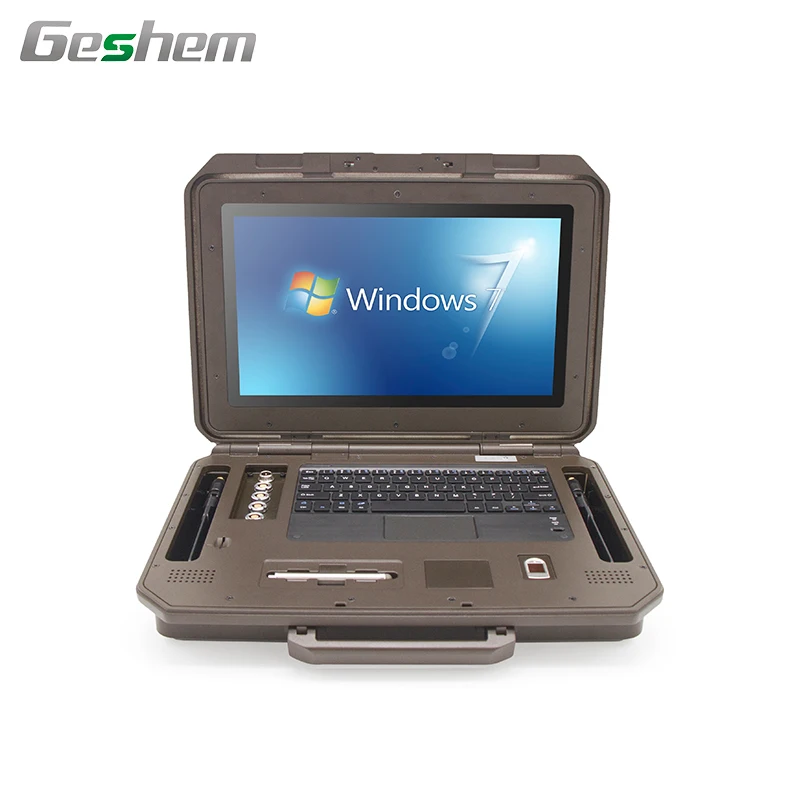

TPC-GS1351HT, it is a 13.3 inch Military Rugged Laptop notebook with capacitive touch screen, which is a high-stability, high-reliability, fanless, touch-sensitive, and battery-equipped industrially reinforced notebook computer product. The body is made of an all-magnesium-aluminum alloy shell, which is high-strength, drop-proof,corrosion-resistant and wear-resistant.
This product has Intel® Bay Trail N2930 1.83GHz processor, 4G memory, SSD optional capacity, with 4G encrypted communication security gateway, the whole machine has a rich I/O full aviation plug interface. The machine can be equipped with Windows, Ubuntu operation system.
This product can be used in industries such as power system, military operations, mobile police, environmental detection and surveying. Below you can find more details of it, please check.
This product has Intel® Bay Trail N2930 1.83GHz processor, 4G memory, SSD optional capacity, with 4G encrypted communication security gateway, the whole machine has a rich I/O full aviation plug interface. The machine can be equipped with Windows, Ubuntu operation system.
This product can be used in industries such as power system, military operations, mobile police, environmental detection and surveying. Below you can find more details of it, please check.
Product Paramenters
Hardware | ||
CPU | l Intel® Bay Trail N2930 1.83GHz | |
OS | Windows 7/8/10 and linux OS | |
RAM | 4GB DDR3; Max 8GB | |
ROM | 64GB Msata SSD; Max 512GB SSD | |
Wifi | Dual Frequency WIFI with Built-in Antenna | |
BT | BT4.0 with Built-in Antenna | |
Speaker | 2 * 8Ω, 3W Speaker | |
I/O | ||
USB | 2 * USB2.0 Aviation Plugs | |
Ethernet | 1 * Gigabit LAN，Aviation Plug | |
COM port | 2 * RS232 Aviation Plugs | |
Keyboard | Keyboard Input, Touch Pad | |
Fingerprint | Capacitive Fingerprint Sensor Module | |
Security Gateway | 4G Communication Security Gateway | |
LCD / TP | ||
Resolution | 1920 * 1080, 13.3 inch | |
Brightness | 300cd/㎡; | |
Touch screen | Capacitive touch screen | |
Contract ratio | 800:1 | |
Power Supply | ||
Battery | 2 * 5300mAh, 7.4V | |
Power | 12V Aviation Plug DC Input | |
Reliability | ||
Anti-vibration | 5-19Hz/1.0mm amplitude; 19-200Hz/1.0g, acceleration | |
Anti-shock | 10g acceleration, 11ms duration | |
Reliability | MTBF≥50000h; MTTR≤0.5h | |
IP Level | front IP65 optional | |
Operating Temp. | -10℃ - +50℃ ( with air flow) | |
Storage Temp. | -20℃ - +60℃ | |
Operating Humidity | 95% @40℃, non-condensing | |
Size/Color | ||
Size | 384mm * 285mm * 66.4mm | |
Weight | 4.5KG/5.0KG(NW/GW) | |
Material | Full Magnesium Aluminum Alloy with Fanless Design | |
Color | Black | |
Accessories / Certificate | ||
Certificates | Support CE/FCC/RoHs | |

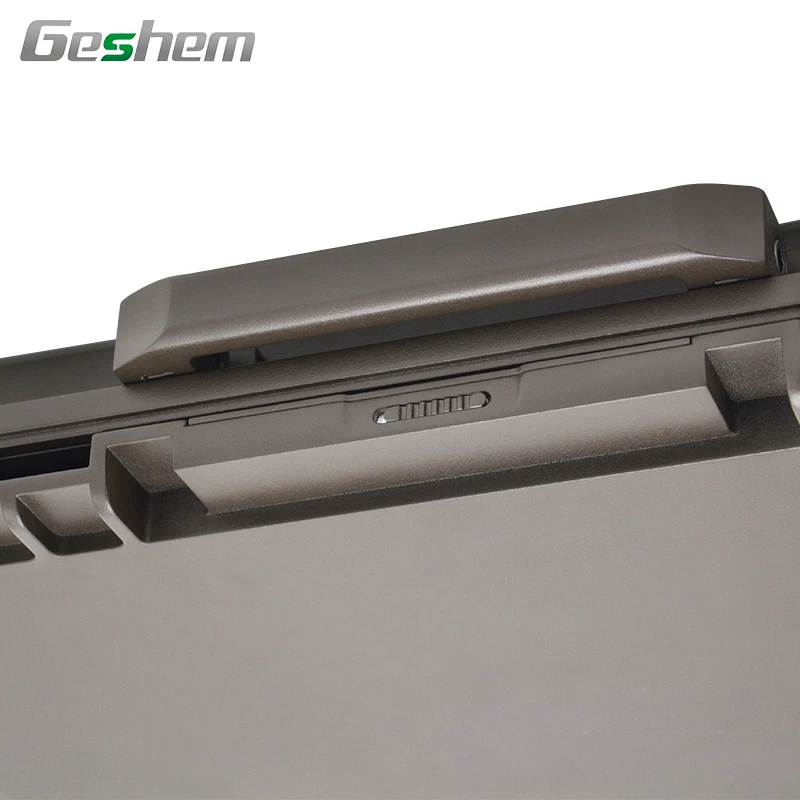

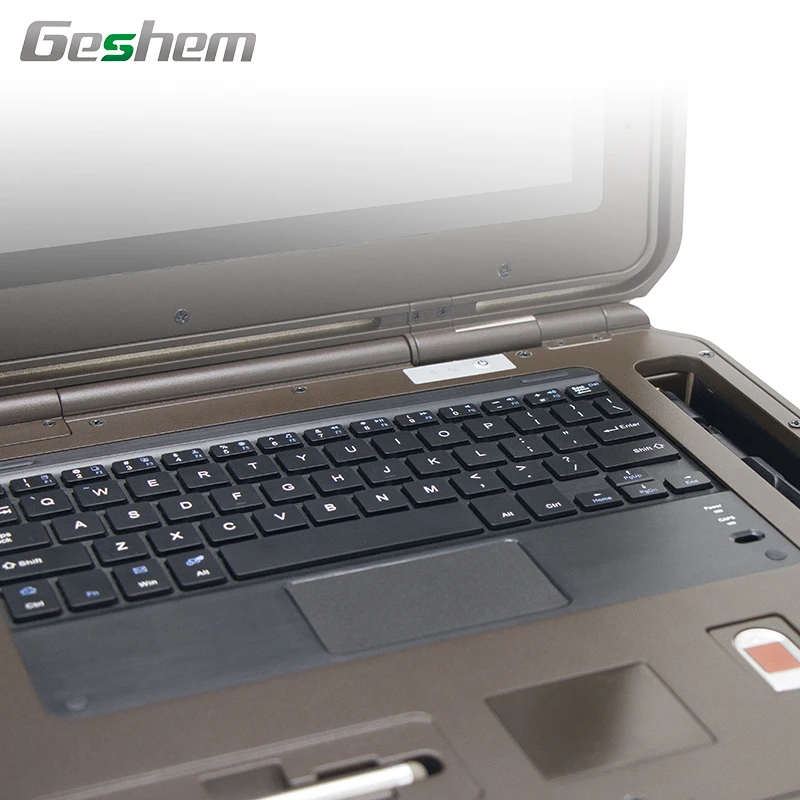

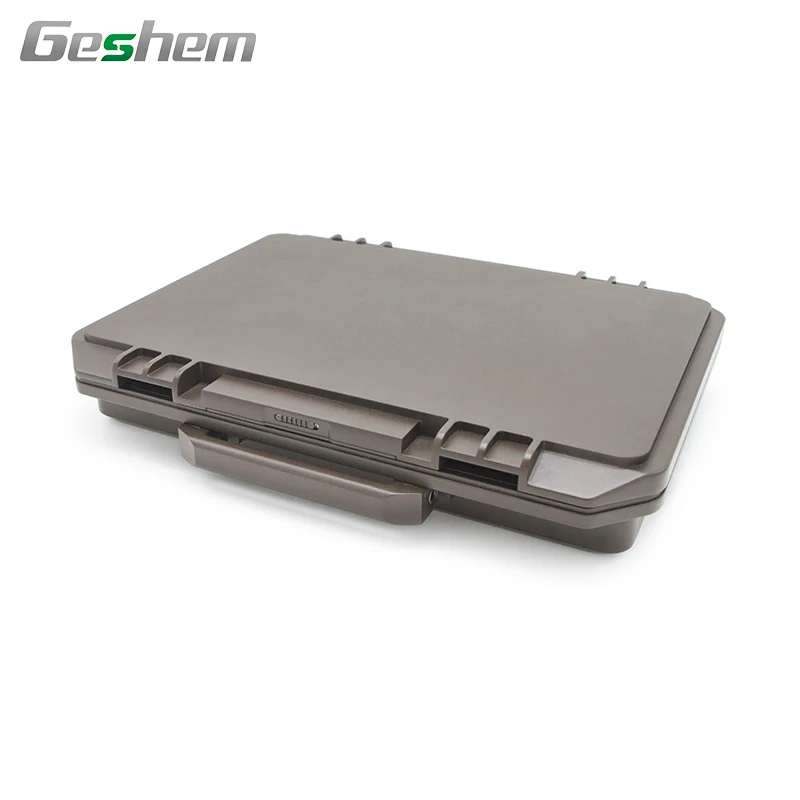

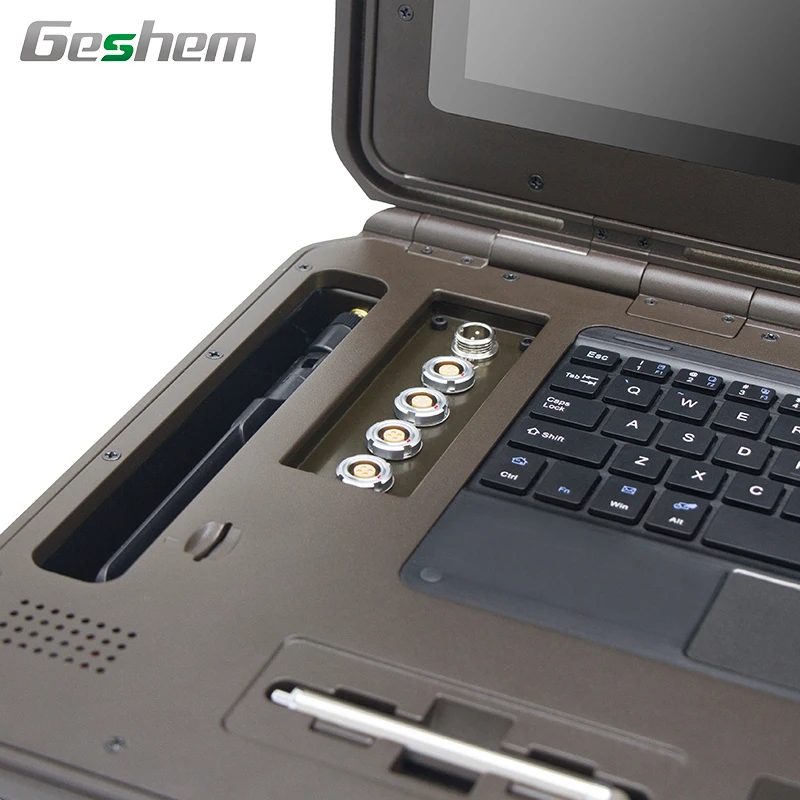

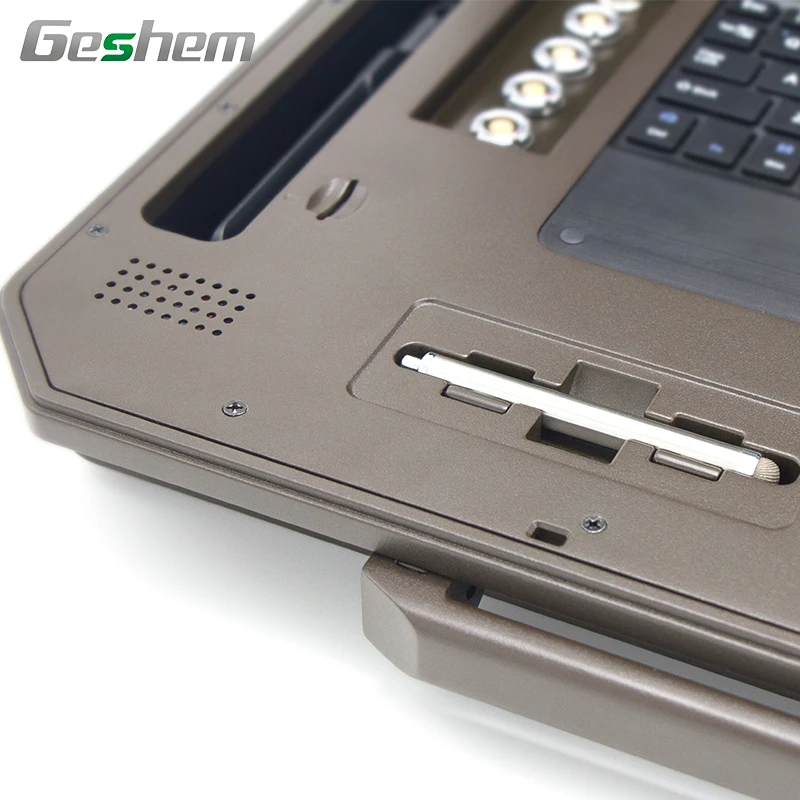

Product Photos
FAQ
1.Q: Are you manufacturer with your own factory or trading company?
A: We are manufacturer with our own factory located in Shenzhen.We produce industrial panel pc from 7” to 21”, embedded box pc, and rugged tablets. Above model is a 13.3 military rugged laptop notebook with capacitive tuch screen. If you are available, welcome to visit us.
2. Q: Are you the original manufacturer of industrial pc and rugged tablet?
A: Yes,We are. Every product includes motherboard design, function modules and mould of casing are entirely made by Geshem itself. We also have some agents who sell our products in China and abroad.
3. Q: What kind of services can you provide?
A: We have two services models, one is OEM/ODM service,which is with customer’s brand based on our standard products, the other is providing customization service according to the customer’s individual demands, which are including appearance design, structure design, mold development, soft & hardware development, technical support and etc.Many famous brand are our customers such as DELTA in China.
4. Q: What are your product lines?
A: We have been engaged in the R&D and production of industrial PC and rugged tablets in the industrial field since 2008. Up till now, we have established Beijing, Shanghai and Chengdu branch offices in China, and also one branch office in Dusseldorf in Germany. And we also some good foreign distributors.
5. Q: How about your after sale?
A: 1 year warranty ensured from the date of delivery. Free repairing is available for functional
problems of non-artificial damage, otherwise that will be charged. Once you have after-sales need,our FAE employees will provide remote technical support & send maintenance materials first, FAE employees can also be sent to the customer’s place to repair depending on the situation, or customer can directly send the damaged products back to China or our Germany office, they will be repaired and send it out quickly.
problems of non-artificial damage, otherwise that will be charged. Once you have after-sales need,our FAE employees will provide remote technical support & send maintenance materials first, FAE employees can also be sent to the customer’s place to repair depending on the situation, or customer can directly send the damaged products back to China or our Germany office, they will be repaired and send it out quickly.

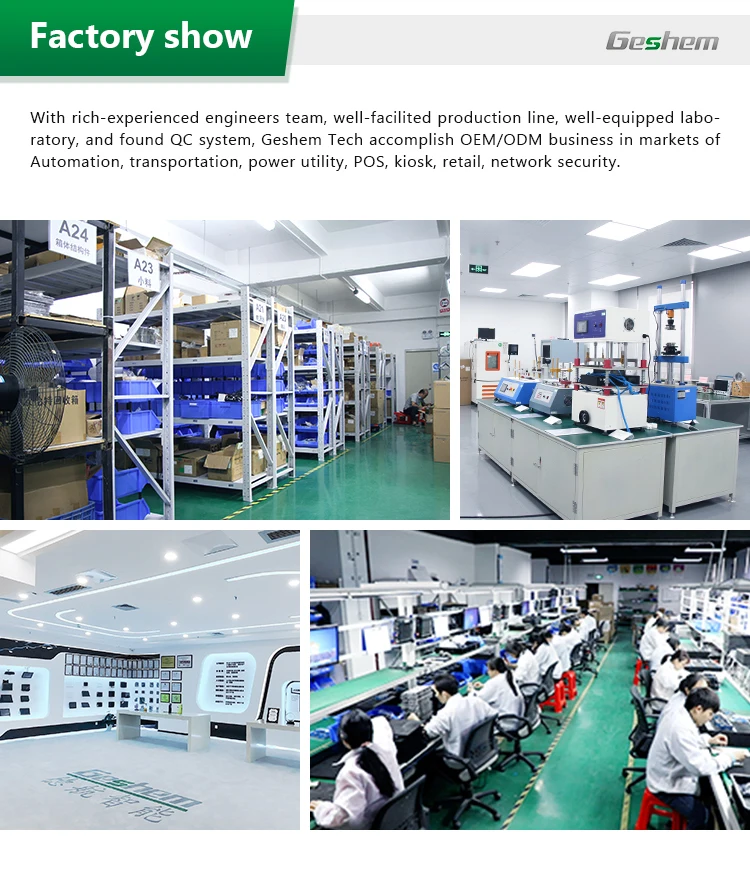

Company Profile
