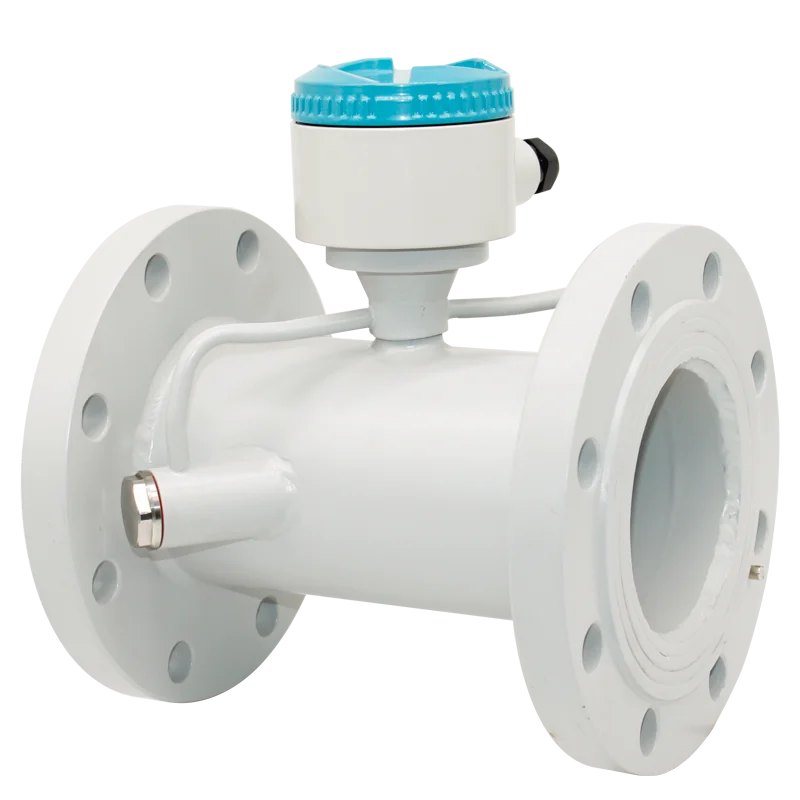

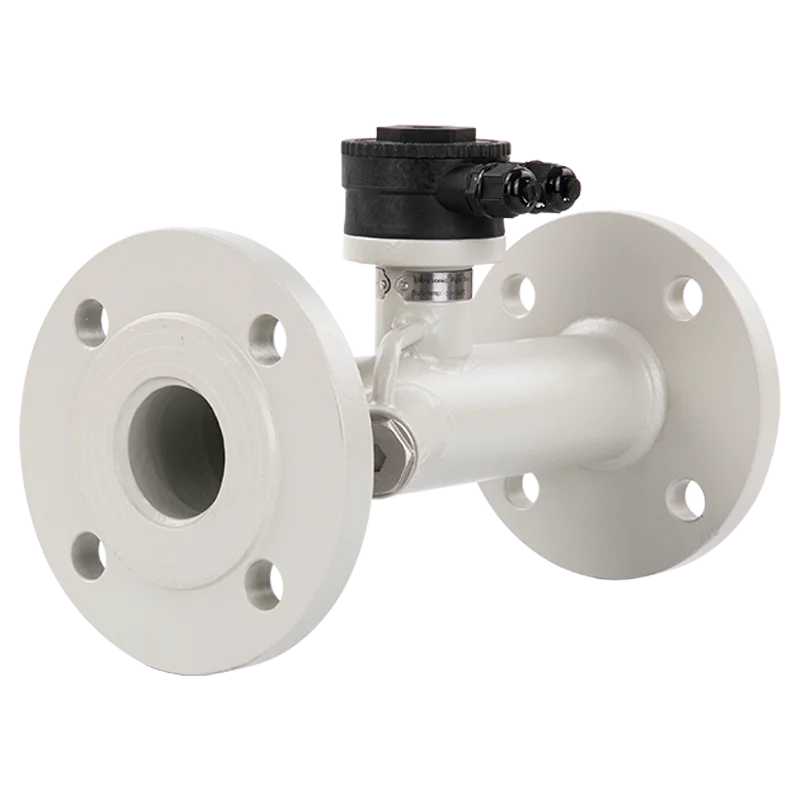

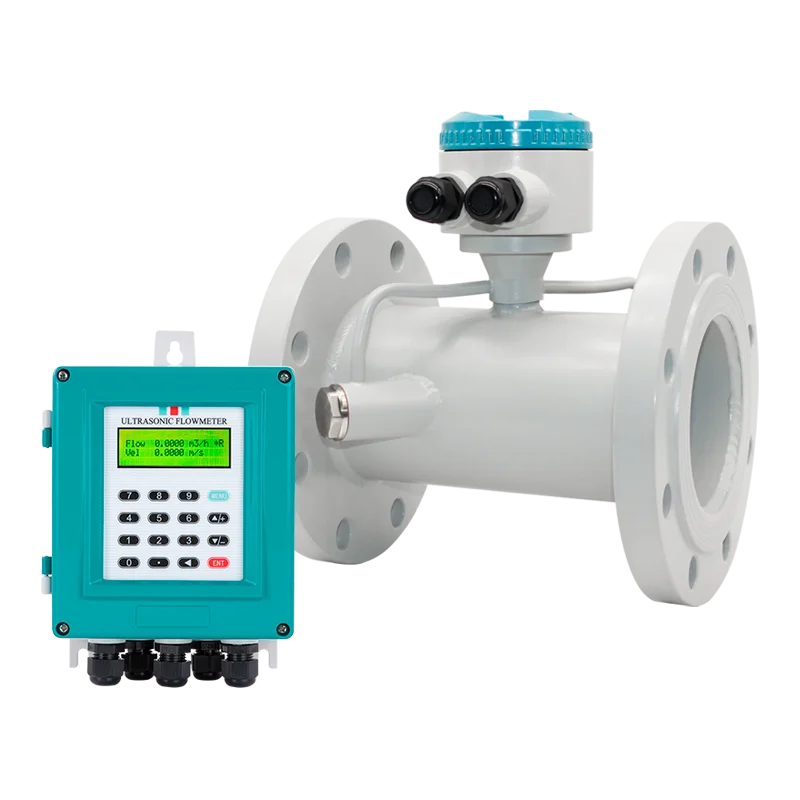

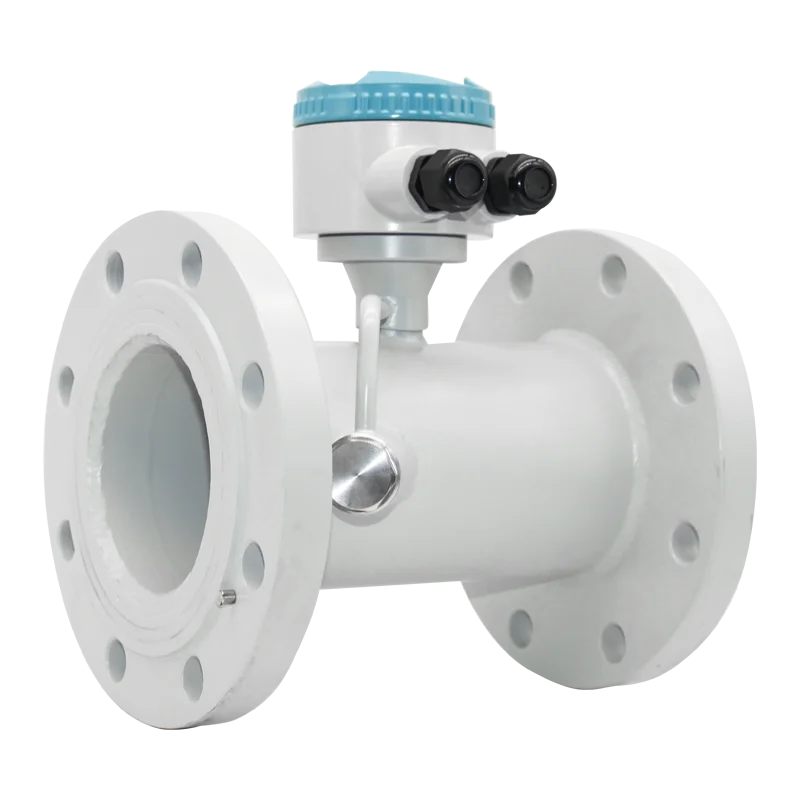

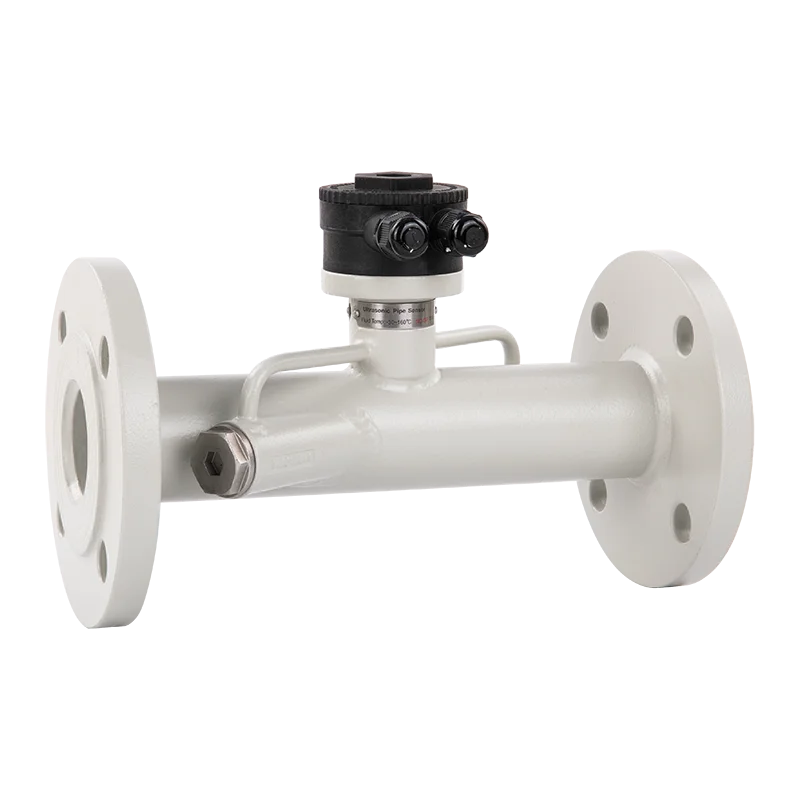

Low Cost Modbus Flanged Inline Large Diameter Sensor Parts Ultrasonic Flow Meter for Well Water

 Nominal Diameter

DN50mm~DN2000mm

 Accuracy

±1.0 %

 Velocity

0.1 ~ ±10 m/s

 Input

2-way two-wire PT100

 Output

4~20mA,Pulse,OCT,RS485

 Measuring cycle

50 mS. (20 times/s,collect 64 groups data)

 Power supply

DC 24V & AC 220V

 Body material

Carbon steel(Standard), SUS304(Optional), SUS316(Optional)

 Cable length

Max.100m

 Working Temperature

Host:-10-70℃; Sensor:-30℃ ~ +150℃

 Flow direction

Could separately measure forward and reverse flow,and could measure net flow

 Other function

Memory total flow date,month,year

Fault self-diagnosis function

 Turbidity

≤10000 ppm,low bubble content

 Humidity

Host:85%RH

 Straight pipe

Upstream≥10D,Downstream≥5D,Pump outlet≥30D

 Media

Water,Seawater,Acid solution,Cooking oil,Gasoline,Coal oil,Diesel,Alcohol,

Beer and other uniform liquid could transmitting ultrasonic waves

QTDS-30

XXX

X

X

X

X

X

Caliber

50~2000 mm

Body Material

Carbon steel

C

SS304

S0

SS316

S1

Nominal pressure

0.6 Mpa

 P1

2.5 MPa
