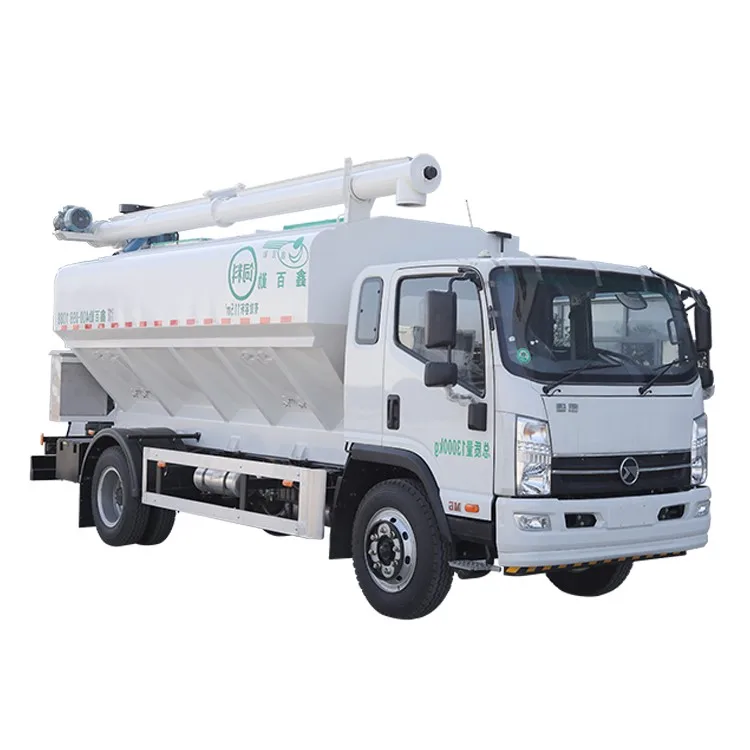

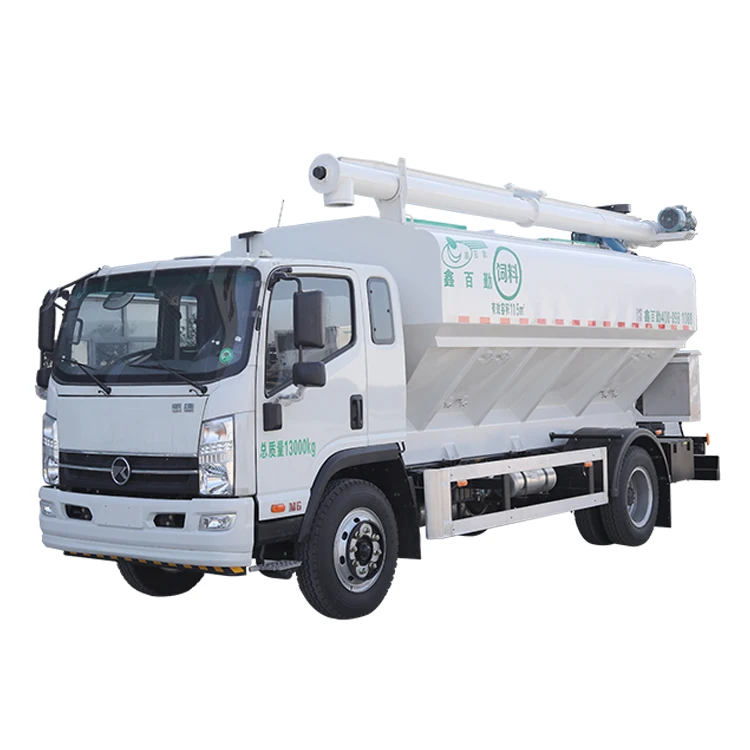

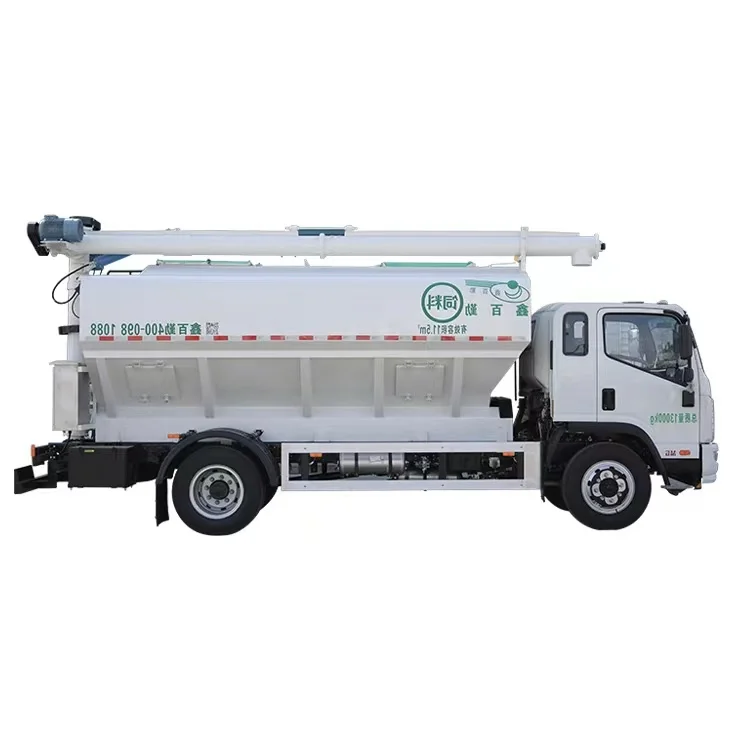

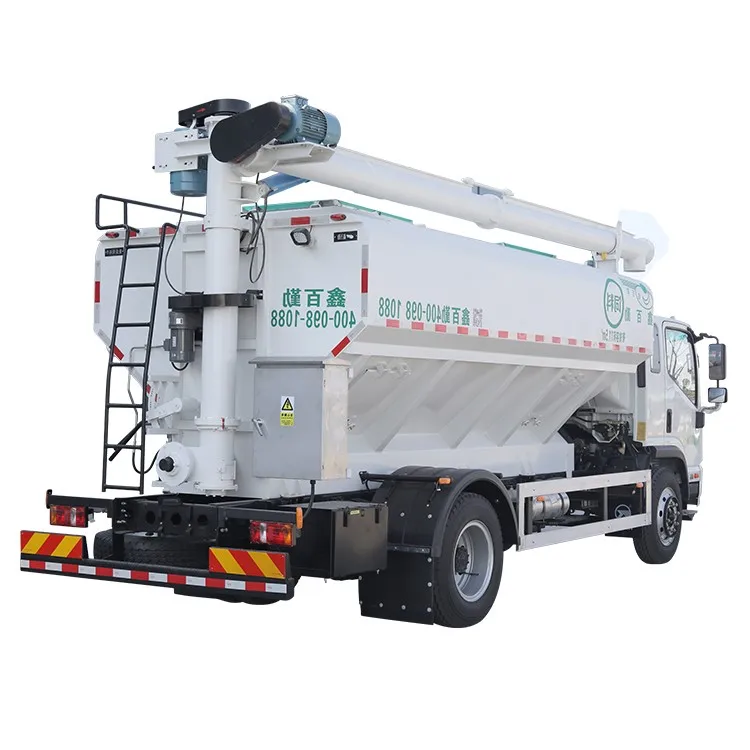

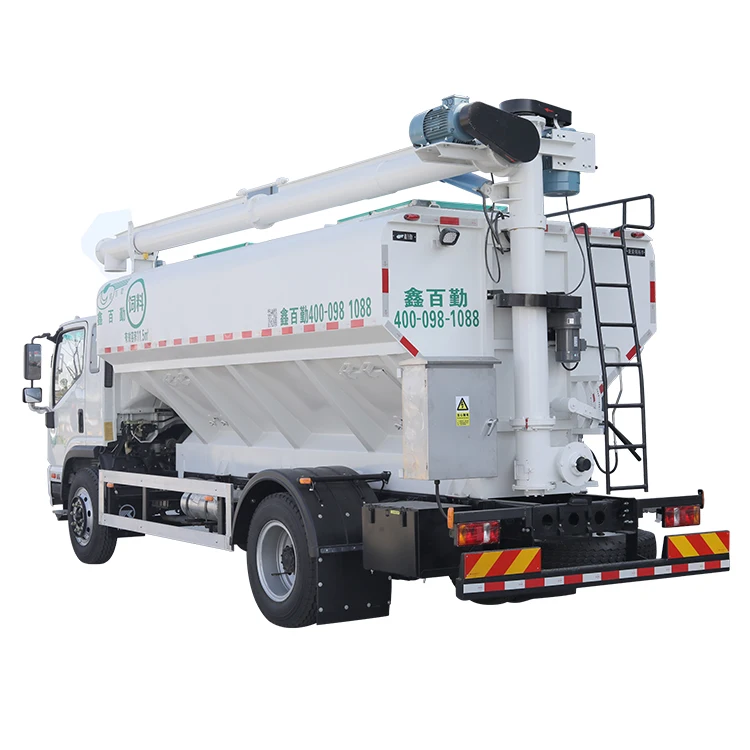

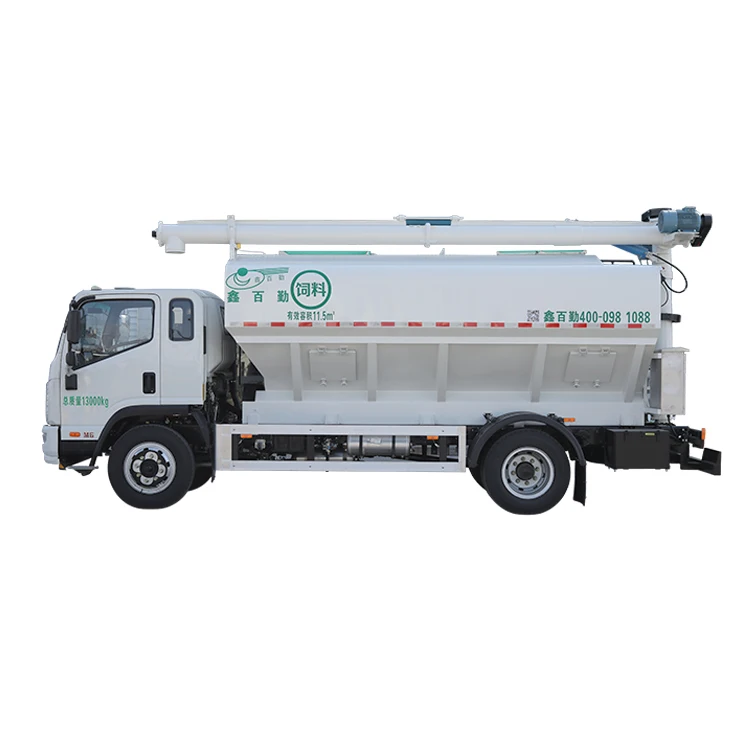

Factory Direct Dongfeng 4x2 142 Horse Power Grain Transport Bulk feed Delivery Truck

Vehicle Parameters

Overall Dimensions
(L*W*H)(mm)

 7620×2380×3480

Tank Dimension
(L*W*H)(mm)

 4800×2350×1750

 Total Mass(kg)

 13000

 Curb Weight(kg)

 7055

 Bulletin loading(kg)

 5750

 Theoretical loading(kg)

 7000

 Max speed(km/h)

 88

 Minimum turning radius(m)

 8

 Certification

ISO9001, 3C

Chassis Parameters

Chassis Model/ Manufacturer

 KMC1142A42P5/ KAMA Automobile Company

Engine model / manufacturer

4DX23-140E5 /FAW Jiefang Automobile Wuxi Diesel Engine Works

Transmission model / manufacturer

LT6T46/Anhui Xingrui Gear Driver Co., Ltd.

Max. output(kw)

 105

Tire specifications

8.25R20 16PR

Cab Type

 4×2 rear wheel drive, capacity 3 people

Engine capacity(ml)

 3857

 Wheelbase(mm)

 4200

Tank Parameters

Tank gross volume (m³)

 14

 Space quantity

 2

 Conveying height(m)

 7.6

 Max conveying distance(m)

 5.8

Discharge speed (Kg/min)

550-650

 Residual rate (%)

 ≤0.22

 Elevation angle of discharge (°)

0~60

Rotation angle of discharge (°)

 ±180

Tank drive form

Tank drive form

Electrical configuration

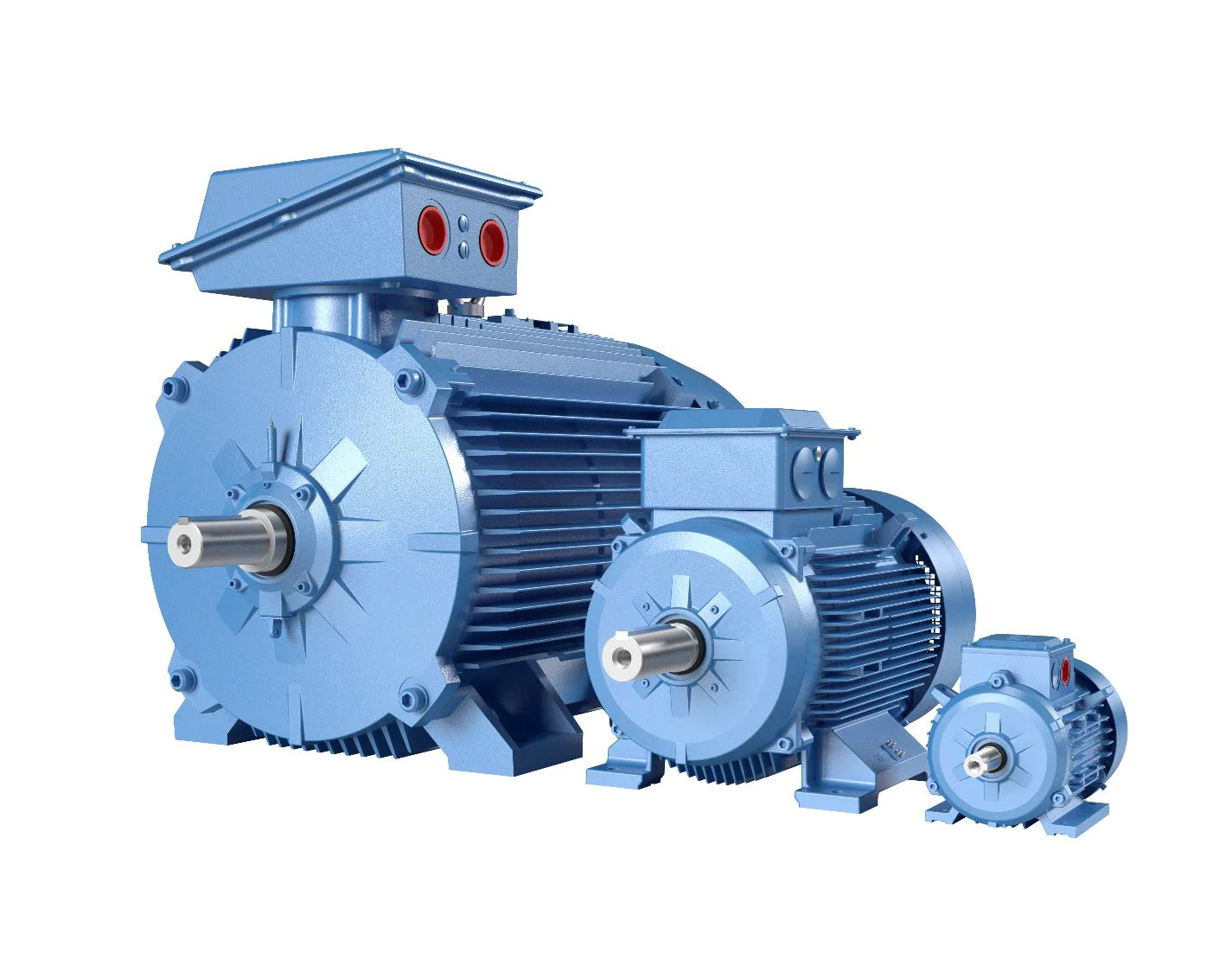

ABB engine in each hydraulic auger, 3 hydraulic augers in total; Schneider Electric Control System; Electronic control interlock protection such as under phase, under voltage and anti-reverse; Equipped with hydraulic auger alarm, rear work light

Hydraulic auger

Use the patent of intermediate support structure, Graphite bearing; Lifting auger steering with wireless remote control

Painting

Professional anti-corrosion paint, Process: sandblasting, polishing, painting

Tank

Made of high-quality carbon steel sheet; The proof is sloping, which increase the fullness and safety factor; and Strict welding process guarantees quality.
