1500kg Electrical Winch Lifting Machine Small for Sale
- Category: >>>
- Supplier: Nantong Allman Industry Co. Ltd.
Share on (1600214141303):
Product Overview
Description
Product Overview

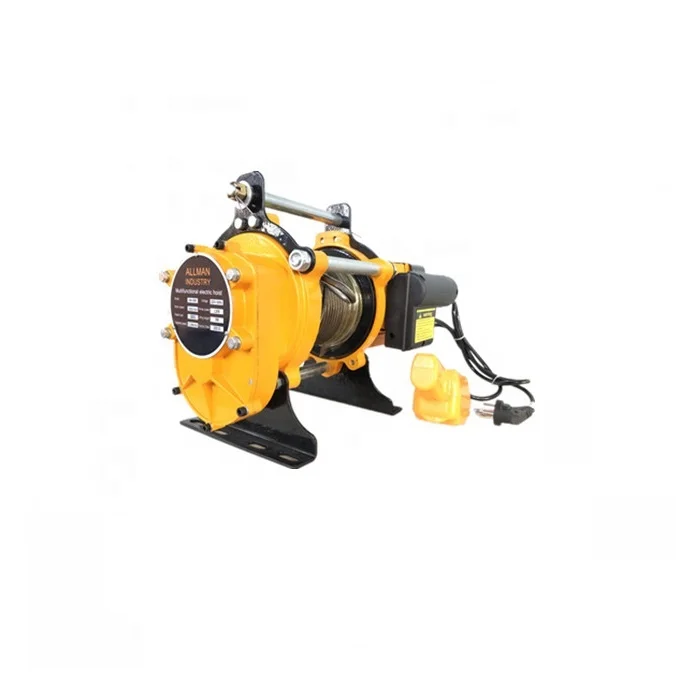

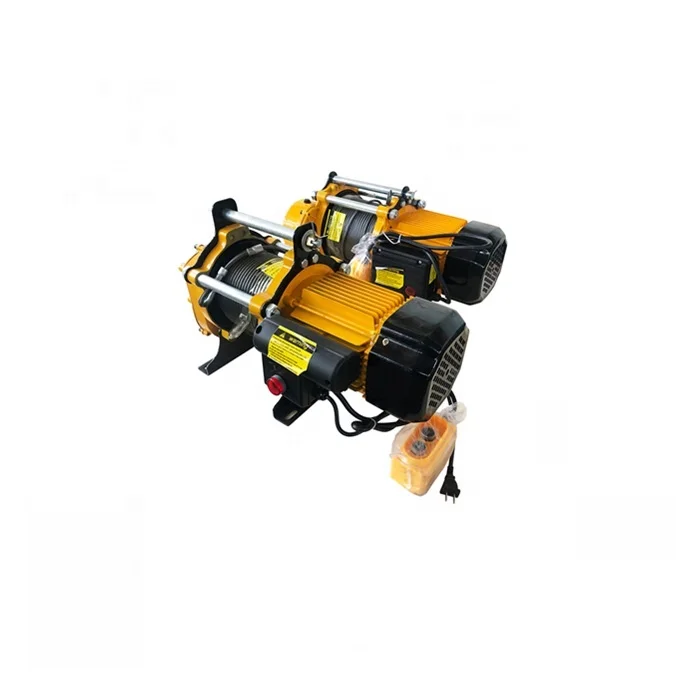

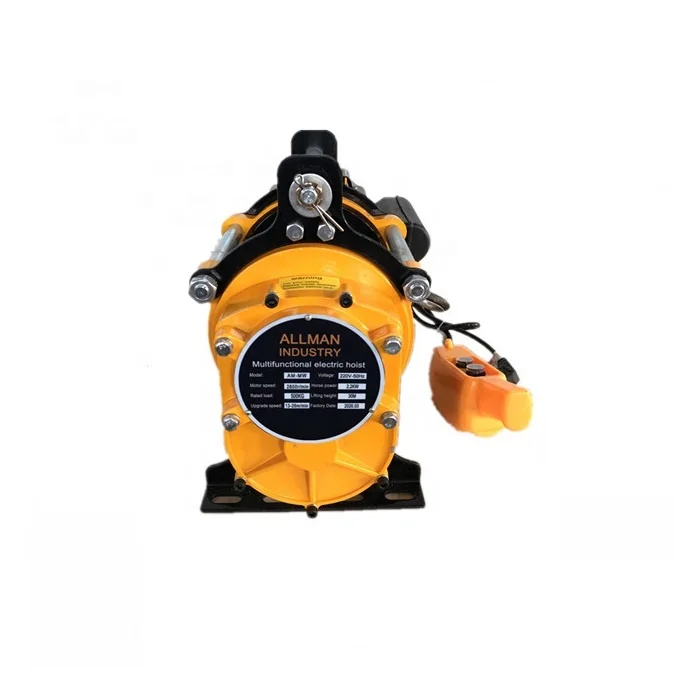

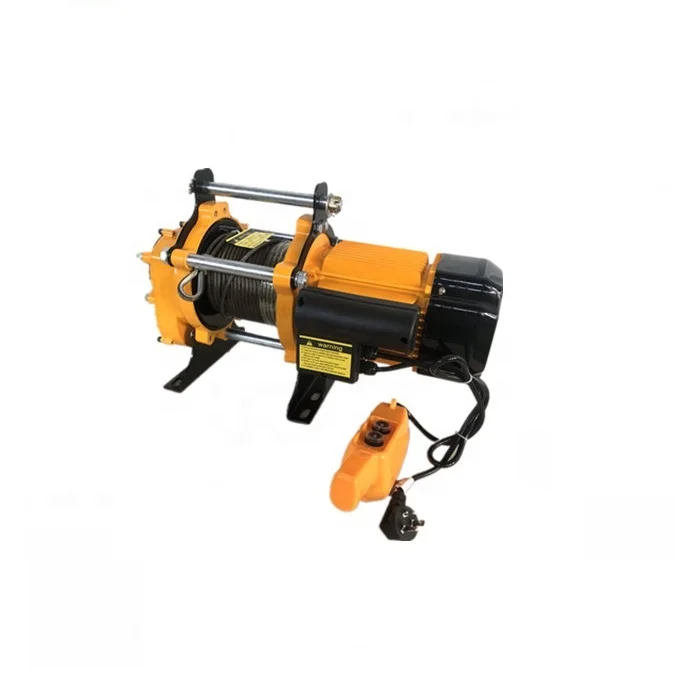

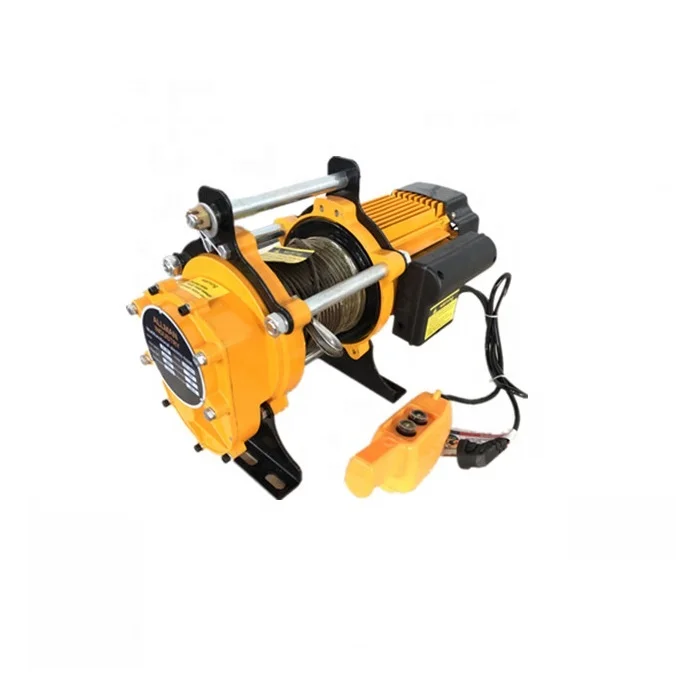

Electrical Winch Lifting Machine Small for Sale
Electrical winch machine small can be configured as the single-phase and three-phase voltage electric winch. So it is largely used in industry and daily life, mostly in light handling operations. It can do horizontal traction and vertical lifting, working as the electric lifting hoist and wire rope pulling hoist at the same time. It is also called as the multi-function electric winch. This electrical winch for sale is made of aluminum shell, which has light weight, excellent working ability, strong power and durability.
Technical Paramenters
Model | AMG 300/600 | AMG 400/800 | AMG 500/1000 | AMG 750/1500 | |||||||||||
Rope Revving | Single Rope | Double Rope | Single Rope | Double Rope | Single Rope | Double Rope | Single Rope | Double Rope | |||||||
Rated Capacity(Kg) | 300Kg | 600Kg | 400Kg | 800Kg | 500Kg | 1000Kg | 750Kg | 1500Kg | |||||||
Wire Rope Length | 30 m ~ 50 m | 30 m ~ 100 m | 30 m ~ 100 m | 30 m ~ 100 m | |||||||||||
Wire Rope Diameter(mm) | 4 mm | 5 mm | 6 mm | 7 mm | |||||||||||
Motor Power(Kw) | 1.3 Kw | 1.4 Kw | 2.2 Kw | 3.0 Kw | |||||||||||
Rated Voltage | AC 220V Single Phase | ||||||||||||||
AC 220V/380V/440V Three Phase | |||||||||||||||
Our Advantages
This electric construction winch only produces very little noise during operation. It is compact and simple, and can be fixed on various surfaces. It is featured with large conveying volume, great lifting height, stable and reliable operation. Because of the double-rope design, its lifting weight is increased from 750kg to 1500kg.
The motor of this portable electric winch is very durable. Because it uses pure copper motor, this motor is not easy to generate heat and can withstand a high temperature of 200℃. In addition, there is a fan for heat dissipation on the side, so its running time will not be shortened due to the heating of the motor.
It is also called aluminum multiple function electric winch. Because in addition to lateral traction, it can also meet vertical lifting and be used with other various machinery. Its top has a bracket stamped and formed by steel plate, which can be used on small cranes or steel beams, with strong load-bearing capacity and not easy to deform.
