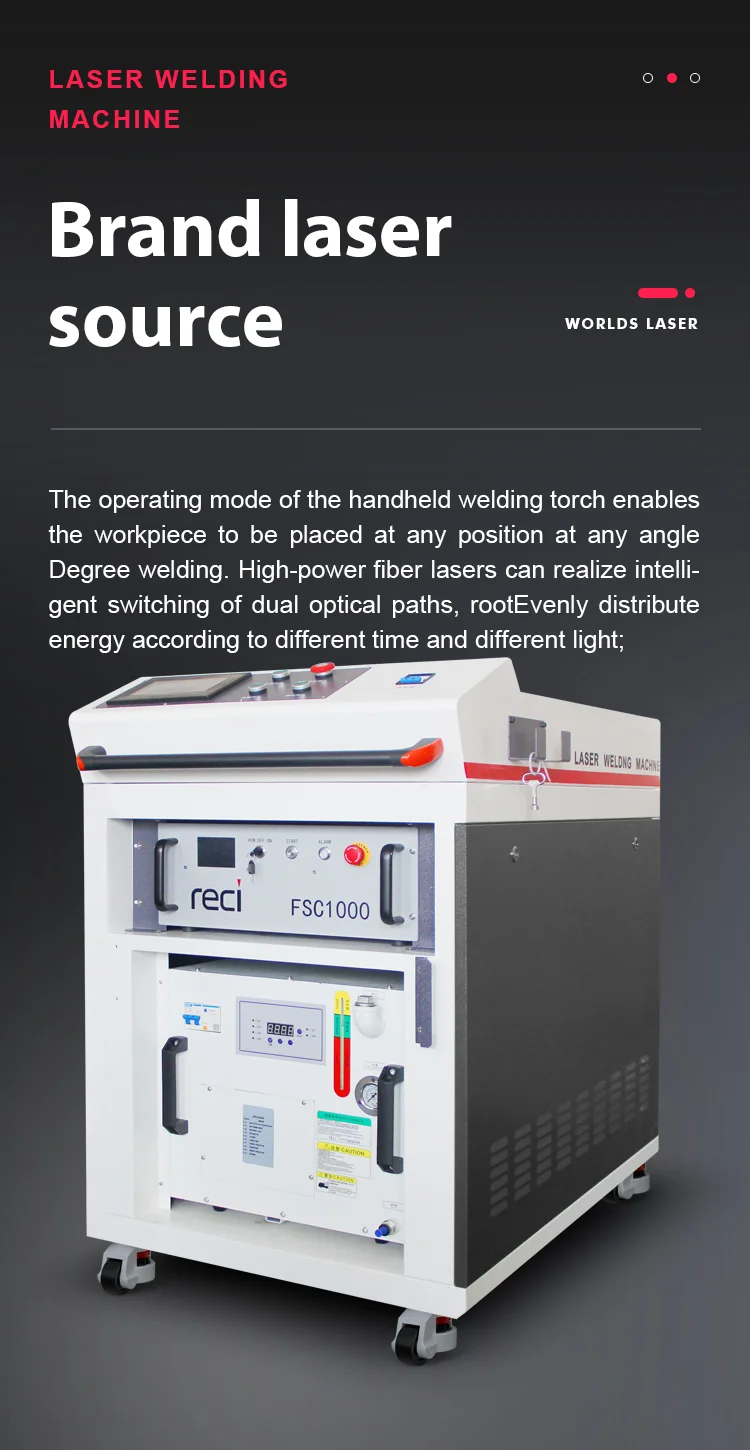

1. This machine adopts 1000/1500/2000 watt fiber laser, which has high electro-optical conversion efficiency and long laser life; 2. the laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional optical fiber transmission laser welding machine, the weld is fine, the depth is large, the taper is small, the precision is high, can fully meet the needs of users in different industries, and the welding is firm. Smooth and flat; 3.the whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs; 4. can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.

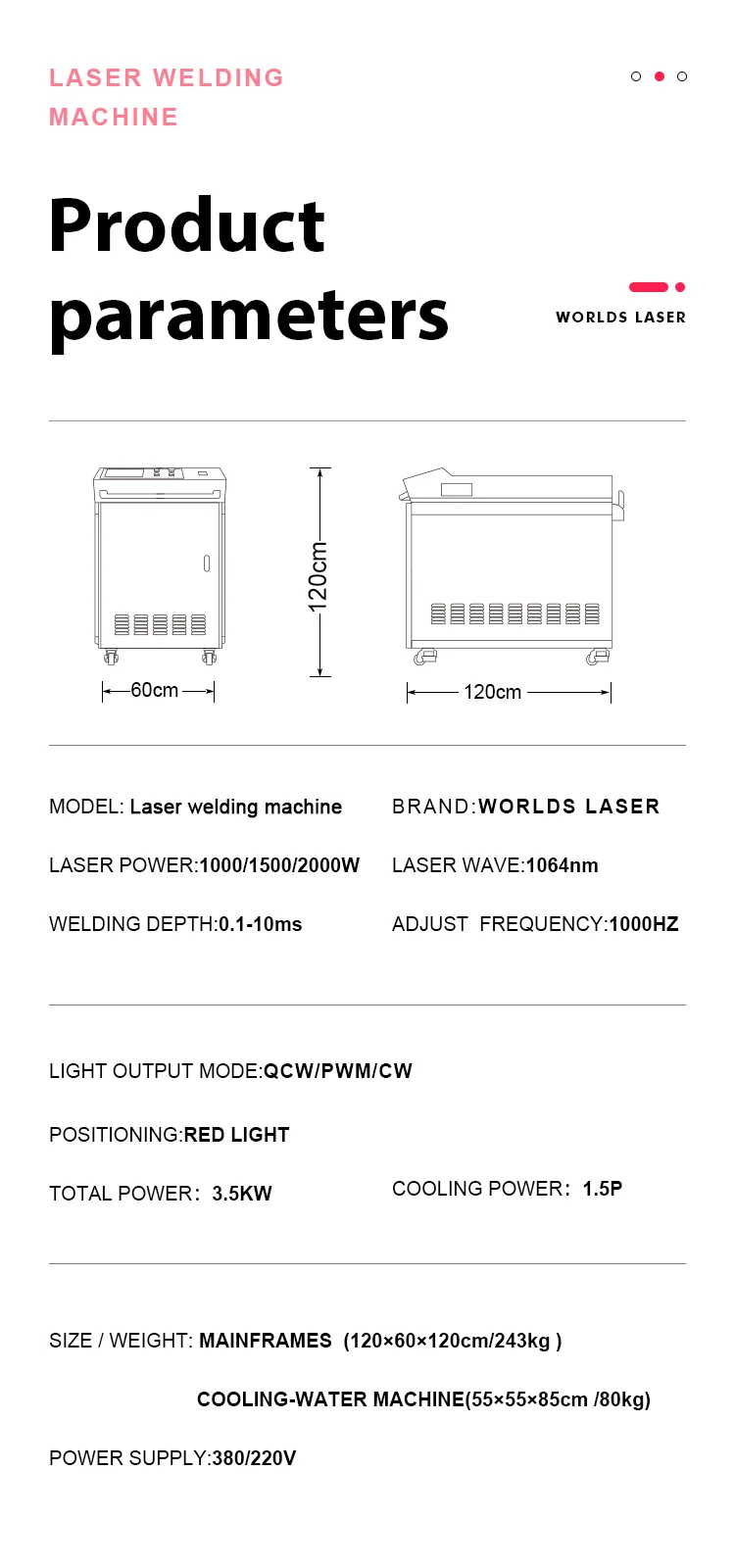

Specification
Number
Characteristic parameter
Test condition
Minimum value
Typical value
Maximum value
unit
1
Operating mode
Continuous
2
polarization state
random
3
Output Power MFSC-1000W
100%continues
1000
W
4
Power adjustment range
10
100
%
5
central wavelength
100%continues
1070
1080
1090
nm
6
spectral bandwidth（3dB）
100%continues
3
4
nm
7
Short-term power stability
100%continues >1h
1
3
%
8
Long-term power stability
100%continues >24h
3
5
%
9
Beam quality M²
100%continues（20u-QBH）
1.3
100%continues（50u-QBH）
2.8
10
Laser turn-on time
10%-90% Output
50
80
µs
11
Laser off time
90%-10% Output
30
50
µs
12
Modulation frequency
100% output
20
50
KHz
13
Indicating red light power
100% output
150
µW
14
Fiber cable length
MFSC-1000W
15
m
15
Output fiber core diameter
50（25、30、100 for choose）
µm
16
Fiber cable bending radius
200
mm
17
output method
standard QBH（LOC）

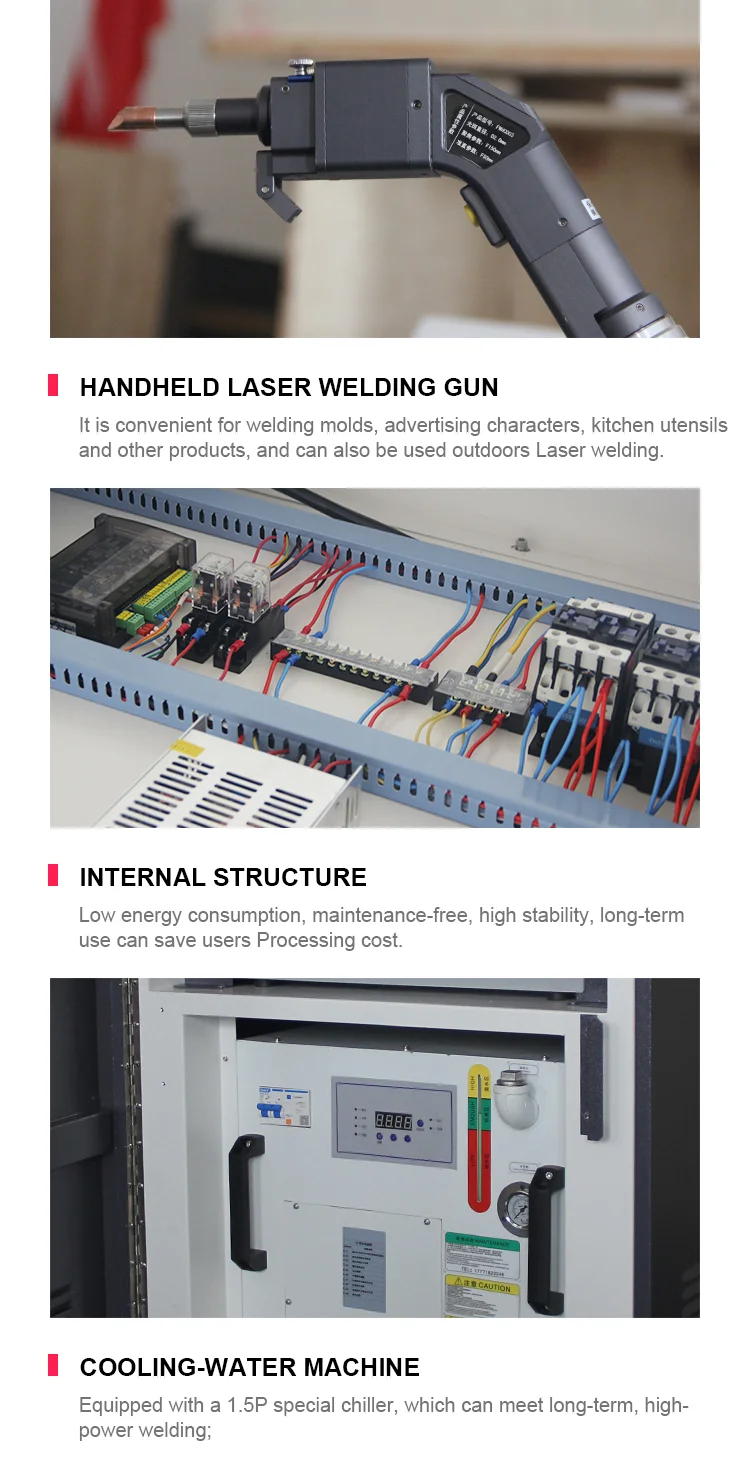

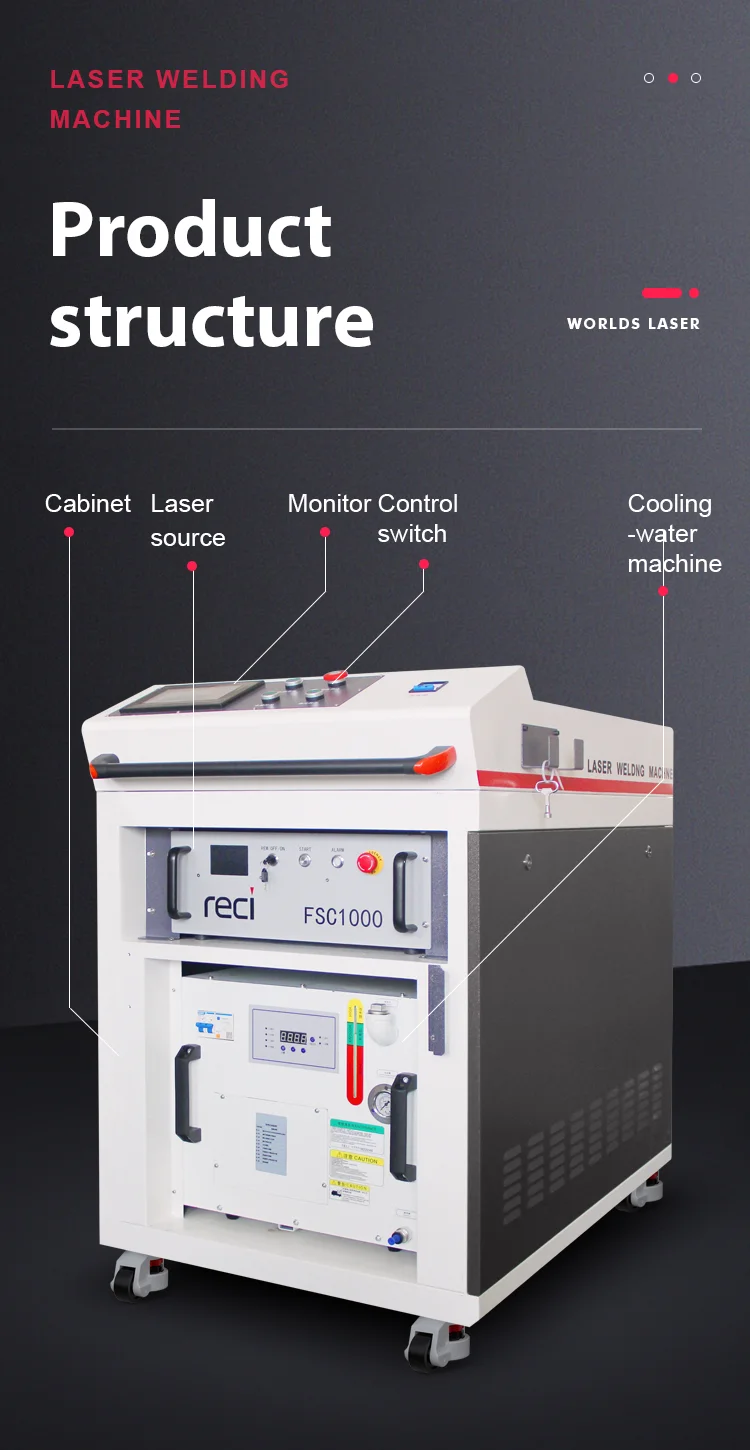

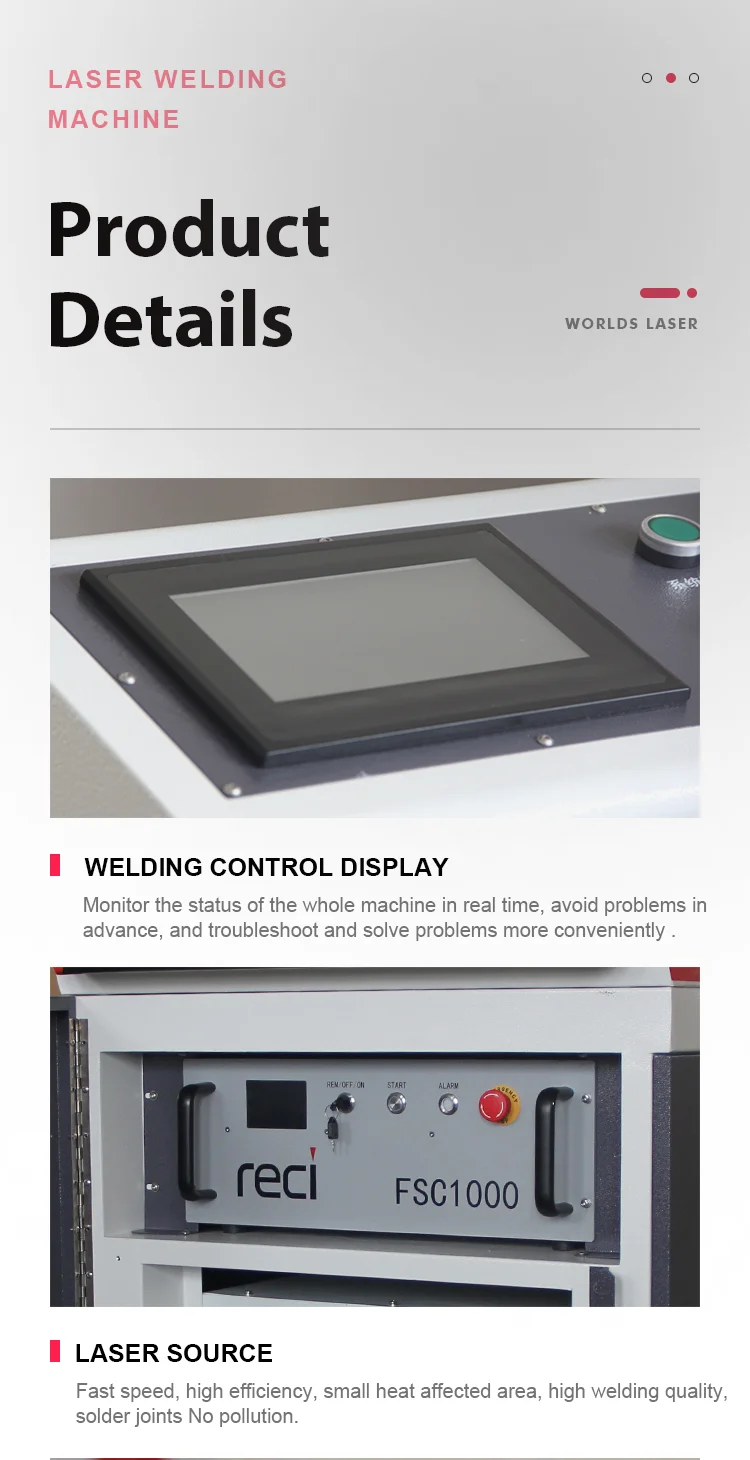

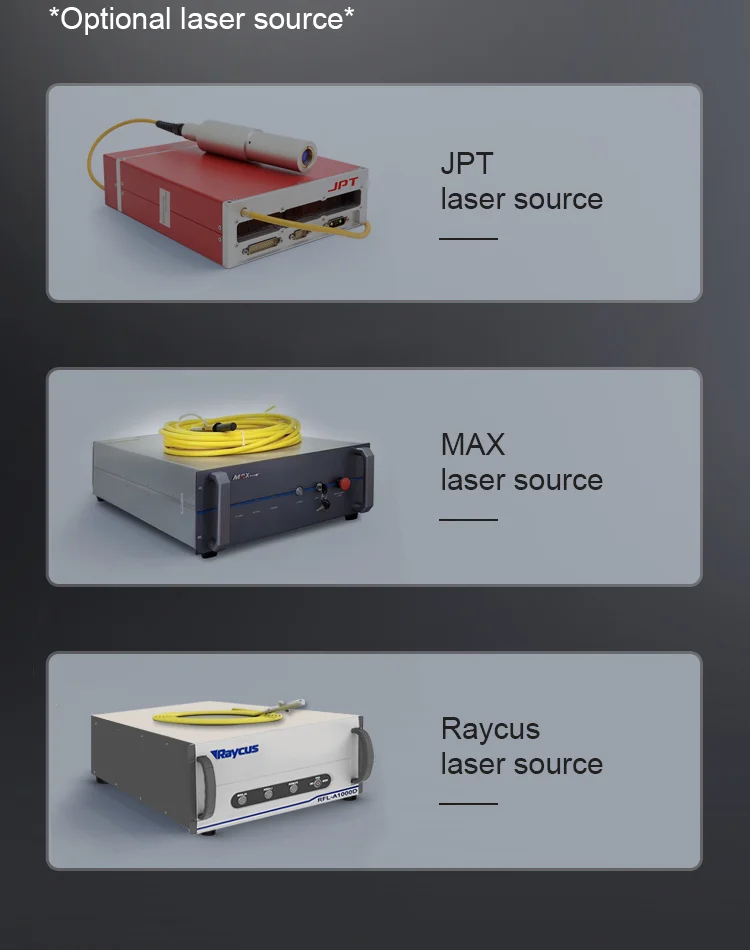

Details Image

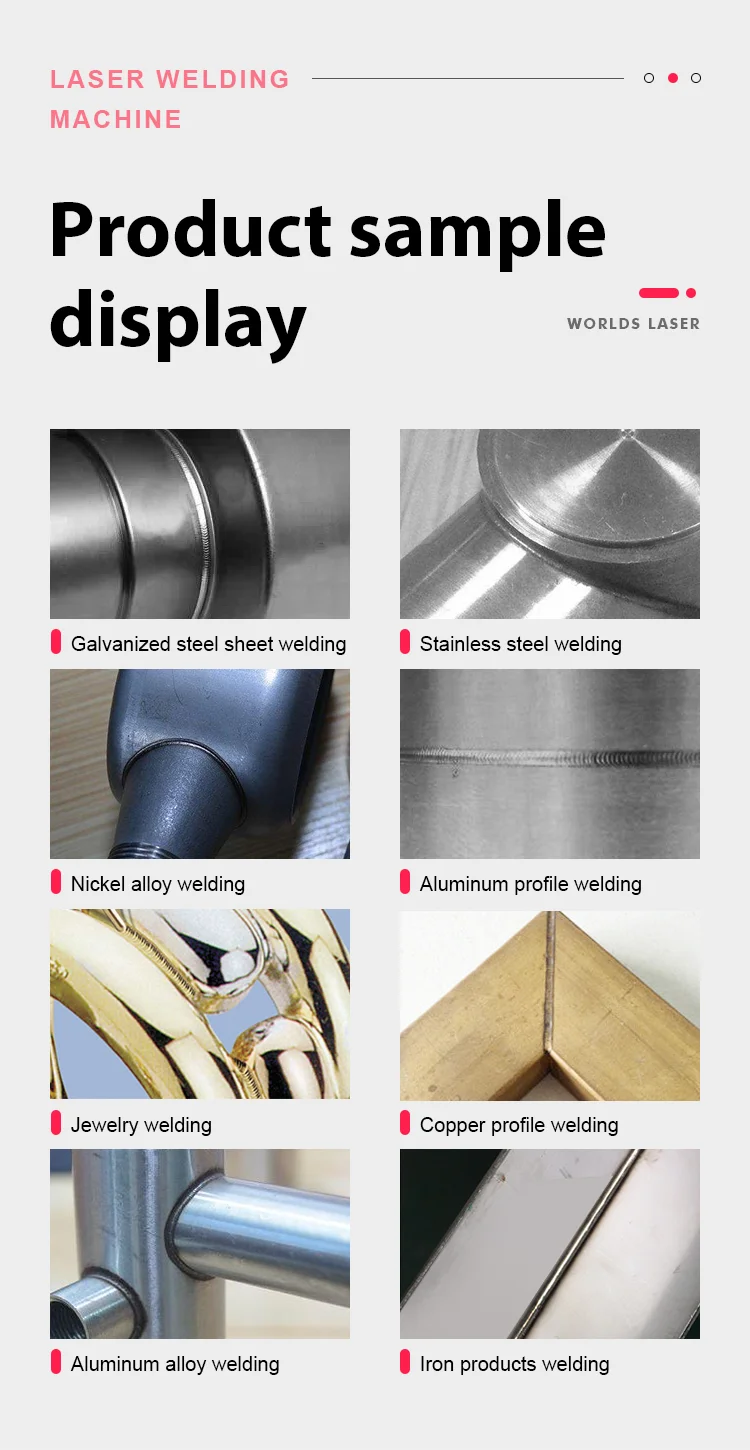

Sampls
Packing & Delivery
Packaging and Shipping：
1.The delivery lead time would be 5-7 working days after recieving the payment.
2.As for the wholsalers/distributors, we could send the cargo by air, by sea via reliable forwarder.

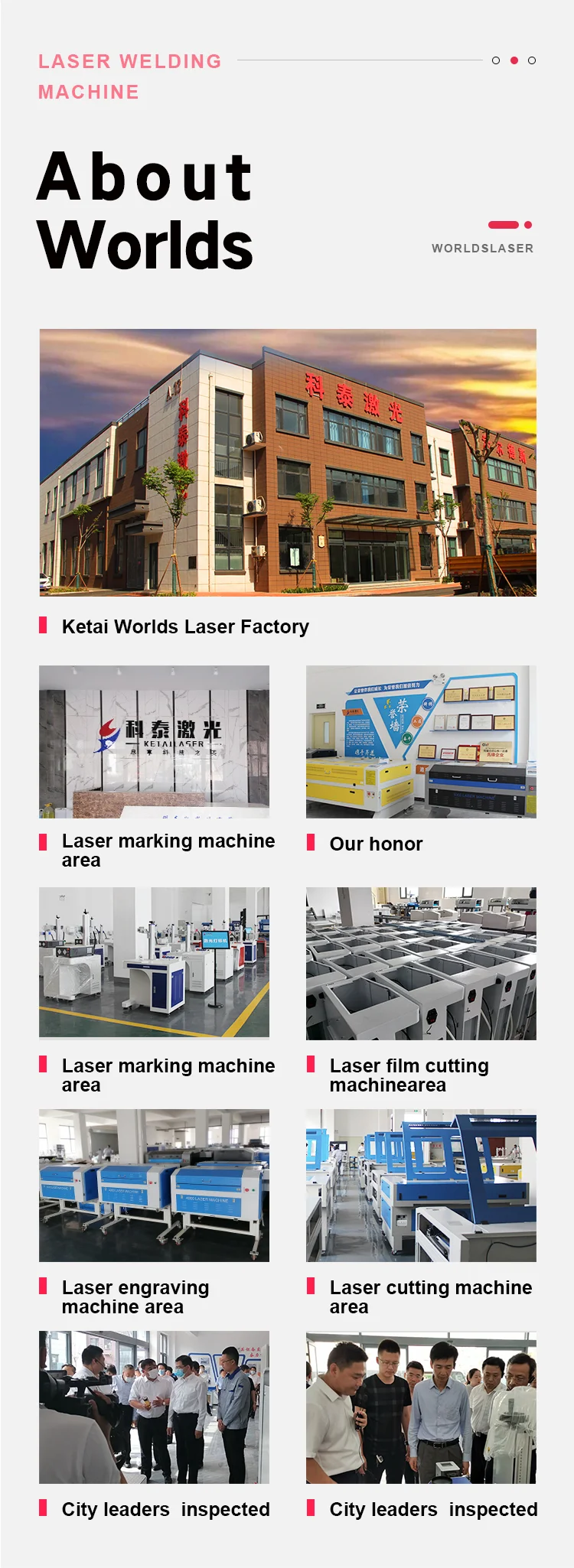

Company Profile
Liaocheng Dongchangfu Ketai Laser Equipment Co., established in 2007,which is located in that beautiful "Jiangbei Water City" Shandong Liaocheng Ketailaser Equipment Co.,Ltd is a high-tech enterprises of scientific research ,production and sales incorporate. Our company has strong technical strength with a complete technical development system and strong ability to innovate,the production of manufacturing has a strict management philosophy and system. We have a professional team with strong customer service awareness of the staff with consummate technology and innovation ability and have rich work experience to pursuit the excellent quality of products .Our company continues to exceed the level of technology research development and standardized of scientific management, excellent product quality and customer respect service philosophy, making our products to win a good corporate honor in the global market .
We specialize in the production of laser engraving cutting machine, laser seal engraving machine, small laser engraving machine, fiber laser marking machine, Co2 laser marking machine, metal laser cutting machine, fiber laser cutting machine, CNC cutting machine, as well as accessories, laser tube, linear guide , the laser head, the laser machine working platform and KT series engraving and cutting machine. Our company independent research and development constantly extend the product range to meet a variety of customer requirement. Our products are widely used in advertising, decoration, textile and garment producing artistic processing, furniture manufacturing industry, craft or gift industry, flexible materials industry, the metals industry and the electronics and chip industries.
Our company adhere to the faith "quality first, service-oriented" .Our machines has been in many international famous exhibitions , in the premise pursuit of a win-win customers with companies under the vigorous development. All of the products have passed the certification, also gained high reputation in domestic and international. We have a preferential price and quick attentive service. Our products have been sold in Asia ,, Europe, Oceania, North America, South America, including the countries are the United States, Britain, Italy, Germany, Colombia, Vietnam, South Korea, Russia, France, etc.
We will put our best products recommended to more countries, and develop more distributors in many countries around the world. We are honored to with more international friends develop our glorious business.
FAQ
1. who are we? We are based in Shandong, China, start from 2012,sell to Domestic Market(40.00%),North America(9.00%),South America(8.00%),Western Europe(8.00%),Southeast Asia(6.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Northern Europe(5.00%),South Asia(5.00%),Eastern Asia(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Laser Engraving Machine,Laser Cutting Machine,Laser Marking Machine
4. why should you buy from us not from other suppliers? We can offer good price, high quality products.We also have a professional after-sales team.
5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese
Survice
1. Be responsible for training the demanding operators (the training content is the ke technology laser welding machine operating system); 2. equipment free warranty for one year, except for consumables. (human failure and non-equipment quality) Causes and natural disasters), life time maintenance; 3. Free technical consultation, software upgrade and other services; 4. The response time of customer service is within 24 hours; 5. Provide all kinds of machine accessories in our cost price permanently.
