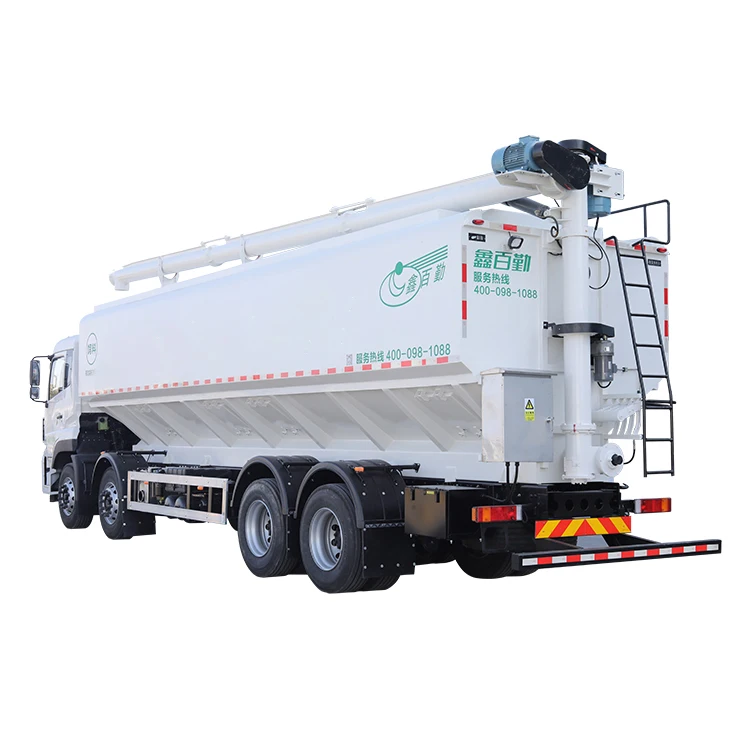

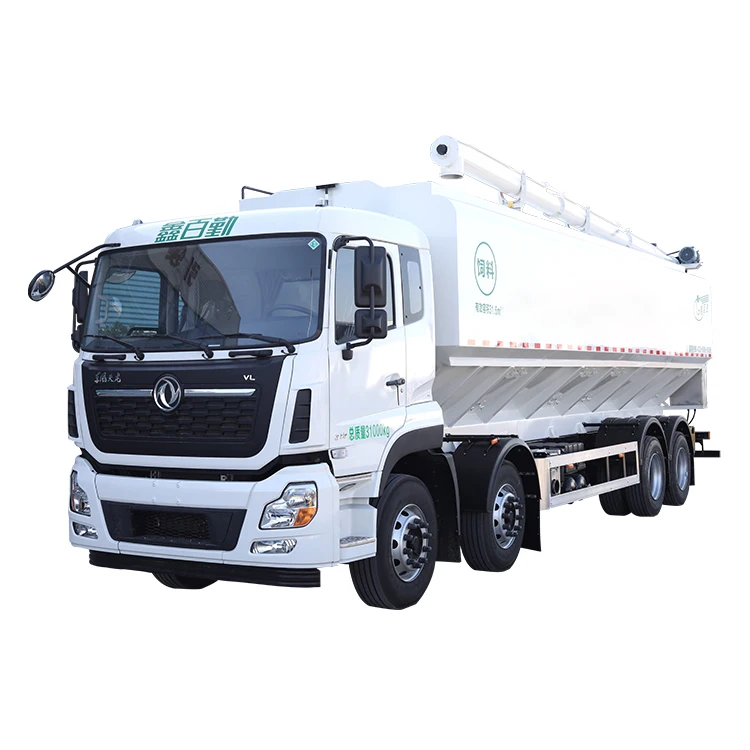

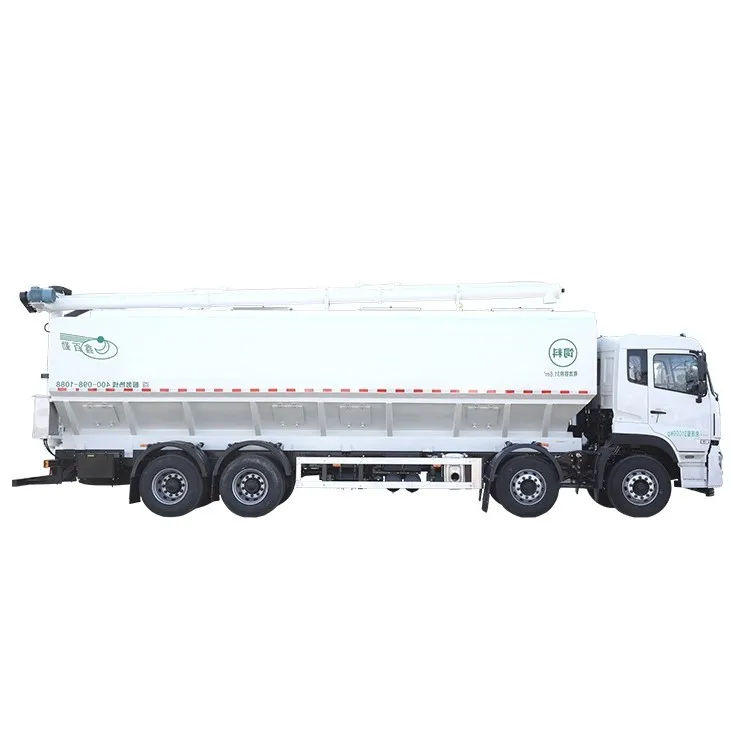

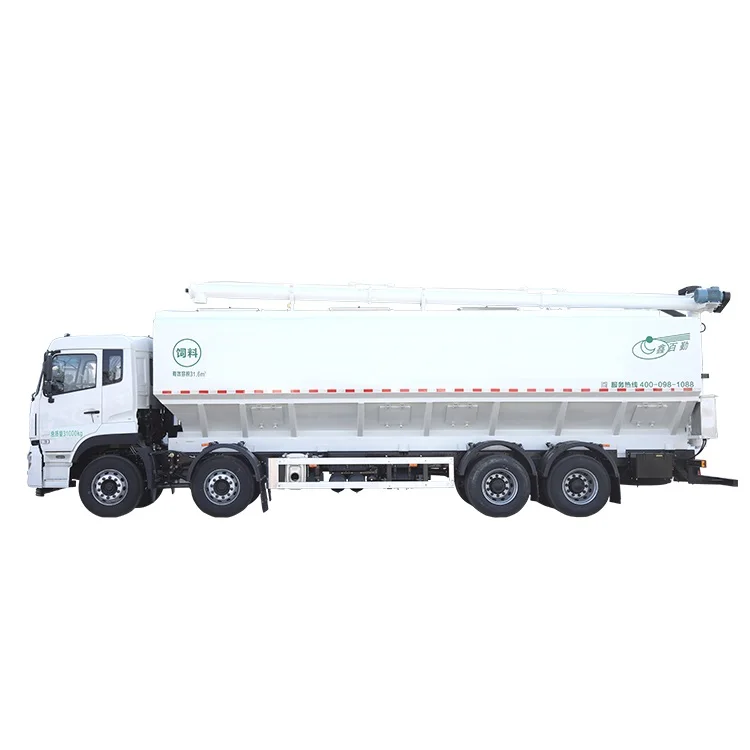

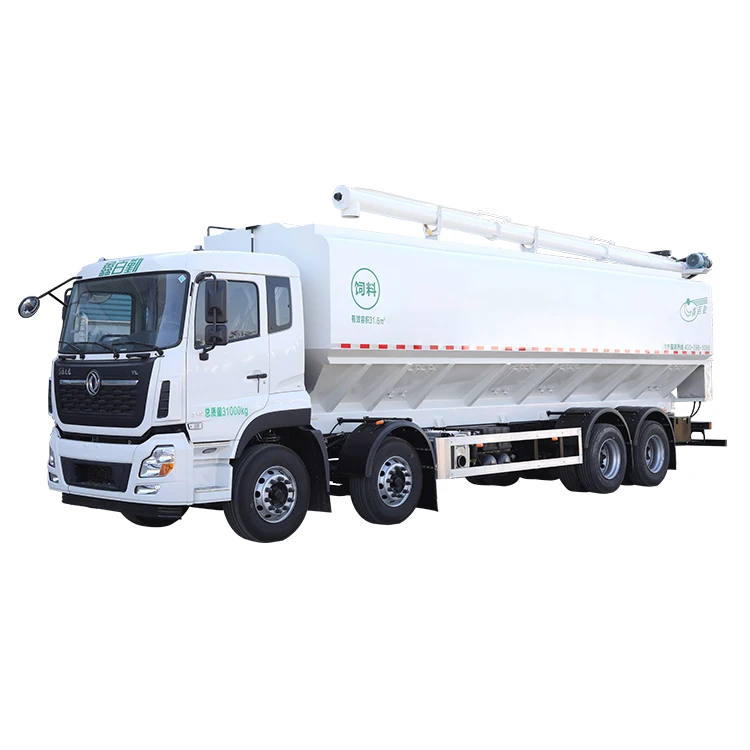

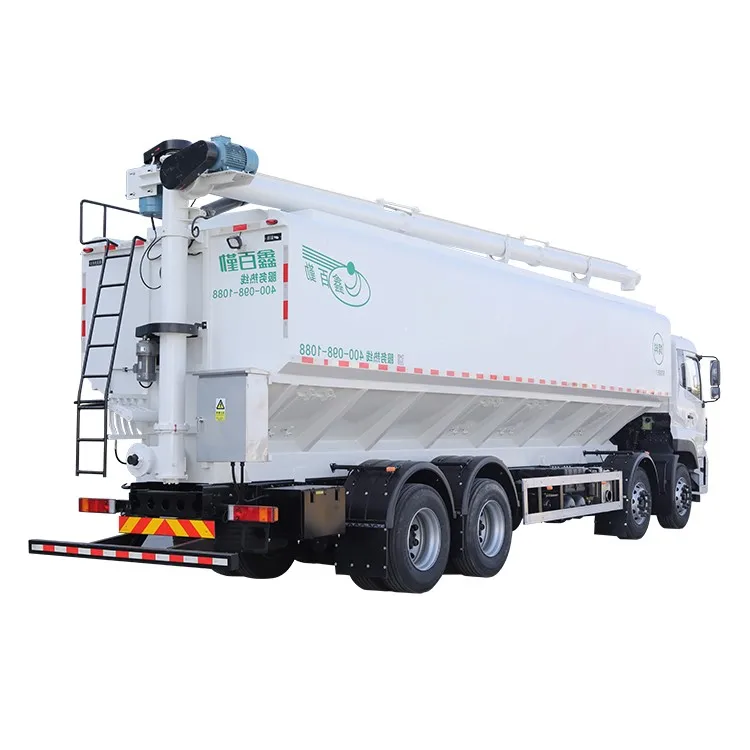

Original Design Dongfeng 8x4 Bulk Feed Transport Truck Poultry Feed Truck

Vehicle Parameters

Overall Dimensions
(L*W*H)(mm)

12000×2500×3990

Tank Dimension
(L*W*H)(mm)

9150×2480×2249

Total Mass(kg)

31000

Curb Weight(kg)

15770

Bulletin loading(kg)

15100

Theoretical loading(kg)

21000

Max speed(km/h)

90

Minimum turning radius(m)

12

Appearance color

White/ optional

Comprehensive fuel consumption

33.2

Certification

ISO9001, 3C

Chassis Parameters

Chassis Model/ Manufacturer

DFH1310A1 /Dongfeng Trucks Company

Engine model / manufacturer

ISL9.5-315E51A /Dongfeng Cummins Engine Co., Ltd.

Transmission model / manufacturer

12JSD160TA/ Shaanxi Fast Gear Co.,Ltd.

Max. output(kw)

232

Tire specifications

295/80R22.5 18PR

Cab Type

8×4 rear wheel drive, capacity 2 people

Engine capacity(ml)

9460

Wheelbase(mm)

1850+4600+1350

Travel recorder model

BSJ_A6BD/ShenZhen Boshijie

ABS Model/manufacture

 3631010/Dongfeng Electronic Technology Co.,Ltd

Tank Parameters

Tank gross volume (m³)

39

Space quantity

4

Conveying height(m)

10.5

Max conveying distance(m)

8.8

Discharge speed(Kg/min)

550-650

Residual rate(%)

≤0.22

Elevation angle of  discharge(°)

0~60

Rotation angle of discharge(°)

±180

Tank drive form

External power and generator (Permanent magnet generator 20kw/380V. It is recommended to use an external power supply for unloading, which is low cost, environmentally friendly and low vehicle attrition)

Electrical configuration

Complete set of Schneider Electric control system; conveyor motor ABB, with 20m external power cable, external power supply 380V

Hydraulic auge

Use the patent of intermediate support structure, Graphite bearing; Lifting auger steering with wireless remote control.

Painting

Professional anti-corrosion paint. Process: sandblasting, polishing, painting.

Tank

Made of high-quality carbon steel sheet; The proof is sloping, which increase the fullness and safety factor; and Strict welding process guarantees quality.
