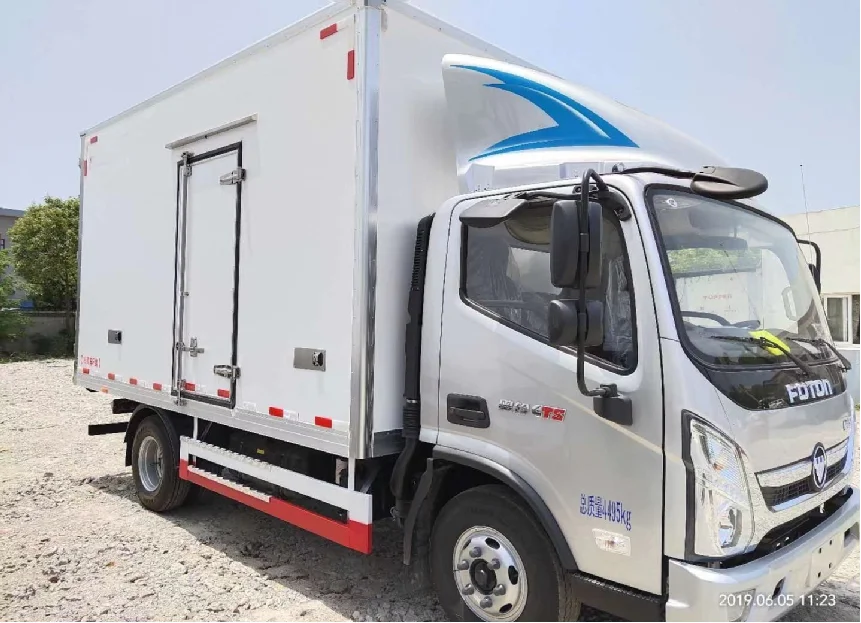

Hot sale best quality Foton ollin 5.2 m refrigerated refrigerator cold chain cars transport vehicle truck

Vehicle Parameters

Overall Dimensions(L*W*H)(mm)

6995×2450×3520

Total Mass(kg)

9995

Curb Weight(kg)

5305

Bulletin loading(kg)

4495

Fuel consumption (l/100km)

20.2

 Max speed(km/h)

90

Approach angle/Departure angle(°)

16/11

Chassis Parameters

Chassis Model/ Manufacturer

BJ1108VEJEA-FA/Foton Motor Group

Engine model / manufacturer

ISF3.8s5154/BeiJing Foton Cummins Engine Co.,ltd

Transmission model / manufacturer

6-speed gearbox/ZheJiang Wanliyang Co.,ltd

Drive Mode:

4×2 rear wheel drive

Wheelbase(mm):

3800

Cab Type:

Single Cab 2060mm

Passengers:

3

Engine capacity(ml)

6870

Maximum torque and rated speed (n.m)/(r/min)

491N.m

Rated power (kw)

154KW

Tire specifications

10.00R20

Cruise/MP3/ABS/(T-BOX), 3.6T front axle, 6.5T rear axle, 220 girder, 220-liter aluminum fuel tank, central control, remote control, electric door, air conditioning

Special device parameters

Fitted carriage (m):

5.2

Applicable unit:

Carier C700

Kingtec MK680

Unit type:

Non-independent unit

Refrigerating capacity:

0℃/30℃

-20℃/30℃

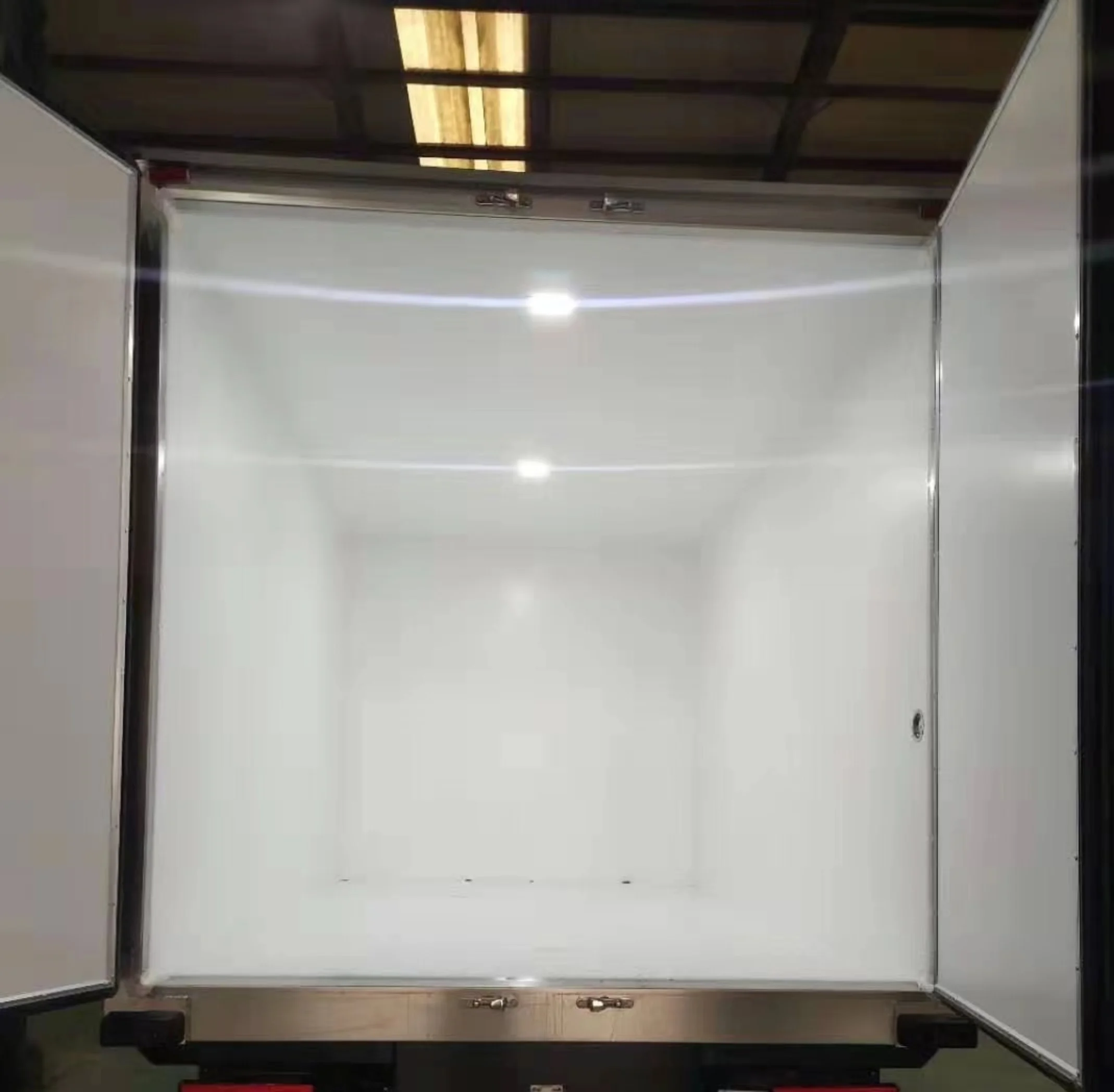

The inner and outer skins are food-grade FRP, and the insulation material is made of German Bayer rigid polyurethane foam. The hardware is made of stainless steel. The thickness of the compartment board: the top and bottom plates are 85mm, the side and door panels are 75mm, and the thermal insulation performance exceeds the national standard GB29753-2013 Class I standard with a total heat transfer coefficient less than 0.4. The external profile is a rivet hidden design, the back door is sealed with a buckle aluminum profile bead and airbag type sealing, ultra-thin LED lighting, and a new flat power switch device.
Bottom plate optional (patterned aluminum bottom plate/glass steel bottom plate/stainless steel pattern bottom plate)
