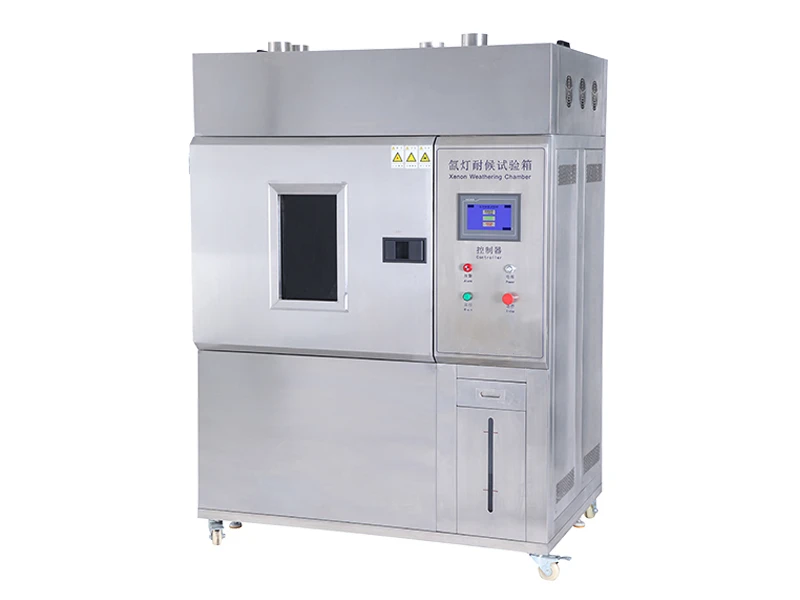

Automatic Air cooled Simulated UV Temperature test Chamber Xenon aging Test Chamber
Automatic Air cooled Simulated UV Temperature test Chamber Xenon aging Test Chamber

Automatic Air cooled Simulated UV Temperature test Chamber Xenon aging Test Chamber

Share on (1600214542012):


Price:

Quantity:


Product Overview

Description



Details Images












Application


Vehicle
Electronic
Parts


Plastic
Foods
Chemistry


Product Paramenters


Item
Specification

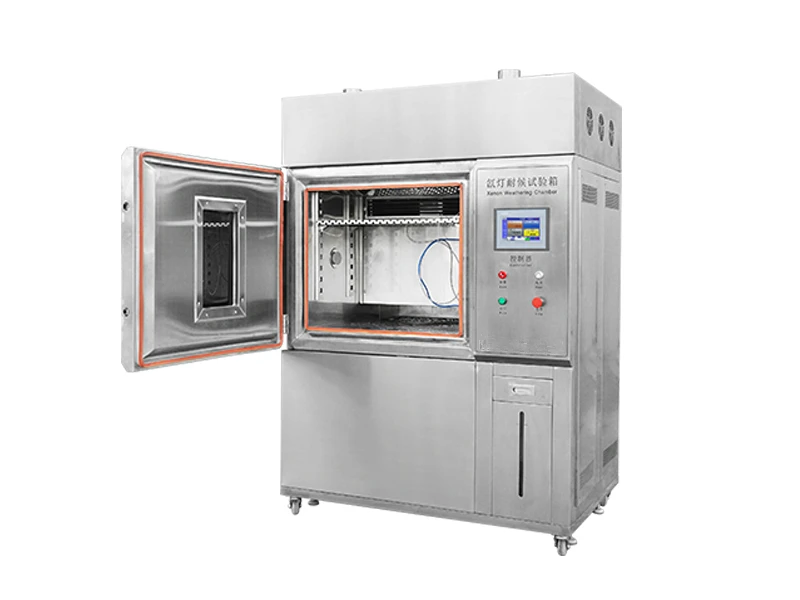

Internal Dimension (W*D*H)
700*500*600mm
External Dimension (W*D*H)
1350*1300*1850mm
Internal chamber material
SUS 304 # Stainless Steel, anti-rust
External chamber material
Cold-rolled steel with spray
Chamber humidity range
55%~90% RH
Chamber temperature
35℃~90℃
Black panel temperature
45℃~95℃, adjustable
Temperature uniformity
≤±3℃
Filter
Window glass filter / daylight filter

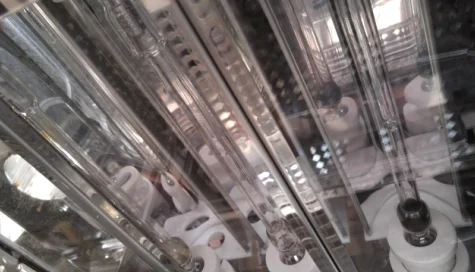

Light source
Air cooled long arc xenon lamp
Xenon lamp power
1.8KW * 3pcs = 5.4KW
Irradiance strength
0.51W/m2@340nm

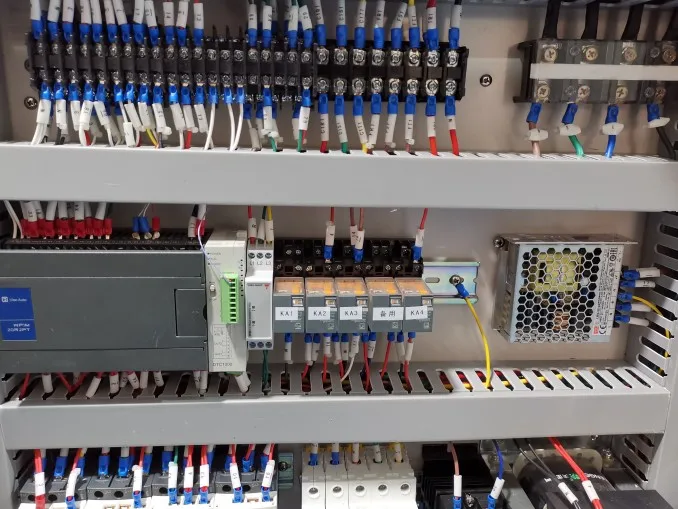

Control system
LCD programmable controller,
Auto display irradiance, capacity: 100 groups program, 99 cycles.
Illumination time
1~999 hours, adjustable

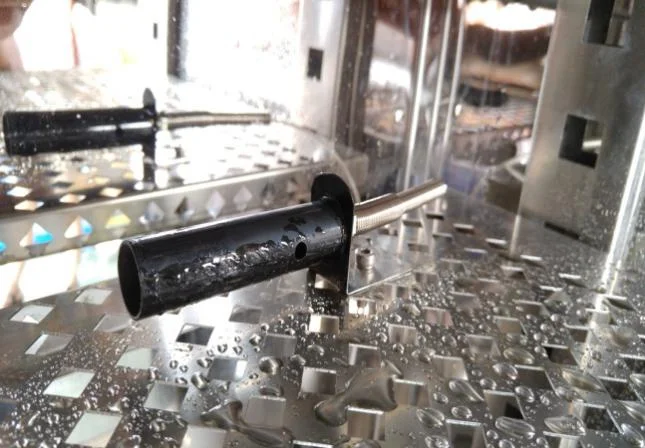

Water spray system
Water spray time 999 minutes settable
Interval spray time, 1~240 minutes settable

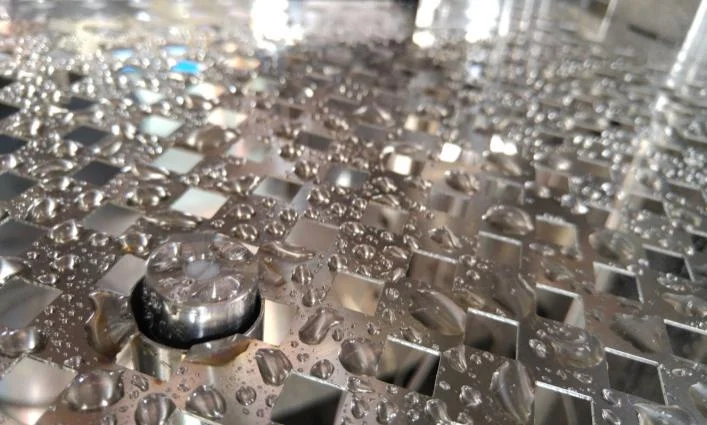

Sample holder
Stainless steel, 1pc
Distance from sample
holder to lamp
250~300mm
Heating
Nickel-chromium alloy electric heater
Humidification power
Stainless steel surface evaporative humidifier
Insulation materials
Supper fine glass fiber
Temperature sensor
PT100 high precision sensor
Air circulation system
Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Standard accessories
Xenon lamp x 3pcs;
Humidification cotton x 5pcs;
English user manual x 1pc;
Operation video x 1pc


Description
Xenon aging test chamber can simulate the full sunlight spectrum of xenon arc lamp to reproduce the destructive light waves in different environments, to provide the appropriate environmental simulation and accelerated test for scientific research, product development and quality control.

Climate Tester can provide xenon Weathering test chamber simulate the hazards caused by sunlight, rain and dew, the leading cause of product degradation, application materials such as coatings, plastics, aluminum panels, and automotive safety glass.


Introduction

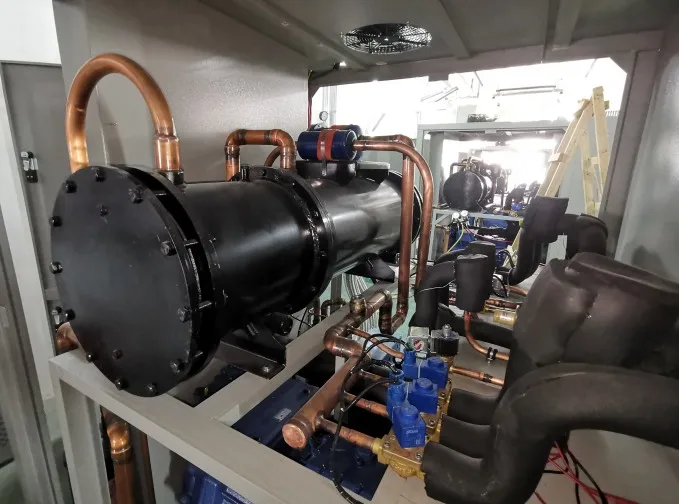

1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.
3, Temperature sensor: PT100 platinum resistance thermocouple.

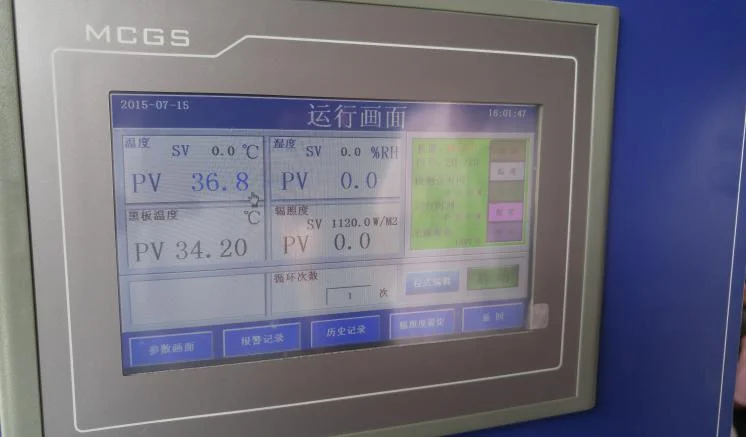

4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several
parameters to do cyclic test, directly digital temperature display for easy reading.

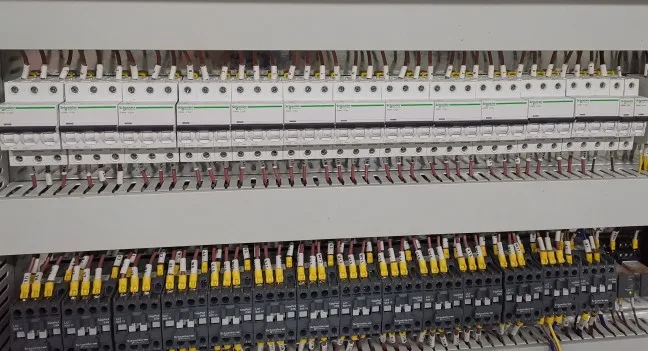

5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage
protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once
open the door.




Company Profile


HUDA Technology Co.,Ltd
We are a professional environmental reliability testing enterprise integrating R&D, manufacturing, sales and service. Since its establishment, it has gathered a group of experienced and skilled R&D personnel and an efficient and professional after-sales service team. With the spirit of innovation, focus, professionalism, and integrity, through the spirit of continuous improvement, we have created large-scale customized and complex experiments with design and manufacturing.


Reception

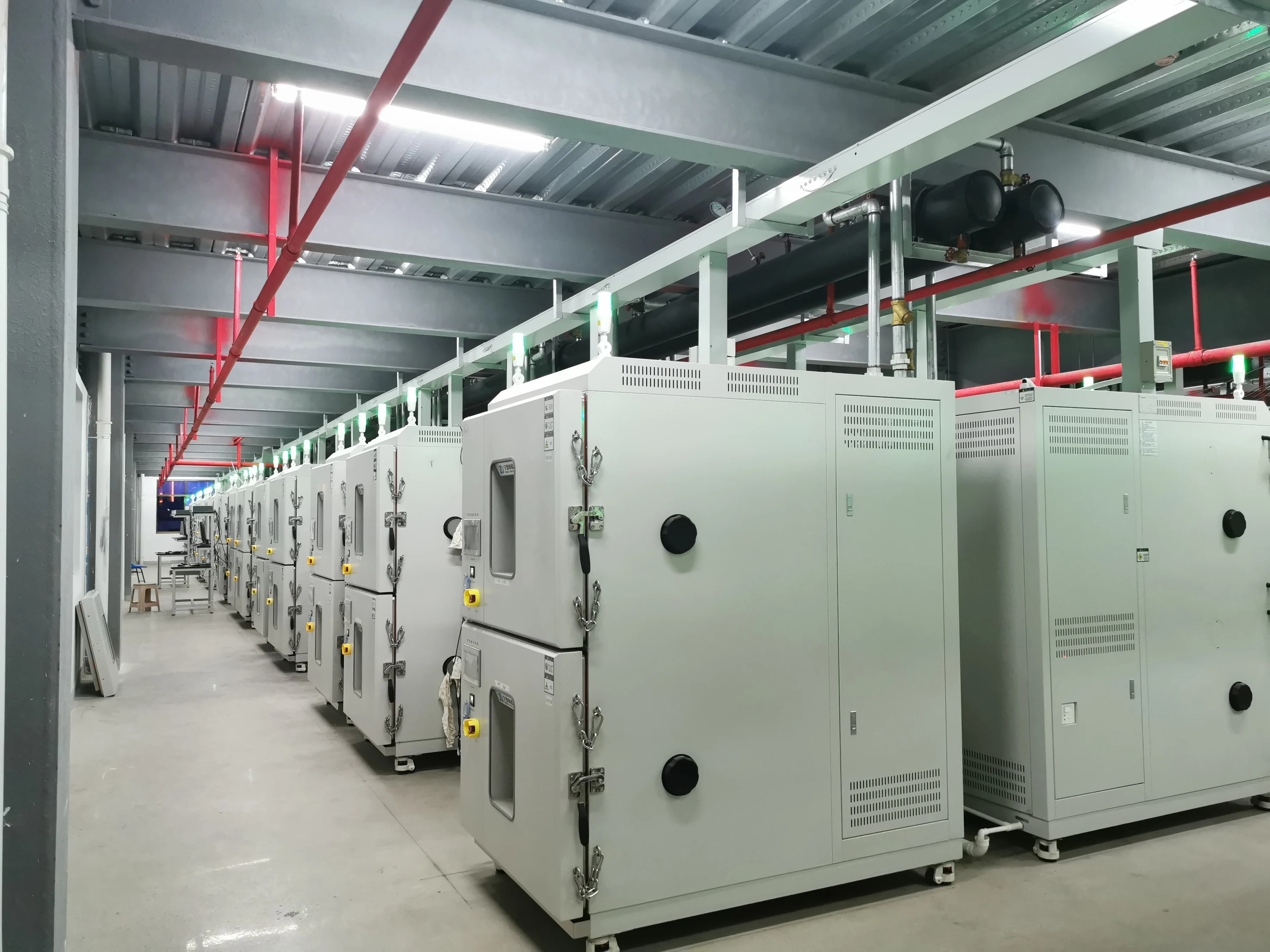

Dongguan factory
