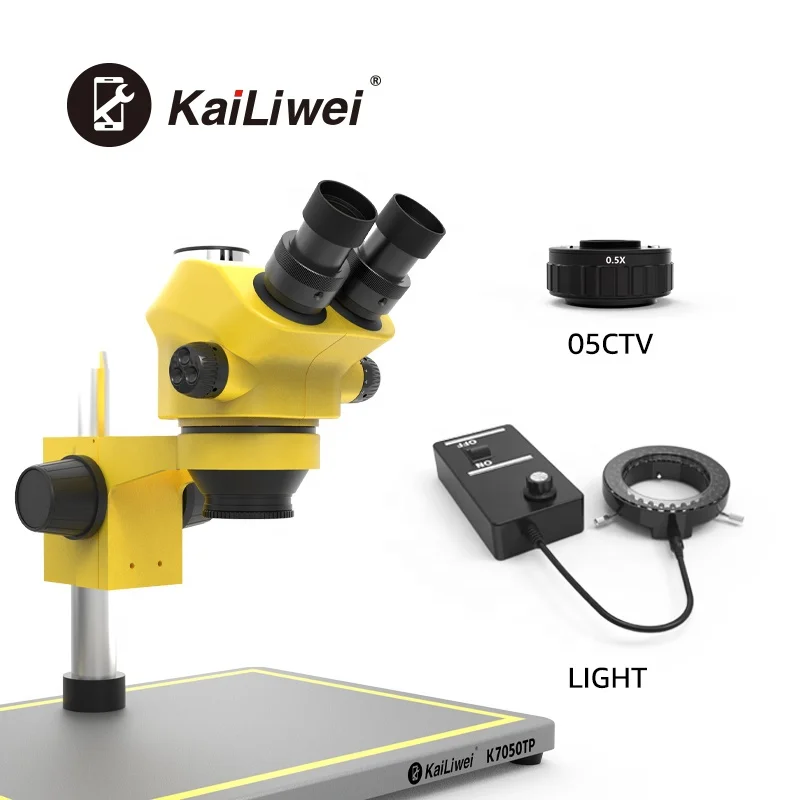

Kailiwei Industrial Trinocular Stereo Microscope Magnification Continuous Zoom 7X 50X with big base
- Category: >>>
- Supplier: Shenzhen Ksl Electronic Equipment Co. Ltd.
Share on (1600214545148):
Product Overview
Description
Products Description

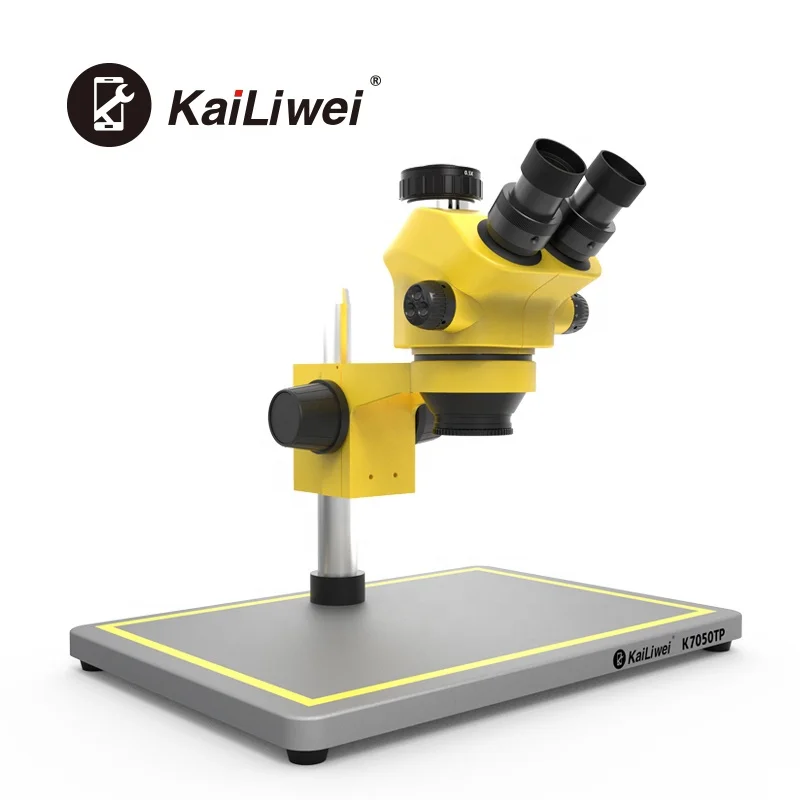

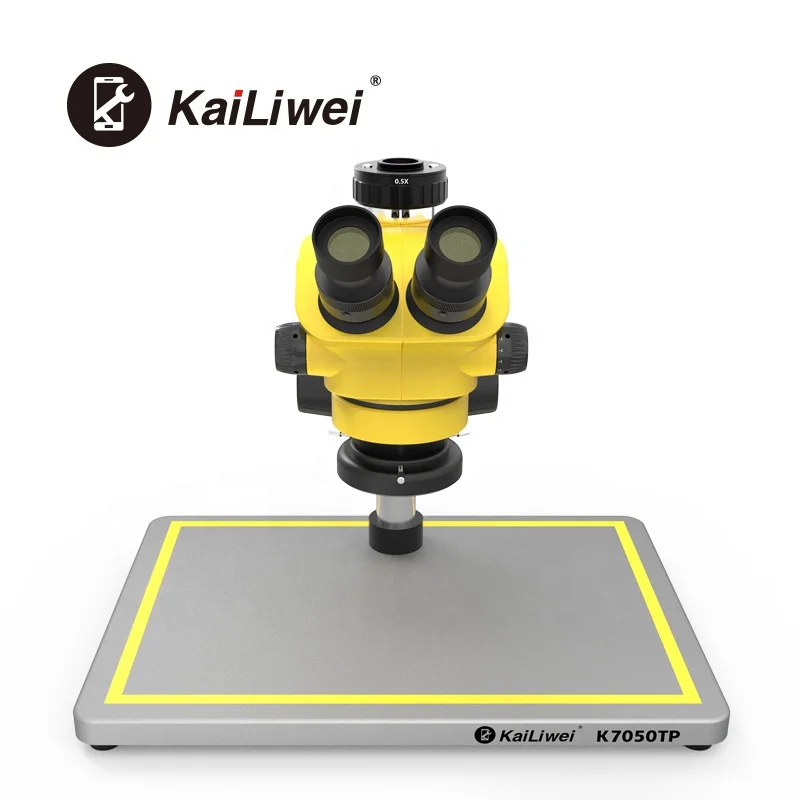

Kailiwei Industrial Trinocular Stereo Microscope Magnification Continuous Zoom 7X - 50X with big base
Microscope:
1. Standard Magnification Objective: 7x-50x2. Big working plate allows enough operation space;
3. 45°inclined 360°rotatable trinocular head, can add camera;
4. Sharp erect stereo images over a wide field view;
5. Have well-focused, clear images on your PC or video Screen through the camera.
6. Simul focal ,No need to re-focus the microscope after each "switch”;
6. Mobile Electronic Motherboard CPUP Repair Pad and mat, make everything during repair simple and tidy.
3. 45°inclined 360°rotatable trinocular head, can add camera;
4. Sharp erect stereo images over a wide field view;
5. Have well-focused, clear images on your PC or video Screen through the camera.
6. Simul focal ,No need to re-focus the microscope after each "switch”;
6. Mobile Electronic Motherboard CPUP Repair Pad and mat, make everything during repair simple and tidy.
Note: For Trinocular Microscope, they can Equipped with professional Camera,to make you can easy to object and capture what you see in the micro world.
structure

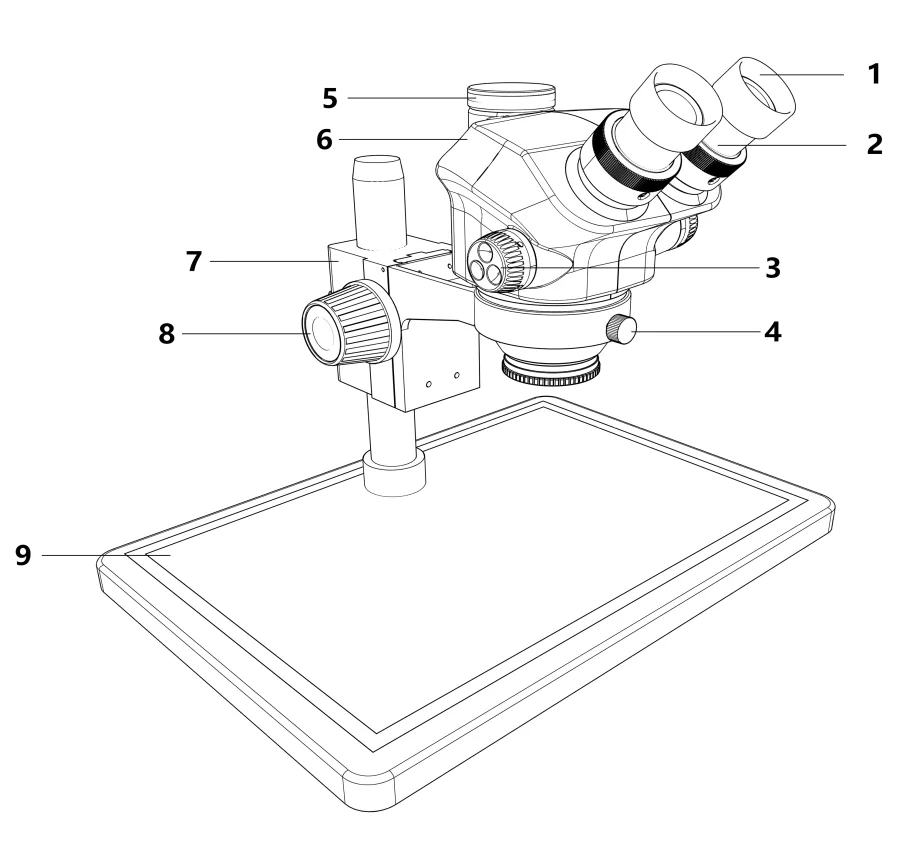

Structure（check below view）
1 Eyepiece Shield
2 Adjustable Eyepiece
3 Zoom Control Knob
4 Head Lock-screw
5 Camera position

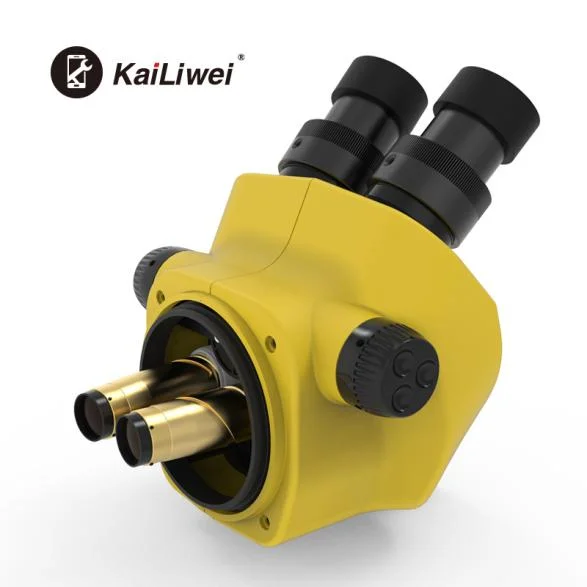

6 Head
7 Bracket
8 Focusing knob
9 Base
Display parameters
Material : Plastic and Metal
Weight : 1.5kg
Size : 8inch
Video Resolution :1080P
Input:Micro-USB/VGA/BNC
Light Parameters
Shape：Ring LED Light
Light Brightness: Adjustable
Light Quantity ：56 LED Lights
Light color : White

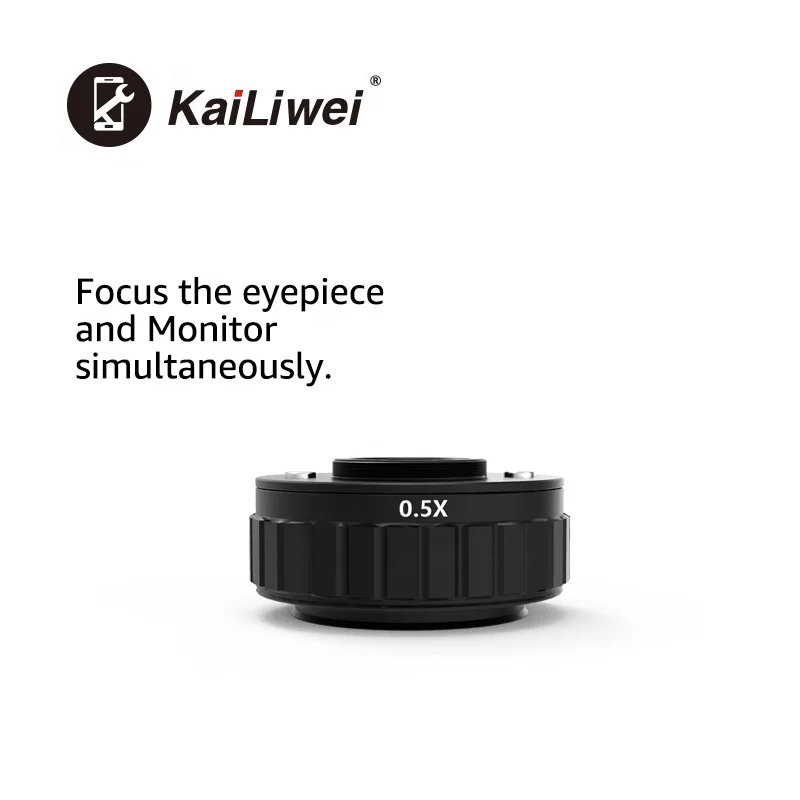

0.5X Adapter
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.
2The adapter ring can use LCD to focus, this kind of focus method is manual focus.
3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.
4 Weight: 0.09kg.

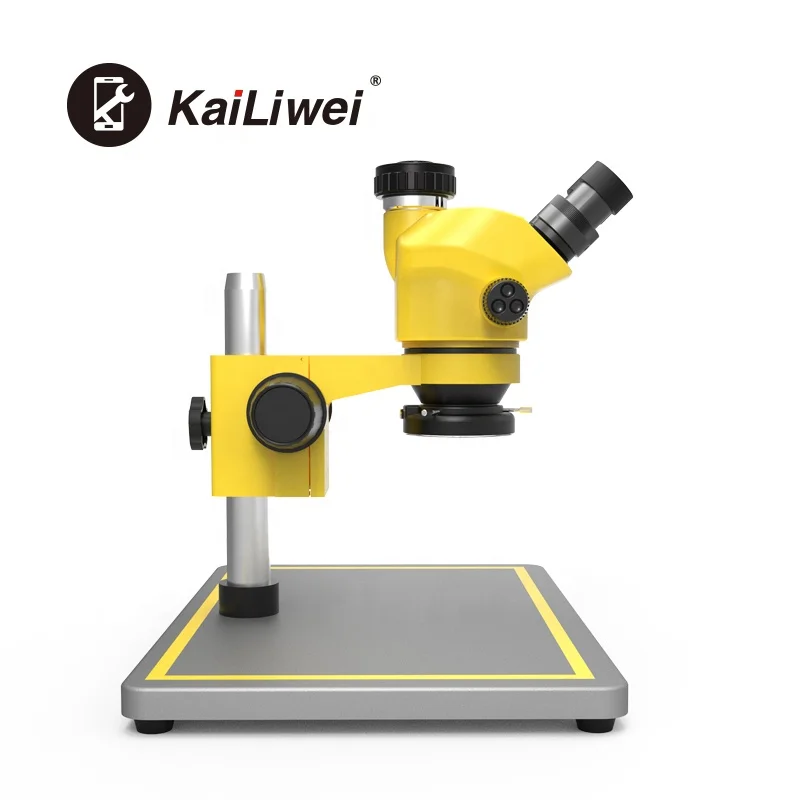

Base Parameters
Base and Bracket Material ：Aluminum Alloy
Size：380mm*260mm
Focusing height ：50mm
Lifting height : 270mm
Focusing Arm Length: 85mm
Weight：2kg

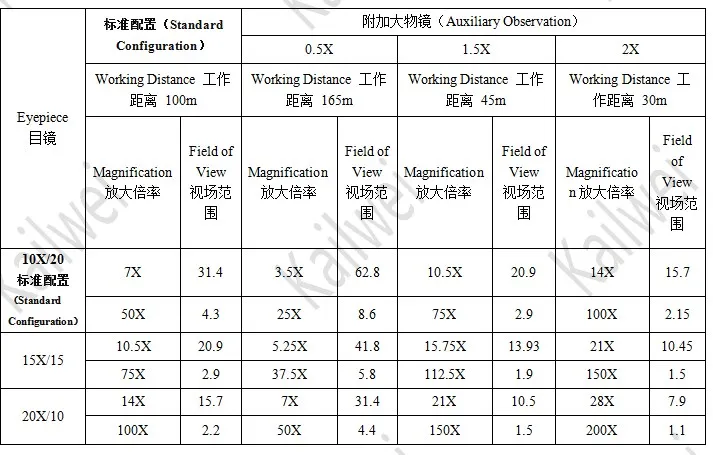

Different eyepieces match different magnifications of the same objective lens

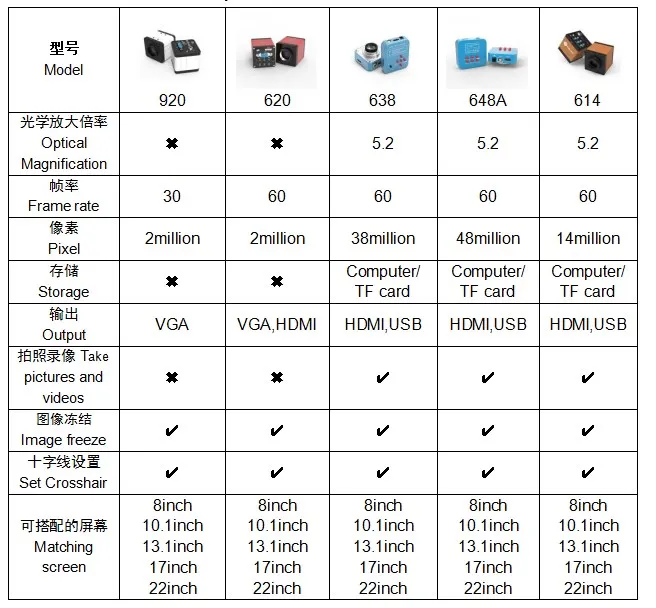

Comparison of different cameras
Packing & Delivery
Packing Detail:carton within foam inside or wooden box
Shipping: 2~3 day after confirm payment
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.
We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Shipping: 2~3 day after confirm payment
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.
We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1.We Will provide you User manual in English or operating videos for free .
2.24 hours technical support by email or vedio call via wechat or skype.
3. Free training to make sure you master the operating of our products.
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Warranty:
1.all of our products will be checked one by one before shipping
2.customer should check the package when receiving
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made. free technical support
always.
4. due to the low vaule of the accessories,we don't accept any return or exchange.
2.24 hours technical support by email or vedio call via wechat or skype.
3. Free training to make sure you master the operating of our products.
4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Warranty:
1.all of our products will be checked one by one before shipping
2.customer should check the package when receiving
3.all machine wihin 1 year free warranty, but here is not warranty if that's obviously caused by man-made. free technical support
always.
4. due to the low vaule of the accessories,we don't accept any return or exchange.
