Roller glass coating machine
US $10000-$13000
Automatic Insulating Glass Hot Melt Adhesive Sealant Coating Machine Butyl Extruder Equipment with No Pressure Relief Function
- Category: >>>
- Supplier: Jinan Kation Trading Co. Ltd.
Share on (1600214569536):
Product Overview
Description
Automatic Insulating Glass Hot Melt Adhesive Sealant Coating Machine Butyl Extruder Equipment with No Pressure Relief Function
Product Description

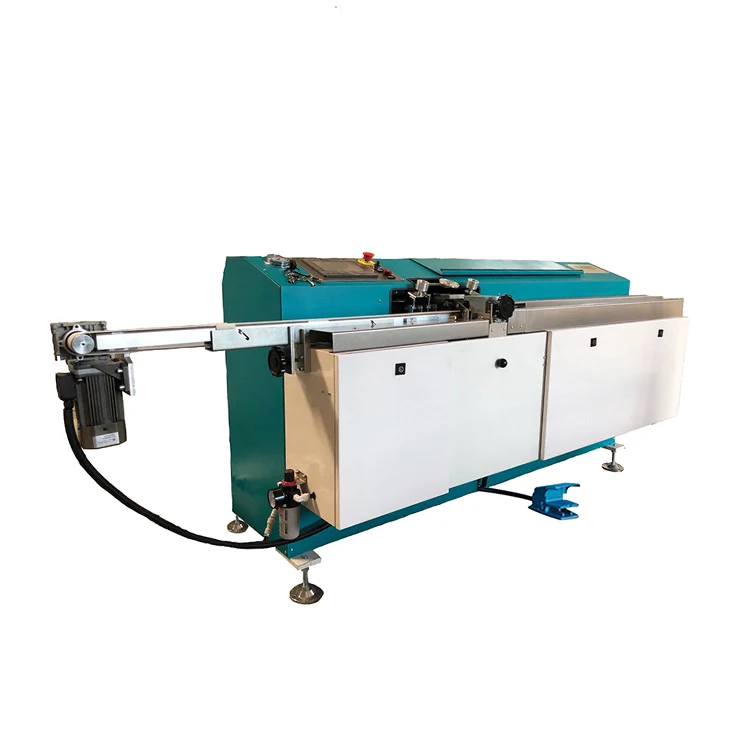

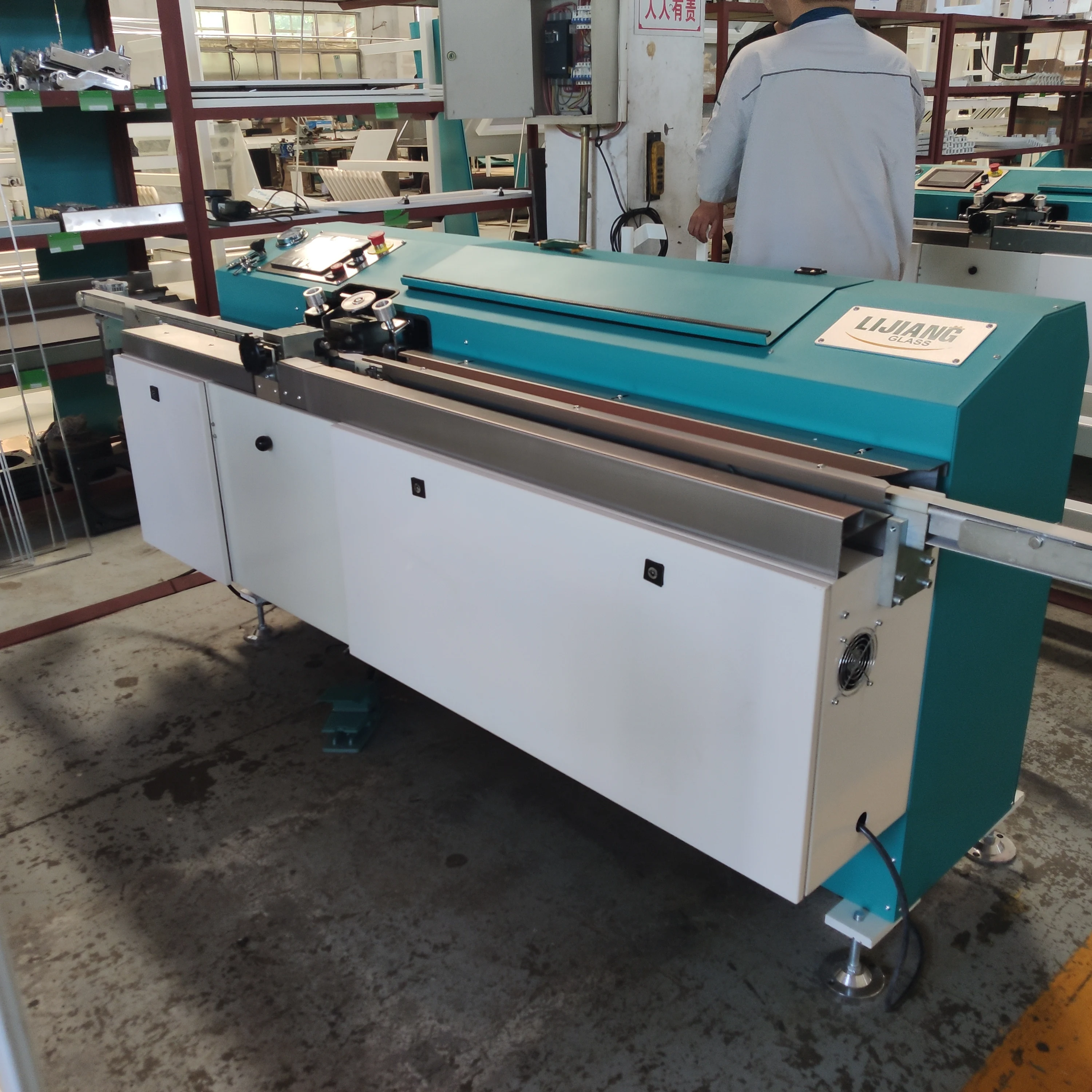

Jinan LIJIANG Glass LJTB01 Butyl Extruder Machine

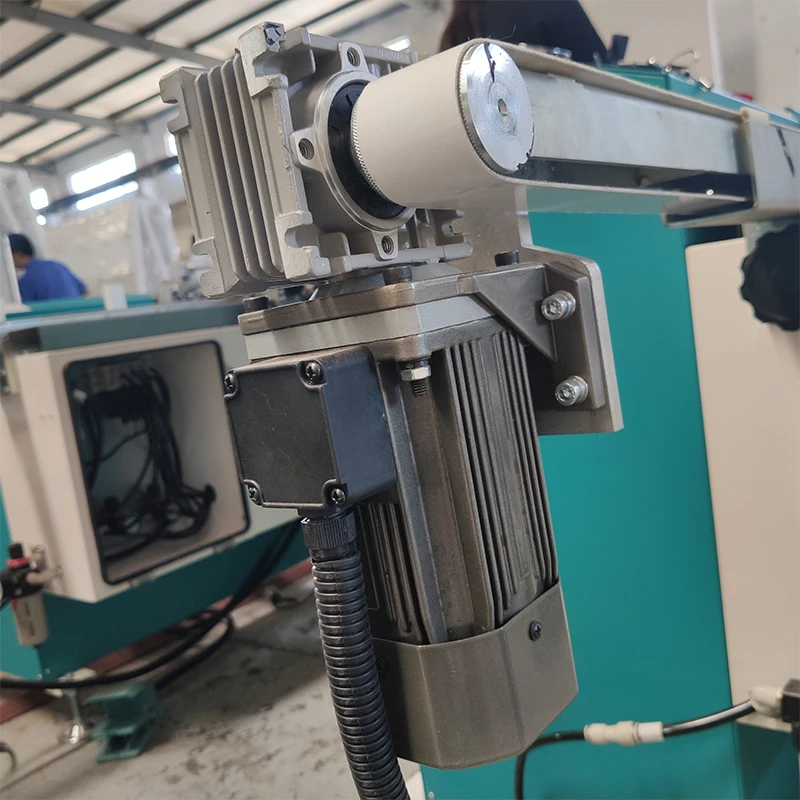

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. LJTB01 butyl extruder machine use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. LJTB01 butyl extruder machine is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The LJTB01 butyl extruder machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
Advantages & Features
Benefits and Advantages
1. This machine adopts microcomputer PLC, touch screen control, simple operation, and a high degree of automation;
2. Using wear-resistant alloy steel coating head, coating control accuracy and service life are greatly improved;
3. The overall translational coating adjustment bracket is adopted, and the repeat positioning accuracy is high;
4. With automatic tracking, display, and storage functions of glue volume, it is convenient and fast to operate and use;
5. The glue supply amount of the metering pump is automatically calculated by the coating width and glue amount input by the operator, and the glue supply amount can be modified according to the characteristic curve of the metering pump;
6. The surface coating adopts a sealed flexible stainless steel die head, which directly scrapes the coating on the surface of the substrate. The width and thickness of the scraping coating are adjustable; the control accuracy of the scraping coating layer is ensured, and the use is convenient and reliable.
7. The stocker adopts active control, the tension is automatically adjustable, and no counterweight is needed.
8. The tension of the whole machine adopts segmented low tension control to prevent the substrate from stretching and deformation.
2. Using wear-resistant alloy steel coating head, coating control accuracy and service life are greatly improved;
3. The overall translational coating adjustment bracket is adopted, and the repeat positioning accuracy is high;
4. With automatic tracking, display, and storage functions of glue volume, it is convenient and fast to operate and use;
5. The glue supply amount of the metering pump is automatically calculated by the coating width and glue amount input by the operator, and the glue supply amount can be modified according to the characteristic curve of the metering pump;
6. The surface coating adopts a sealed flexible stainless steel die head, which directly scrapes the coating on the surface of the substrate. The width and thickness of the scraping coating are adjustable; the control accuracy of the scraping coating layer is ensured, and the use is convenient and reliable.
7. The stocker adopts active control, the tension is automatically adjustable, and no counterweight is needed.
8. The tension of the whole machine adopts segmented low tension control to prevent the substrate from stretching and deformation.

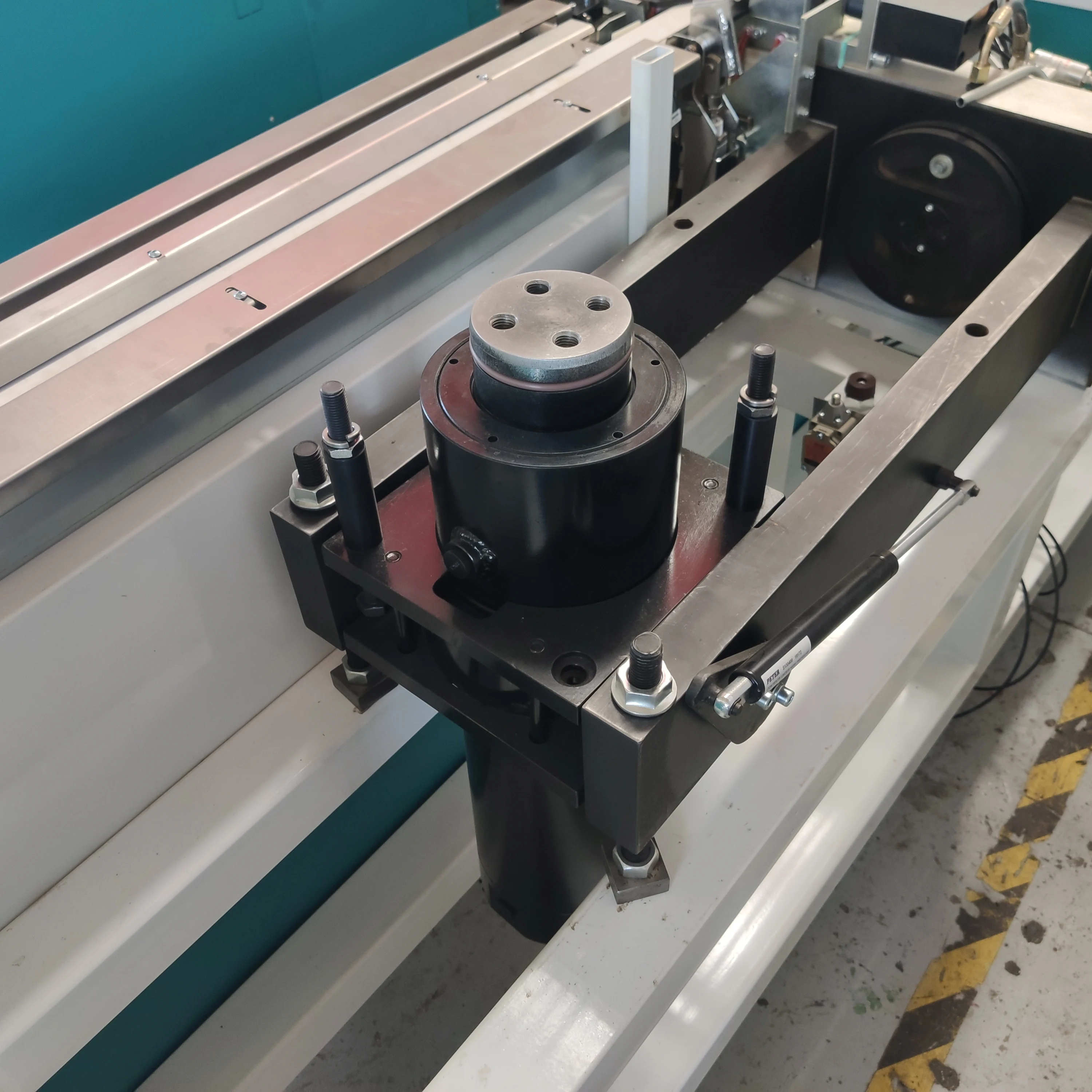

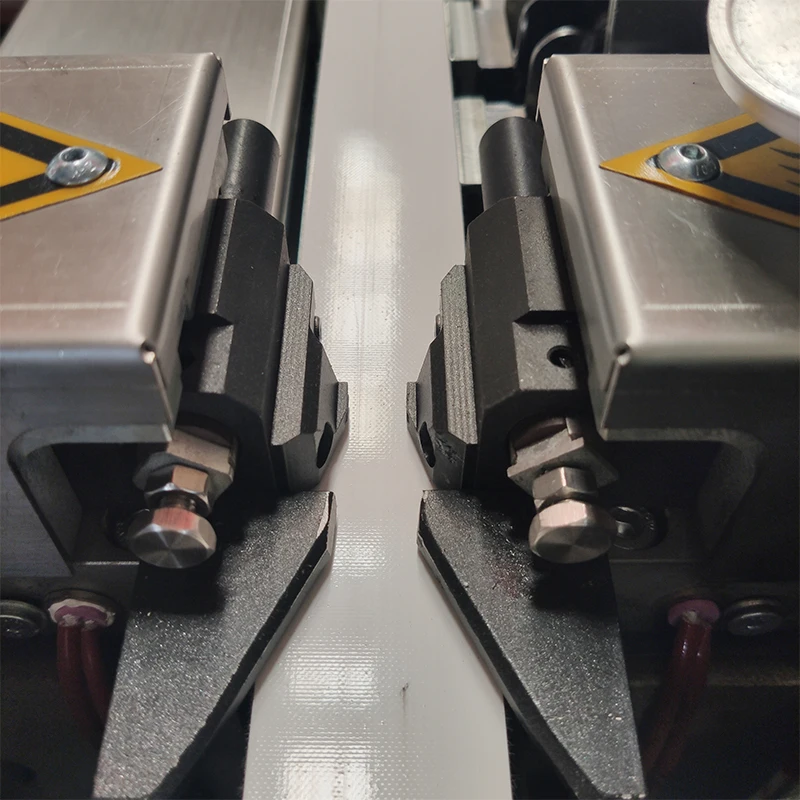

The rubber head
The rubber head of Automatic butyl extruder machine is a floating soft connection, vertical movement, automatic guiding, uniform force around the rubber cylinder and
the postion, and overcomes the defects of easy wear of the bottom of the horizontal rubber cylinder.
the postion, and overcomes the defects of easy wear of the bottom of the horizontal rubber cylinder.

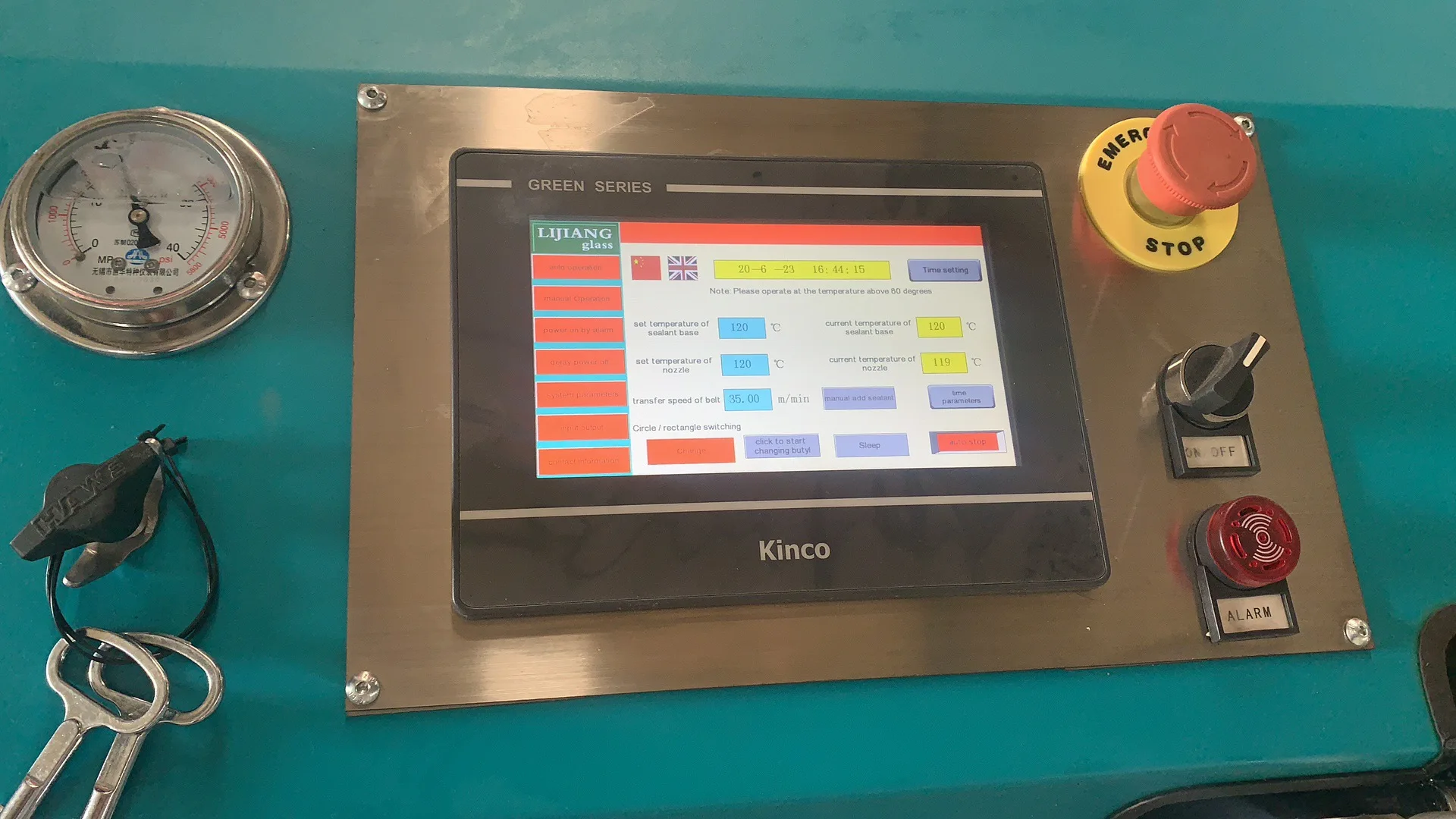

The Germany Siemens PLC system
The whole machine adopts the Germany Siemens PLC system, handle-machine interface operation, automatic and accurate glue application and multi-speed section adjustment, high production efficiency.
Automatic exhaust function
With the automatic exhaust function, the butyl rubber can be spread evenly when the equipment is glued, and no bubbles will be generated.
Adopt non-stick tape
Non-stick tape is used in the gluing section of the equipment to maintain fast gluing and avoid waste of 30% butyl glue in the gluing process.
Keep stable during the extrusion processing
The whole machine is divided into hydraulic system and gas-liquid system boosting work, ensure that the glue is extruded evenly and the glue is stable during the extrusion processing.
The German Harvey valve
The German Harvey valve is used to ensure more stable performance when the glue is suspended and starts to be glued.
Above information is the Benefits&Advantages from Jinan LIJIANG Glass.
If customers want to know more advantages, please contact us directly.
Main Technical Parameter
Item. | Spec. |
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600*680*1100mm(L*W*H） |
Weight | 650kg |
Name | Brand | Original |
PLC | KINCO | China |
Valve | HAWE | German |
Low voltage electrical apparatus | SIEMENS | German |
Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
Frequency converter | KINCO | China |

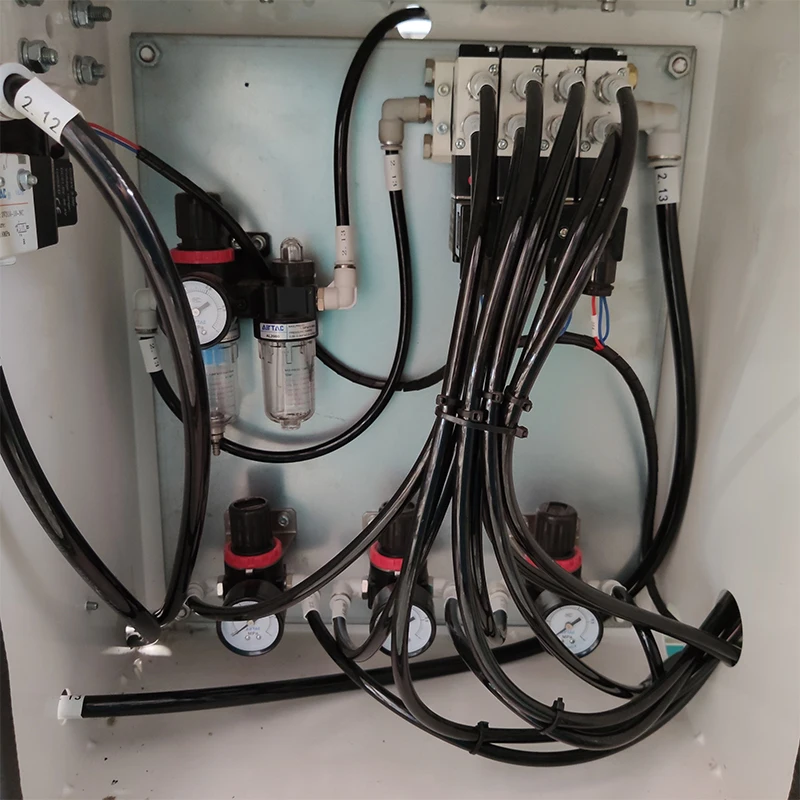

Pneumatic components（cylinder/valve） | ARTAC | Taiwan |
Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
Travel light | OMRON | Japan |
Optical fiber | OMRON | Japan |
Above information is the Specification from Jinan LIJIANG Glass Tech. Standards.
If customers want to know more details, please contact us directly.
Company Introduction
The Brief Information

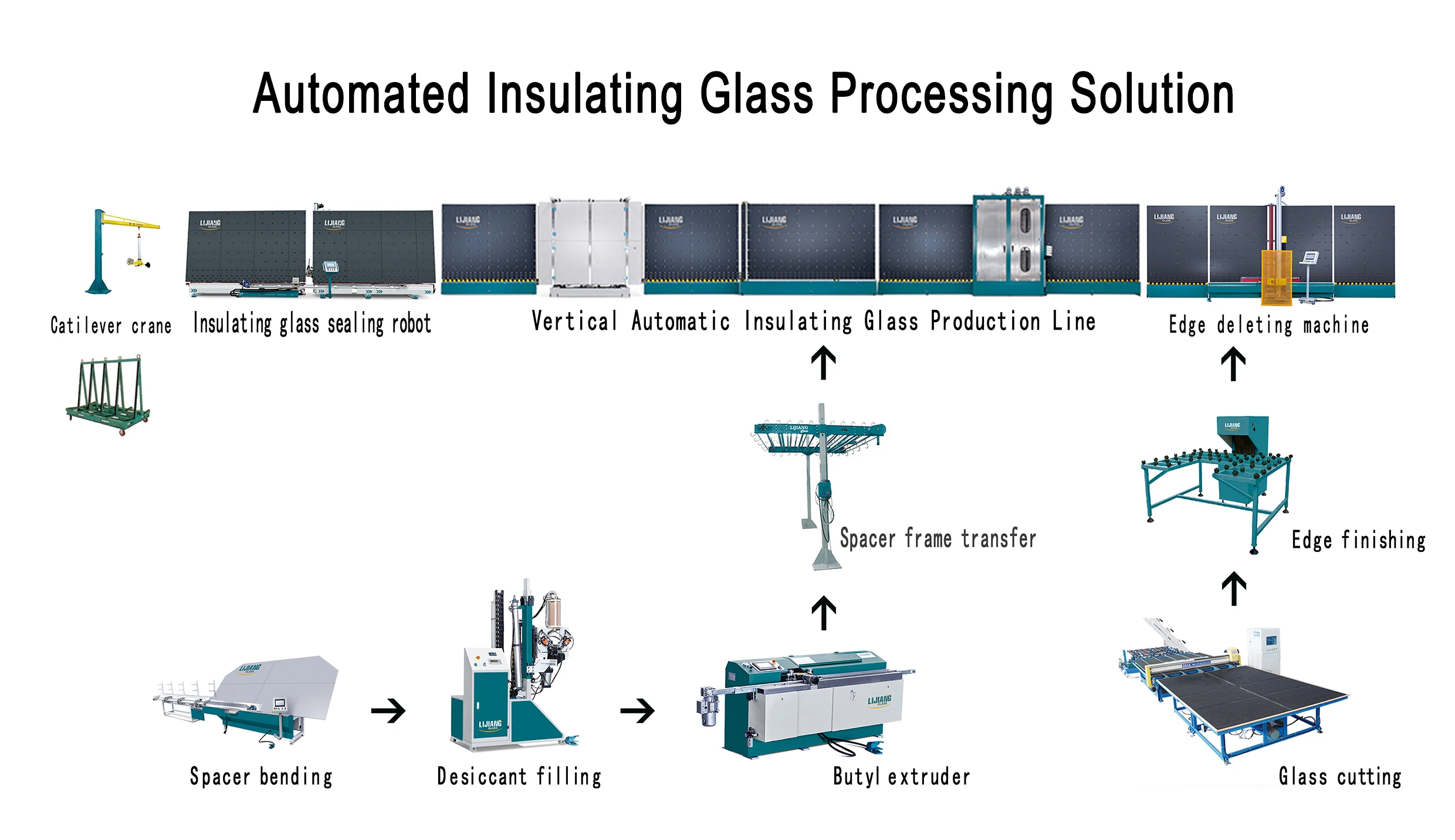

Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Group Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.
