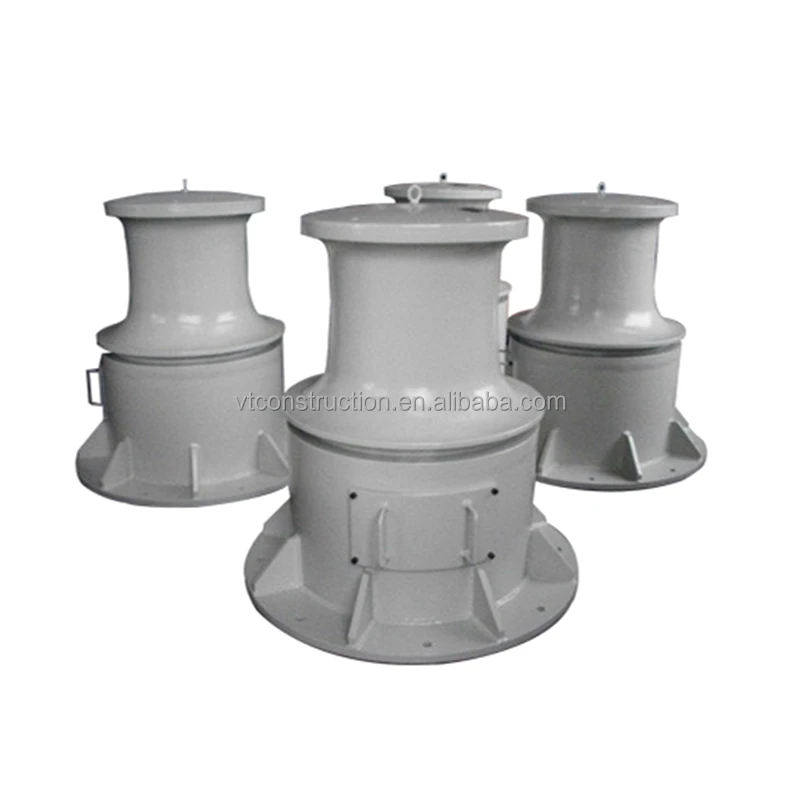

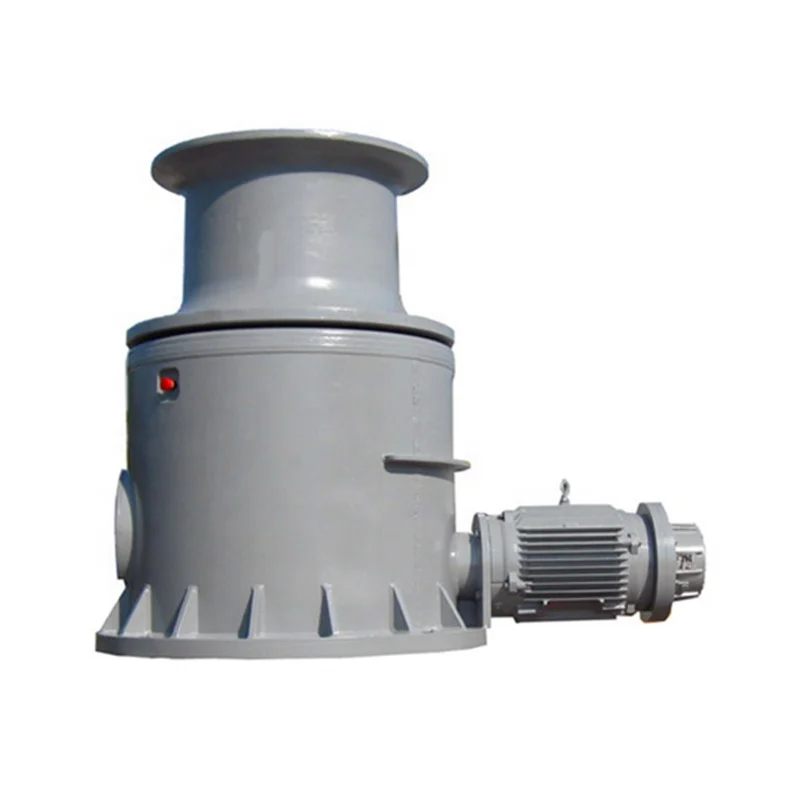

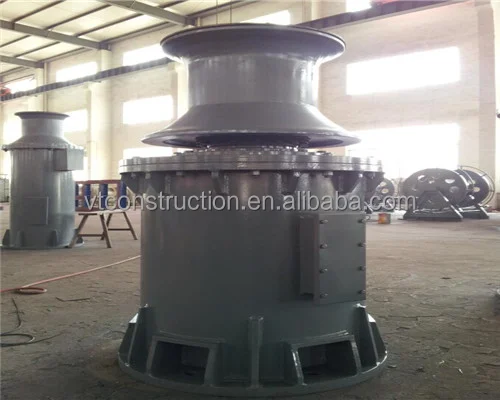

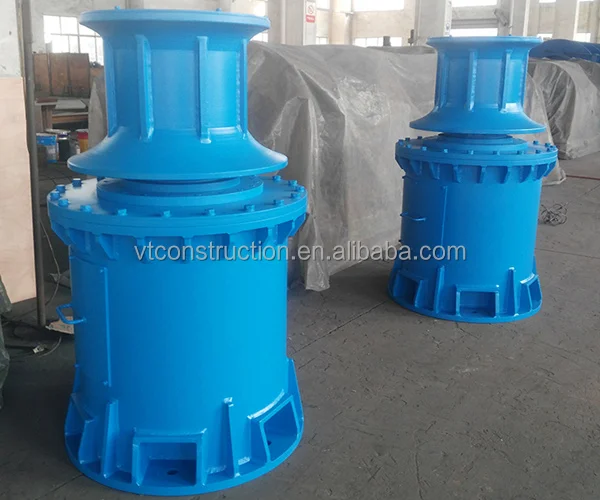

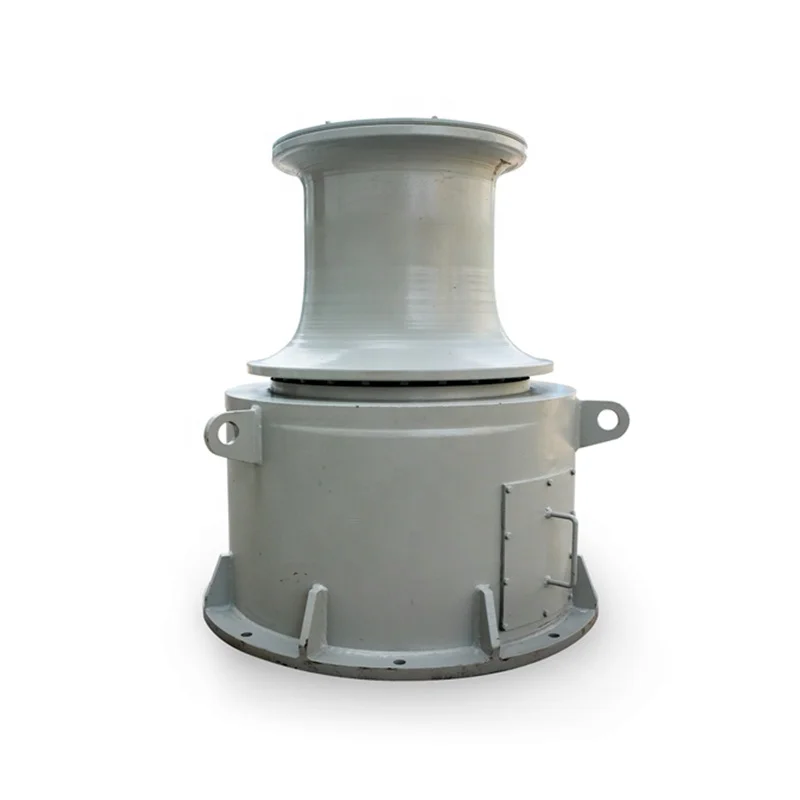

High performance 220v vertical electric hydraulic marine capstan 1 ton winch

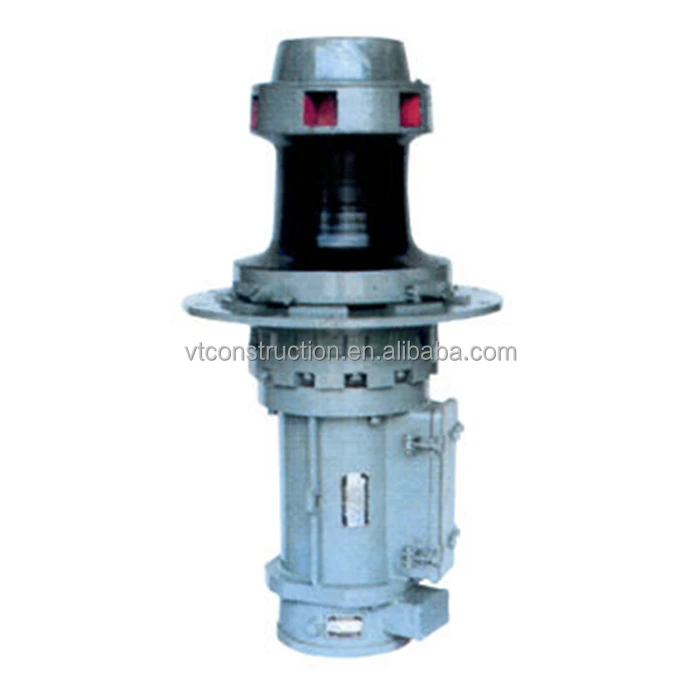

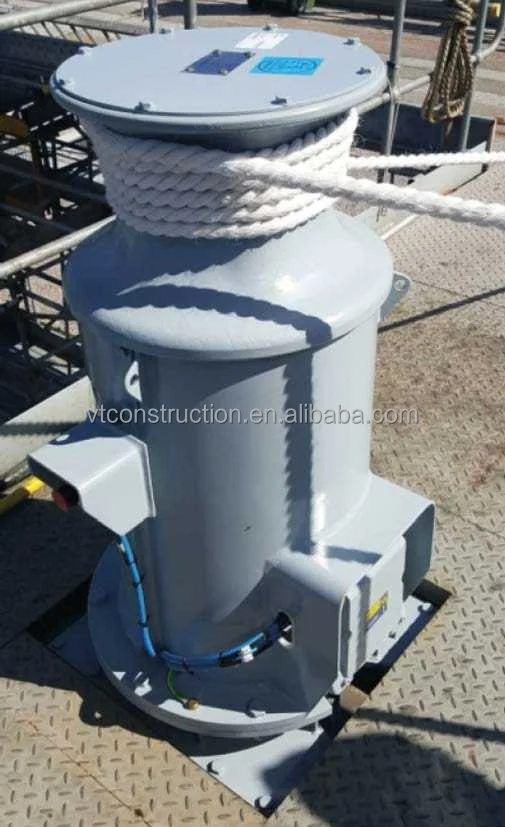

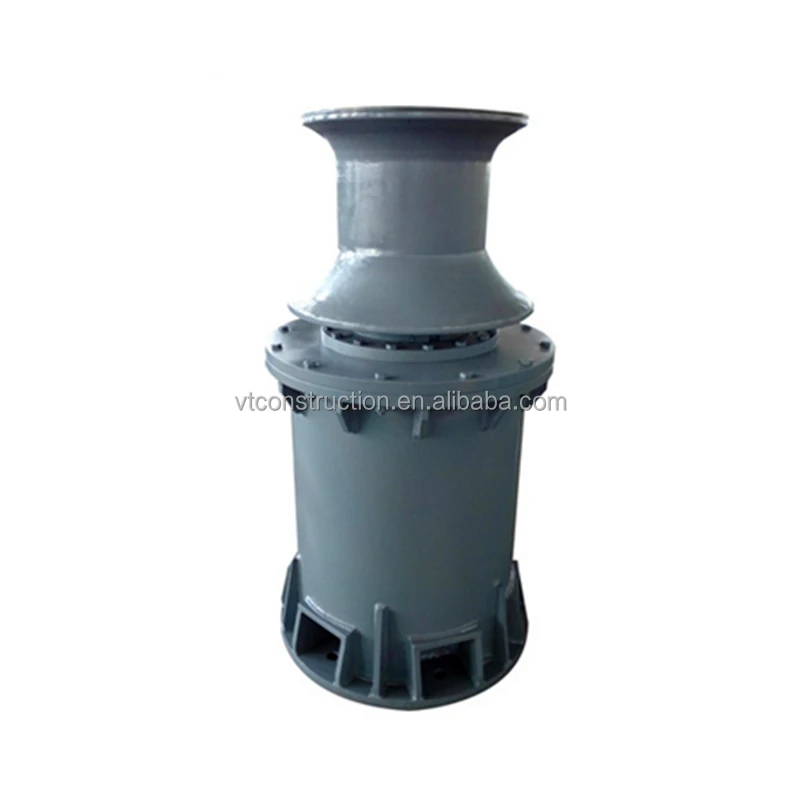

The range of the mooring capstans are designed specifically for marines. Compact and robust construction means few wearing parts, minimum maintenance and simple installation. The baseplate design can be varied to meet specific deck layouts. The electric motor can be vertically mounted inside the capstan which permits direct bolting to the deck

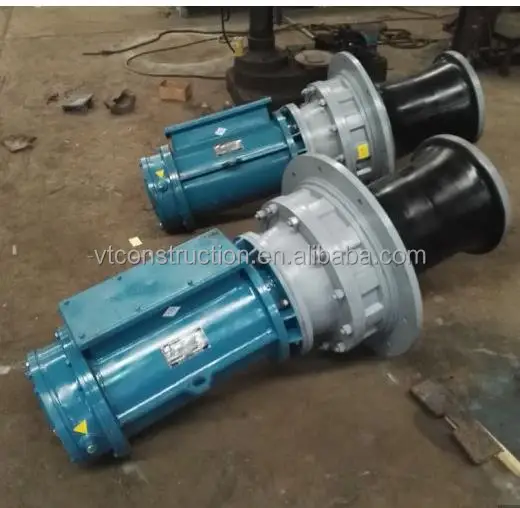

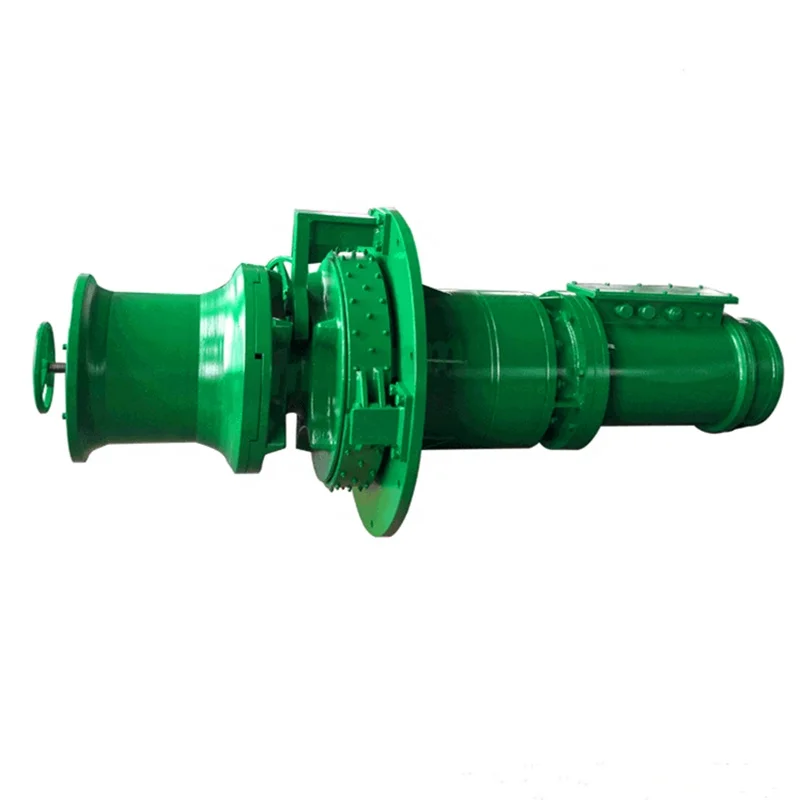

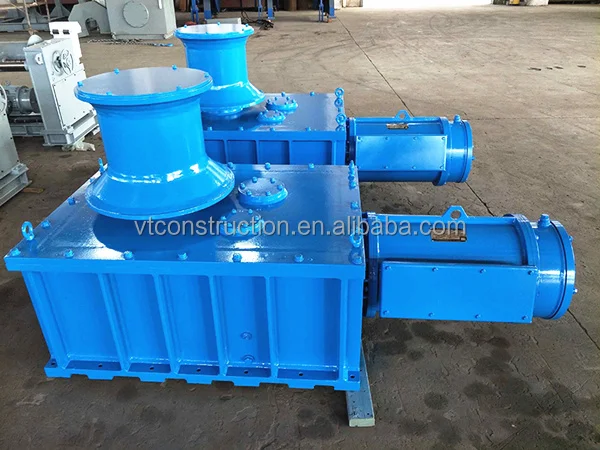

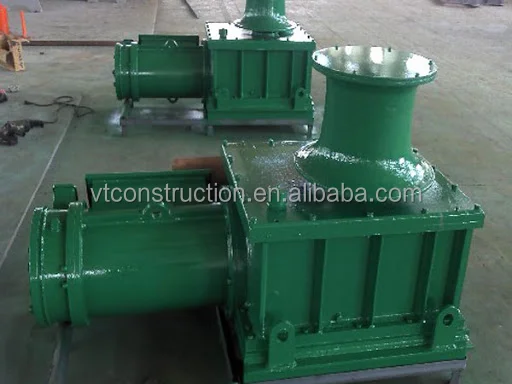

for ease of installation. The motor can also be horizontally mounted through a right angle gear box to avoid the requirement for a deck penetration. No further deck penetrations are required unless cable entry is required from below.
On larger mooring capstans drive is through a fully enclosed slew ring arrangement mounted on roller bearings for optimum efficiency with quiet running.
for ease of installation. The motor can also be horizontally mounted through a right angle gear box to avoid the requirement for a deck penetration. No further deck penetrations are required unless cable entry is required from below.
On larger mooring capstans drive is through a fully enclosed slew ring arrangement mounted on roller bearings for optimum efficiency with quiet running.
The three phase, multispeed induction motor incorporates a failsafe DC operated magnetic brake with easily replaceable friction pads and requires no adjustment - anti-condensation stand-still heating is standard.
FEATURES AT A GLANCE
No | Item | Data |
1 | Mooring load | 30KW |
2 | Nominal speed | 15/30m/min |
3 | Suitable wire | 16mm |
4 | Motor power | 10kw |
5 | Voltage | 220V, 380V, 440V |
6 | Usage | Anchoring |
7 | Structure type | Vertical/horizontal |
SIMILAR PRODUCTS

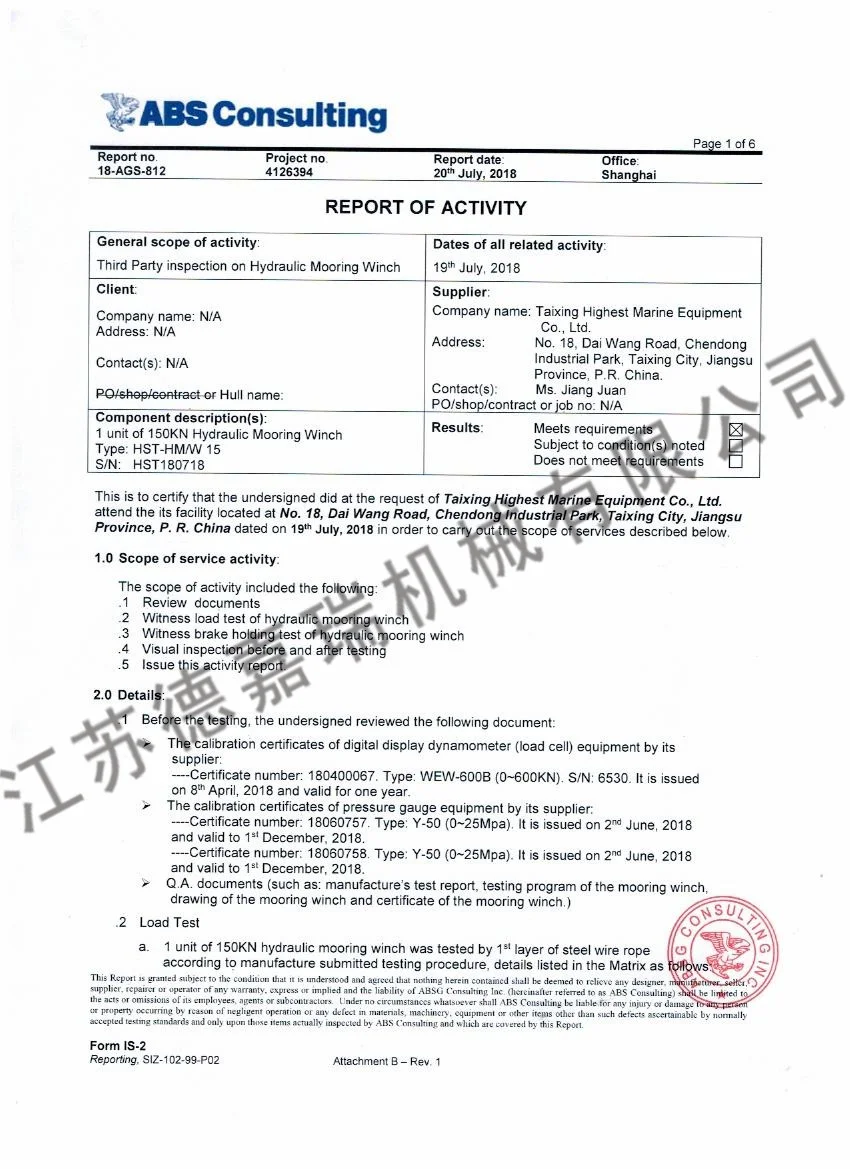

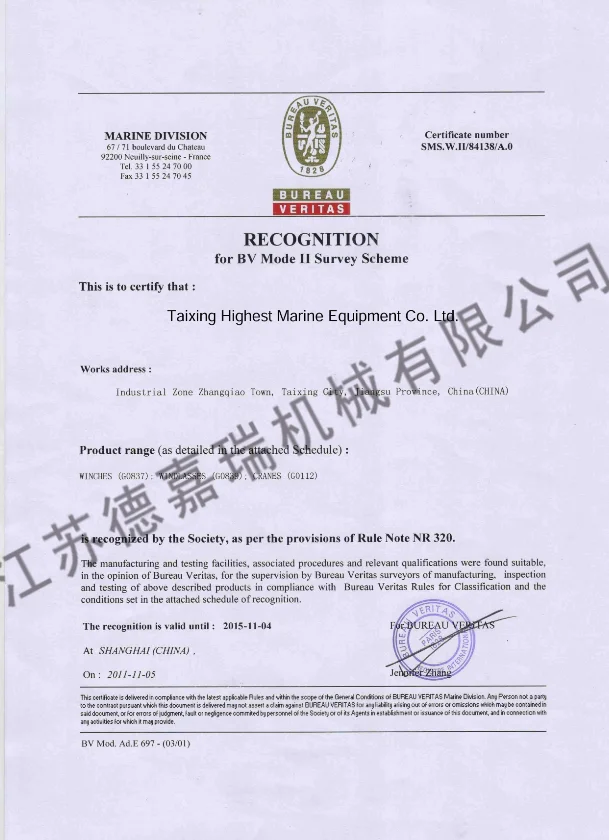

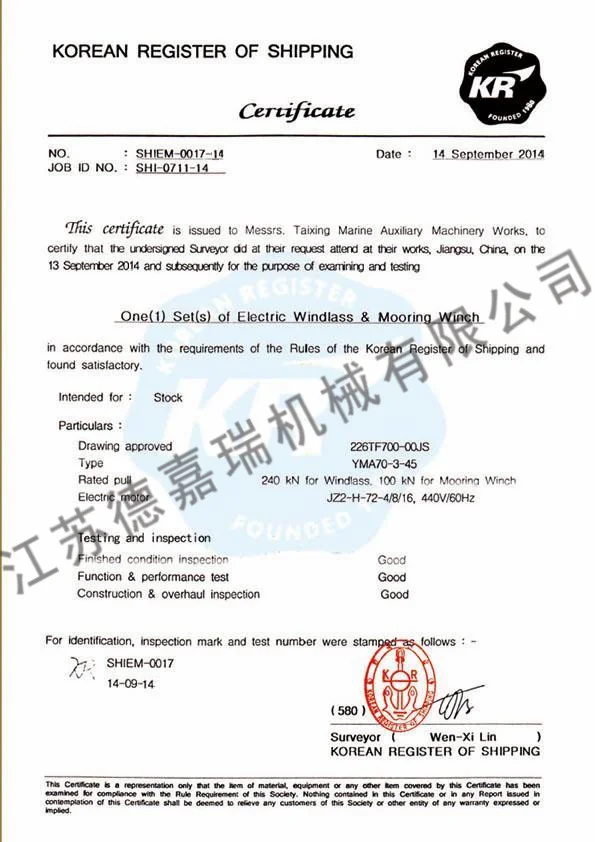

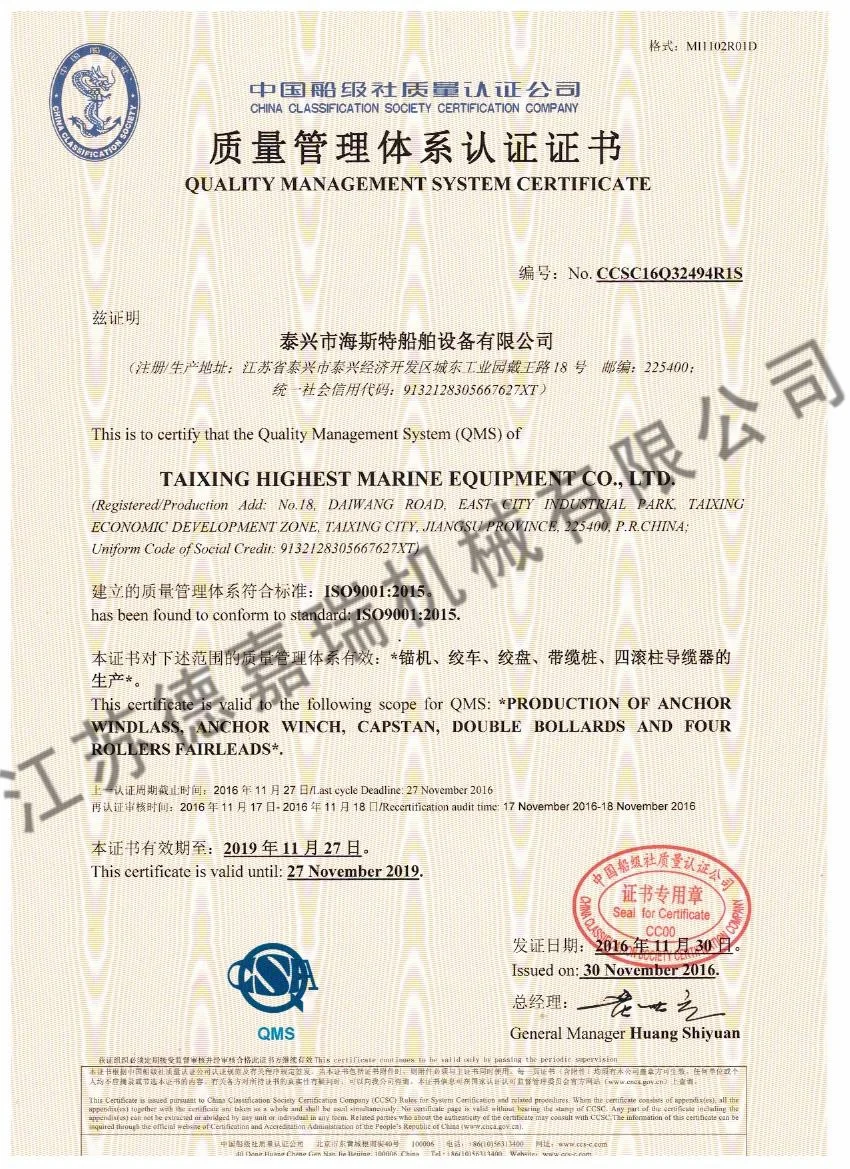

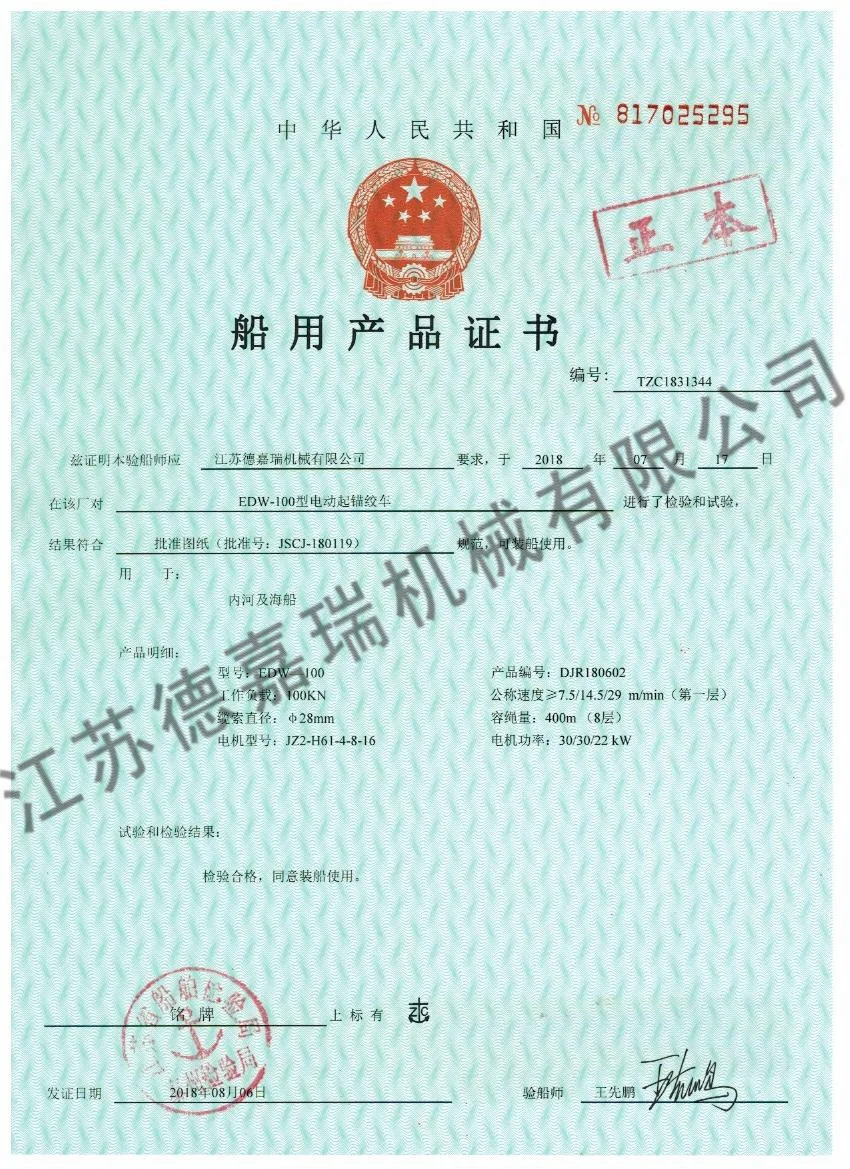

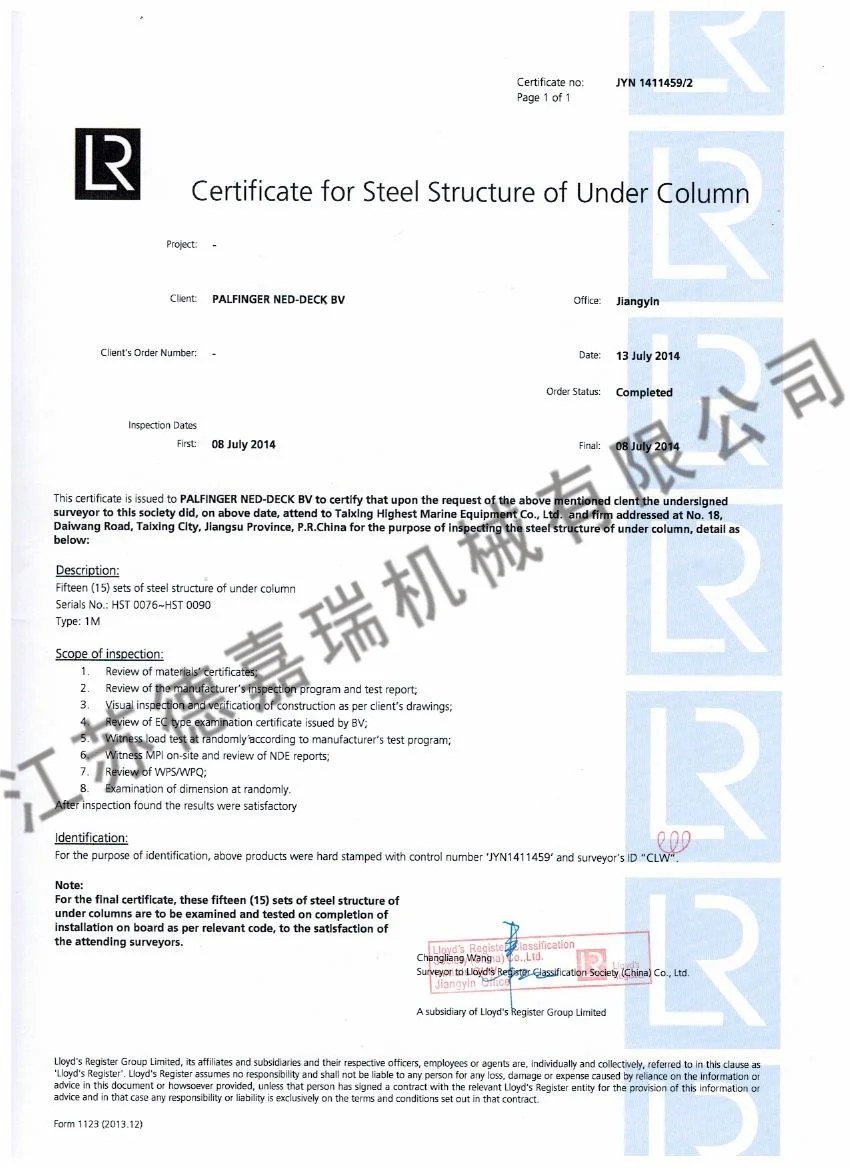

Certifications
