Испытательная камера для аккумулятора с быстрым температурным циклом
- Category: >>>
- Supplier: Dongguan Haida Equipment Co. Ltd.
Share on (1600214663149):
Product Overview
Description
Products Description
Temperature Thermal Cycling Stability Test Chamber is ideally suited for specimen test requiring quick changes of temperature. It can evaluate the failure of thermal mechanical properties of product. Normally, the temperature rate is less than 20℃/min, which can achieve the real application environment of testing sample by the fast ramp rate.
APPLICATION
1. To simulate test environment with different temperature and humidity.
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, and drying test.
DESIGN FEATURES OF THE CHAMBER
1. It has cable ports are provided on the left side to allow easy wiring of specimens for measurement or voltage application.
2. The door equipped with hingespreventing auto-closing.
3. It can designed to comply with major environmental test standards like IEC, JEDEC, SAE and etc.
4. This chamber is safety tested with CE certificate.

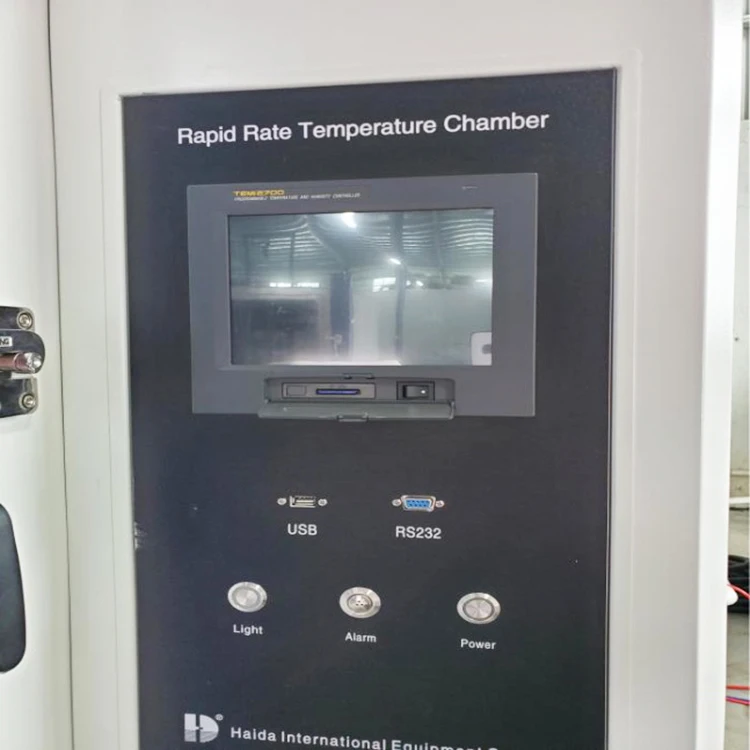

PROGRAMMABLE CONTROLLER
1. It adopts high-precision programmable touch screen controller for easy and stable operation.
2. Step types includes ramp, soak, jump, auto-start, and end.
TEST STANDARD
IEC60068-2-14 and etc.
TEMPERATURE RAMP SYSTEM (HEATING & COOLING)
Item | Specification | ||
Cooling Speed (+150℃~-20℃) | 5℃/min, non-linear control (without loading) | ||
Heating Speed (-20℃~+150℃) | 5℃/min, non-linear control (without loading) | ||
Refrigeration Unit | System | air-cooled | |
Compressor | Germany Bock | ||
Expansion System | electronic expansion valve | ||
Refrigerant | R404A, R23 | ||
Details Images
Product Paramenters
Item | Specification |
Internal Dimension (W*D*H) | 1000*800*1000mm |
External Dimension (W*D*H) | 1580*1700*2260mm |
Working Capacity | 800 liter |

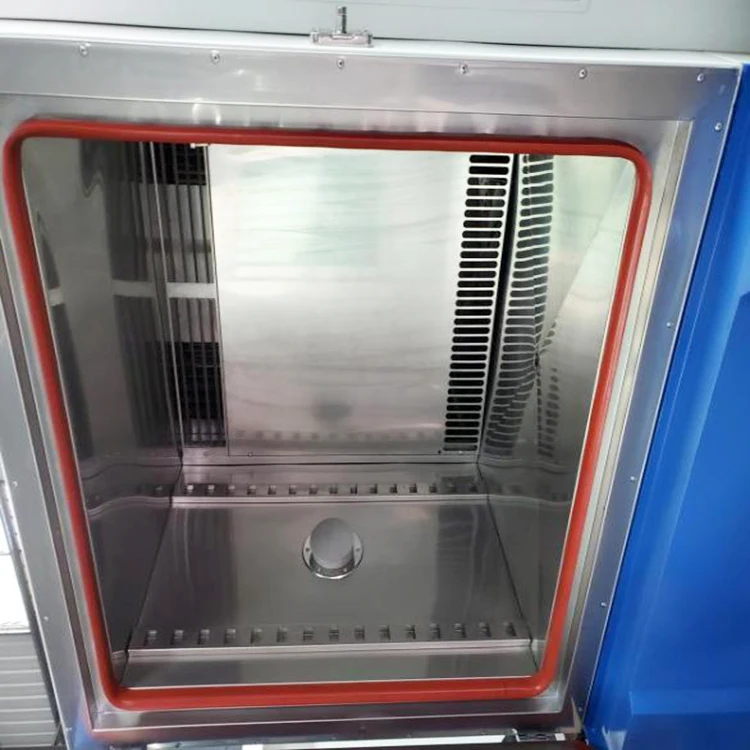

Material of Internal Chamber | SUS#304 stainless steel, mirror finished |
Material of External Chamber | stainless steel with paint spray |
Temperature Range | -20℃~+120℃ |
Temperature Fluctuation | ±1℃ |
Heating Rate | 5℃/min |
Cooling Rate | 5℃/min |
Sample Tray | SUS#304 stainless steel, 3pcs |
Testing Hole | diameter 50mm, for cable routing |
Power | three-phase, 380V/50Hz |
Safety Protection Device | leakage over-temperature compressor over-voltage and overload heater short circuit |
