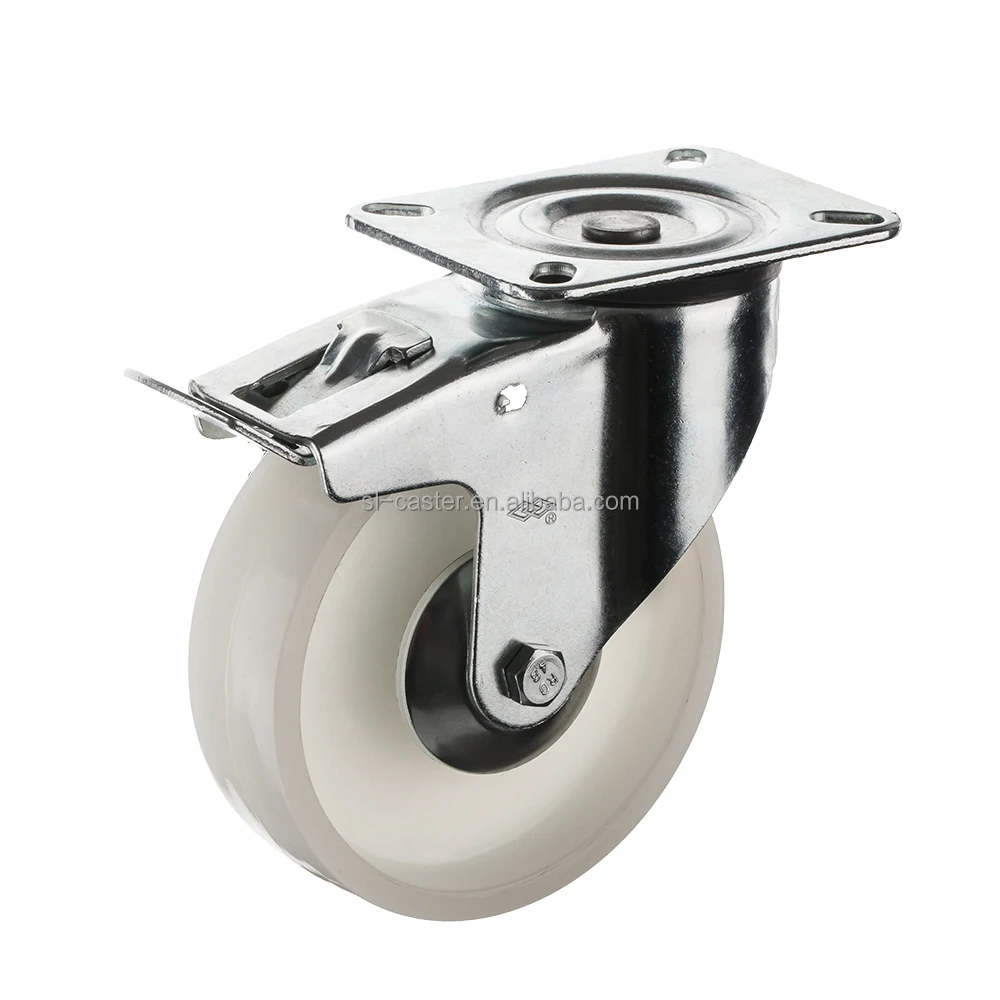

Nylon wheel with bearing 5inch swivel top plate locking total brake industrial castors PA caster locking caster wheel
- Category: >>>
- Supplier: Hubei Space Double Rhombus Logisitics Technology Co. Ltd.
Share on (1600214716838):
Product Overview
Description
Products Descriptipon
Nylon wheel with bearing 5inch swivel top plate locking total brake industrial castors PA caster locking caster wheel
Brand | Double Rhombus | Series | Industrial Caster |
Model No. | P102-20D125X35S | Load Capacity(kgs) | 160kgs |
Wheel diameter(mm) | 125mm | Width of Tread(mm) | 35mm |
Offset(mm) | 44mm | Hole size(mm) | 9mm |
Overall height(mm) | 153mm | Size of plate(mm) | 105x82.5x3mm |
Bearing | roller bearing | Bolt hole spacing(mm) | 80x60mm |

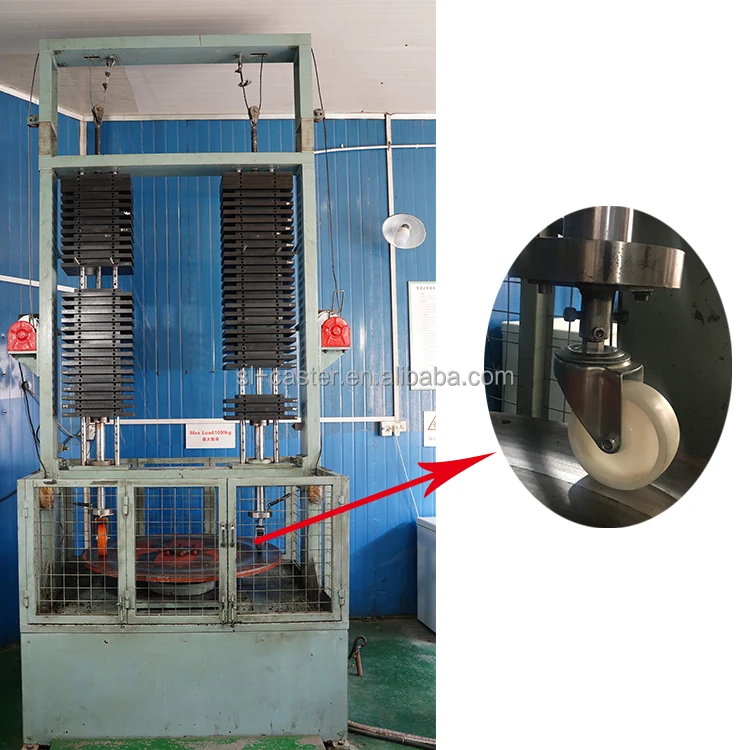

Walking Performance Test
Test standard according to EN12532, the rubber industrial caster sample with 120kg load, 2.5mm barriers, walking 3 minutes, stop 1 minute, with 4km/h speed,
go over the barriers for 500 times, then remove the barriers, continue to walking 3.962km, the nylon wheel need to walk total 4.712kms,
after testing, sample no abrasive wear, the wheel is qualified.
after testing, sample no abrasive wear, the wheel is qualified.

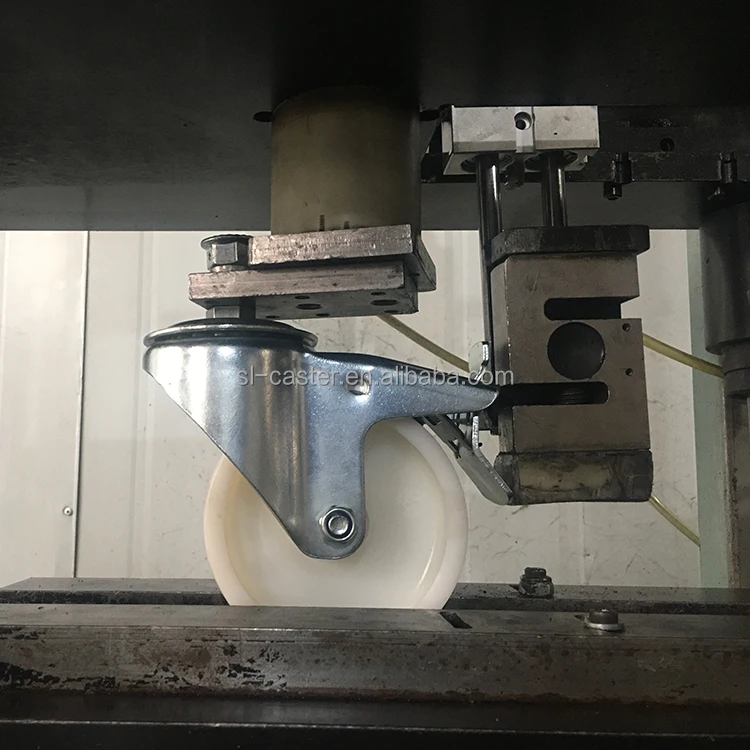

5000 times Brake Fatigue Test
Long service life period
Test standard according to EN12532, the rubber industrial castor Pass 5000 times Fatigue Test for Locking Device.
Up to 5000 brake applications
High cost performance

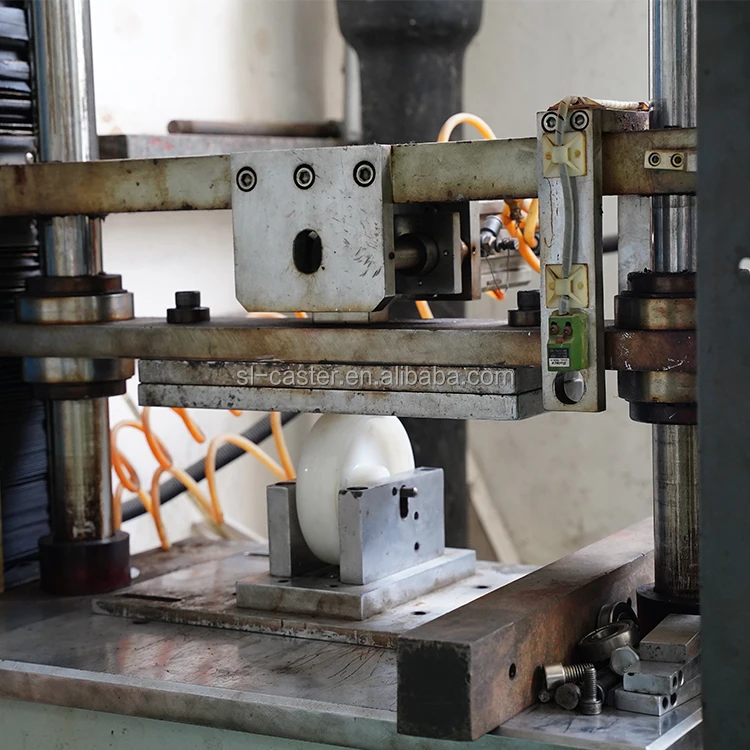

Impact Test
the test sample with specified weight pressure,from 150mm height to impact 1 time,request the test sample no deformation of parts, flexible rotation,brake is valid.

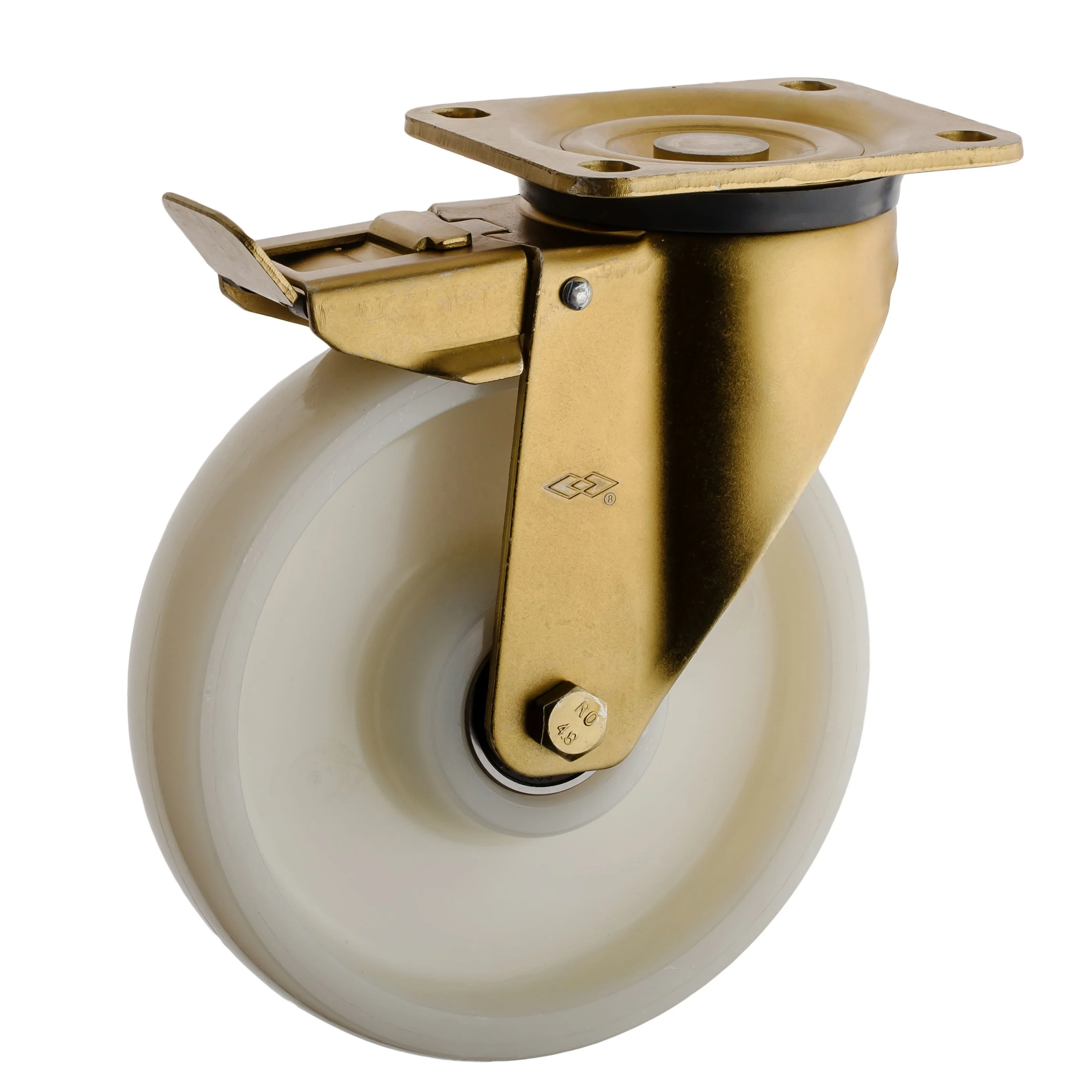

Thickened presed steel fork Caster wheel, 80-200mm size,100-310kgs load range

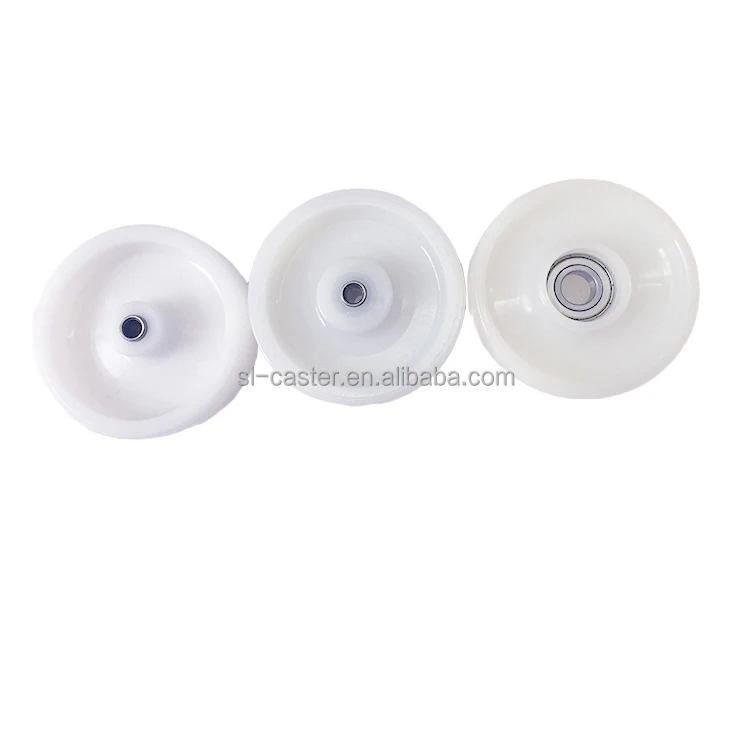

Various wheel styles available, 3 different bearing modes for choose

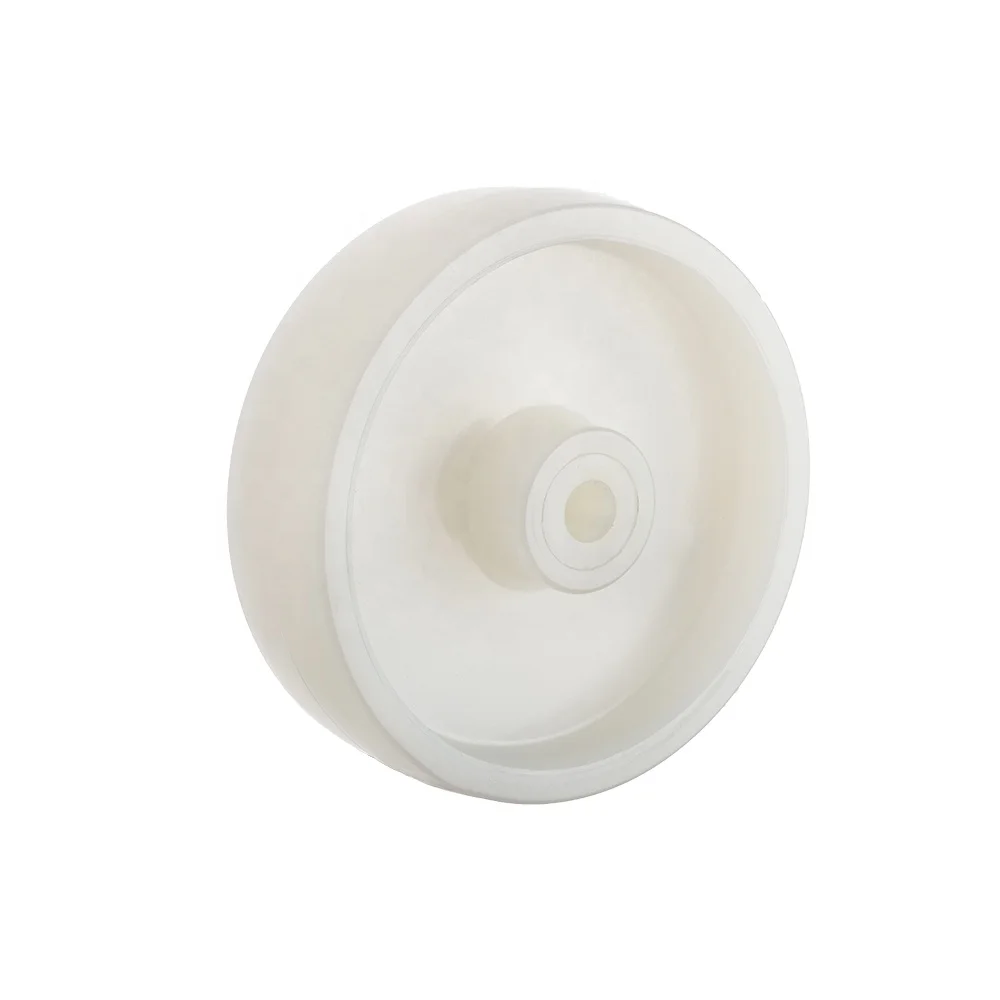

High quality nylon caster , Multiple configurations are optional
Fork optional: Rigid, swivel, brake, top plate, top bolt hole type, 2/2.5/3/mm fork thickness for different size, wheel material can choose Rubber, Nylon/PP, PU,TPR wheel

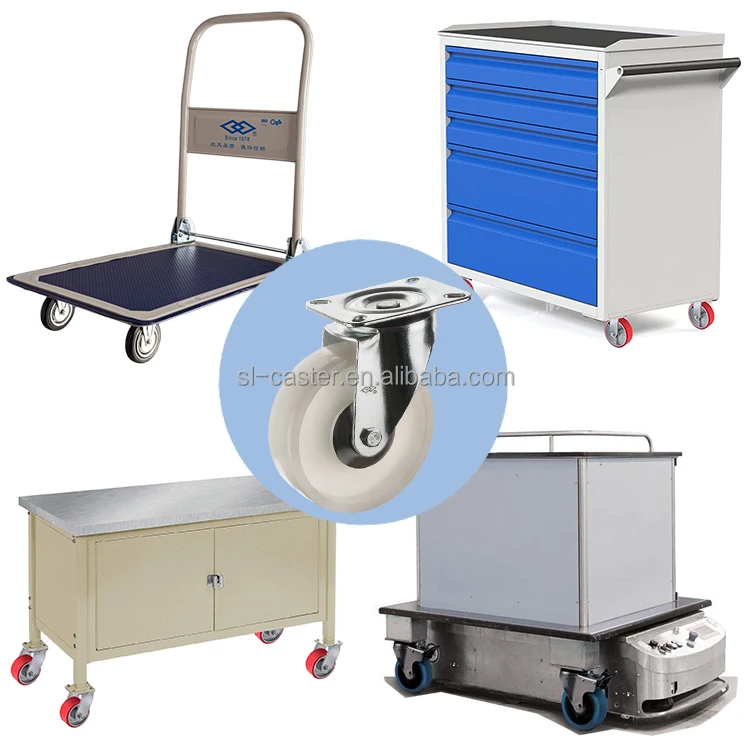

Application-widely use 80-200mm white nylon wheel industrial caster
