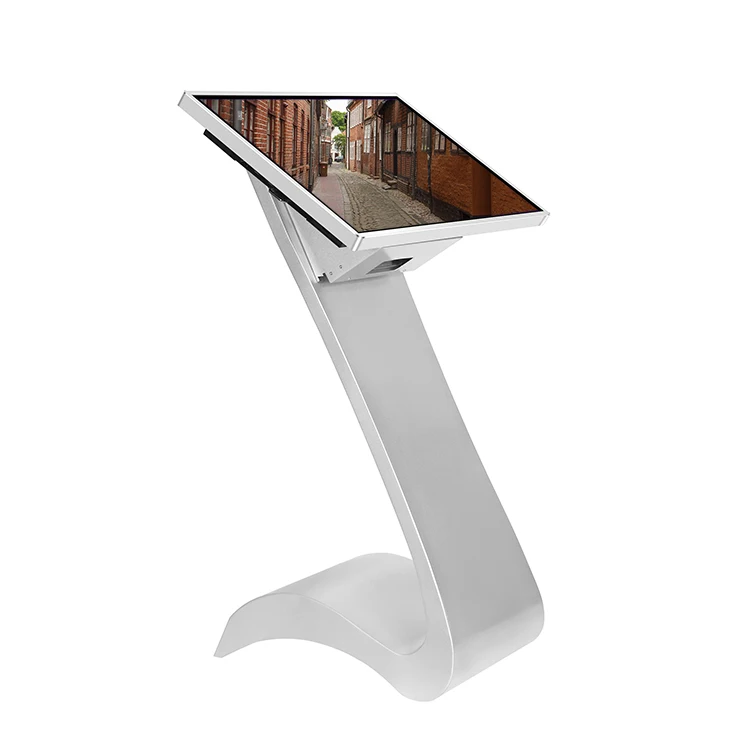

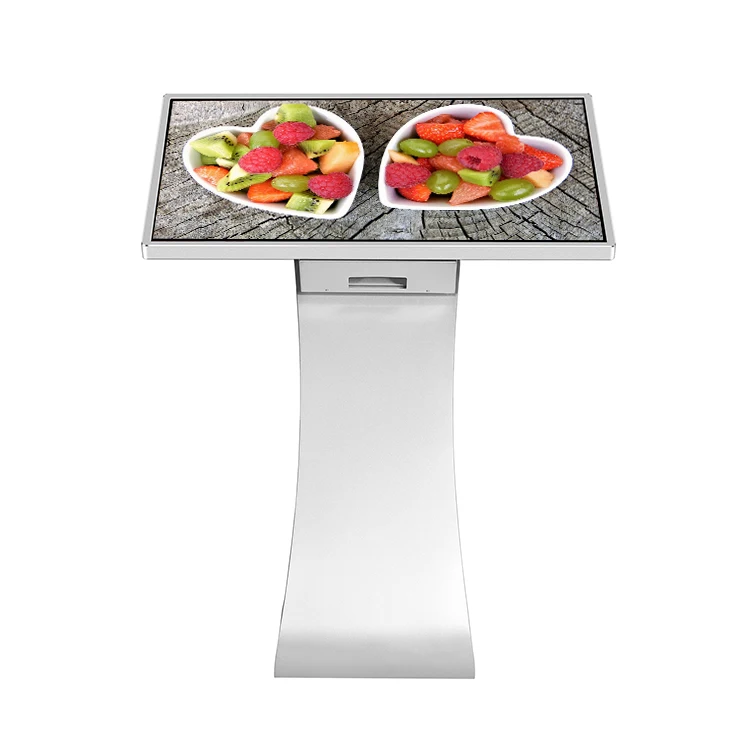

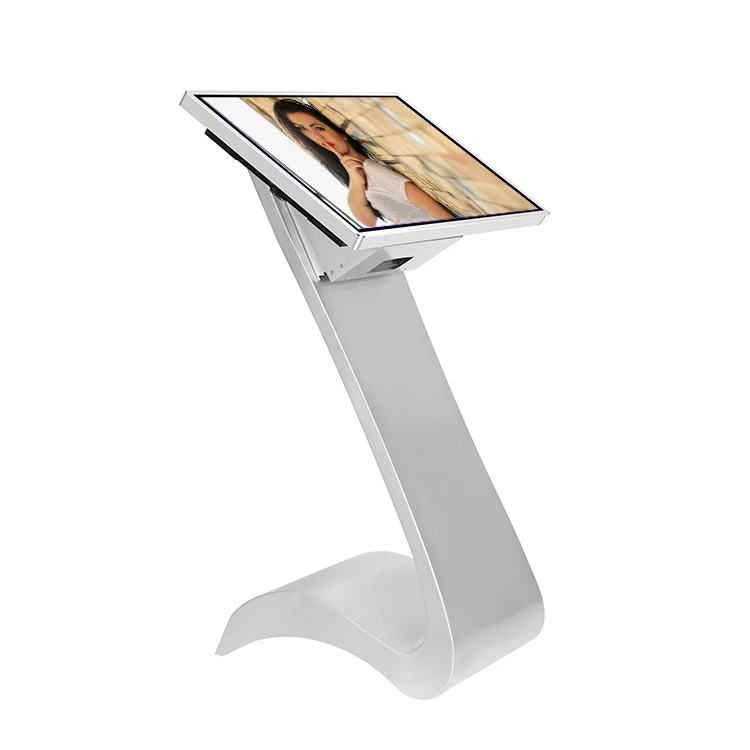

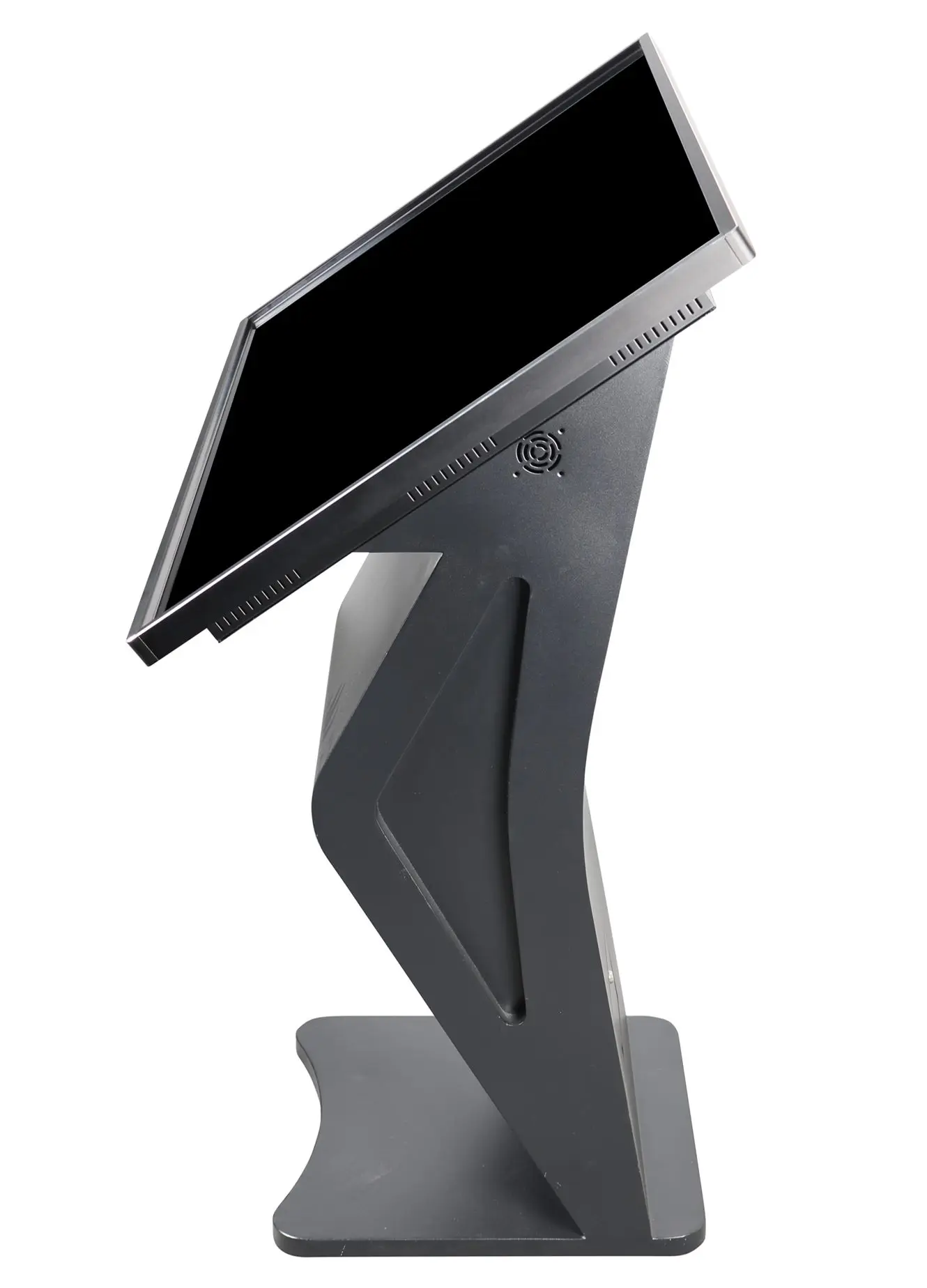

32 inch table touch kiosk smart switch board touch screen small flexible touch screen display
- Category: >>>
- Supplier: Shenzhen CSXT Multimedia Technology Co. Ltd.
Share on (1600214744455):
Product Overview
Description
Product Description
32 inch table touch kiosk smart switch board touch screen small flexible touch screen display
| Touch Screen | G+G 10-point Infrared or Capacitive touch, response time <5ms, touch life of more than 60 million times, ±1mm touch deviation, automatic calibration method | |||||
| Color | Silver, black, gold (customizable) | |||||
| Materials | 1.5mm cold-rolled steel shell + 4mm tempered glass display | |||||
| Optional Functions | 3G/4G, camera, card reader(ID/NFC/IC card), printer, scanner(QR code/biomini), microwave inductor, microphone, keyboard or customized (Optional, Need extra charge) | |||||
| Panel Brand | LG or SAMSUNG Full New 100% A+ Grade Brand Panel | |||||

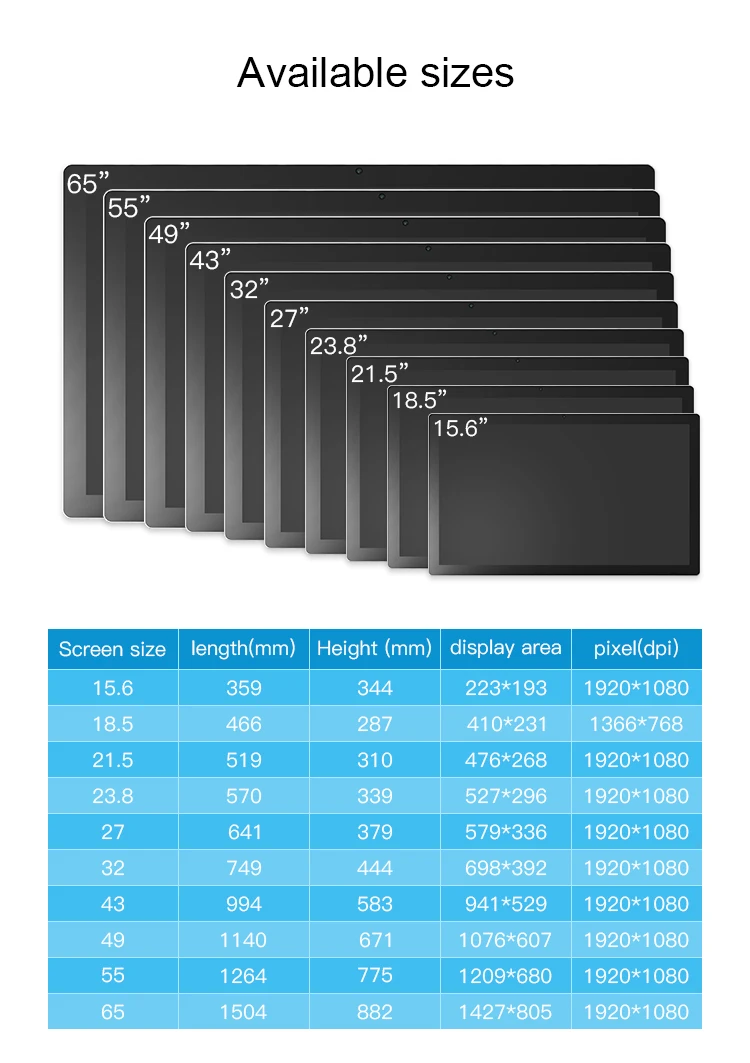

| Panel Size | 32 Inch | 43 Inch | 49 Inch | 55 Inch | 65 Inch | |
| Display Size | 699 (H) x392.8V) | 941.2 (H) x529V) | 1076.5 (H) x607.5(V) | 1209 (H) x680(V) | 1427.08 (H) x805.32(V) | |
| Contrast Ratio | 1500:1 | 2500:1 | 3000:1 | 4000:1 | 4000:1 | |
| Brightness Nits | 300 cd/m2 | 300 cd/m2 | 380 cd/m2 | 450 cd/m2 | 450 cd/m2 | |

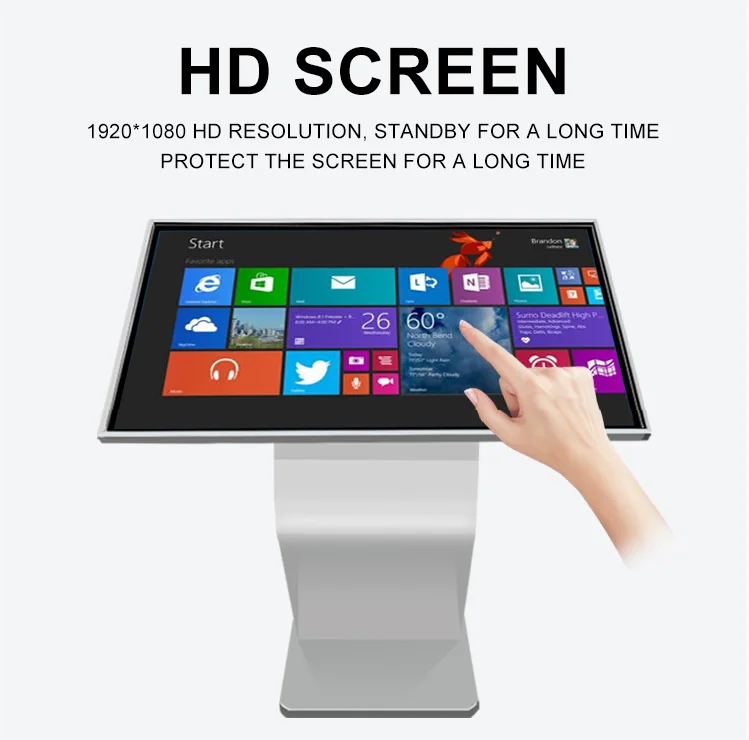

| Max resolution | 1366 x768 HD | 1920 x1080 HD | 1920 x1080 HD | 1920 x1080 HD | 1920 x1080 HD | |
| Body size | 749 x444x82mm | 992 x580x89mm | 1140.9x671.9x77.3mm | 1284.9x755.9x81.3mm | 1504 x882.24x81.3MM | |
| Box weight(GW) | 42KG | 50KG | 65KG | 80KG | 95KG | |
| Viewing Angle | 178°(H) / 178°(V) | |||||
| Backlits | LED | |||||
| Display Ratio | 16:9 | |||||
| Response Time | 8ms | |||||
| Color | 16.7M | |||||
| Pixel Pitch | 0.282x 0.282(W×H) | |||||
| Theory Lifetime | 50000 hours | |||||
| Operating System | Android 7.1/8.0/9.0 | Windows 7/10 | ||||
| Main Board | Rockchip | Intel i3 | ||||
| CPU | RK3288 Cortex-A17 Quad core 2.0 | Intel i3-3217U Dual-core, 1.8GHz | ||||
| RAM | DDR3 2G/4G | 4G / 8G | ||||
| Storage | 16G/32G | 64G / 128G SSD | ||||
| OSD Language | English or customized | |||||
| Network | RJ45/4G(optional, need extra charge)/WIFI | |||||

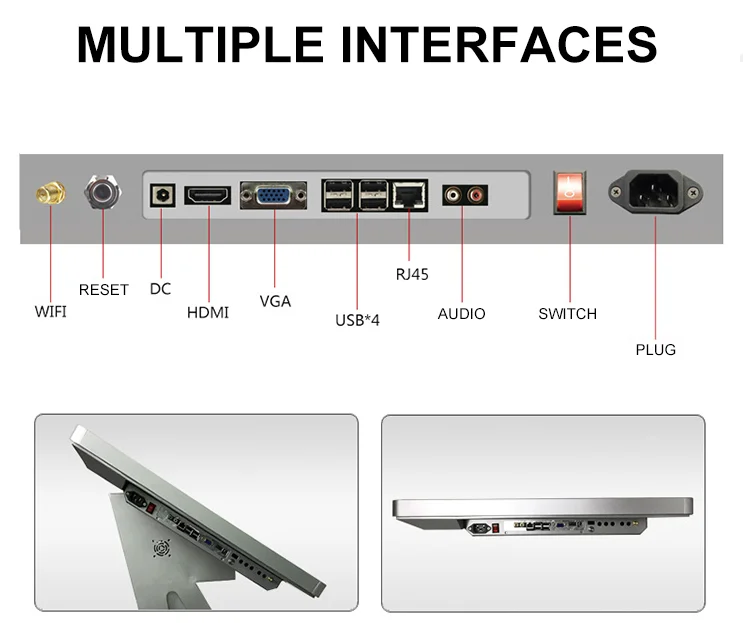

| Interface | USB2.0*2, SD card, HDMI, RJ45,4G(optional),wifi, audio, DC | |||||
| System Upgrade | Support SD card upgrade | |||||
| File Formats | Video | 720P,1080P,H265/264/MPEG4,AVI,WMV,3GP,MP4,MOV,FLV | ||||
| Picture | JPG/JPEG/BMP/GIF/PNG | |||||
| Music | MP3/WMA/AAC/AC3/DTS | |||||
Company Information
Enterprise certifica

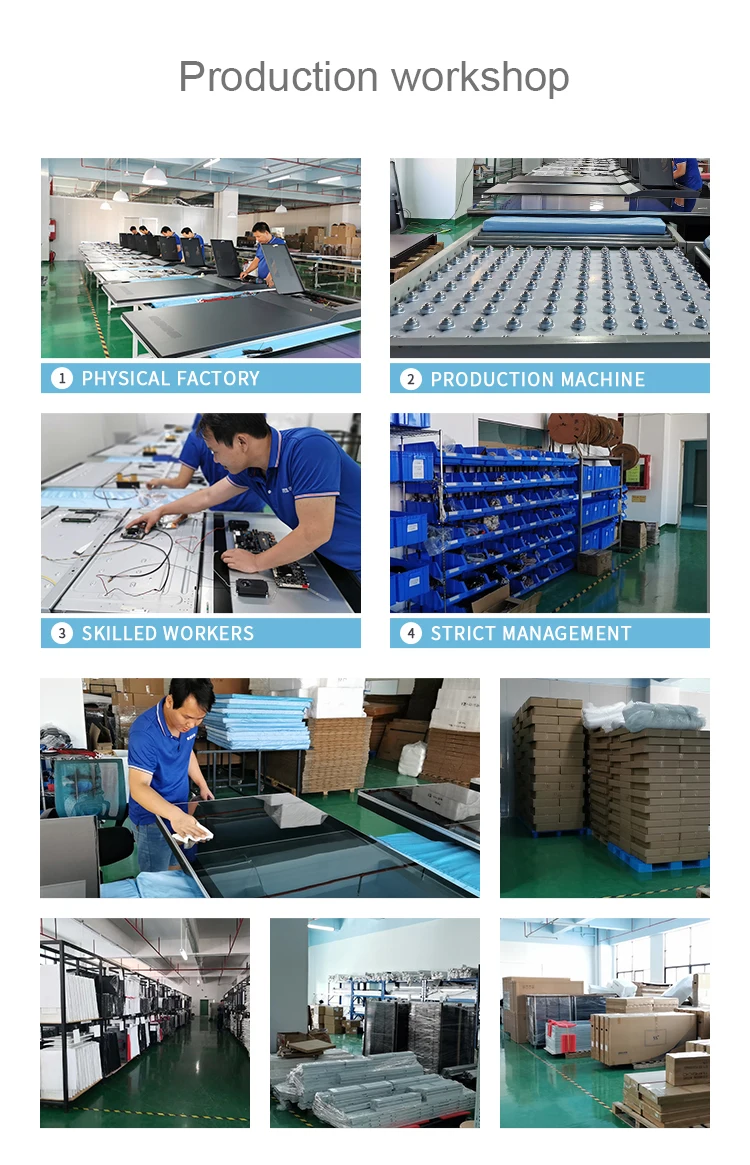

Production workshop
FAQ
(1)Q: Are you a factory or trading company?
A:We are a OEM/ODM factory and specializing in producing LCD display for 10 years
(2)Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
(3)Q:How long is the warranty time for your products?
A:Our officially promised warranty time is 1 years after delivery at best.hardware problems can be replaced with parts, software problems can be resolved by remote control, with a perfect system and professional before-sales and after-sales engineers.
(4)Q:I haven't done business with you guys before,how can i trust your company?
A:High-end Alibaba store-Jinpincheng store, Alibaba has sent professionals to build KA (annual sales of 50 million) or SKA (annual sales of 100 million) for our stores . what's more,we've got quite a lot authority certificates,for example,CE, UL, RoHS, FCC ISO9001, BV, Alibaba onsite check certificate.
(5)Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order. As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-7 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.
(6)Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
(7)Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send
