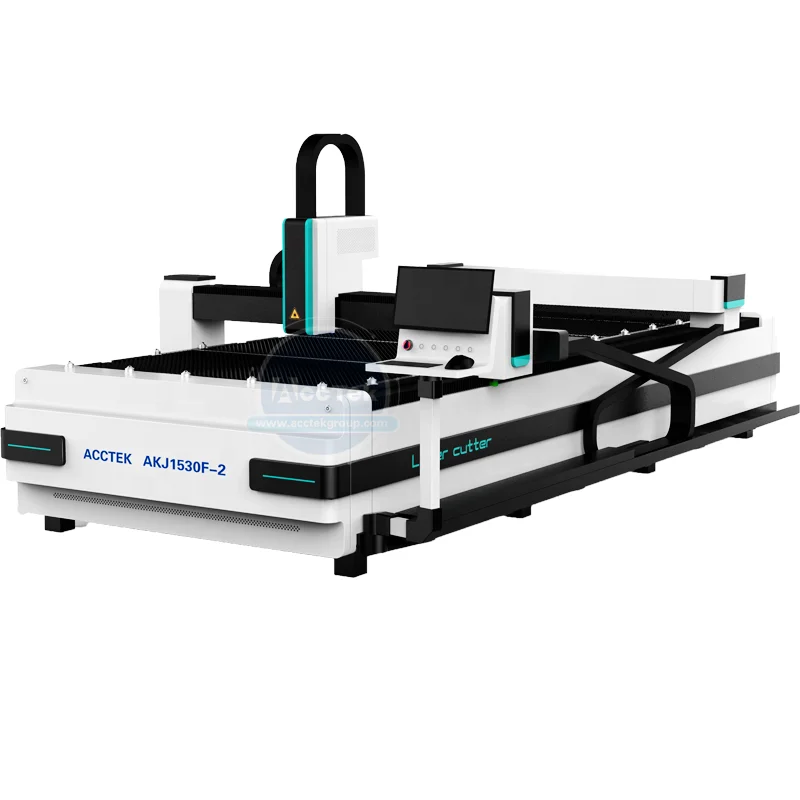

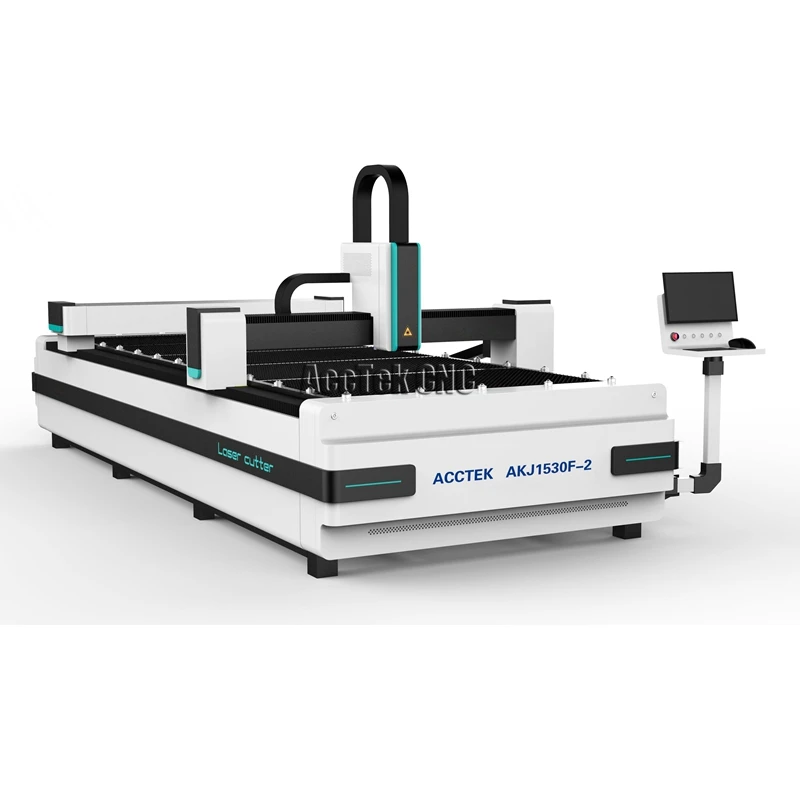

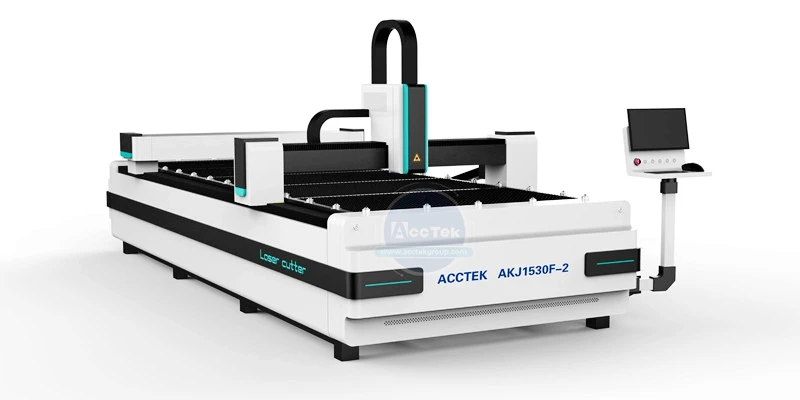

Factory price CNC sheet metal and non metal laser cutting wood mdf CNC 1325 1530 cutter laser machine

Share on (1600214748129):


Price:$16,000.00 - $20,000.00

Quantity:


Product Overview

Description


 Factory price CNC sheet metal and non-metal laser cutting wood mdf CNC 1325 1530 cutter laser machine






Product Description


Brief introduction:


ACCTEK fiber laser cutting machine adopts RAYCUS/ IPG laser source which has international advanced laser technology. Equipped with an efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced Cypcut control system, group into high precision CNC fiber laser cutting machine.

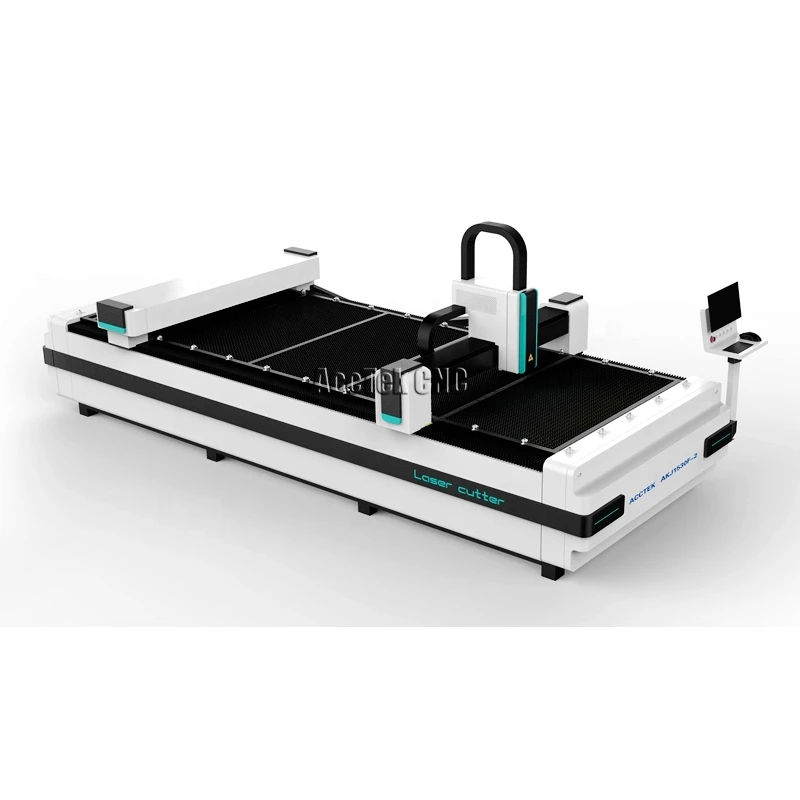

 AKJ1530F-2 (3).jpgAKJ1530F-2 (4).jpg


Features:


1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.


2. High-performance laser source and stable operating Cypcut system which makes the best cutting effect.


3. The machine owns a perfect cooling system, lubrication system, and dust removal system, to ensure that it can operate stably, efficiently, and durably.


4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

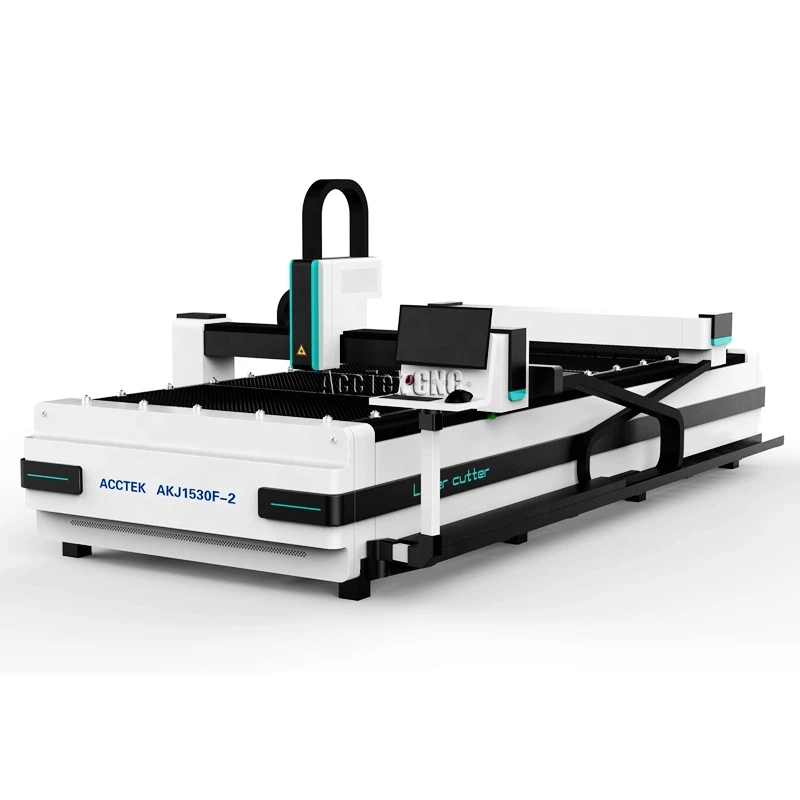

 AKJ1530F-2 (2).jpg































































































1-Configurations & technical parameter



Working area



1500*3000mm



Control System



Au3tech controller with wireless DSP for fiber laser cutting


Ruida controller for co2 laser cutting



Control computer







Laser head



Au3tech fiber laser cutting head, Co2 laser cutting head



Computer arm support



With



Guide rail



Taiwan HIWIN linear guide rail 25mm



Fiber Laser Generator



Raycus 1000W



Transmission



Taiwan APEX/YYC gear rack pinion transmission



Electronic Components



French Schneider



Motor&driver



XY axis Taiwan Delta 750w servo Z axis 400W servo



Max Cutting Speed



35m/min



X axis Max Speed



65m/min



Y axis Max Speed



70m/min



Z axis Max Speed



30m/min



X axis Max Acceleration



1G



Y axis Max Acceleration



1G



Cooling Way



water cooling



Repeat Positioning Accuracy



0.02mm



Power Requirements



380V ,50/60hz ,3 phases



Continuous Working Time



24Hours










Application

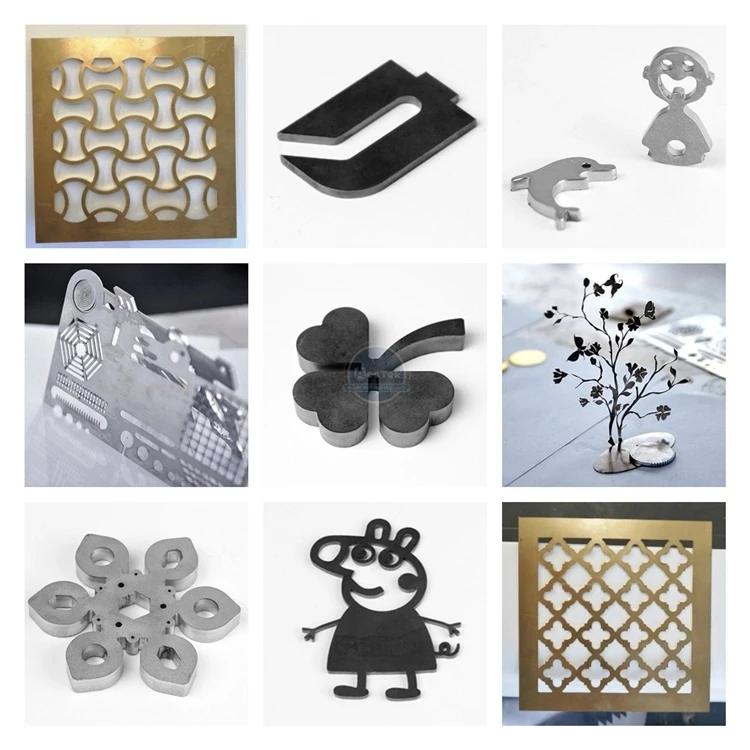

Application materials:

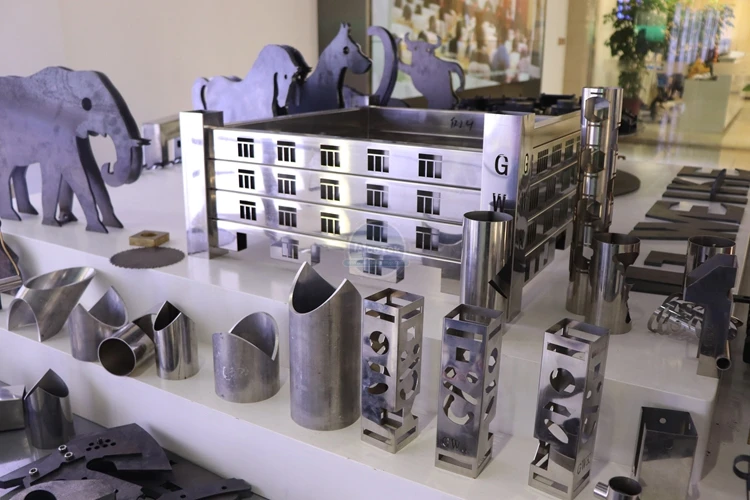

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube), Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc







Application industry:


This Fiber Laser Cutting Machine is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

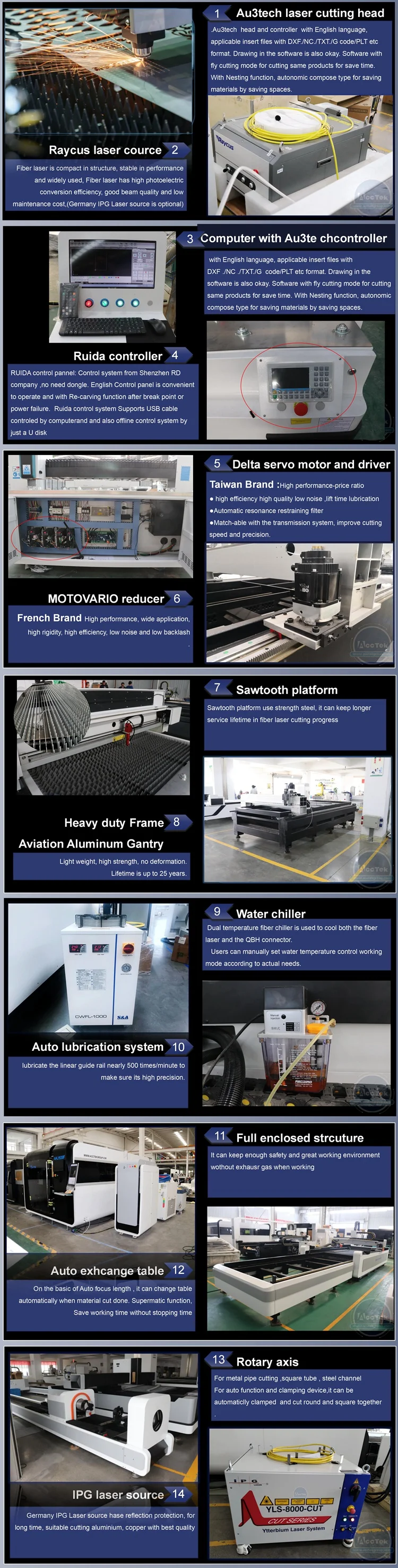

Machine Details














Sservice


Service:Pre-sale


1)Professional sales team and engineer team provide professional technical Support


2)24 hours of online service each day,you can contact us by email, Whatsapp, Skype, Wechat, Phone number, and so on.


3)Test video and Sample support for free


4)OEM support


5)Certificate support: CE


photobank (3).jpg


In-sale Service
1)In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
After our machine finish, our engineer will make 24 hours test constantly and ensure the machine reach the best performance.


2)Shooting working video and machine pictures for customers' confirmation.


Shoot delivery video, parts pictures in every detail, and save on file so that our after-sale team can help customers solve questions faster.


 after sale service - .png


After-sale


1. 3 years quality guaranty (1.5 years for laser generator), the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.


1. Lifetime maintenance free of charge.


3. Free training course at our plant.


4. We will provide the consumable parts at an agency price when you need replacement.


5. 18 hours of online service each day, free technical support.


6. Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, please kindly tell me.









 Packaging & Shipping



Packaging & Shipping

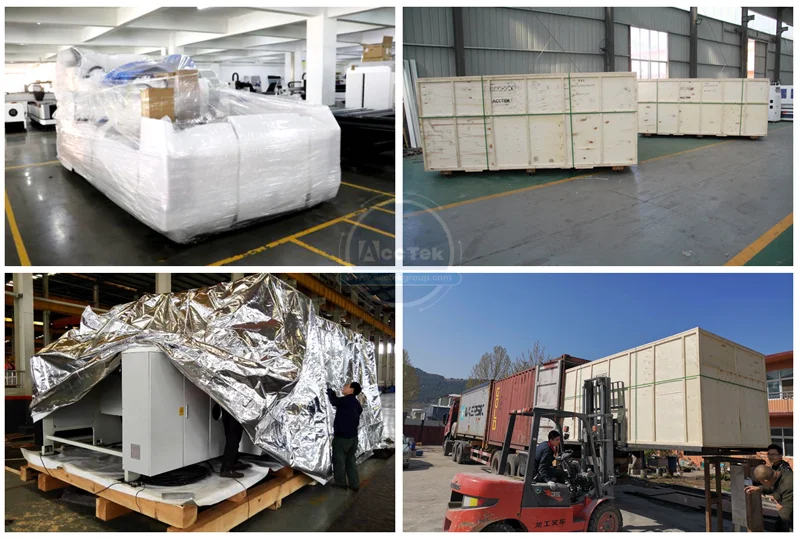

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.


3. Transport can be by sea,truck,train, and some small part can be transport by air(if needed)







Payment details:


what services can we provide?



  • Accepted Delivery Terms: FOB,CFR,CIF,EXW,DAP,DDU,Express Delivery;

  • Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;

  • Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;

  • Language Spoken:English,Chinese,French,Russian


-2

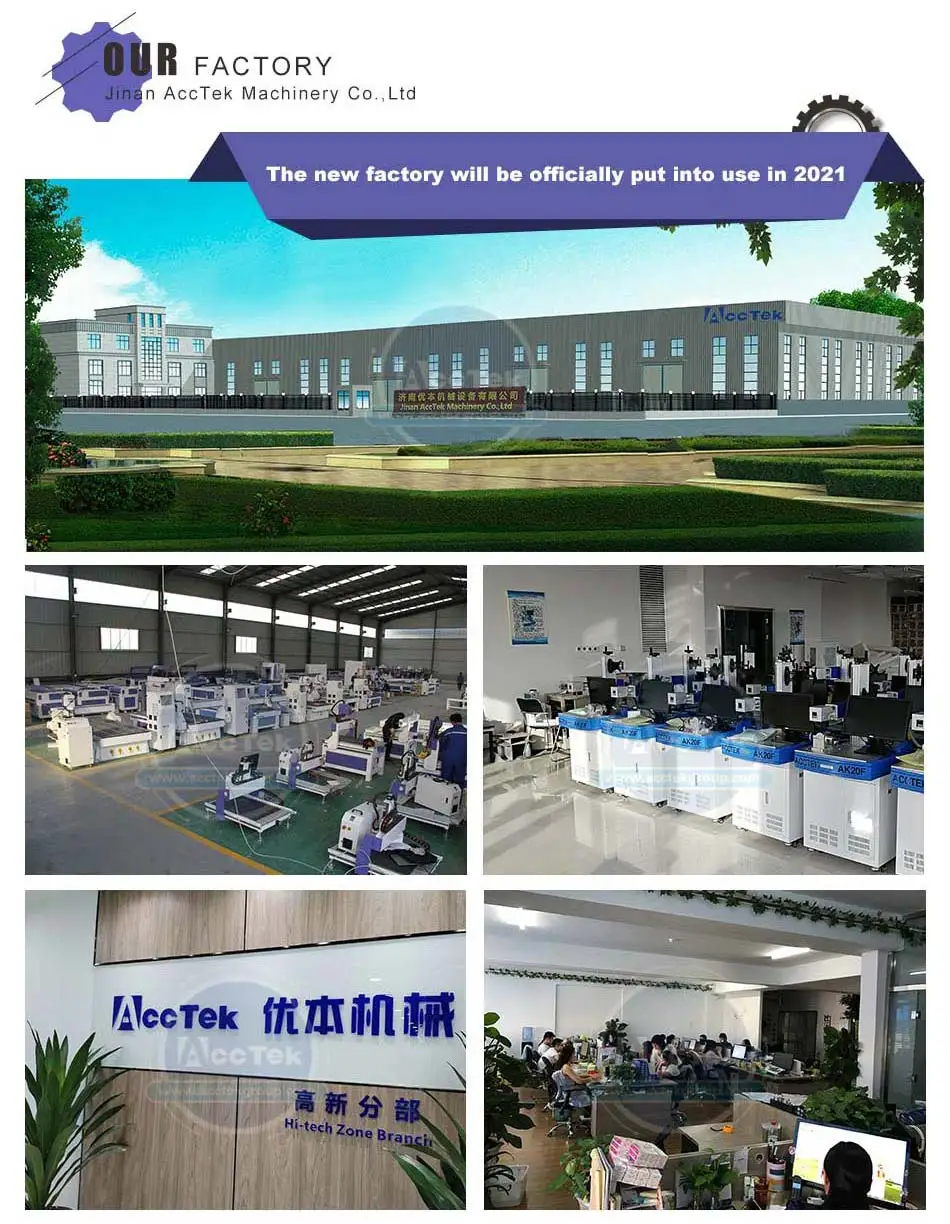

Company Information
