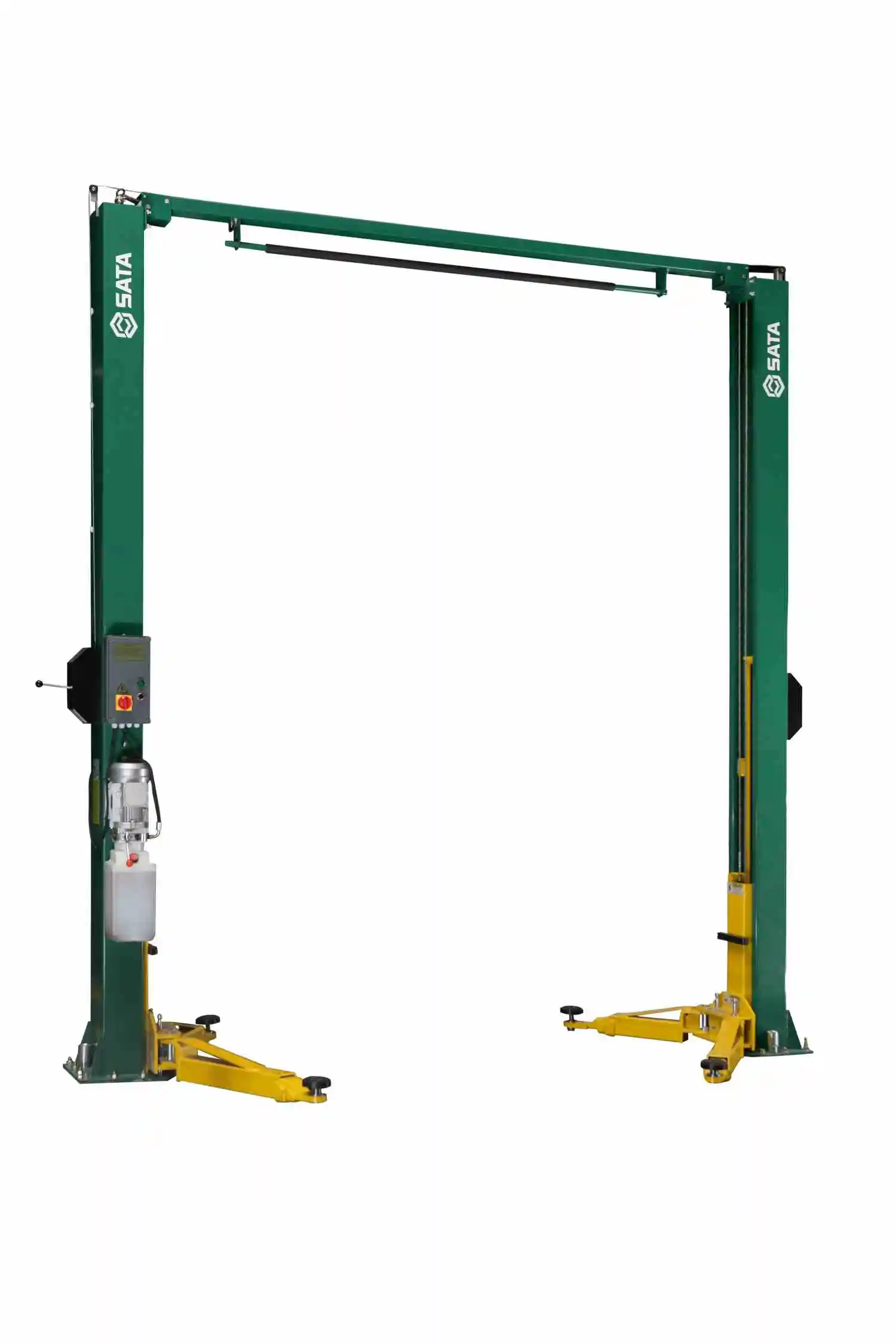

SATA 4 tons widened manual gantry lift AE5102 3 two post car lift.
- Category: >>>
- Supplier: Shanghai Hoton Auto Equipment Co. Ltd.
Share on (1600214855608):
Product Overview
Description

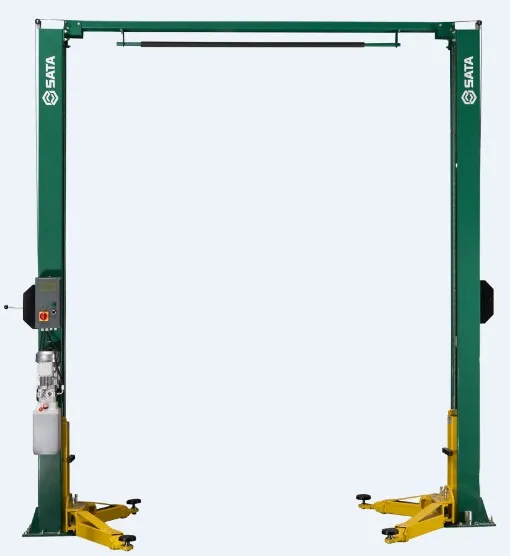

SATA 4 tons widened manual gantry lift AE5102-3 two post car lift.
Specification
- Product No.AE5102-3
- Trat and high bush length70mm
- Maximum lift height1990mm
- Loaded rising time60s
- Load falling time50s
- Motor power2.2KW
- Motor shellaluminum alloy
- Unlock methodManual unilateral
- Overall Height3900mm
- Inside column width3000mm
- External width of plate3580mm
- Tray thread3knots 70mm adjustable
- Arm type2+3straight arm
- Electric control mode24VSecurity control box
- Base plate fixed hole positionunilateral 8pcs
- MADE INChina
- Voltage380V
- Rated load4ton
- Min#Height95mm
Introduction

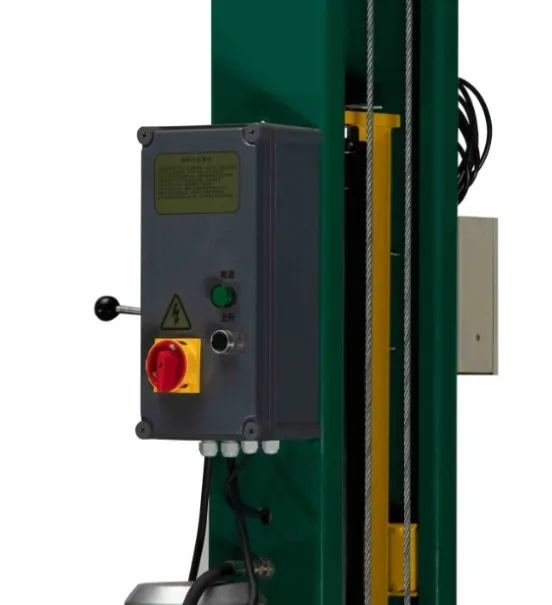

| 24V safe voltage control | |||||
| With an safety mechanism on one side for manual unlocking; the safety mechanism automatically locks itself when a hand is away from the mechanism | |||||

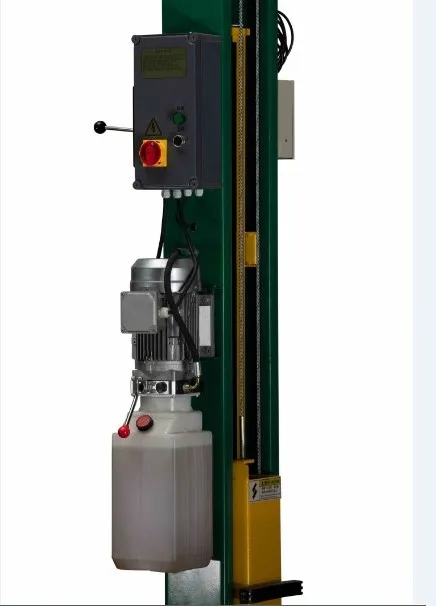

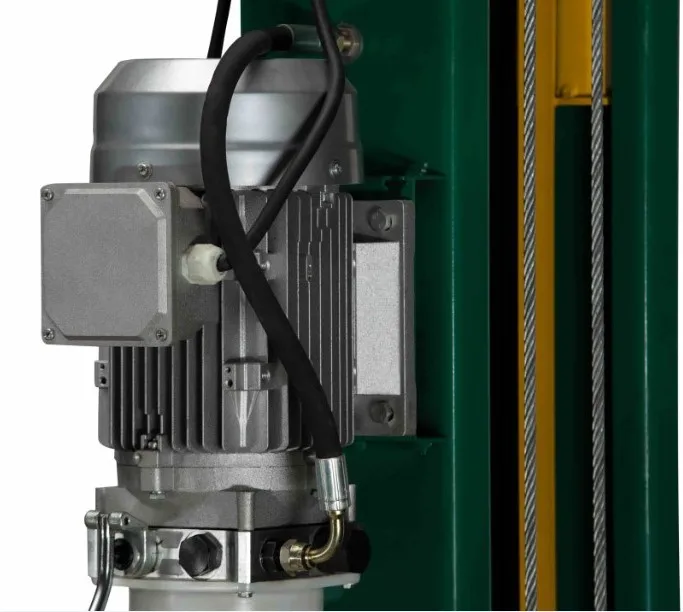

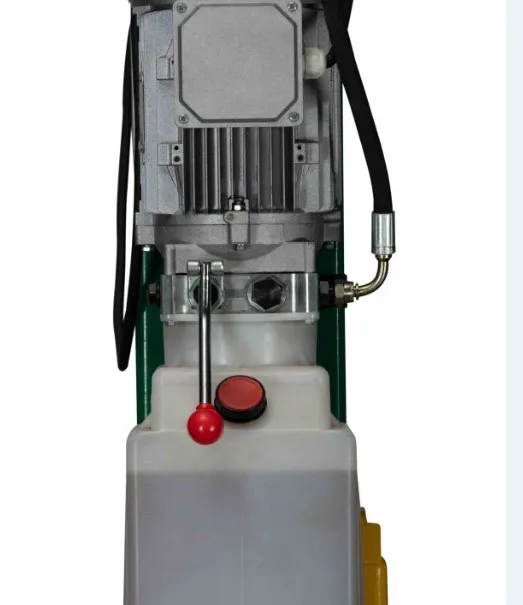

| Motor with aluminum alloy housing, featuring fast heat dissipation | |||||
| Directly-driven oil cylinder, avoiding chain fracture risks | |||||

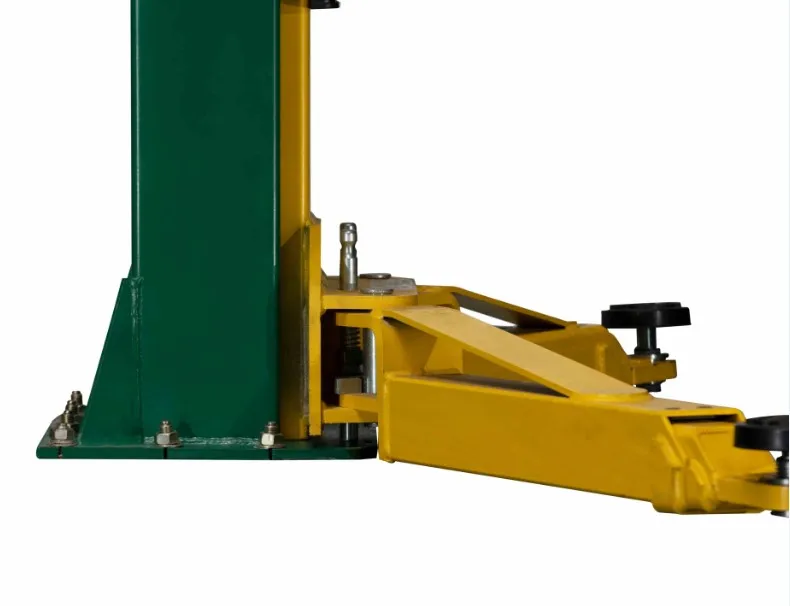

| 2 sections of straight bracket arms + 3 sections of straight bracket arms, suitable for more models | |||||
| With 16 pieces of M18x160 expansion bolts | |||||
| Tray with high bush as standard, for SUV models | |||||
| Sliding table lengthened to 1950MM with strength improved | |||||
| Sliding blocks increased from 2 sets to 3 sets, increasing the area under load and improving stability | |||||
| Sliding table welded by 16mm steel sheets, with strength improved | |||||

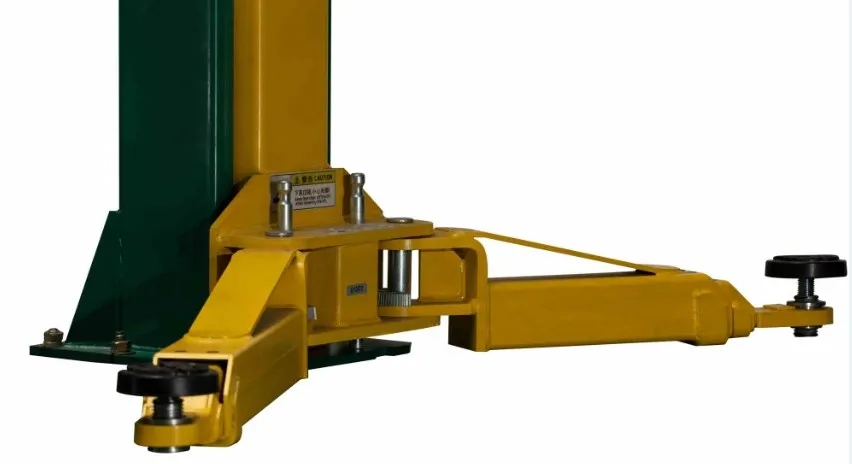

| Bracket arm safety mechanism with helical teeth design, ensuring perfect gear mesh |
