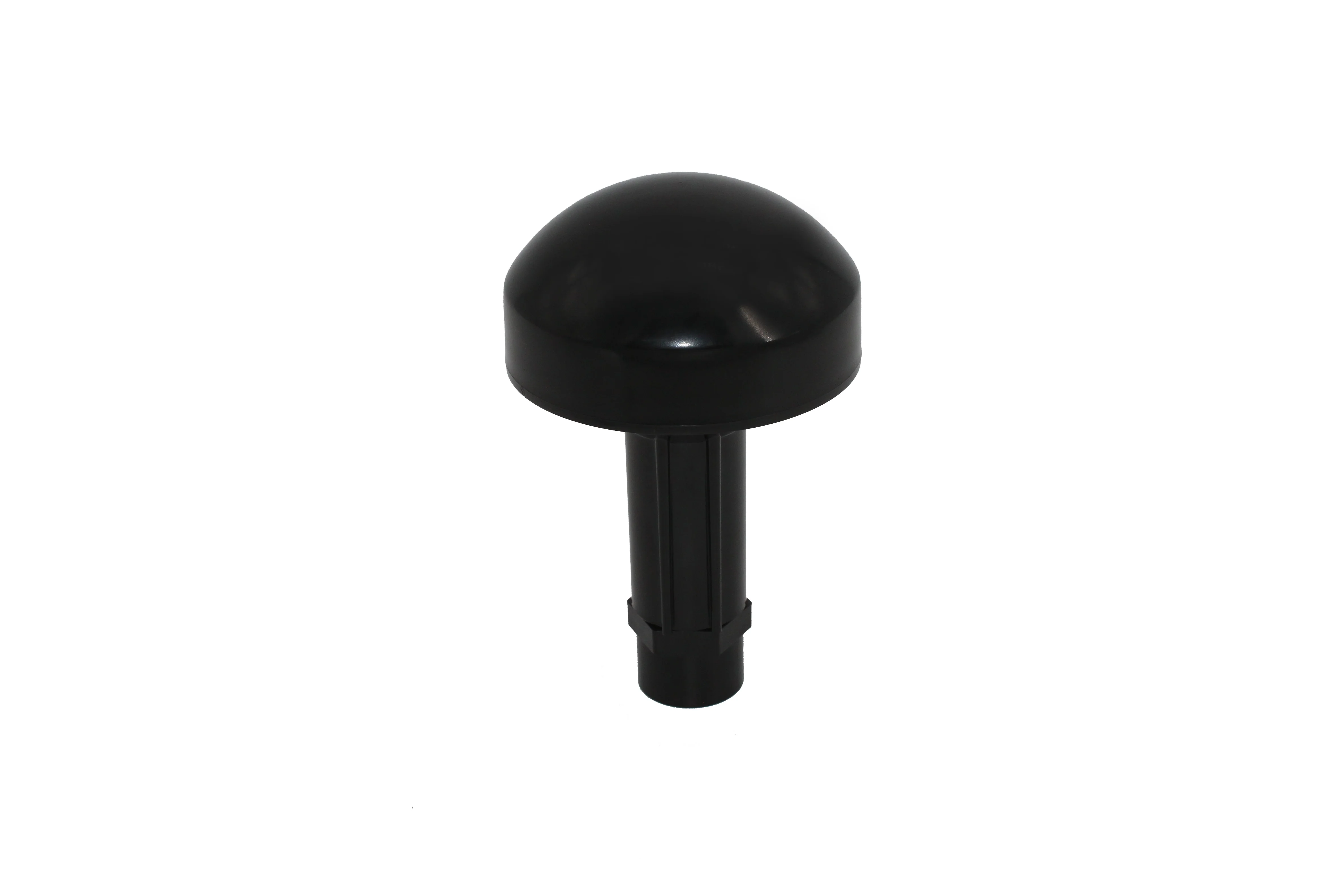

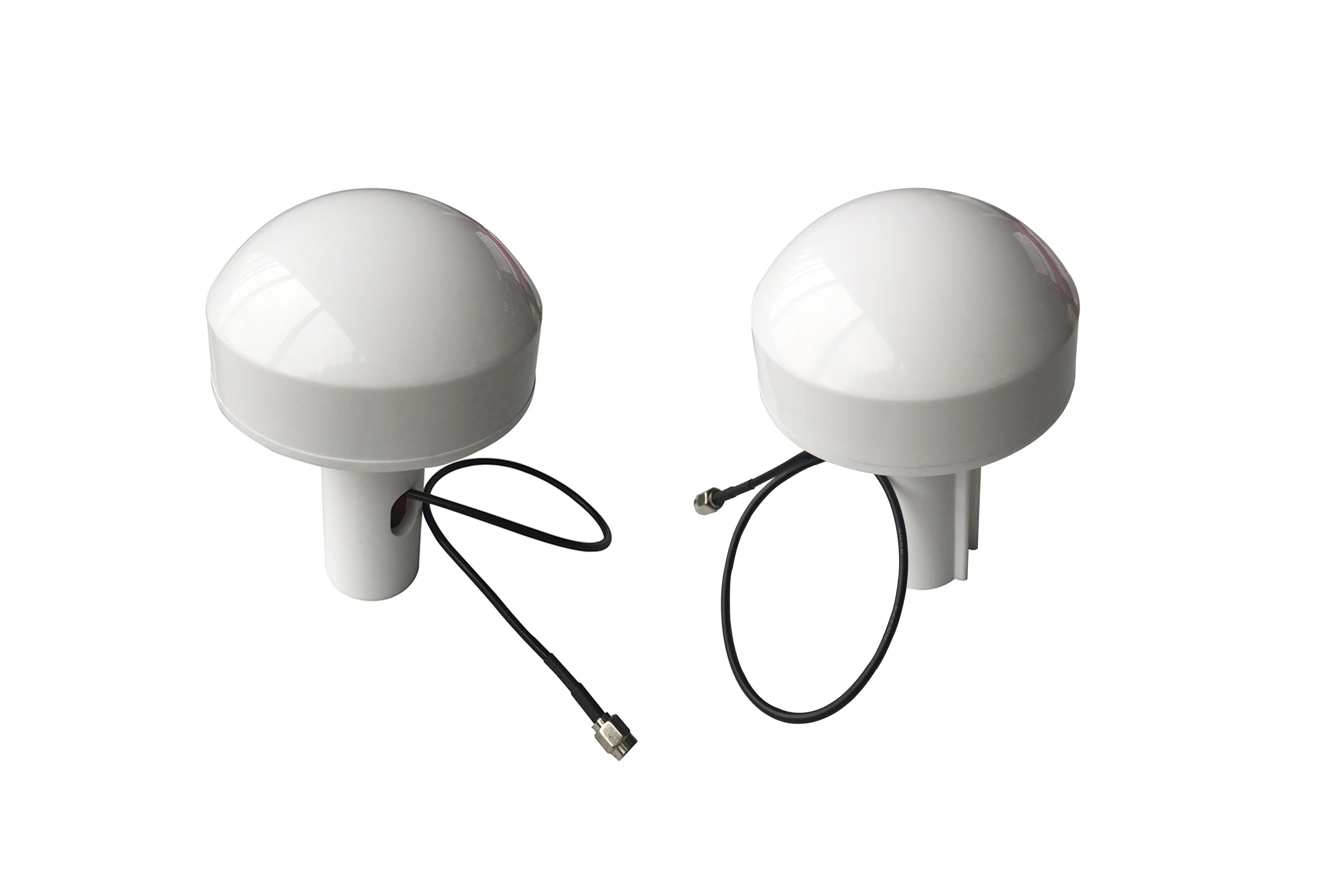

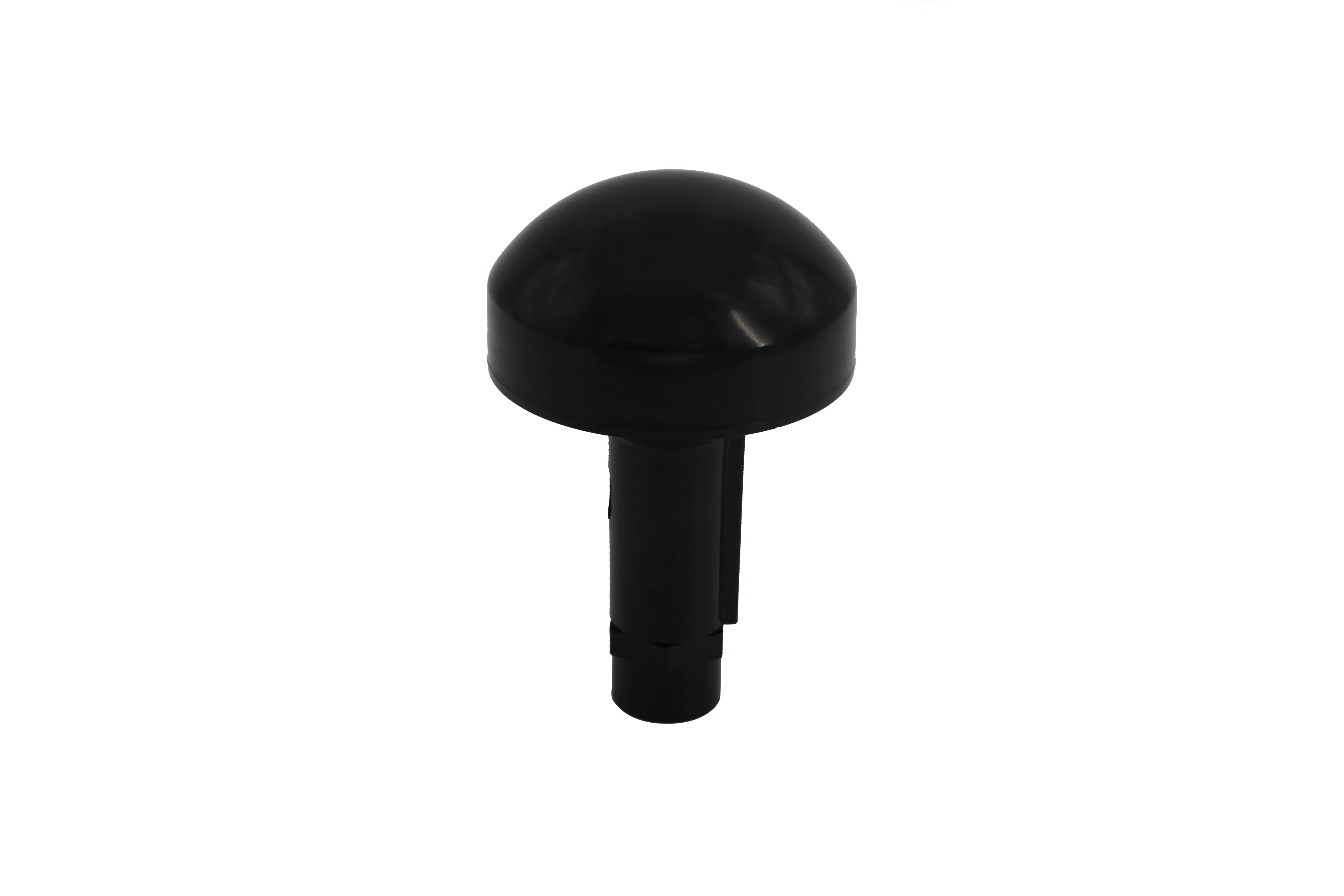

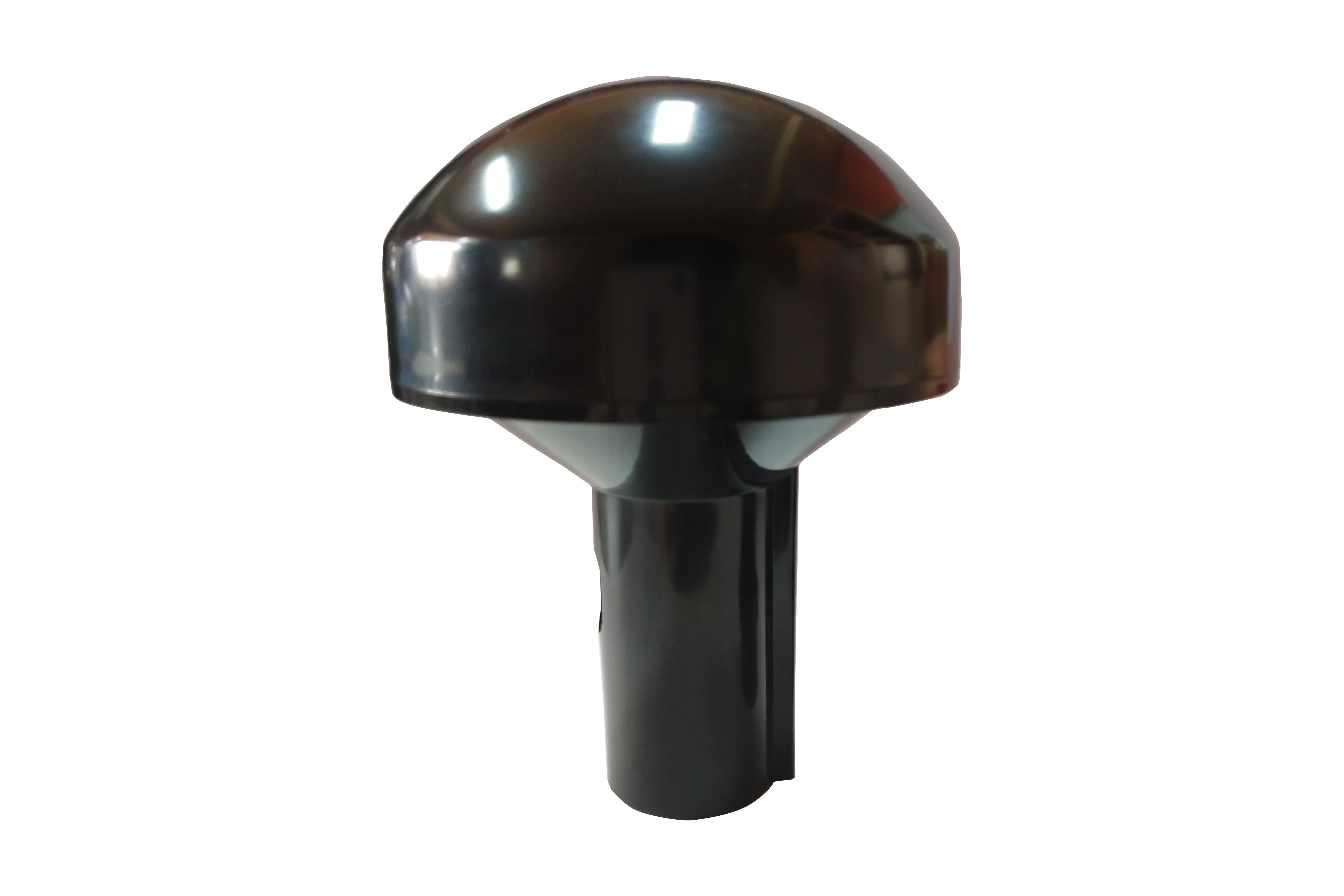

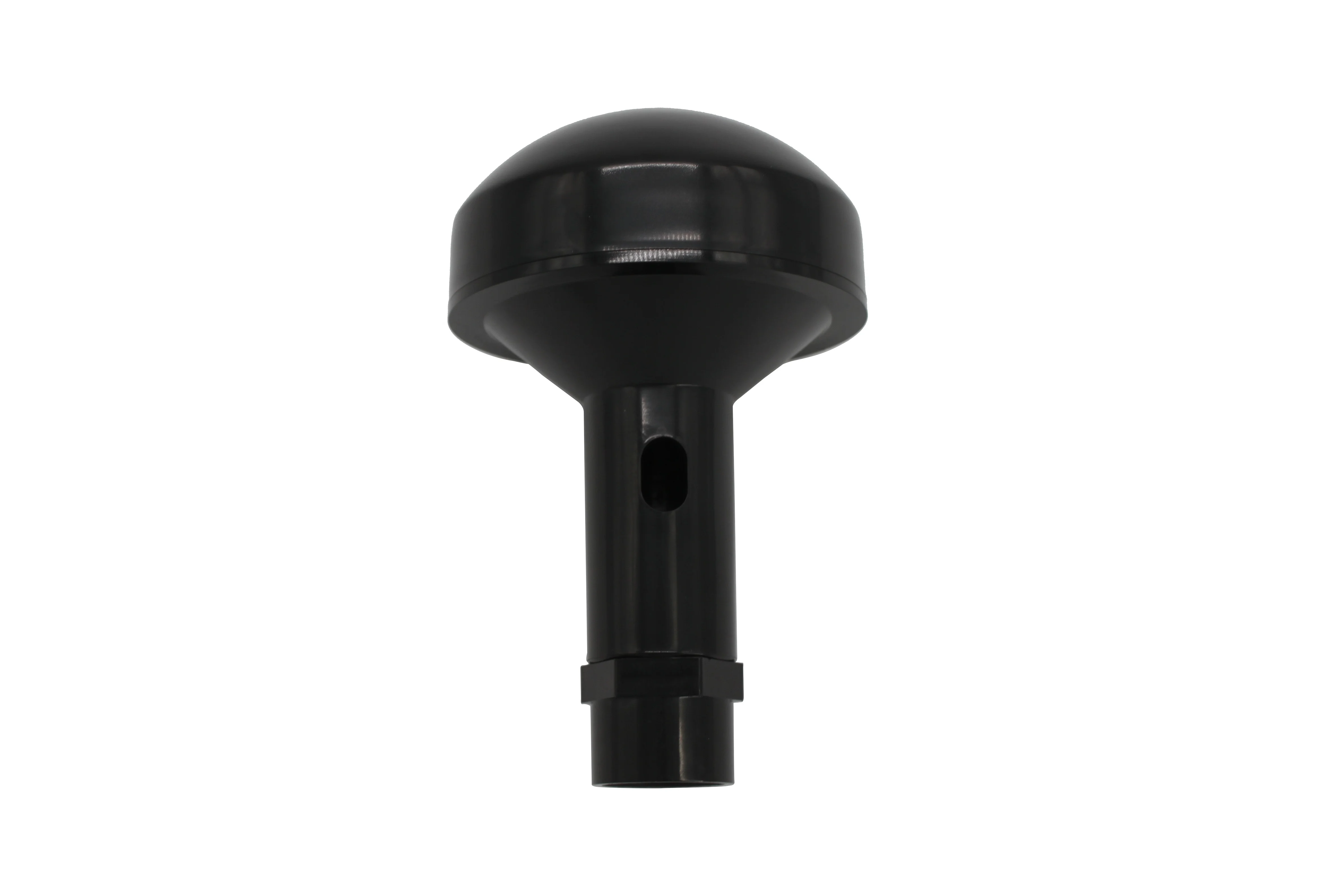

GPS Marine Aerial Signal Booster External Antenna with RG58 Cable
- Category: GNSS & GPS Antenna >>>
- Supplier: Jiaxing Bailly Mechatronics Co. Ltd.
Share on (1600214933149):
Product Overview
Description
Product Description
GPS Marine Aerial Signal Booster External Antenna with RG58 Cable
Specification:
| Dielectric Antenna | |
| GPS Frequency | 1575.42 MHz±3 MHz |
| GLONASS Frequency | 1602-1610 MHz |
| Compass Frequency | 1561 MHz |
| V.S.W.R | 1.5:1 |
| Band Width | ±5 MHz |
| Impedance | 50 ohm |
| Polarization Type | R.H.C.P |
| LNA/Filter | |
| LNA Gain(w/o cable) | 28±2dB Typical |
| Noise Figure | 1.5 dB |
| DC Voltage | 2.2~5 V |
| DC Current | 5~15 mA |
| GSM Antenna | |
| Frequency | 824-894 MHz/1710-1990 MHz |
| 880-960 MHz/1710-1990 MHz | |
| 1920-2170 MHz | |
| V.S.W.R | 2.0:1 |
| Band Width | ±5 MHz |
| Impedance | 50 ohm |
| Gain(w/o cable) | 2 dBi |
| WIFI Antenna | |
| Frequency | 2400-2500 MHz |
| V.S.W.R | 2.0:1 |
| Band Width | 100 MHz |
| Impedance | 50 ohm |
| Gain(w/o cable) | 3 dBi |
| Mechanical | |
| Mounting | Magnetic/Adhesive/Screw |
| Housing | Black |
| Cable | RG174 3m or others |
| Connectors | SMA/MCX/SMB/BNC or others |
| Environmental | |
| Working Temp | -40℃~+85℃ |
| Relative Humidity | 55%~75%RH |
| Waterproof | IP67 |
Product Category
Company Information
Jiaxing Bailly Mechatronics Co.,Ltd.
Is established in 2010, specializes in GPS antennas, GSM antennas, WIFI antennas, 4G antennas, GLONASS antennas, Beidou antennas, GPS / GSM / WIFI combined antennas, various connection cables and coaxial connectors.
The company is located in Jiaxing City, Zhejiang Province, China, and belongs to the Yangtze River Delta Economic Zone of China. Our company is adjacent to Shanghai, Jiangsu Province, and Anhui Province. The area has a developed transportation and logistics system and has a unique geographical advantage. The company has a modern standard workshop of 12,000 square meters and with more than 50 dedicated engineering and management staffs including our engineering director MR Zhu, with bachelor and postgraduate
degree, graduated from Imperial College London, which is TOP 10 university in the world.
After 10 years of development, the company has advanced technology in the field of antennas and navigation with 7 national patents. Our company is based on scientific and technological innovation with modern enterprise management, aiming to provide high-quality
products and excellent service for every customer and business partner.
Certifications
Our Advantages
There are more than 50 existing engineering and management personnel, including our engineering director, who graduated from Imperial College London, a top ten university in the world.
After 10 years of development, the company has advanced technology in the field of antennas and navigation, and holds 7 national patents.
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
7-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
