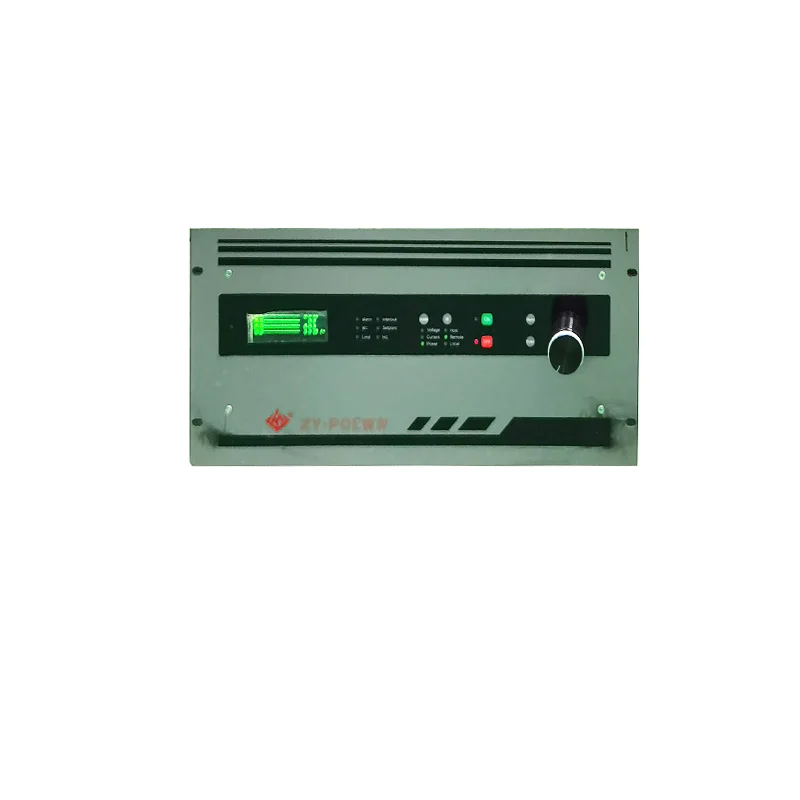

20kw HIPIMS PVD Magnetron Sputtering Power Supply
- Category: >>>
- Supplier: Hunan Zhongyuan Technology Co. Ltd.
Share on (1600214939307):
Product Overview
Description
HiPIMS High Power Pulsed Magnetron Sputtering
Product Name : HIPIMS Power Supply
Output Power : 20kW
Output Mode : DC output, Pulse output and DC superposed Pulse output for magnetron sputtering
Operation Interface : Touch Screen Control
DC Mode Output : Constant Current
DC Voltage : ~800V
DC Max. Current : 15A
DC Power : 10kW
Pulse Mode Output : Constant Voltage
Maximum Pulse
Output Voltage : ~0 - 1000V
Pulse Power : 10kW
Maximum Pulse
Peak Current : 400A (adjustable set-point to avoid overcurrent for various target size)
Pulse Width : ~25μs – 300μs (continuous adjustable)
Pulse Frequency : ~25Hz – 300Hz (continuous adjustable)
Arc Suppression : Equipped
Cooling Mode : Forced Air
Protection : over-voltage, over-current, over-heat
Waveform Output : BNC ports for oscilloscope to real-time measurement of voltage and discharge current
Input Power : AC 380 V ± 5%, 50 Hz ± 5%, 60A, 3-phase 4-wire systems
Company Information
Hunan Zhongyuan Technology Co., Ltd was established in 2001. Zhongyuan is a Hi-Tech enterprise which integrating developments, production and sales. Its products own more than 10 national patent and software copyright.
Zhongyuan specializes in providing the complete solution of related field power supply and control system by owning technologies of the copyright of high frequency switch power supply, high voltage impulse power supply, auto control system, and it is based on plasma application technology research production from Zhongnan College, with the breakthrough of plasma technology application field. We specialize in new technique and new products developing, custom made special model.
Zhongyuan has developed all series inverter vacuum coating supply(bias, magnetron sputtering, arc and ion supply), micro-arc oxidized supply, air purified supply and varies of high frequency & high voltage impulse supply. They are widely applied to: solar energy coating, ITO, LOW-E, high reflection, tooling coating, special LCD coating, scientific research, electronic components, optical and decorative field coating.
FAQ
Q1: What is your MOQ?
A1: One set.
Q2: Is OEM/ODM available?
A2: Yes. Our products can be customized.
Q3: How long is your delivery time?
A3: It depends on your order quantity and generally it takes about 20-30days.
Q4: Which market do you usually sell?
A4: Middle East, Afica, Europe, Asia,etc.
Q5: How long is the warranty?
A5: Within one year from sale date.
