XH 106 Data Acquisition Modules

Product Overview

Description

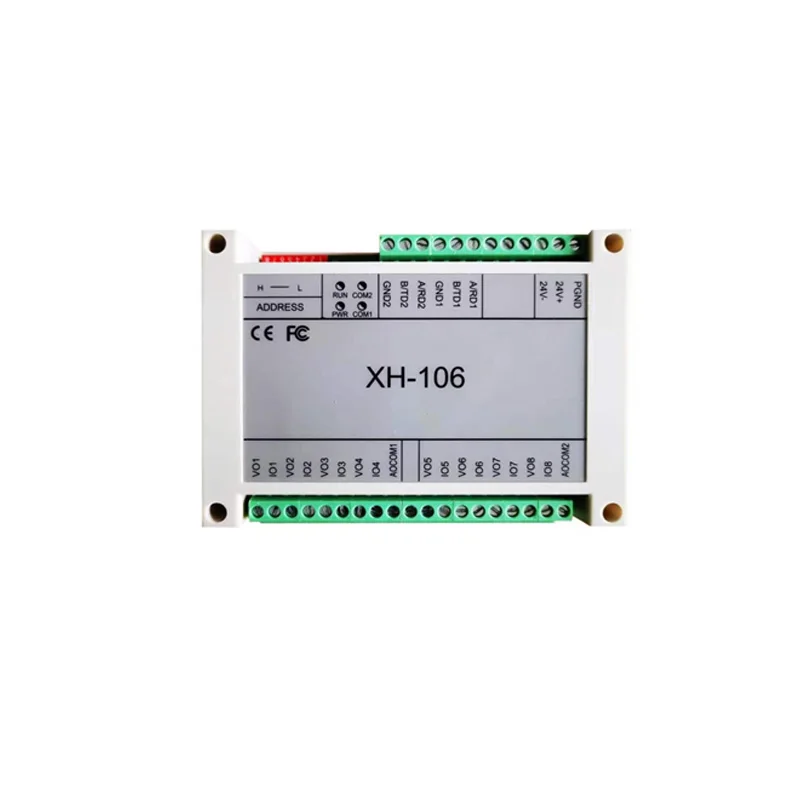

 XH-106 Data Acquisition Modules





1. Product Introduction
1.1. Product design description
The XH-106 data acquisition module is a general data acquisition module developed by our company for various applications. It is widely used in various industries such as building, HVAC, fire protection, water supply, petrochemical, and environmental protection. It is used by most system integrators and automation companies, The research institute adopts a data acquisition module with extremely high character ratio, stability and reliability.
The XH-106 module can be used alone or extended.



1.2. Features

°  8 channels of DC output
°  2 isolated communication ports (485 or 232), support MODBUS RTU or other protocols, easy to expand.
°  SMD installation, no external bus, high reliability and strong anti-interference ability.
°  Fastened by cassette guide rails or screws, making on-site installation more convenient.



1.3. System Parameters

1.3.1. DC analog output capacity: 8 channels/module

Output signal: 0-10V or 0-20mA or 4-20mA
Output impedance: 0~10V internal resistance 125 ohm current output, output impedance greater than 100K
Load capacity 350 ohm resolution: 12 bit D/A
Accuracy: 0.2% FS ± 1 word



1.3.2. Communication interface capacity: 2 channels
Interface mode: RS485 interface, RS232 interface, optional. Protocol: MODBUS protocol or other protocols



1.4. Installation and use environment
Installation method: cassette rail installation or bottom screw fixing
Temperature range: -10℃~55℃ Storage temperature: -20℃~70℃ Relative humidity: <85% (20±5℃ condition) Atmospheric pressure: 86~108Kpa
Installation size: 145×90×40mm Power supply: DC 24V ±10%
Power consumption: less than 2W

Working environment: no explosion, no corrosive gas and conductive dust, no serious mold, no violent vibration, no shock source; if you need to work in such an environment, please take corresponding protective measures.
