Laser Range Finder Radar De Velocidad 40M 4500Hz TOF Single Element LIDAR Sensor Module For Laser Meter Distance
- Category: >>>
- Supplier: Dongguan Xinchangda Precision Technology Co. Ltd.
Share on (1600215211416):
Product Overview
Description
Product Overview
40m 4500Hz TOF Single Element LIDAR Laser Rangefinders
SKP series laser ranging radar is a device that can measure the distance between an object and the front end of the ranging radar. It can be used in industrial measurement, robot obstacle avoidance, automobile collision avoidance and other scenarios. WZ-SKP40 has a range of up to 40 meters, and has centimeter-level accuracy at all distances. The new DeTOF technology allows WZ-SKP40 to work stably under strong outdoor light. These features further enhance WZ-SKP40 in various environments Adaptability.
FEATURES AT A GLANCE
Long detection range: 40m
Measurement Accuracy: 3cm absolute accuracy (absolute accuracy of 5cm under weak reflectivity, absolute accuracy of 7cm under extremely weak reflectivity)
Adaptive baud rate function
4500Hz measuring frequency
Improved DeTOF technology
Indoor/Outdoor
As light as 35g
IP65 protection level
Interface(customized): LVTTL/RS232/RS485/CAN Application areas: UAV altimeter, industrial-wide intelligent transportation security and surveillance
Measurement Accuracy: 3cm absolute accuracy (absolute accuracy of 5cm under weak reflectivity, absolute accuracy of 7cm under extremely weak reflectivity)
Adaptive baud rate function
4500Hz measuring frequency
Improved DeTOF technology
Indoor/Outdoor
As light as 35g
IP65 protection level
Interface(customized): LVTTL/RS232/RS485/CAN Application areas: UAV altimeter, industrial-wide intelligent transportation security and surveillance

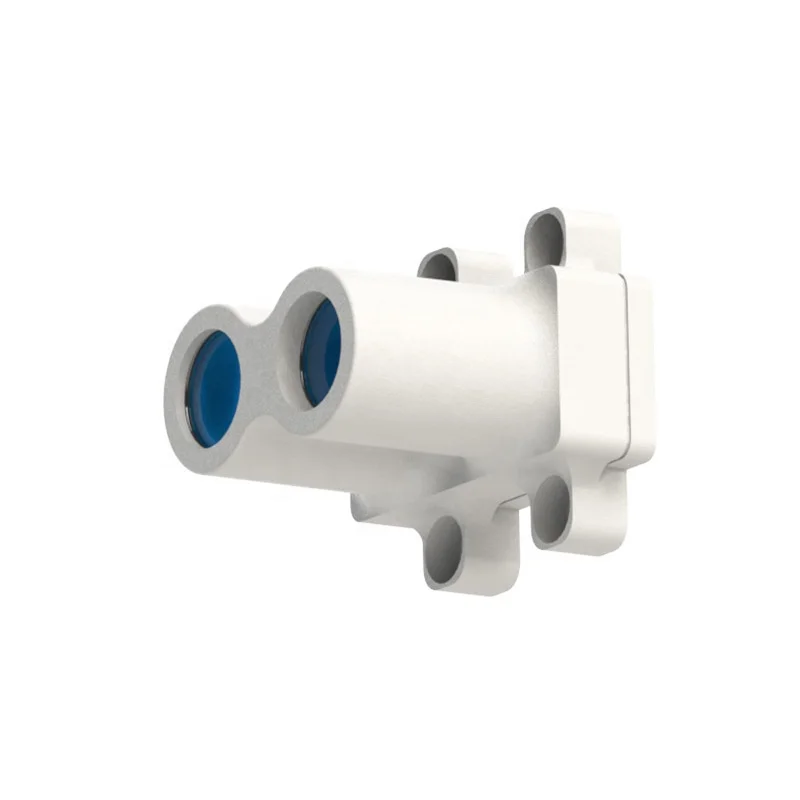

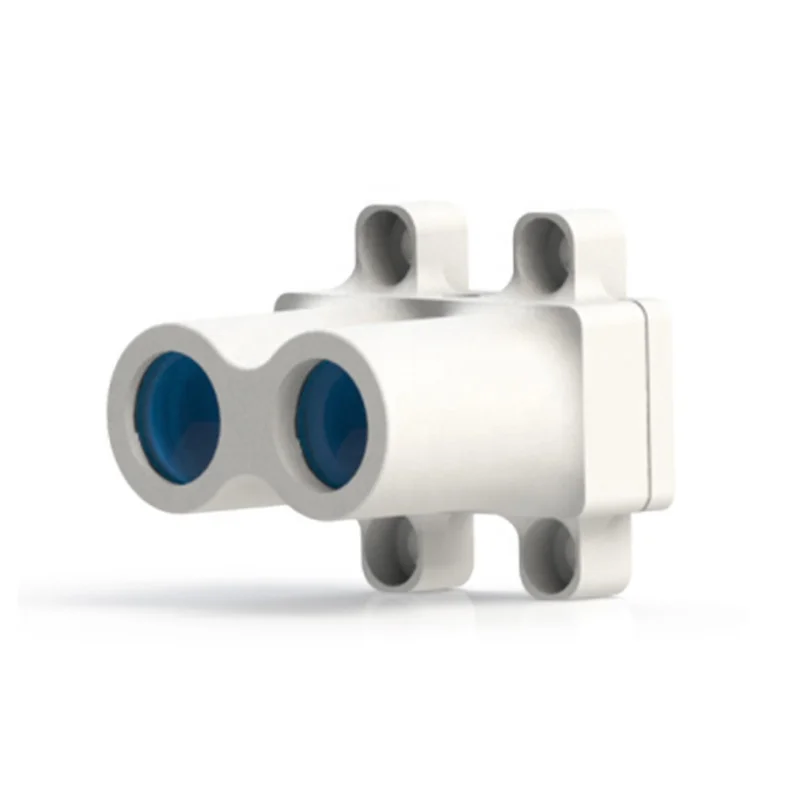

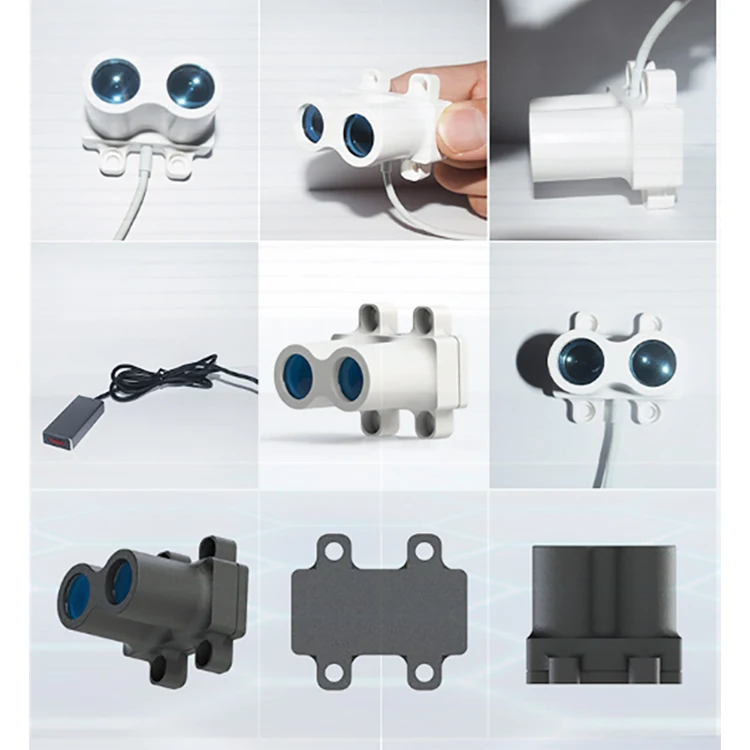

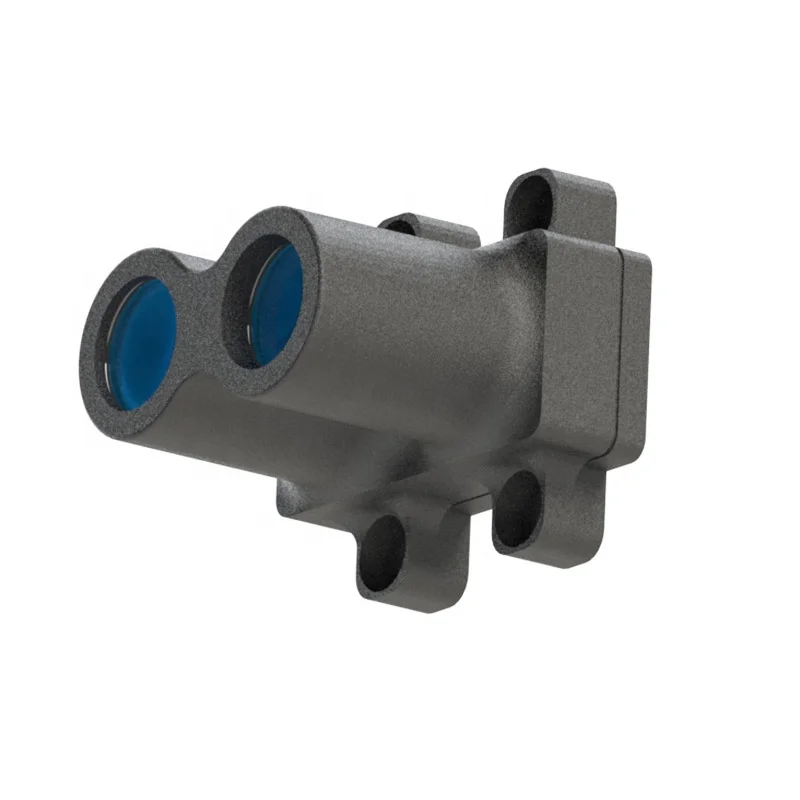

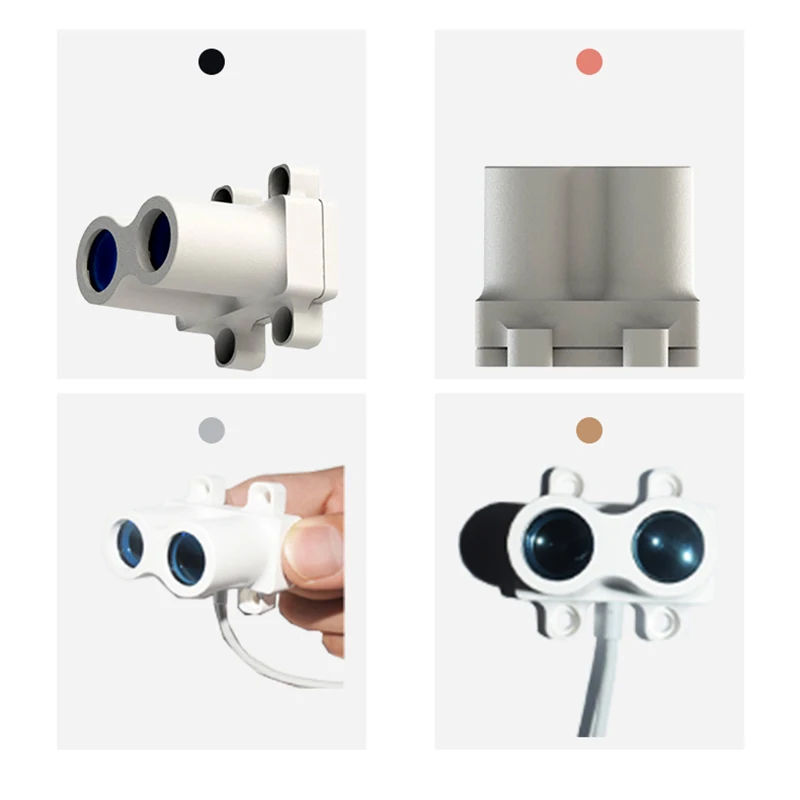

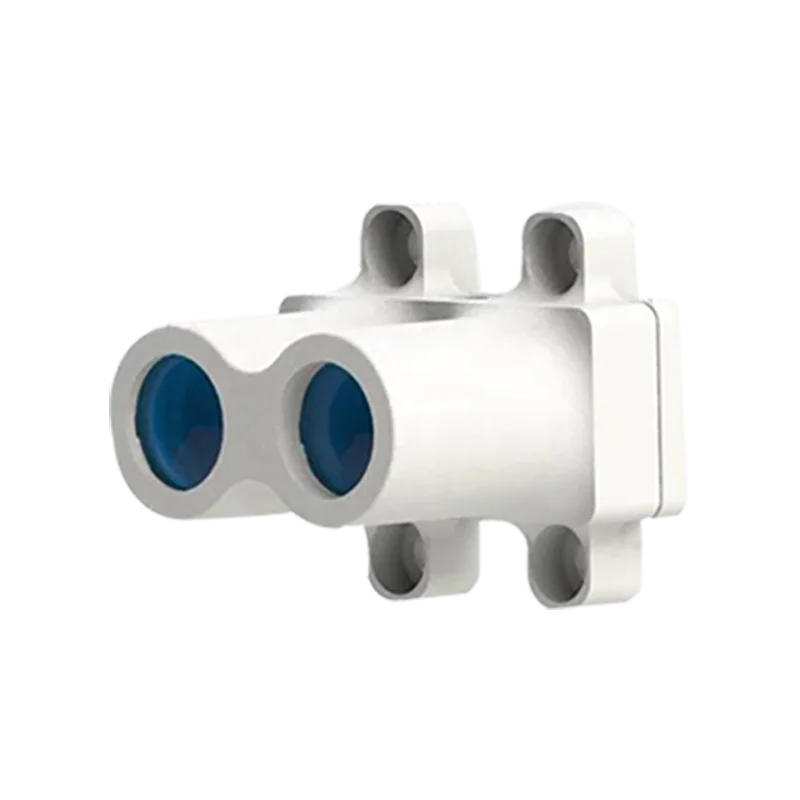

Face display
Side display
Back display
PRODUCT SPECIFICATIONS
Specification | |
Measuring Distance | 0.05--40M |
Measuring frequency | 4500Hz |
Range Resolution | 1.5cm |
Absolute Distance Accuracy | 3cm absolute accuracy (absolute accuracy of 5cm under weak reflectivity, absolute accuracy of 7cm under extremely weak reflectivity) |
Laser beam divergence angle | 9.3mrad（0.53°） |
Receiving field of view angle | 39.4mrad（2.26°） |
Waterproof level | IP65 |
Laser wavelength | 905nm |
Operating temperature | -40℃ to +80℃（-40°F to 185°F） |
Net weight | 35g |

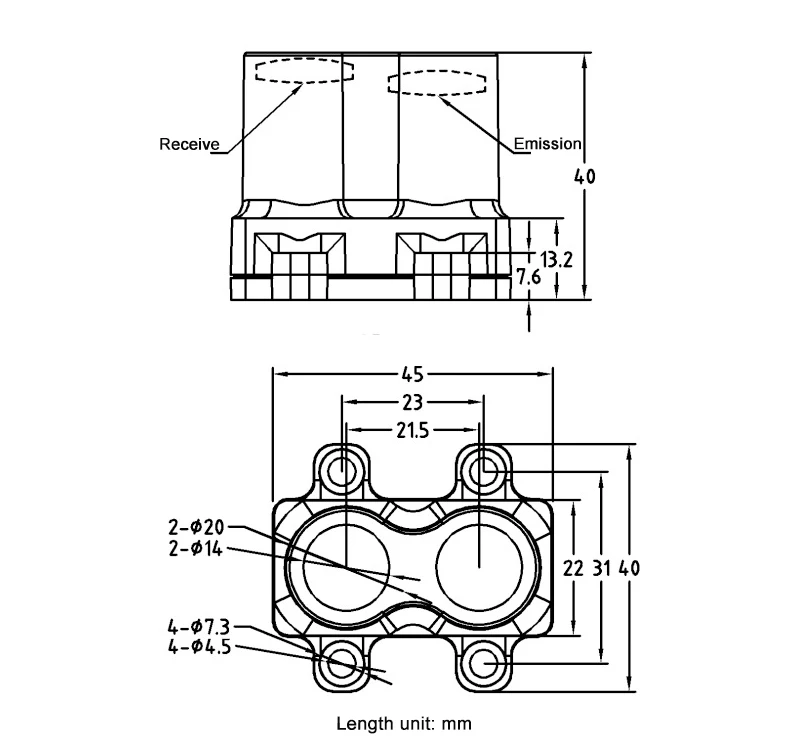

Dimensions | 40*40*45mm（1.57*1.57*1.77in） |
SALES AND SERVICE NETWORK
Successful Project
Drone Height
Material level detection
Anti-collision/Positioning
SIMILAR PRODUCTS
FAQ
Q1. Highly Specialized Technical Team
Our R&D Team has solid backgroud required by LiDAR industry, including the optical, mechanics, electronic and algorithm areas. Over 20% of our R&D engineers are graduated from top universities in the world, including University of Washington, University of Toronto, Ecole Centrale Marseille, Wake Forest University, Peking University, Tsinghua University.
Q2. Intellectual Properties
At present, more than 200 patent applications have been filed, including 12 international patent applications. 1 invention patent, 2 design patents in US and 10 invention patents, 61 utility model patents, 24 design patents in China have been authorized.
Q3. Variety of Application Scenarios
Products are mainly applied to UAV, robots, intelligent transport system, level measurement, AGV (warehouse logistics),IoT, security and other application scenarios.
Q4. World Leader in Commercial LiDAR
We have launched different types of LiDAR products including single point series and solid state array series.
Our R&D Team has solid backgroud required by LiDAR industry, including the optical, mechanics, electronic and algorithm areas. Over 20% of our R&D engineers are graduated from top universities in the world, including University of Washington, University of Toronto, Ecole Centrale Marseille, Wake Forest University, Peking University, Tsinghua University.
Q2. Intellectual Properties
At present, more than 200 patent applications have been filed, including 12 international patent applications. 1 invention patent, 2 design patents in US and 10 invention patents, 61 utility model patents, 24 design patents in China have been authorized.
Q3. Variety of Application Scenarios
Products are mainly applied to UAV, robots, intelligent transport system, level measurement, AGV (warehouse logistics),IoT, security and other application scenarios.
Q4. World Leader in Commercial LiDAR
We have launched different types of LiDAR products including single point series and solid state array series.
