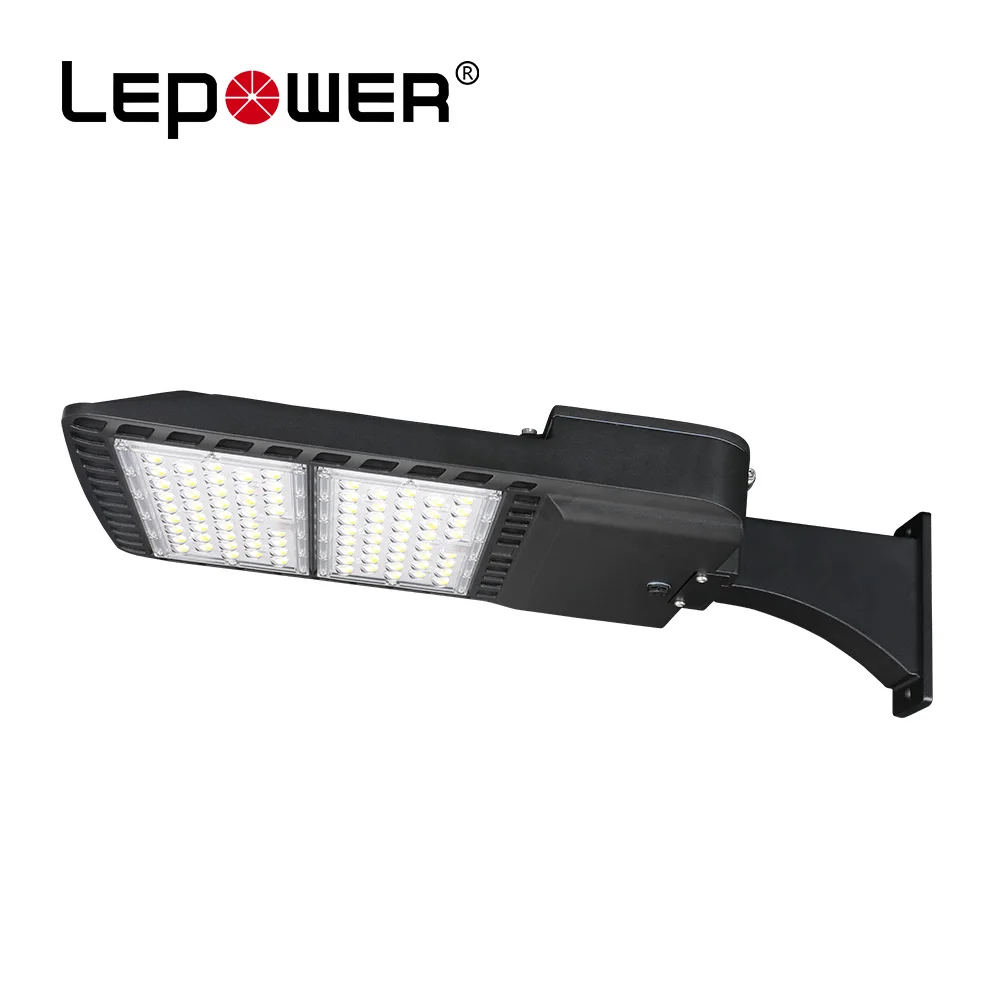

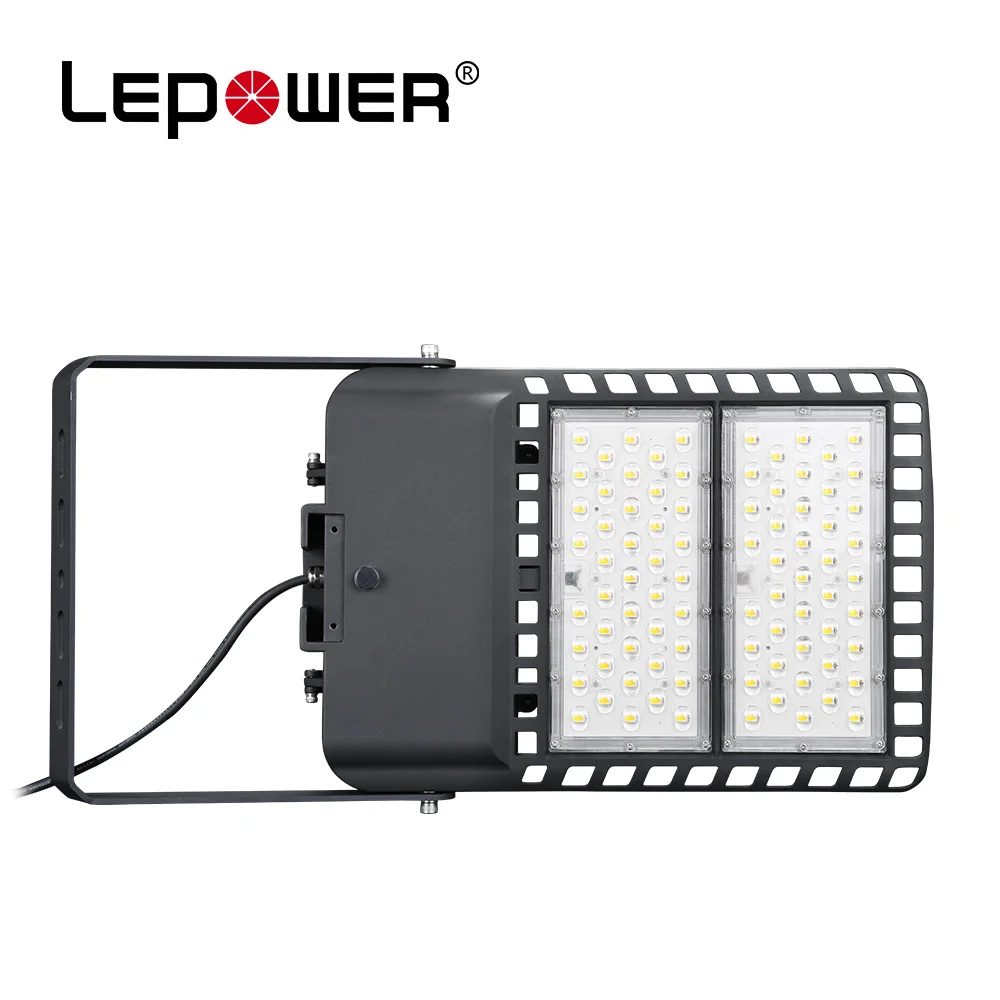

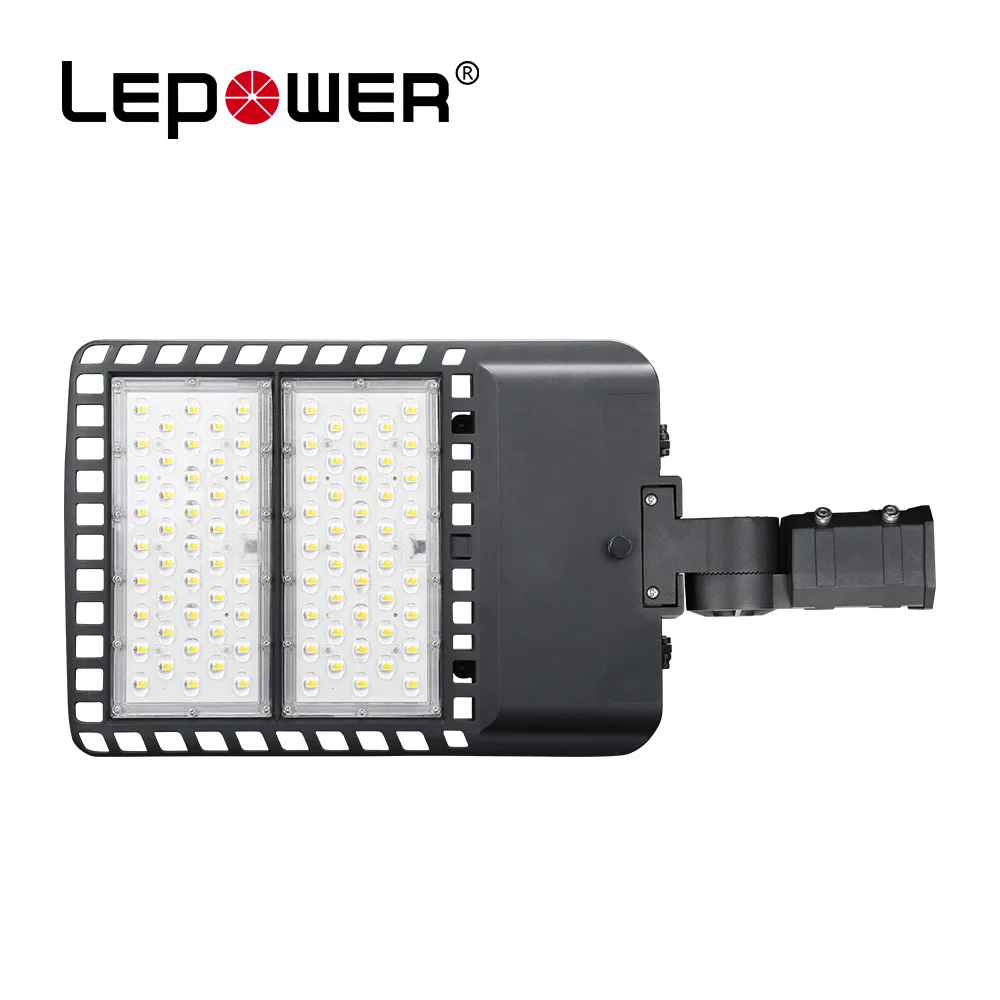

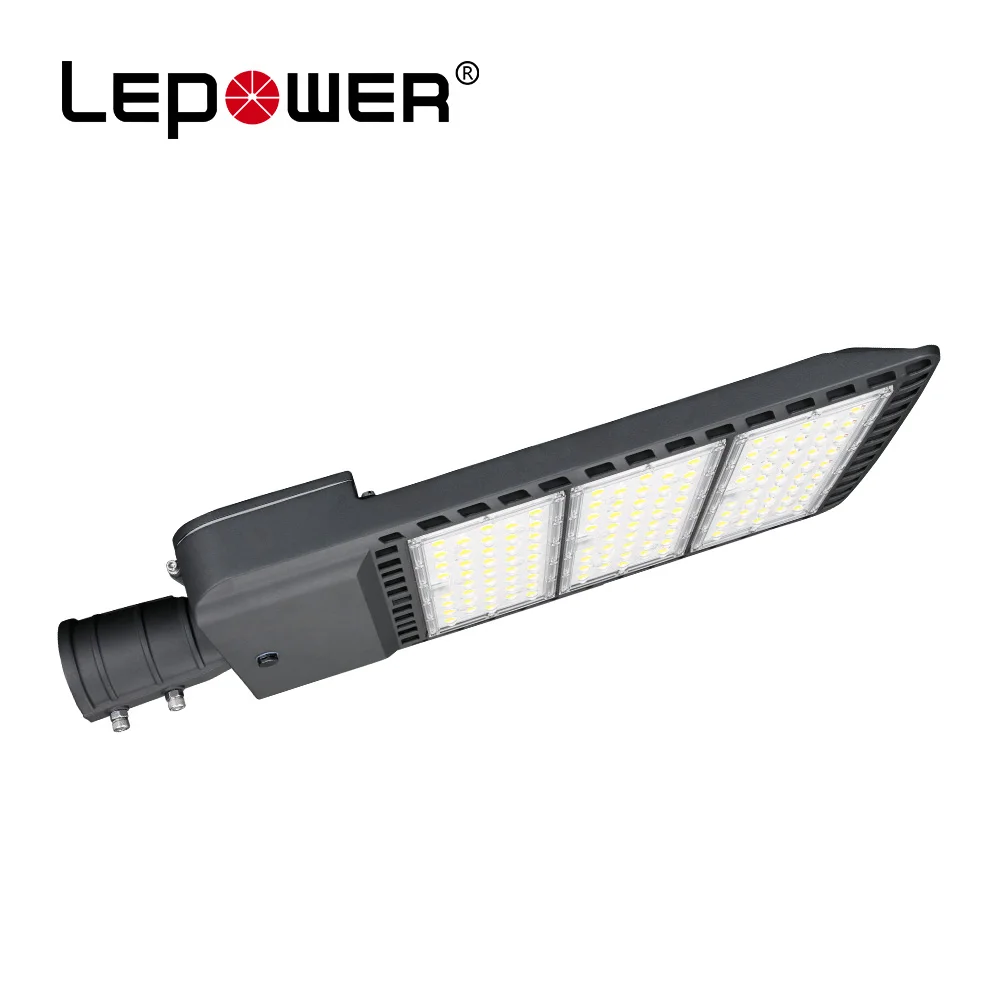

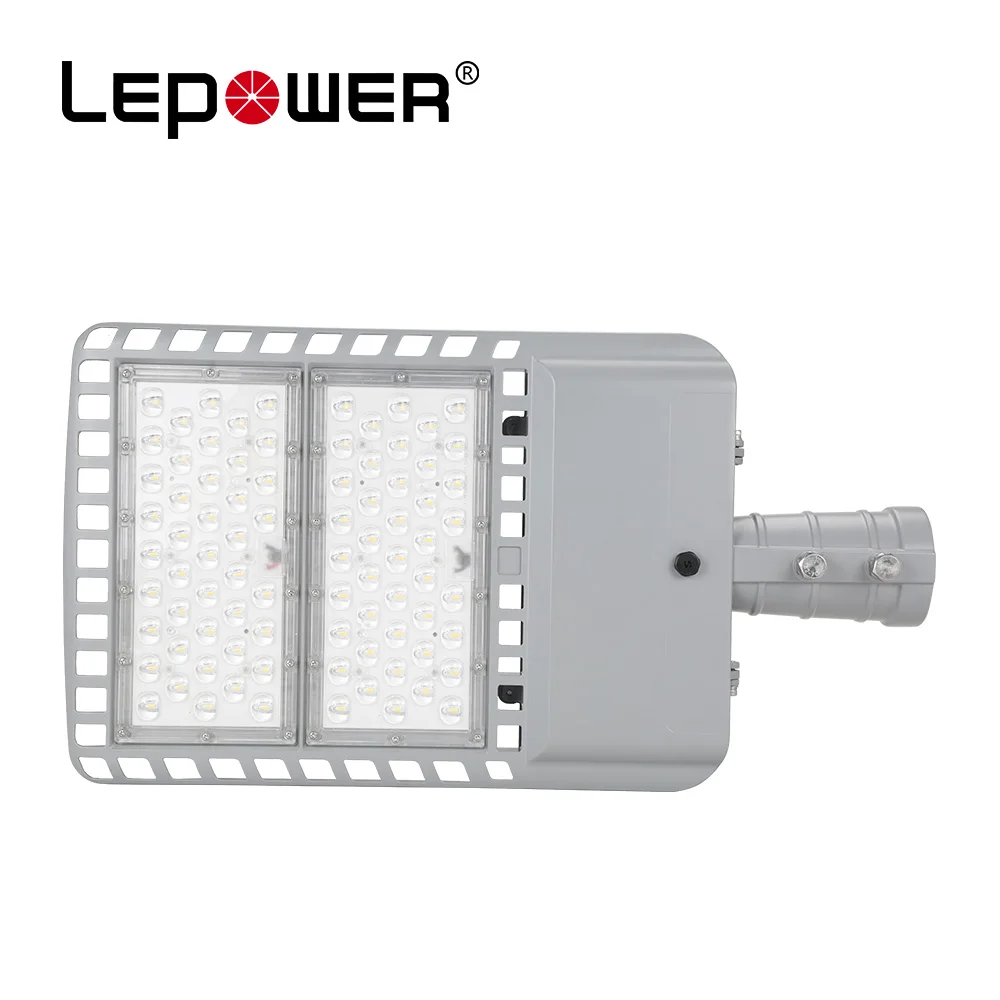

ip65 ip66 highpower outdoor waterproof led street light 40W 60W 70W 100W 150W 200W 300W CE ROHS CB ETL DLC certification
- Category: >>>
- Supplier: Shenzhen Lepower Opto Electronics Corp. Ltd.
Share on (1600215319233):
Product Overview
Description
Product Description

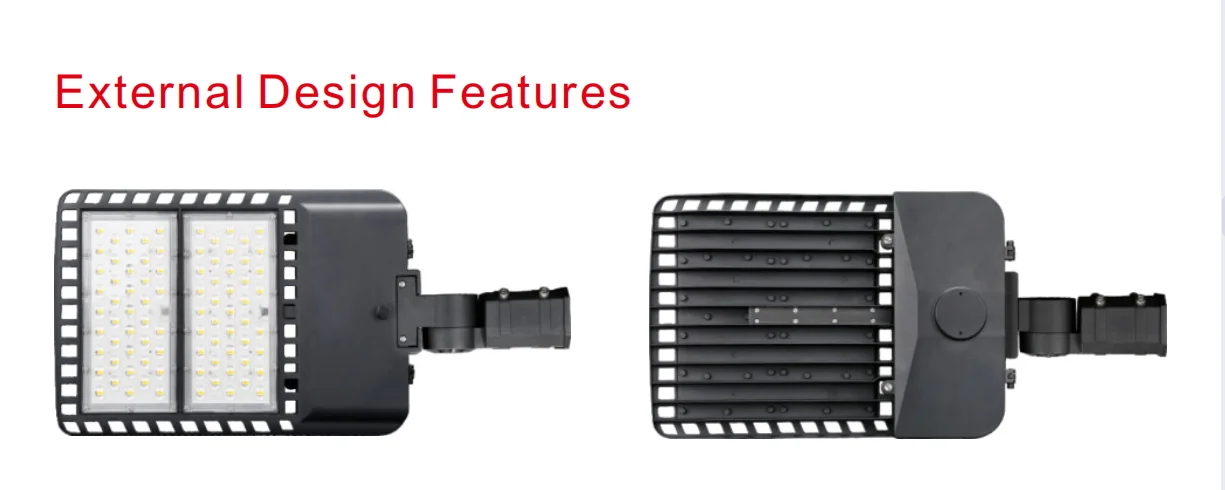

1. High pressure diecast aluminium alloy housing from 30W to 300W.
2. Anti-corrosion with electrophoresis process.

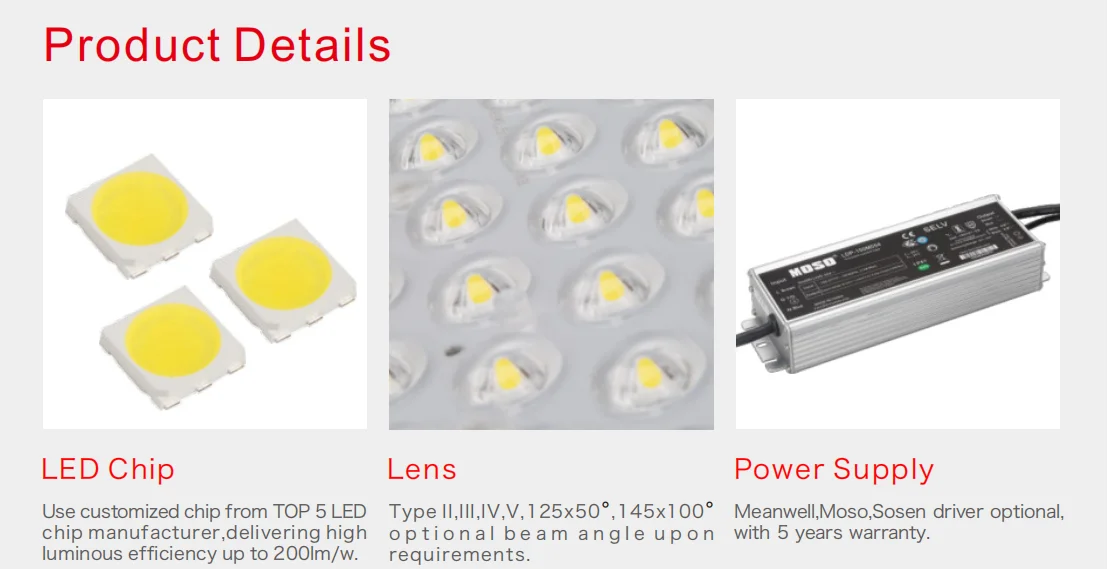

3. Adopt multi-chips package 5050 LED source. Stable performance,low light failure and NO dead lights.
4. The light transmittance of lens up to 98%. System ef ficacy up to 160lm/w.

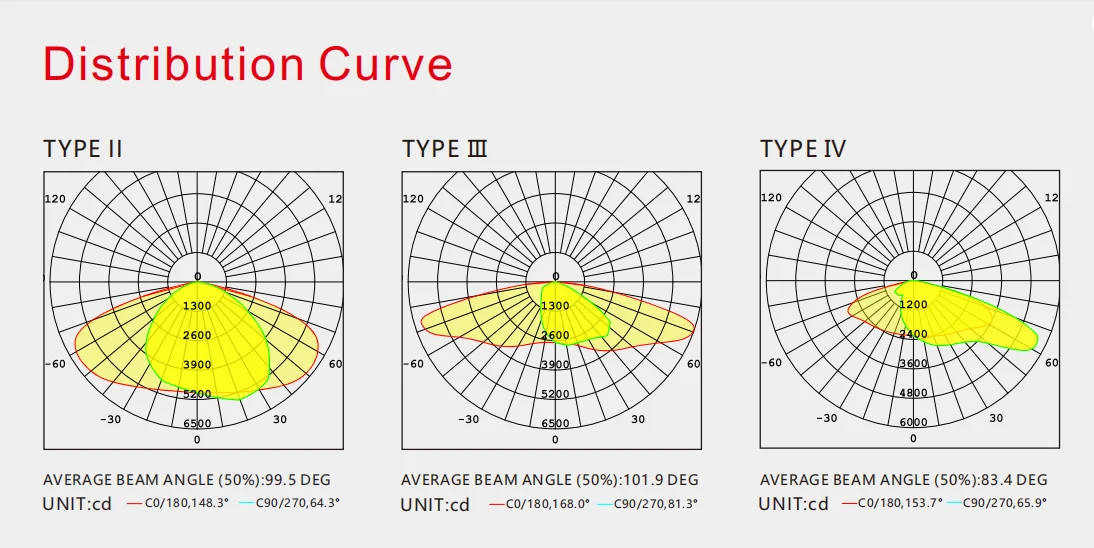

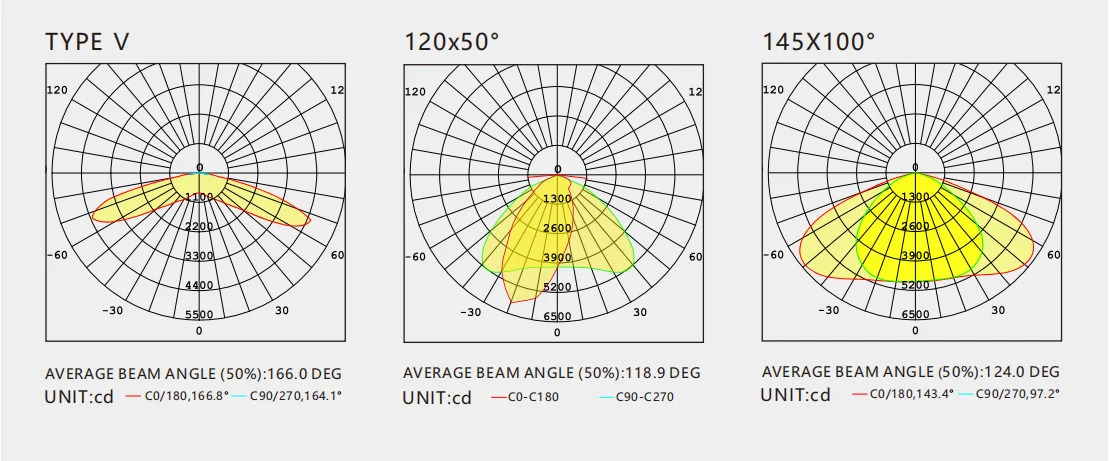

5. Type II,III,IV,V,120x50°,145x100°
6. Uniform lighting distribution apply to different lighting projects.

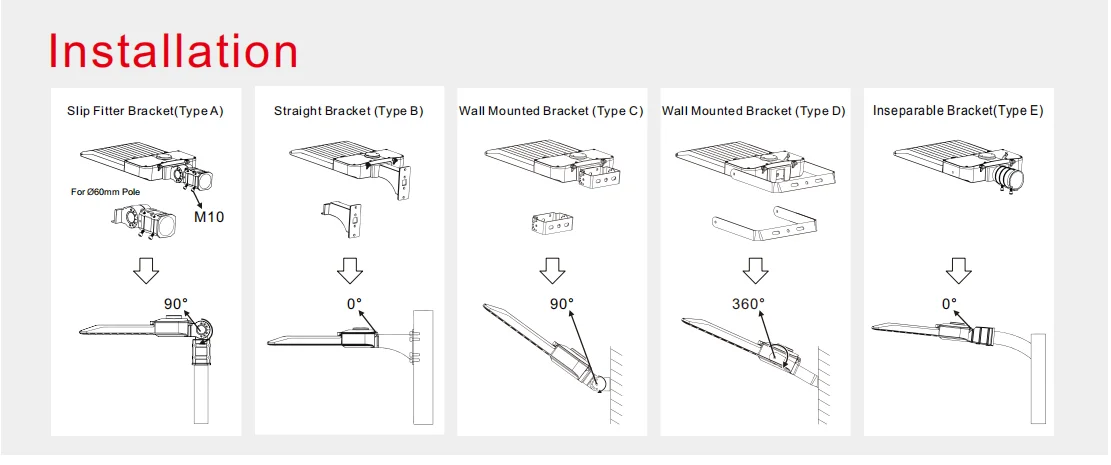

7. kinds of brackets optional. Type A,B,C,D,E bracket nearly meet all installation environment.
8. Excellent operating temperature -40°C ~ 50°
9. Replaceable and up gradable modular design easy assembly easy installation and easy maintenance.
10. Green product,no UV,IR radiation or mercury pollution.Passed IEC62471.
11. With excellent housing design reach IP66/IK10 rating.
12. Dimming and smart lighting system available upon request.
13. ISO9001 ISO14001 ETL DLC CE CB ROHS IP66 Ik10 LM80 approved.
14. Life-span over 50,000 hours,5 years warranty.
2. Anti-corrosion with electrophoresis process.
3. Adopt multi-chips package 5050 LED source. Stable performance,low light failure and NO dead lights.
4. The light transmittance of lens up to 98%. System ef ficacy up to 160lm/w.
5. Type II,III,IV,V,120x50°,145x100°
6. Uniform lighting distribution apply to different lighting projects.
7. kinds of brackets optional. Type A,B,C,D,E bracket nearly meet all installation environment.
8. Excellent operating temperature -40°C ~ 50°
9. Replaceable and up gradable modular design easy assembly easy installation and easy maintenance.
10. Green product,no UV,IR radiation or mercury pollution.Passed IEC62471.
11. With excellent housing design reach IP66/IK10 rating.
12. Dimming and smart lighting system available upon request.
13. ISO9001 ISO14001 ETL DLC CE CB ROHS IP66 Ik10 LM80 approved.
14. Life-span over 50,000 hours,5 years warranty.
Name | Features | |||||
Type | LY-XH0101 | LY-XH0102 | LY-XH0103 | |||
Power | 40W-80W | 100-150W | 180W-240W | |||
LED Qty. | 3000K / 4000K / 5000K / 6500K | |||||
Beam Angle | 150*70°/145*100°/120*50° / Type III,IV,V | |||||
Brand of Chips | Bridgelux 5050 LED | |||||
CCT | 42pcs | 84pcs | 126pcs | |||
CRI | >70 / >80 | |||||
System Efficiency | 150-170Lm/W | 150-170Lm/W | 150-170Lm/W | |||
IP Rate | IP66 | |||||
Voltage | AC 90-305V | |||||
Working Environment | -20℃~50℃,20%~90% R.H | |||||
Storage Temperature | -20℃~85℃,10%~90% R.H | |||||
Driver Efficacy | 90% | |||||
PF | >0.95 | |||||
Lifetime | >50,000 Hours | |||||
Size of Lamp | 494*310*84mm | 621*310*84mm | 769*320*93mm | |||
Carton | 360*360*130mm | 475*360*130mm | 632*376*138mm | |||
N.W. | 4.5KG | 5.5KG | 6.5KG | |||
Specification
item | value |
Color Temperature(CCT) | 6000K (Daylight Alert) |
Lamp Luminous Efficiency(lm/w) | 160 |
Color Rendering Index(Ra) | 70 |
Support Dimmer | YES |
Lighting solutions service | Lighting and circuitry design, LitePro DLX layout, Project Installation |
Lifespan (hours) | 50000 |
Working Time (hours) | 50000 |
Light Source | LED |
Input Voltage(V) | AC100-305V |
Lamp Luminous Flux(lm) | 38400 |
CRI (Ra>) | 70 |
Working Temperature(℃) | -40-50 |
IP Rating | IP66 |
Certification | ce, CQC, EMC, ETL, LVD, RoHS |
Warranty(Year) | 5-Year |
Place of Origin | China |
Guangdong | |
Brand Name | Lepower |
Model Number | LED SHOEBOX LIGHT |
Beam Angle(°) | 150*70°,145*70°,25°,40°,60°,90° |
Application | ROAD |
Color | Brown, Black, White, Dark Grey |
Power Supply | AC |
Style | Luxury |

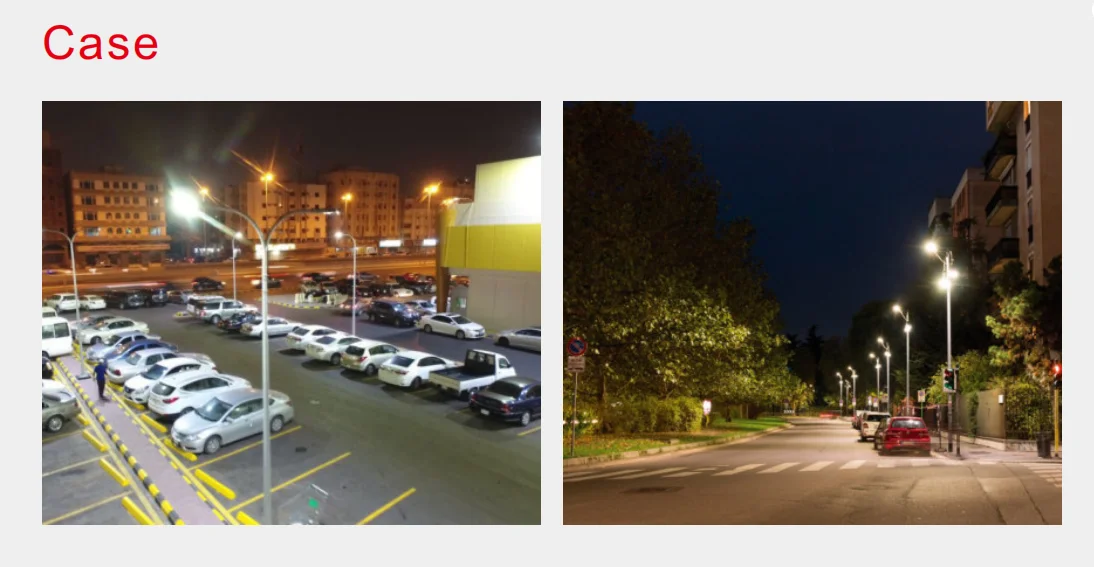

Application of ETL DLC 100W 150W 300W LED Shoebox Street Light
1. Outdoor basketball court;tennis court
2. Badminton court ;the football field
3. The school playground ;stadium
4. Community leisure entertainment plaza;road lamp etc.
5. Exterior LED lighting for shoebox lighting, LED shoebox light fixtures, parking lot shoebox fixture, parking lot flood
lighting.
1. Outdoor basketball court;tennis court
2. Badminton court ;the football field
3. The school playground ;stadium
4. Community leisure entertainment plaza;road lamp etc.
5. Exterior LED lighting for shoebox lighting, LED shoebox light fixtures, parking lot shoebox fixture, parking lot flood
lighting.
Packing & Delivery
one piece per carton
carton size : 36*36*21CM
carton size : 36*36*21CM

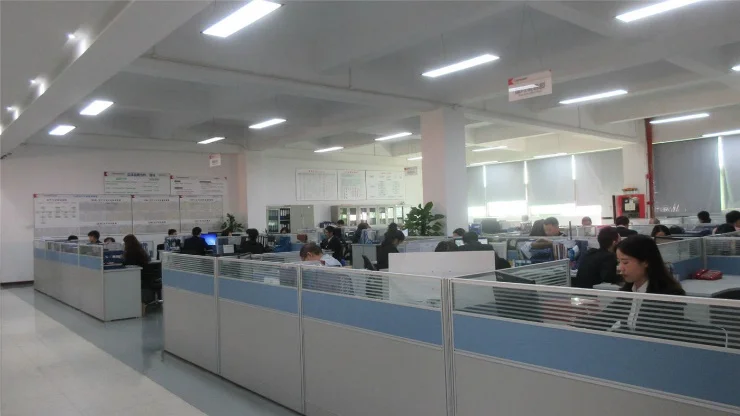

Company Profile
Shenzhen Lepower Opto Electronics Corp.,Ltd(Abbreviation"Lepower Corp", STOCK CODE:838452 )founded in 2008, is a professional comprehensive LED lighting enterprise engaged in high power led encapsulation, optic design and LED lamp development, has honored as China national high-tech enterprise, Chinese AAA-class Credit firm and listed in TOP 100 Companies in China LED Lighting application industry.

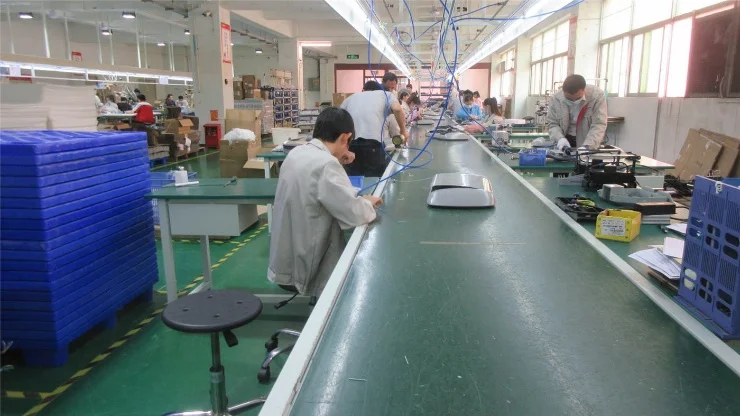

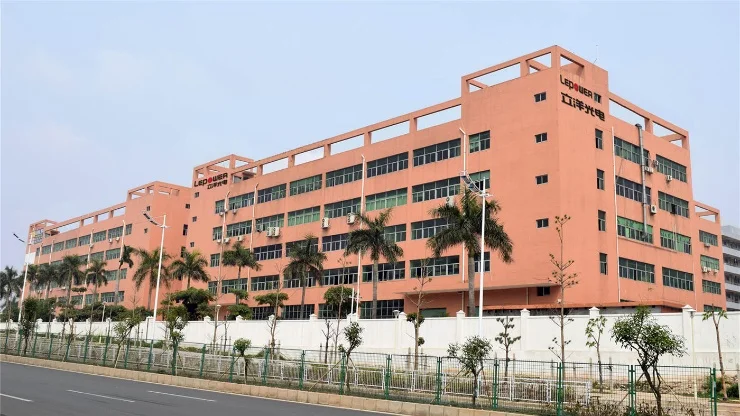

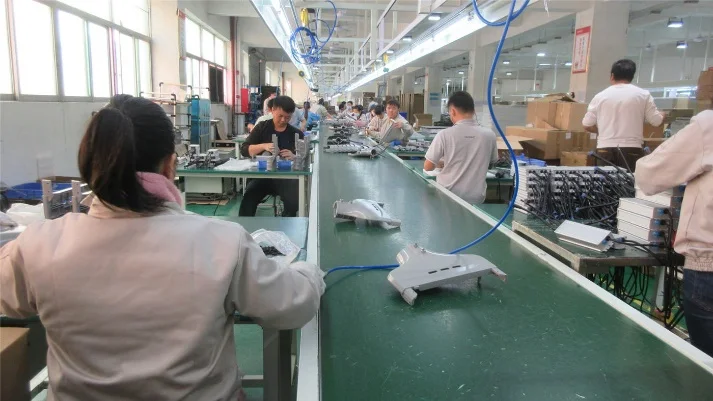

Lepower Corp,with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R & D and innovation capability in China's LED industry.Lepower Corp has got several national patents and more than 30 utility model patents, is able to offer customers professional LED lighting solutions.
Lepower Corp branded products, including high power led light source,Calculus optic lens, LED modules and special outdoor LED lamps, have been sold all over the world, and are enjoying great reputation with its professional quality. Lepower Corp strictly carry
out ISO9001:2008 quality management system, most products have passed several tests by authorized Lab, and got CE, ROHS, LM-80, LM-79, CQC, TUV GS, UL,SAA ,ISO9001:2008,ISO14000,ISO18000 and C-tick certification. Lepower Corp is a lsoa member of ZHAGA Union.
Lepower Corp is dedicated to be the world class LED encapsulation enterprise and LED lighting solution provider,globally promote Lepower brand. With 10 years fast development, Lepower Corp has already established full industrial chain and unique technological advantages, will continue to keep the enterprise commission of pursuing and creating better and better LED light, uphold the enterprise
philosophy of technology oriented, quality first, honest operation and better excellence, provide most energy saving LED lighting source and comfortable high efficacy lighting experience, make a great contribution to our green earth!
Lepower Corp,with more than 16,000 square meters modern production plant and ten thousand-grade static dust-free workshop, is one of the few companies which own strong independent R & D and innovation capability in China's LED industry.Lepower Corp has got several national patents and more than 30 utility model patents, is able to offer customers professional LED lighting solutions.
Lepower Corp branded products, including high power led light source,Calculus optic lens, LED modules and special outdoor LED lamps, have been sold all over the world, and are enjoying great reputation with its professional quality. Lepower Corp strictly carry
out ISO9001:2008 quality management system, most products have passed several tests by authorized Lab, and got CE, ROHS, LM-80, LM-79, CQC, TUV GS, UL,SAA ,ISO9001:2008,ISO14000,ISO18000 and C-tick certification. Lepower Corp is a lsoa member of ZHAGA Union.
Lepower Corp is dedicated to be the world class LED encapsulation enterprise and LED lighting solution provider,globally promote Lepower brand. With 10 years fast development, Lepower Corp has already established full industrial chain and unique technological advantages, will continue to keep the enterprise commission of pursuing and creating better and better LED light, uphold the enterprise
philosophy of technology oriented, quality first, honest operation and better excellence, provide most energy saving LED lighting source and comfortable high efficacy lighting experience, make a great contribution to our green earth!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to South America(30.00%),Domestic Market(13.00%),North America(10.00%),Western Europe(10.00%),Southern Europe(8.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Africa(3.00%),South Asia(3.00%),Oceania(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED Street Light,LED High Bay Light,LED Module
4. why should you buy from us not from other suppliers?
1. 12+ years experience in LED Industril lighting
2. Public company in China
3. Comprehensive service. LED,Lens,Smart controller,they are all produced by Lepower or it's subsidiary
4. System effeiciency up to 190lm/w
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2008,sell to South America(30.00%),Domestic Market(13.00%),North America(10.00%),Western Europe(10.00%),Southern Europe(8.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Africa(3.00%),South Asia(3.00%),Oceania(2.00%),Mid East(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED Street Light,LED High Bay Light,LED Module
4. why should you buy from us not from other suppliers?
1. 12+ years experience in LED Industril lighting
2. Public company in China
3. Comprehensive service. LED,Lens,Smart controller,they are all produced by Lepower or it's subsidiary
4. System effeiciency up to 190lm/w
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
