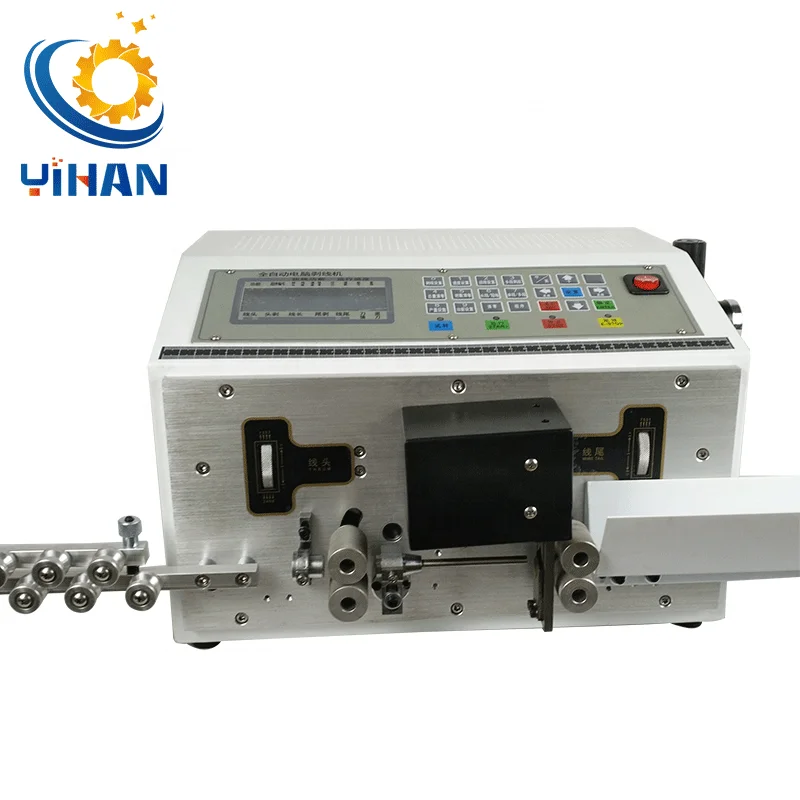

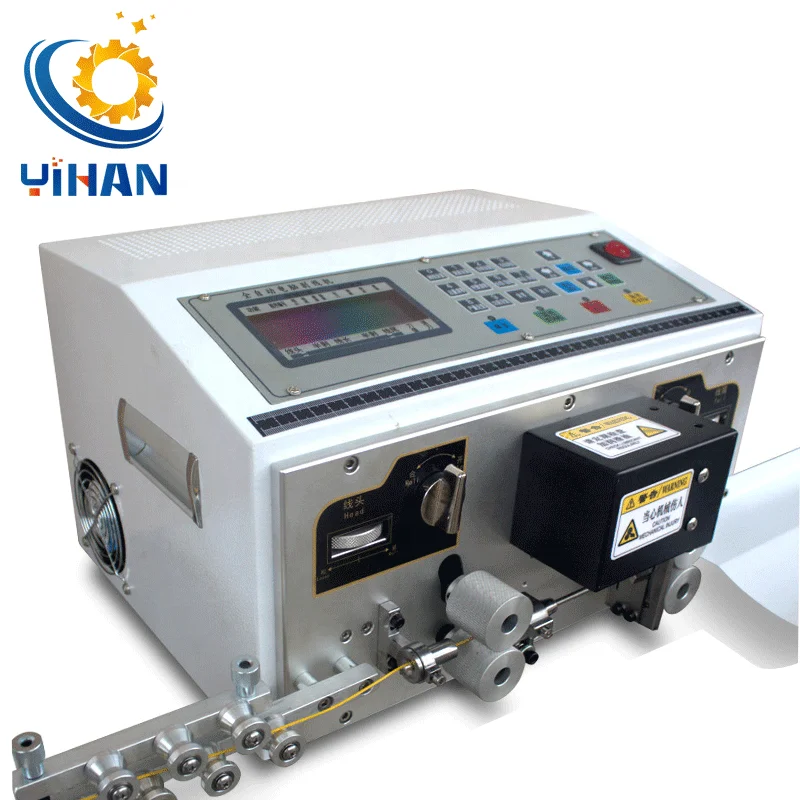

YH 800 H06 Factory Price Automatic Multicore Sheath Wire Cutting Stripping Machine Wire OD Within 6mm

Share on:

Price:RUB 60,270.32
Price in USD:Details


Product Overview


 Factory Price Automatic Multicore Sheath Wire Cutting Stripping Machine Wire OD Within 6mm

Product Description




Automatic Full Computer Wire Stripping Machine adopt the advanced automation  technology from Japan,Taiwan.

It is a kind of numerical control equipment.




Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys, and othervarious products of wire processing.
Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.




Available Wire Diameter  : 1-6.5mm
Max Conduit Diameter: 8mm
Cutting Length: 1-99999mm
Cutting Tolerance: ±(0.002*L)(L=Cutting Length)
 Stripping Length:  Hend 0-100mm, Tail 0-80mm
 Middle Stripping Section:  Max 15
 Speed:  2000-3000pcs/h
 Display Way:  English LCD Display

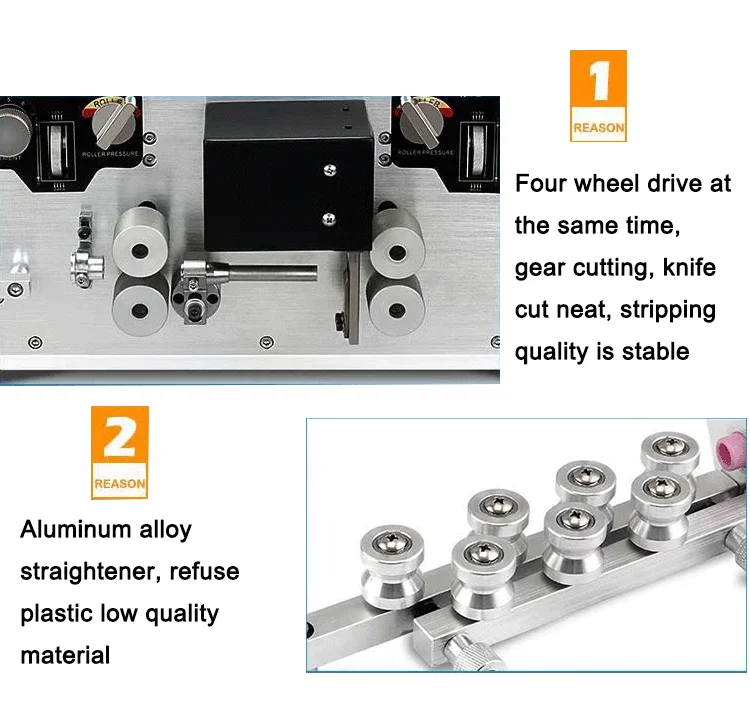

 Drive Mode:  4 Wheels Drive
 Blade Material:  High Speed Steel
Appropriate Wire: Multi-core Wire Sheath,Single WirePVC tubes,PVC tubes
Power Supply: 220V/50HZ   110V/60HZ(Customized)
Power Rating: 250W
Size: 560*520*480mm
Weight: 32KG








Model  YH-800-H06  YH-800-H08  YH-800-H10 YH-800-H12
Photo  1.png  2.png  3.png 4.png
Multi-core Wire OD Range  1-6MM  1-8MM  2-10MM 3-12MM
OD of Feeding  Φ8  Φ10  Φ12 Φ14
Stripping Length   Head 0-100mm Head 0-100 mm  Head 0-100 mm Head 0-100mm
 Tail 0-80 mm  Tail 0-80 mm  Tail 0-80 mm Tail 0-80mm
Cutting Length  1-99999mm  1-99999mm  1-99999mm 1-99999mm
Avaible Wire

 Multi-core Wire,

 0.5-4MM2 BVR Wires

 Multi-core Wire,

 0.5-6mm2 BVR Wires

 Multi-core Wire,

0.5-10mm2 BVR Wires

Multi-core Wire,

1.0-16MM2 BVR Wire


Model YH-800-H12D YH-800-H16D We can produce the machine according to customer's requirement



Photo .png .png
Multi-core Wire OD Range 3-12MM 3-16MM
OD 0f Feeding Φ14 Φ18
Stripping Length Head 150-300mm Head 150-500mm
Tail 0-120mm Tail 0-120mm
Cutting Length 1-99999mm 1-99999mm
Available Wire

 Multi-core Wire,

 0.5-16MM2 BVR Wire

Multi-core Wire,

0.1-25mm2 BVR Wire


Product Show
