Product Overview
Description

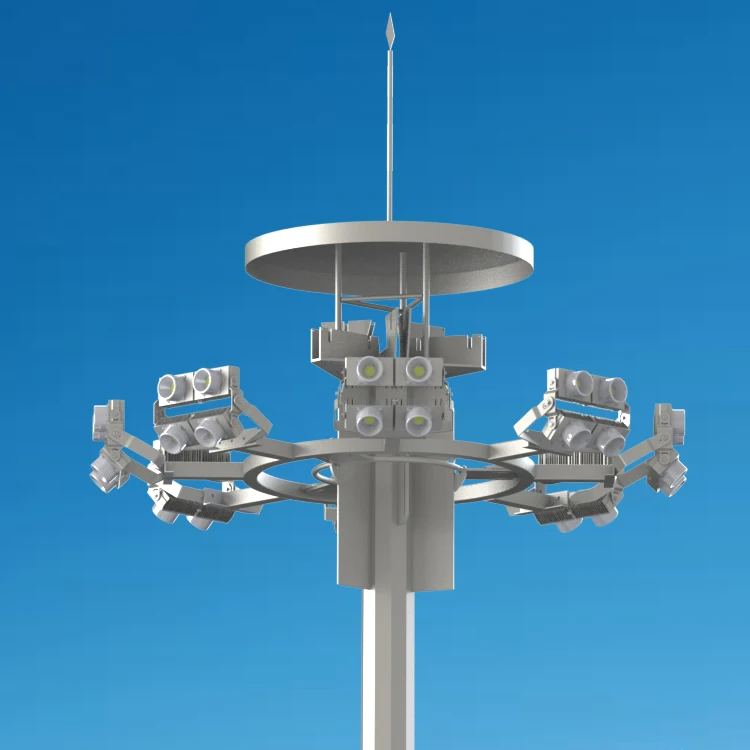

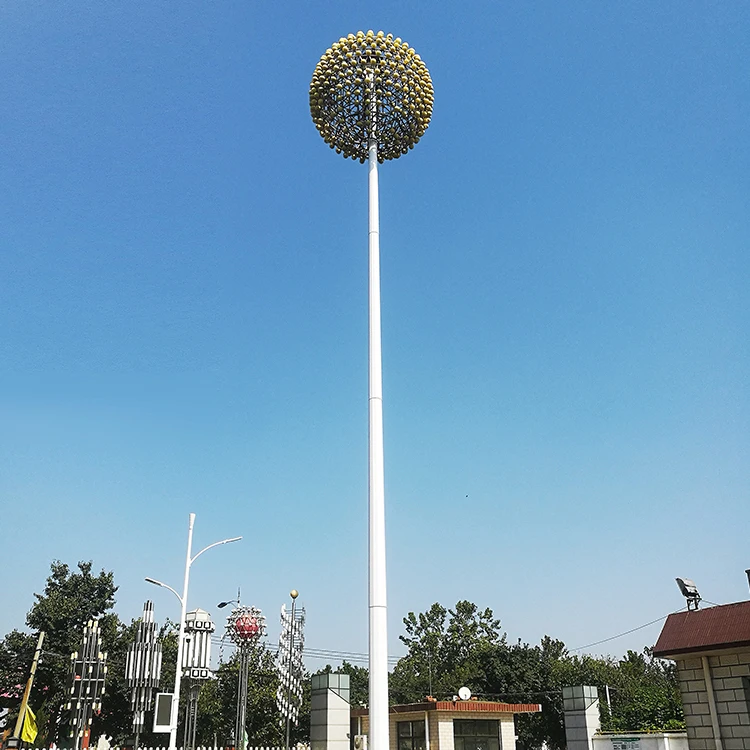

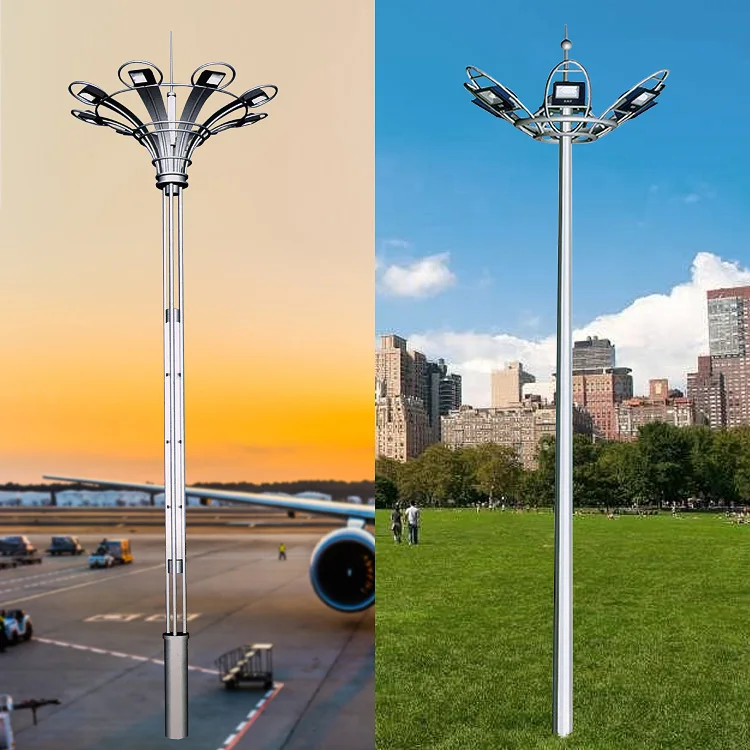

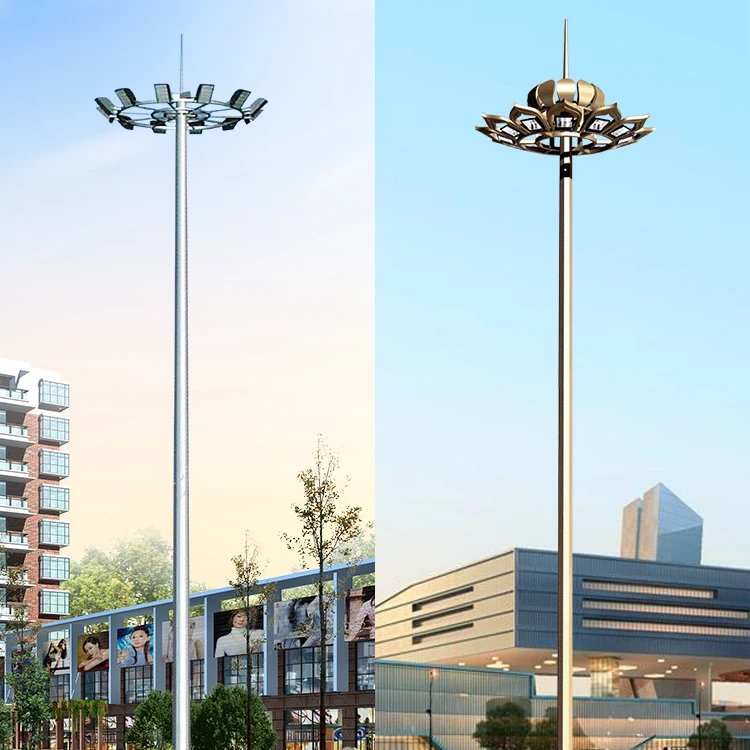

30m high mast lighting pole highway crossroad stadium park light post rods since 1985 manufacturing experience, we can development and design the different shape street pole according to your need.
Product Description
Product Name | Hot Dip Galvanized High Mast Light Pole with Lifting System |

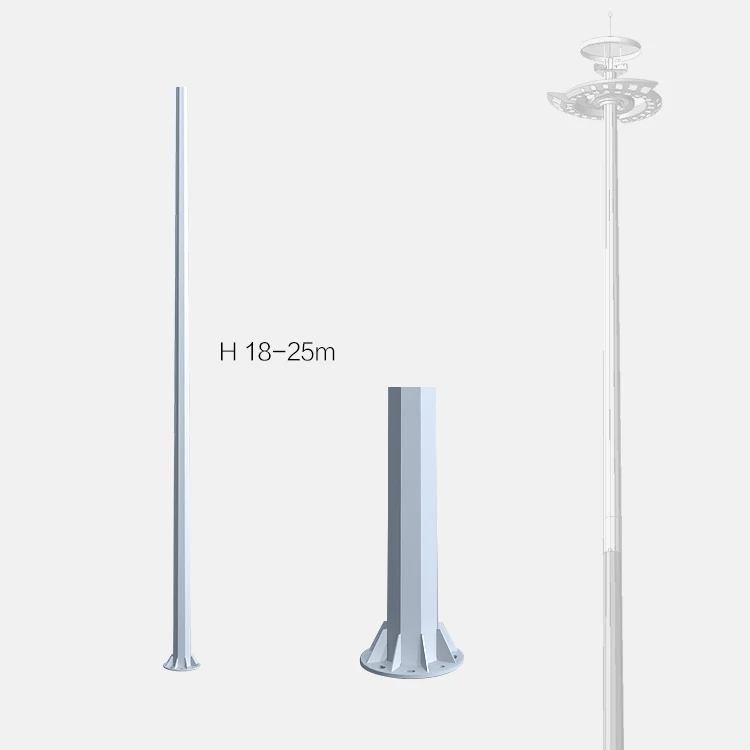

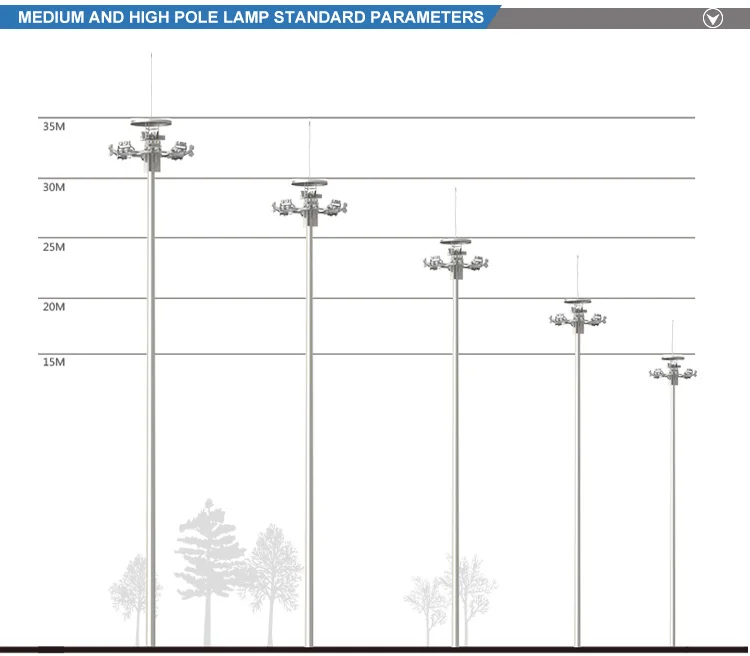

Height | 15-35m |
Shape | Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc) |
Material | Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material |
Surface Treatment | Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 Can be powder coated or painted according to clients' request |
Wall Thickness | 2-12mm |
Once Forming | 14m Once forming without joint |
Welding | Welding complies with AWS D1.1 standard.CO2 welding or submerged arc auto methods.No fissure, scar, overlap, layer or other defects. Internal and external welding makes the pole more beautiful in shape. If customers need any other requirements of welding, we also can make as your request |
Standard | ISO9001 |
Joint | Joint with insert mode, flange mode. |
Base plate | Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement. |
Life Period | More than 25 years, it is according to installing environment |
Applications | Seaport, AirPort, Parking Lot, Stadium, Square, Highway etc. |
