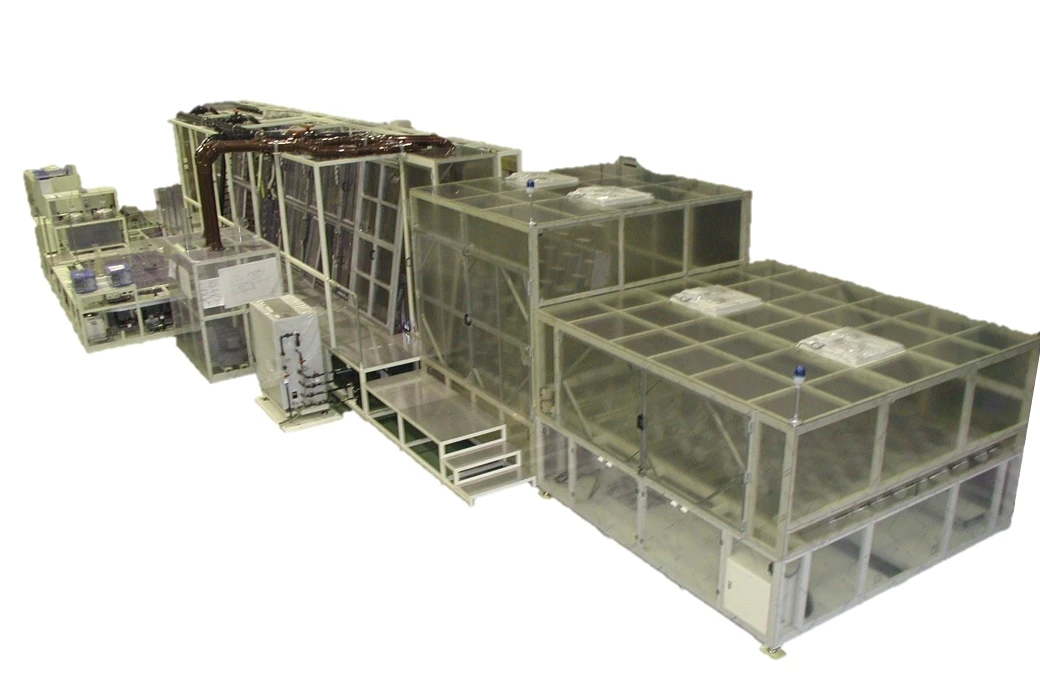

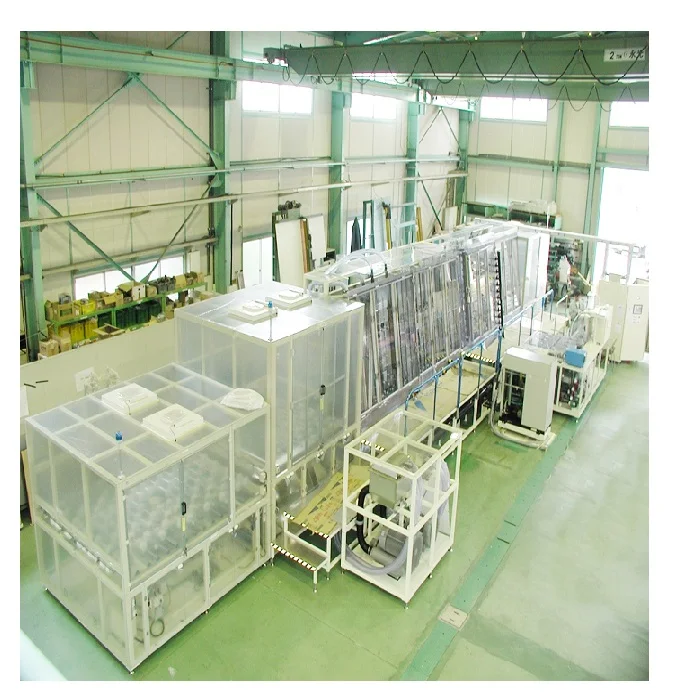

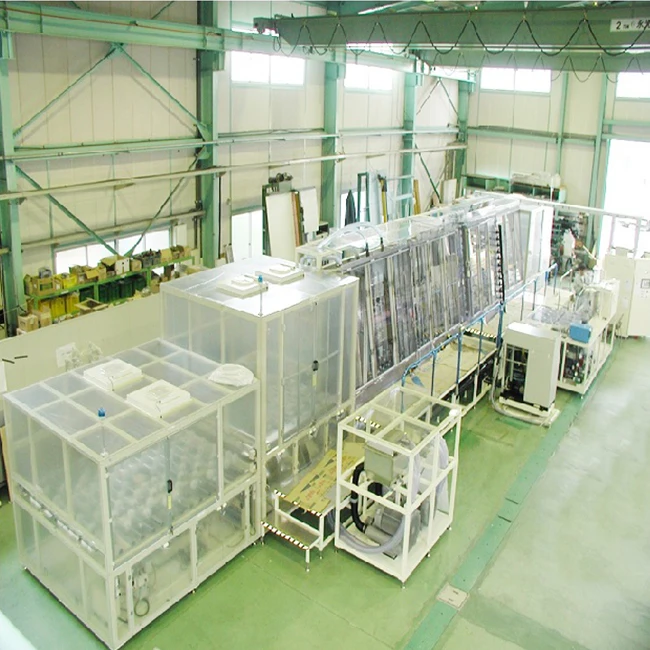

Standing-position conveyance developing machine
(2333x1663 Workpiece size)
Patterns are baked on substrates (printed substrates or glass substrates) coated with photoresist in exposure process, and in developing process, photoresist on the required parts of the patterns only will be left so as to protect these parts from etching in the next process; meanwhile, photoresist on the unnecessary parts of the patterns will be dissolved.
Photo etching process is mainly conducted as the following procedure.
Features of Standing-position conveyance developing machine
This machine has raising mechanisms which raise the workpieces lain flat on the machine to a standing position by an angle around 80 degrees.
The workpieces are conveyed in this standing position during developing process.
Developing, cleaning, and drying are performed coherently as a whole process.
Available product size | 2333×1663mm | ||||||
Production capacity | 29,300 sheets/mth | ||||||
Company Profile
NSC ENGINEERING CO.,LTD.
Our predecessor, Shinwa Co., Ltd. was an device maker specializing in wet process chemical device established in 1978. In 2018, NSC Engineering was launched after receiving a business transfer from Shinwa.NSC Group is a specialist of metal and glass surface treatment that uses chemicals. In addition to 40 years of know-how in the design and manufacture of wet process devices, we have unique surface treatment technologies using inorganic, organic chemical and electrochemical.
Our main products are Photoresist coating/ developing/ etching/ stripping/ washing machines, and electropolishing machines.
