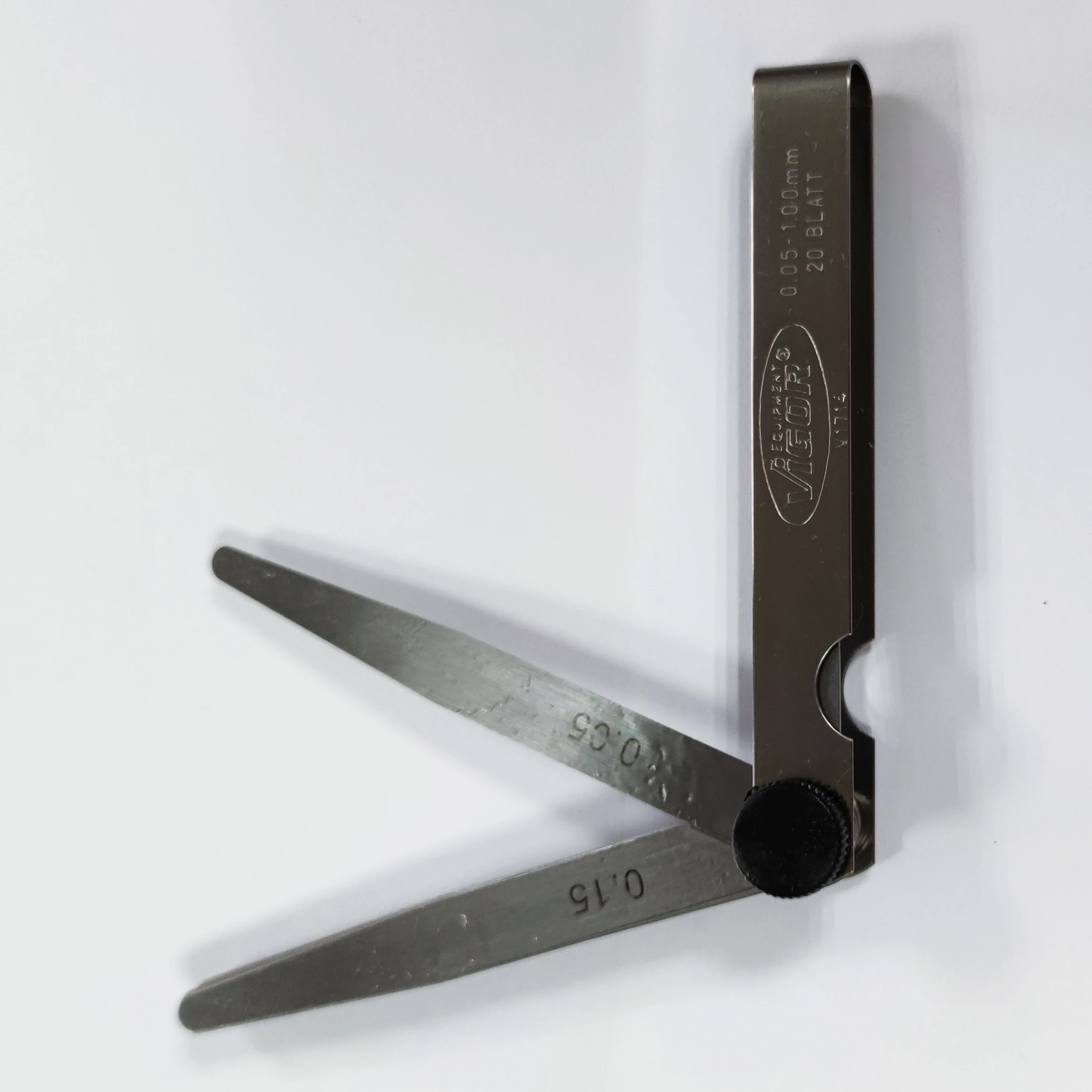

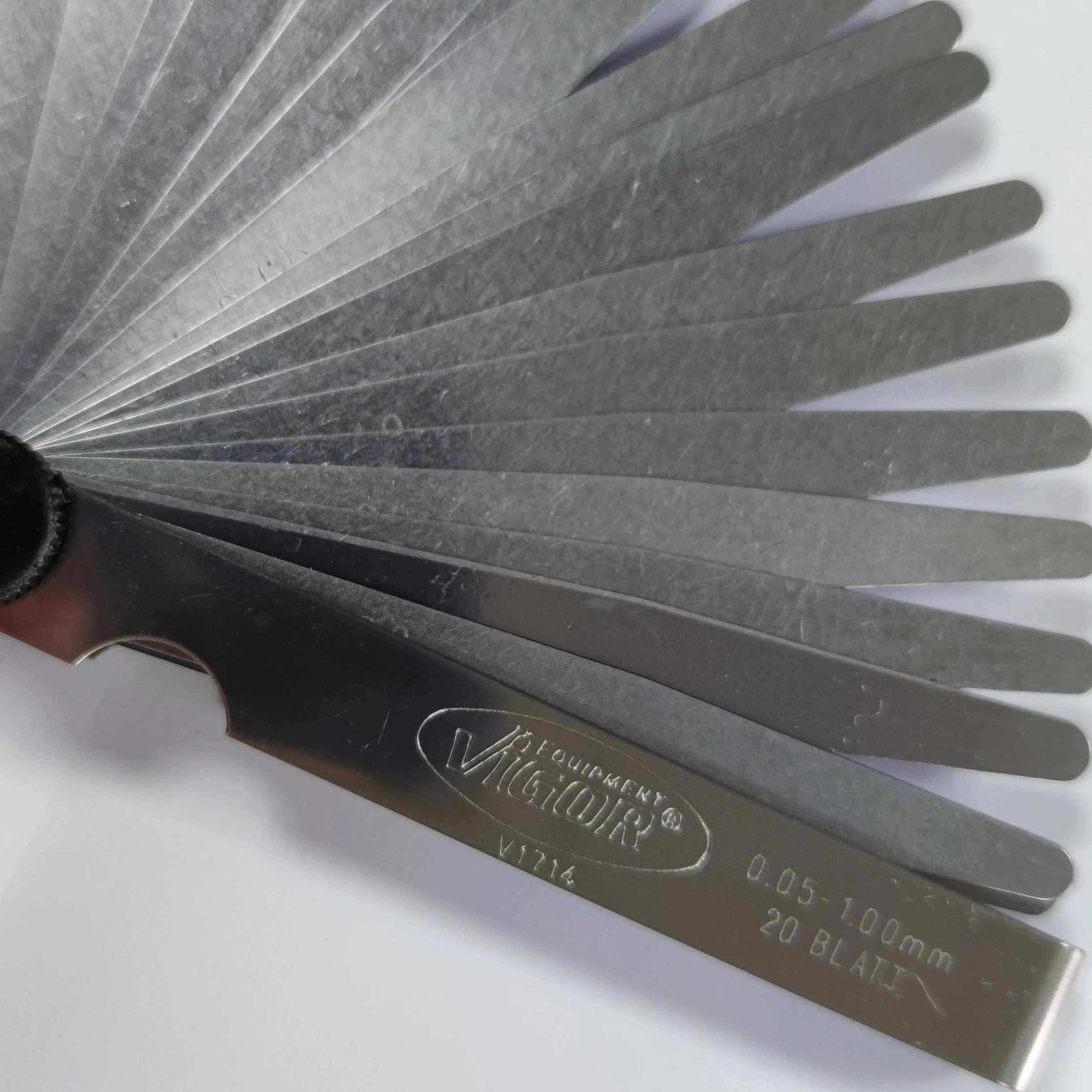

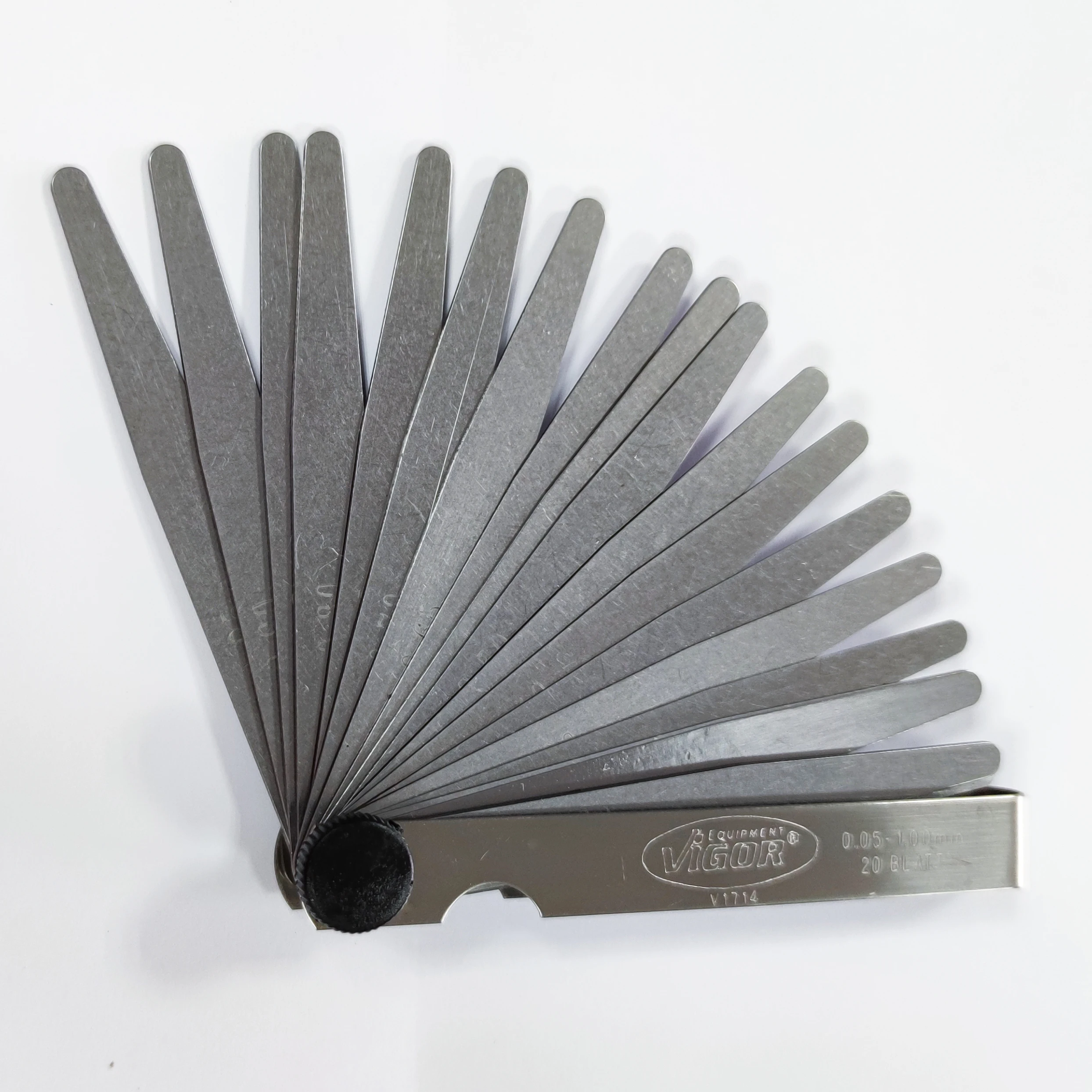

China Manufacurer 32 Blades Stainless Steel Calibrator Filler Feeler Gauges

Product Overview

Description

China Manufacurer 32 Blades Stainless Steel Calibrator  Filler Feeler Gauges



Features:

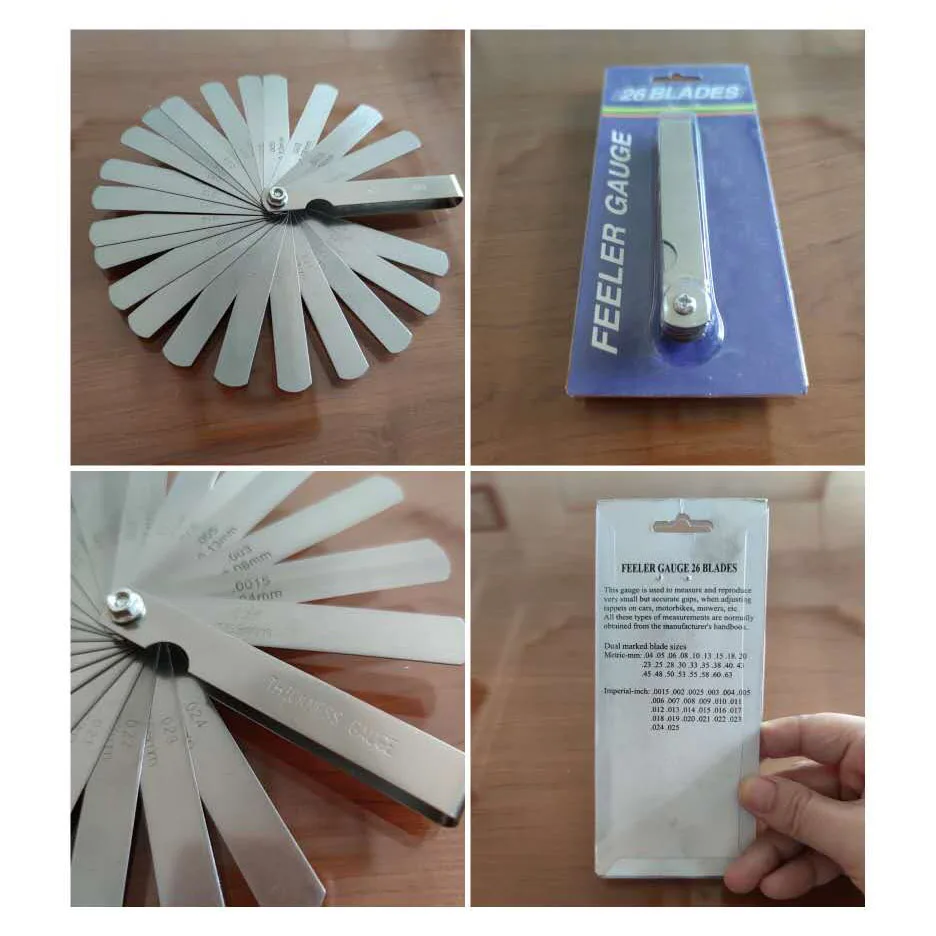

This gauge includes 26 blades, which are made of high quality stainless steel

Dual marked metric and imperial, convenient to use

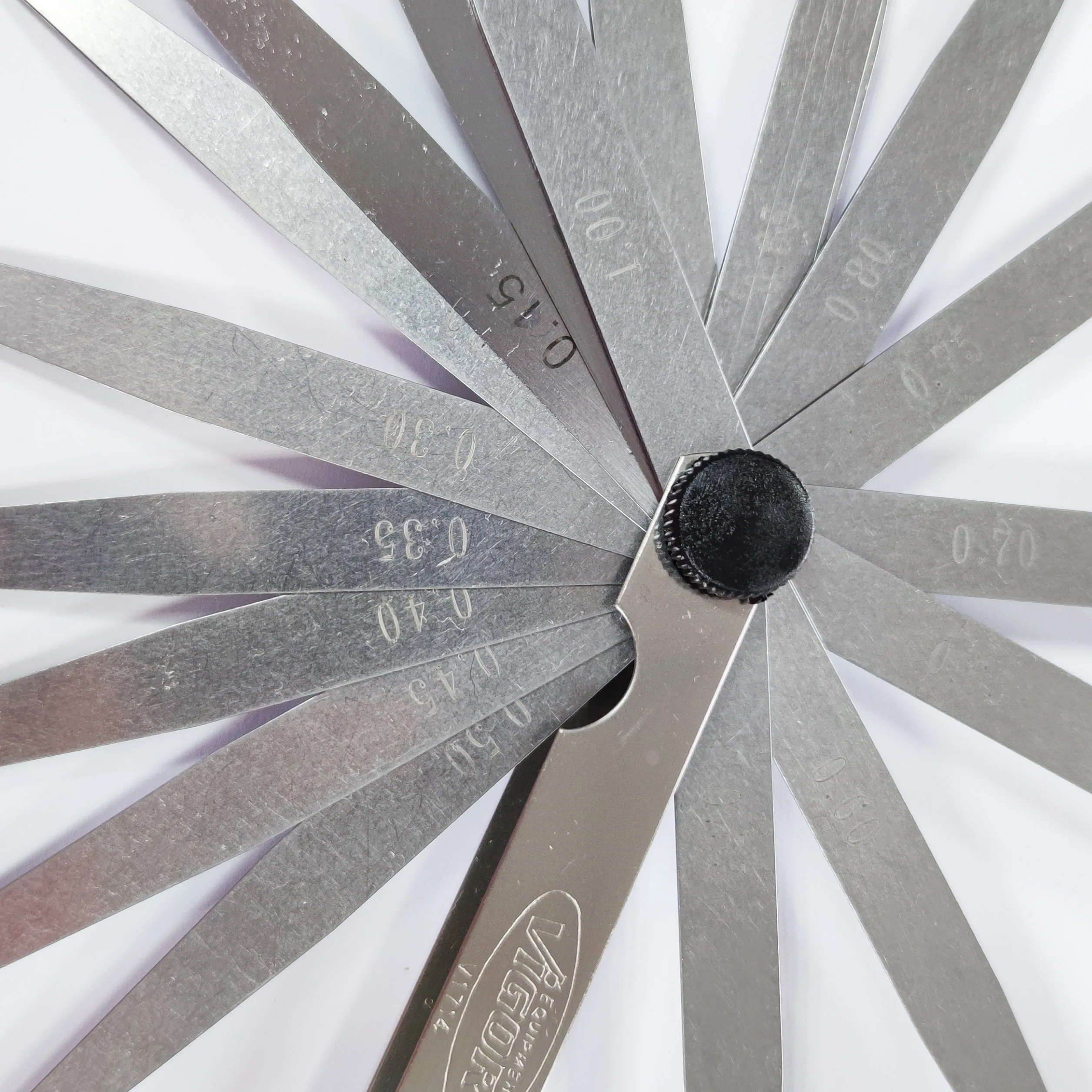

The numbers of size are etched into feeler gauge for easy identification

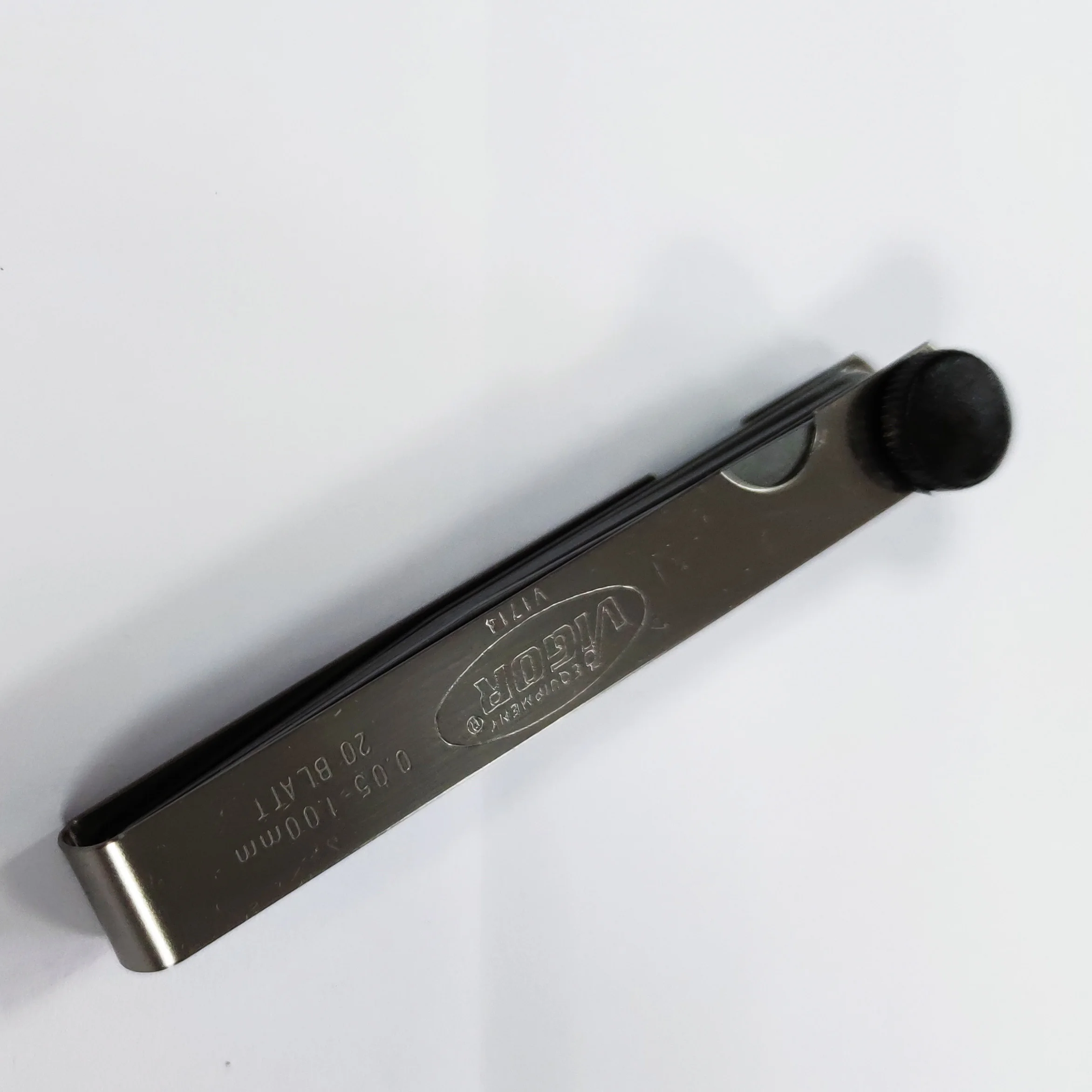

Foldable feeler gauges, easy and convenient to take and store

Blades are bound within a blade protector to prevent loss of individual blades

Used in electronic equipment, mold manufacturing, precision machinery, metal parts, mechanical parts, stamping parts, hardware manufacturing. Mold maintenance, mold measuring



Metric:

04-.05-.06-.08-.10-.13-.15-.18-.20-.23-.25-.28-.30-.33-.35-.38-.40-.43-.45-.50-.53-.55-.58-.60-.63

inch:

0015-.002-.0025-.003-.004-.005-.006-.007-.008-.009-.010-.011-.012-.013-.014-.015-.016-.017-.018-.019-.020-.021-.022-.023-.024-.025 inch







For other different blades

Code	Range	Thickness of leaves included(mm)	Quantity of leaves
100B13-3	0.03 - 0.50mm	0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.30, 0.40, 0.50	13
100B13	0.05 - 1.00mm	0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40, 0.50, 0.60,0.70,0.80,0.90, 1.00	13
100B17	0.02 - 1.00mm	0.02, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20,0.25, 0.30, 0.40, 0.50, 0.75, 1.00	17
100B20	0.05 - 1.00mm	0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00	20
100B28	0.05 - 1.00mm	0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.11, 0.12, 0.13, 0.14, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 1.00	28
100B32	0.03 - 1.00mm	0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.45, 0.50, 0.55, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 1.00	32
