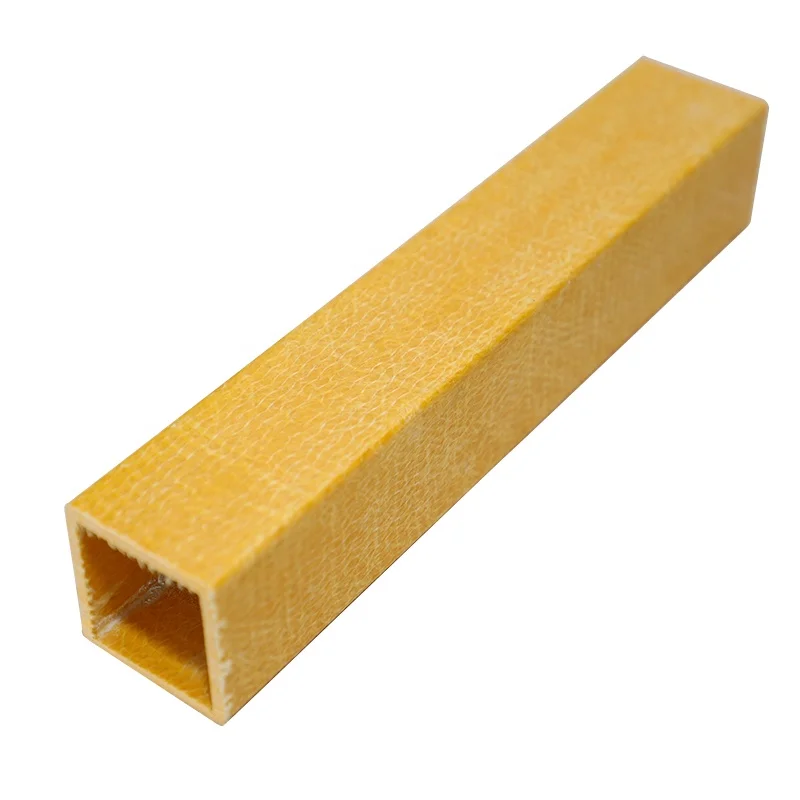

Frp Pultrusion Profile Rectangular Tube 101mm
- Category: >>>
- Supplier: Shijiazhuang JHR Import&Export Co. Ltd.
Share on (1600215423012):
Product Overview
Description
Product Description
GRP pultrusion tube made of fiber glass reinforced the epoxy resin.which is widely used for live line tools based one epoxy tube good electrical and mechanical character.we also called insulation tube,epoxy tube,fiberglass tube, frp tube and so on.
The fiberglass pultruded tubes are manufactured with the pultrusion process after choosing the correct raw materials major including the resin, fibers and additives according to the profiles requirement including mechanical strength, electrical insulation, anti-corrosion etc.
The FRP Plastic pultruded Hollow square tube pipe can meet the customer's requirements by using different combination of resin, fibers and others.
Specifications

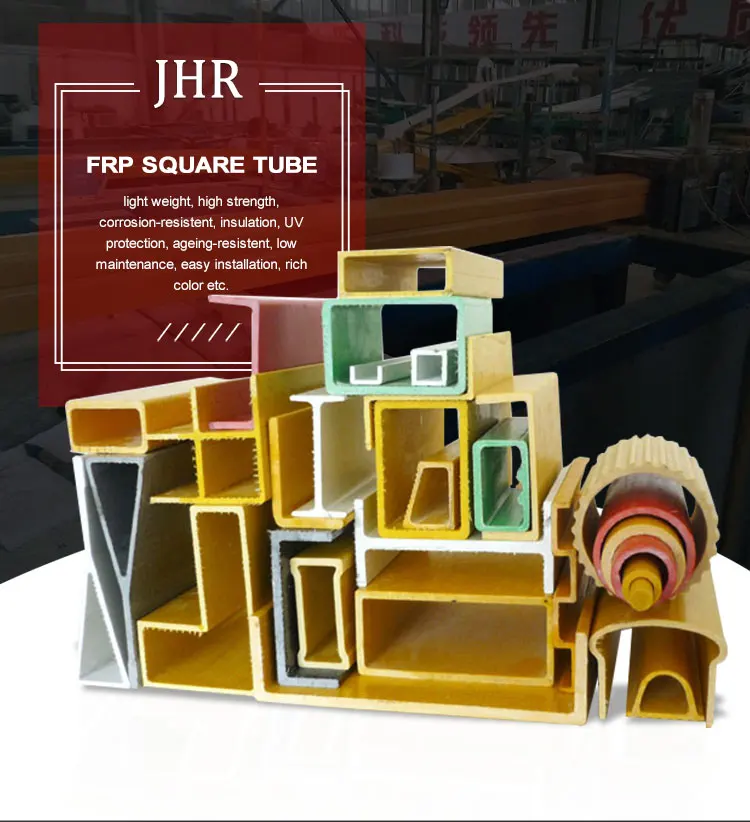

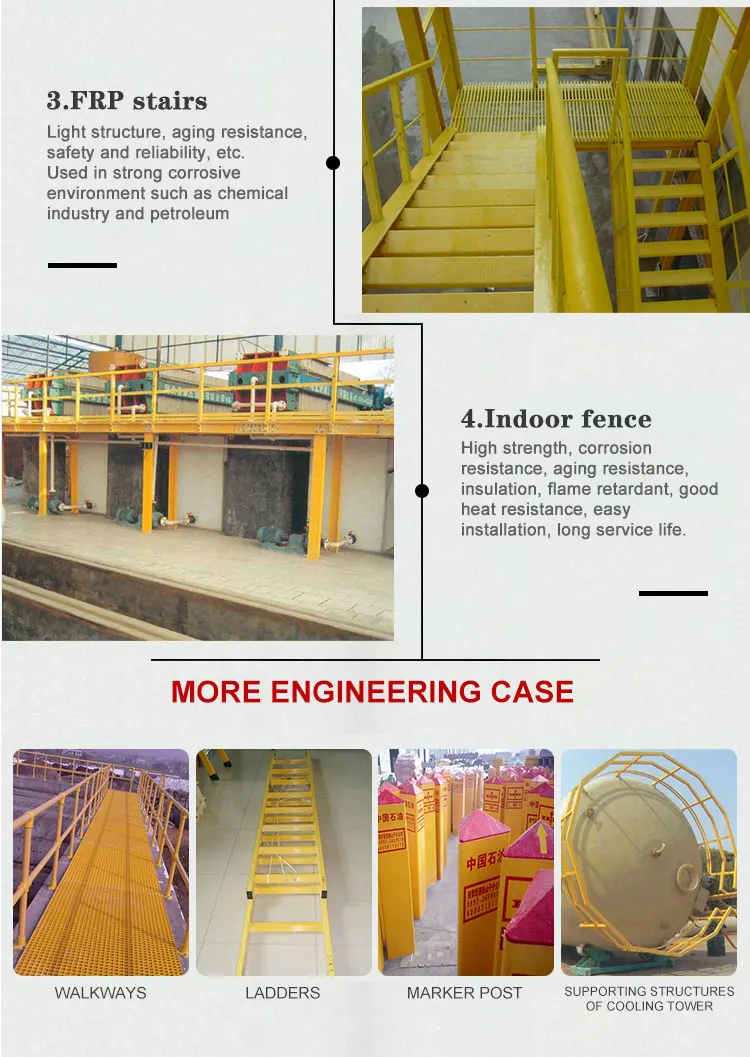

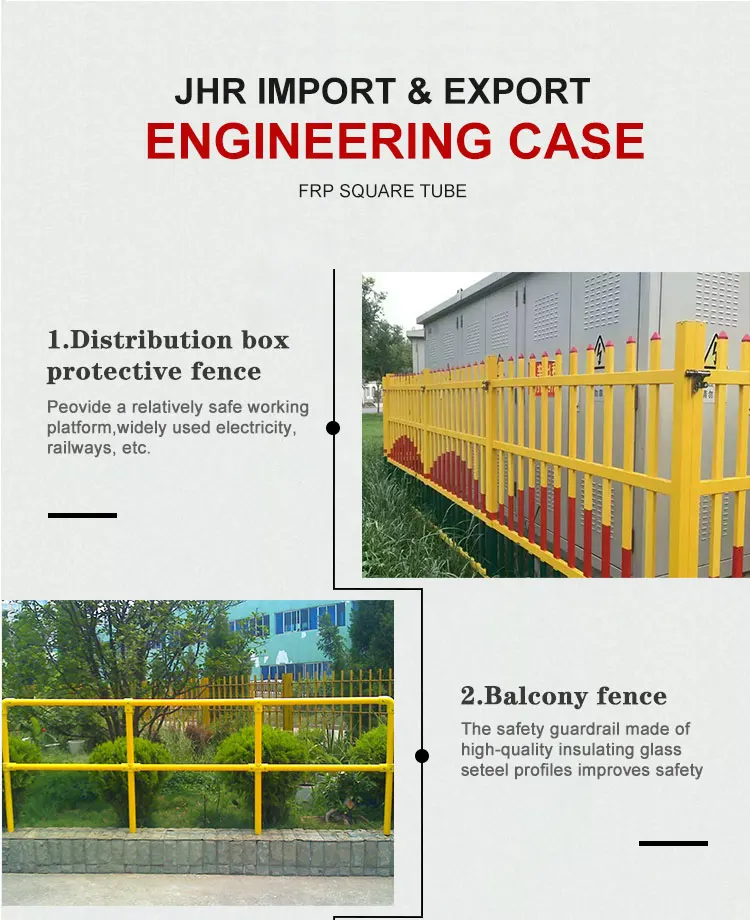

FRP pultruded profiles include: various FRP fences, FRP insulated leisure benches, FRP flat bars, special-shaped tubes, transparent rods, steel pipes, hexagonal shaft bars, FRP square tubes, round tubes, I-beams, purlins, angle steels ,Deck, round bar, strip steel, channel steel, pultrusion bracket, glass fiber reinforced plastic inclined ladder, ladder cage, glass fiber reinforced plastic platform, sign pile, etc.
The Fiber Reinforced Plastic (FRP) pultruded hollow tubes offer a unique combination of chemical resistance, size stability, high strength, and thermal/electric non-conductivity, etc.

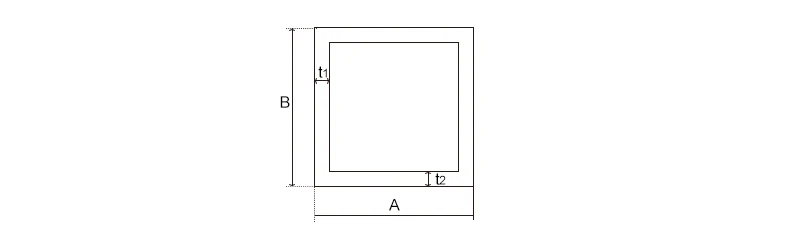

Fiberglass Square/Rectangular Tube | Dimension(mm) | Weight(kg/m) |
A*B*t1* t2 | - | |
19*19*2.6*2.6 | 0.31 | |
20*13*2.2*2.2 | 0.22 | |
24.5*16*2.2*2.2 | 0.27 | |
30*20*2*2 | 0.39 | |
30*20*2.5*2.5 | 0.32 | |
35*35*2.2*2.2 | 0.53 | |
38*38*4*4 | 1.03 | |
50*30*4*4 | 1 | |
50*50*4*4 | 1.42 | |
50*50*4*4 | 1.3 | |
50*50*5*5 | 1.74 | |
50*50*6.4*6.4 | 2.12 | |
60*32*3.5*3.5 | 1.09 | |
64*26*3.5*3.5 | 1.02 | |
64*64*4*4 | 1.82 | |
64*64*6.4*6.4 | 2.8 | |
75*75*6*6 | 3.15 | |
76*76*6.4*6.4 | 3.39 | |
110*50*4.5*4 | 2.35 | |
101*101*5*5 | 3.61 | |
101*101*6.4*6.4 | 4.61 |
Detailed Images

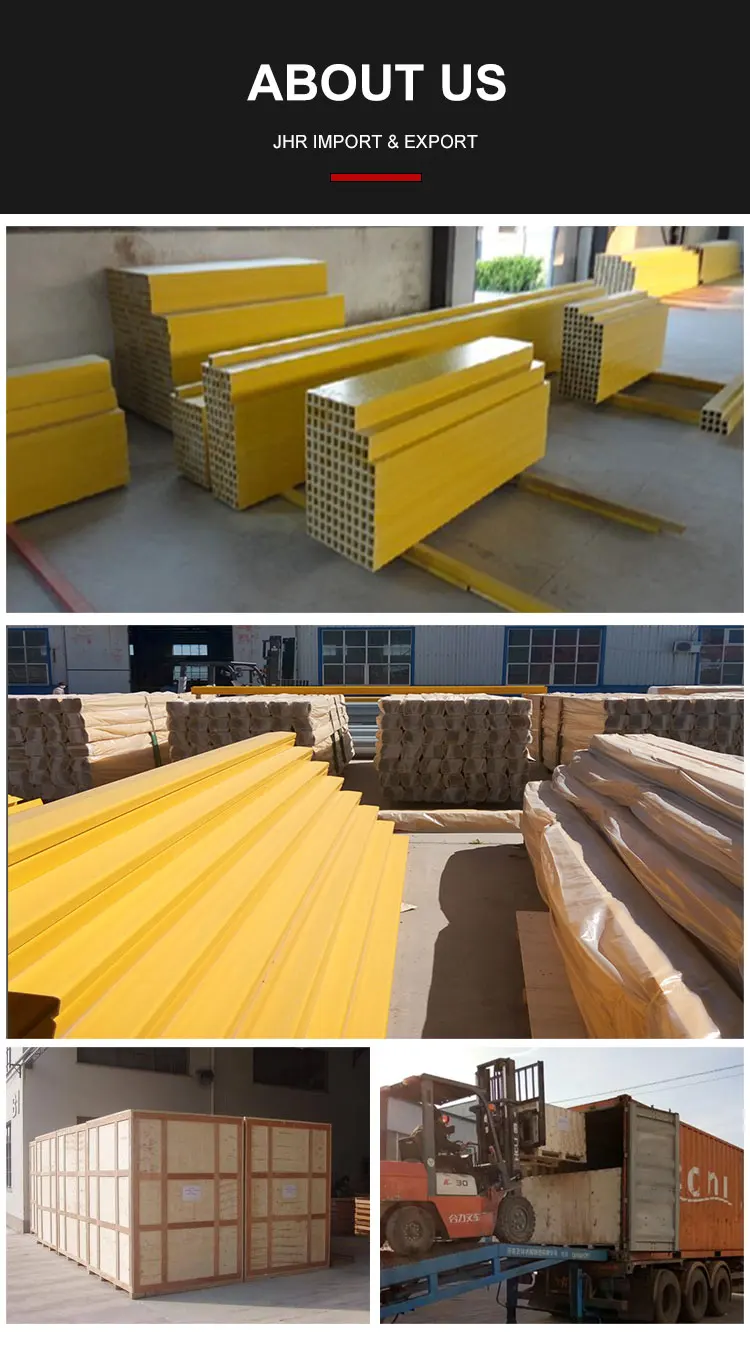

Company Information
