Trina solar panel TSM DE18 500Watt 505w 670w mono solar panel price Trina solar module

Share on (1600215450624):


Price:$0.24 - $0.30

Quantity:


Product Overview

Description







Products Description










Product Details


Peak Power Watts-PMAX (Wp)
480
485
490
495
500
505
Maximum Power Voltage-VMPP (V)
42.0
42.2
42.4
42.6
42.8
43.0
Maximum Power Current-IMPP (A)
11.42
11.49
11.56
11.63
11.69
11.75
Open Circuit Voltage-VOC (V)
50.8
51.1
51.3
51.5
51.7
51.9
Short Circuit Current-ISC (A)
11.99
12.07
12.14
12.21
12.28
12.35
Module Effciency η m (%)
20.1
20.3
20.5
20.7
20.9
21.1
Power Tolerance-PMAX (W)
0 ~ +5

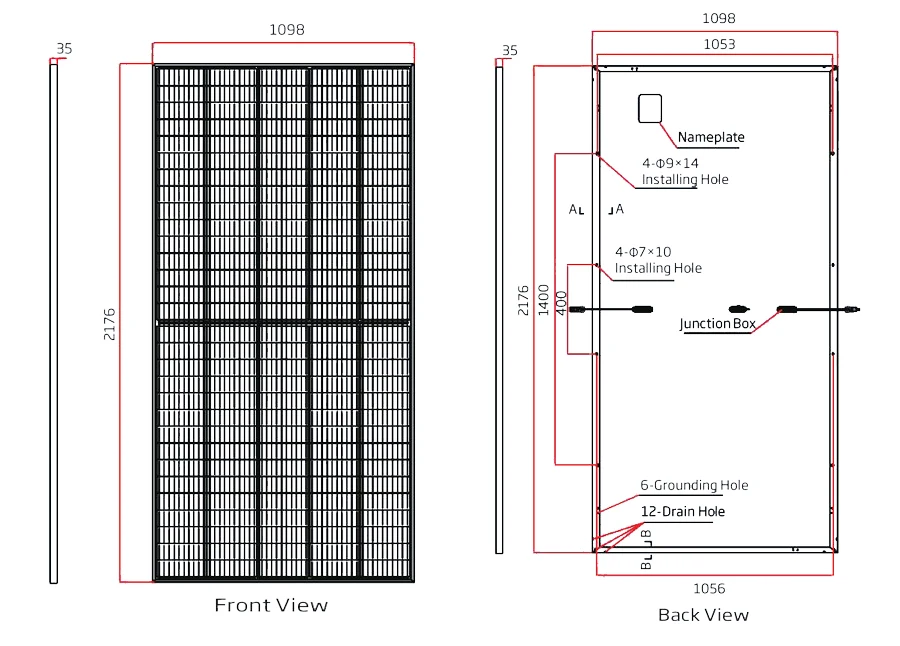

Frame
35 mm (1.38 inches) Anodized Aluminium Alloy
Cables
Photovoltaic Technology Cable 4.0mm(0.006 inches)
WARRANTY

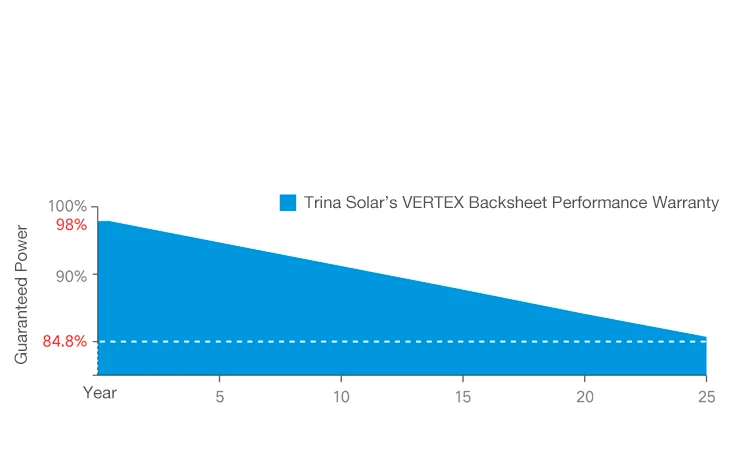

12 year Product Workmanship Warranty, 25 year Power Warranty


ELECTRICAL DATA (NMOT)
Maximum Power-PMAX (Wp)
 363
367
371
375
379
382
Maximum Power Voltage-VMPP (V)
39.6
39.8
40.0
40.2
40.4
40.6
Maximum Power Current-IMPP (A)
9.15
9.20
9.26
9.32
9.37
9.43
Open Circuit Voltage-VOC (V)
48.0
48.2
48.4
48.6
48.8
49.0
Short Circuit Current-ISC (A)
9.65
9.72
9.77
9.83
9.89
9.94

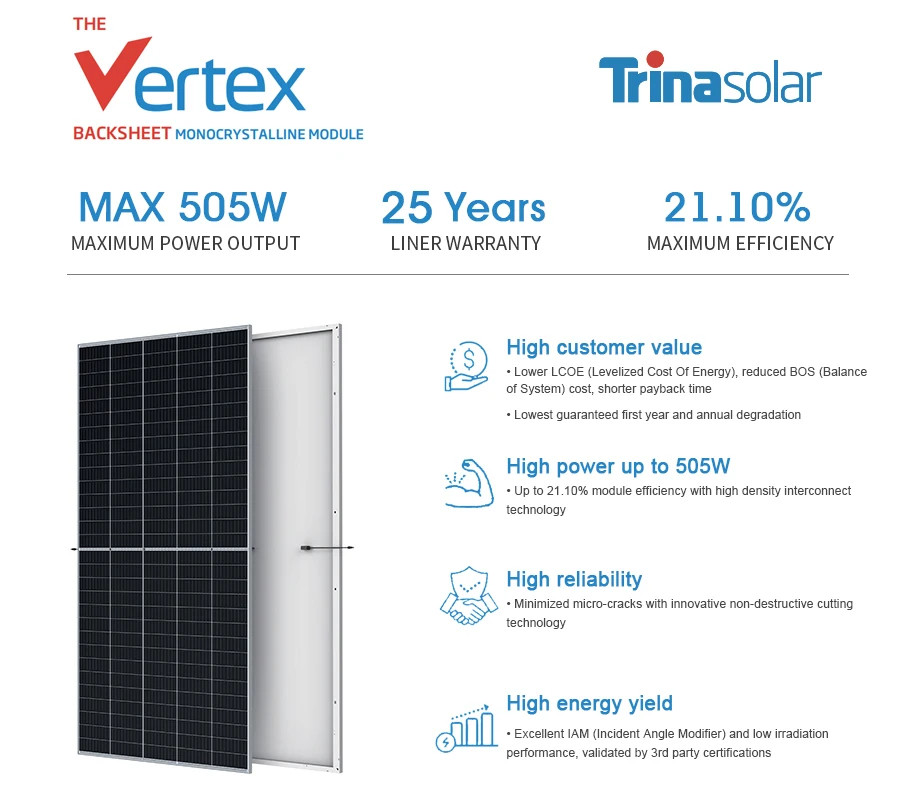

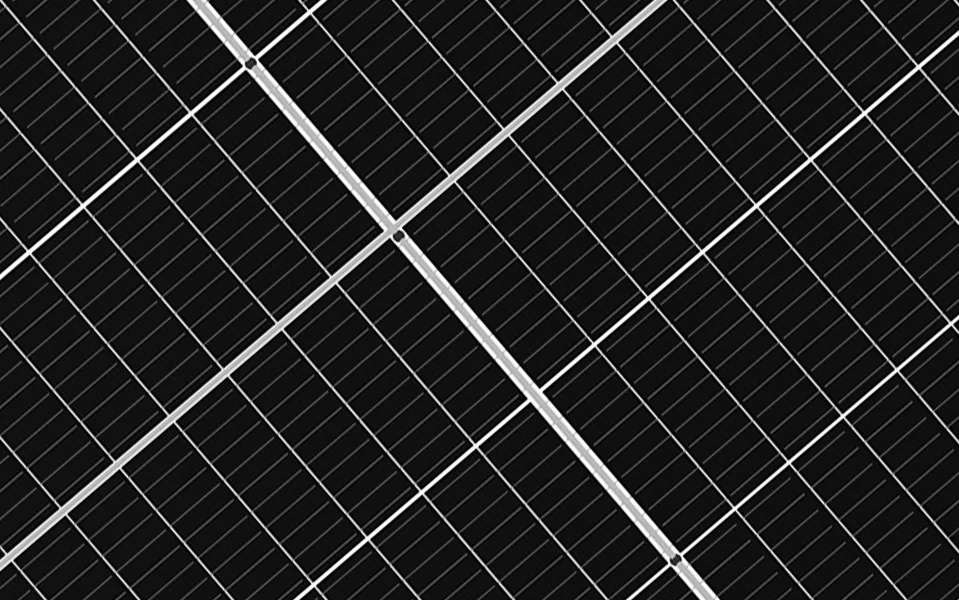

Large area cells based on 210mm silicon wafers and 1/3-cut cell technology

Lower temperature coeffcient (-0.36%) and operating temperature




Excellent IAM (Incident Angle Modifer) and low irradiation performance,validated by 3rd party certifcations

Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance Of System) cost, shorter payback time

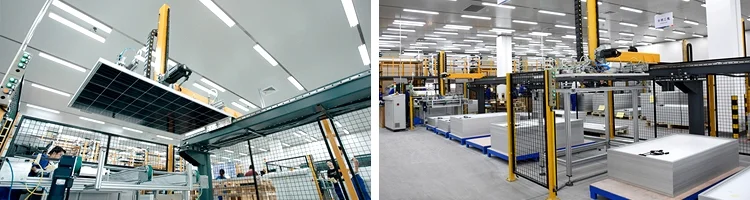

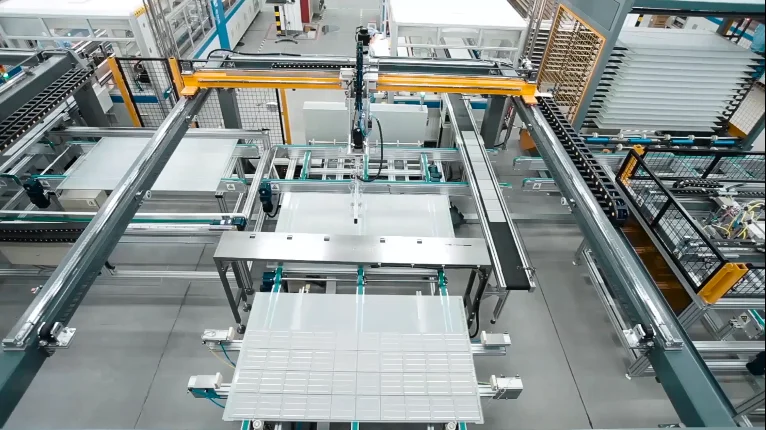

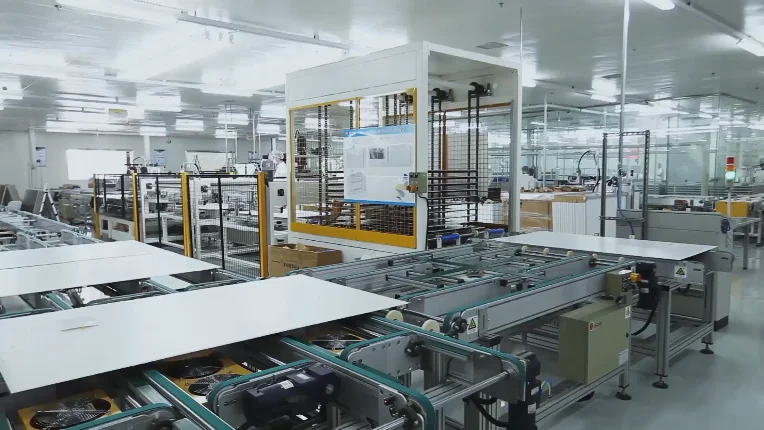

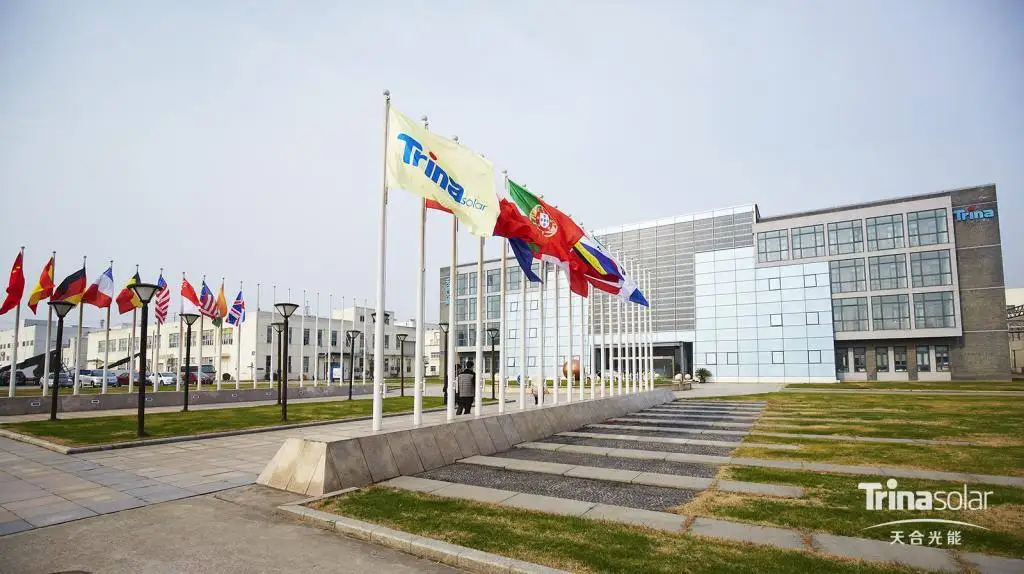

Factory Display

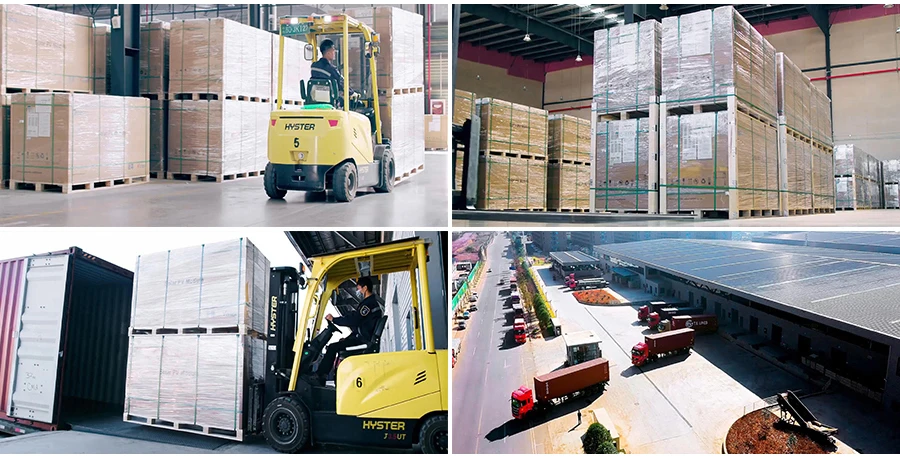

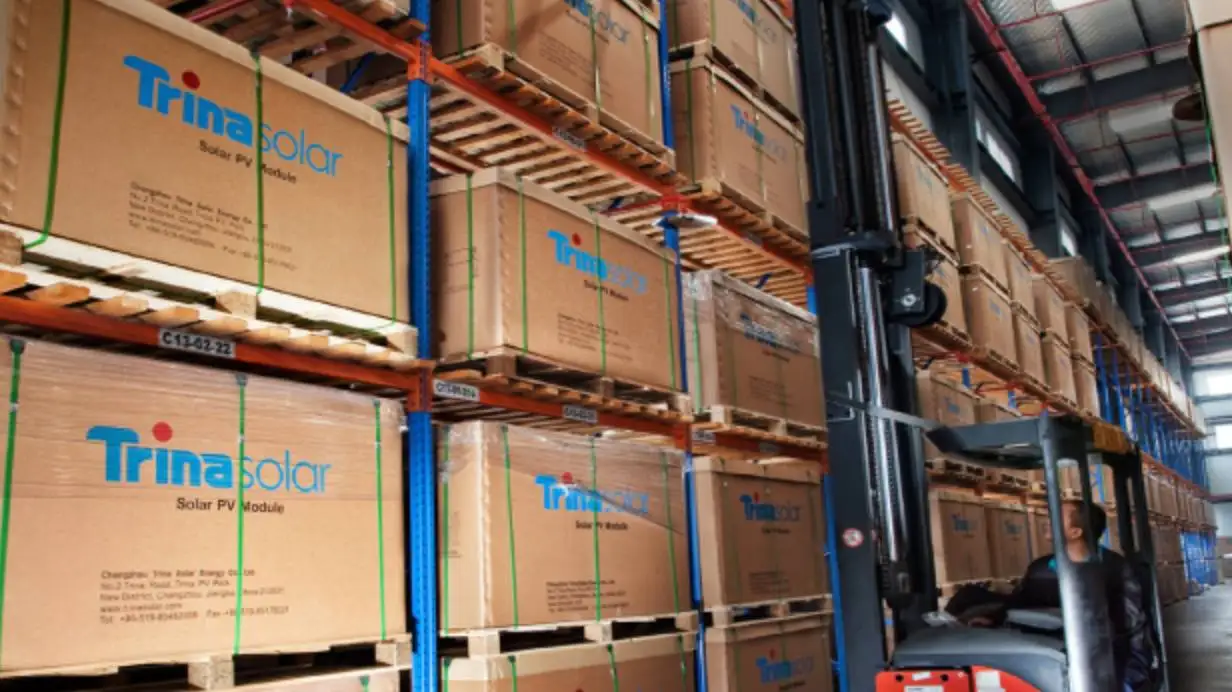

Product Packaging






Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

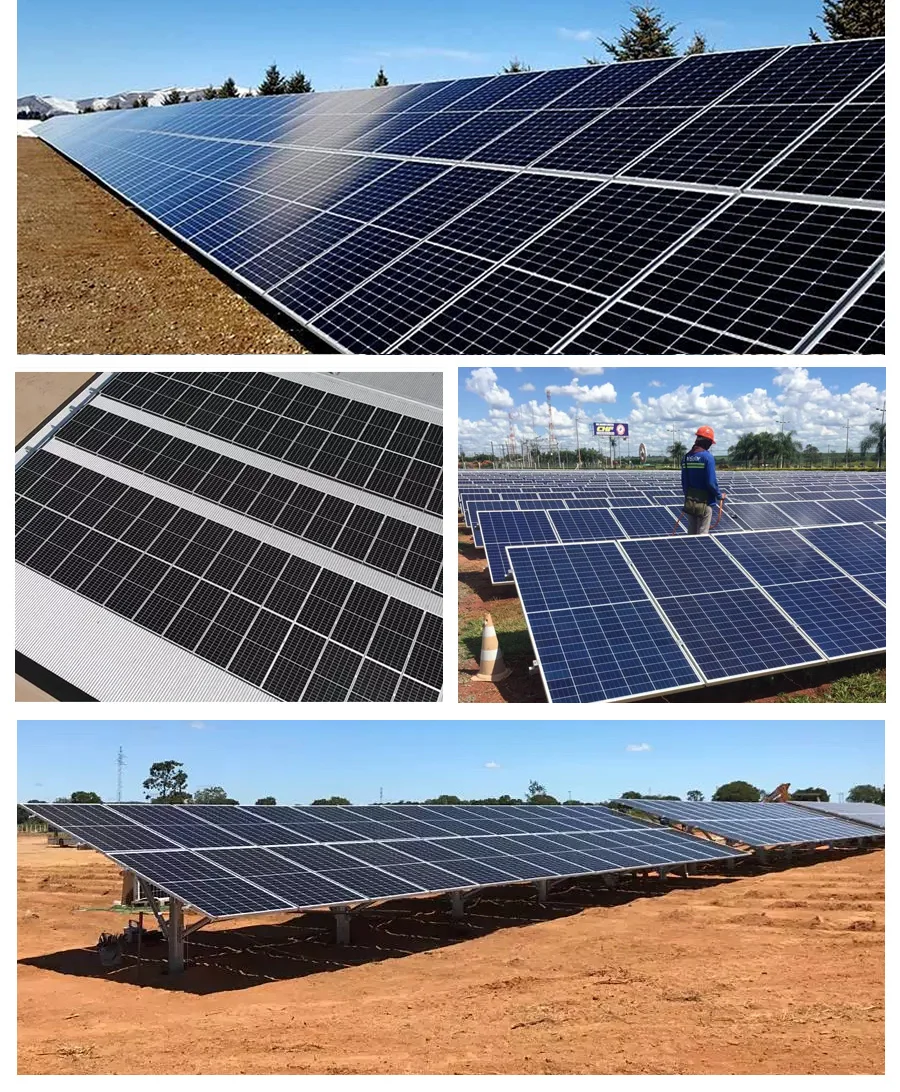

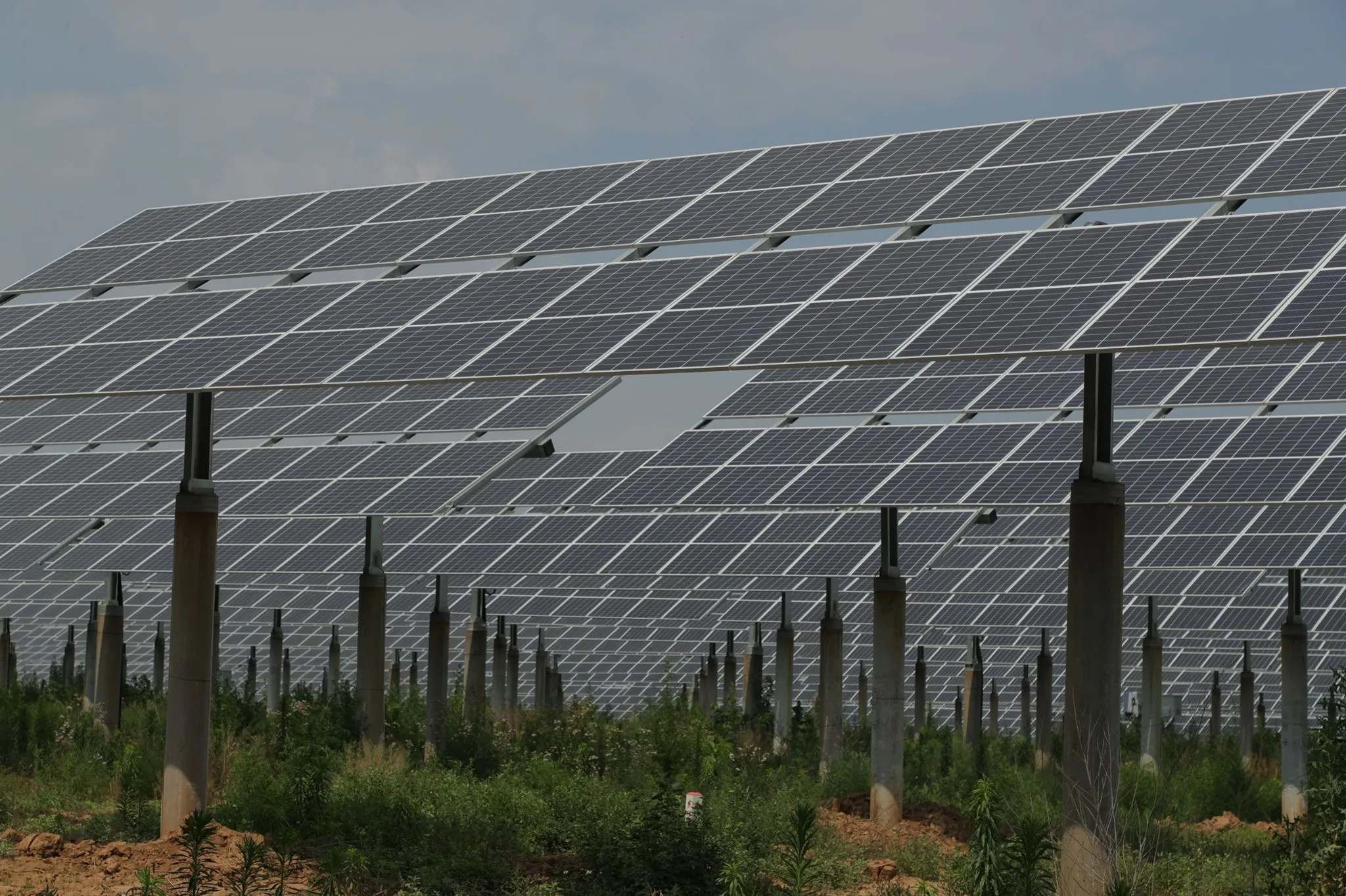

Project Case

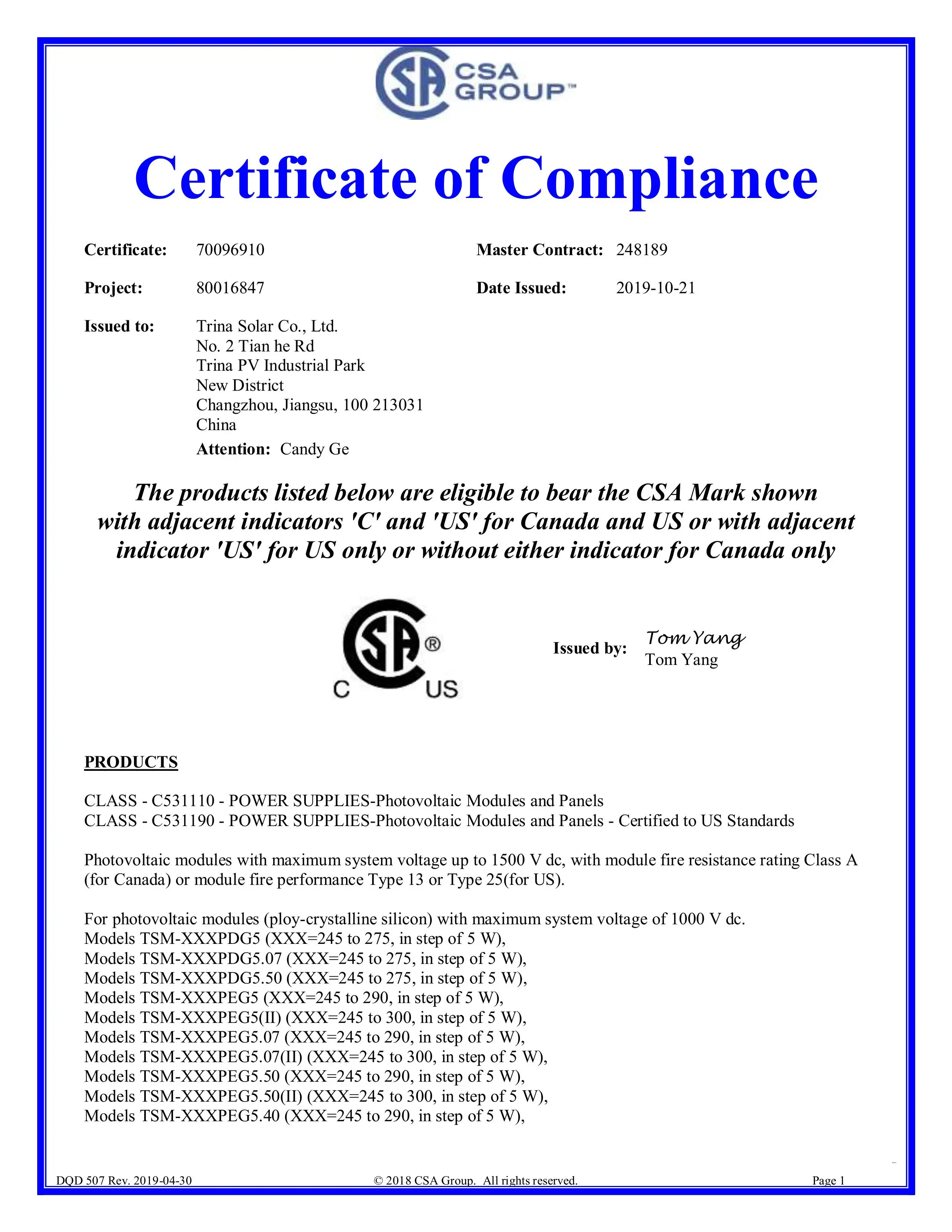

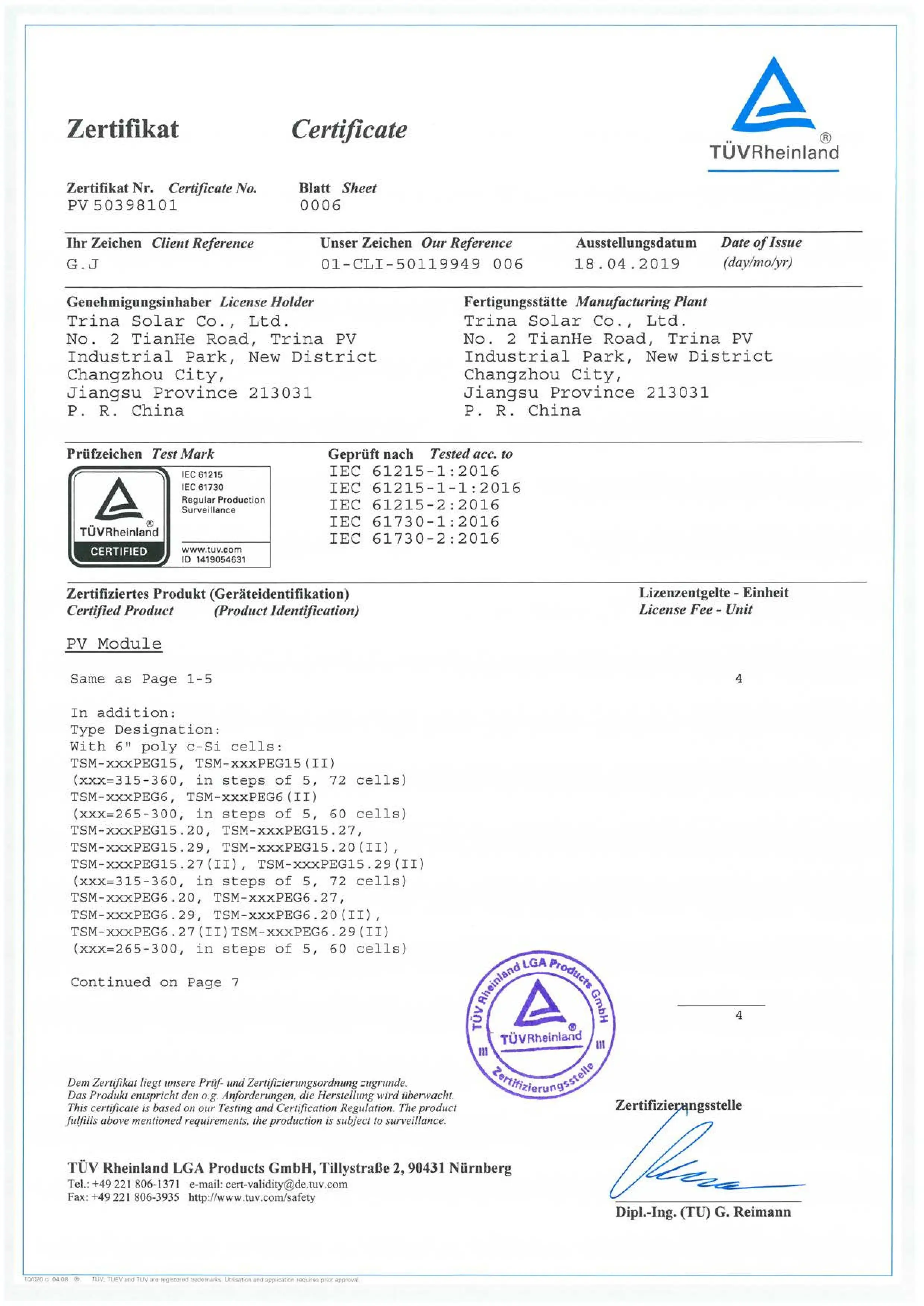

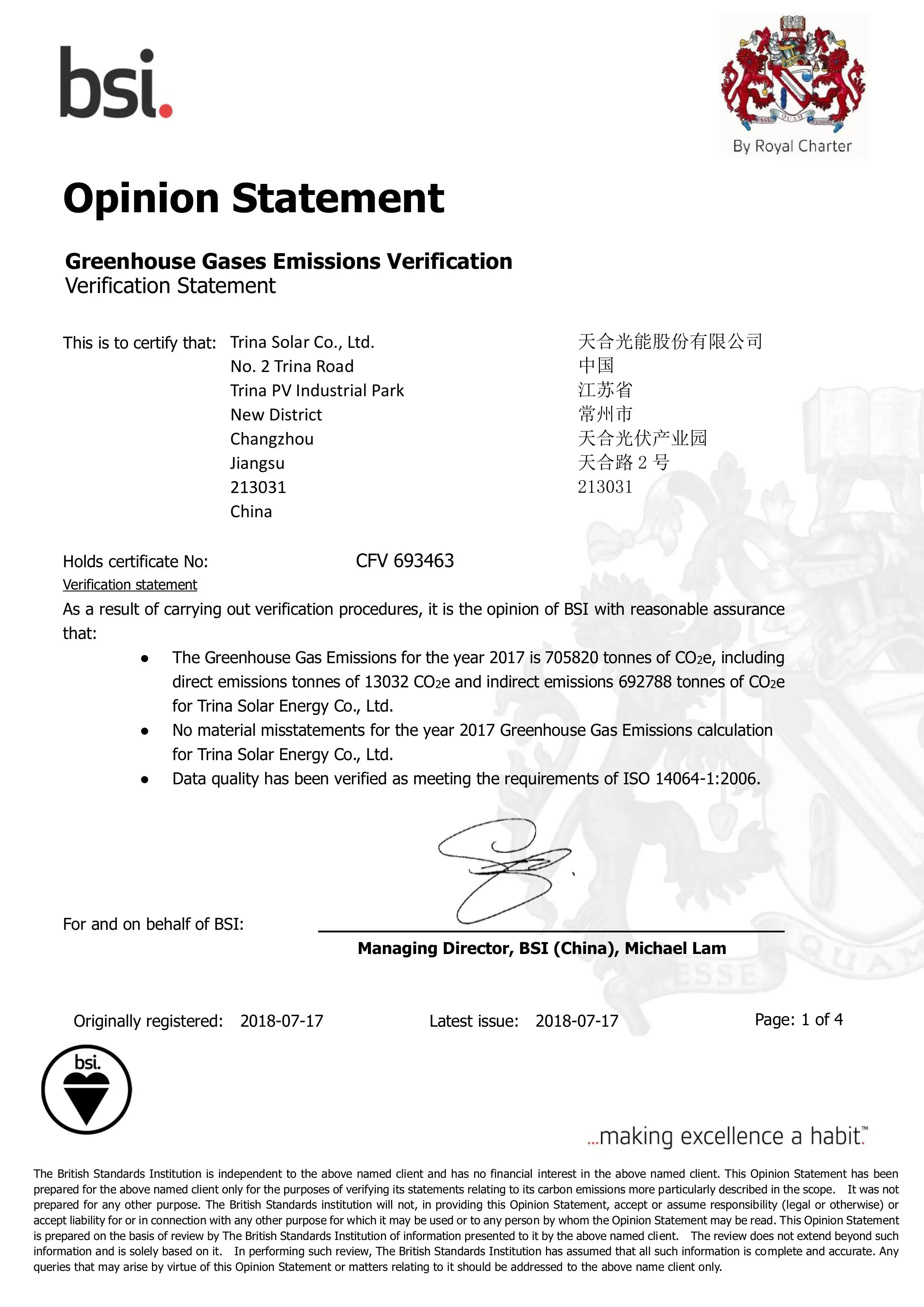

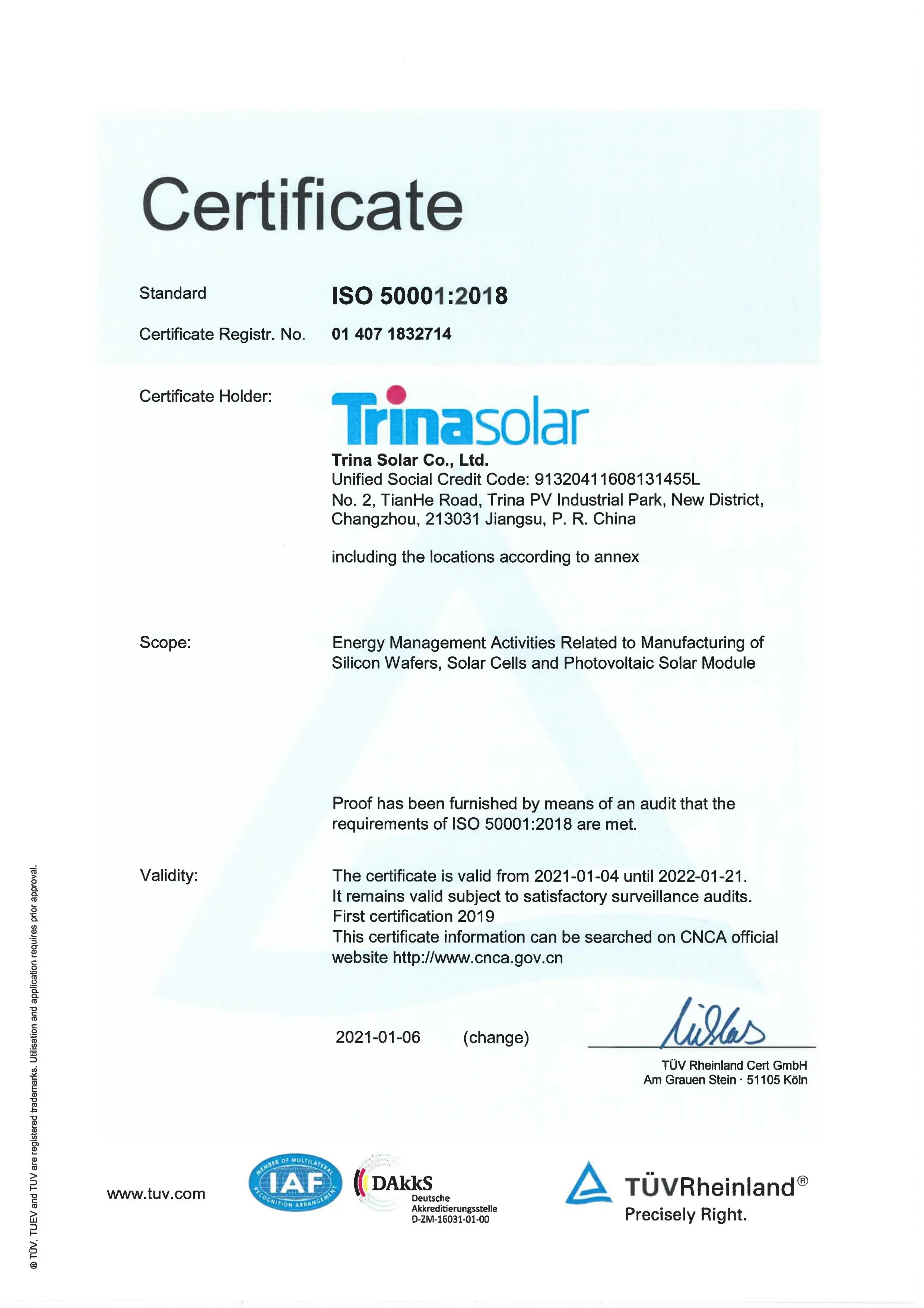

Certifications






Recommend Products


Solar Inverter
Solar Panels
Solar Battery

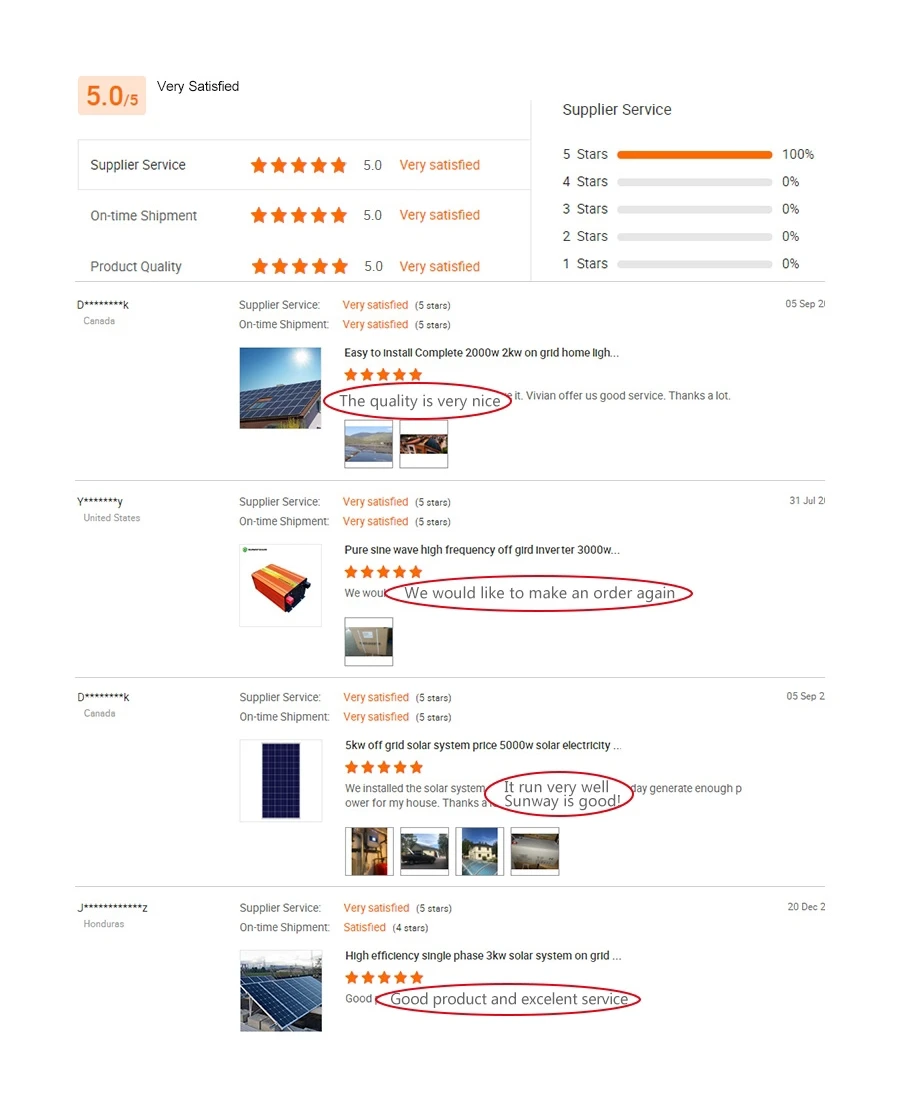

Feedback
