Competitive Price Semi Automatic Pharmacy Plastic Tube Filling Machine

Share on (1600215519221):


Price:RUB 371,635.50 - RUB 557,453.25

Quantity:


Product Overview

Description

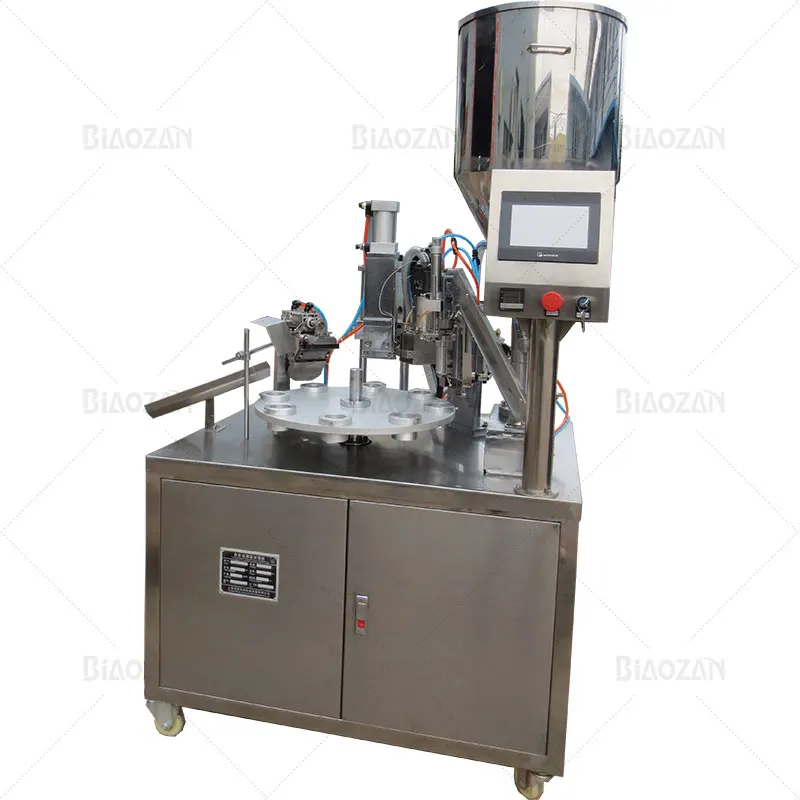

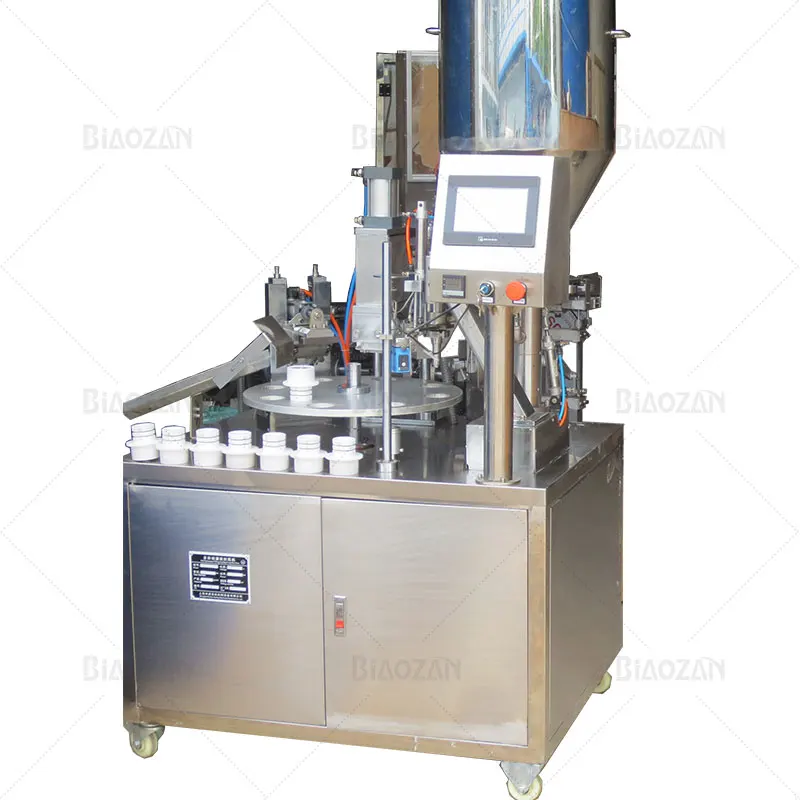

Competitive Price Semi Automatic Pharmacy Plastic Tube Filling Machine

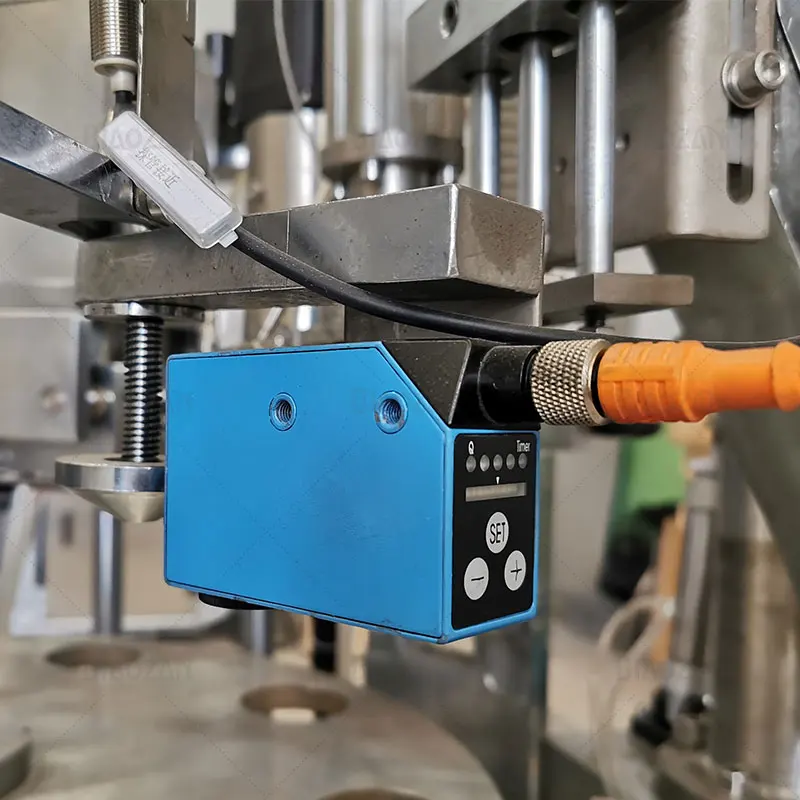

HTGF-50 semi automatic tube filling sealing machine is widely used in toothpaste, ointment, paste food, cosmetics, hair-dyeing, adhesive, art palette, and so on. The machinery is strictly according to GMP norms and has a compatible design, which is ideal for sealing and filling plastic, lami as well as aluminum tubes.  The semi-automatic tube filler and sealer is suitable for filling all kinds of semi-viscous and viscous products into plastic tubes. This tube filler/sealers offer quick adjustment, which makes it suitable for using multiple types of soft plastic and/or metal tubes. This machine features with No−Tube−No−Fill system.

Please don't be hesitate! Contact us and get more Pharmacy Tube Filling Machine details!

Product Overviews

Pharmacy Tube Filling MachinePharmacy Tube Filling MachinePharmacy Tube Filling MachinePharmacy Tube Filling MachinePharmacy Tube Filling MachinePharmacy Tube Filling MachinePharmacy Tube Filling Machine

Technology

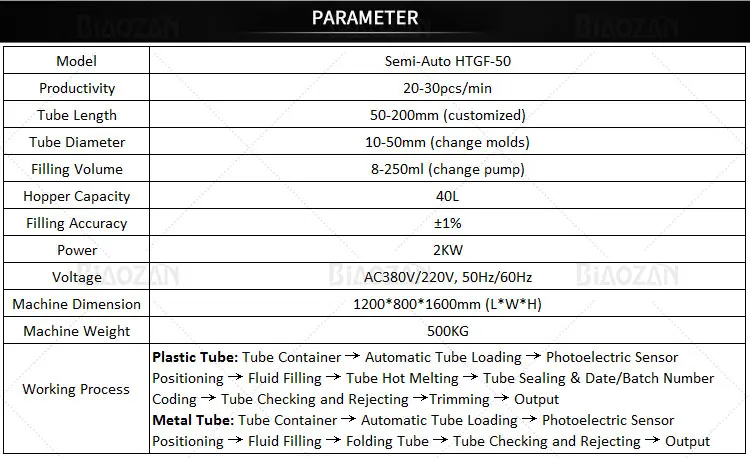

Tube Filling Sealing Machine Technical Parameters:
Parameters Number Reference
Item Plastic Tube Metal Tube
Sealing Type Heating Sealing Fold Sealing
Max Power 2KW 1.5KW
Voltage AC380V/220V, 50Hz/60Hz
Productivity 20-30pcs/min
Filling Volume 8-250ml (change pump)
Tube Diameter 10-50mm (change molds)
Tube Length 50-200mm (customized)
Machine Dimension 1200*800*1600mm (L*W*H)
Machine Weight 500KGS

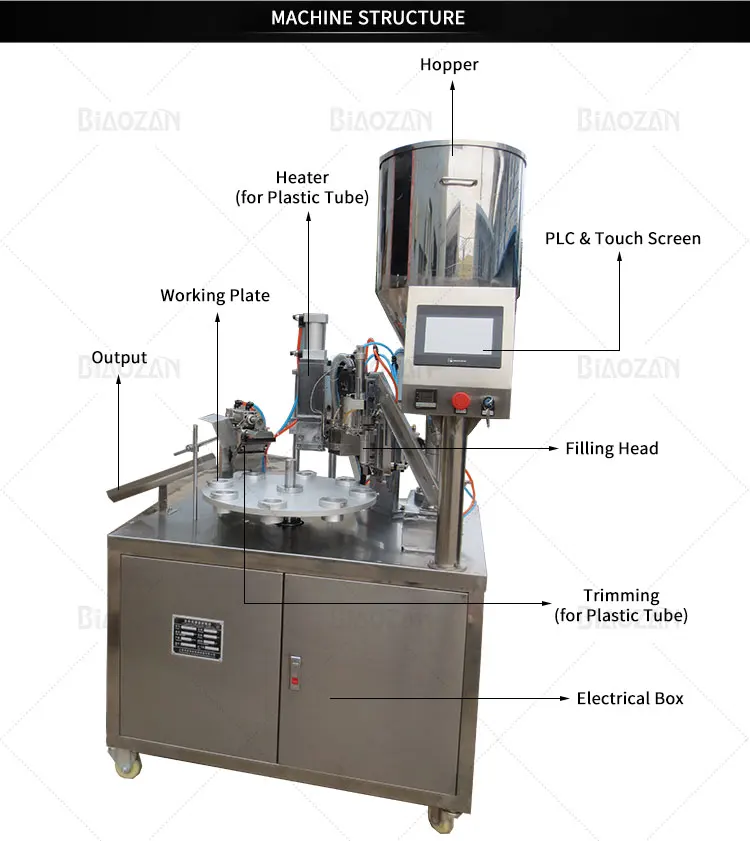

Working Process:

  • Plastic Tube: Tube Container → Automatic Tube Loading → Photoelectric Sensor Positioning → Fluid Filling → Tube Hot Melting → Tube Sealing & Date/Batch Number Coding → Tube Checking and Rejecting →Trimming → Output
  • Metal Tube: Tube Container → Automatic Tube Loading → Photoelectric Sensor Positioning → Fluid Filling → Folding Tube → Tube Checking and Rejecting → Output
