Factory Price Electric Pallet Stacker Pallet Stacker Jack For Handling Goods
- Category: Forklifts >>>
- Supplier: Qingdao Olift Equipment Co. Ltd.
Share on (1600215724282):
Product Overview
Description
Factory Price Electric Pallet Stacker Pallet Stacker Jack For Handling Goods
Product Description
you to choose to meet the requirements.
Configuration and performance:
1. With explosion-proof valve at the bottom of cylinder, even if the pipe burst, the mast will not rapidly decline.
2. Curtis controller.

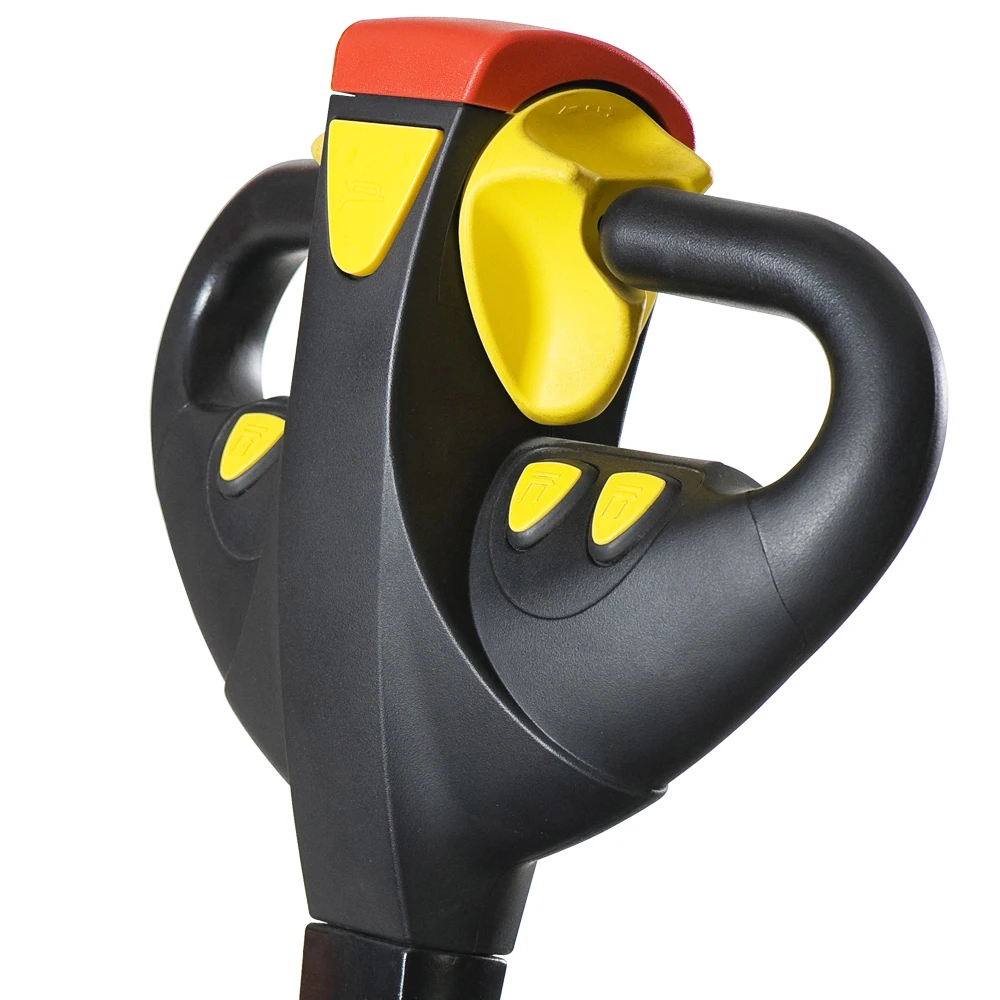

3. Operating handle is on the side, allowing operators to work with greater vision.
4. Precision electronic limit switches, control of the maximum lifting height, to prevent damage to the motor.
5.Truck circuit lines in nylon casing, wiring clean and corrosion-resistant, oil resistant, abrasion resistant.
6. Emergency reverse switch.
7. Emergency power-off dis-connection.
2. Curtis controller.
3. Operating handle is on the side, allowing operators to work with greater vision.
4. Precision electronic limit switches, control of the maximum lifting height, to prevent damage to the motor.
5.Truck circuit lines in nylon casing, wiring clean and corrosion-resistant, oil resistant, abrasion resistant.
6. Emergency reverse switch.
7. Emergency power-off dis-connection.
Specifications chart of EL-A:
Model Number | EL-A | |
Drive type | Electric walking | |
Operate type | Standing panel | |
Rated capacity | kg | 1200/1500 |
Load center | mm | 600 |
Wheels | PU | |
Steering wheel | mm | φ210x70 |
Fork wheel single | mm | φ115X50 |
Fork wheel tandem | mm | φ80X70 |
Lift height | mm | 2500/3000/3500/4500 |
Free lift | mm | 380 |
Lowered mast height | mm | 1740/1990/2240/2100 |
Overall height | mm | 3050/3550/4050/5050 |
Min. fork height | mm | 90 |
Overall length | mm | 2050 |
Overall width | mm | 810 |
Forks size | mm | 60/170/1150 |
Forks width | mm | 570/685 |
Ground clearance | mm | 50 |
Aisle Width, with pallet 1000x1200 crosswise | mm | 2900 |
Aisle Width, with pallet 800x1200 lengthwise | mm | 2840 |
Max. gradient, laden/unladen | % | 3/5 |
Travel brake | electromagnetism | |
Drive motor power | kW | 0.75 |
Lift motor power | kW | 2 |
Battery voltage/rated capacity | V/Ah | 24/160 |
Battery weight | Kg | 190 |

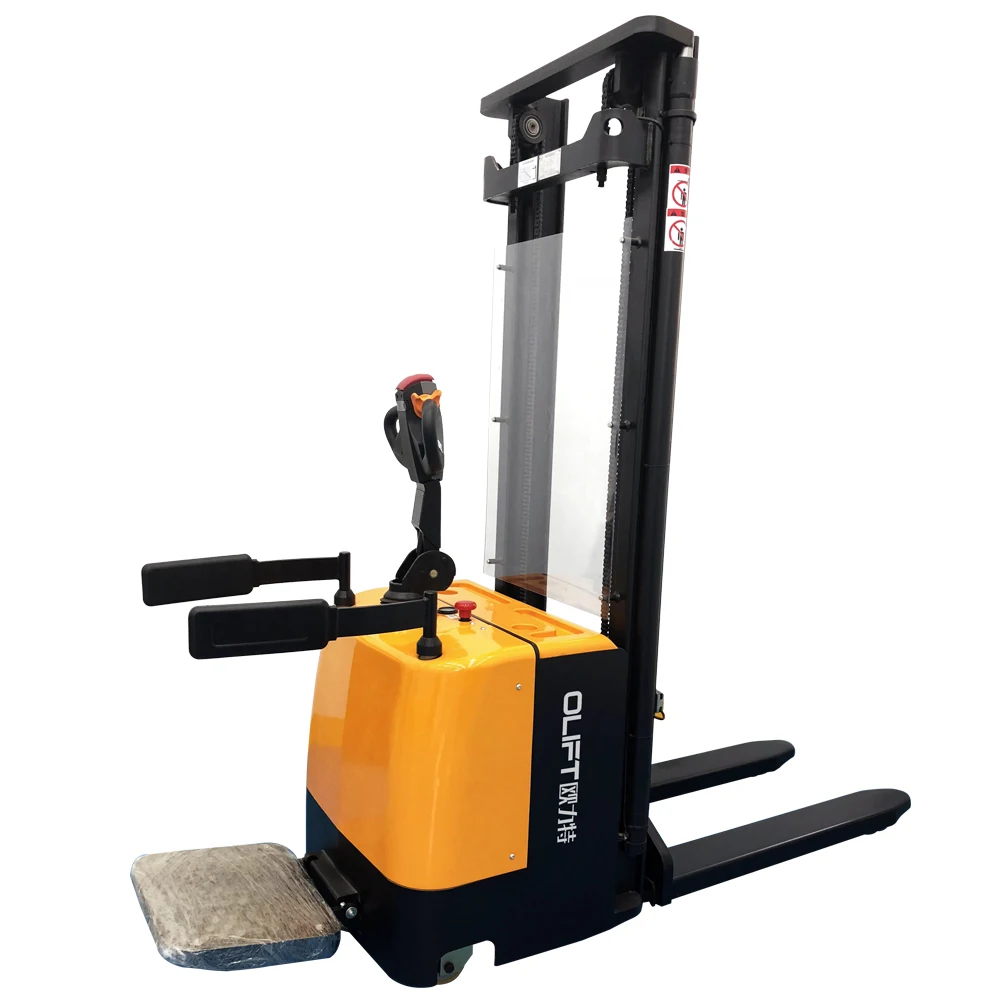

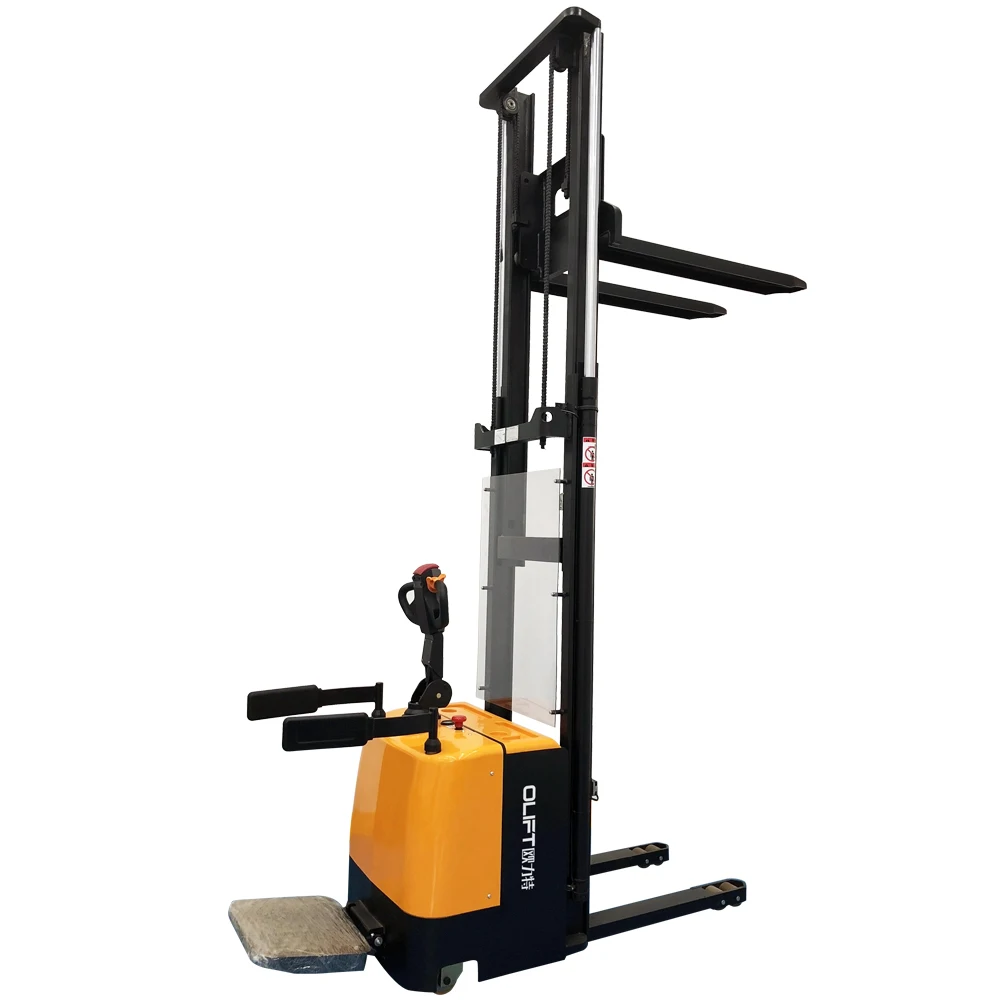

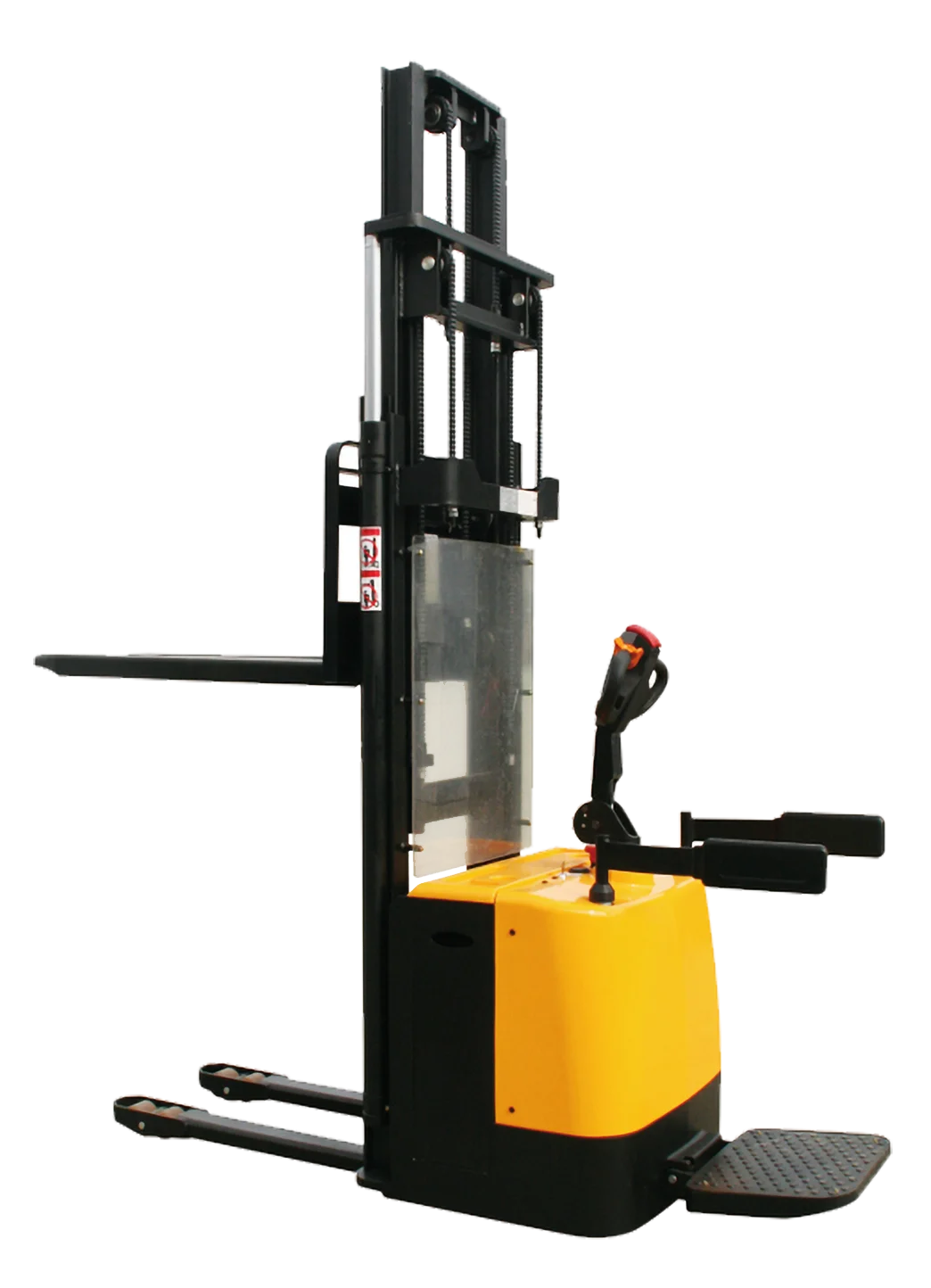

Detailed Images
Related Products
Packing&Shipping

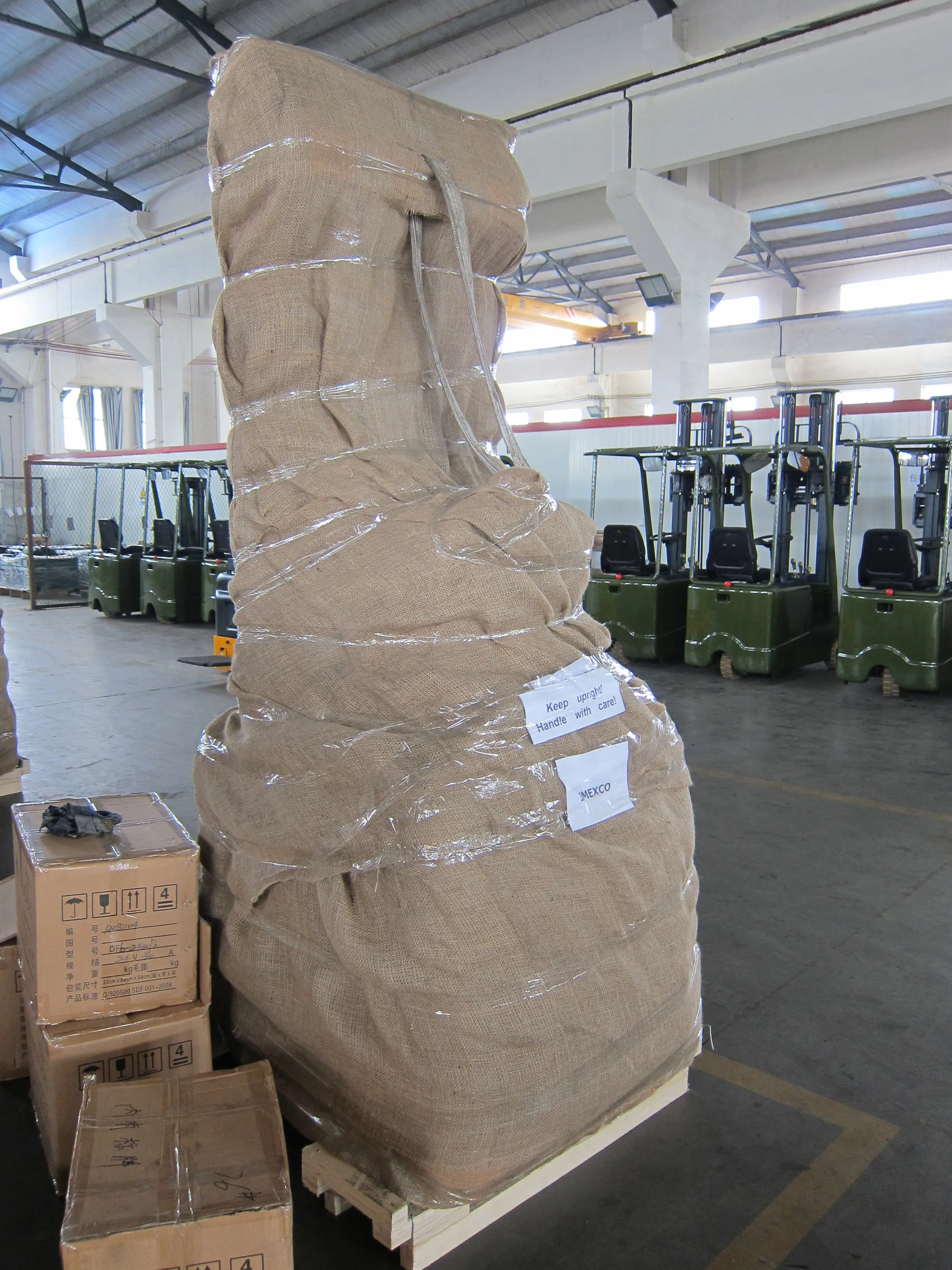

Packaging Detail: | The electric pallet stacker will be packed by Flexible Package, Seaworthy Package | ||||||
Delivery Date: | Within 7-10 days for electric pallet stacker after receive advance payment. | ||||||
Certifications
Company Introduction
Qingdao Olift Equipment Co.,Ltd. provides wide selection of products such as forklift truck, pallet truck and electric stacker, semi-electric stacker, scissor lifts, moving tool, car mover, platform lifting, wheelchair lift platform and more. We have professional team members to design your hand pallet truck products and control the quality.
Exhibition
Choose Olift, Trust Olift.
Qingdao Olift Equipment Co., Ltd are exporting our Material Handling Products to Asia, America, Europe, Oceania and other areas for more than 16 Years. Our Products include Forklift Truck, Stacker, Pallet Truck, Scissor Lift Platform, Order Picker, Car Mover, Vacuum Lifter, Hand Trolley, etc.
After Sales Service
Qingdao Olift Equipment Co., Ltd. is professional Material Handling Expert.
1. After-sales service provided: Engineer available to service machinery overseas.
2. We offer technical supporting for the pallet stacker jack all year round.3. Choose OLIFT is to choose higher work efficiency, better quality and service.
4. If you want to get more details, please visit our website: www.olift.com for more details of the stackers.
5. The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment.
6. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
Qingdao Olift Equipment Co., Ltd.
Address: No. 143, Zhuzhou Road, Laoshan District, Qingdao, Shandong, China 266100
Tel : +86-532-88990008
Sales Manager.: Jenny Jiang
Mobile/WhatsApp/Wechat:+86 18354255925
Website: www.olift.com
Tel : +86-532-88990008
Sales Manager.: Jenny Jiang
Mobile/WhatsApp/Wechat:+86 18354255925
Website: www.olift.com
FAQ
With the Electric pallet truck you only need one person to drive.
One operator is all that is needed, eliminating strenuous work and possible physical injury. And since time is money, you are actually saving both due to the efficiency of a Electric pallet stacker and its power, as the workforce can be utilized in
One operator is all that is needed, eliminating strenuous work and possible physical injury. And since time is money, you are actually saving both due to the efficiency of a Electric pallet stacker and its power, as the workforce can be utilized in
a more cost-effective way.
Rely on Olift electric pallet stacker as your one-man-operator solution to:
1. Obtain an improved working environment with less injuries and an emission free workshop or showroom.
2. Be more cost effective with time as well as space.
3. Make sure you put safety first, as a electric pallet stacker minimize hazards of operator accidents.
1. Obtain an improved working environment with less injuries and an emission free workshop or showroom.
2. Be more cost effective with time as well as space.
3. Make sure you put safety first, as a electric pallet stacker minimize hazards of operator accidents.
