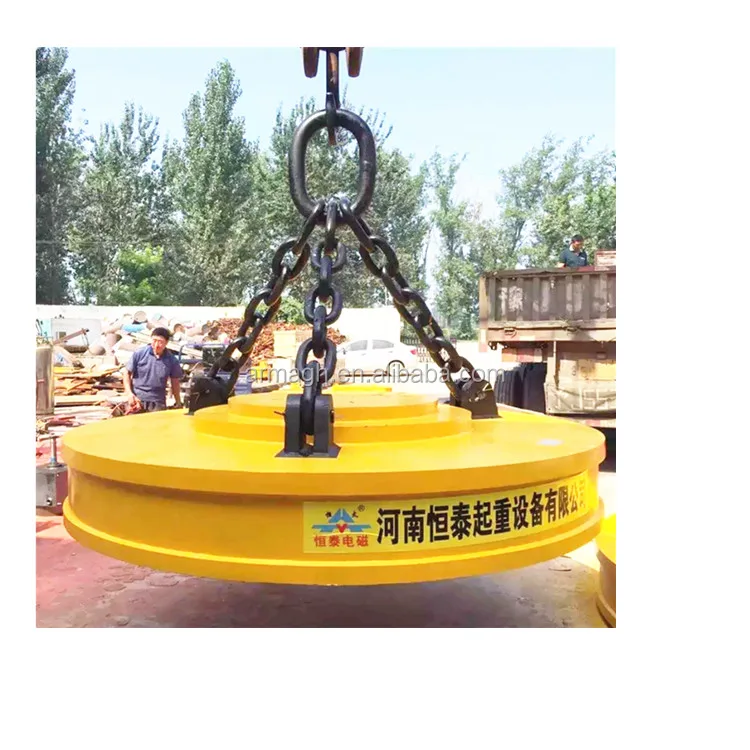

2 ton lifting magnet magnetic lift for industrial and series mw5 electric lifting magnet
- Category: >>>
- Supplier: Henan Armagh Machine Equipment Co. Ltd.
Share on (1600215728101):
Product Overview
Description
Product Description

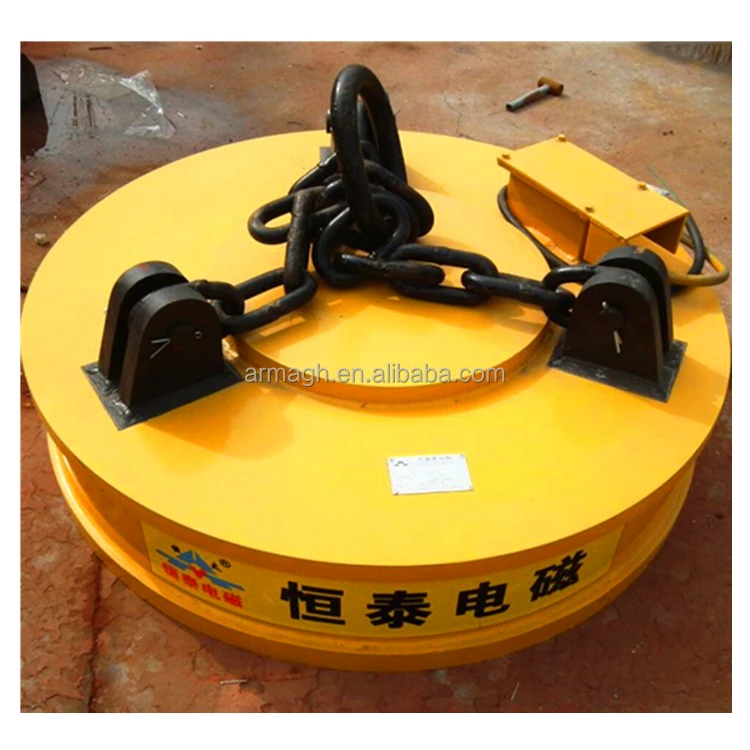

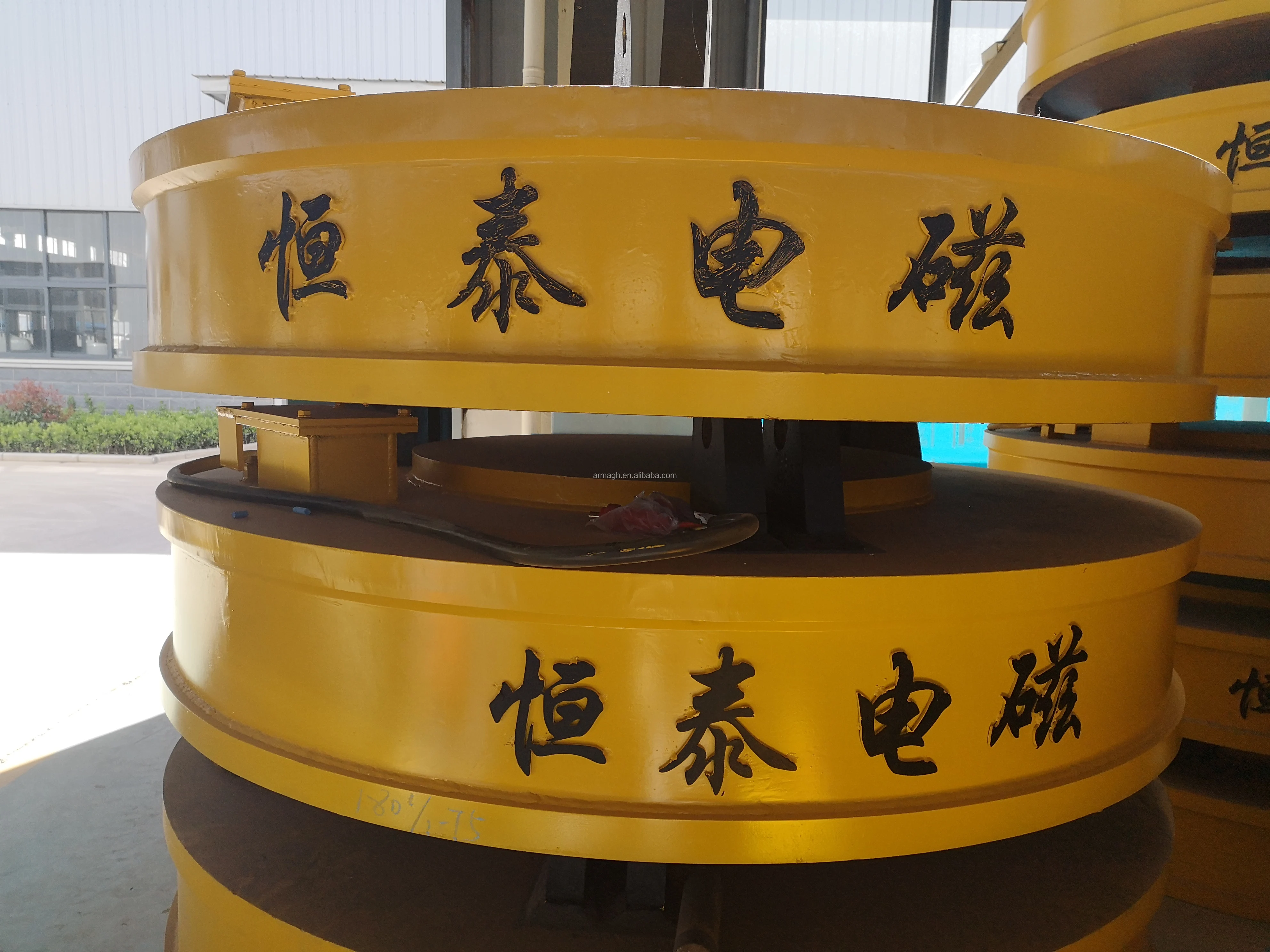

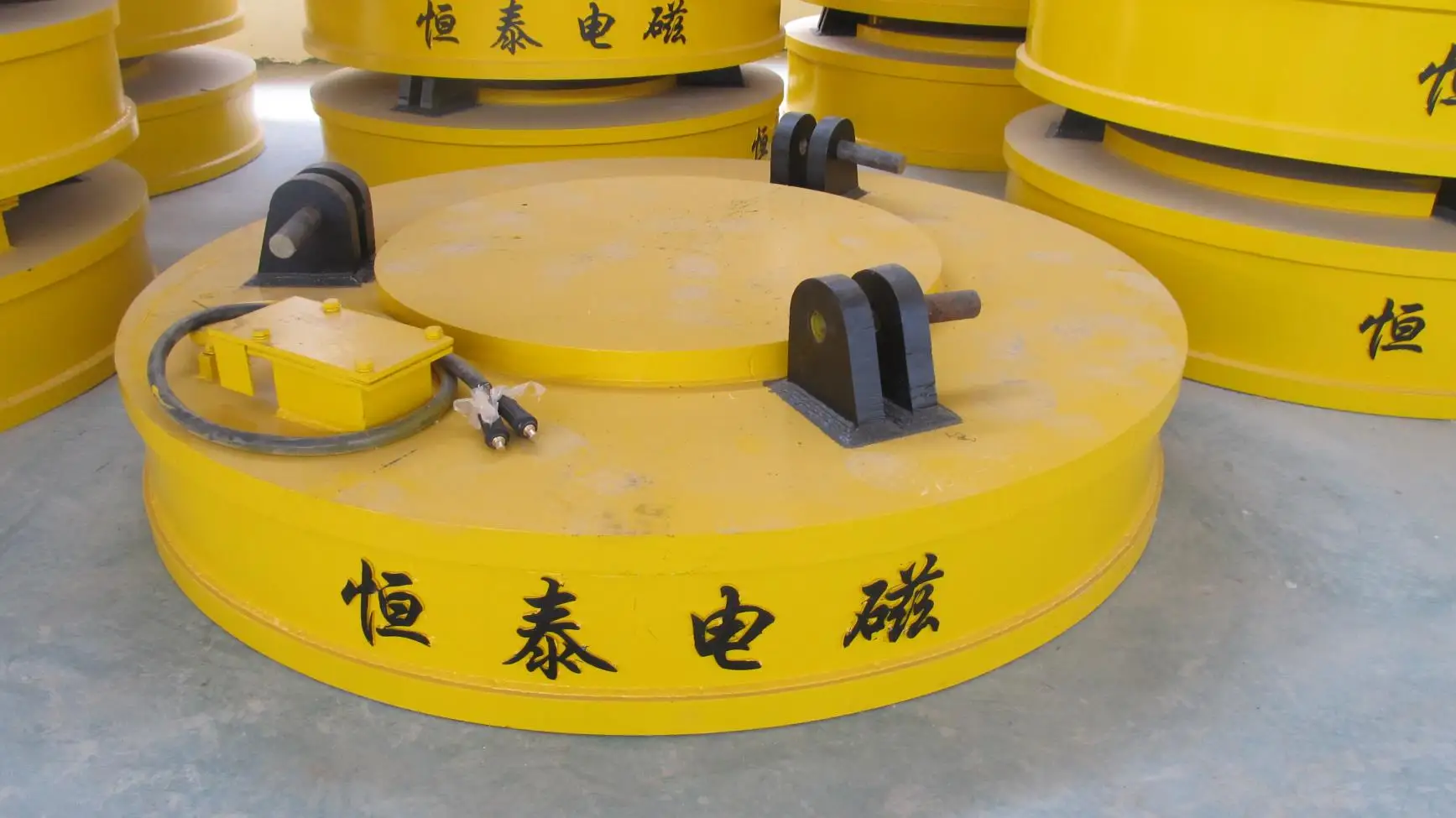

Mw5 high temperature scrap lifting electromagnet is used for sucking and hanging cast iron ingot, steel ball, pig iron block, machining chip; various miscellaneous iron in foundry, return material, cutting head; packing scrap, etc.

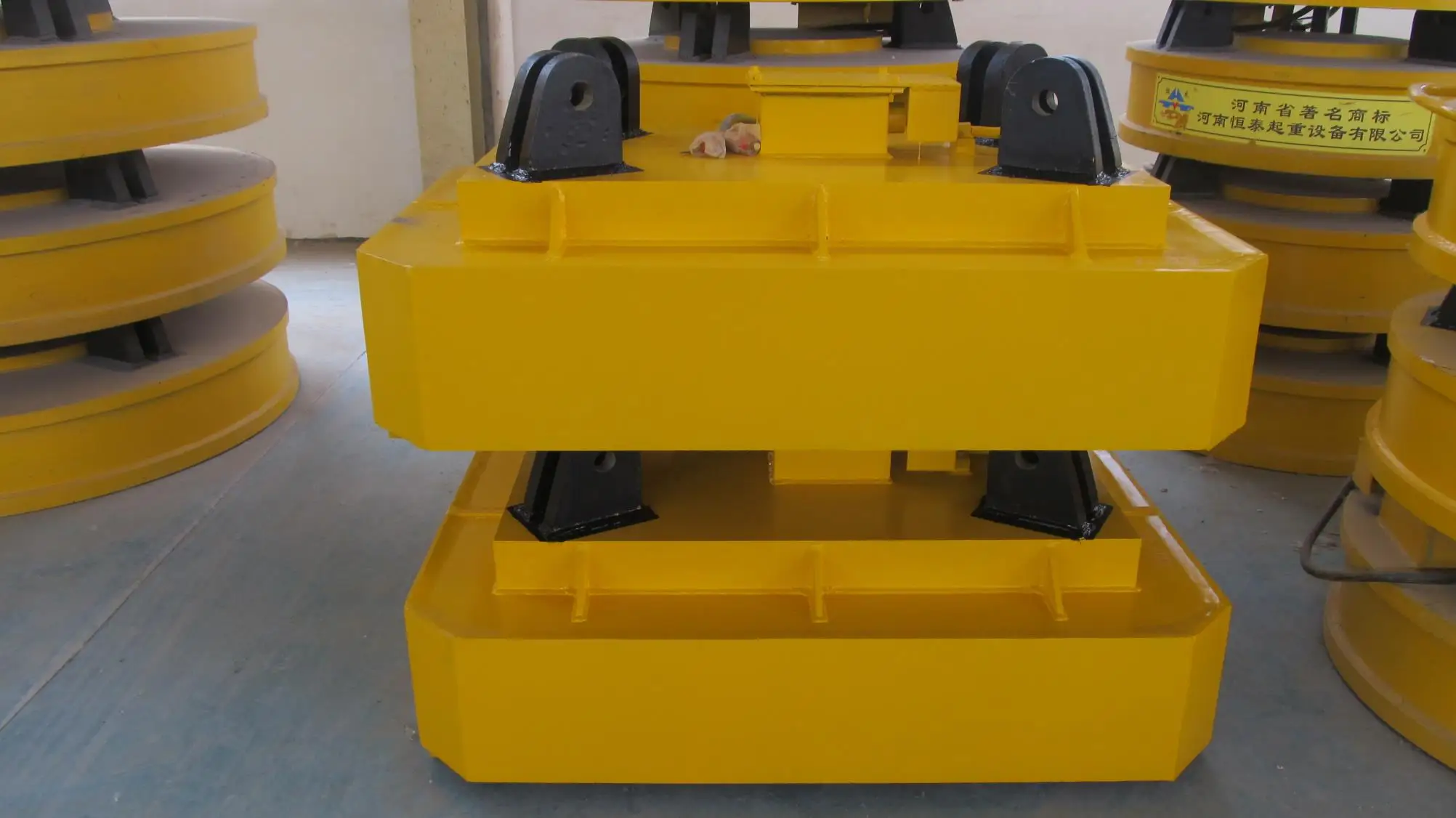

Lifting electromagnet, also known as electromagnetic chuck, is a kind of special DC electromagnet with the absorbed object as the "armature".
It is widely used in metallurgy, mining, machinery, transportation and other industries, and acts as an important tool for handling iron and steel. According to different types of absorbed objects, various structural forms of lifting electromagnets are designed.
It is widely used in metallurgy, mining, machinery, transportation and other industries, and acts as an important tool for handling iron and steel. According to different types of absorbed objects, various structural forms of lifting electromagnets are designed.
Specification
Model | Cold-state Power (KW) | Current A cold/hot state | overall dimension (mm) | ||||||||
A | C | F | E | G | |||||||
MW5-50L/1 | 2.6 | 11.8/7.7 | 500 | 700 | 160 | 90 | 25 | ||||
MW5-60L/1 | 3.0 | 13.6/8.9 | 600 | 750 | 160 | 90 | 25 | ||||
MW5-70L/1 | 3.3 | 15/9.8 | 700 | 800 | 160 | 90 | 30 | ||||
MW5-80L/1 | 4.0 | 18/12 | 800 | 800 | 160 | 90 | 30 | ||||
MW5-90L/1 | 5.9 | 26.8/17.5 | 900 | 1090 | 200 | 125 | 40 | ||||
MW5-110L/1 | 7.7 | 35/22.8 | 1100 | 1140 | 220 | 150 | 45 | ||||
MW5-120L/1 | 10 | 45.5/29.5 | 1200 | 1100 | 220 | 150 | 45 | ||||
MW5-130L/1 | 12 | 54.5/35.5 | 1300 | 1240 | 250 | 175 | 50 | ||||
MW5-150L/1 | 15.6 | 70.9/46.1 | 1500 | 1250 | 350 | 210 | 60 | ||||
MW5-165L/1 | 16.5 | 75/48.8 | 1650 | 1590 | 370 | 230 | 75 | ||||
MW5-180L/1 | 22.5 | 102.3/66.5 | 1800 | 1490 | 370 | 230 | 75 | ||||
Packing & Delivery
Packing and Shipping：

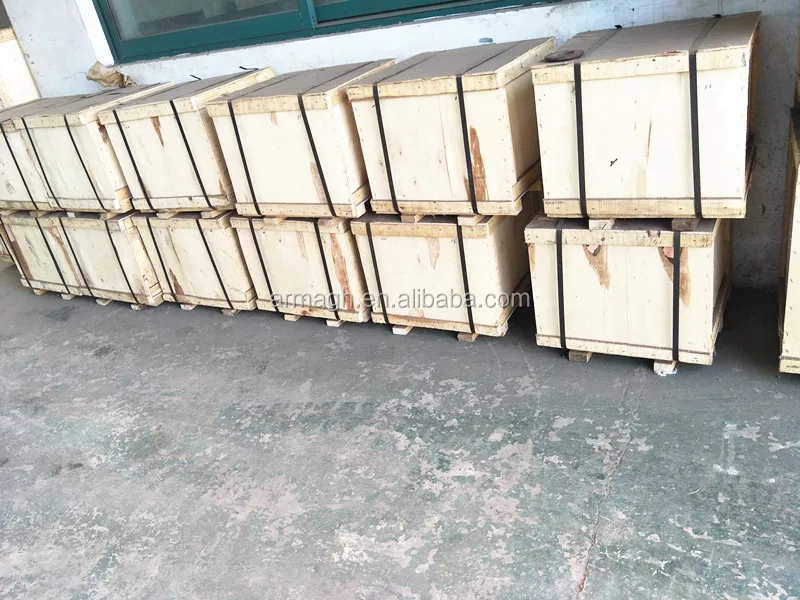

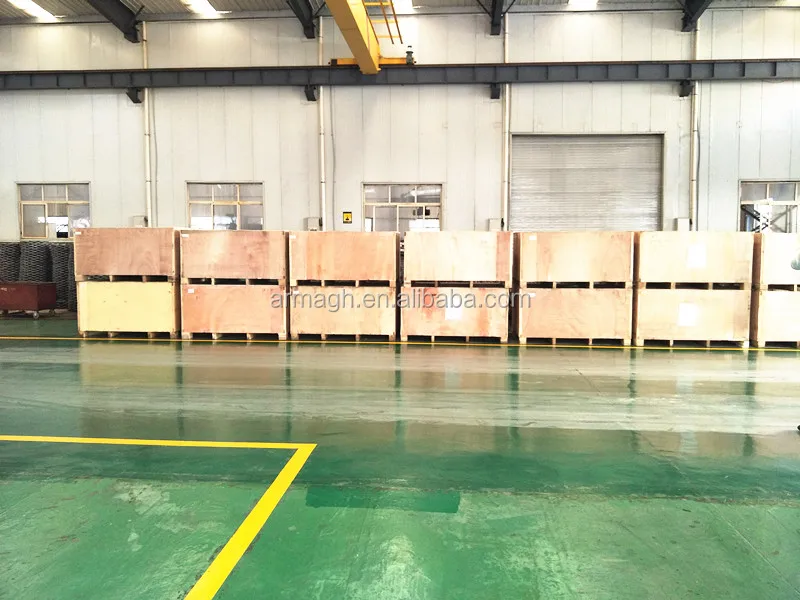

1. We pack the electromagnets by export standard wooden pallet, wooden case, steel pallet or as your request.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator grapples and parts, to help customer save ocean freight.
1. We pack the electromagnets by export standard wooden pallet, wooden case, steel pallet or as your request.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized into packing and loading container, they have rich experience, and we can load the max quantity excavator grapples and parts, to help customer save ocean freight.
Company Profile

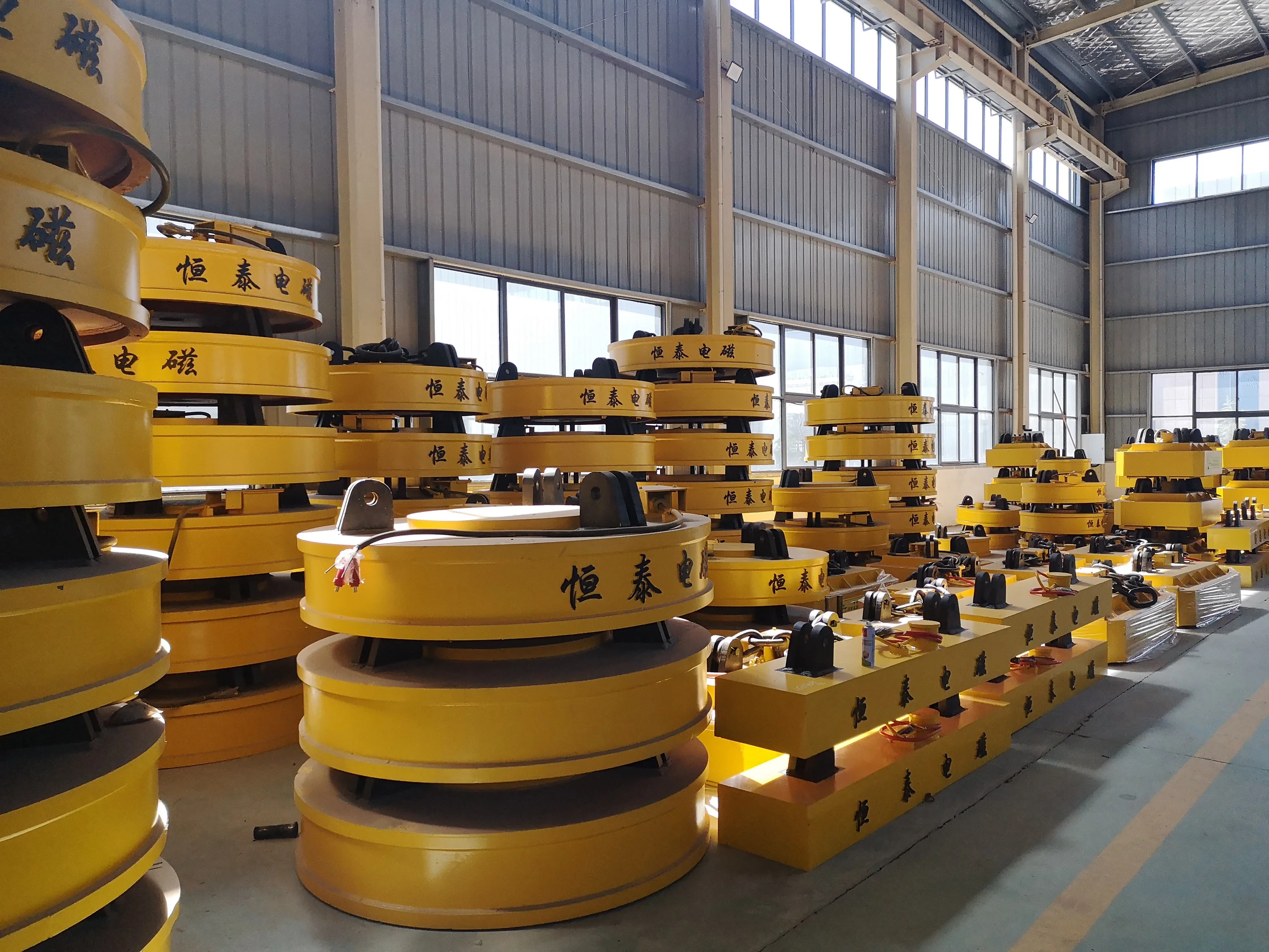

Henan Armagh lifting equipment Co., Ltd., located in Changyuan lifting industrial park, Henan Province, is one of the domestic large-scale electromagnetic equipment manufacturing companies integrating scientific research and development, engineering design, production and commissioning services.
Its products are widely used in metallurgy, electric power, coal, mining, building materials, cement, refractory, lifting transportation and other industries, and exported to Southeast Asia, South Africa, the Middle East and other countries and regions.
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your warranty period?
A: 12 months from cranes accepted;
3. Q: Do you have engineer oversea installation service?
A: Yes; We have;
4. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
5. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
