Bigger Heat Exchanger High Grade Asphalt Road Paving Emulsion Bitumen Plant For SBS Bitumen Emulsion
- Category: >>>
- Supplier: Dezhou Feiteng Road Construction Equipment Co. Ltd.Dezhou Ltd.
Share on (1600215734444):
Product Overview
Description
Product Description

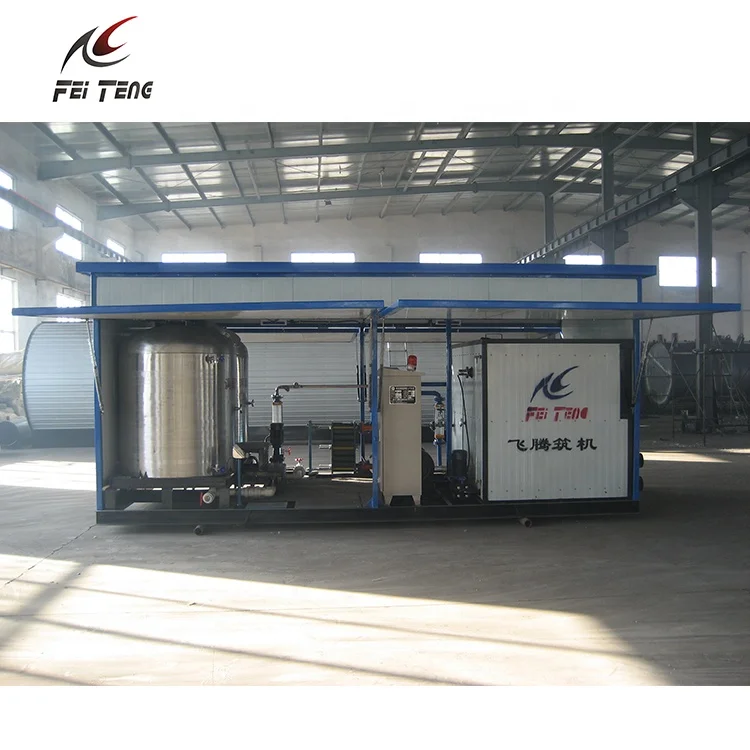

polymer modified asphalt bitumen emulsion machine plant
Description
GRL series Bitumen Emulsion Plant is specially designed based on years of experience of bitumen emulsion production
and various demands from clients. It is simple in structure and easy to operate, and can be used in all kinds of production of bitumen emulsion. Its capacity is 5~8 t/h.
Working Principle
There is stator and rotor inside the colloid mill, and the rotor is rotating at a very high speed driven by motor.
When the bitumen and soap water are pumped into the colloid mill, they will be sheared for hundreds of thousands times. The mixture are sheared, pushed centrifugally, rubbed, hit and torn, fulfilling the dispersion, shearing and emulsion. The particle distribution becomes narrower and it will be easier to be stored and applied.
Product Paramenters
Item | Unit | Parameter | Remark |
Main function | Modified bitumen emulsion, normal bitumen emulsion | ||
Output | t/h | 6-10 | |
Fineness | μm | 2-5 | |
Bitumen range of content | % | 10-70 | |
Dimension | m | 6.6×2.2×2.53 | Container design |
Water heating | Conduction oil indirect heating | Conduction oil outside | |
Water tank volume | m³ | 3.8 | |
Mix tank volume | m³ | 1.4 | Per tank |
Bitumen pump flow | m³/h | 5 | |
Total power | kw | <32 | |
Power supply requirements | 380 V 50 Hz AC power supply | Copper Wire with 50m Cable > 25mm² | |
Conduction oil temperature | ℃ | 200-250 | |
Oil exchange surface in water tank | ㎡ | 7.15 | 40m (м) |
Conduction oil volume | m³ | 0.08 | |
Total volume(include outside pipeline) | m³ | 0.11 | |
Temperature tolerance | ℃ | <1℃ | |
Content tolerance | % | <1% |

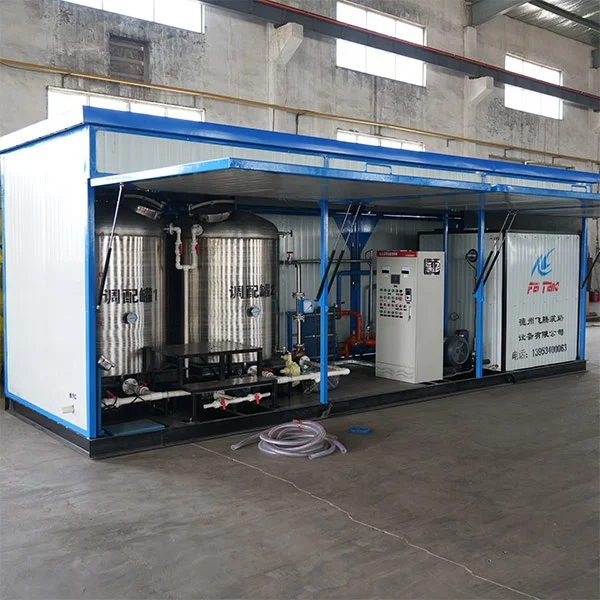

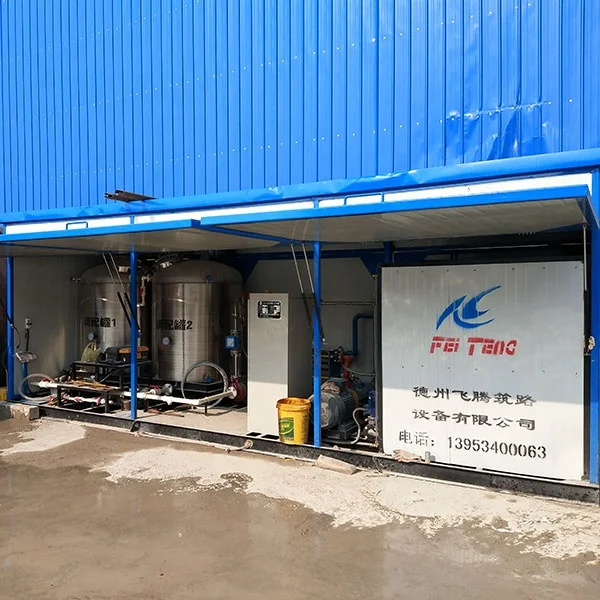

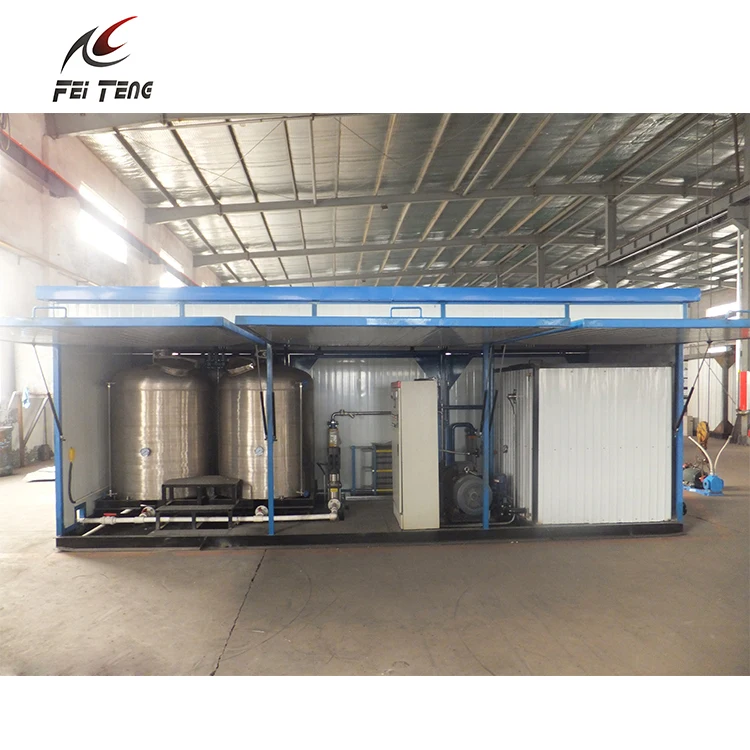

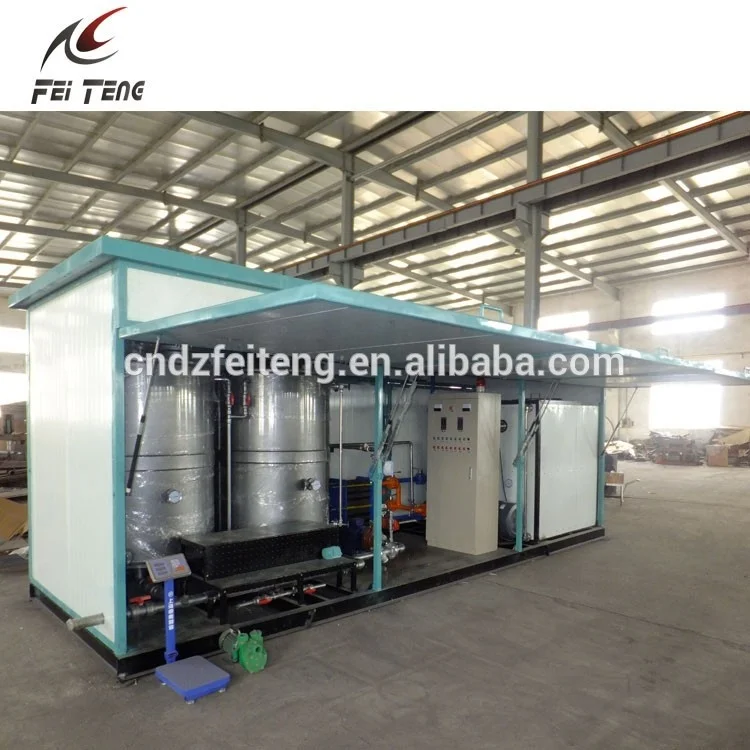

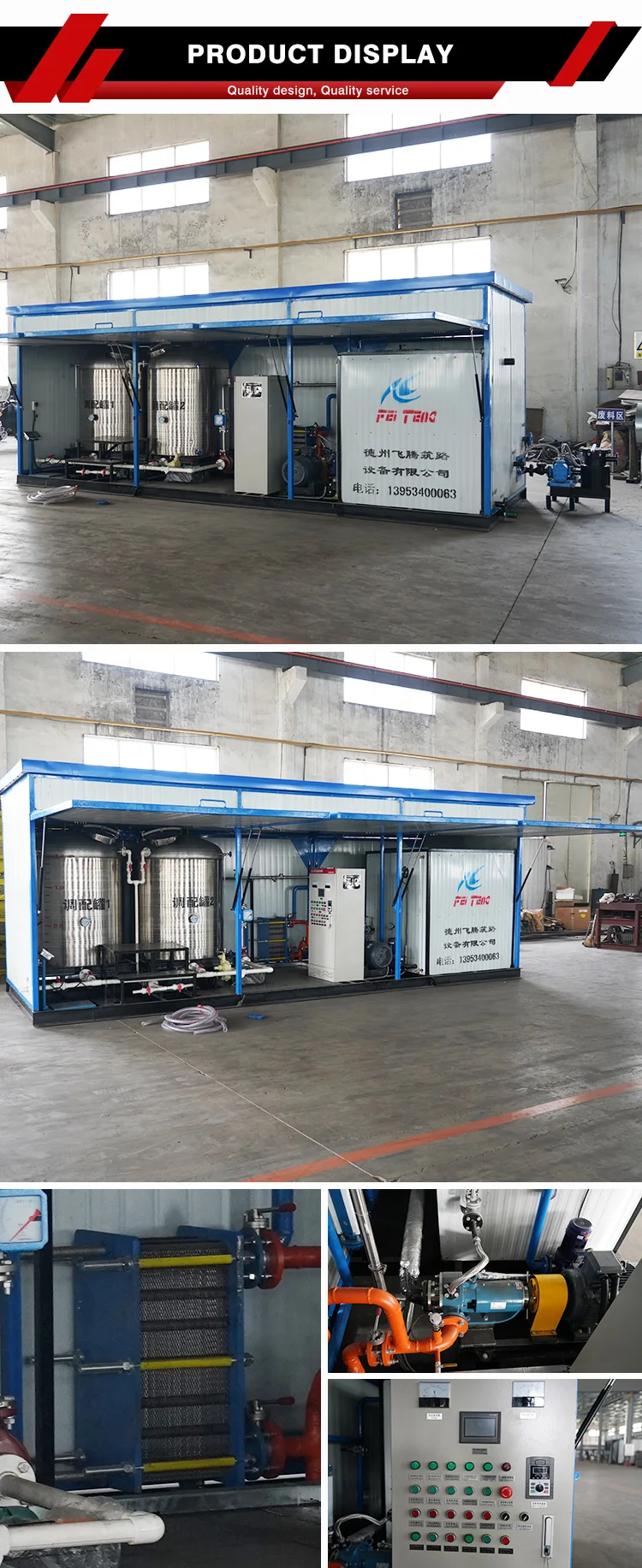

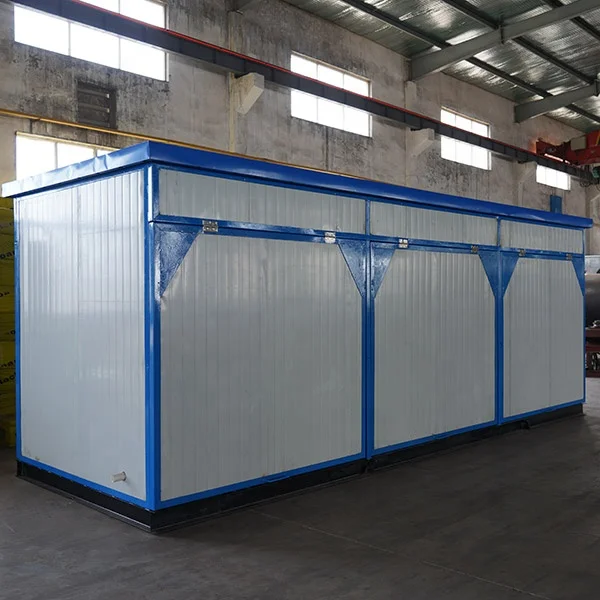

Details Images
Recommend Products

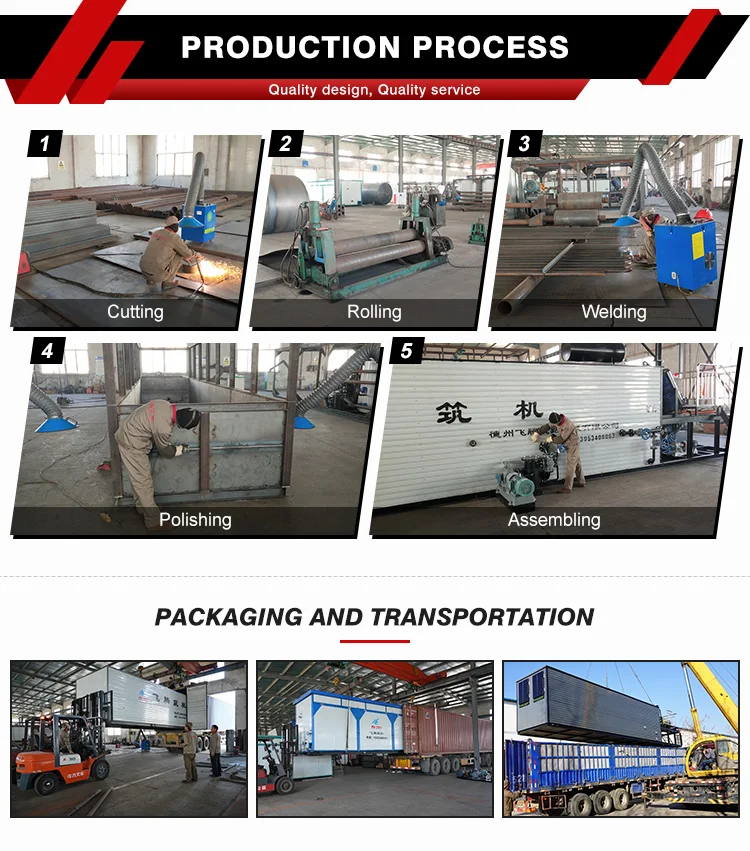

Manufacturing Technique
Company Profile
Certifications
Our Advantages
FAQ
Q: Are you Factory or trading company ?
A: We are Factory with 15 years of production experience.
Q: What's your advantages?
A: More than 15 years experience, professional design, fast delivery and quick response.
Q: How's about the payment terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery.
Q: How's about the trade terms?
A: EXW, FOB, CFR and CIF are acceptable.
Q: How about the delivery time?
A: Usually we need about 20 days production time after down pay.
Q: How about after-sale service?
A: Our products' quality warranty is one year after delivery, we can provide online support, also can send out our engineers to your place if you want.
Q: What should I do for the quality problems?
A: If you meet quality problems please send to me the products photo first ,our after service department will deal with for you.
A: We are Factory with 15 years of production experience.
Q: What's your advantages?
A: More than 15 years experience, professional design, fast delivery and quick response.
Q: How's about the payment terms?
A: We usually accept T/T, LC. T/T: 30% in advance as down payment, the balance before delivery.
Q: How's about the trade terms?
A: EXW, FOB, CFR and CIF are acceptable.
Q: How about the delivery time?
A: Usually we need about 20 days production time after down pay.
Q: How about after-sale service?
A: Our products' quality warranty is one year after delivery, we can provide online support, also can send out our engineers to your place if you want.
Q: What should I do for the quality problems?
A: If you meet quality problems please send to me the products photo first ,our after service department will deal with for you.
