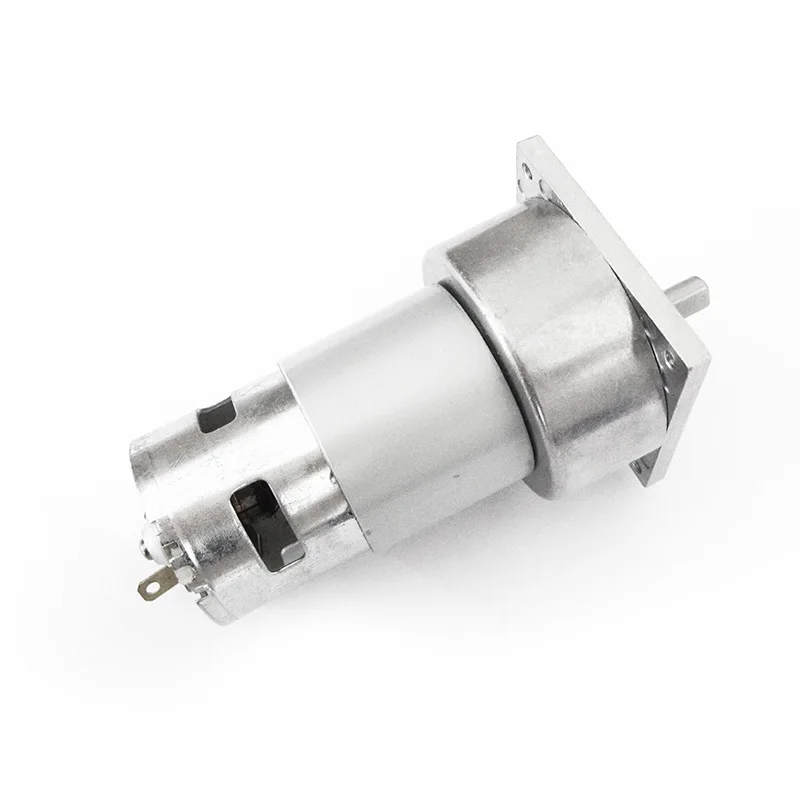

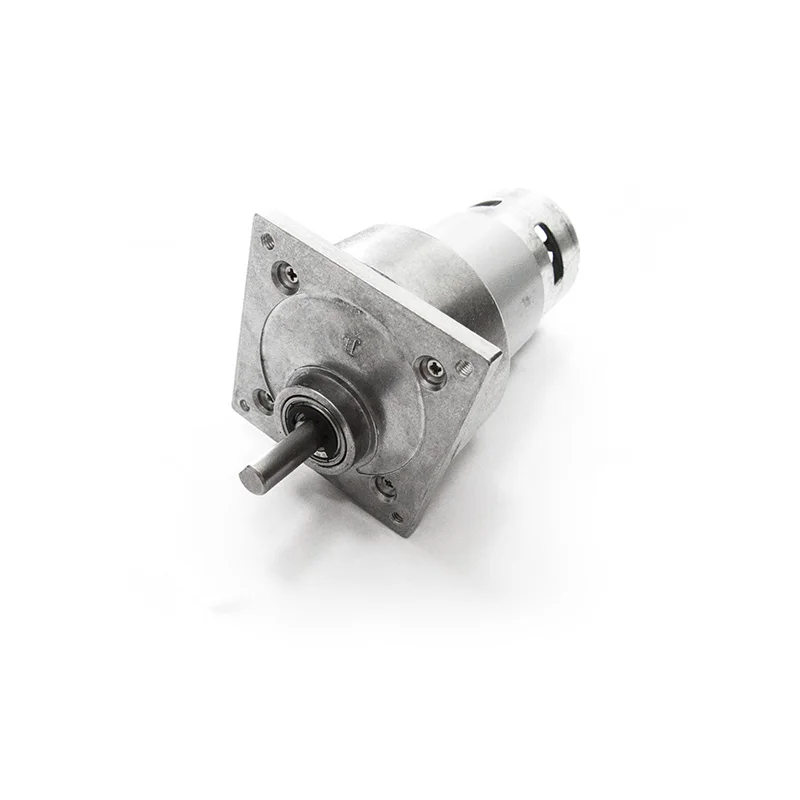

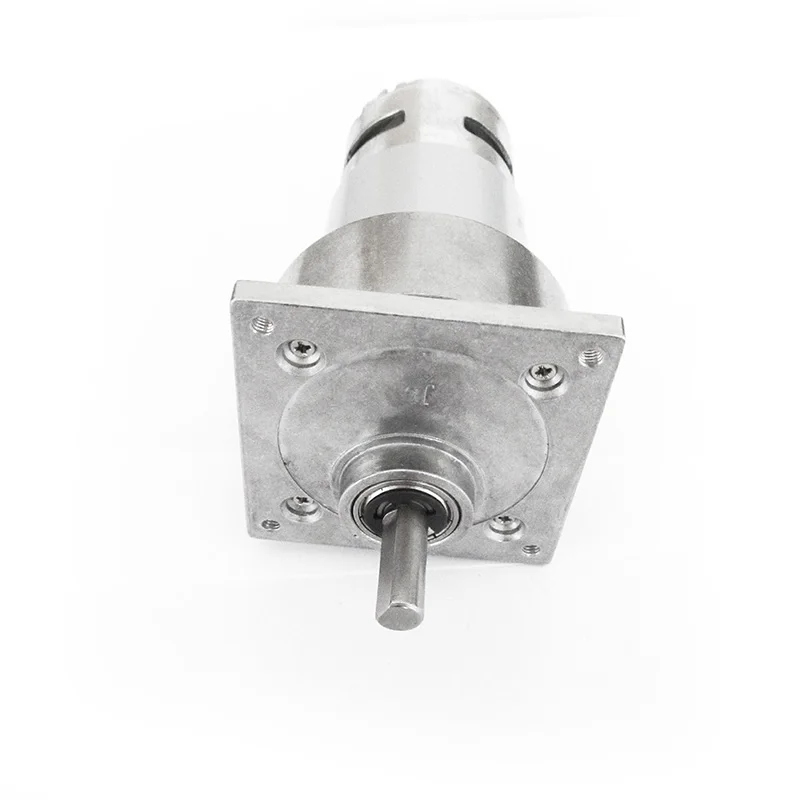

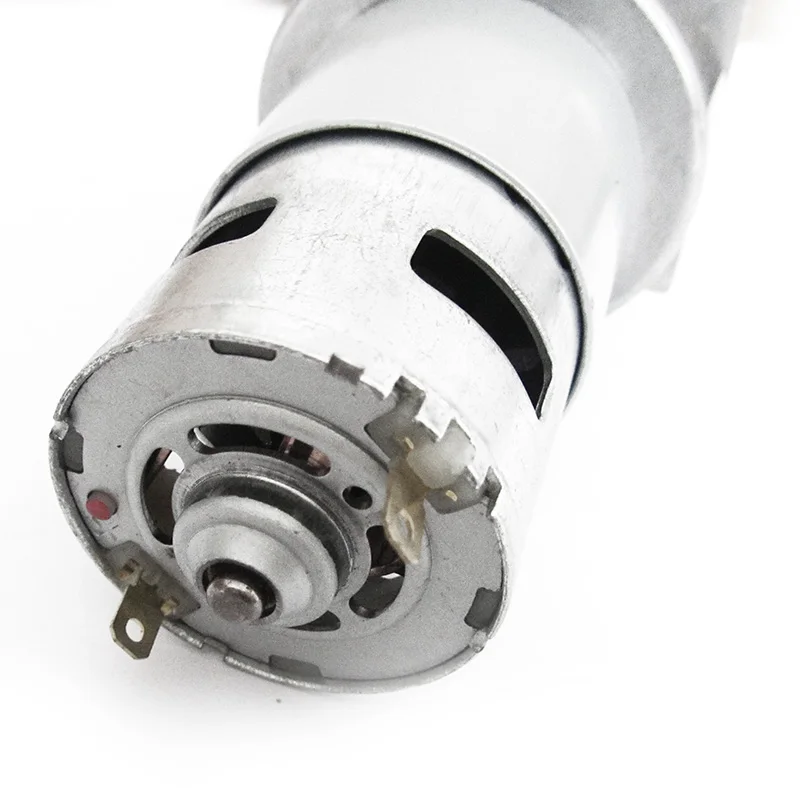

JGB60 775 60mm Gear Box 775 Dc Motor Reduction High Power 24V 300 RPM 16.5kg Max 100kg,cm Electric GearMotor
- Category: >>>
- Supplier: Shenzhen Xinyongtai Motor Co. Ltd.
Share on (1600215820133):
Product Overview
Description
Products Description
Brand | Xinyongtai /Customer’s Brand |
Model | JGB60-775 |
Name | DC Geared Motor |
Voltage | 12V / 24V |
Power | 41W |
No-load Speed | 300RPM |
Electric Current | 350mA |
Product Shaft Diameter | 8MM (Can be customise) |
Product Shaft Length | 21MM |
Maximum Torque | 16.5KG.CM |
Weight | 0.5kg(APPROX) |
Whether to adjust the speed | Yes |
Whether forward or reverse | Yes |
Motor Model 2470 | No load | Rated | Stall | |||||||||||||||
Rated voltage | Speed | Current | Speed | Current | Torque | Output Power | Torque | Current | ||||||||||
V | R/MIN | A | R/MIN | A | Kg.cm | W | Kg.cm | A | ||||||||||
JGB60-775-23X | 24 | 300 | 0.7 | 237 | 4.15 | 16.5 | 41 | 80 | 18 | |||||||||
Manufacturer kindly suggestion
1) If the load more than the rated torque, the motor will be damaged.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.
3) Please tell us real load ,so we can choose the best match torque motor for you .
If you are using the product normally, the torque does not exceed the rated torque.
Motor life: 10,000 hours
Gearbox life: 2000 hours
1) If the load more than the rated torque, the motor will be damaged.
2) If you connect the voltage less than the rated voltage, the rated torque will be reduced.
3) Please tell us real load ,so we can choose the best match torque motor for you .
If you are using the product normally, the torque does not exceed the rated torque.
Motor life: 10,000 hours
Gearbox life: 2000 hours
