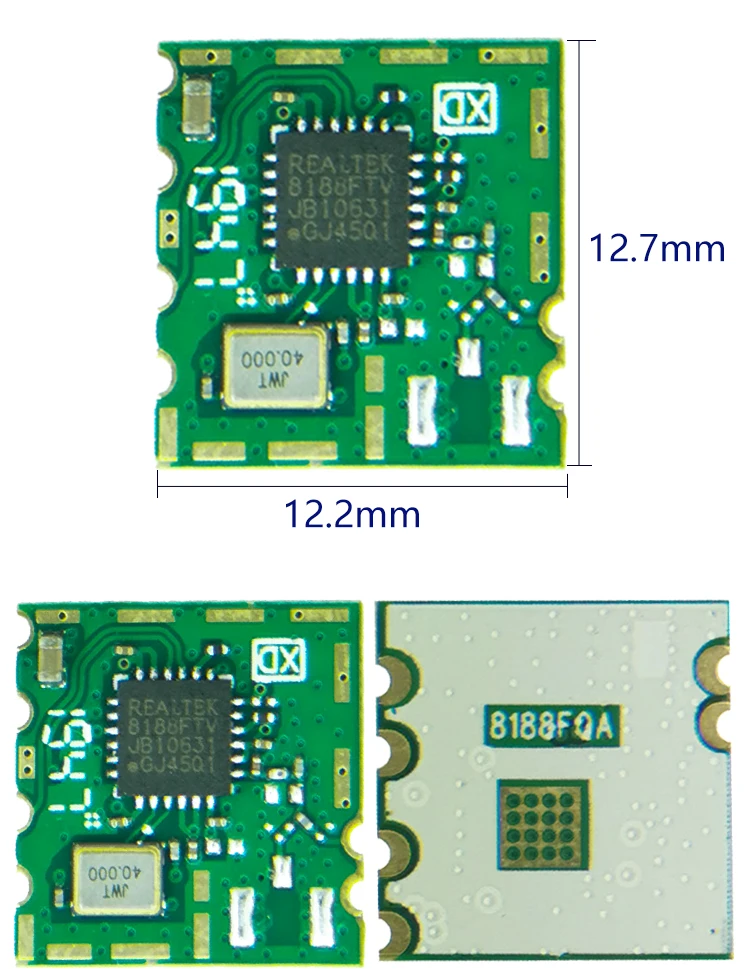

72M IPC WiFi Module RTL8188FTV 2.4G
US $1.00-$2.30
72M IPC WiFi Module RTL8188FTV 2.4G
- Category: WLAN Modules & USB Adaptors >>>
- Supplier: Shenzhen,Trolink,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Item | Description |
Product Name | TL8188FQA |

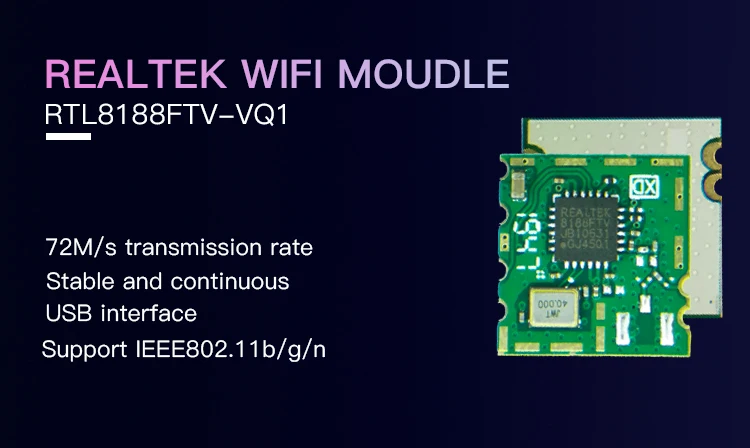

Main Chip | RTL8188FTV-VQ1 |
Host Interface | USB1.0 /1.1/2.0 |
IEEE Standards | IEEE 802.11b/g/n |
Operating Frequencies | 2.4GHz~2.4835GHz |
Antenna Type | Connect to the external antenna through the IPEX connector |
Power Consumption | Standby :[email protected] (Max) |
TX mode :[email protected] (Max) | |
Working Temperature | -10°C to +50°C |
Storage Temperature | -40°C to +70°C |
Power Supply | 3.3V±0.2V |
Q:What is the MOQ?
A: 1piece, larger qty,lower price.
Q:What about the delivery time?
A:Sample in stock,5-6 weeks for mass production.
Q:Does your product have any warranty?
A:Yes,we offer 1 year warranty for our products.
Q:What's your payment method?
A: Alipay,T/T or western union.
Q:What's your shipping method?
A:By express,by air or by sea depends on your select based on the product qty.
Q:Do you offer custom solution?
A:Yes,we can design&develop custom solution for you if specific requirement needed.
