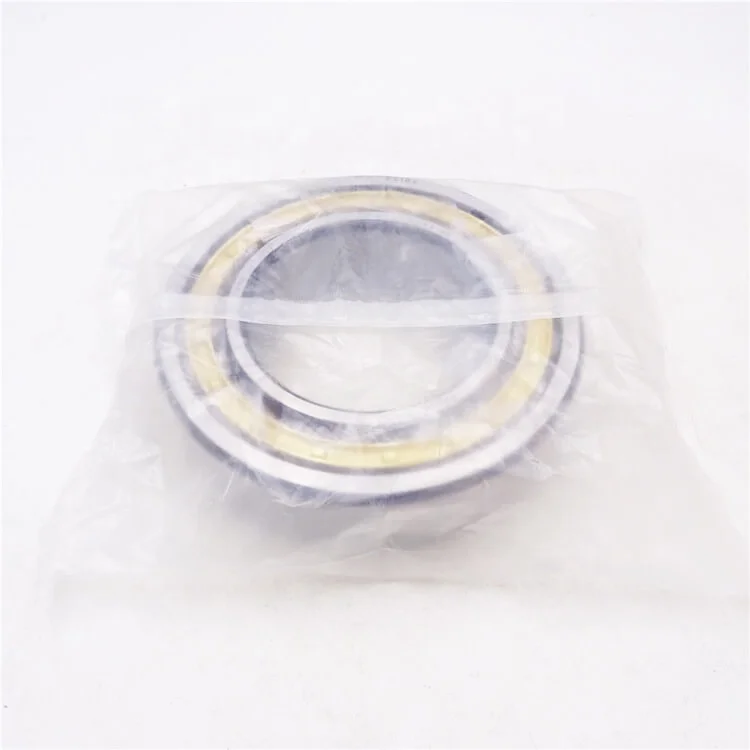

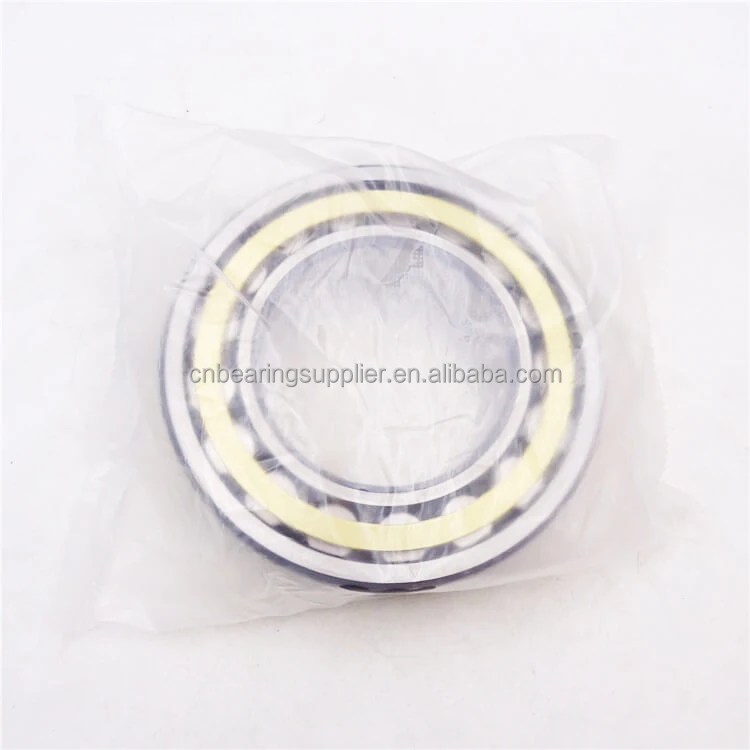

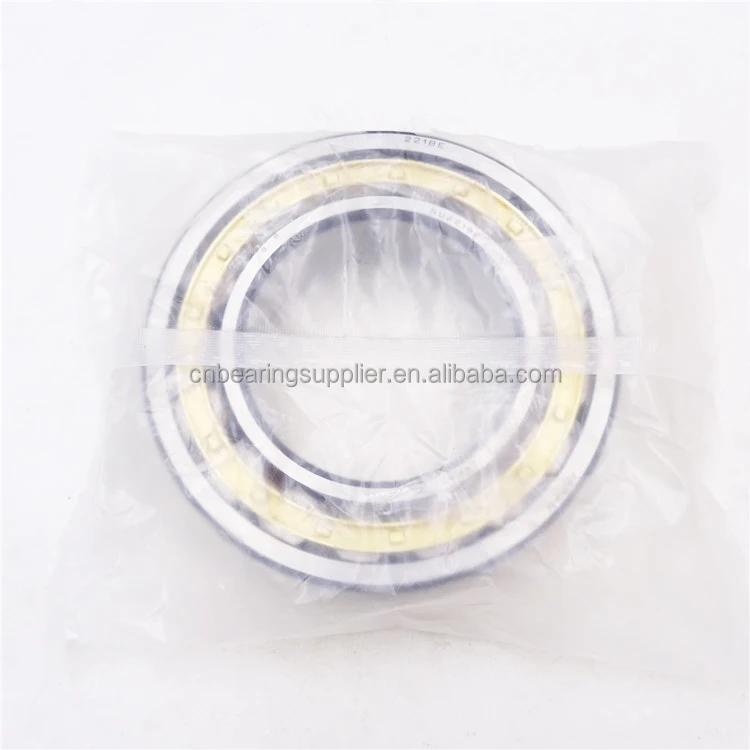

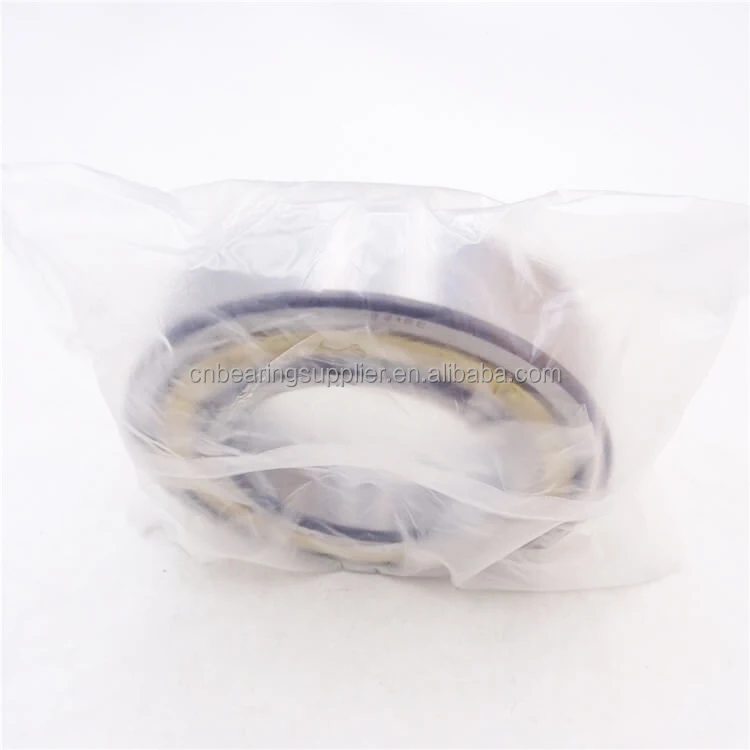

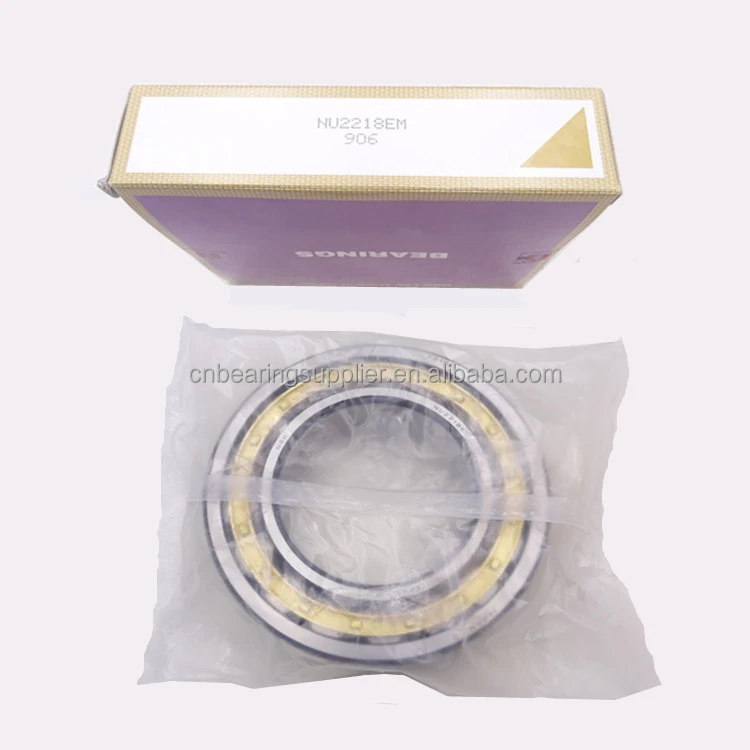

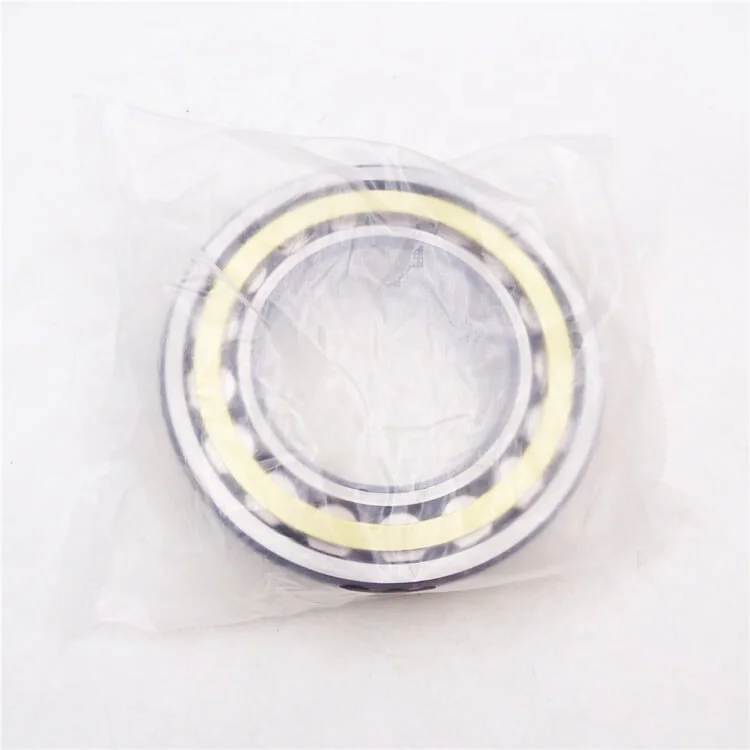

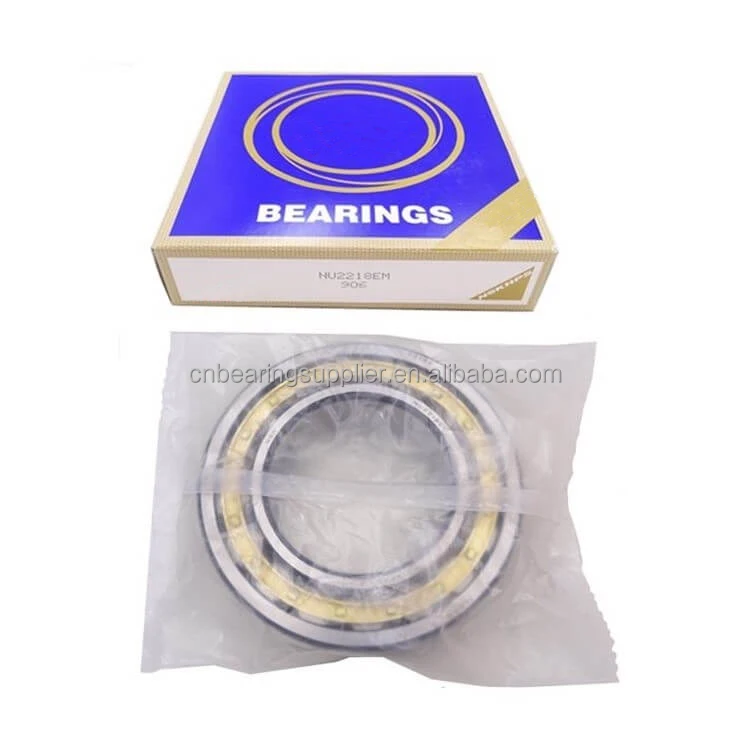

Подшипник NU2218 90*160*40 мм, подшипник, однорядные цилиндрические роликовые подшипники NU 2218 EM

Product Overview

Description

Bearing NU2218 90*160*40 mm bearing single row cylindrical roller bearings NU 2218 EM

Why Choose us?



1.FREE SAMPLES:

   contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to

    its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the

   100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance

   as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with

   excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.



Cylinder Roller bearing Related models and specifications



Item	d	D	w (mm)
	(mm)	(mm)
NU202	15	35	11
NU203	17	40	12
NU303	17	47	14
NU1004	20	42	12
NU204E	20	47	14
NU2204E	20	47	18
NU3O4E	20	52	15
NU2304E	20	52	21
NU1005	25	47	12
NU205E	25	52	15
NU2205E	25	52	18
NU305E	25	62	17
NU2305E	25	62	24
NU1006	30	55	13
NU206E	30	62	16
NU2206E	30	62	20
NU306E	30	72	19





N type:

The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.



NU type:

The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.



NJ type:

The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.



NF type:

The outer ring has one integral flange and the inner ring two integral flanges.



NUP type:

The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.



RN type:

No outer ring and the inner ring two integral flanges.



NN type:

NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft relative bearing between the axial displacement generated in both directions.

Drawing:



Product name	Bearing NU2218 90*160*40 mm bearing single row cylindrical roller bearings NU 2218 EM
material	Chrome steel rings and rollers,plastic or steel or copper cage.
Quality Certificate	ISO9001:2008
Feature	Low noise, less vibration, high precision and long life
ID*OD*W(mm)	90*160*40 mm
Limiting Speed:	3400rpm (Grease lubricated);4300rpm (Oil lubricated);
Net weight(kg)	3KG
Brand name	original
Tolerance level	ABEC-7
Seals type	open
Precision rating	P0, P6
Antirust period	Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years.
Application	Mining operations, paper mills, oil fields, marine industry, steel, electrical,  construction machinery, various kinds of professional machinery and heavy industry of all types.



Contact me to get the big discount!
