New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System
New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System
New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System
New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System
New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System
New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System
New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System

New Design HRV Compact Vertical Top Ports Heat Recovery Ventilation Unit System

Share on (1600215948781):


Price:$800.00 - $880.00

Quantity:


Product Overview

Description



Products Description




Model
CFA 250T
CFA 350T
CFA 500T
HRV
Housing material
sprayed sheet metal
Internal structure
EPP
Heat exchanger
Polystyrene
Fan motor
EC

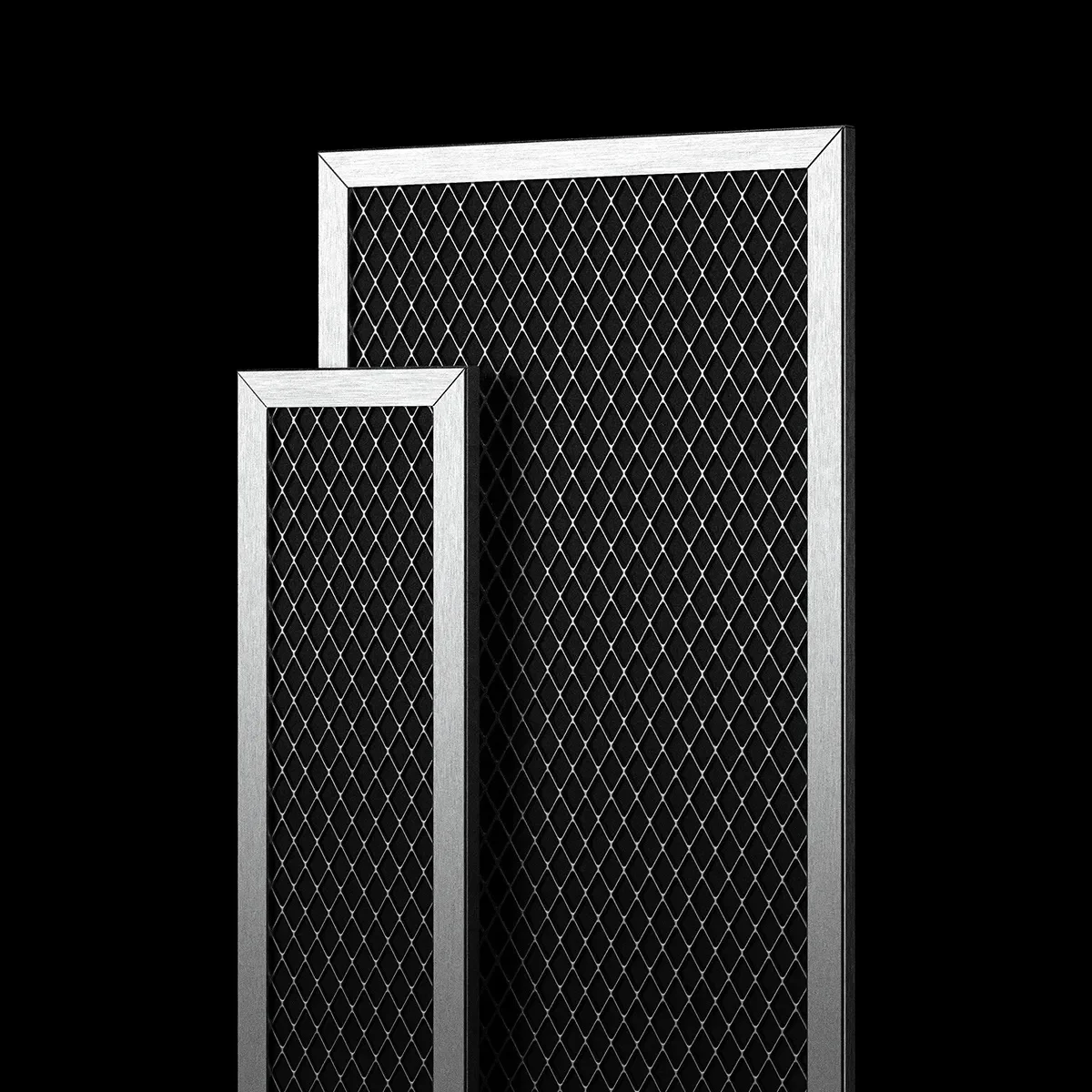

Filter grade
G4 or optional F7
Control Panel
Two screen control, buttons + indica
tor light/digital tube
Bypass
100% auto bypass
Working
condition
Standard
-10~40°C
Equipped with
pipeline heater
-20 to 40°C
Pipe
connection
pipe diameter
Φ160mm
Φ200mm
Electrical
Power supply
230V 50Hz 1Ph
Max. power
170W
320W
480W
Max. current
1.5A
2.4A
3.2A





* Top Ported, compact design
* Control included with 4-mode operation
* Top air outlets/outlets

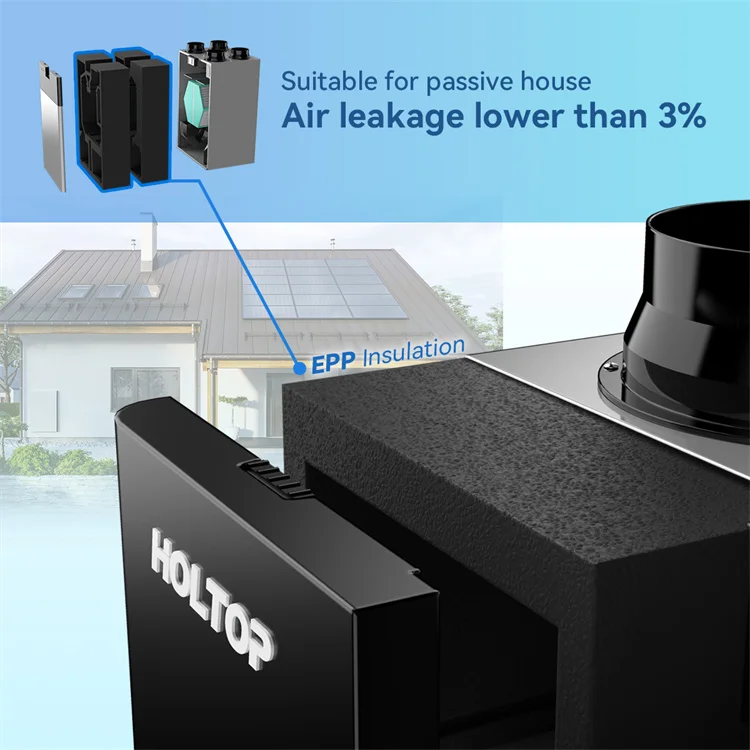

* EPP inner struction

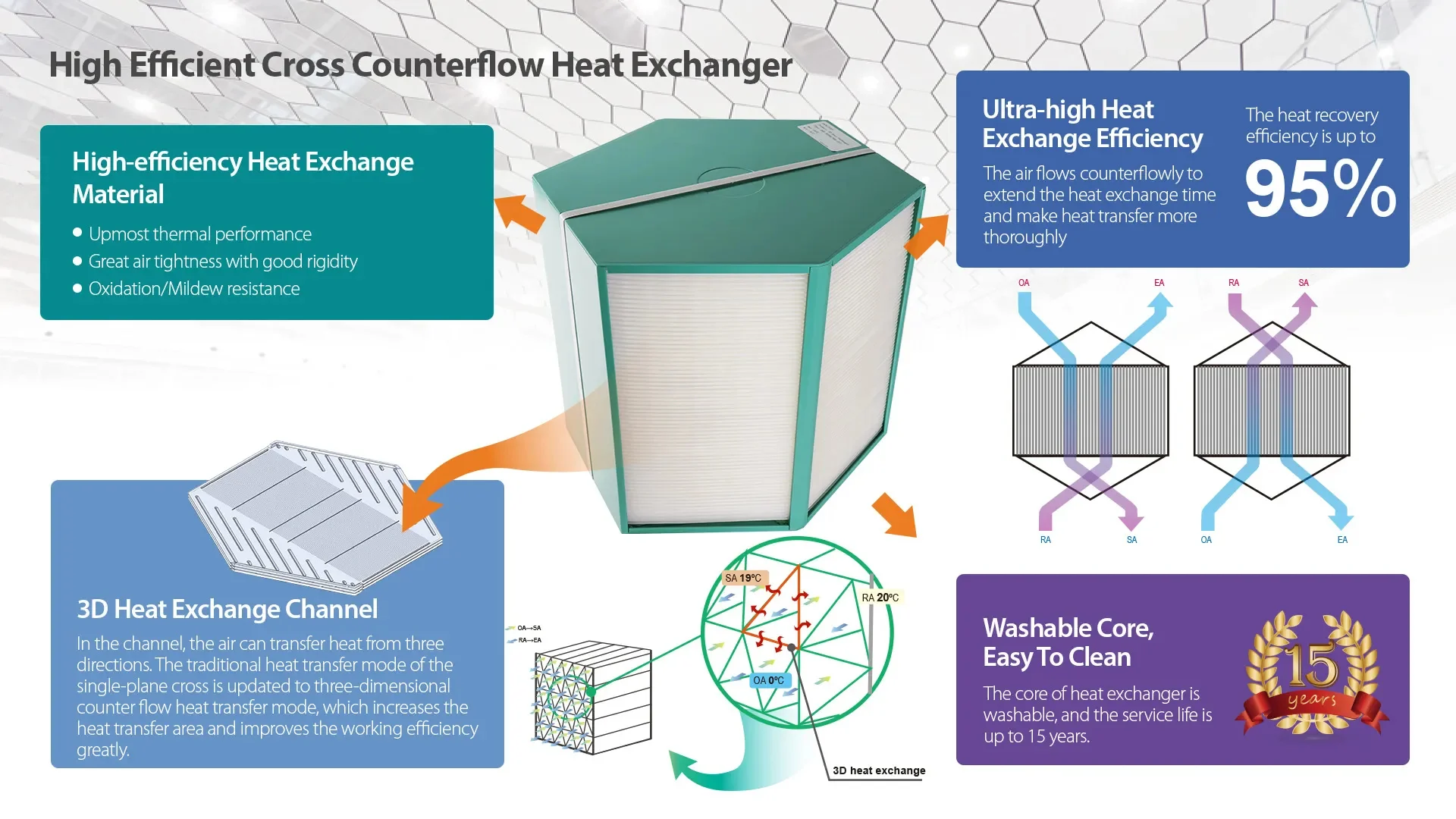

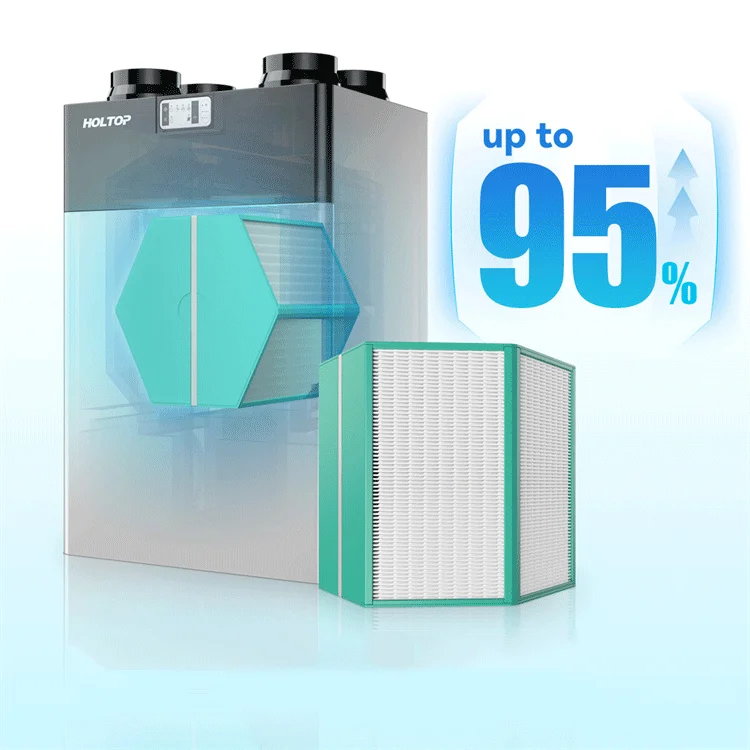

* Counterflow heat exchanger

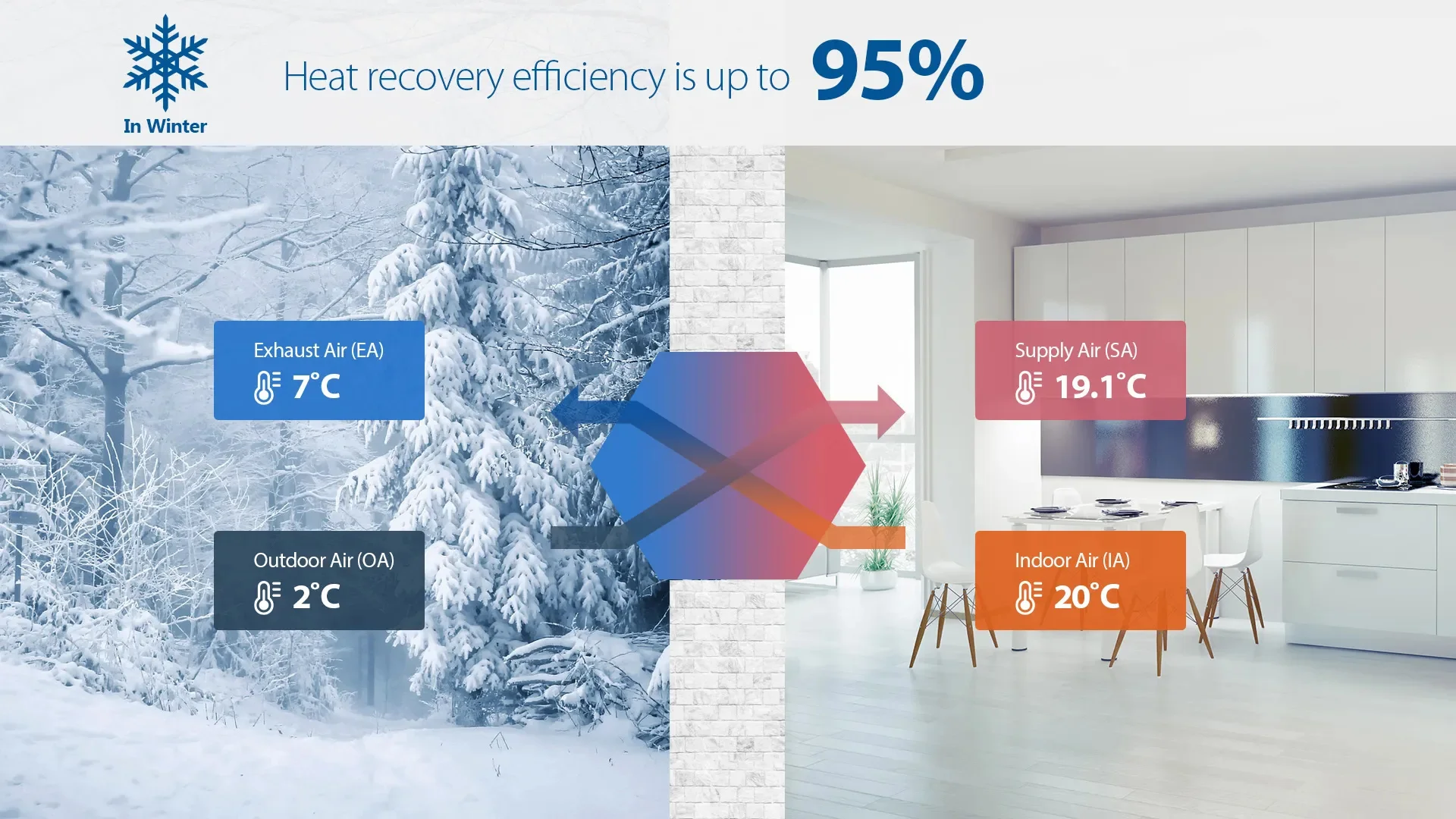

* Heat recovery efficiency up to 95%

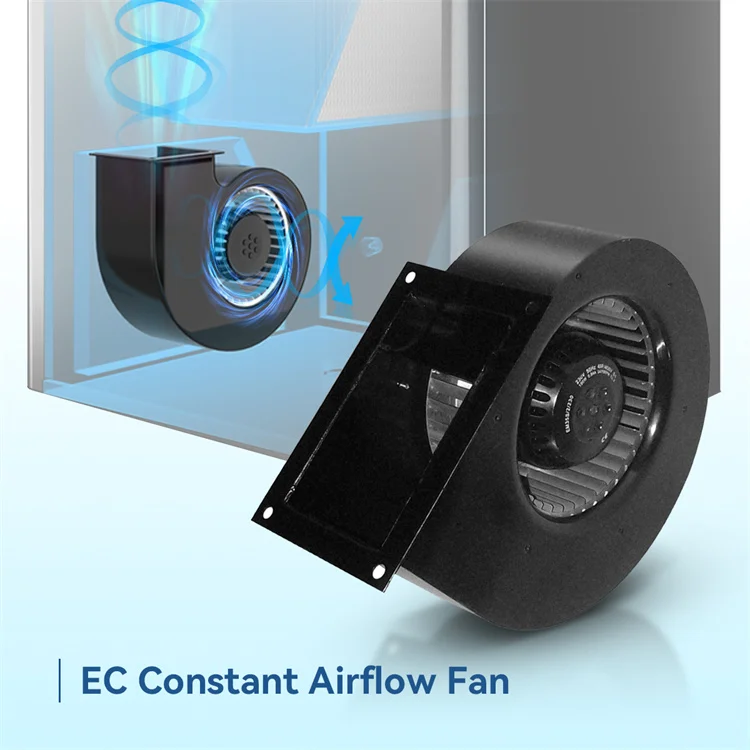

* EC fan
* Bypass function
* Machine body control + remote control

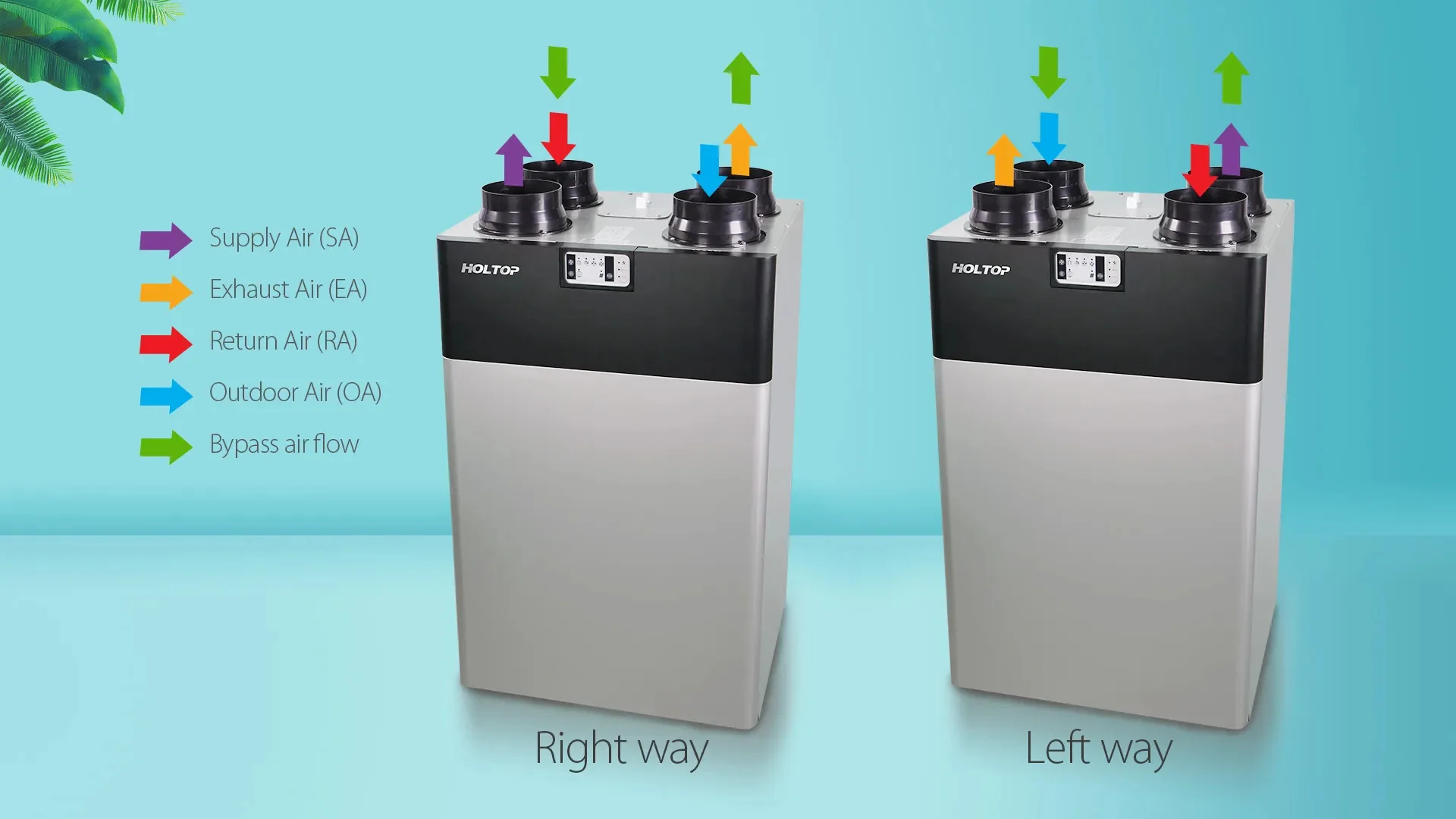

* Left or right type optnal for installation

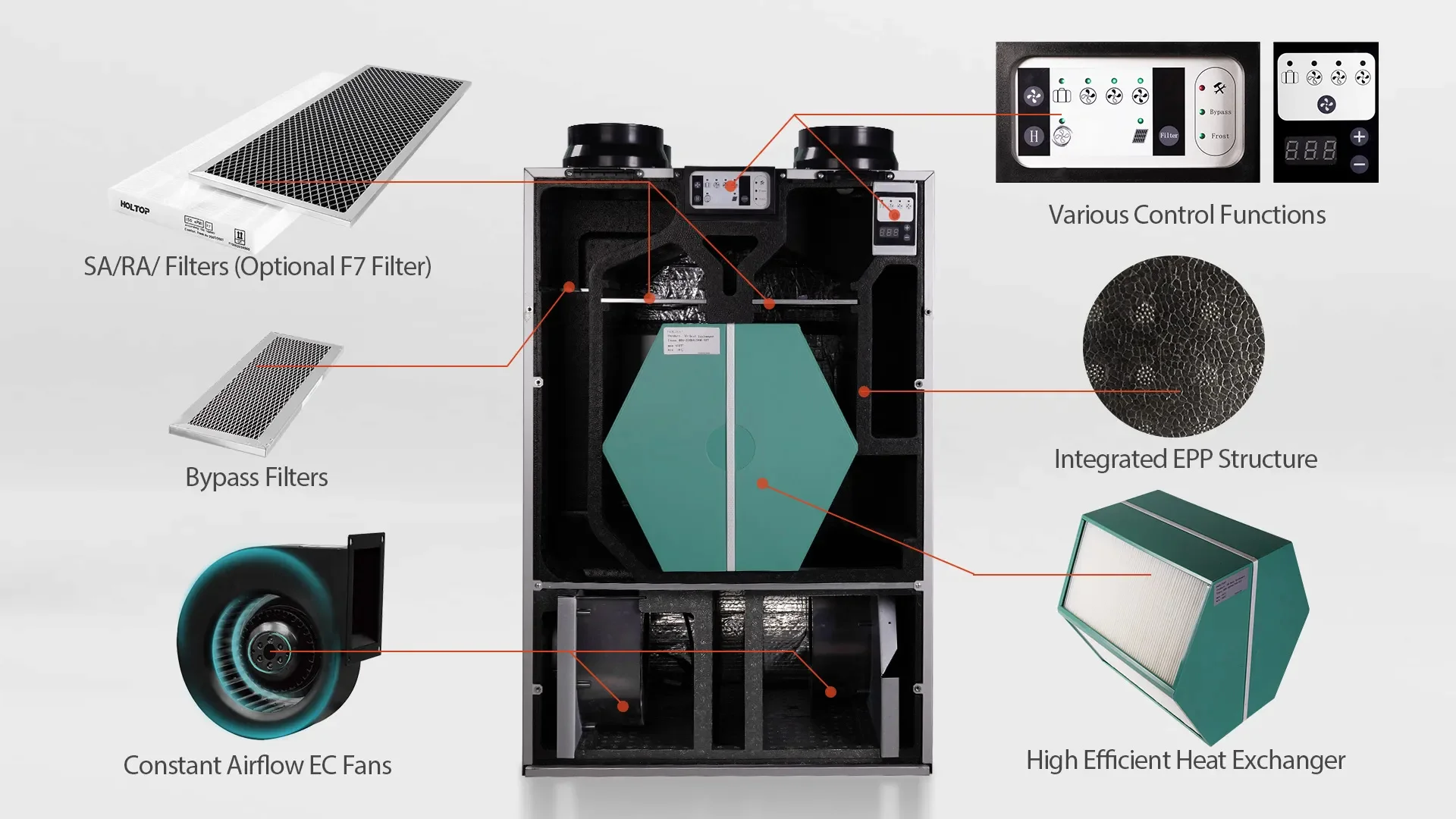

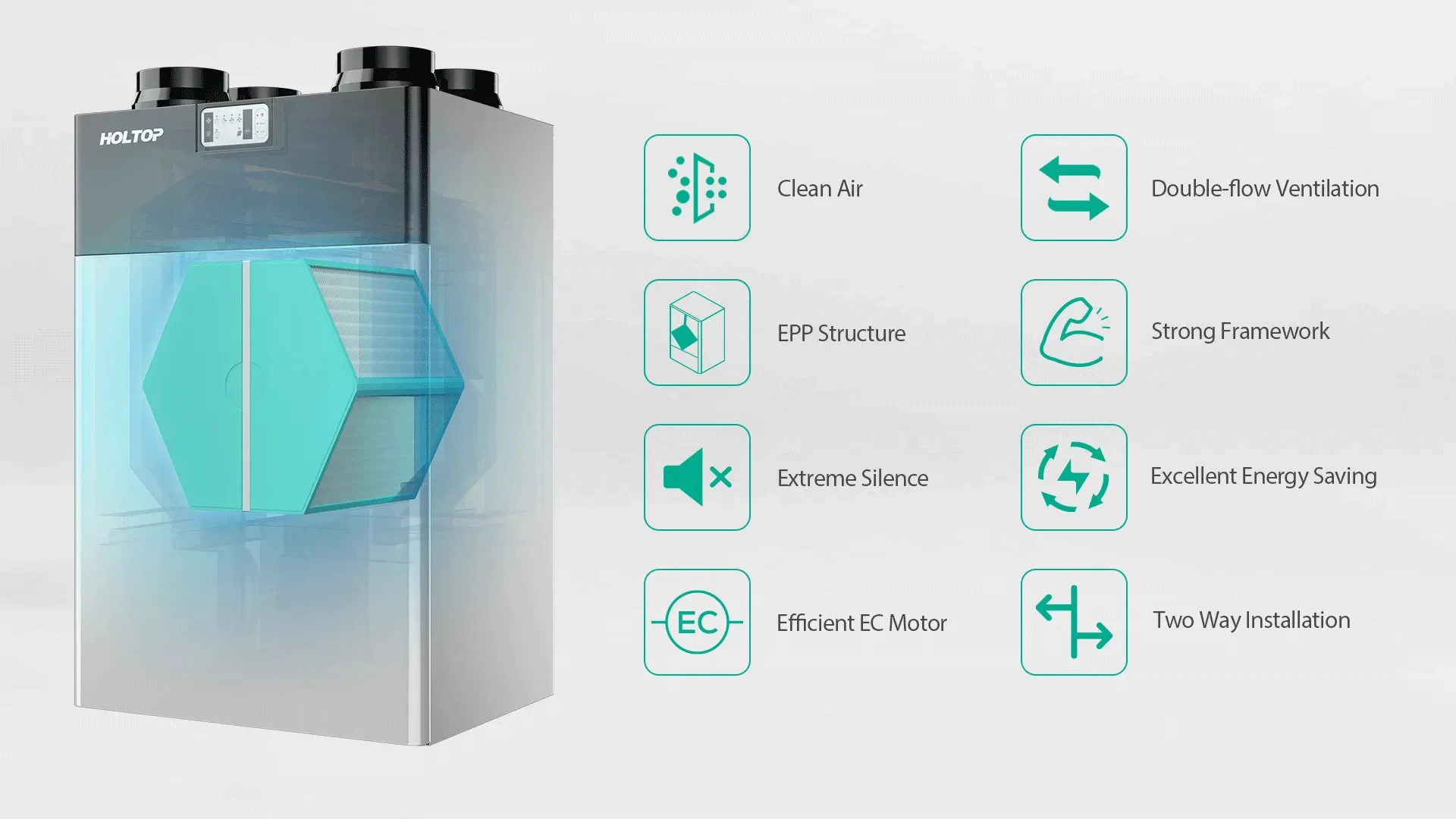

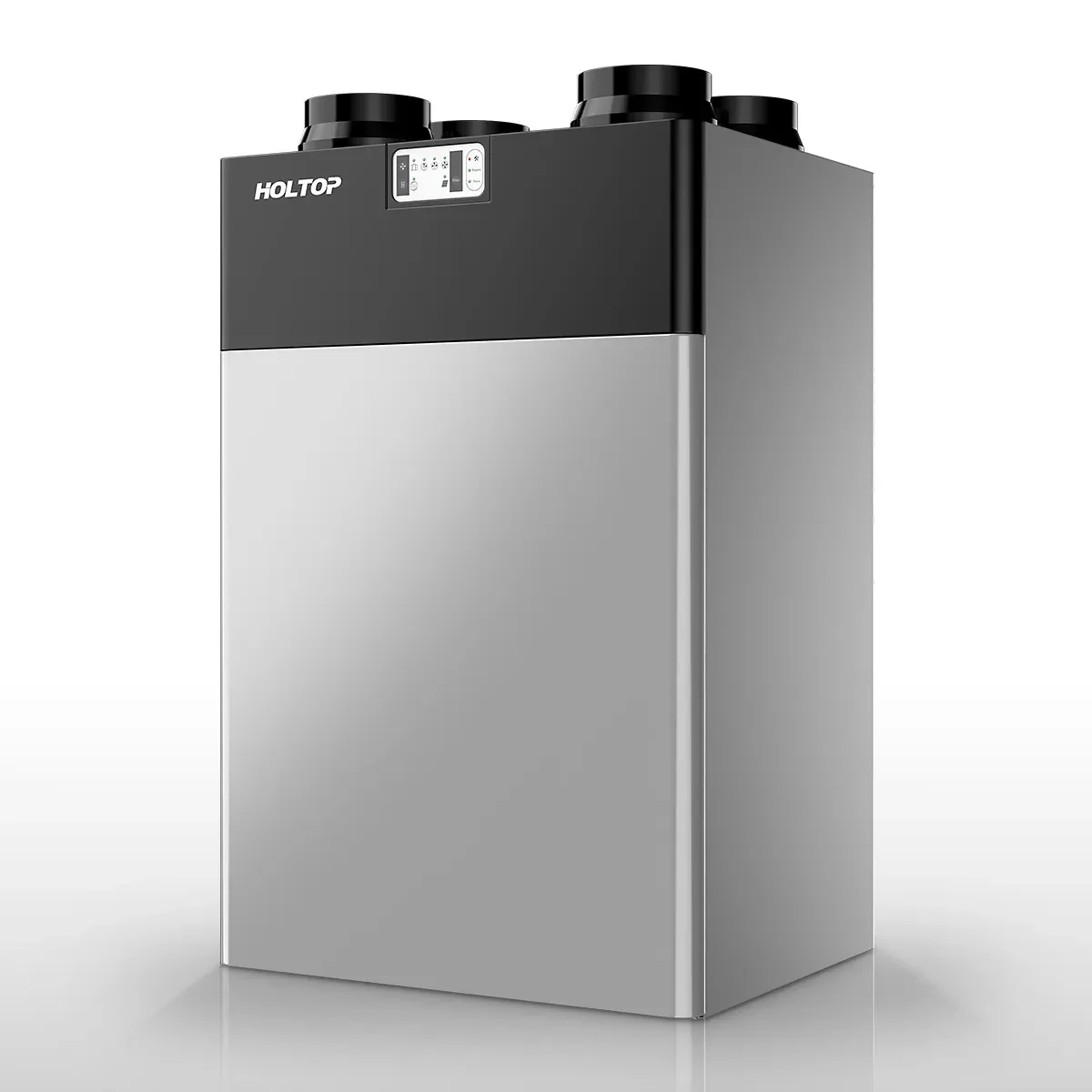

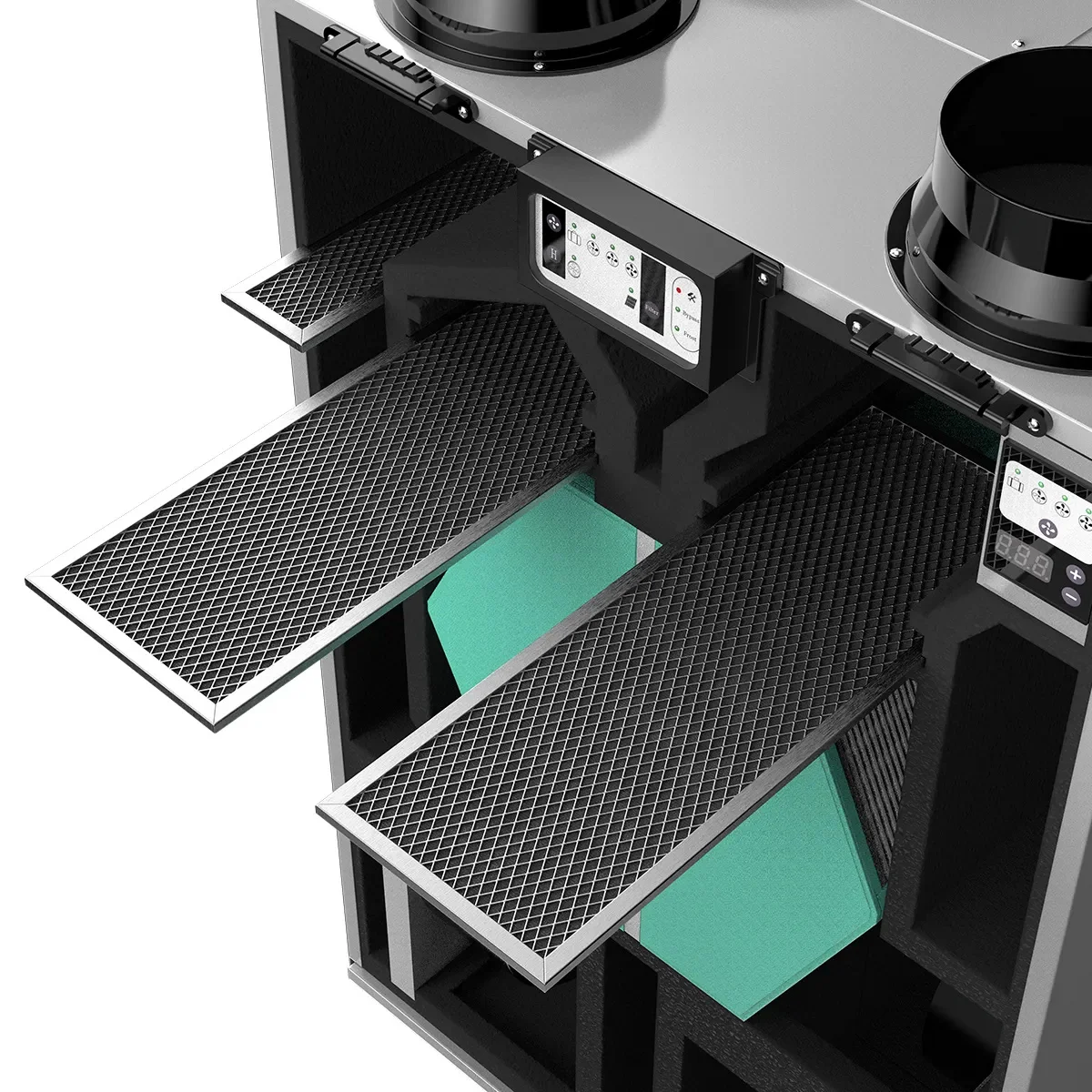

Product Structure

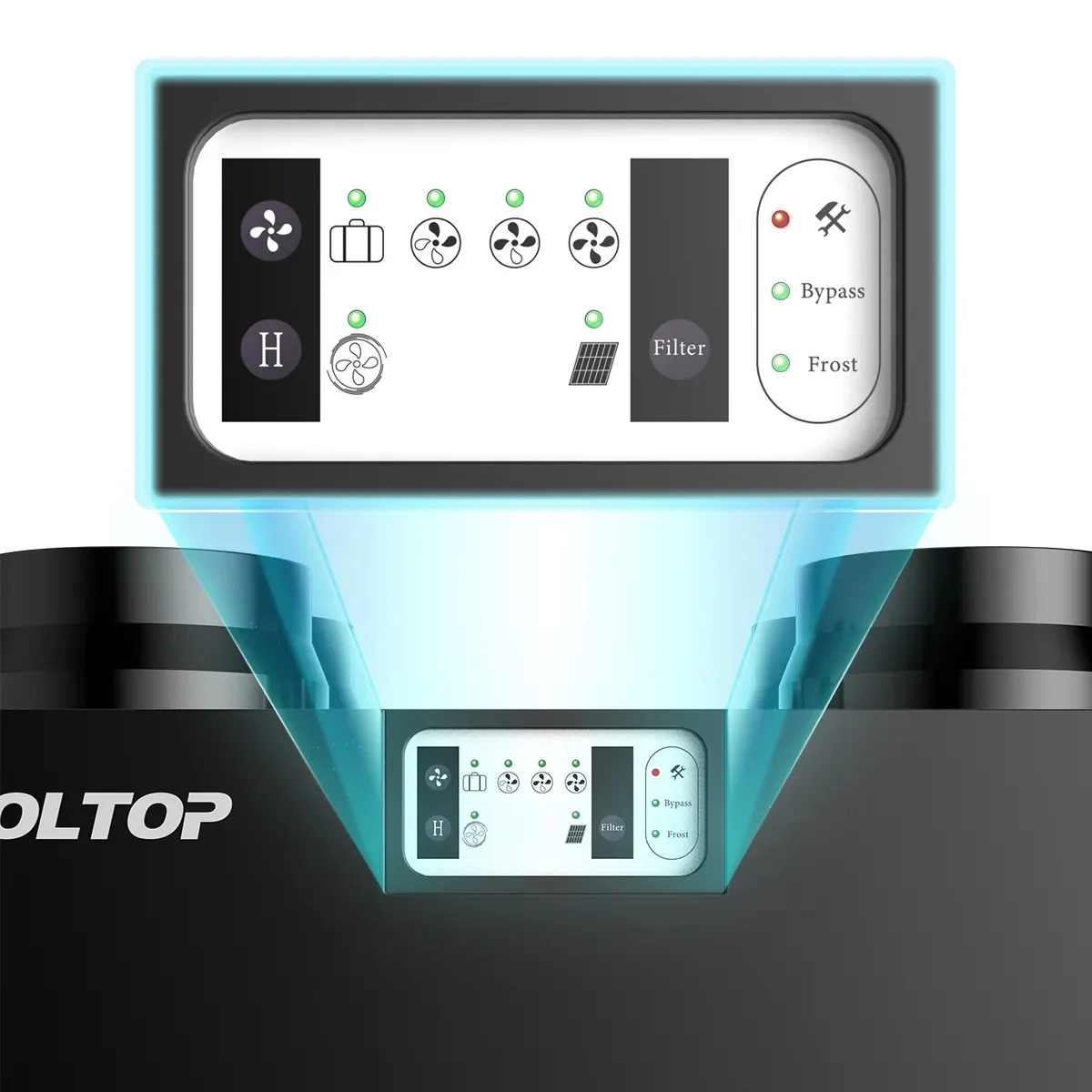

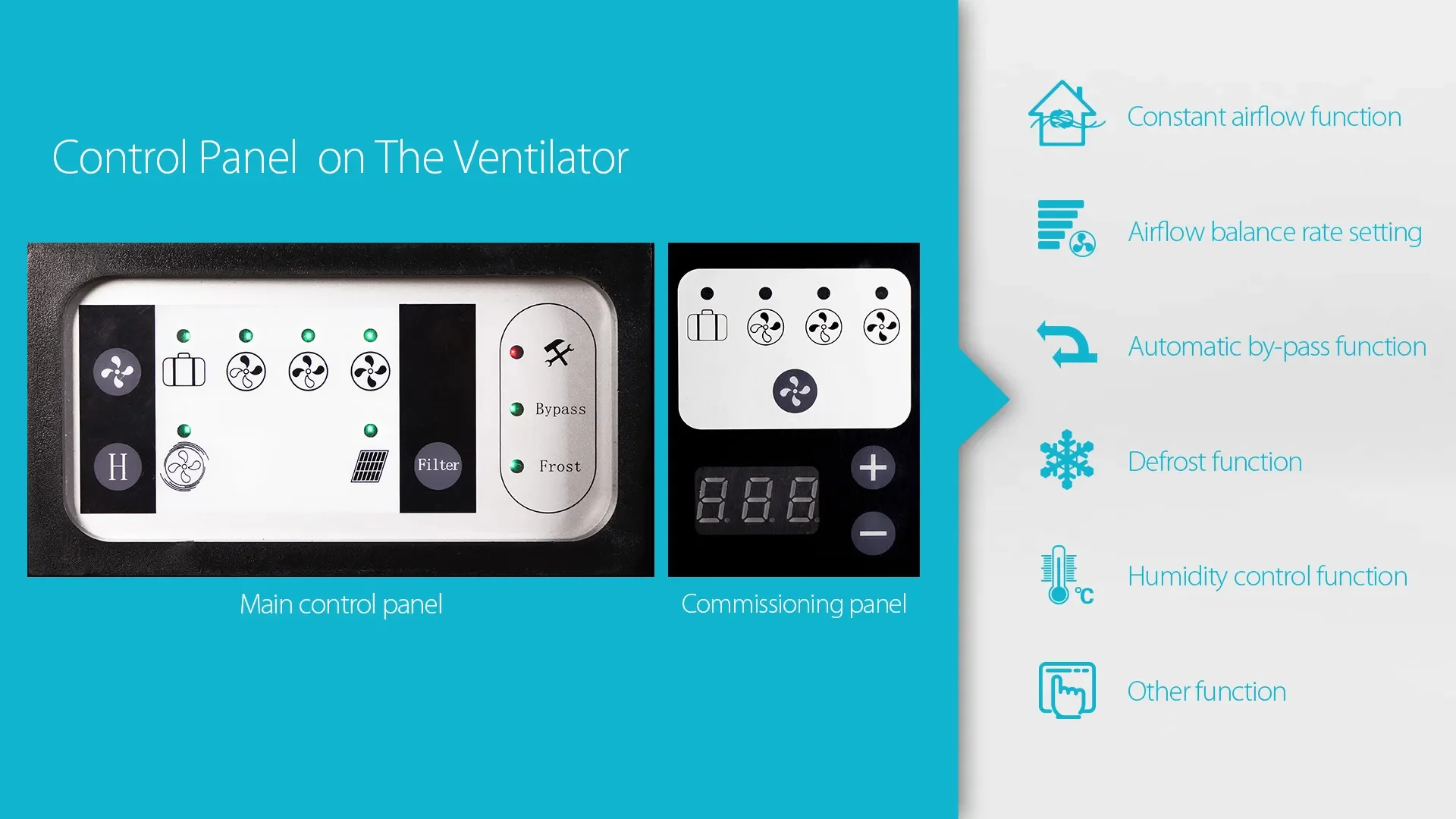

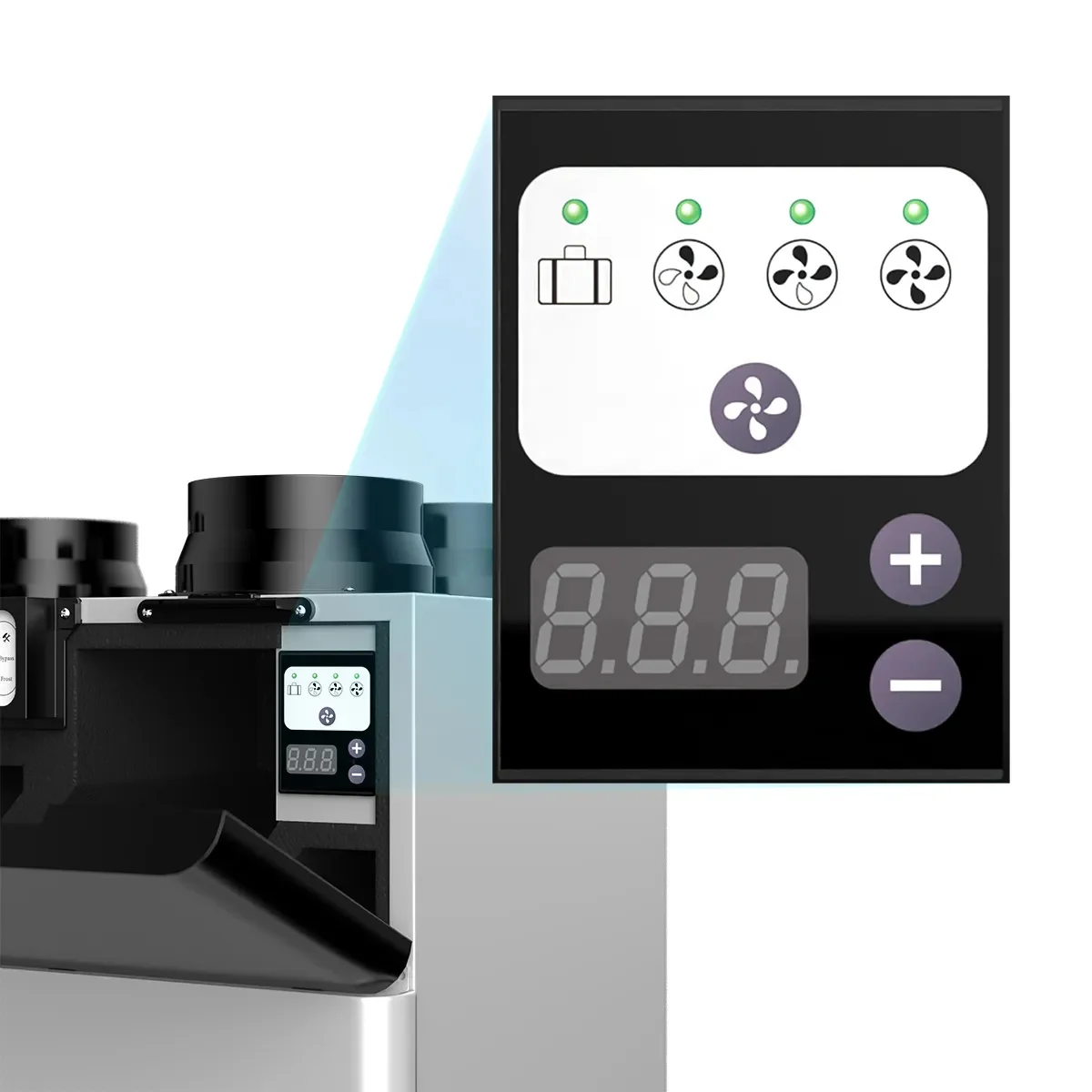

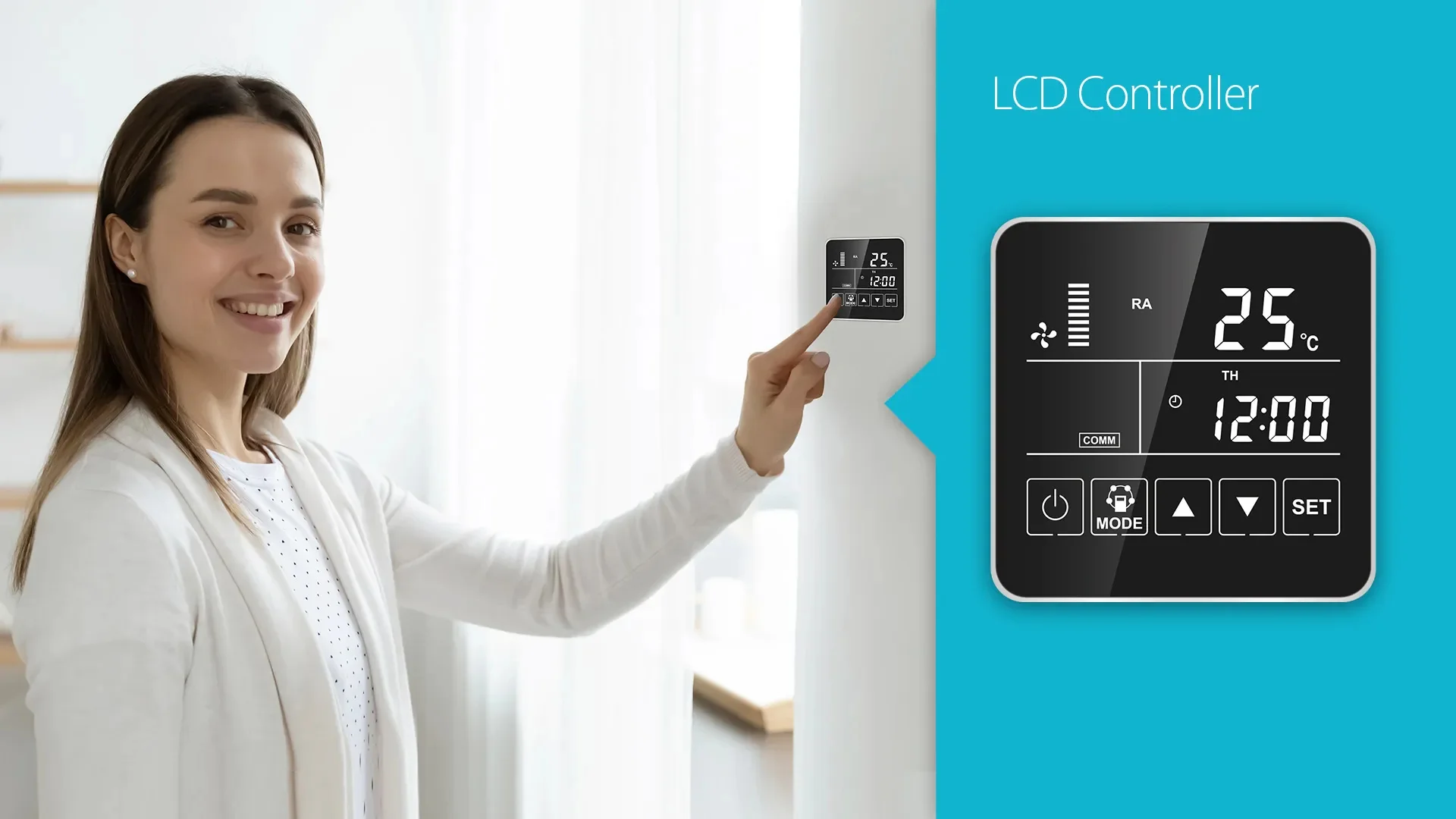

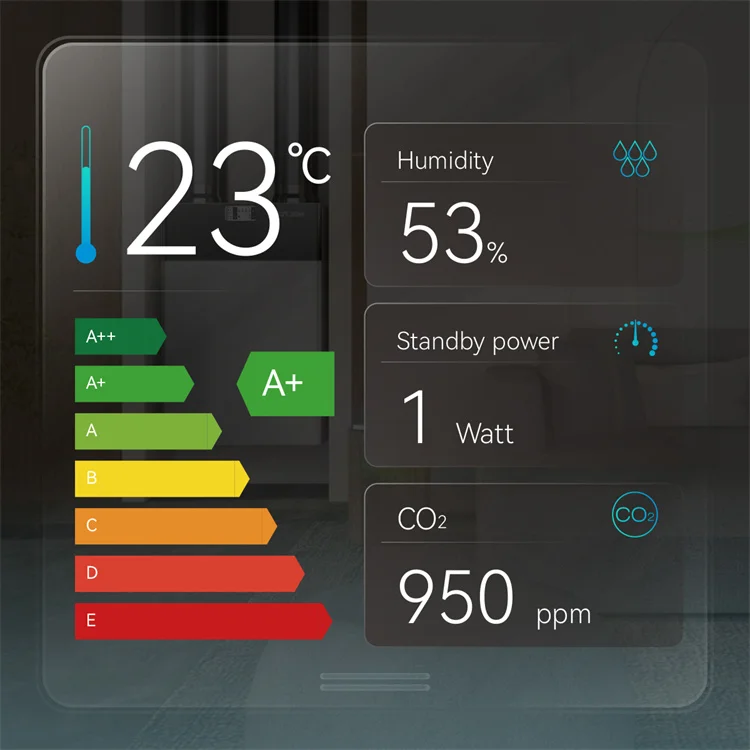

Product Controller

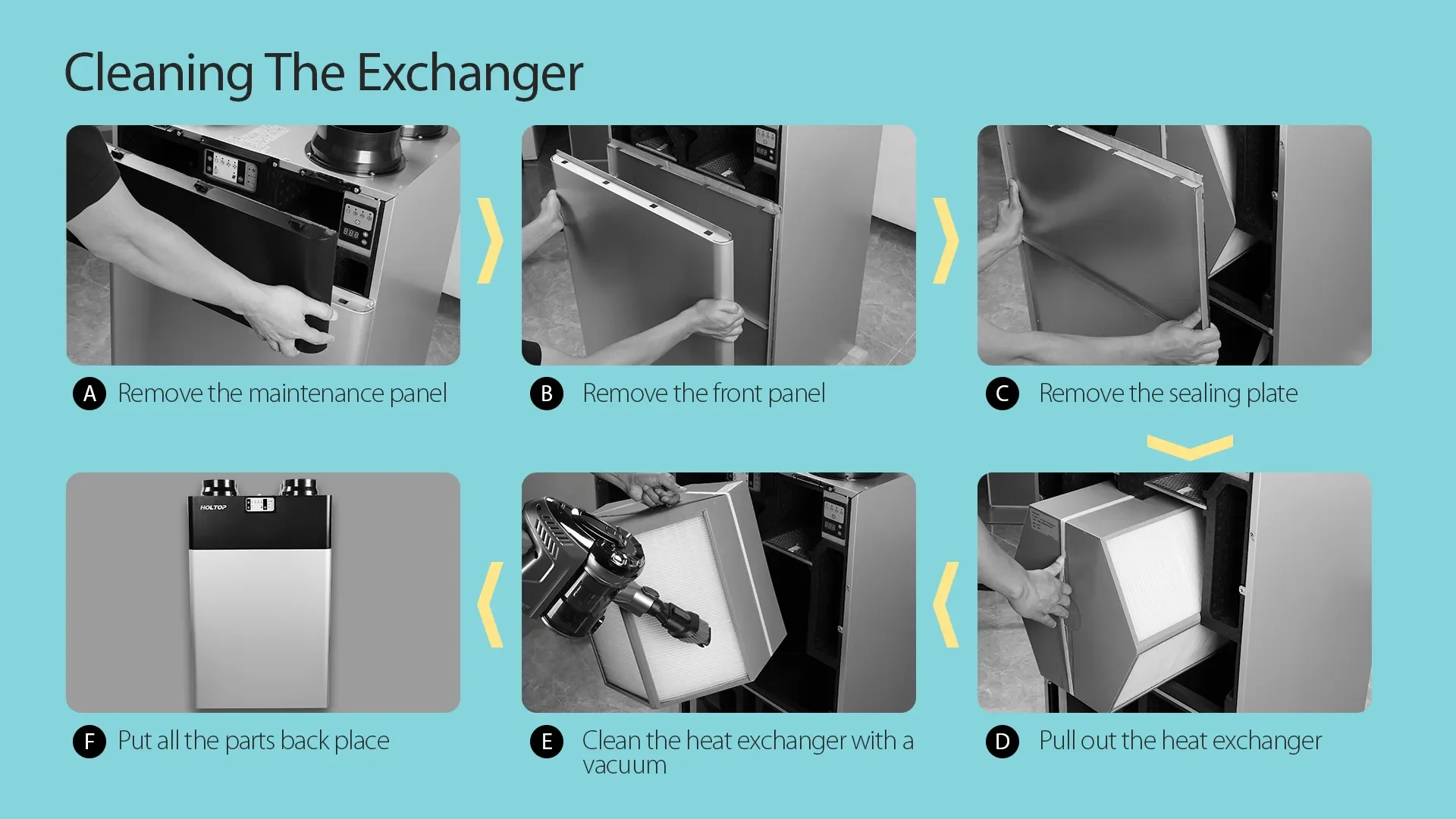

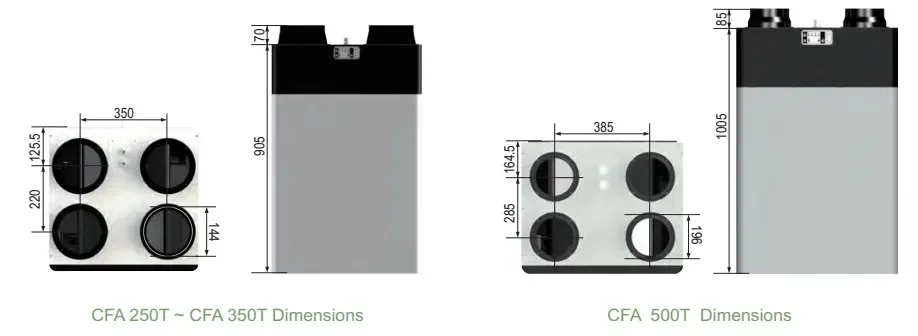

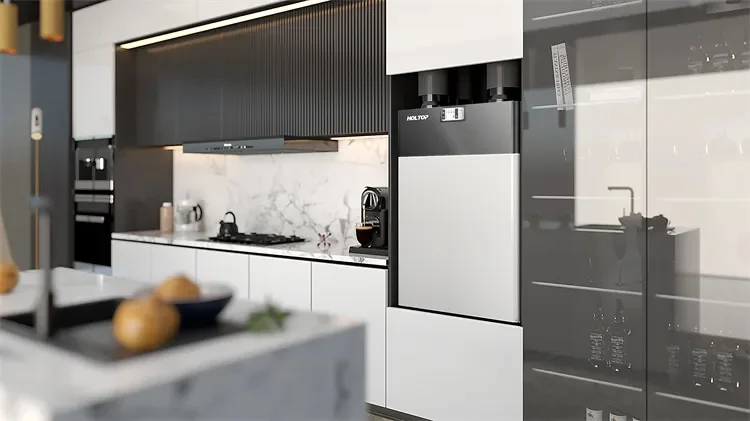

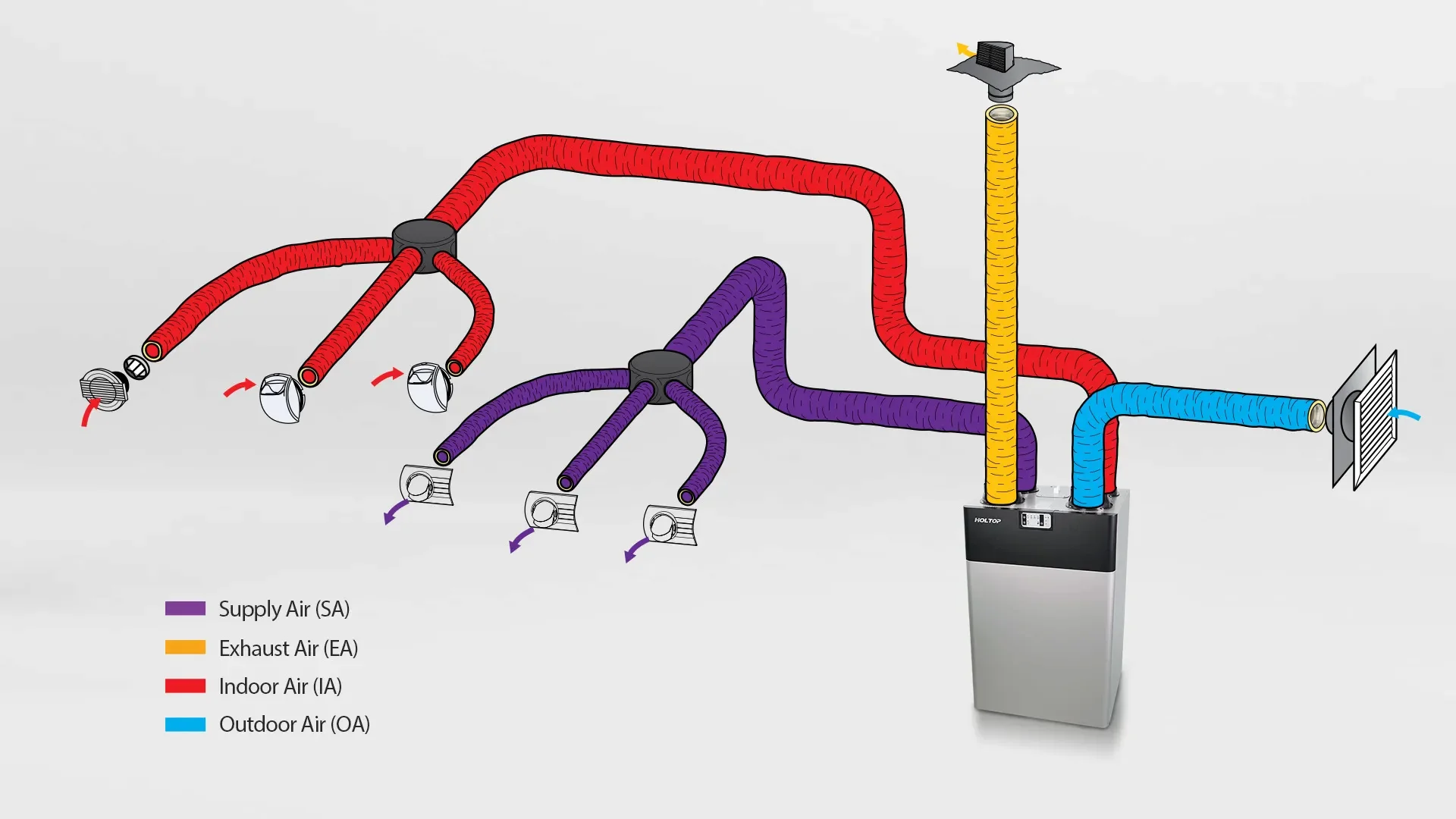

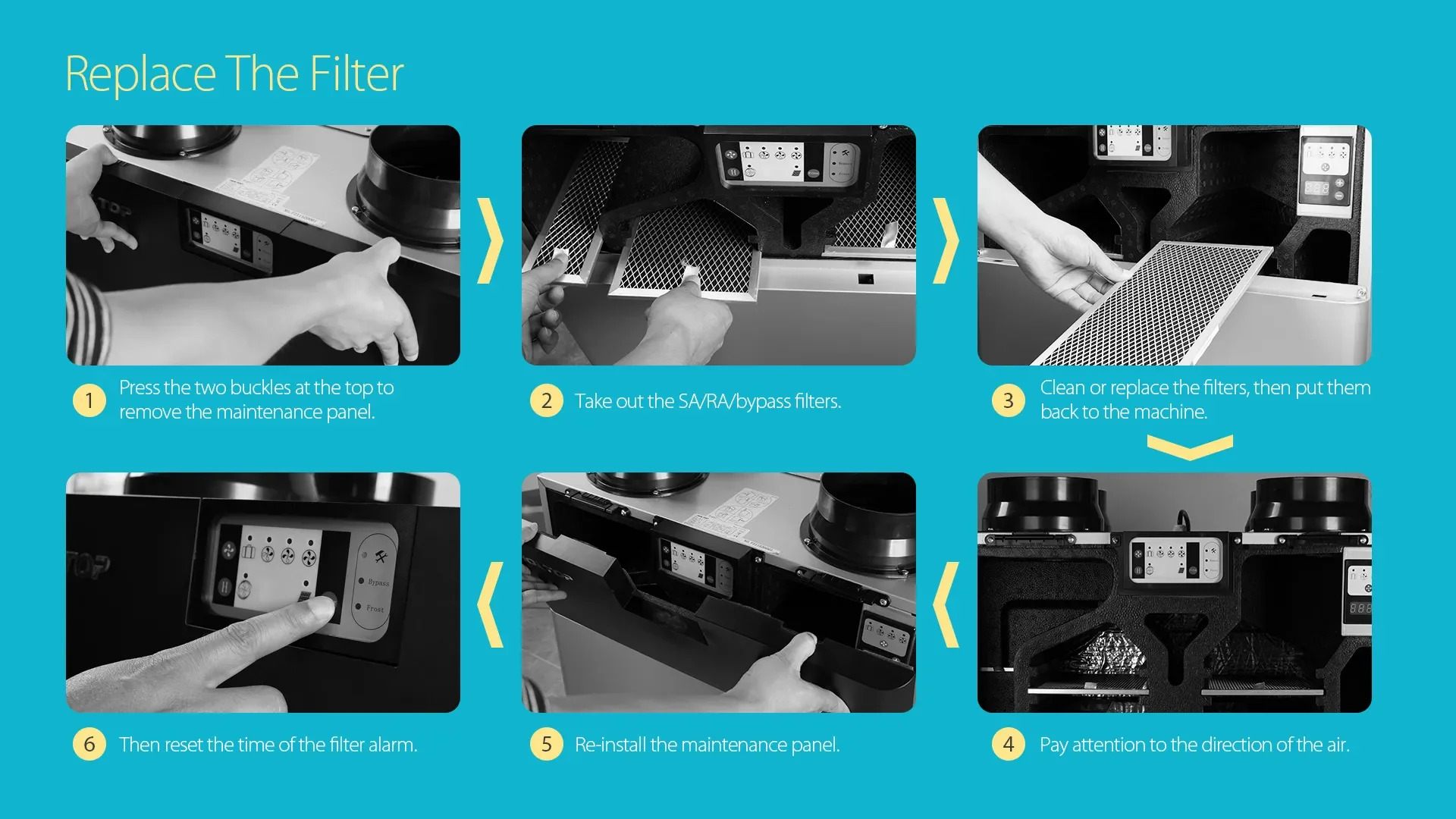

Installation Instructions










Certifications




Company Profile






OEM service
