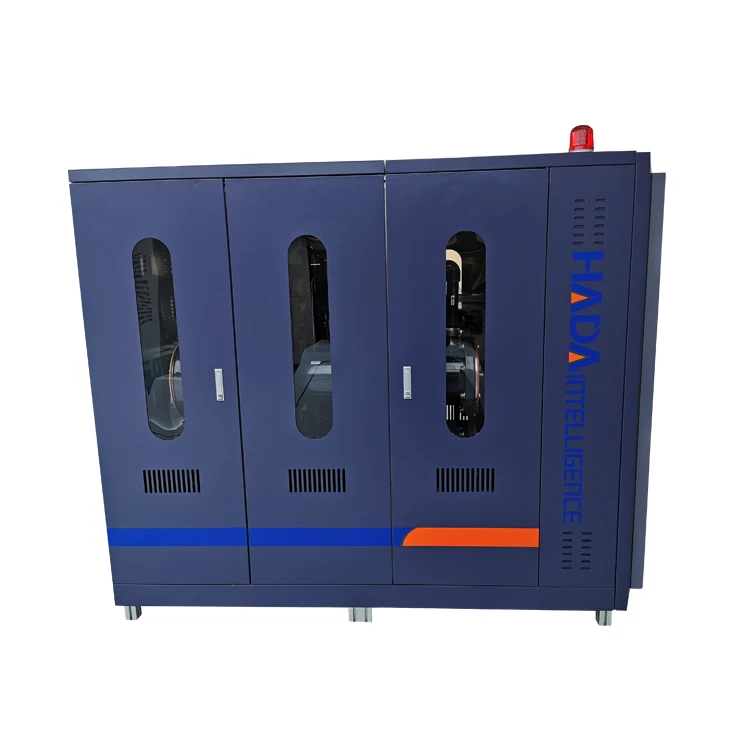

Hot sales 0.8% 12% concentration highly active Sodium hypochlorite
- Category: >>>
- Supplier: Fujian Hada Intelligence Technology Co. Ltd.
Share on (1600215964285):
Product Overview
Description
Product Description
Product Application
The generator only cost salt, water and electricity:
NaCl + H2O ====> electrolysis=====> NaClO + H2
Above is the formula for the machine, it's simple, but the most important thing is how to lower the cost of salt and electricity.Electrolysis salt water treatment system,sodium hypochlorite plant
The 3 weapons to kill virus:
1. The oxydation of HCl (Hypochlorous acid): break the balance of glucose metabolism;
2. O (new oxygen): Its strong oxidability will consume the protein of virus, make them lack of energy;
3. The Chloridion: disturb the metabolism of gen;
Electrolysis salt water treatment system,sodium hypochlorite plant
Main technical indicators (Only suitable for HADA's machine)
Salt water concentration: 3%
Power consumption: < 4.0KW/Kg.CL
Salt consumption: <3.85Kg/Kg.CL (If sea water, no need salt)
Effective chlorine concentration ： 5000-7000ppm
(1000~2000ppm for seawater system)
Working mode: Fully automatic
Anodic coating life ： >5 years
Cathode life : >20 years
Machine life: >15 years
ON-SITE CHLORINATION WITH AUTO DOSING SYSTEM
1.Salt will be dissolved in the tank and become saturated brine (25%);
2.Diluted into 3% after filtered ( If use sea water as raw material, it will be treated before electrolysis);
3.Electrolysis in the host machine;
4.The final product- Sodium hypochlorite liquid (5000ppm) in the storage tank;
5.Controled by the PLC smart center, send into the pipeline by dosing pump;
6.Mixed with water in pipeline mixer;
7.The residual chlorine meter adjust the dosing according to the preset data；
Electrolysis salt water treatment system,sodium hypochlorite plant
Main Features
1)The only raw material: salt, which is safety and convenient for transportation and storage, without any volatility and toxicity, neither any other high risk of leakage as chlorine gas.
2)Electrolysis via low voltage DC, avoid dangerous source like high voltage, steam and high temperature.
3)When breakdown occured, shut down the system and won't make any harm to the
facilities, working staffs or residents nearby.
4)The low concentration sodium hypochlorite liquid will be kept in the storage tank as final product with stable condition for quite a long time.
5)Liquid with concentration lower than 10000PPM ( 1% ) will not drop down more than 10% within 30 days, if it's well sealed and kept away from Sunshine and heat.
6)Water dilution is the best way when leakage occur, without any harm for environment
and human body, and the absorption device for chlorine gas leakage is not in demand.
sodium hypochlorite plant
Certifications
Detailed Images
Machine Parts

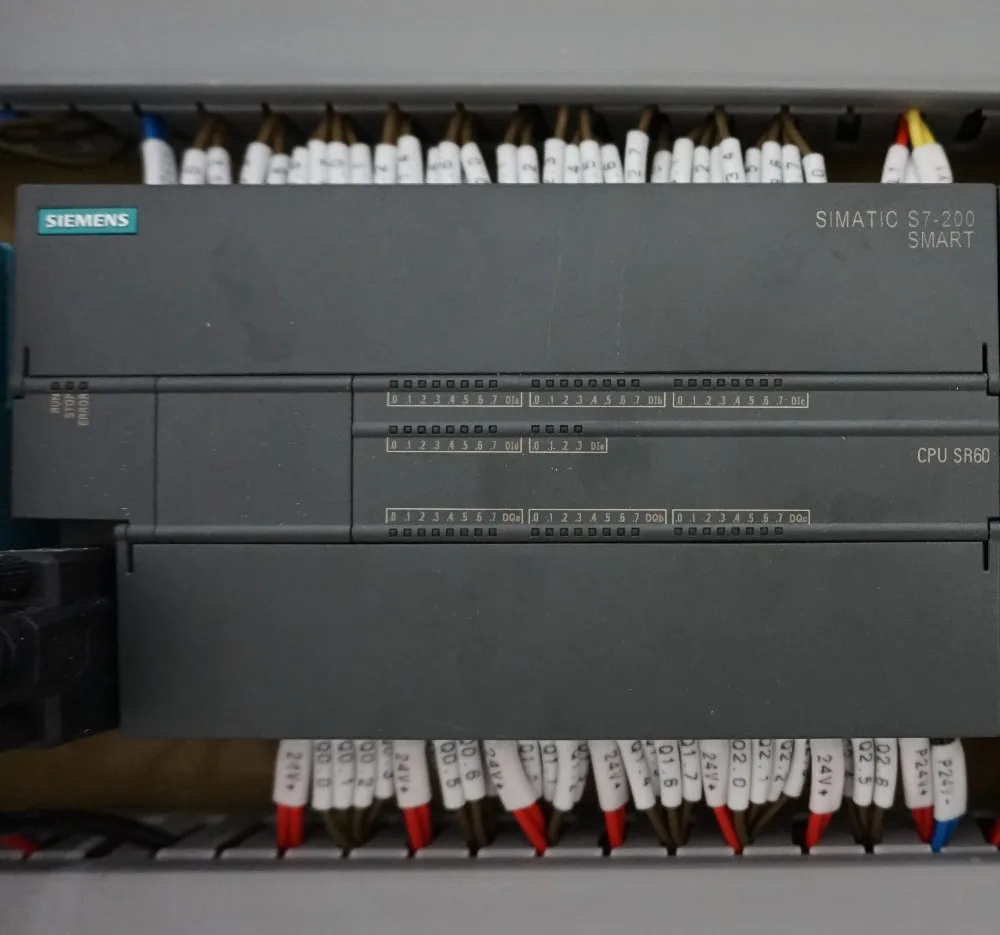

Siemens PLC control center
Every step of the whole system is detected and controlled by the smart PLC center, safety, reliability
Main Features

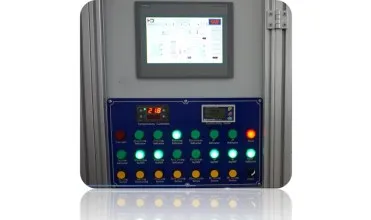

Siemens LCD touch screen
All running status are shown clearly and all parameters can be adjusted directly by the touch screen
Machine Parts
HIGH FREQUENCY CONSTANT CURRENT POWER SUPPLY
High-frequency, stablility and constant current power specialized for ship-leveled electrolytic power;
Protection: antiseptic, moisture-proof, dust-proof, input overvoltage, undervoltage, default phase, output overvoltage, over current, short circuit and overheat;
Input voltage: AC335～435V/50Hz±10%;
Output steady flow value: 10%~100% continuous adjustable;
Working temperature: (-20～50)℃;
Relative humidity: 90%(40±2℃);
Electric conversion efficiency: ≥92%;
Load regulation: ≤1% ;
Voltage regulation: ≤0.1%;
Ripple voltage: ≤1% Vout(p-p) ;
Dielectric resistance: ≥20M ;
Main Features

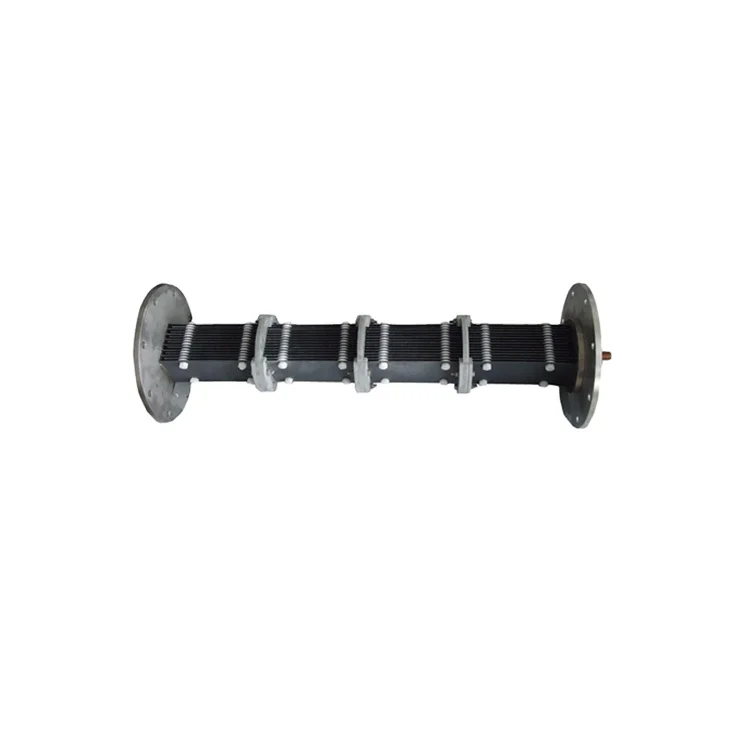

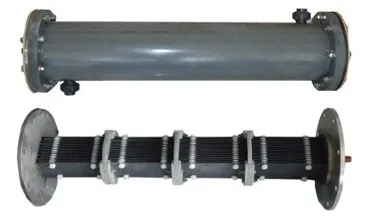

Titanium flange, copper titanium composite rod - anti high pressure, bearing capacity > 0.5MPa
25 times ruthenium iridium oxide coating, 20um coating thickness – Ensure lower power and salt consumption, high chlorine production and long life
3mm thickness pure titanium electrode – ensure long service life >18 years
3mm gap between anode and cathode – antiscale design
60% Less scaling
sodium hypochlorite plant
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

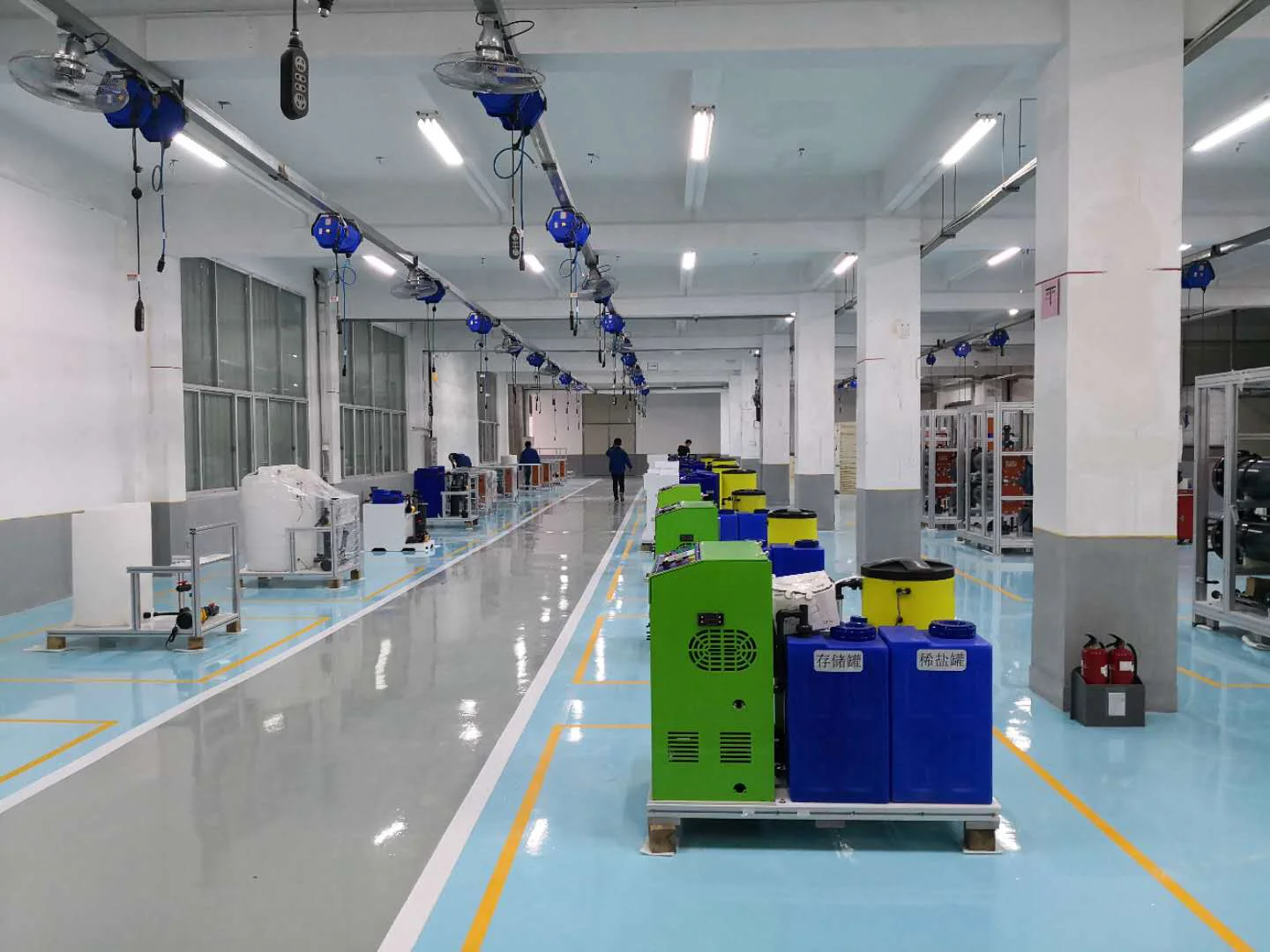

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1080 (L) * 1880 (W) * 1260 (D) | |
Weight | 315kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 980(L)*780(W)*1860(D) | |
Weight | 385kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
