Introduction of Hydraulic Ballast Tamping Machine
Hydraulic Ballast Tamping Machine YD-22 for Railway is a special purpose machinery used in the maintenance of the railway works. It is mainly used for the ballast tamping of the rail sleeper. It is can be used to work in the interval time of the trains and no need for interval close, It has three kinds of engine, gasoline, diesel, motor.zmwm07
Product parameter
Parameter of Hydraulic Ballast Tamping Machine
Model | YD-22 Hydraulic Ballast Tamping Machine |
Y132S-2 Electric Motor | 5.5KW |
2880r/min | |
380V/50HZ | |
Hydraulic System Pressure | 5-6MPa |
Vibrating Frequency | 60-67HZ |
Vibrating Force | 22KN |
Max.Insert Force | 16KN |
Clamping Force | 6.5KNx2 |
Inserting Depth | 110mm±10mm |
Efficiency | ≥260pcs/(set·hour) |
Weight | 350KG |
Dimension | 1300x750x1600mm |
Product Image

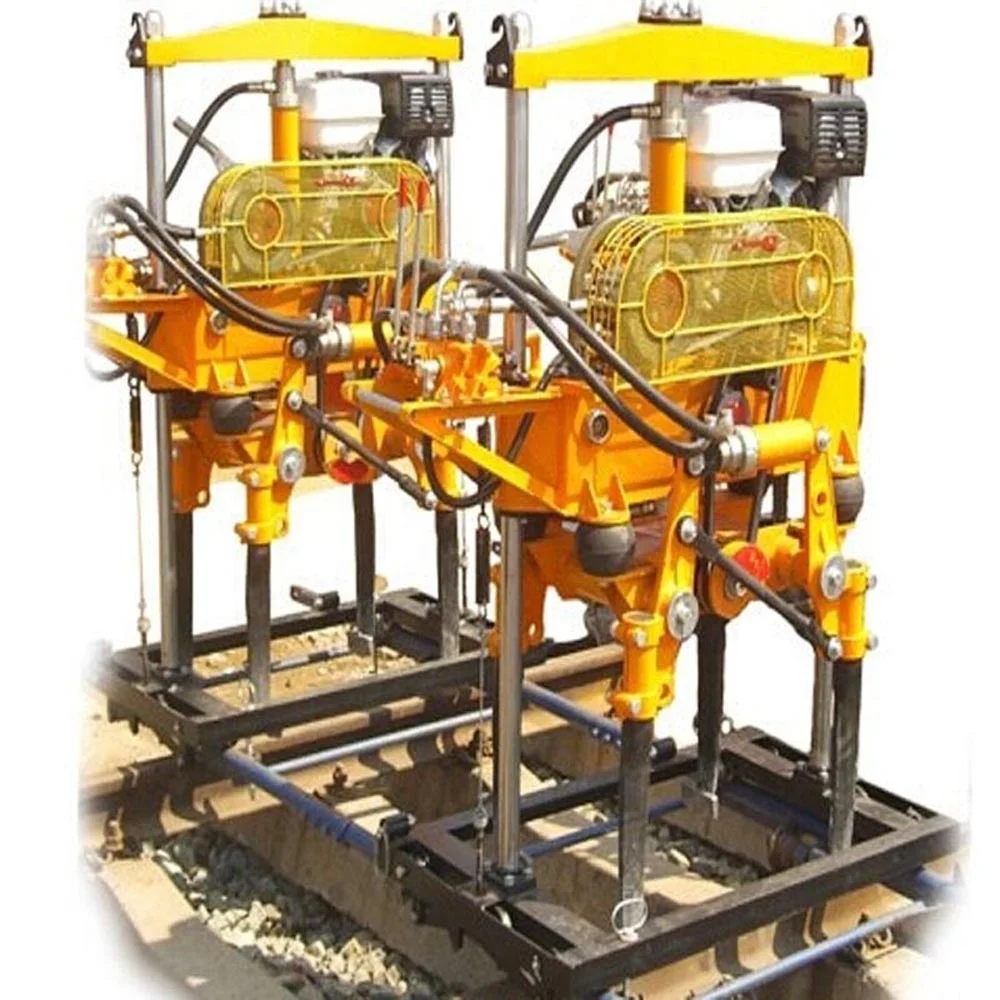

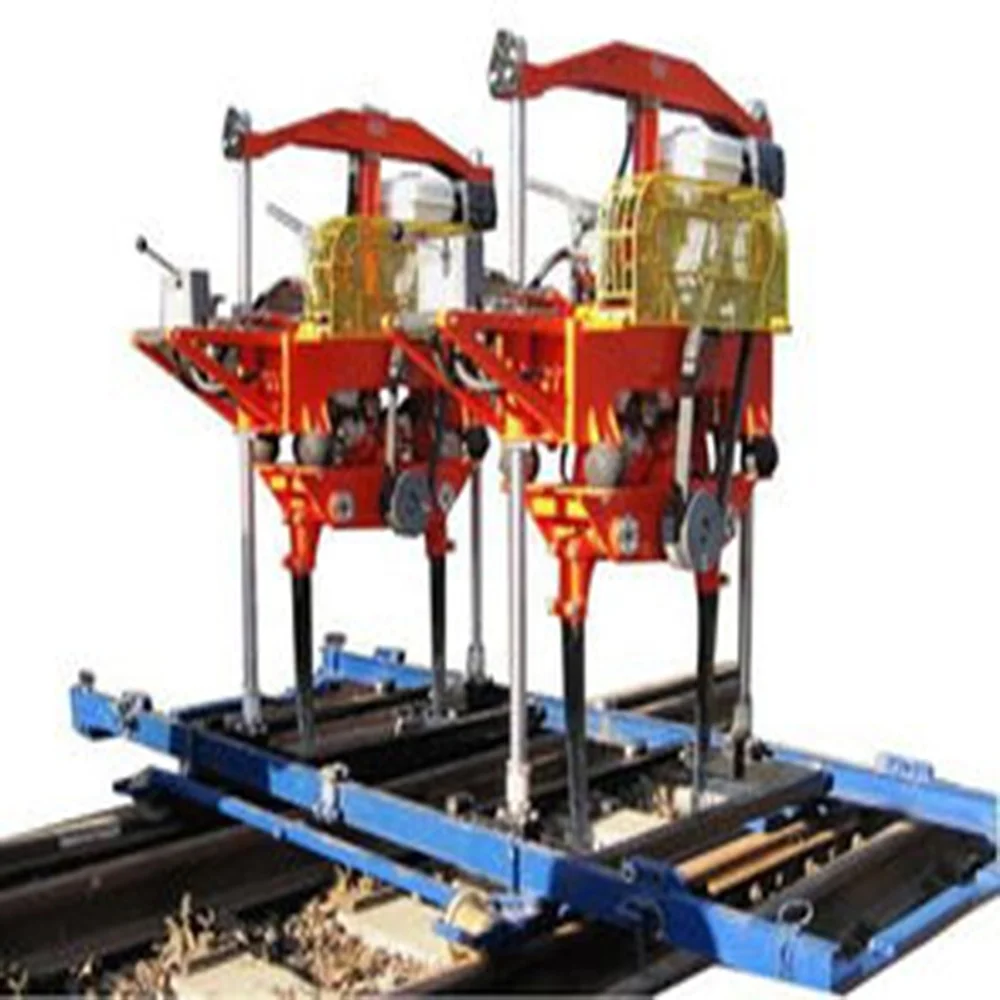

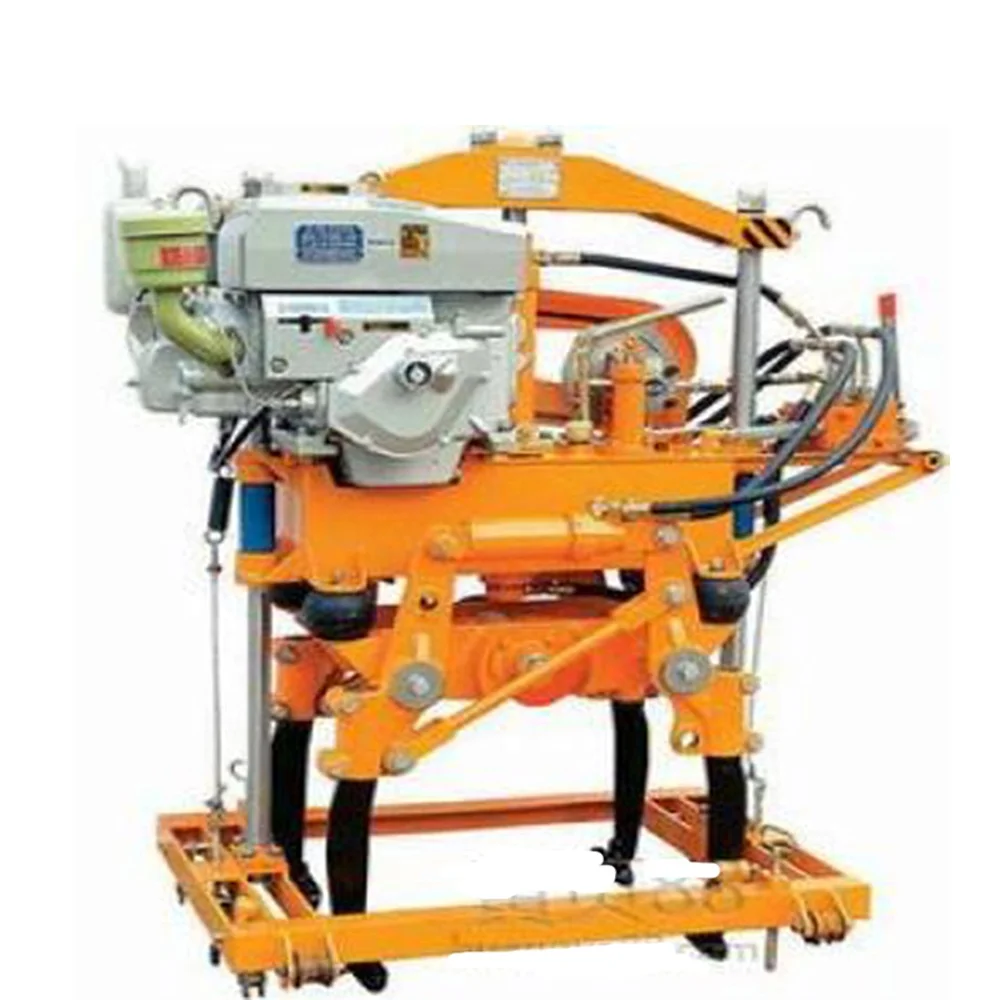

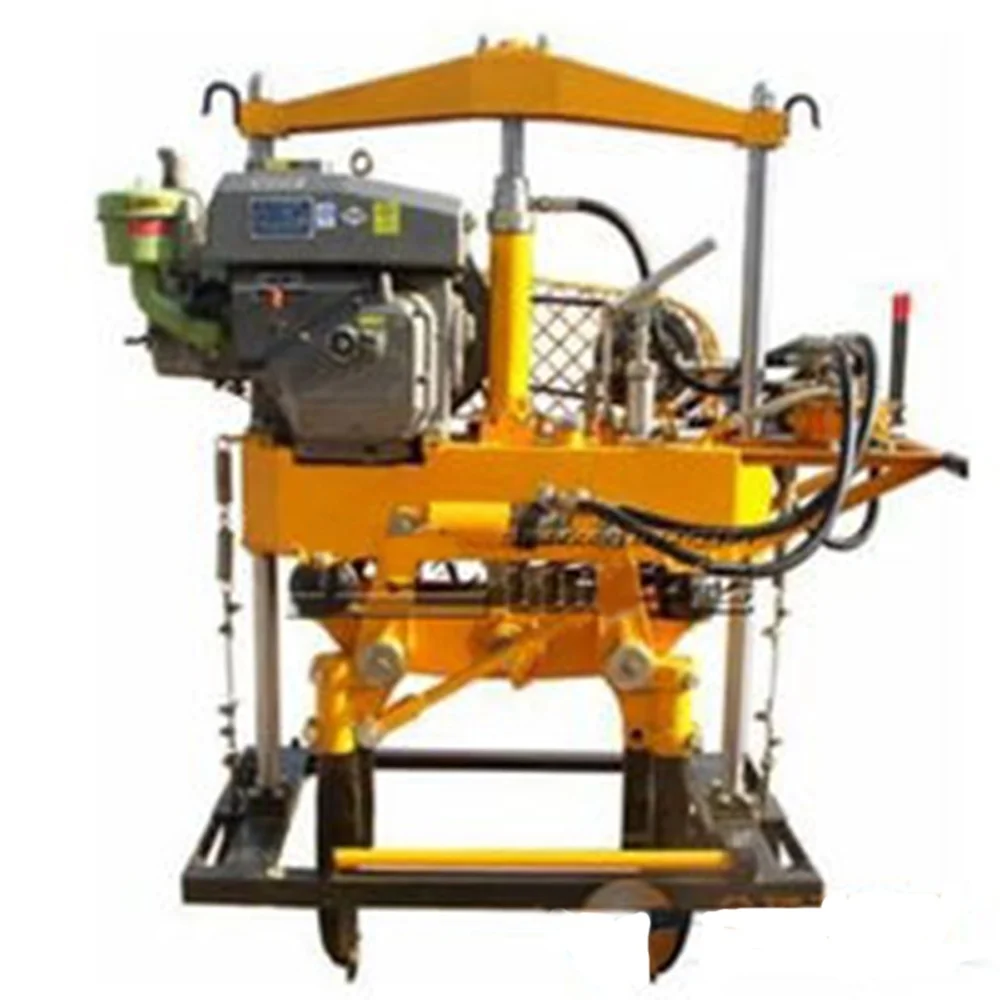

Photos of Hydraulic Ballast Tamping Machine
