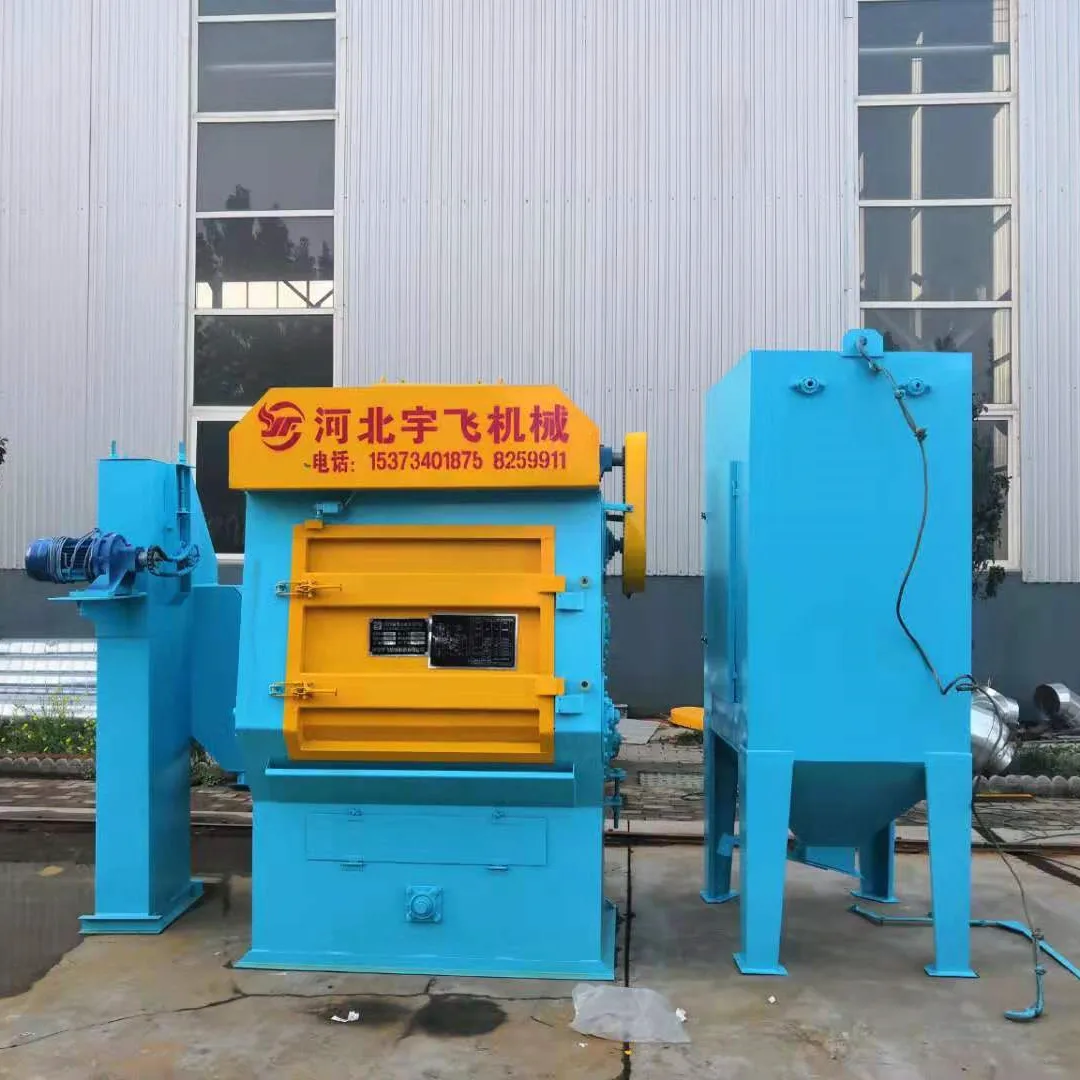

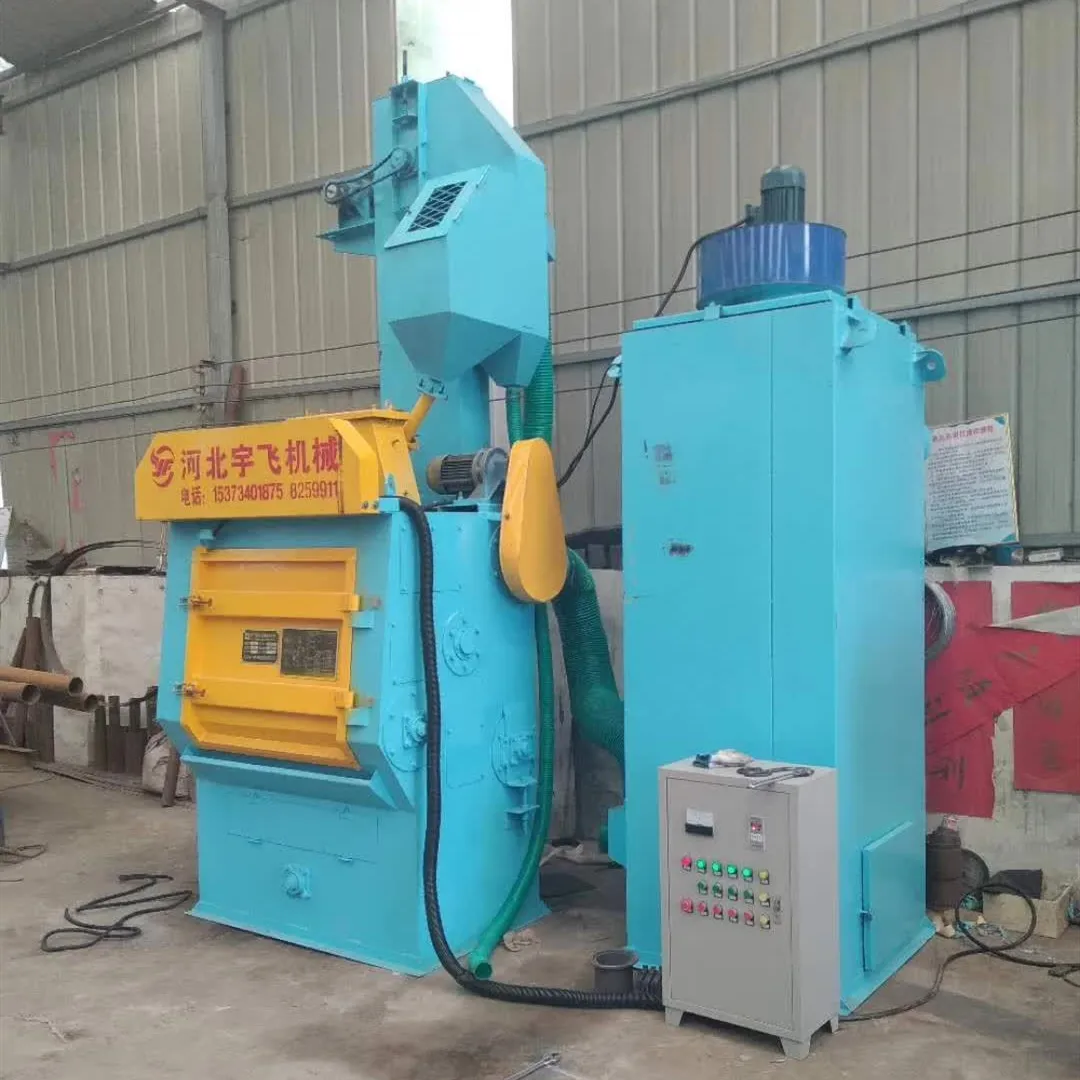

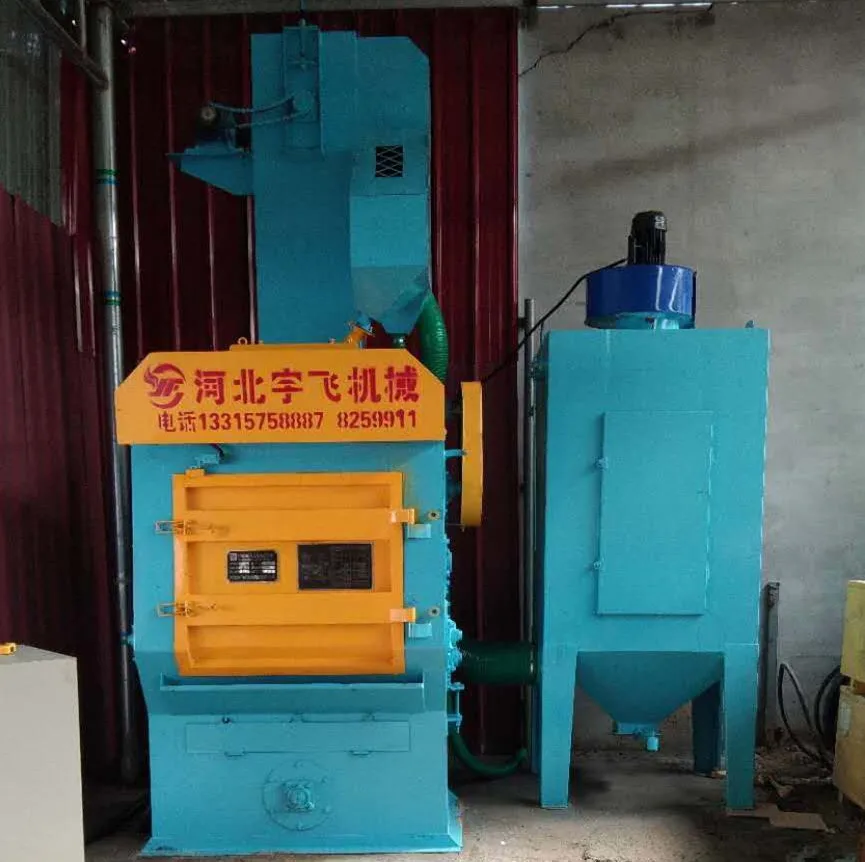

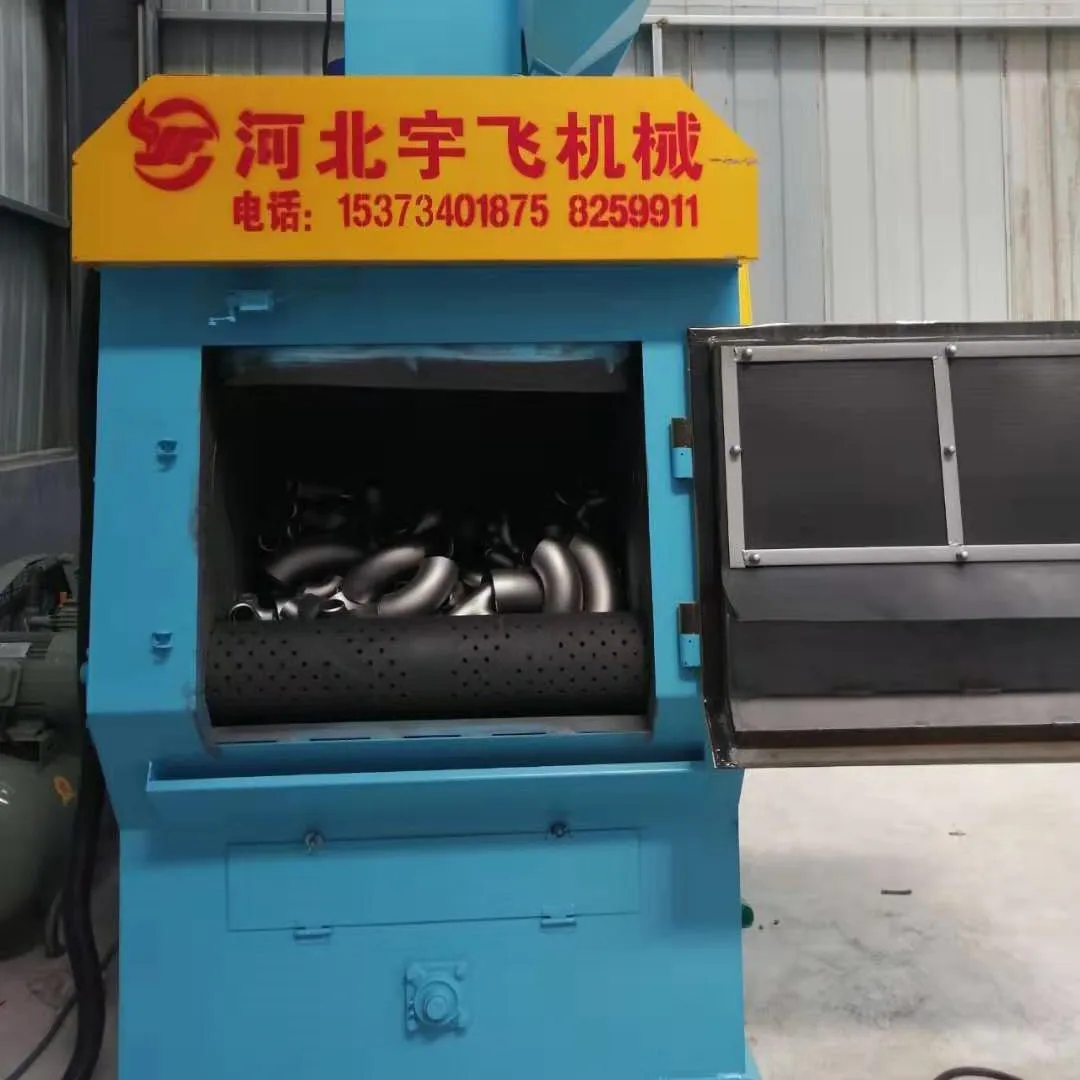

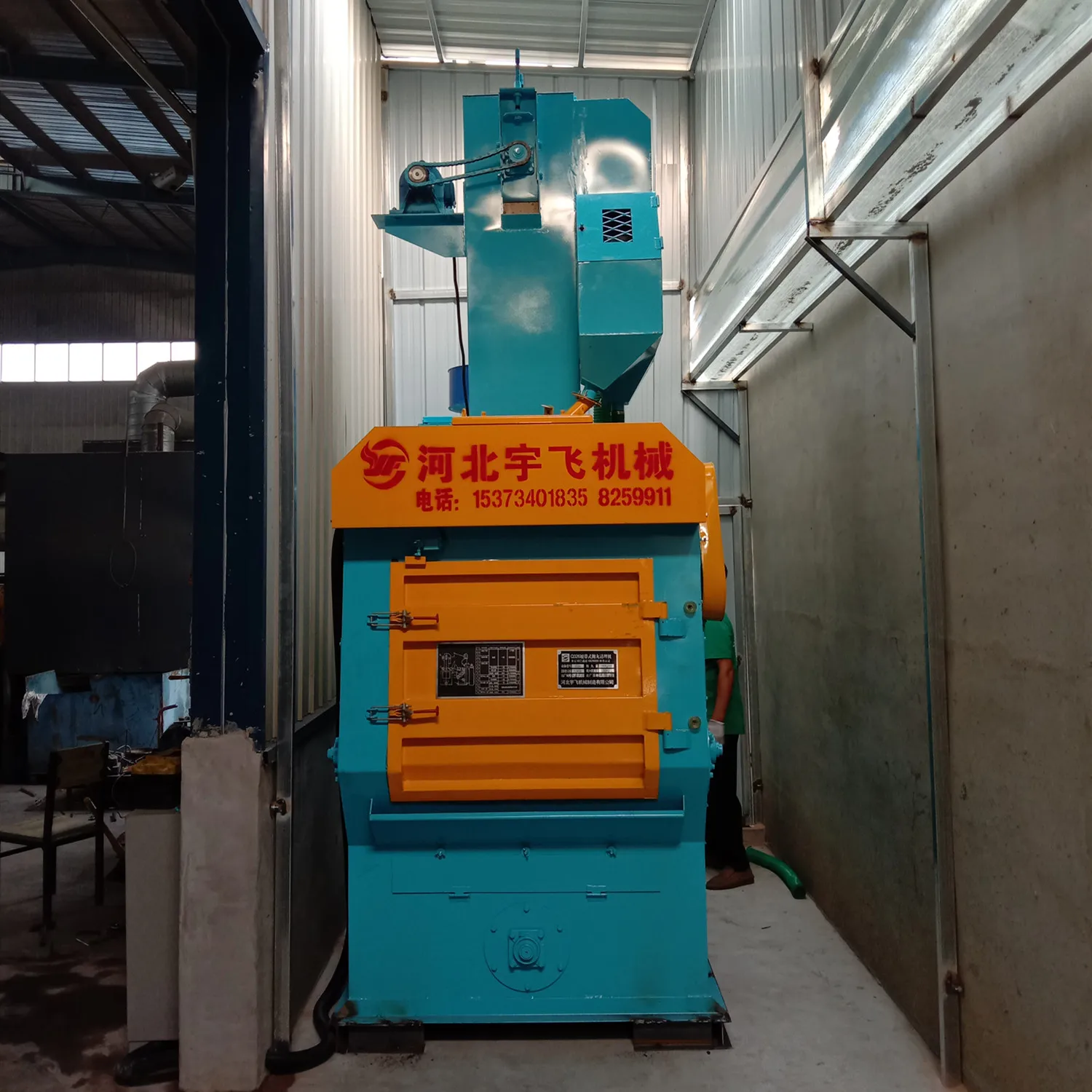

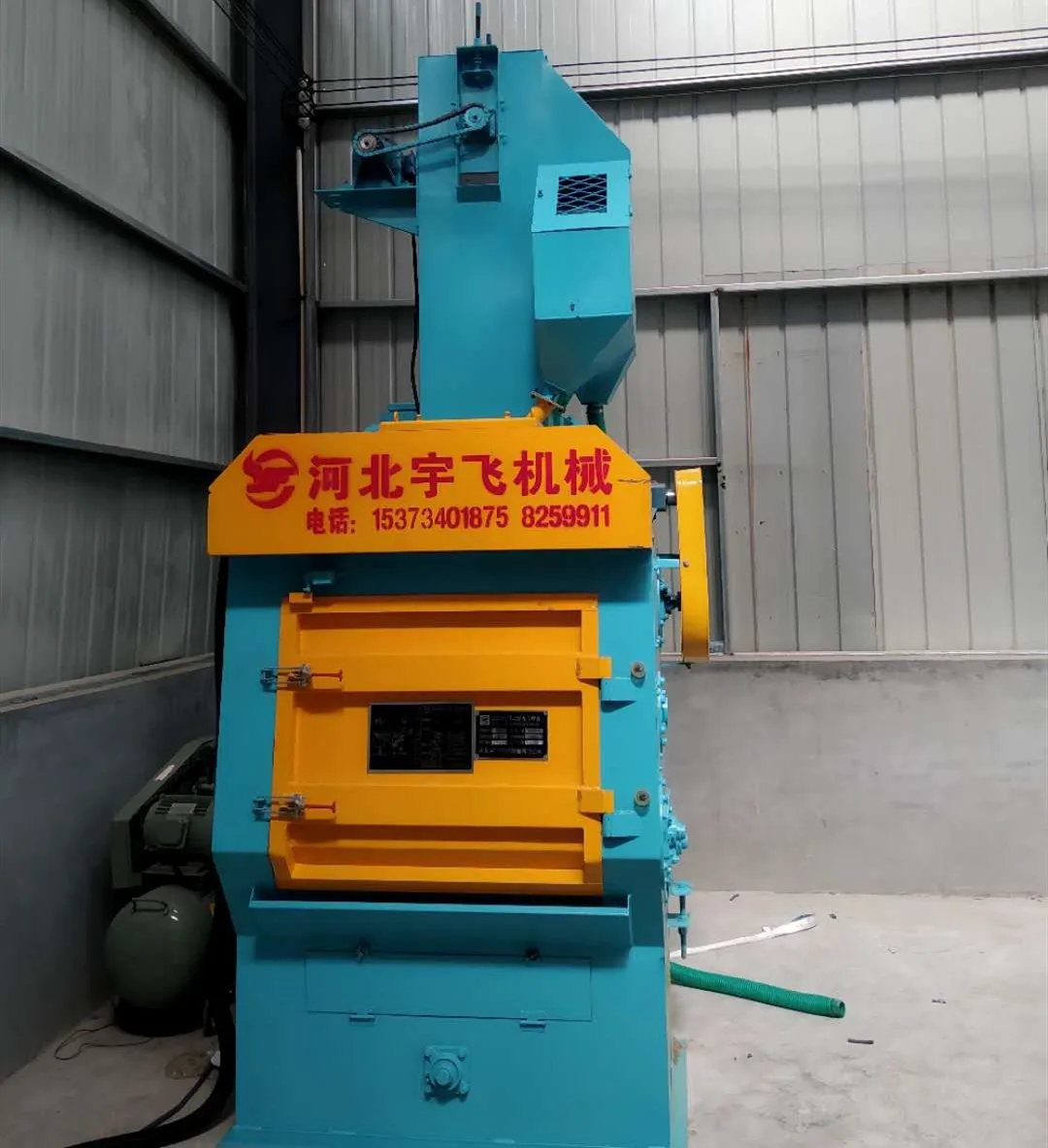

Crawler type shot blasting machine is a product of shot blasting machine. It USES a high-speed rotating impeller to throw the shot to the workpiece continuously turning inside the drum to achieve the purpose of cleaning.
The shot blasting machine is suitable for the small and small castings, forgings, stamping parts in various industries to blast rust, remove oxide scale and surface strengthening, especially suitable for the parts are not afraid of collision surface cleaning and strengthening.After blasting the casting, the machining surface is convenient for the next machining process, which can not only save the processing time, but also protect the machine tool and cutting tool from damage.After the non-processed finish is painted, it will last for a long time and improve the service life and appearance quality of the products.
Operating principle of equipment

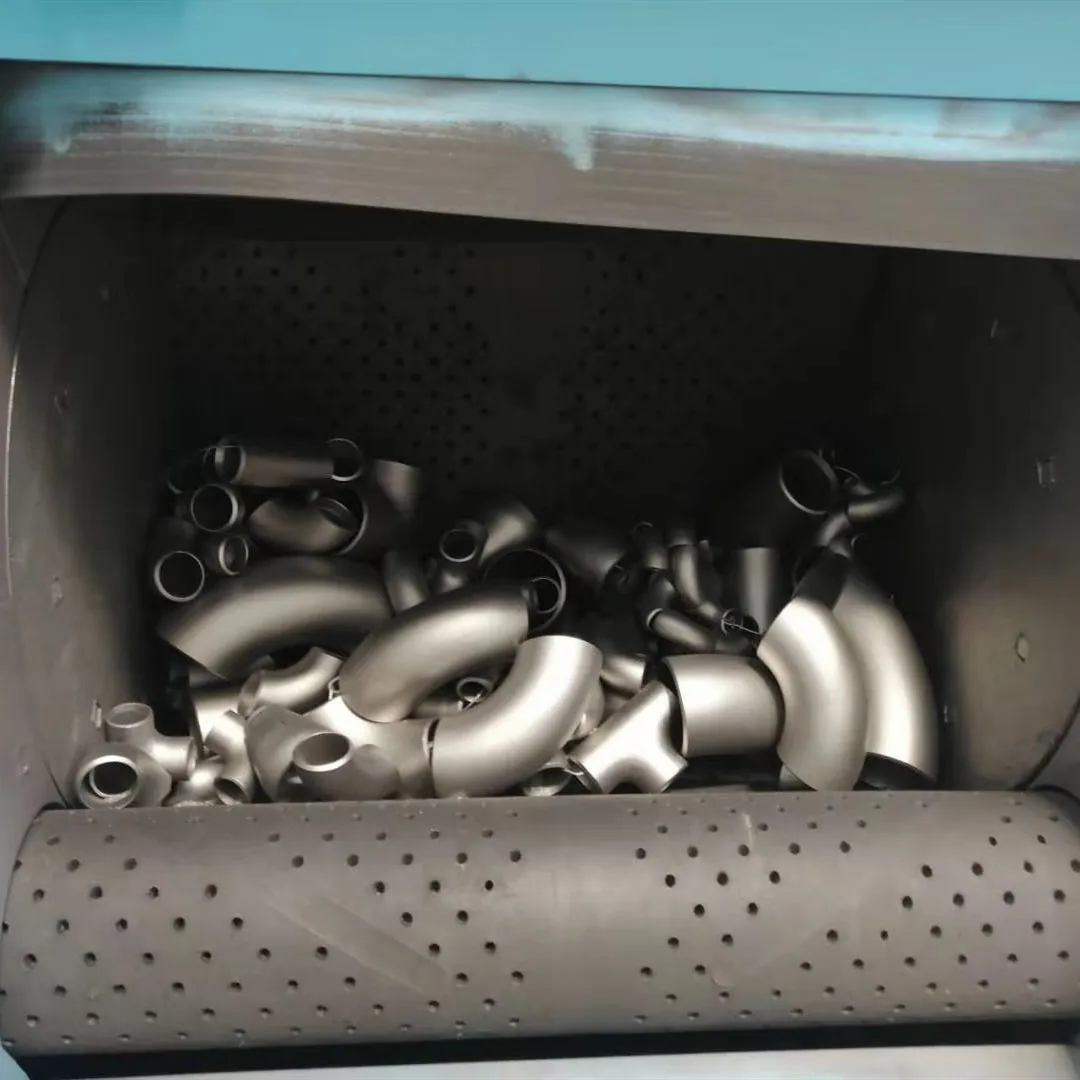

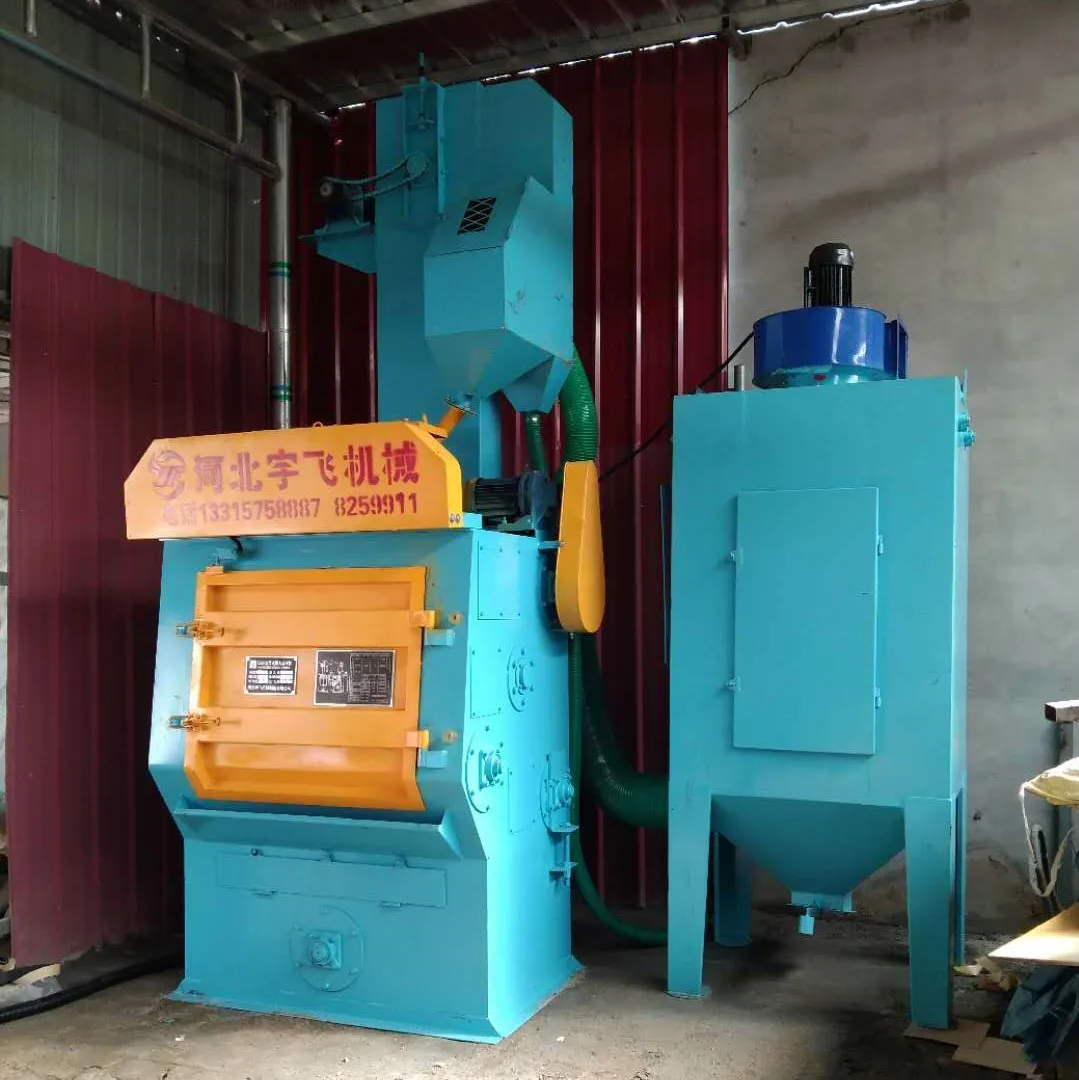

Working principle of Crawler type shot blasting machine: no more than specified number of workpiece is added by feeding mechanism in the cleaning room.After the machine is started, the workpiece is turned over by the roller, and the high-speed projectiles thrown by the blasting machine form a projectile beam, which is evenly hit on the surface of the workpiece to make it clean up.After the blasting is finished, the workpiece can be discharged from the roller to the unloading mechanism by reversing the track, so the blasting machine is particularly suitable for integration into the automatic production line.The projectile and sand particles flow into the steel plate mesh at the bottom through the gap of the steel Crawler band or through the holes on the rubber Crawler band, and are sent into the elevator by the spiral conveyor, and then separated in the separator.The dust is sucked by the fan to the dust collector for filtration, and the clean air is discharged into the atmosphere. The dust on the cloth bag falls into the dust collecting box at the bottom of the dust collector through backblowing rotary jet spray, and the user can clean it regularly. The waste sand is discharged from the waste pipe for reuse.The shot sand mixture is recovered into the chamber through the return tube and reused after separation in the separator. The clean shot enters the shot blasting machine through the electromagnetic shot gate of the shot feeding system and then returns to the shot blasting machine.
Specification
Name
Crawler shot blasting machine
Model
Q326
Q3210
Q3215
Roller in long(mm)
900
1100
1550
Side plate of diameter (mm)
φ 650
φ 1000
φ 1092
The working volume (m3)
0.11
0.4
0.43
Single weight of workpiece (kg)
10
30
227
Workpiece size (mm)
L=600
L=900
L=1000
Loading capacity (kg)
200
600
1362
Shot blasting amount (kg/min)
100
250
480
Shot blasting power (KW)
7.5
15
22
Lifting quantity (t/h)
8
16
30
Separation amount (t/h)
8
16
30
Total air rate volume (m3/h)
2000
3500
5300
Total Power (KW)
13
24.57
31
Machine size (length × width × height) (mm)
1300×1210×3450
1620×1780×4980
4597×3262×5709
