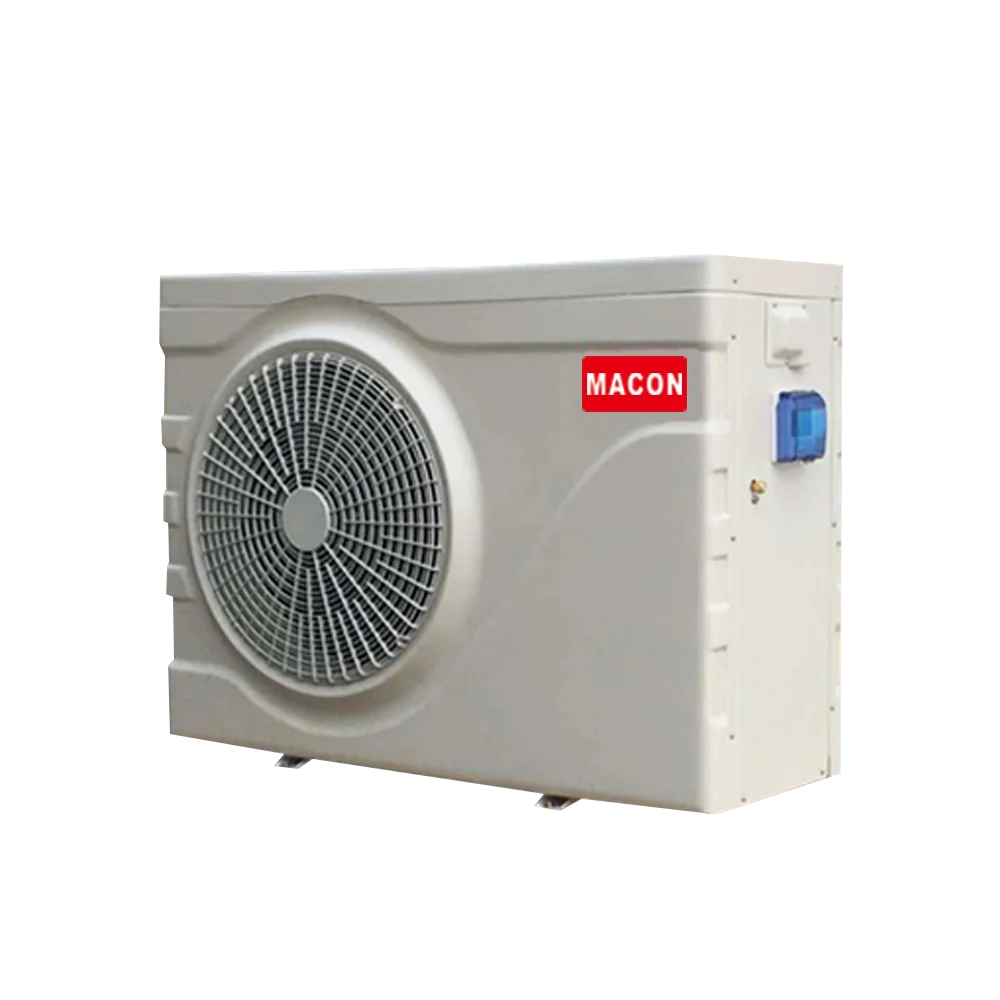

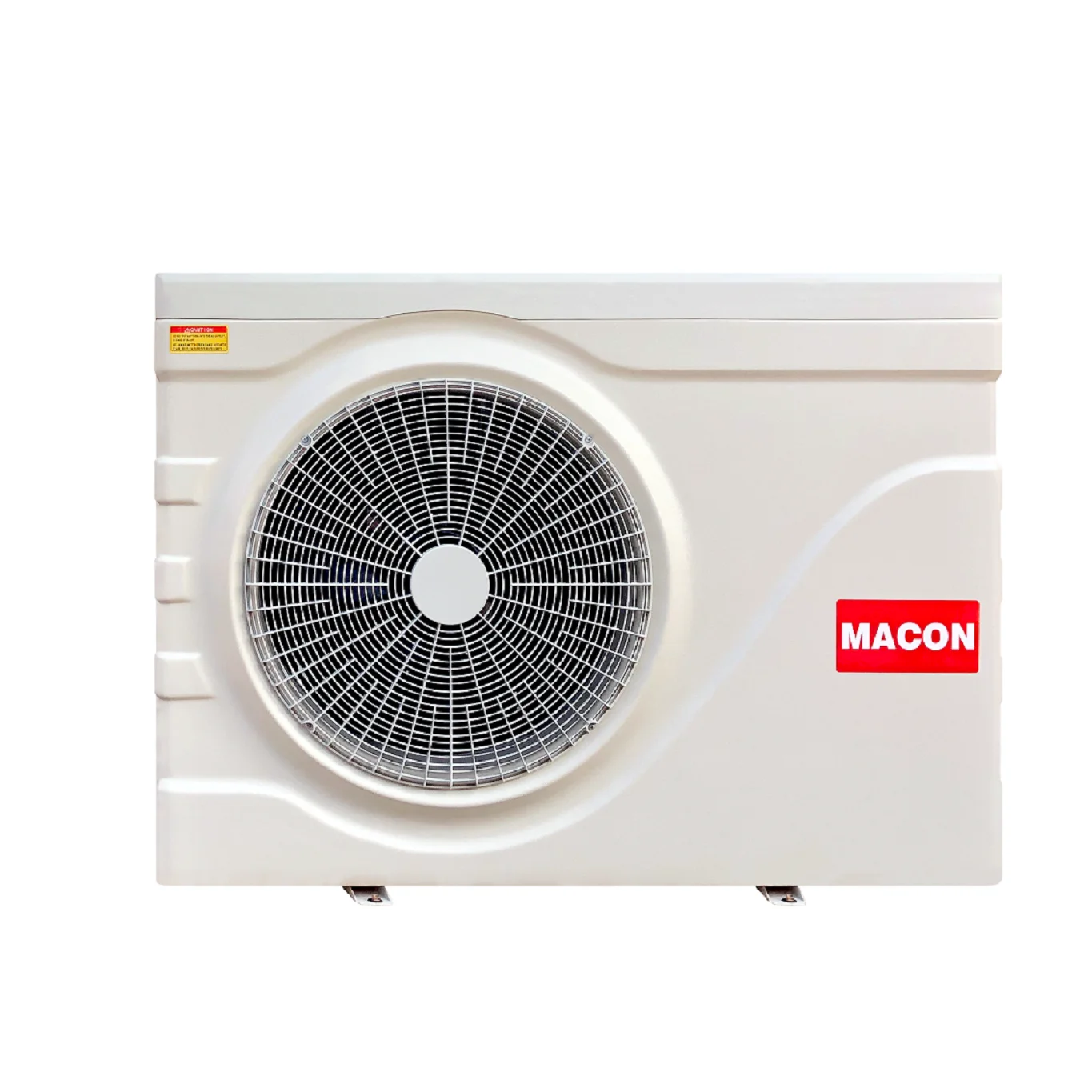

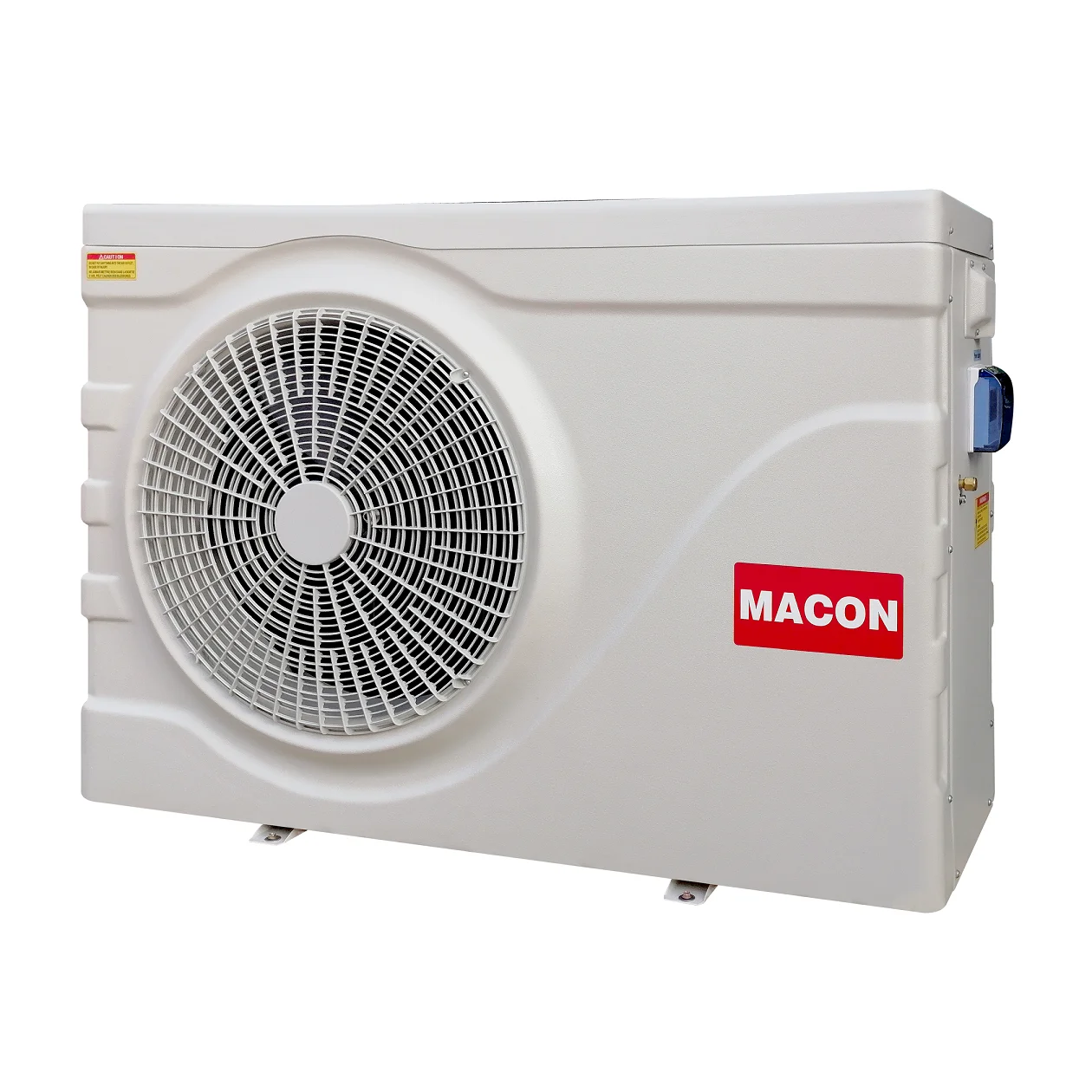

Macon plastic heat pump swimming pool heater R32 heat pump for pool swimming pool heater
- Category: >>>
- Supplier: Foshan Macon Cooling & Heating Energy-Saving Equipment Co. Ltd.
Share on (1600216438403):
Product Overview
Description
Product Description
Full inverter swimming pool heat pump |
1. Full DC inverter technology
Macon DC inverter swimming pool heat pump use full inverter technology, DC inverter compressor and inverter fan motor, the working
frequency will change according to ambient temperature and water temperature, so the unit works at best performance.
2. Low noise design
The compressor is equip with low noise muffler button, and we choose low noise fan motor. All the copper pipe and the cabinet will
design for low noise.
3. High COP
Macon DC inverter pool heat pump have high COP to 18
4. Wifi control
Macon swimming pool heat pump have wifi control, so you can control the pool heat pump anywhere.
5. Wide working temperature range
Inverter swimming pool heat pump can work at -20°C~43°C
6. Eco-friendly refrigerant
With R32 refrigerant in Europe, it is no pollution to environment.
7. Multi-protection
Macon pool heater with water flow switch prection, compressor protection, anti-freezing protection, which makes your unit works safety.
Macon DC inverter swimming pool heat pump use full inverter technology, DC inverter compressor and inverter fan motor, the working
frequency will change according to ambient temperature and water temperature, so the unit works at best performance.
2. Low noise design
The compressor is equip with low noise muffler button, and we choose low noise fan motor. All the copper pipe and the cabinet will
design for low noise.
3. High COP
Macon DC inverter pool heat pump have high COP to 18
4. Wifi control
Macon swimming pool heat pump have wifi control, so you can control the pool heat pump anywhere.
5. Wide working temperature range
Inverter swimming pool heat pump can work at -20°C~43°C
6. Eco-friendly refrigerant
With R32 refrigerant in Europe, it is no pollution to environment.
7. Multi-protection
Macon pool heater with water flow switch prection, compressor protection, anti-freezing protection, which makes your unit works safety.
Swimming Pool Heat Pump Stars series | Compressor type | Outlet water temperature range | Operating ambient temperature range | Refrigerant type |
Comfort Stars | Constant Speed | cooling:7°C~25°C heating:25°C~45°C | -7°C~43°C | R32 OR R410A |
Warm Stars | EVI Constant Speed | cooling:7°C~25°C heating:25°C~45°C | -25°C~43°C | R32 OR R410A |
Wisdom Stars | Full DC Variable Speed | cooling:7°C~25°C heating:25°C~45°C | -25°C~53°C | R32 OR R410A |
Strong Heating Stars | EVI Full DC Variable Speed | cooling:7°C~25°C heating:25°C~45°C | -35°C~53°C | R32 OR R410A |
Specification
Model(Plastic Shell) | MALCRW | 010ZAB1-R32 | 015ZAB1-R32 | 020ZAB1-R32 | 025ZAB1-R32 |
Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
Heating Capacity Range | kW | 1.1~4.3 | 1.3~5.2 | 2.2~8.6 | 2.75~11 |
BTU/h | 3753~14672 | 4436~11742 | 7336~29343 | 9383~37532 | |
COP Range | W/W | 3.6~13 | 3.6~13 | 3.6~13 | 3.6~13 |
Heating Capacity① | kW | 4.3 | 5.2 | 8.6 | 11.0 |
BTU/h | 14672 | 17742 | 29343 | 37532 | |
COP① A:30/W:28 | W/W | 6.2 | 6.2 | 6.2 | 6.2 |
Input Power① | kW | 0.69 | 0.84 | 1.39 | 1.77 |
Input Current① | A | 3.2 | 3.8 | 6.3 | 8.1 |
Heating Capacity② | kW | 4.3 | 5.2 | 8.6 | 11.0 |
BTU/h | 14672 | 17742 | 29343 | 37532 | |
COP② A:24/W:28 | W/W | 5.60 | 5.60 | 5.60 | 5.60 |
Input Power② | kW | 0.77 | 0.93 | 1.54 | 1.96 |
Input Current② | A | 3.5 | 4.2 | 7.0 | 8.9 |
Heating Capacity③ | kW | 4.3 | 5.2 | 8.6 | 11.0 |
BTU/h | 14672 | 17742 | 29343 | 37532 | |
COP③ A:15/W:28 | W/W | 4.8 | 4.8 | 4.8 | 4.8 |
Input Power③ | kW | 0.90 | 1.08 | 1.79 | 2.29 |
Input Current③ | A | 4.1 | 4.9 | 8.1 | 10.4 |
Heating Capacity④ | kW | 4.0 | 4.8 | 8.0 | 10.0 |
BTU/h | 13648 | 16378 | 27296 | 34120 | |
COP④ A:7/W:28 | W/W | 4.2 | 4.2 | 4.2 | 4.2 |
Input Power④ | kW | 0.95 | 1.14 | 1.90 | 2.38 |
Input Current④ | A | 4.3 | 5.2 | 8.7 | 10.8 |
Heating Capacity⑤ | kW | 3.6 | 4.3 | 7.2 | 9.2 |
BTU/h | 12283 | 14672 | 24566 | 31390 | |
COP⑤ A:0/W:28 | W/W | 3.72 | 3.72 | 3.72 | 3.72 |
Input Power⑤ | kW | 0.97 | 1.16 | 1.94 | 2.47 |
Input Current⑤ | A | 4.4 | 5.3 | 8.8 | 11.2 |
Heating Capacity⑥ | kW | 3.0 | 3.6 | 6.0 | 7.5 |
BTU/h | 10236 | 12283 | 20472 | 25590 | |
COP⑥ A:-7/W:28 | W/W | 3.16 | 3.16 | 3.16 | 3.16 |
Input Power⑥ | kW | 0.95 | 1.14 | 1.90 | 2.37 |
Input Current⑥ | A | 4.3 | 5.2 | 8.6 | 10.8 |
Compressor | Rotary | Rotary | Rotary | TWIN Rotary | |
Compressor Qty | 1 | 1 | 1 | 1 | |
Fan Qty | 1 | 1 | 1 | 1 | |
Noise | dB(A) | 48 | 48 | 48 | 52 |
Water Out let/Water In let | inch | 1–1/2" | 1–1/2" | 1–1/2" | 1–1/2" |
Water Flow Volume | m3/h | 3.68 | 3.68 | 3.68 | 5.44 |
Water Pressure Drop | kpa | 12 | 12 | 12 | 15 |
Fan Direction | horizontal | horizontal | horizontal | horizontal | |
Refrigerant Type | R32 | R32 | R32 | R32 | |
Unit Net Dimensions ( L/M/H ) | mm | 900/340/665 | 900/340/665 | 900/340/665 | 1040/410/765 |
Unit Shipping Dimensions ( L/M/H ) | mm | 1000/375/695 | 1000/375/695 | 1000/375/695 | 1088/495/685 |
Net Weight | kg | 50 | 55 | 60 | 75 |
Shipping Weight | kg | 54 | 59 | 64 | 79 |
Model(Plastic Shell) | MALCRW | 040ZAB1-R32 | 050ZAB1-R32 | 060ZAB1-R32 | 060ZASB1-R32 |
Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 |
Heating Capacity Range | kW | 4.38~17.5 | 5.25~21 | 6.45~25.8 | 5.25~21 |
BTU/h | 14928~59710 | 17913~71652 | 22007~88030 | 17913~71652 | |
COP Range | W/W | 3.6~13 | 3.6~13 | 3.6~13 | 3.6~13 |
Heating Capacity① | kW | 17.5 | 21.0 | 25.8 | 21.0 |
BTU/h | 59710 | 71652 | 88030 | 71652 | |
COP① A:30/W:28 | W/W | 6.2 | 6.2 | 6.2 | 6.2 |
Input Power① | kW | 2.82 | 3.39 | 4.16 | 3.39 |
Input Current① | A | 12.8 | 15.4 | 18.9 | 5.2 |
Heating Capacity② | kW | 17.5 | 21.0 | 25.8 | 21.0 |
BTU/h | 59710 | 71652 | 88030 | 71652 | |
COP② A:24/W:28 | W/W | 5.60 | 5.60 | 5.60 | 5.60 |
Input Power② | kW | 3.13 | 3.75 | 4.61 | 3.75 |
Input Current② | A | 14.2 | 17.0 | 20.9 | 5.7 |
Heating Capacity③ | kW | 17.5 | 21.0 | 25.8 | 21.0 |
BTU/h | 59710 | 71652 | 88030 | 71652 | |
COP③ A:15/W:28 | W/W | 4.8 | 4.8 | 4.8 | 4.8 |
Input Power③ | kW | 3.65 | 4.38 | 5.38 | 4.38 |
Input Current③ | A | 16.6 | 19.9 | 24.4 | 6.7 |
Heating Capacity④ | kW | 16.7 | 19.5 | 23.5 | 19.5 |
BTU/h | 56980 | 66534 | 80182 | 66534 | |
COP④ A:7/W:28 | W/W | 4.2 | 4.2 | 4.2 | 4.2 |
Input Power④ | kW | 3.98 | 4.64 | 5.60 | 4.64 |
Input Current④ | A | 18.1 | 21.1 | 25.4 | 7.1 |
Heating Capacity⑤ | kW | 14.4 | 17.5 | 21.0 | 17.5 |
BTU/h | 49133 | 59710 | 71652 | 59710 | |
COP⑤ A:0/W:28 | W/W | 3.72 | 3.72 | 3.72 | 3.72 |
Input Power⑤ | kW | 3.87 | 4.70 | 5.65 | 4.70 |
Input Current⑤ | A | 17.6 | 21.4 | 25.7 | 7.2 |
Heating Capacity⑥ | kW | 12.0 | 15.0 | 18.0 | 15.0 |
BTU/h | 40944 | 51180 | 61416 | 51180 | |
COP⑥ A:-7/W:28 | W/W | 3.16 | 3.16 | 3.16 | 3.16 |
Input Power⑥ | kW | 3.80 | 4.75 | 5.70 | 4.75 |
Input Current⑥ | A | 17.3 | 21.6 | 25.9 | 7.2 |
Compressor | TWIN Rotary | TWIN Rotary | TWIN Rotary | TWIN Rotary | |
Compressor Qty | 1 | 1 | 1 | 1 | |
Fan Qty | 1 | 1 | 1 | 1 | |
Noise | dB(A) | 54 | 54 | 54 | 54 |
Water Out let/Water In let | inch | 1–1/2" | 1–1/2" | 1–1/2" | 1–1/2" |
Water Flow Volume | m3/h | 7.38 | 9.21 | 9.21 | 9.21 |
Water Pressure Drop | kpa | 15 | 16 | 16 | 16 |
Fan Direction | horizontal | horizontal | horizontal | horizontal | |
Refrigerant Type | R32 | R32 | R32 | R32 | |
Unit Net Dimensions ( L/M/H ) | mm | 1180/450/865 | 1180/450/865 | 1180/450/865 | 1180/450/865 |
Unit Shipping Dimensions ( L/M/H ) | mm | 1280/505/895 | 1280/505/895 | 1280/505/895 | 1280/505/895 |
Net Weight | kg | 103 | 110 | 125 | 110 |
Shipping Weight | kg | 110 | 117 | 132 | 117 |
