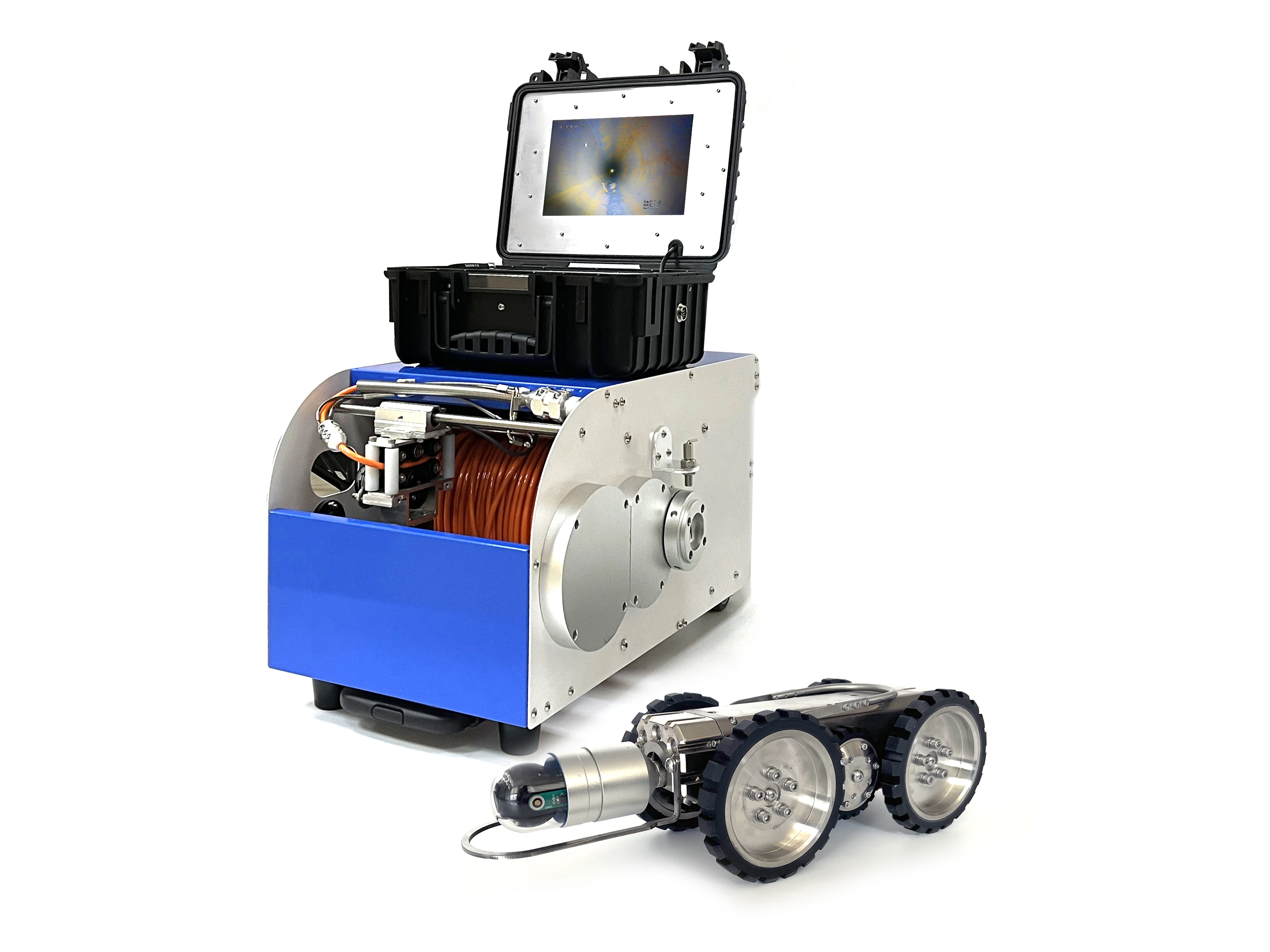

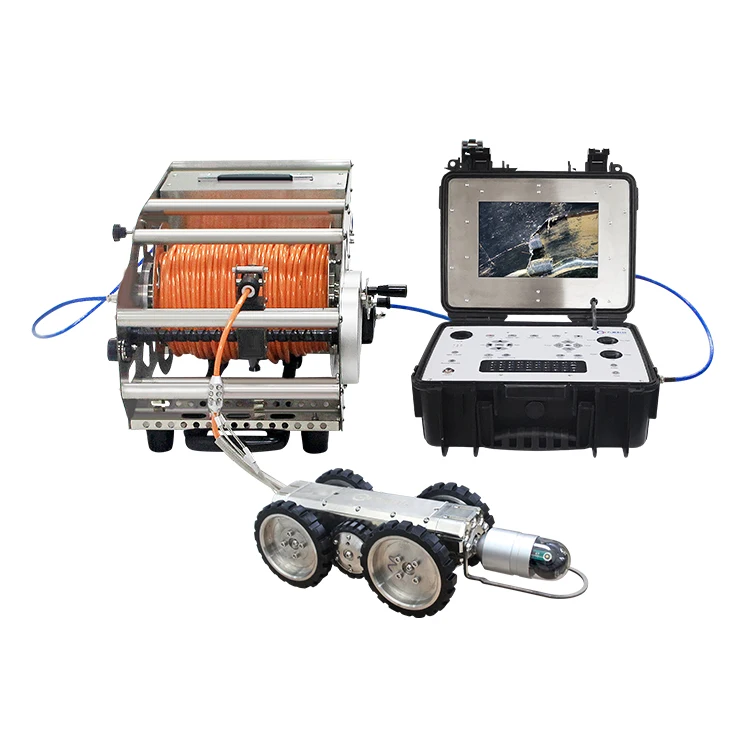

Jiutai CCTV Sewer Drain Pipe Video Inspection System ROV Crawler Robot Camera
- Category: >>>
- Supplier: Zhengzhou Jiutai Technology Co. Ltd.
Share on (1600216534710):
Product Overview
Description
Jiutai CCTV Sewer Drain Pipe Video Inspection System ROV Crawler Robot Camera
Product Description

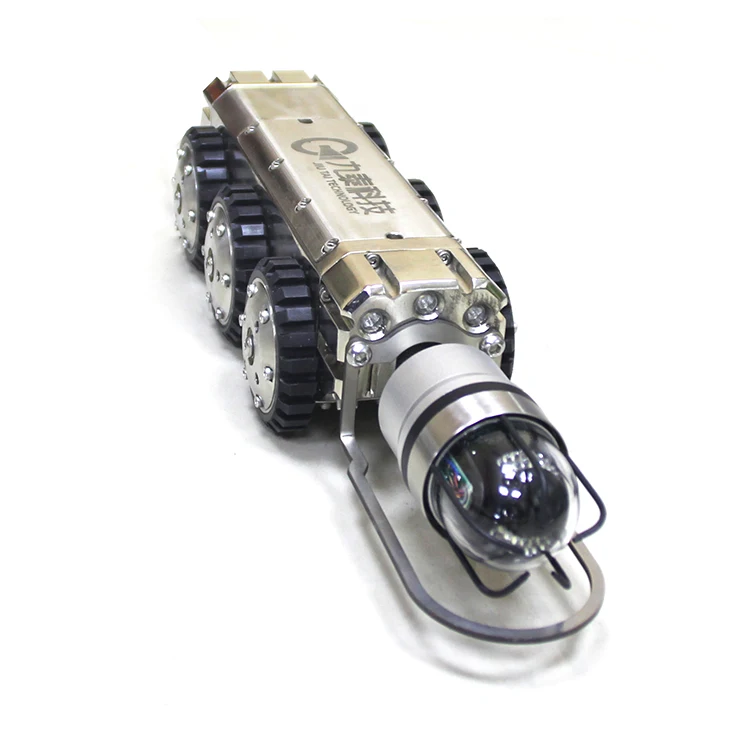

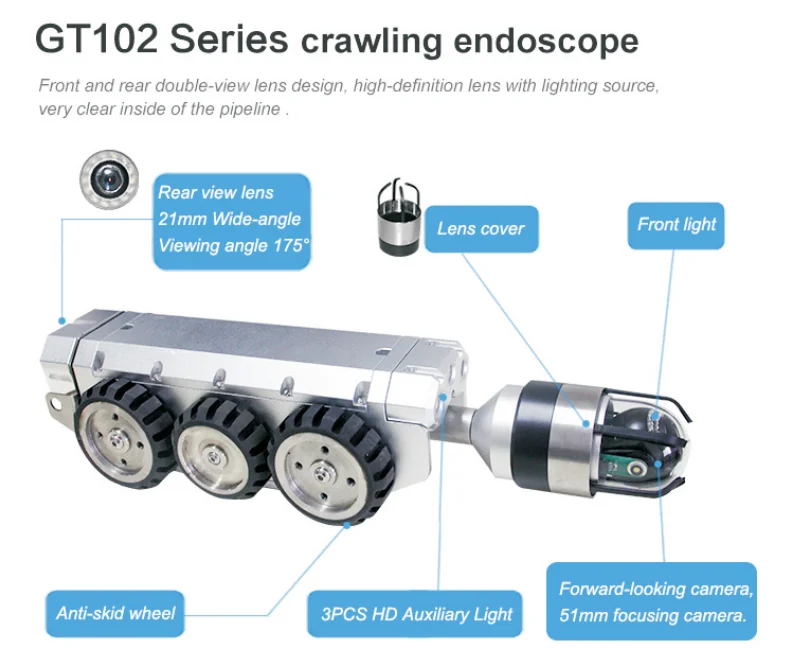

GT102 Pipe inspection robot
Electrical crawlerAuto fucusing,NIGHT VISION, PAN-TILT Camera Head
Suitable for 100-600mm pipe inspection camera
Electrical crawlerAuto fucusing,NIGHT VISION, PAN-TILT Camera Head
Suitable for 100-600mm pipe inspection camera

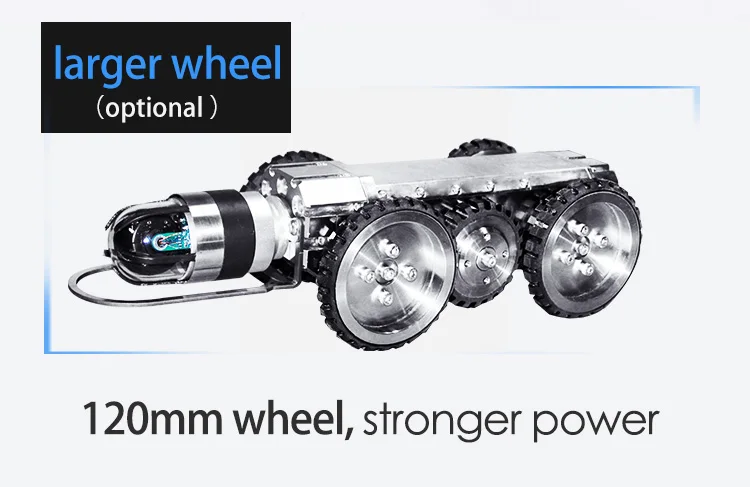

Wheel: 73mm/120mm optional
Stronger power
Pipe Inspection Cralwers Technical Feature:
* 1. Waterproof ,anti-corrosion,can be used in different place.
* 2. Forward ,backward,turn freely and adjustable speed.
* 3. With ambient light and adjustable illumination.

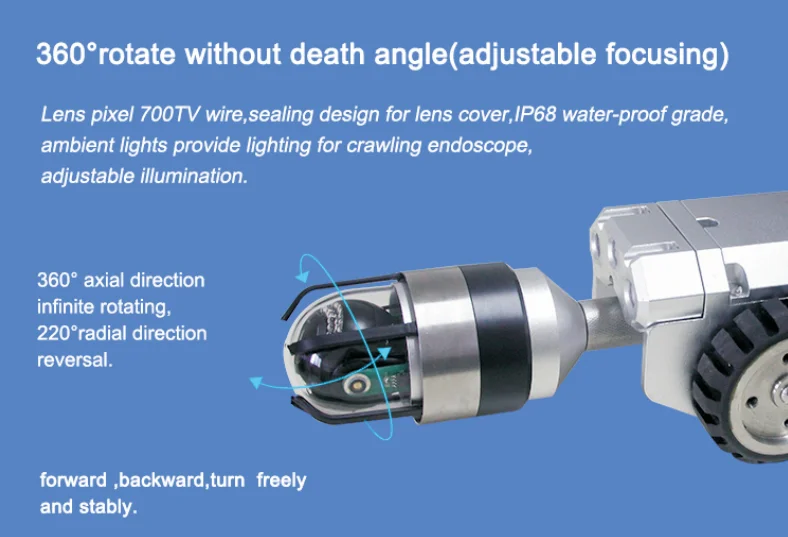

* 4.360 degree rotate, 220 degree flip

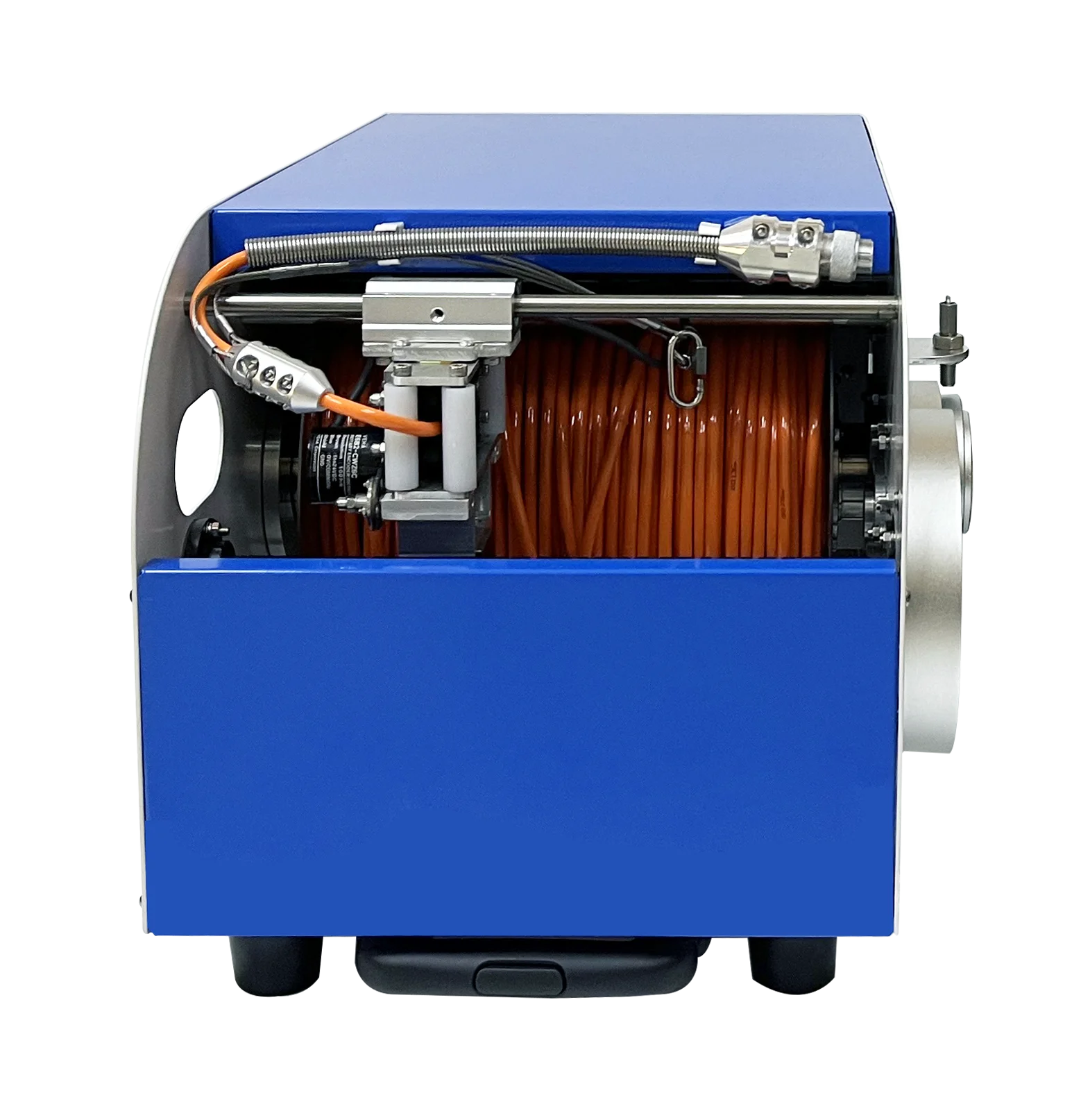

* 5. Electrical Barrow, automotical and manual operation reel
* 6. DIP, Meter counter, Pressure data are shown on the monitor
* 7. Video can be storage and replay on the control box .
* 8. 512 HZ is customized
* 9.Inspection Report is customized.
* 1. Waterproof ,anti-corrosion,can be used in different place.
* 2. Forward ,backward,turn freely and adjustable speed.
* 3. With ambient light and adjustable illumination.
* 4.360 degree rotate, 220 degree flip
* 5. Electrical Barrow, automotical and manual operation reel
* 6. DIP, Meter counter, Pressure data are shown on the monitor
* 7. Video can be storage and replay on the control box .
* 8. 512 HZ is customized
* 9.Inspection Report is customized.
Specification
Screen size | 10.1 Inch HD monitor |
Camera Diameter | 51mm |
Resulotion | 1920*1080P |
Data shown | Meter , DIP, Pressure |
Wheel | 73mm/120mm replaceable |
Waterproof | IP68 waterproof |
Camera pixel | 2 MGP |
Camera qty | front and rear double |
Rotate | 360° infinite rotate,220° constant flip |
Reel | Electrical barrow |
Function | Auto focusing |
Application | Pipe inner weld inspection |
Suitable for pipe diameter | 100mm-600mm |
Cable | 100m(standard)-customized |
Memory card | 32G |
Warranty period | 1 years |
MOQ | 1 |
Standard Features on All Products
1. All products have undergone strict testing. From development to production, we make every product with our hearts.
2. Strict product quality management to ensure that every product is safe and of high quality.
1. All products have undergone strict testing. From development to production, we make every product with our hearts.
2. Strict product quality management to ensure that every product is safe and of high quality.

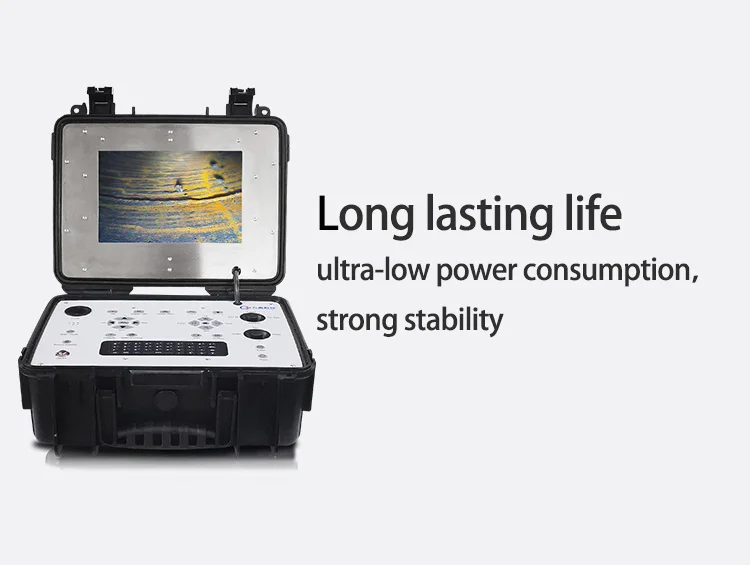

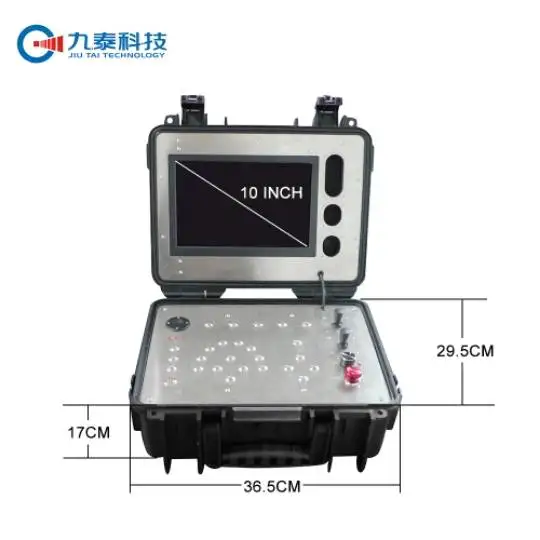

1.10 inch screen .large monitor
2.2 megapixel ,industrial pixel
3.220V 50 HZ, or customized
4.resolution:1920*1080P
5.Meter counter, DIP , waterproof data shown on the monitor
6. Camera reset, meter counter reset.
7.Language customized
Company Profile
Zhengzhou JiuTai Technology Co.ltd is a high-tech enterprise specializing in research and development, production, sales of endoscopes in the industrial and providing customized solutions for customers , established in 2010. Our company focuses on the international high industrial technology,up to now company apply for more than 60 patents,many technology are in the leading position in the world.Get the certificate of high-tech enterprises in 2016.At same time company registrated many software copyrights.
Since the company established has been successful in many endoscope series, such as industrial pipe
endoscope series,vessel endoscope series,car endoscope series,crawling robot series,Police endoscope series,wind power vane inspection series. Among these, Especially, GT series endoscopes and crawling robots are famous for their high technology,portable, easy operation,clear images, high efficiency and durability.it is very popular in customers at home and abroad, such as Sinopec, Petro China, China Five Power Generation Groups etc. Related industry such as technical supervision,energy power,petrochemical,ship construction,rail traffic,food and drug,municipal administration etc.
Since the company established has been successful in many endoscope series, such as industrial pipe
endoscope series,vessel endoscope series,car endoscope series,crawling robot series,Police endoscope series,wind power vane inspection series. Among these, Especially, GT series endoscopes and crawling robots are famous for their high technology,portable, easy operation,clear images, high efficiency and durability.it is very popular in customers at home and abroad, such as Sinopec, Petro China, China Five Power Generation Groups etc. Related industry such as technical supervision,energy power,petrochemical,ship construction,rail traffic,food and drug,municipal administration etc.
Installation Instructions

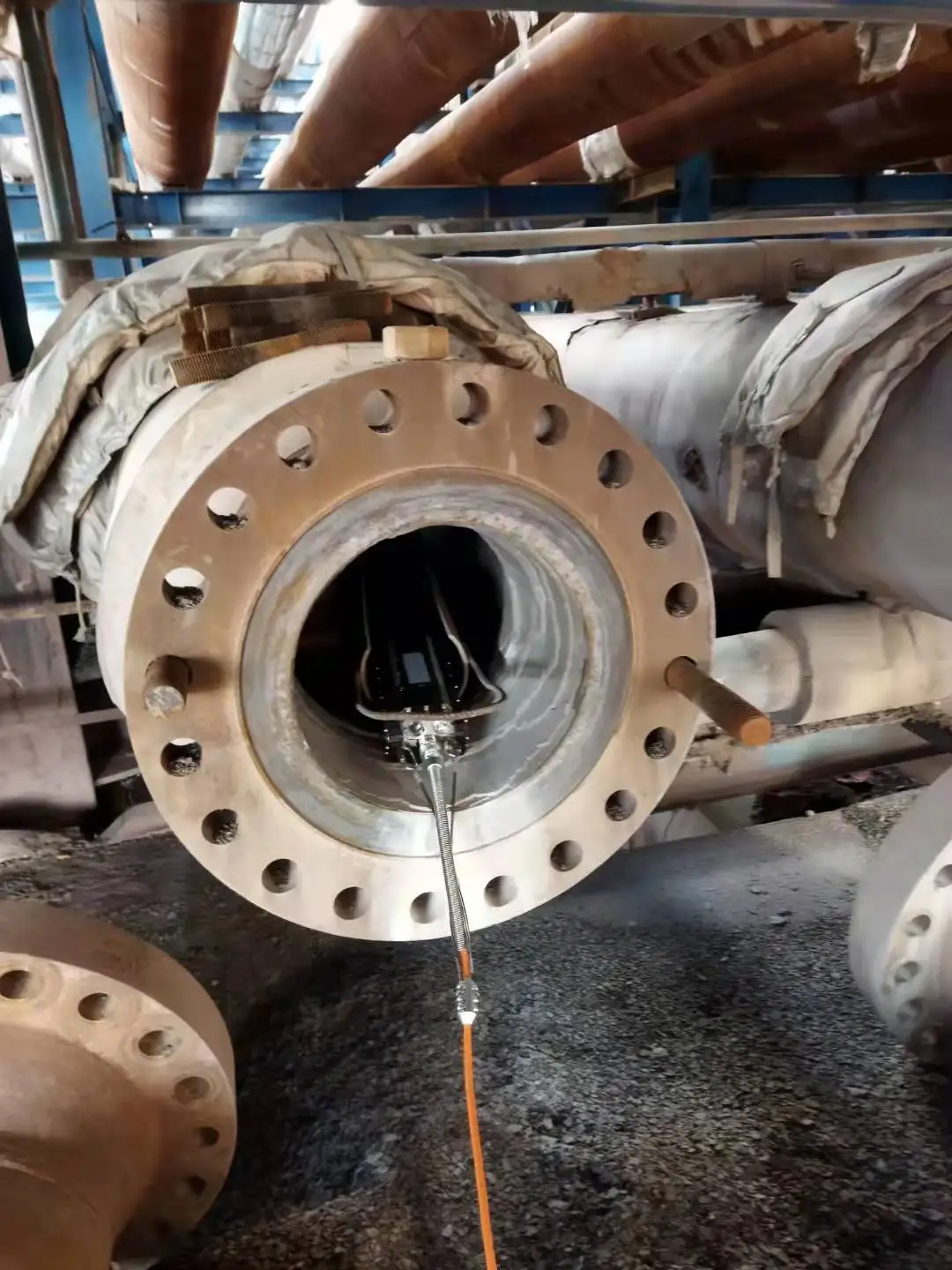

Pipe Inspection Cralwers Application:

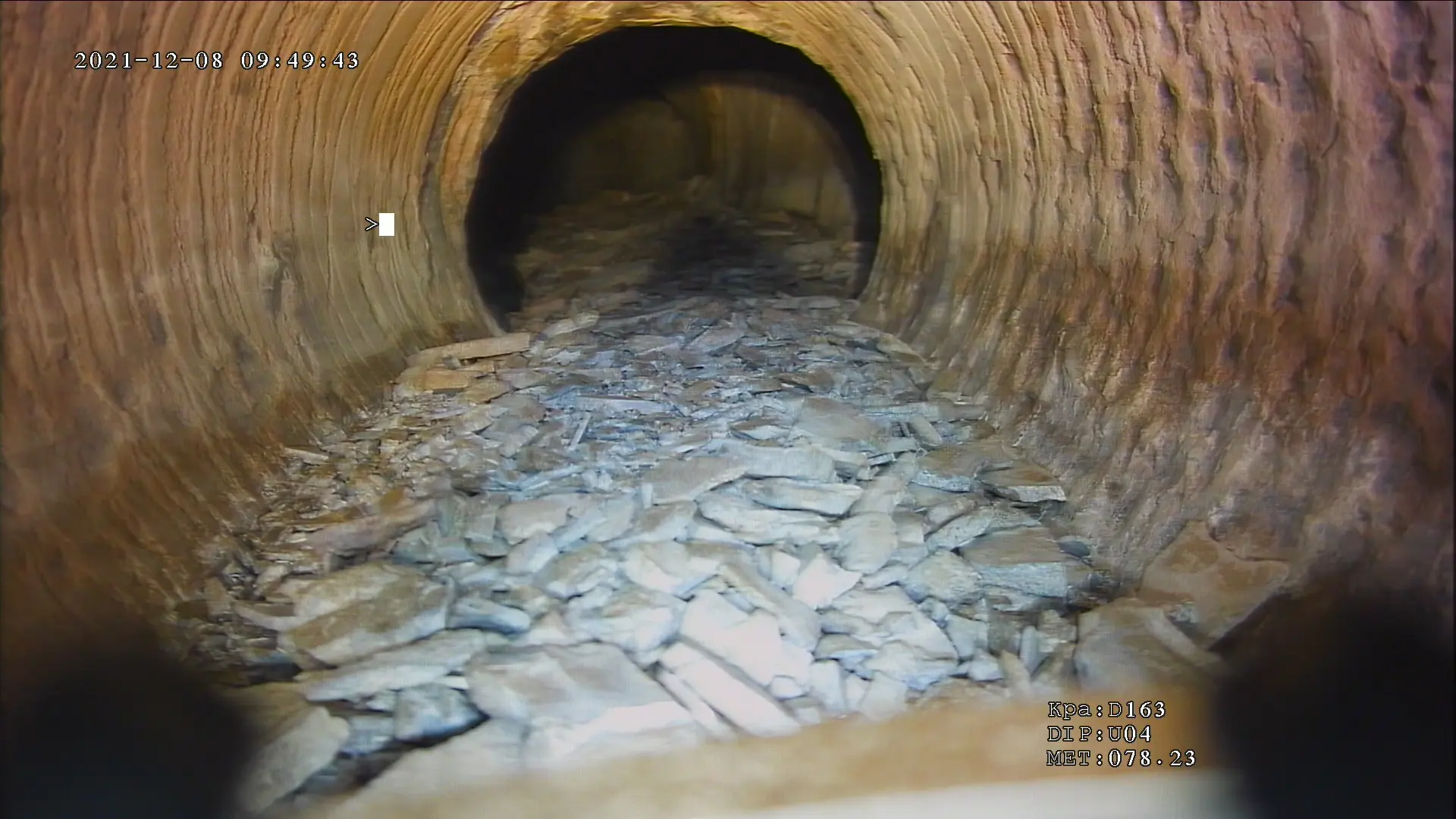

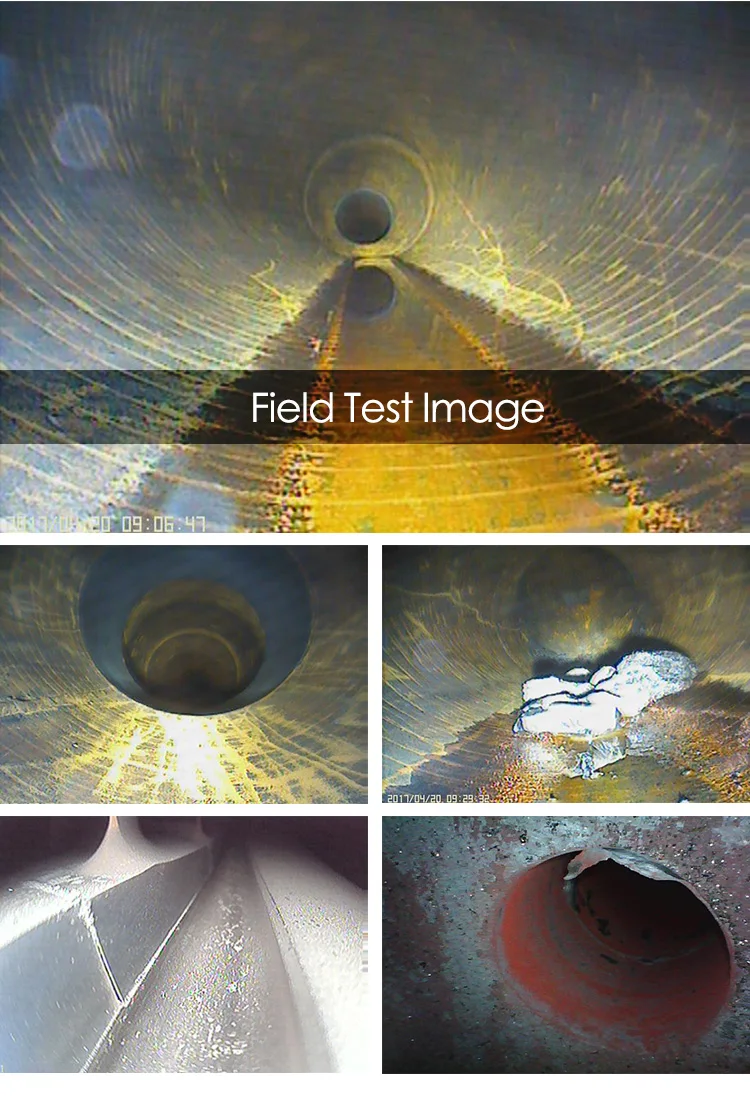

* This Pipe Inspection Crawler is suitable for pipe diameter120-600mm,with max cable 200m. This sewer camera can go into the pipe to check the inner pipe condition,such as cracks, defects, damage detection, blockage ,and so on. This sewer crawler is widely used in many field ,such as Gas pipe, Oil pipe, petroleum, chemical industry, nuclear power, high corrosion pipeline video detection.
* This Pipe Inspection Crawler is suitable for pipe diameter120-600mm,with max cable 200m. This sewer camera can go into the pipe to check the inner pipe condition,such as cracks, defects, damage detection, blockage ,and so on. This sewer crawler is widely used in many field ,such as Gas pipe, Oil pipe, petroleum, chemical industry, nuclear power, high corrosion pipeline video detection.

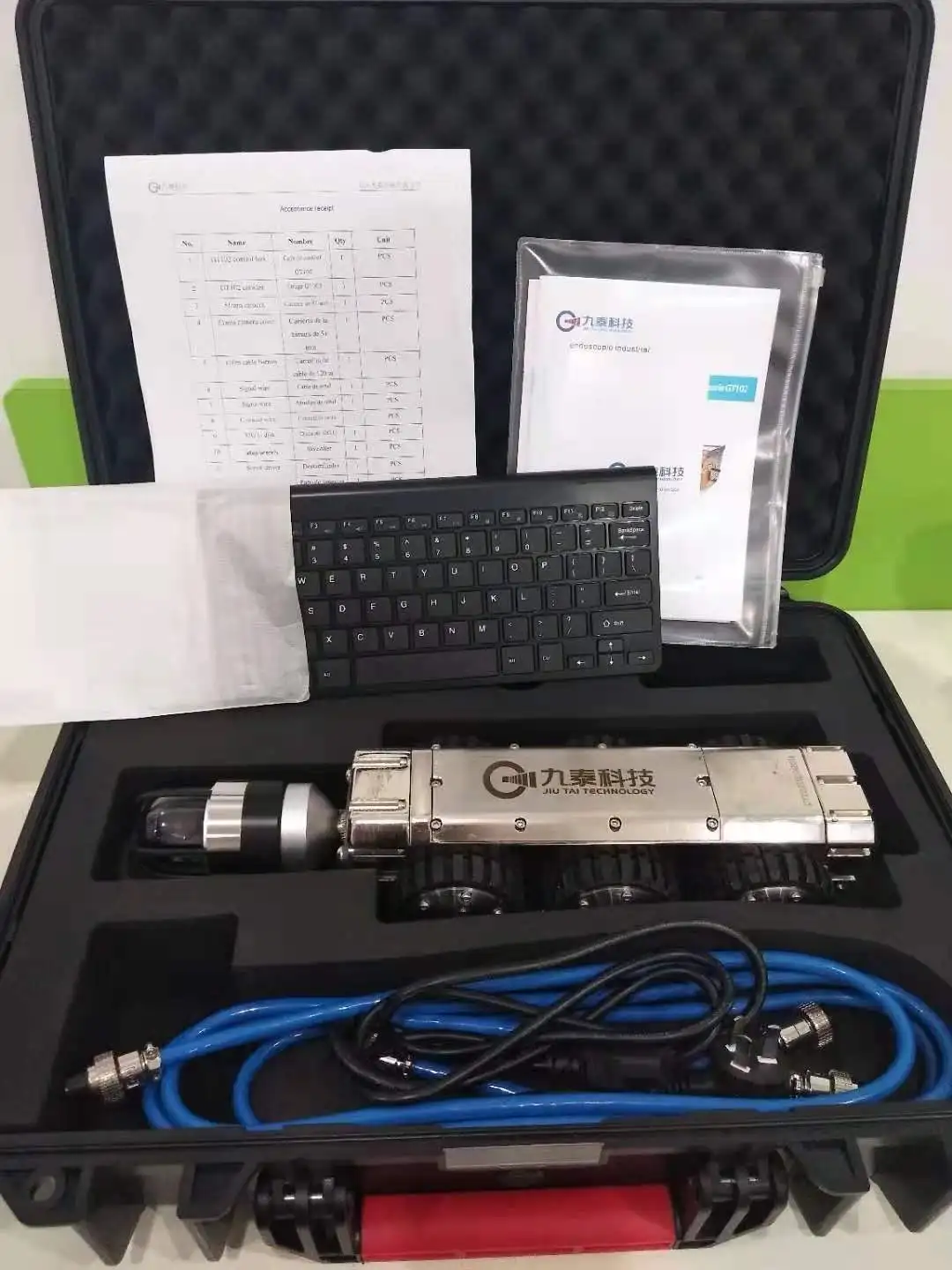

Product packaging
We can Provide Various Packaging Design and Customization Services for Free Customers can customize different packaging types according to their own requirements, of course, there are MOQ requirements. For details, please consult our staff. Whether it is simple and cheap packaging, carton boxes, wooden box etc., we can provide them.
Our Customers
Why Choose Us
Our service
Order Process and Synchronized Information ServicesWe will synchronize the production progress of the order to the customer, so that the customer can know the production status of the order at any time.
1.We can accept Factory Audit requirements from third parties or customers.
2.We can accept Order Inspection requirements from third parties or customers.
3.In-depth technical cooperation, Project research and development is welcome.
4.Provide cost-effective transportation channels (of course customers can choose their own shipping forwarders).
After-Sales Service
1. Warranty period: 12 months. During the warranty period, we will provide repair, replacement parts and other services for any problems.
2.Force majeure risk: double consultation.
3. Human-induced damage: not covered by the warranty.
FAQ
1. Why choose us?
We are factory directly sales,Set R & D, production, sales, warranty one-stop service.so we will give you the best price and aftersale service. OEM&ODM. We can customize the products as your requirement.
We are factory directly sales,Set R & D, production, sales, warranty one-stop service.so we will give you the best price and aftersale service. OEM&ODM. We can customize the products as your requirement.
2. What is the advantage of your products?
We are professional manufacturer in this field with lots of years R&D and market research experience.
We are professional manufacturer in this field with lots of years R&D and market research experience.
3. What can you buy from us?
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera.Borehole water well camera.Manhole camera.
Pipe inspection camera,CCTV Sewer crawler robot,Videoscope camera,Portable Push rod camera.Borehole water well camera.Manhole camera.
4. What is your MOQ?
No limited,Big order or sample all accepted in our company.
No limited,Big order or sample all accepted in our company.
5. What is the warranty?
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
We provide 1-2 years warranty after shipment date. Support one year remote warranty service (fault diagnosis, online guidance, parts delivery, etc.)
6. What's your delivery time?
Around 7-20 working days according to exact order quality and stock situation.
Around 7-20 working days according to exact order quality and stock situation.
7. What's payment methods i can choose?
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
