2021 New business cheap soil block maker interlock bricks making machine automatic
1>This type of machine is is suitable to make solid clay brick, red clay brick, red soil standard bricks, red mud brick etc, different molds can bring out different brick.
2>The material is rich and easy to find, such as clay, shale, coal slack, fly ash etc It is very convenient to set up a factory and begin to make bricks.
3>This machine has advantages of high production efficiency, compact structure, reliable performance, easy maintenance and steadily working without foundation bolt.

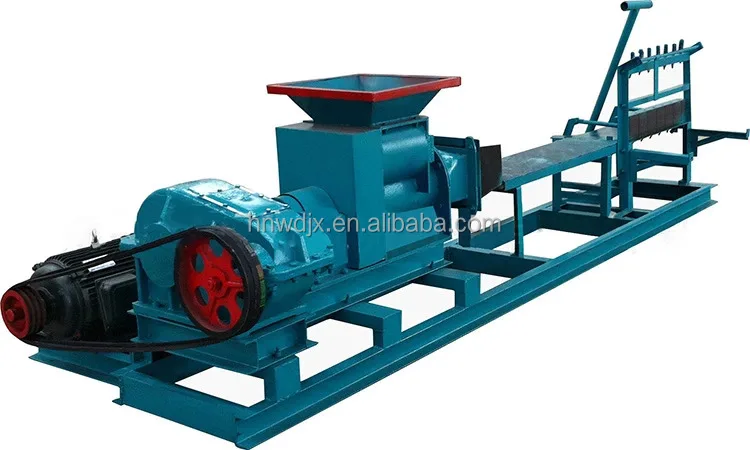

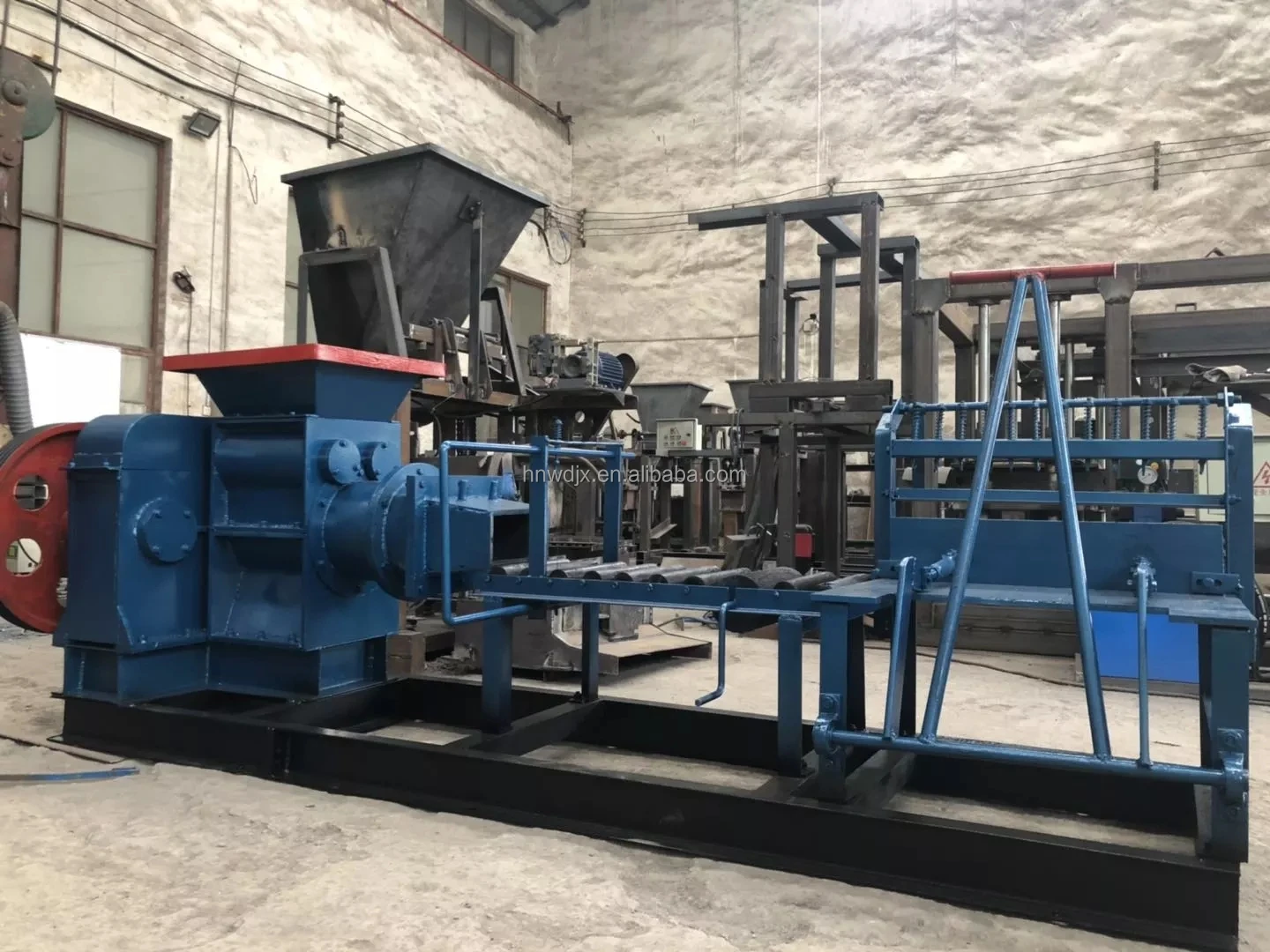

JZ250 High quality clay mud brick making machine can produce solid bricks of clay, such as 240×115×53(mm). It consists of 3 parts, including the main machine, the block table, and the cutting table. Its auxiliary equipment is the mixer. Its daily production is 10000 pieces. Its total power is 11 KW.
This machine is suitable for small brick factory. The disadvantage is that the hollow brick can not be produced, the advantage is that the operation is very simple and the price is low.
| Type | JZ250 |
| The configuration of power(kw) | 11 |

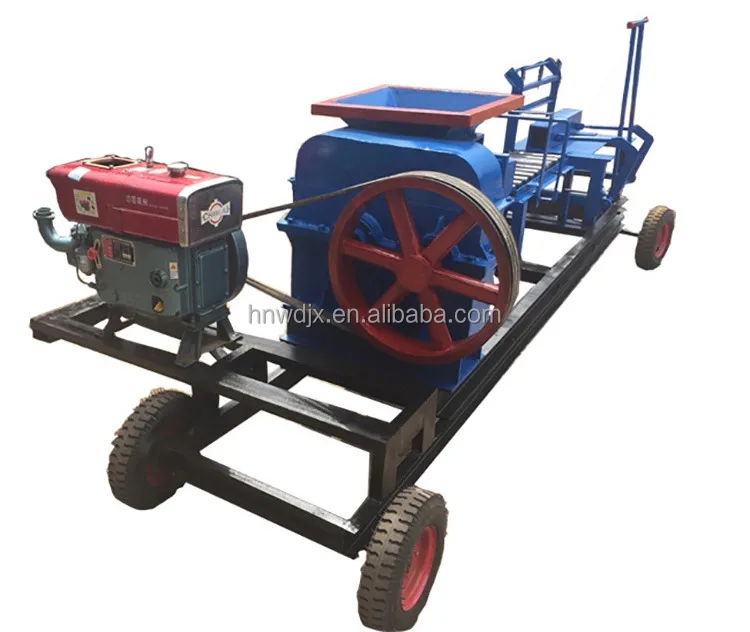

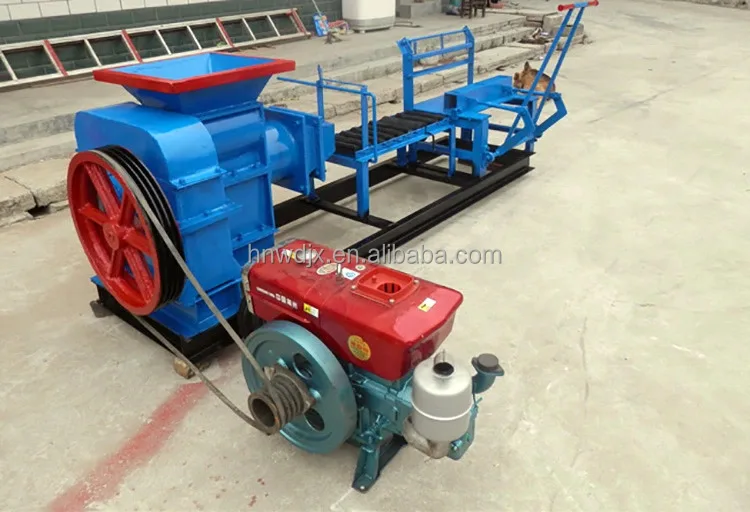

| Power Engine | Electric or Diesel |
| Products | Solid Bricks |
| Daily production | 10000 pcs /8 hours |
| Boundary dimention(mm) | 3000*1100*1300 |
| Weight(kg) | 870 |
1.Full Automatic Brick Making Machine reasonable and compacted, it can work steadily without foundation bolts, so it is easier in installation.
2.the steel material of shafts and gears adopt high quality carbon steel and alloy steel, the key parts are quenched and tempered treated so as to extend the life.
3.Augers are adopt wear- resistance metal spray painting treatment.
4.All machinery adopted spiral pressure clutch (patent) which have high sensitivity and declutching thoroughly.
5.Full Automatic Brick Making Machine use electric clutch to make operation more convenient.
6.Full Automatic Brick Making Machine adopt copper bracket bearing and immerging lubrication method.
7.Reducers adopt hardened face gears.
Clay brick machine is the smallest models brick extruders.
It is widely used in small family brick owners.Suitable for family workshops.
Also, its compact design makes machine operation very easily.

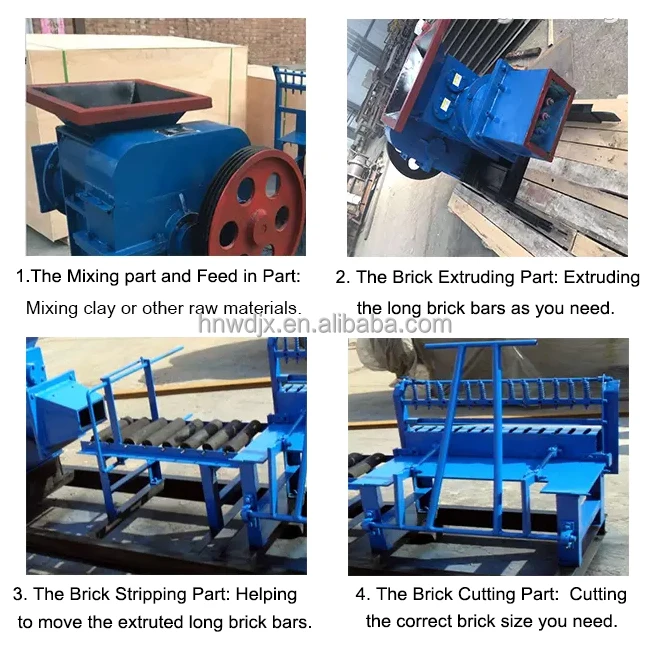

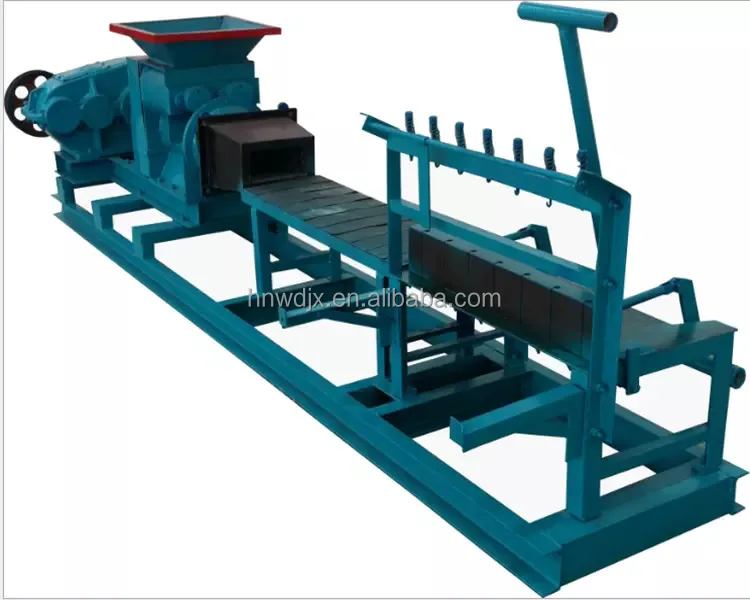

The whole machine is composed of Mud-mixer, Bar-cutter, Brick-cutting Lathe. The power enters from the head of the axis after the flat pulley and gears slow their speed. The earth with moderate humidity will be put into the hopper from the upper part of Mud-mixer, and fall into the Mud vat after it is crushed down, then it is puddled by Screw in the vat and put forwards. At last it is squeezed into standard mud bar from the entrance. Under the drive of the Screw, the mud bar enters into Bar-cutter and goes ahead on its board. When it comes to the proper place, the pull pole of the Bar-cutter is pulled to cut mud bar. When the cut mud bar comes to the right place of the brick-cutter, the control pole of the brick-cutter is held down to make the mud bar move on the slab ; so the mud bar is cut into standard brick, and then come to Brick-receiver.

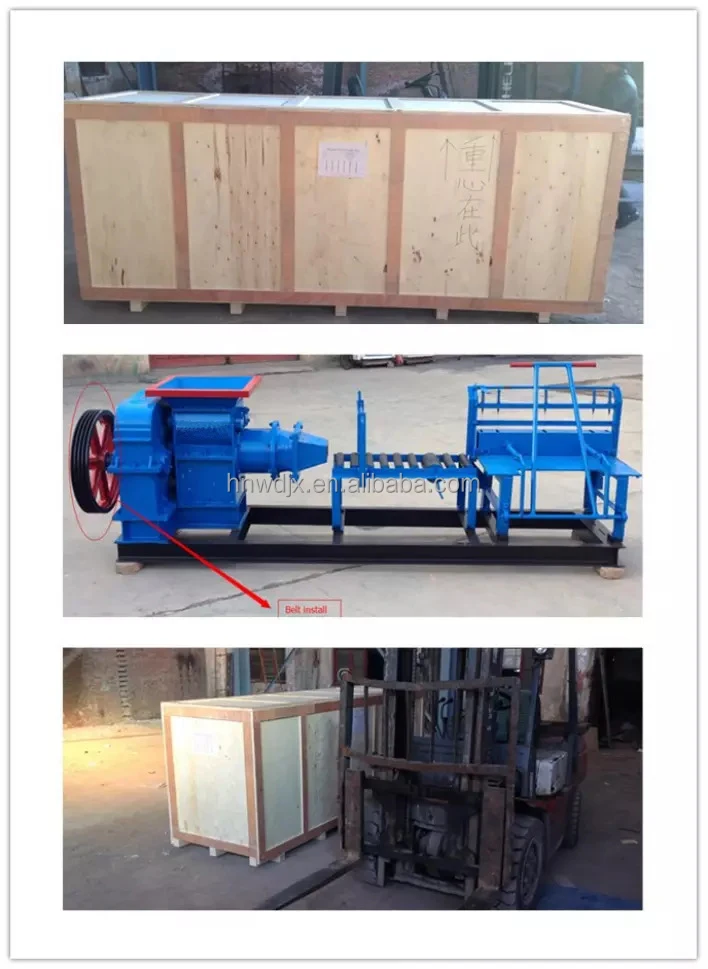

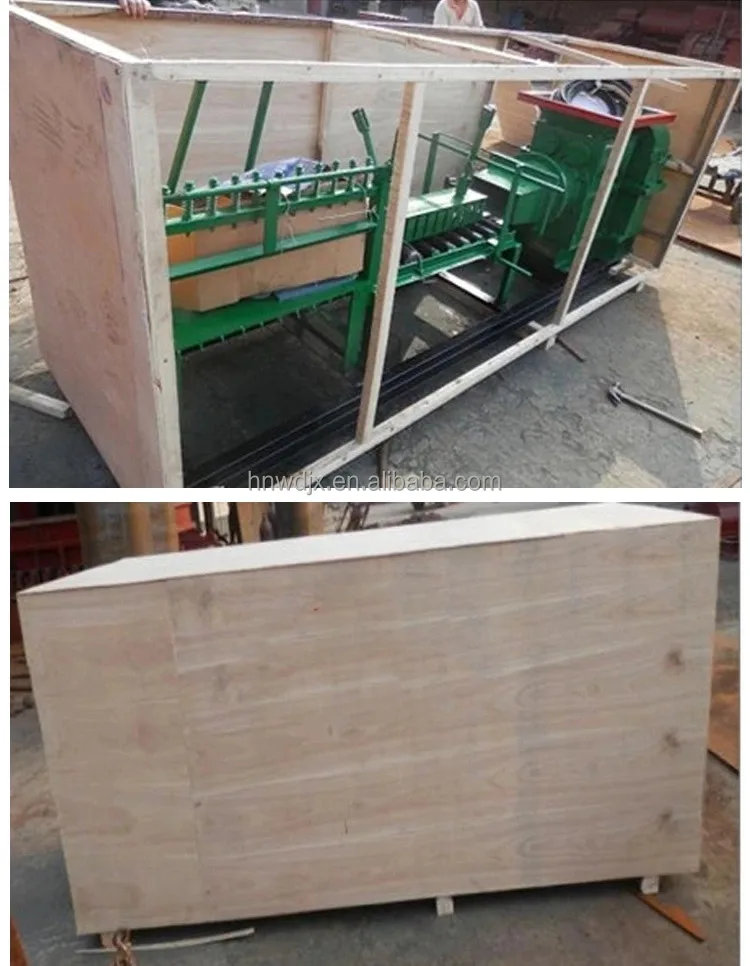

Packaging Details:
1.Standard export packing or according to customer`s requirements.
2.use crane/forklist to load the machines into the container.
3.use the wire to fasten the machines in order to keep them stable.
4.use the cork wood forbid collision.
Our Services
Before-sale services:
(1)Guide customers to choose the best appliable machine type; provide the advanced, energy
-saving and practical technological process.
(2) We are responsible for the process chart and design.
Sale services:
(1)Products must be inspected strictly before selling;
(2)In accordance with the agreements stipulated in the contract.
(3)We will organize delivery.
After-sale services:
(1)Our company will send professional engineers to guide with device installation, debugging and training operators until customers are fully satisfied. Moreover, we will design and manufacture products, according to the special requirements of customers.
(2)The quality guarantee period for machines is one year except the wearing parts.
