48v 96v 192v 40a 60a 100a mppt external display solar charger controller
- Category: >>>
- Supplier: Yangzhou Lecuso New Energy Co. Ltd.
Share on (1600216600603):
Product Overview
Description
48v 96v 192v 40a 60a 100a mppt external display solar charger controller
Product Description

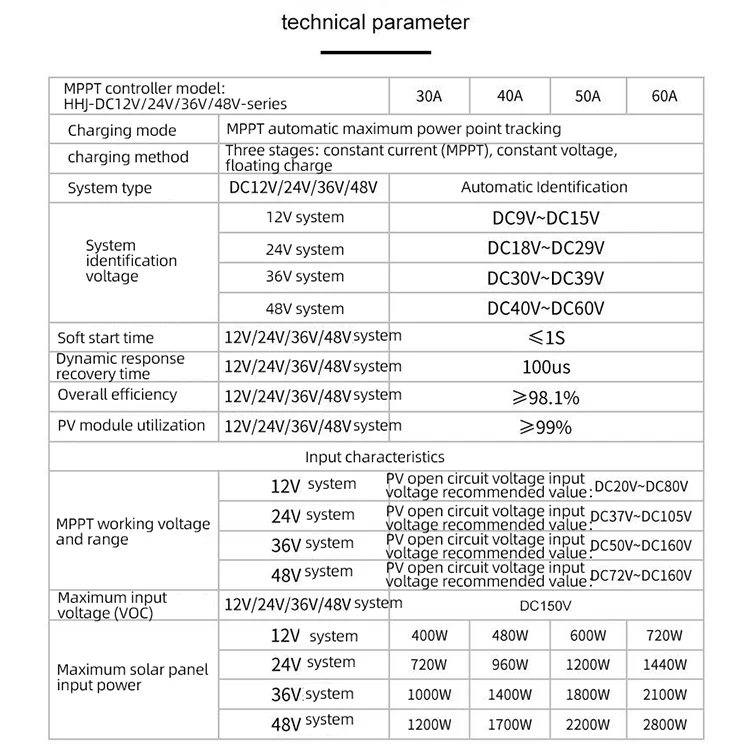

Model | MPPT-40A | MPPT-60A | |||||||||
Maximum power current | 40A | 60A | |||||||||
Battery Voltage | 12V/24V/36V/48V Auto | ||||||||||
Max PV Input Power | 12V-480W ; 24V-960W 36V-1400W ; 48V-1700W | 12V-720W ; 24V-1440W 36V-2100W ; 48V-2800W | |||||||||
Max PV input voltage(Voc) | 12V System (20~80V) ; 24V System(37-105V) 36V System(50~160V) ; 48V System(72~160V) | ||||||||||
Over charging protection voltage | 30V | 800W | 1100W | 60V | 3200W | ||||||
Limited current protection | 42A | 2Kg | 2Kg | 61A | 3.6Kg | ||||||
Terminal | 10AWG(8mm2) | 10AWG(10mm2) | |||||||||
Weight | 1.4Kg | ||||||||||
Specification
Features :
100% MPPT controller
1.Intelligent Maximum Power Point Tracking technology
2.Built-in DSP controller with high performance
3.Automatic battery voltage detection 12V/24V/36V/48V
4.Three-stage charging optimizes battery performance

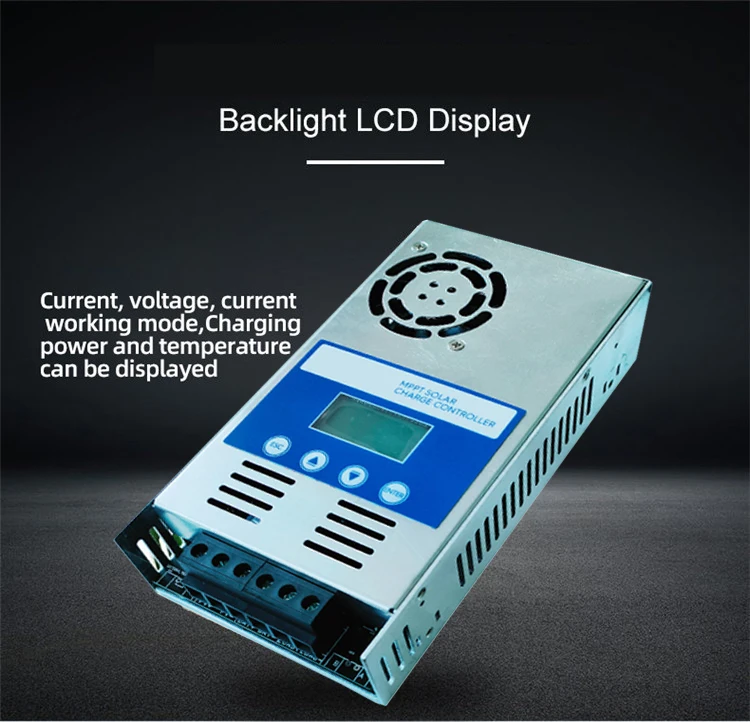

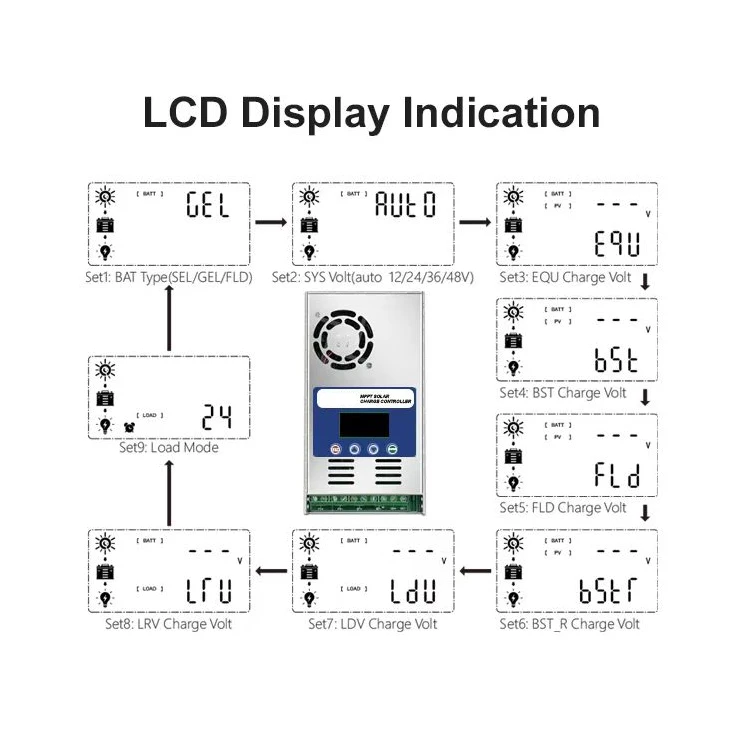

5.Multi-function LCD displays
6.Reverse polarity protection of solar panel
7.Overcharge protection
8.Can be mounted easily
9.Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if
connecting to other loads. The output for battery is no polarity reverse protection.
100% MPPT controller
1.Intelligent Maximum Power Point Tracking technology
2.Built-in DSP controller with high performance
3.Automatic battery voltage detection 12V/24V/36V/48V
4.Three-stage charging optimizes battery performance
5.Multi-function LCD displays
6.Reverse polarity protection of solar panel
7.Overcharge protection
8.Can be mounted easily
9.Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
Notes: The output terminal is for lamp only ( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if
connecting to other loads. The output for battery is no polarity reverse protection.
Company Profile
FAQ
Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. What about the lead time?
A: Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly,We arrange the production.
Q3. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.
Q4. How about the shipping method ?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q6. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
will repair them and resend them to you or we can discuss the solution including re-call according to realsituation.
