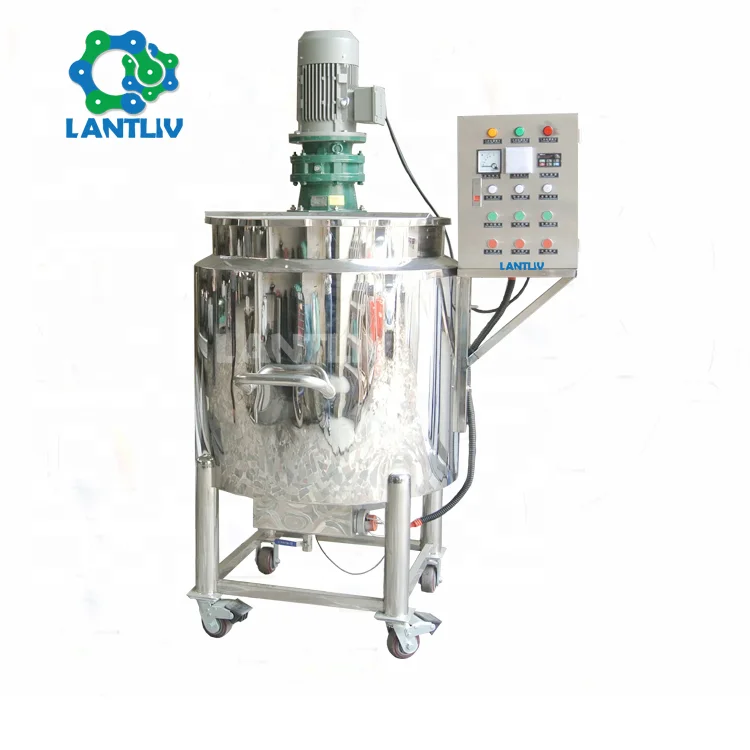

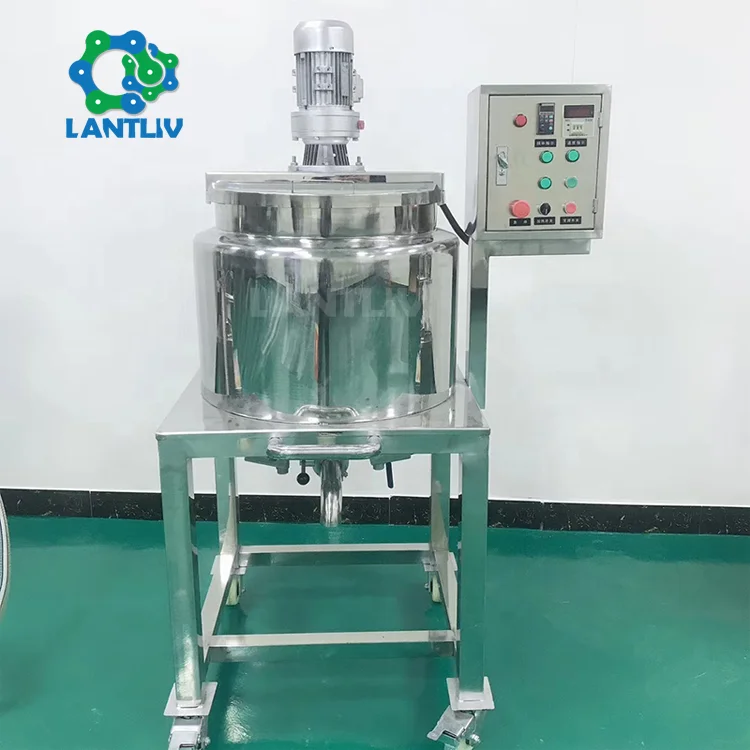

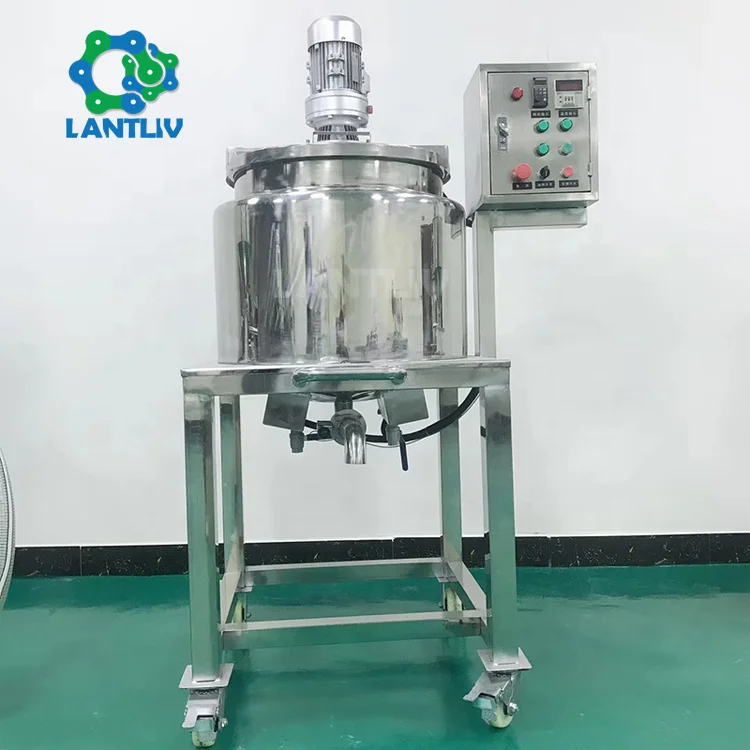

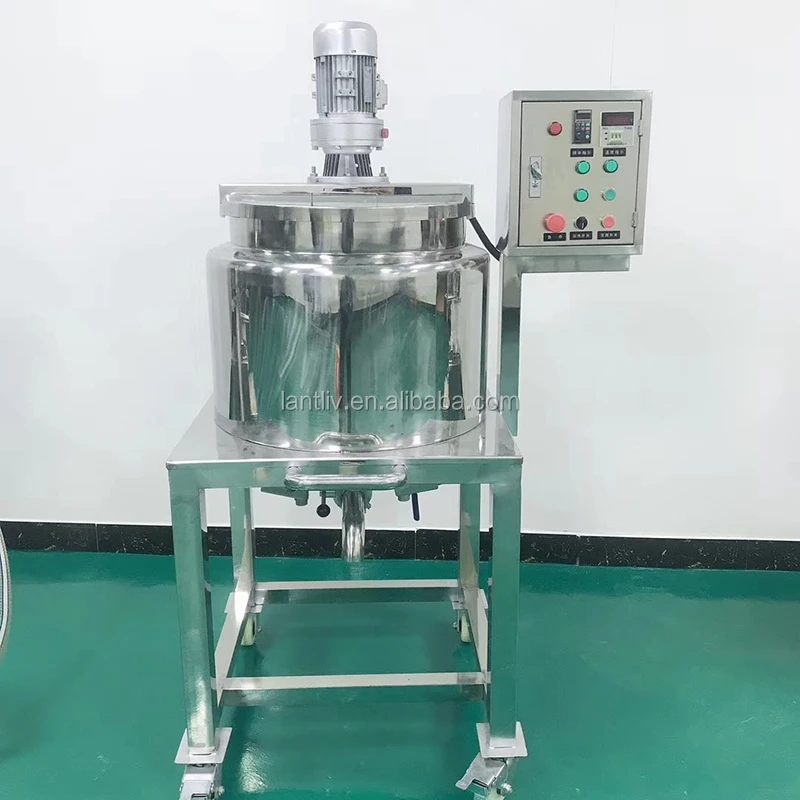

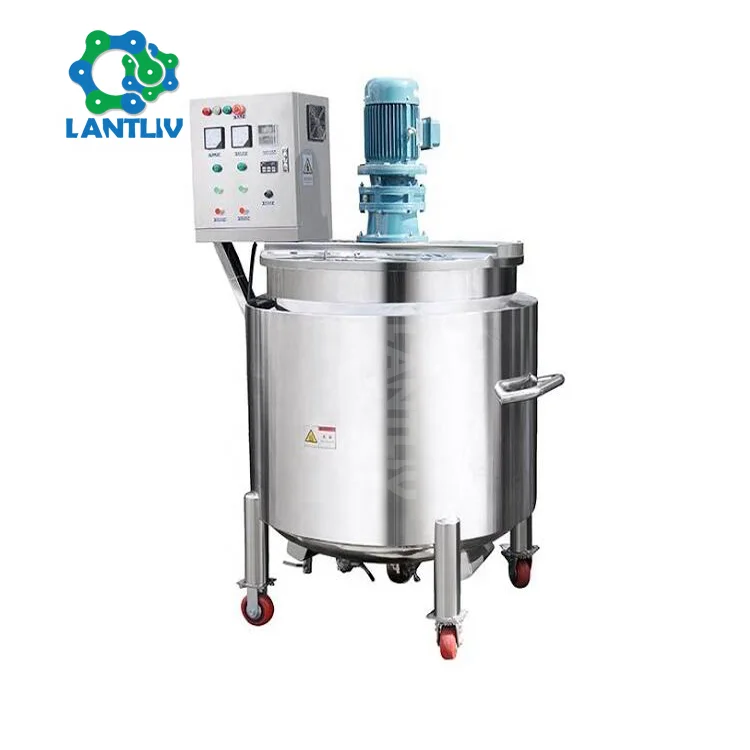

Hot Selling Liquid Paste Cosmetic Production Equipment Mixing Tank Small Detergent Fluid Mixer Body Lotion Cream Making Machine
- Category: Cosmetics Production Equipment >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (1600216855370):
Product Overview
Description
Product Description
The mixing tank is available for manufacturing liquid products(such as detergent, shampoo, shower gel, etc.) it integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the idea equipment for liquid products in domestic and international factories.
Features:
1. The mixing system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement.2. Frequency conversion speed adjustment.
3. Material can be heated or cooled according to your formula (technological requirements).
4. Electric heating or steam heating.
5. Various forms of blending vanes are suitable for production of different types of products.
6. Made of imported sus304 or sus316L.
7. Bottom installation type dispersing head and pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.
9. High-speed homogenizer strongly mixed decentralized thick, solid, liquid.
Technical Parameters
Effective capacity | Agitator power and speed | Homogenizer power and speed | Heating power | ||||||
Capcity | KW | R/MIN | KW | R/MIN | Electric heating | Steam heating | |||
50 | 0.75 | 0-65 | 3 | 3600 | 6 KW | Steam heating energy conservation and environmental protection, selected according to need | |||
100 | 1.5 | 0-65 | 1.5 | 3600 | 12 KW | ||||
150 | 1.5 | 0-65 | 1.5 | 3600 | 12 KW | ||||
200 | 1.5 | 0-65 | 3 | 3600 | 18 KW | ||||
300 | 1.5 | 0-65 | 3 | 3600 | 18 KW | ||||
500 | 2.2 | 0-65 | 4 | 3600 | 27 KW | ||||
1000 | 4 | 0-65 | 7.5 | 3600 | 36 KW | ||||
1500 | 4 | 0-65 | 11 | 3600 | 45 KW | ||||
2000 | 5.5 | 0-65 | 11 | 3600 | recommed steam heating | ||||
3000 | 7.5 | 0-55 | 15 | 3600 | |||||
5000 | 11 | 0-55 | 22 | 3600 | |||||
Detailed Images
Agitator pot
1. The working pot is made of 3 layers stainless steel , the contact part is SUS316L, other parts are SUS304 . The thickness of the pot can be customized .
2. The cover fix , the sight glass can be installed to observe the work in the pot , cleaning the pot with universal cleaning ball , from the bottom discharge outlet directly .
2. The cover fix , the sight glass can be installed to observe the work in the pot , cleaning the pot with universal cleaning ball , from the bottom discharge outlet directly .
3. Jacketed heating, electric heating or steam heating optional . cold water circulate cooling.
4. Homogenizer and temperature sensor install at the tank bottom .
Top Mixer
1. Double direction stirring , the mixing direction of frame mixer with Teflon wall scraper and central paddle are reversed , so the products will be mixed more evenly .
2. Mixing speed is adjustable 0-65rpm , frequency speed control .
Homogenizer
1. Bottom homogenizer is more powerful than tan top homogenizer .
2. Mixing speed can be adjusted 0-2880rpm .
3. All products contact parts are SUS316L, which meet GMP standards .
4. Temperature probe can detect the temperature of products when heating or cooling the jacket .
Operating electric box
Each function can be controlled separately:
1. The working time of homogenize can be set ( suggest 10 minutes ) .
1. The working time of homogenize can be set ( suggest 10 minutes ) .
2. Heating temperature can be set according to different formula .
3. Mixing speed of frame mixer and homogenizer mixer is adjustable .
4. Touch screen HMI control panel is optional .
Outlet of finished products
1. Butterfly valve delivery or pump delivery , non residual, Angle of outlet suitable for products discharge easily , fast connection with pipes and pumps .
2. Material: SUS316L .
2. Material: SUS316L .

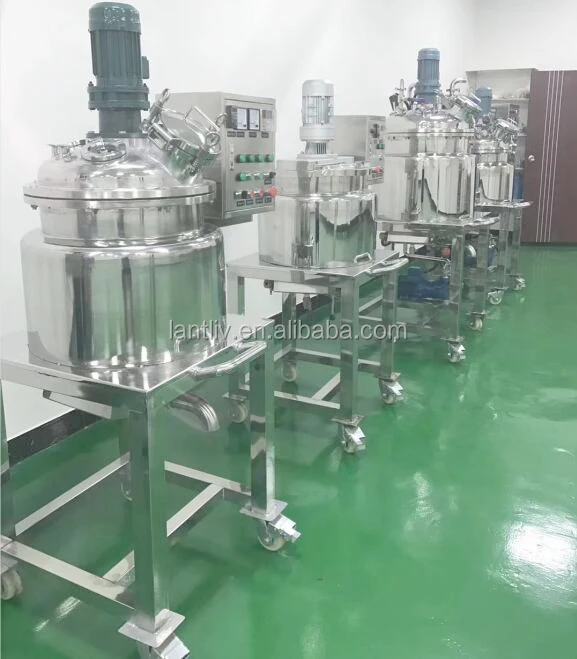

Workshop production
Packing & Delivery
1. Wrapped with plastic film inside and strong carton case or non-fumigated plywood box outside, it is moisture-proof and suitable for long-distance sea, land and air transportation.
2. Delivery time: 15-25 working days after receiving the deposit.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
3. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1CBM or 100KG, recommended shipment by Sea.
(2) Below 1CBM or 100KG, recommended shipment by Air.
(3) Below 0.5CBM or 50KG, recommended shipment by Express.
Plant Installation
Our Service
Pre-treat Service
1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.
2. Sample testing support.
3. View our Factory.
After-sales Service
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.
2. Technical files service provided.
3. On-site training service provide.
4. Spare parts replacement and repair service provided.
5. Engineers available to service machinery overseas.
Maintenance Guidence
1. Keep the equipment looks clean, no watermarks, smooth.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the homogeneous blade usually, Are there loose screws.
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly.
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
6. We can supply the whole production line.
2. Keep equipment clean, after finished product should be cleaned with hot water as soon as possible.
3. Check on the homogeneous blade usually, Are there loose screws.
4. Homogenizer into the water whether the flow, the water solenoid valve is working properly.
5. Check the mixing gear regularly adequacy of the grease, any abnormal sound.
6. We can supply the whole production line.
