MAP 580 modified atmosphere packaging machine food tray sealing machine for chicken meat fish ready meal vegetables durian
- Category: >>>
- Supplier: Zhejiang Ruibao Packaging Machine Co. Ltd.
Share on (1600217045343):
Product Overview
Description

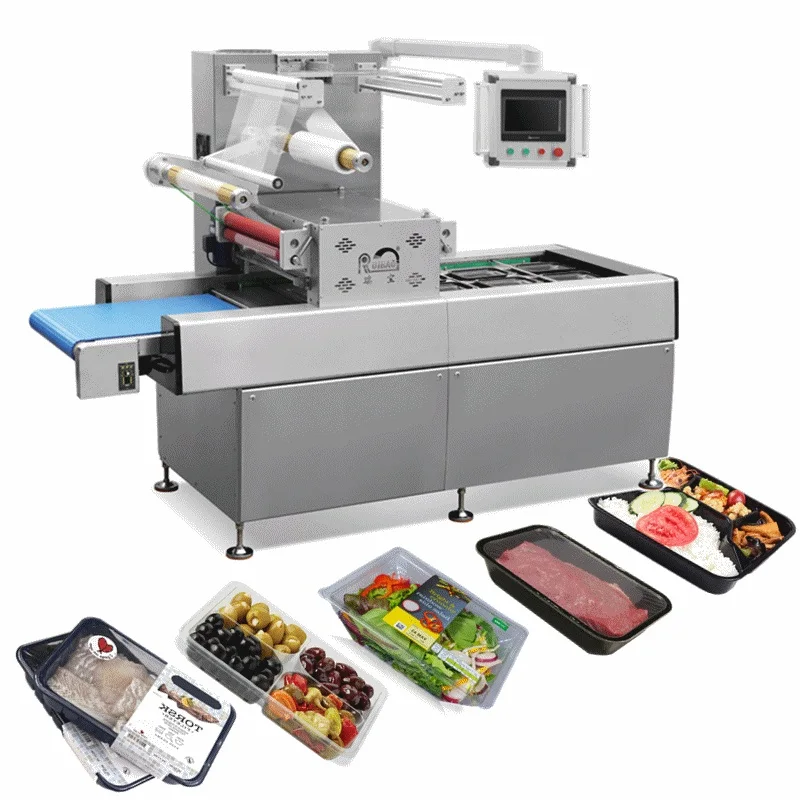

This machine is for modified atmosphere packaging, which is good for different kinds of food. It can extend the shelf life, keep the good taste, and keep fresh color.

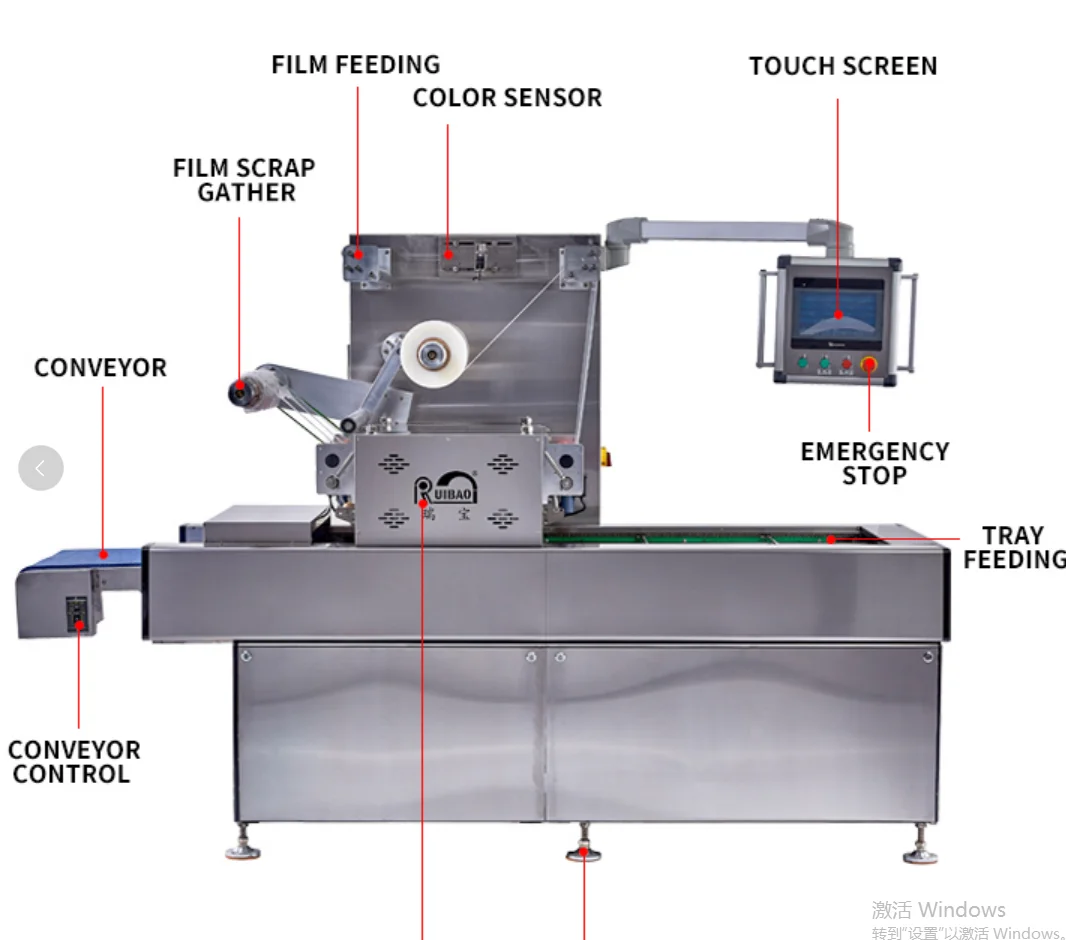

User only need to put tray on the machine, the machine will automatic feed trays into a closed chamber for MAP pack and then output trays with high speed. This way save man labor, and avoid further touch between worker and food.
This machine is suitable to be built with a whole packing line, working together with automatic tray feeder, label machine, weight machine, metal detector. we can offer them all if there is need.
Advantage
This machine is suitable to be built with a whole packing line, working together with automatic tray feeder, label machine, weight machine, metal detector. we can offer them all if there is need.
Advantage
* Individually built for your trays

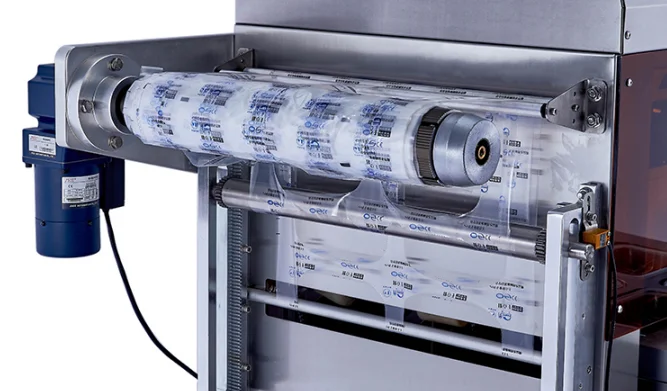

* Automatic film feeding, more sanitary
* Support modified atmosphere packaging
* Ratio of O2/N2/CO2 can be changed as per food
* Extend shelf life, remain fresh and taste of food
* Multi molds, easy to change
* Customized mold as per client tray
* Easy for maintain and operate
* Continually packing, high packing capacity
* Full 304SS material
* Easy open aid
* Supply training video
* Special tray detector
* Support remote access for touch screen
* Support modified atmosphere packaging
* Ratio of O2/N2/CO2 can be changed as per food
* Extend shelf life, remain fresh and taste of food
* Multi molds, easy to change
* Customized mold as per client tray
* Easy for maintain and operate
* Continually packing, high packing capacity
* Full 304SS material
* Easy open aid
* Supply training video
* Special tray detector
* Support remote access for touch screen
Parameter
Model | MAP-580 | MAP-650 | |
Voltage | 380V/50HZ/3phase or customized | ||
Controller | IDEC PLC + Weinview touch screen | ||
Vacuum pump | German Rietschle100m3/h | German Rietschle 150m3/h | |
Material | Mainly food grade 304SS | ||
Tooling | Include 1 tooling for one tray design. It is customized | ||
Packing speed | About 3 cycles per minute | ||
Pack mold | with single row | With double rows | |
Weight | About 850KG | ||
Gas pressure | 0.2-0.3Mpa for gas source inflow | ||
Power | About 6-8KW | ||
Certificate | CE | ||
Guarantee | 1 year | ||
Language | English/Chinese/Spain for option | ||
Air compressor | Not include in the price. The air pressure shall be about 0.6-0.8Mpa | ||
Function | Vacuum, O2/N2/CO2 mix and fill, seal | Vacuum, O2/N2/CO2 mix and fill, seal | |
1. Price
Same design of machine can support both modified atmosphere packing(MAP for short) and vacuum skin pack(VSP for short)
MAP only, unit price 17856-25888USD
VSP only, unit price 23760-26100USD
MAP+VSP, unit price 27900-29188USD
Same design of machine can support both modified atmosphere packing(MAP for short) and vacuum skin pack(VSP for short)
MAP only, unit price 17856-25888USD
VSP only, unit price 23760-26100USD
MAP+VSP, unit price 27900-29188USD
* Above price do not include air compressor. It cost additional 1000USD .
* We can customize wider/deeper chamber, with extra 500USD. if client has big or deep tray. Tray depth can be max 100mm.
* For more than 5pcs, there will be discount.
* Open aid corner, 500USD

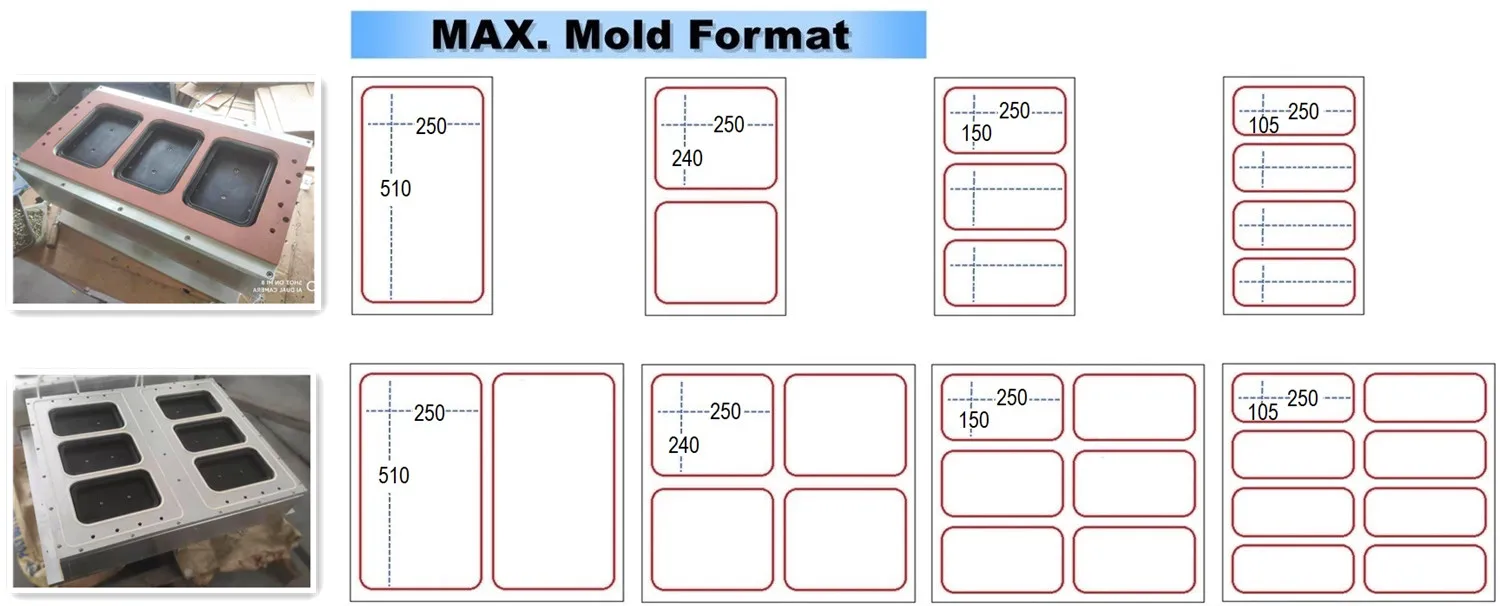

2. Our standard packing mold is for 220*130mm or 200*140mm.

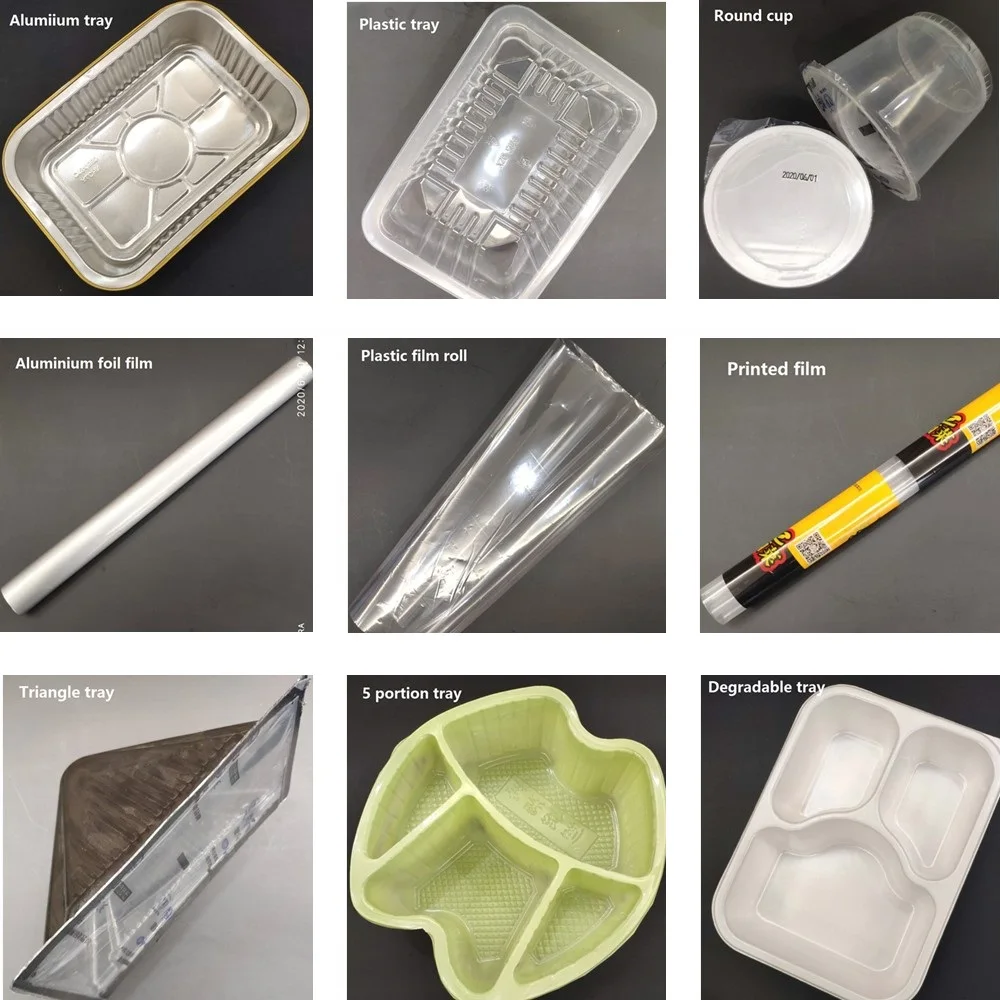

If client has other tray size/shape, mold will be customized accordingly.
Above price only include 1 mold, MAP580 can support another packing mold, cost extra 1900-2400USD
3. Voltage can be customized as required.If need 220V/60HZ/3phase, price is 250USD higher
4. Online video about machine details and operation: https://youtu.be/BO-H1vtUXak
Mold change: https://youtu.be/7PplwEncHYA
5. Remote access of controller, it allows to amend language, upgrade program, and monitor the machine.
* We can customize wider/deeper chamber, with extra 500USD. if client has big or deep tray. Tray depth can be max 100mm.
* For more than 5pcs, there will be discount.
* Open aid corner, 500USD
2. Our standard packing mold is for 220*130mm or 200*140mm.
If client has other tray size/shape, mold will be customized accordingly.
Above price only include 1 mold, MAP580 can support another packing mold, cost extra 1900-2400USD
3. Voltage can be customized as required.If need 220V/60HZ/3phase, price is 250USD higher
4. Online video about machine details and operation: https://youtu.be/BO-H1vtUXak
Mold change: https://youtu.be/7PplwEncHYA
5. Remote access of controller, it allows to amend language, upgrade program, and monitor the machine.

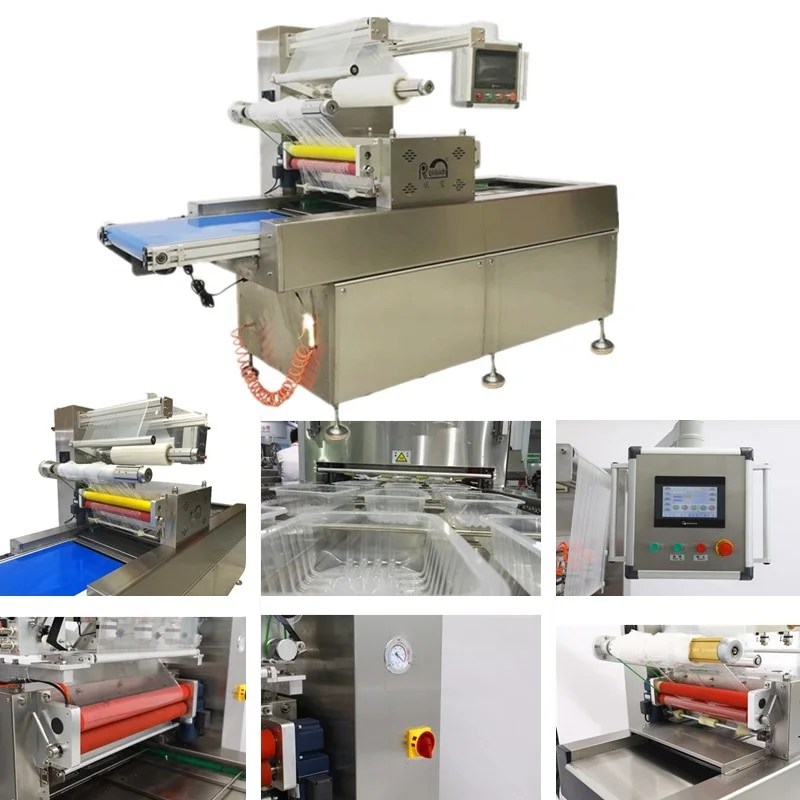

Our machine and others

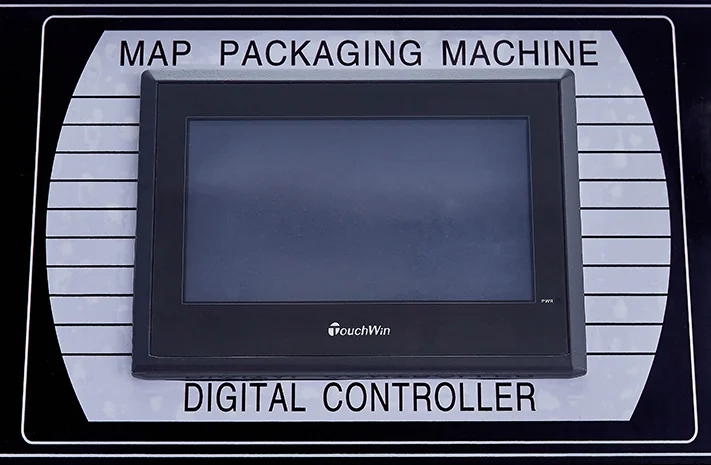

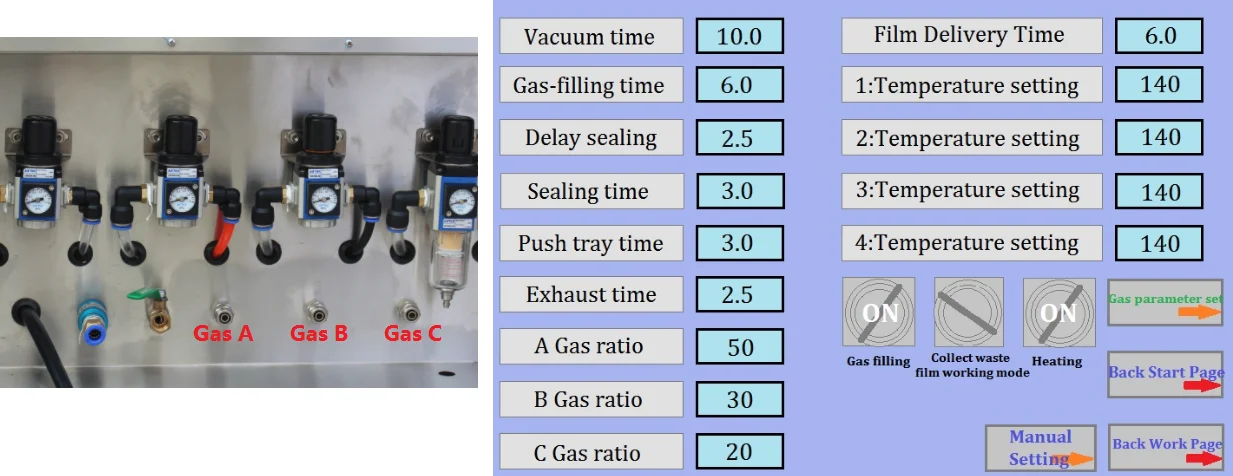

How to set touch screen
* We leave holes on gas mixer. Please connect them with gas source directly. Inflow gas pressure shall be 0.2-0.3Mpa.
* User can adjust gases ratio on touch screen of tray sealer. After mix, it will store gas mixture in 2pcs gas tanks.
* User can set time of vacuum/gas fill/seal, also temperature.
* The touch screen will alarm for insufficient gas source inflow.
* User can adjust gases ratio on touch screen of tray sealer. After mix, it will store gas mixture in 2pcs gas tanks.
* User can set time of vacuum/gas fill/seal, also temperature.
* The touch screen will alarm for insufficient gas source inflow.

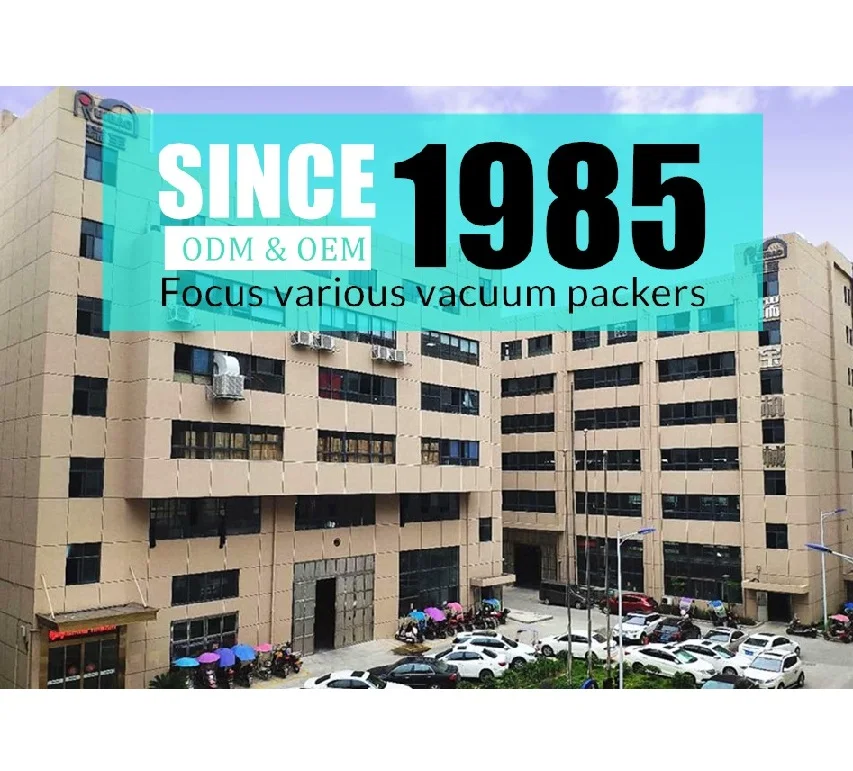

About our factory
Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.
If you have any question to discuss! Please contact us.
Export manager: Emma Xu
We-chat/whats-app: 008615057546776
Email: emma.vac(at)cnruibao.cn
