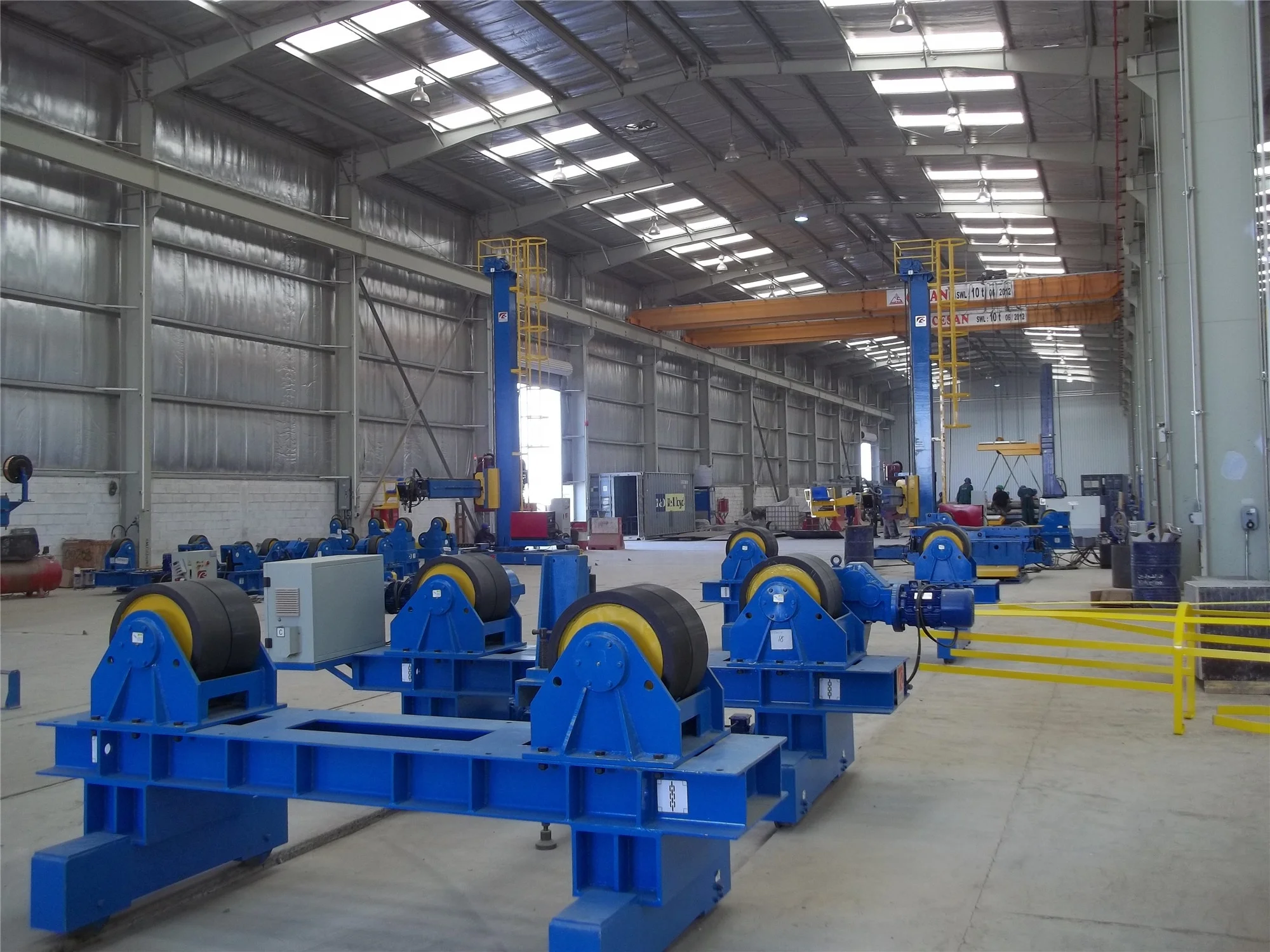

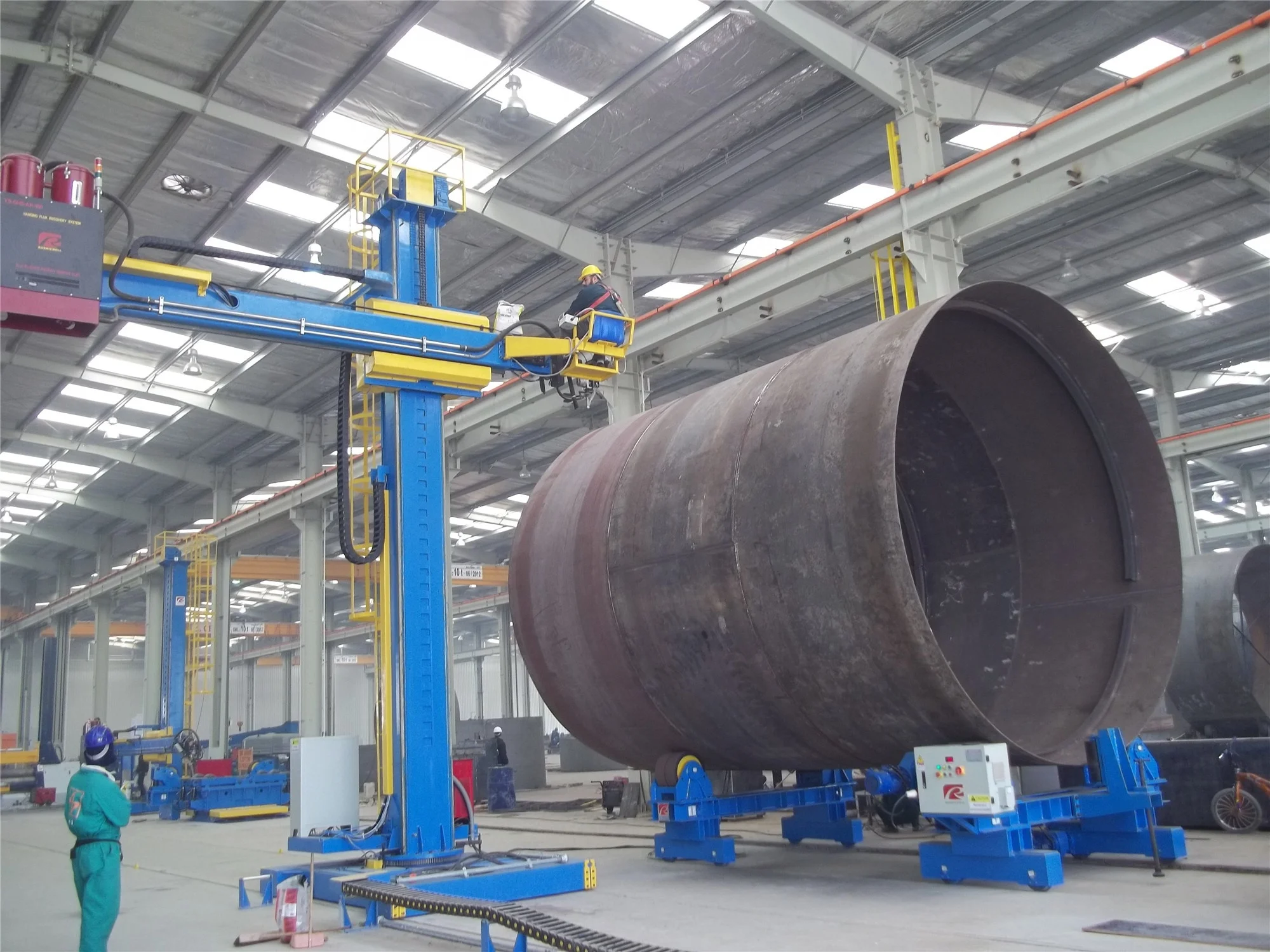

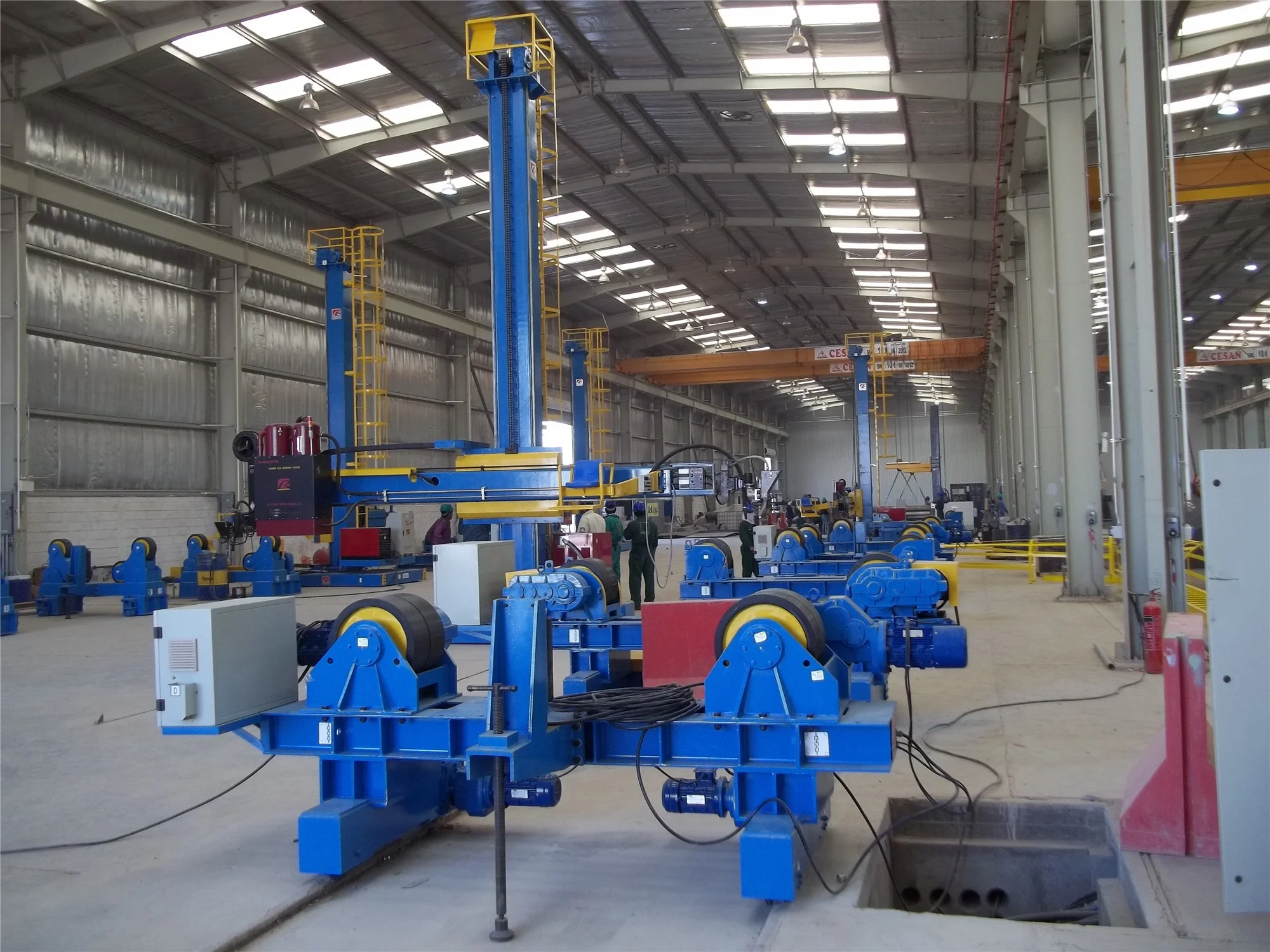

Motorized Traveling Anti Drift Welding Rotator WWL 80T Tank Turning Rolls With PU Wheel

Product Overview

Description



Motorized Traveling Anti Drift Welding Rotator WWL 80T Tank Turning Rolls With PU Wheel



1.  The anti drift welding rotator is composed by power rotator, idler rotator, control box & pendant controller.



2. Mechanical anti drift structure is attached at side of the idler rotator.



3. The power rotator is dual driven by heavy duty AC motor for each wheel.



4. The DC electronic function or inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.



5. The heavy duty wheels are designed to 90 durable hardness with high stress PU cushion mounts to absorb shock loads and prevent gear box damage





Application

1. Pressure vessels

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job





Feature:

1. Strong and durable construction with a very high stability.



2. Anti drift welding rotator have top-class electronic components, stepless adjustable speed of the driven part in CE marked.



3. Double-motor driven, the roller driver adopt cycloidal planetary gear reducer or worm reduction gear mode.



4. By tank edge lean against the anti drift roller, it could effectively prevent the tank creep during rotating. Simple structure while with high performance.



5. We also provide tailor-made HGK welding rotators according to your special requirements.



Main Technical Parameter

Main technical parameter of HGK series pipe welding rotator
Model	HGK-02	HGK-05	HGK-10	HGK-20	HGK-40	HGK-60	HGK-80	HGK100	HGK150	HGK200
Rated loading (T)	2	5	10	20	40	60	80	100	150	200
Vessel diameter  range (mm)	150-2000	250-2300	320-2800	500-3500	600-4200	750-4500	800-5000	1000 -5500	1000 -6000	1000 -6500
PU roller  dia. and  width (mm)	200* 80	250* 100	300* 120	350* 150	400* 180	450* 180*2	450* 200*2	500* 240*2	500* 260*2	650* 325*2
Metal roller  dia. and  width (mm)	/	/	/	/	/	/	/	/	/	650*250
Linear speed (mm/min)	100-1000mm/min
Speed control	Variable Frenquency Drive speed control
Motor power (kW)	2*0.18/	/2*0.37	2*0.55	2*1.1	2*1.5	2*2.2	2*3	2*3	2*4	2*5.5
Traveling speed - Optional (mm/min)	3000mm/min
Traveling motor - Optional (kW)	2*0.18	2*0.37	2*0.55	2*0.75	2*1.1	2*1.5	2*2.2	2*3	2*3	2*4











1. Give you high quality products.

2. Give you five-star price.

3. Give you suitable recommendation.

4. Give you good after-service.

5. Give you professional technical guide.

6. Warmly welcome you visit our factory.

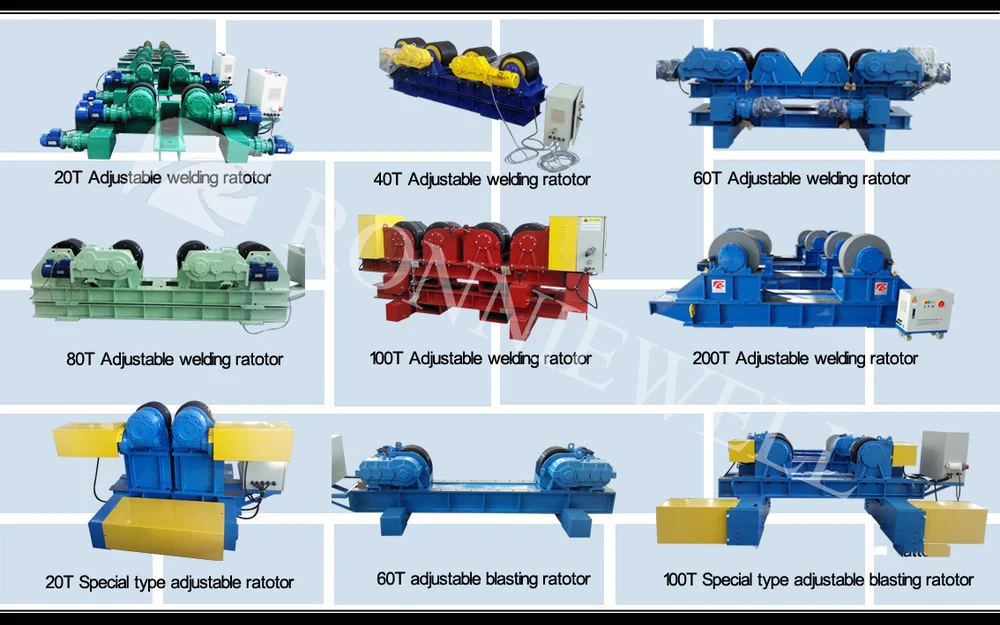

Pipe roller bed / Bolt conventional rotator Names
