Saladin Box Malting System for New Malt Plant

Product Overview

Description

Distinctive Saladin Malt Germination Vessel  Equipment for Malting Companies

Malt&Malting

Malt was used as a basis for fermentation and to add flavour and nutrients in beverages and foods. It is produced by cereal grain by allowing partial germination to modify the grain’s natural substances. Barley is chiefly used cereal grain to be converted to malt; rye, wheat, rice, and corn are used much less frequently.

Malting consists of three basic steps: soak the grain, let it sprout, and dry it down. Each step requires its own unique climate: cool water for steeping, cool, moist air for germination, and hot, dry air for kilning.





The history and evolution of malting technology

Before the industrial revolution, floor malting was the traditional way of producing malt. Malt producer use a wooden malt shovel or a special iron-wrought rake to turn the grain manually very often. For its a lot of physically demanding jobs and climatic limitation, not possible in Summer,  traditional floor malting was mostly replaced by industrial malting procedures today.

During the 1870’s, two malting engineers Galland and Saladin developed pneumatic malting technology and invented malting drum and Saladin box. It achieves to operate malt production year-round with good temperature control. These systems also show  such savings in manpower and increases in malt output than traditional floor malting. Saladin box has the design of rectangular container with vertical screws. The malting drum were developed by Galland with gentle turning.  The turning machines are simple, while it needs more transmission equipment and complex logistics , which makes it not suitable for very large scale production.

By the 1960s, circular germination and kilning vessels were developed and there is no practical limitation on size for these vessels, which made tower malting a practical configuration. It has high degree of automation and nice environment of technology control. It is  small in covered area,  simple in transmission, but the building cost is high. For very large scale production, tower malting system is the preferred configuration. Take the comprehensive cost into consideration , you can choose tall tower, half tower, or  flat tower.



Yingtai Saladin malting system

Yingtai Saladin malting system is a complete malt production line consisting of raw material cleaning, steep, germination, drying and scale packing,etc. It has rectangle Saladin germination box and fans to provides uniformity air from one end so as to achieve humiture control. All loadings and unloadings can be achieved by computer controlled mechanized operation. Drying will be carried out in round Saladin kiln box. If the batch size is not very large, such as 5ton or 10ton per batch,  you can consider to use combination malting vessel, in where germination process and kilnning process can be completed in the same Saladin box.

The malting system has the features of advanced design, reasonable structure and high degree automation. The systems achieves the process control, technical parameter display and storage by PLC. The kilning temperature of Saladin malting system can up to 85℃(185℉) and it was widely used in base malt production for breweries and distilleries.



Saladin Malt Equipment Picture Shows

Steep tank

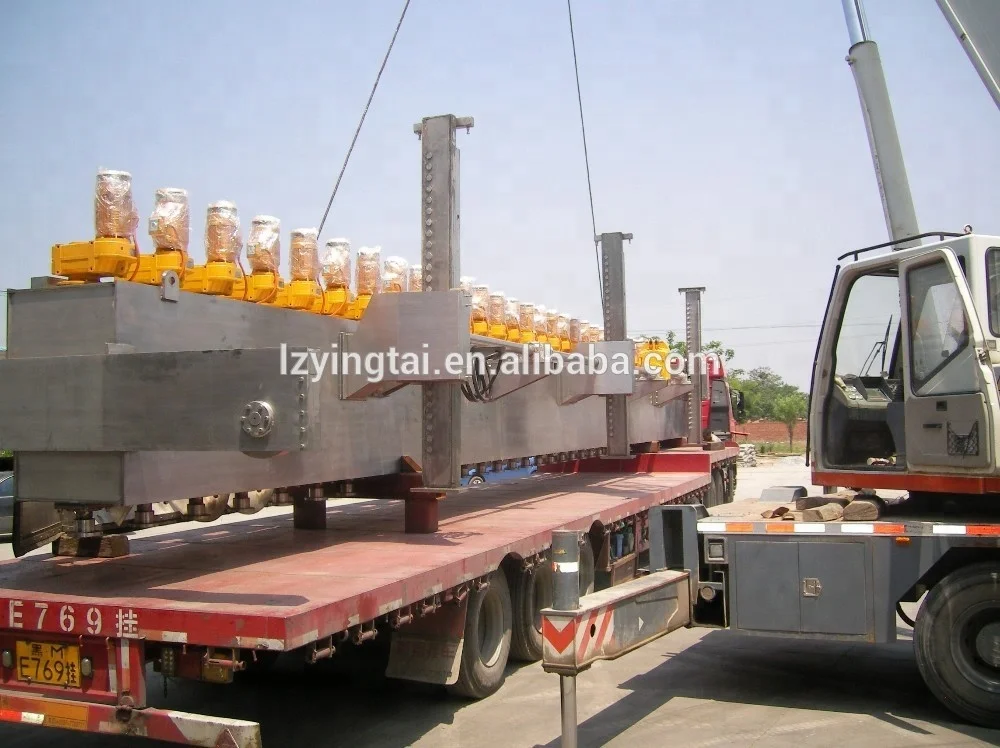

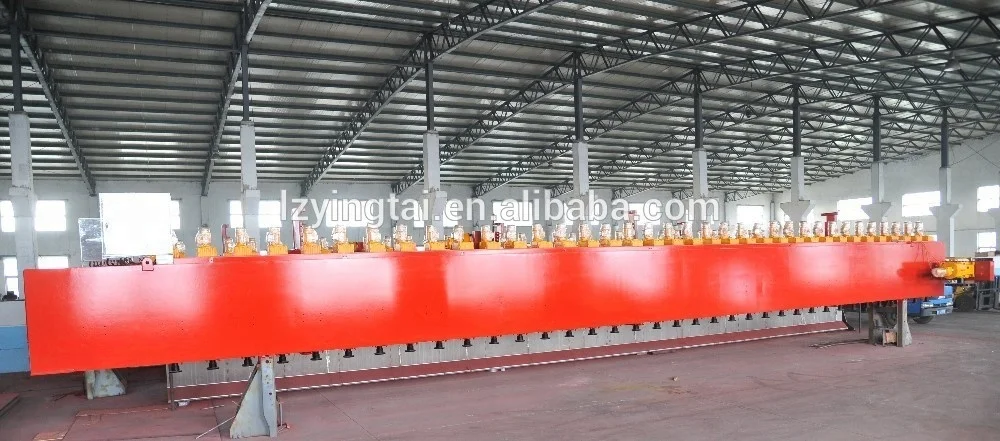

Saladin Malt Germination Vessel  Equipment-Saladin malt turning machine

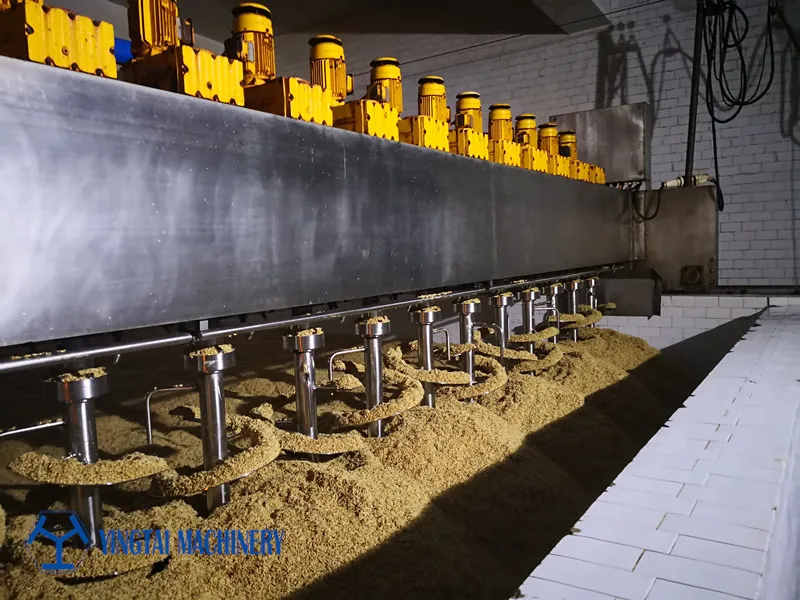

Saladin Malt Germination Vessel  Equipment-Saladin rectangular box

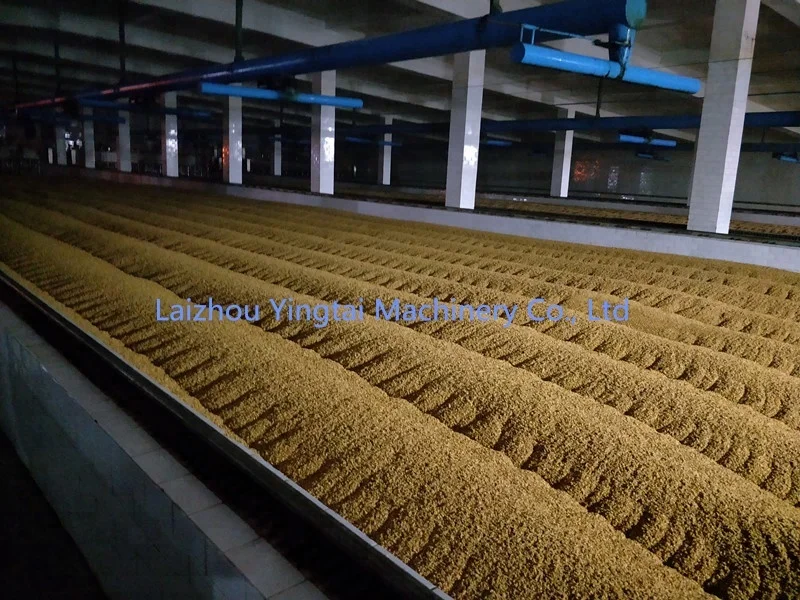

Saladin Malt Germination Vessel  Equipment-malting technology



Malting system composition

1. Silos for malting barley storage

2. Cleaning for malting barley purification and grading

3. Steeping for increasing the moisture in the grain and ready for germination

4. Germination for achieving the transformation of endosperm of grain and producing green malt.

5. Kilning for drying the green malt and ready for rootlets removing

6. Rootlet Separation for removing malt rootlets

7. Storage finished malts in bags, containers or malt silos



Company profile

Laizhou Yingtai Machinery Company is the leading Chinese company in malting industry, a professional supplier on malting and roasting system. Our company is committed to offering comprehensive support and services to malting companies, breweries, distilleries, craft malthouse, farmers, etc. With more than 30 year's malting experience, we have designed and finished more than 200 malting systems in China and exported to more than 10 countries.



Experience

1.Steeping systems
2.Germination systems
3.Kilning systems
4.Ancillary equipment (eg. grain cleaner/pre-screen, deculmer, weighing and bagging machine, chillers,etc)
5.New type of Saladin malting system: 2000Kg-10,000Kg/batch
6.Germination kilning COMBO Drum 500Kg-10,000Kg/batch
7.Roasting Drums 100Kg-500Kg/batch



Customers and Visitors



Malting project Services

Pro-delivery design and layout advice

On-site supervision of installation

Commission of equipment

On-site technical training for malting process

Ongoing technical support

Any questions on Distinctive Saladin Malting System and Malt Germination Vessel for Malting Companies, pls feel free to contact us.
