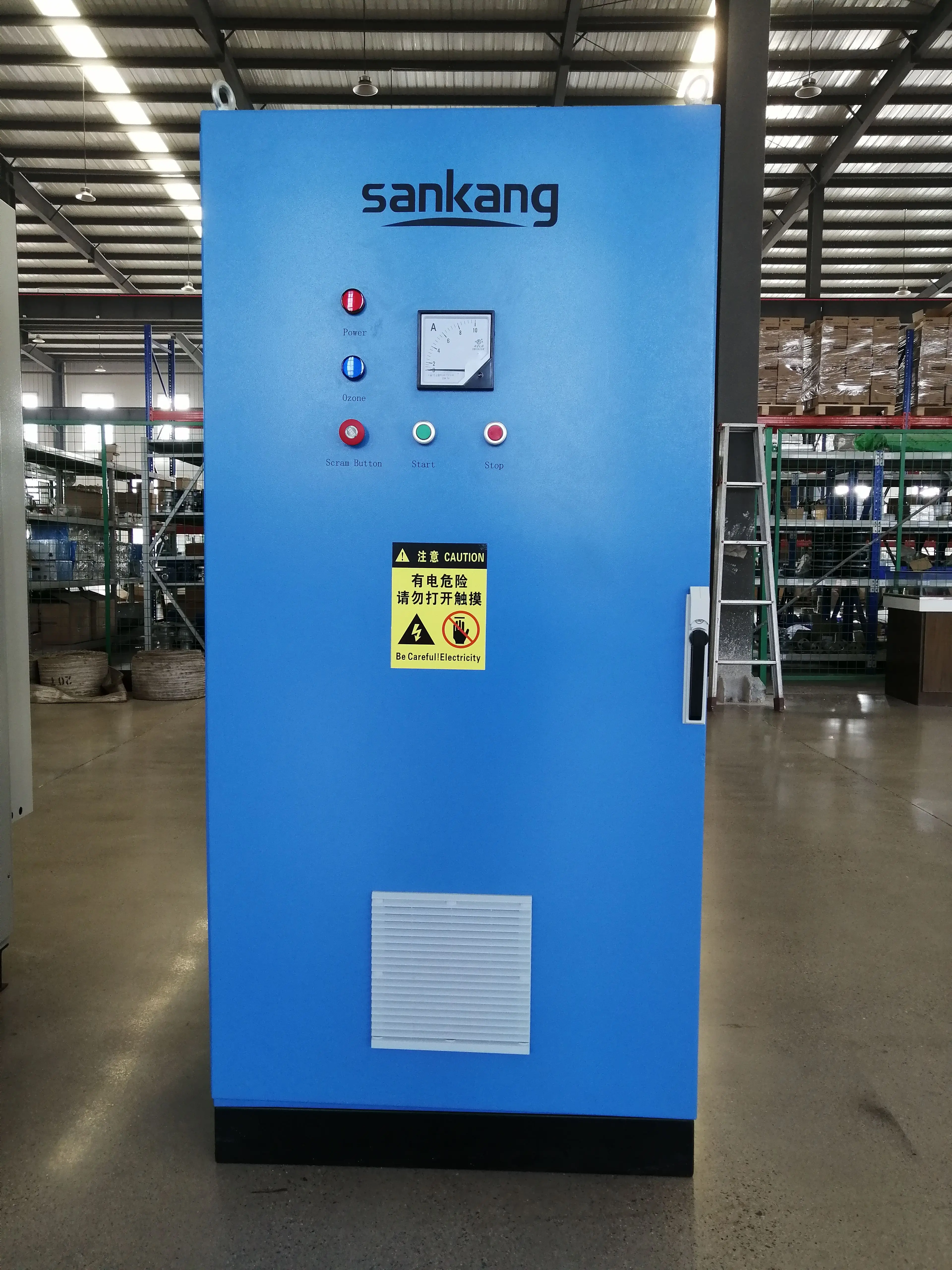

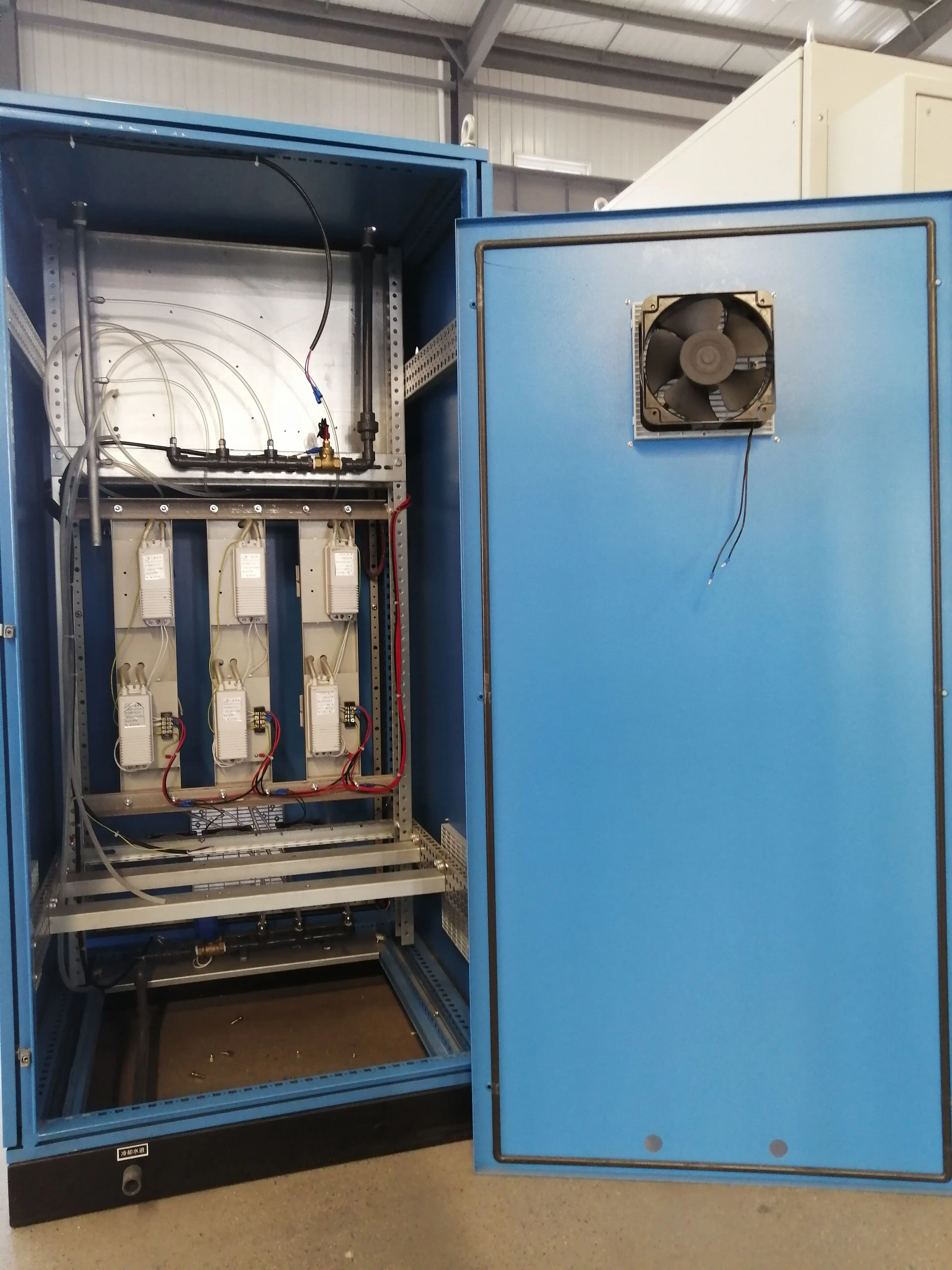

factory of zone generator machine Municipal Water Treatment/air disinfection and sterilization ozonator utilize to wastewater
- Category: Disinfecting Equipment >>>
- Supplier: Jinan Sankang Envi-Tech Co. Ltd.
Share on (1600217283347):
Product Overview
Description
Quick Details
Ozone capacity: 60g/h for air source/oxygen source Technology: corona discharge
Function: air/water purifier Feed gas type: Air source/oxygen source
Ozone output: 80-120g/h for air source Cooling way: Water Cooling
Power consumption: 1.3-1.7Kw Applicable Industries: Hotels, Garment Shops, Building
Application: Municipal Water Treatment/Food & Beverage/Swimming Pool Disinfection
Main parameters(air source)
|
Type |
SK-CFG-100D |
SK-CFG-200D |
SK-CFG-300D |
SK-CFG-500D |
SK-CFG-600D |
SK-CFG-800D |
|
Ozone output(g/h) |
100 |
200 |
300 |
500 |
600 |
800 |
|
Feed gas flow(N m³/h) |
2.9-4 |
5.7-8 |
8.6-12 |
14-20 |
17-24 |
23-32 |
|
Ozone concentration(mg/L) |
20-30 |
20-30 |
20-30 |
20-30 |
20-30 |
|
|
Cooling water flow(m³/h) |
0.3 |
0.6 |
0.9 |
1.5 |
1.8 |
2.4 |
|
Rated power(kw) |
1.3-1.7 |
2.6-3.4 |
3.9-5.1 |
6.5-8.5 |
7.8-10.2 |
10.4-13.6 |
|
Cooling water inlet size |
DN15 |
DN15 |
DN15 |
DN15 |
DN15 |
|
|
Gas outlet size |
DN15 |
DN15 |
DN15 |
DN20 |
DN25 |
|
|
Dimension L*W*H(mm) |
1400*1000*2000 |
1400*1000*2000 |
1400*1000*2000 |
1400*1000*2000 |
1400*1000*2000 |

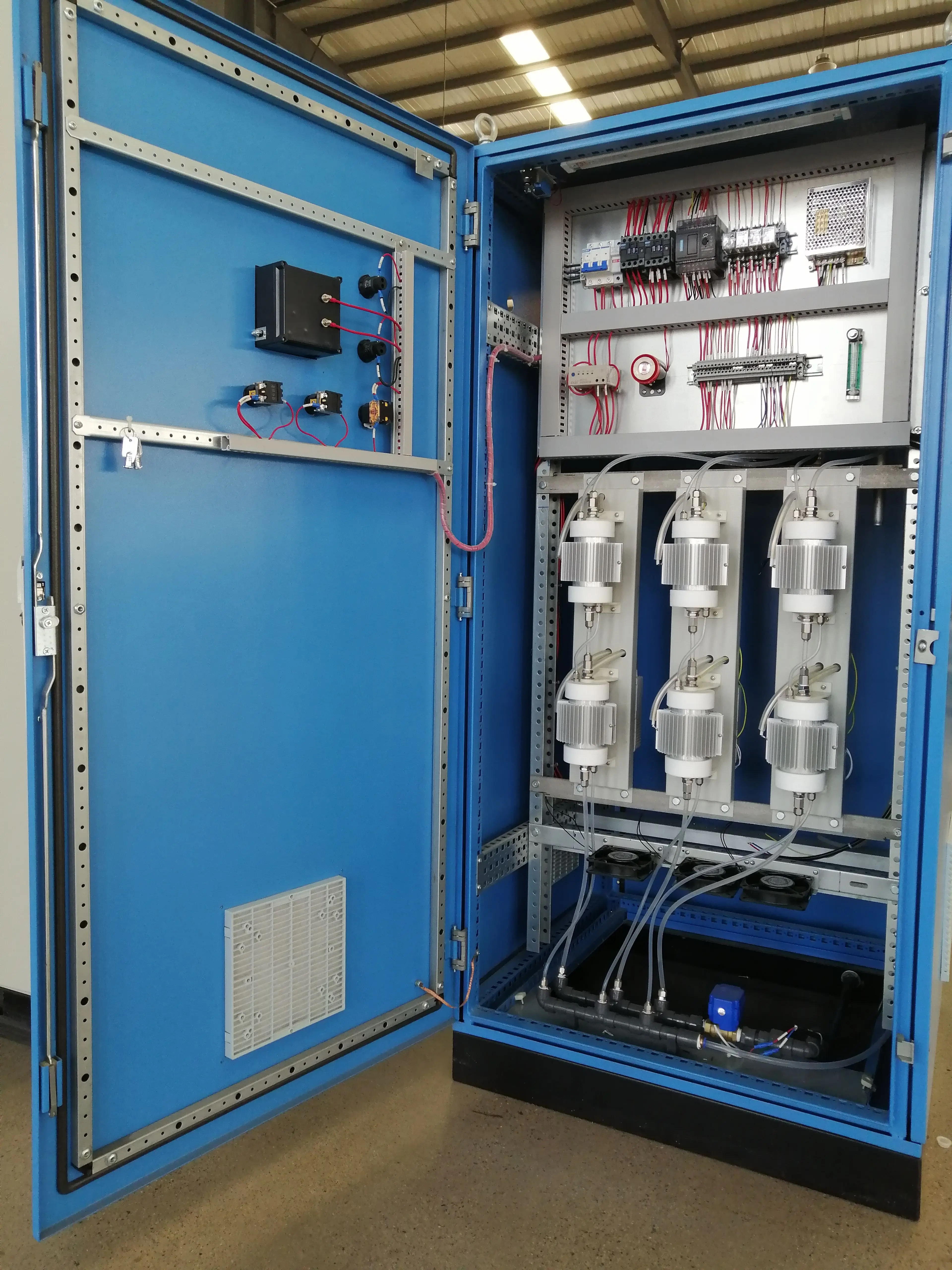

1. Water cooling mode. Multi-stage cooling structure design ensures the cooling efficiency to be increased by 20%. Equipment can be running continuously for 24hrs;

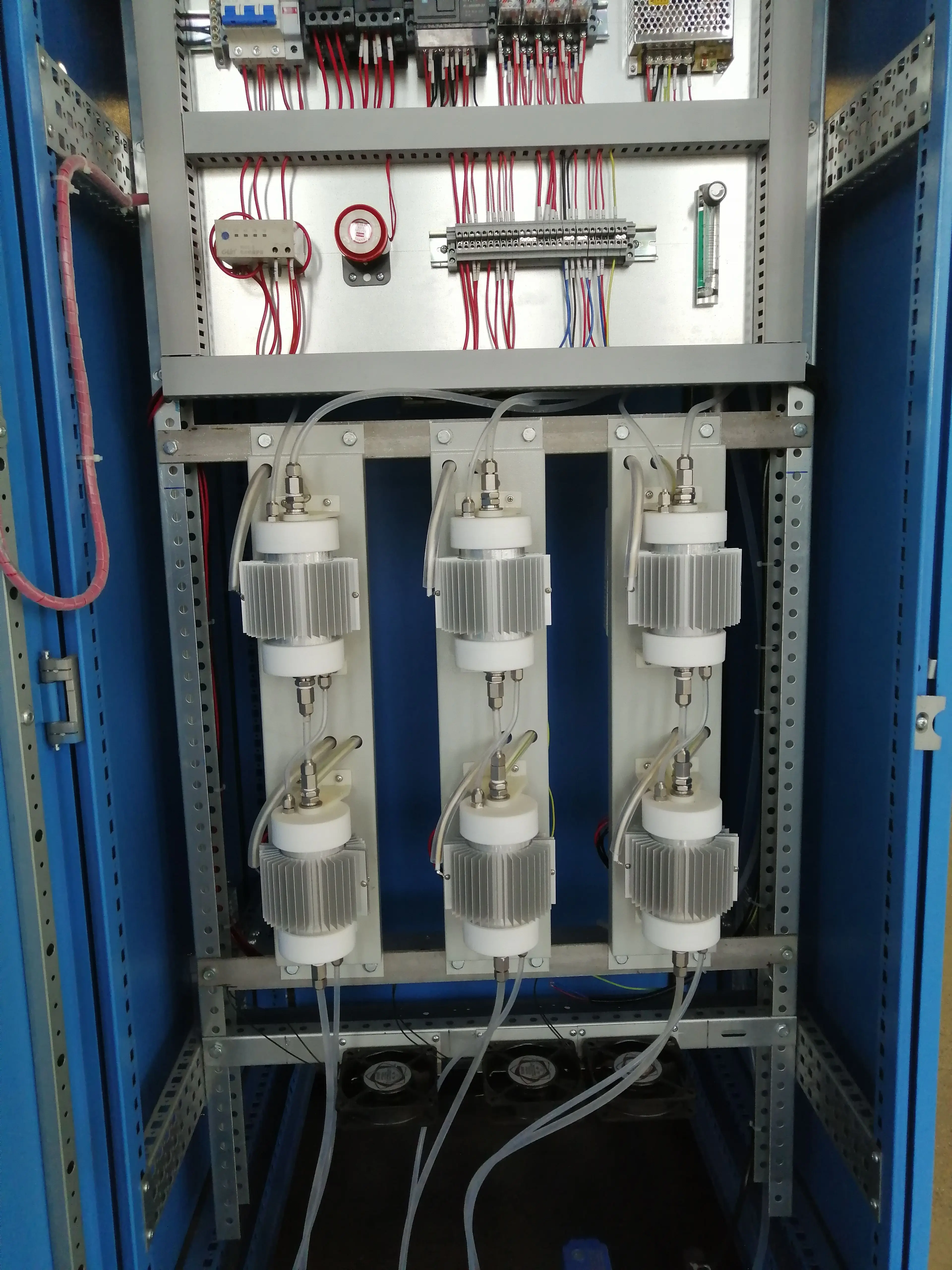

2. Patented enamel dielectric tube with features of high strength, good pressure resistance and good heat resistance; easier to be maintained;
3. Electrode tube is made of 316L stainless steel; imported medium coating material is used for dielectric tube;
4. Ozone capacity could be regulated with range of 10%-100%; high ozone concentration, large ozone capacity, more stable performance and longer life time;
5. Equipment has operation monitoring functions to current, voltage, temperature, flow rate, gas pressure and operation status and protection functions;
6. Control method includes manual control and automatic control for option.

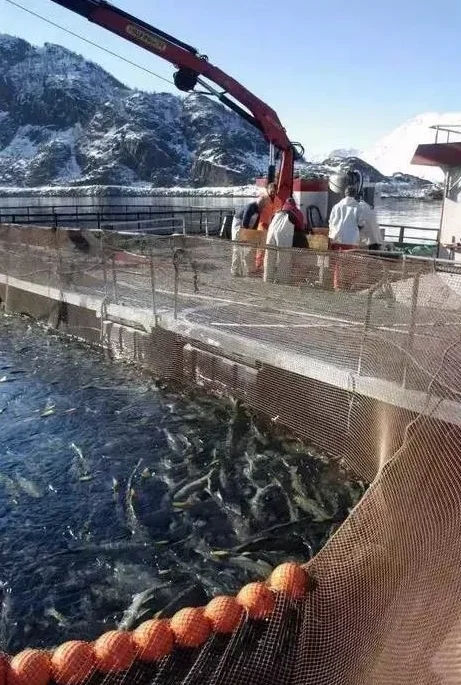

Applications

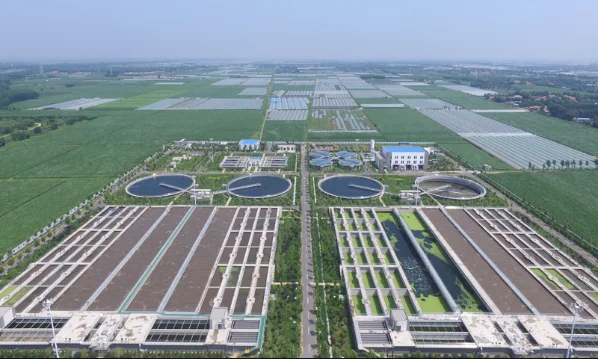

Municipal Water Treatment

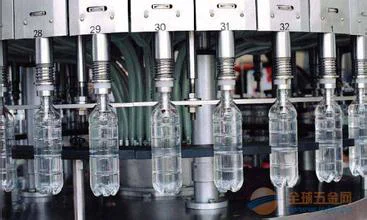

Food & Beverage

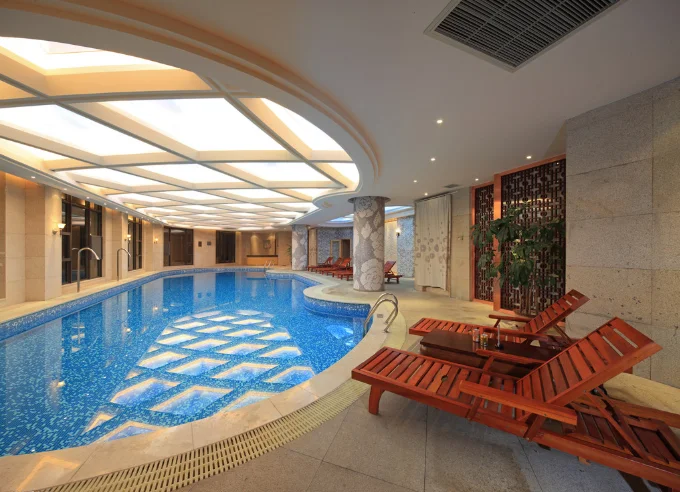

Swimming Pool Disinfection
Our team
FAQ
Q1.Are you factory or only company?
We are factory integrating manufactur and trade.
Q2.Why we can choose you?
1) Reliabel --We are the real factory,we dedicate in win-win.
2) Professional --we offer the ozone generator exactly you want.
3) Price --factory direct supply so we have compective price.
Q3. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery(or against copy BL or as our negotiation).
We'll show you the photos of the products and packages before you pay the balance.
Q5. What is your terms of delivery?
A: EXW, FOB, CFR, CIF or international express if order online at alibaba.
Q6. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q7. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
