Спортивные системы таймера, браслет на большие расстояния с 4 портами impinj r2000 uhf rfid, считыватель модуля
- Category: >>>
- Supplier: Shenzhen Rodinbell Technology Co. Ltd.
Share on (1600217328643):
Product Overview
Description
Sport timing systems long distance wristband 4 port impinj r2000 uhf rfid module reader
Product Description
Specification of products
Operating Voltage | 3.7V – 5 V |
Standby Mode Current | <50mA (EN high level) |
Sleep Mode Current | <100uA (EN low level) |
Operating Current | 1.2A +/-10% |
Operating Temperature | - 20 °C - + 55 °C |
Storage Temperature | - 20 °C - + 85 °C |
Humidity | < 95% ( + 25 °C) |
Air Interface Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ISO 18000-6B |
Spectrum Range | 860Mhz – 960Mhz |
Supported Regions | US, Canada and other regions following U.S. FCC |
Supported Regions | 0 – 33dBm |
Output Power Precision | +/- 1dB |
Output Power Flatness | +/- 0.2dB |
Receive Sensitivity | < -85 dBm |
Peak Inventory Speed | > 700 tags/sec |
Tag Buffer Size | 1000 tags @ 96 bits EPC |
Tag RSSI | Supported |
Antenna Detector | Supported |
Ambient Temp Monitor | Supported |
Working Mode | Single/DRM |
Host Communication | TTL Uart port |
GPIO | 2 inputs optical coupling 2 outputs optical coupling |
Max Baud Rate | 115200 bps |
Heat Dissipation | External cooling fin |

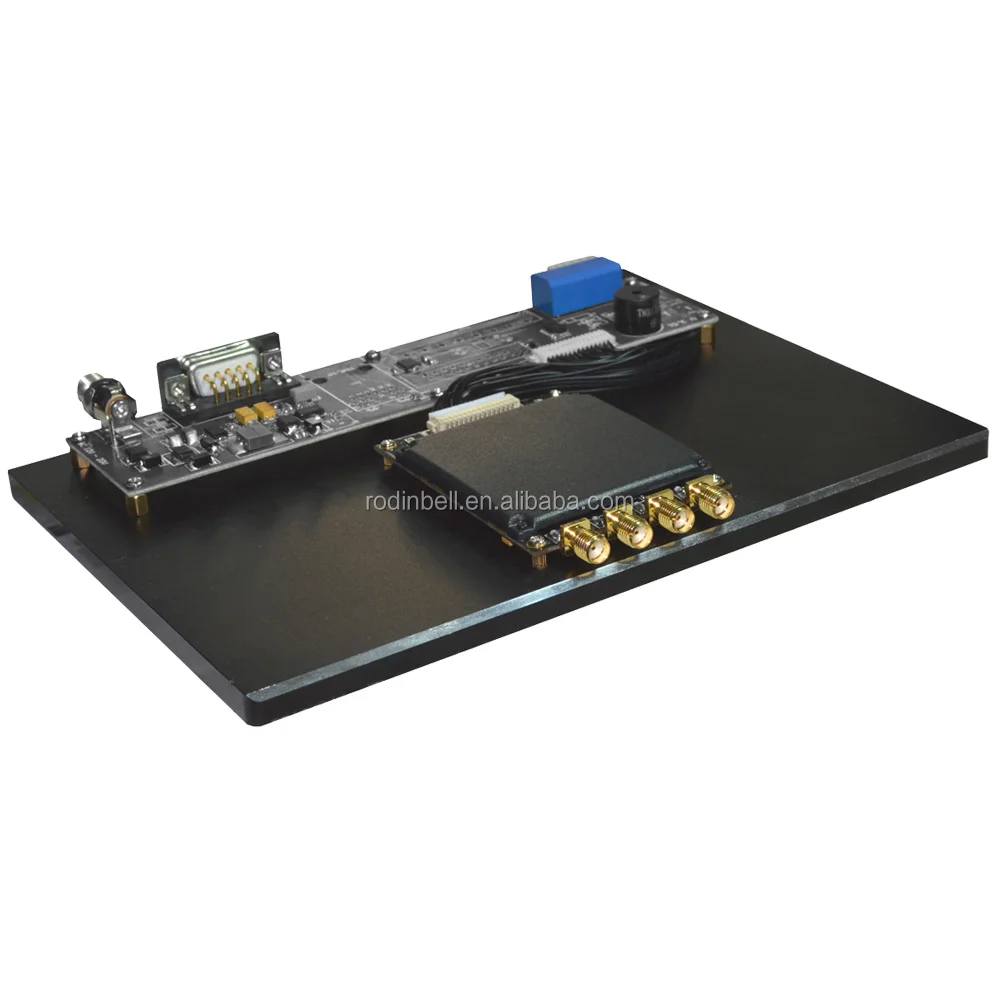

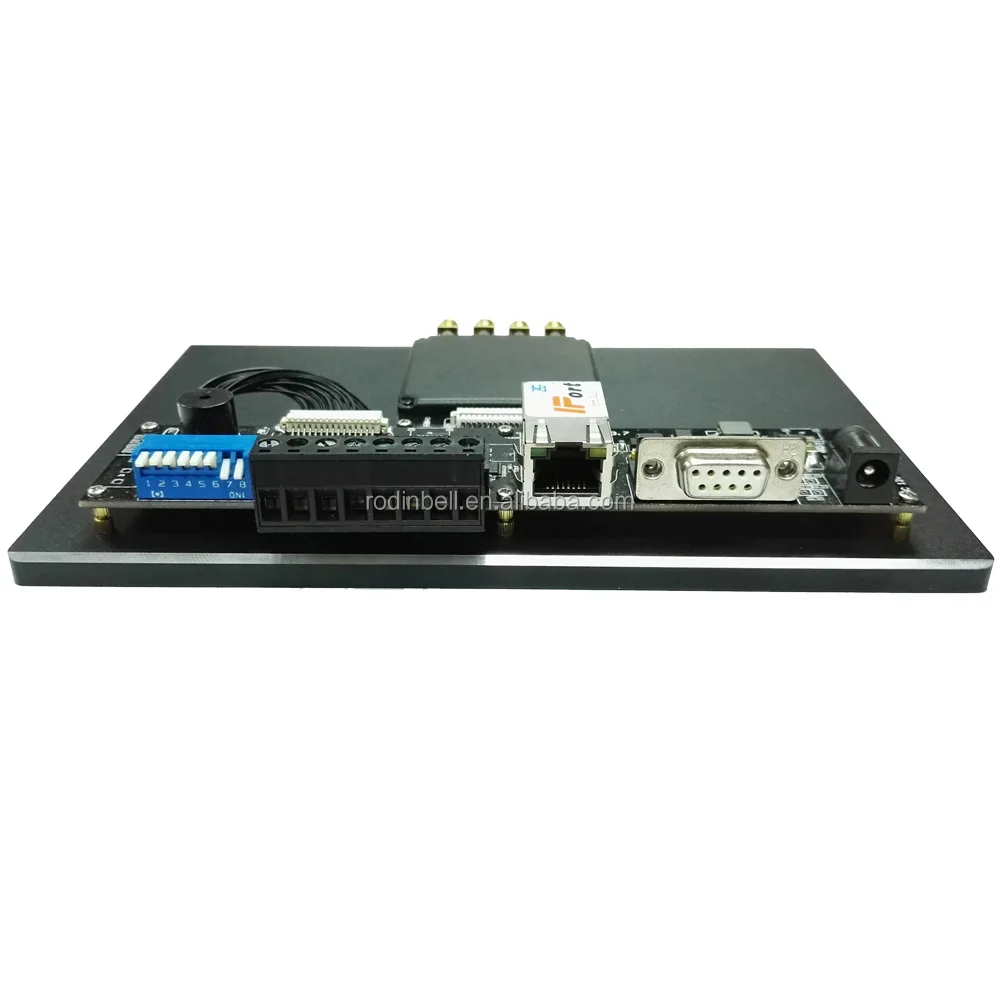

Product pictures
Working condition
Application
RodinBell products have been widely used in logistics, retail, transportation, education, finance, security and entertainment industry, etc
Packing & Shipping
Packed with PP bag and Paper box
Shipped with DHL, FEDEX, UPS, TNT and other methods
Company Information
Founded in 2010, Shenzhen RodinBell Technology Co., Ltd. is one of the leading companies that offers products and solutions confining industrial and commercial intelligent equipment.
With the importance we attached to the integrity of research, development and innovation, and to the respect for independent intellectual property rights, RodinBell R&D team is made up of engineers and designers including those who had worked in microwave communications, embedded operating systems, application development and industrial design for more than 20 years.
Our service:
ADK/API file willed be provided for you with the products
