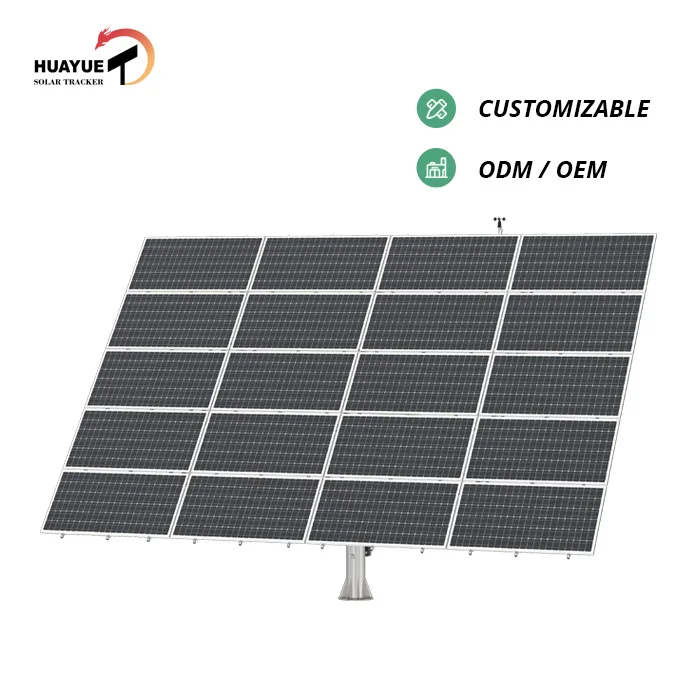

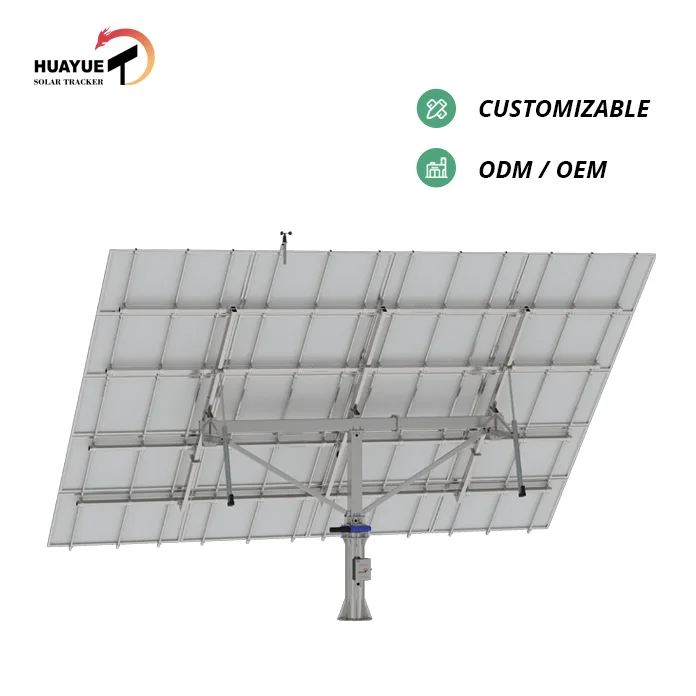

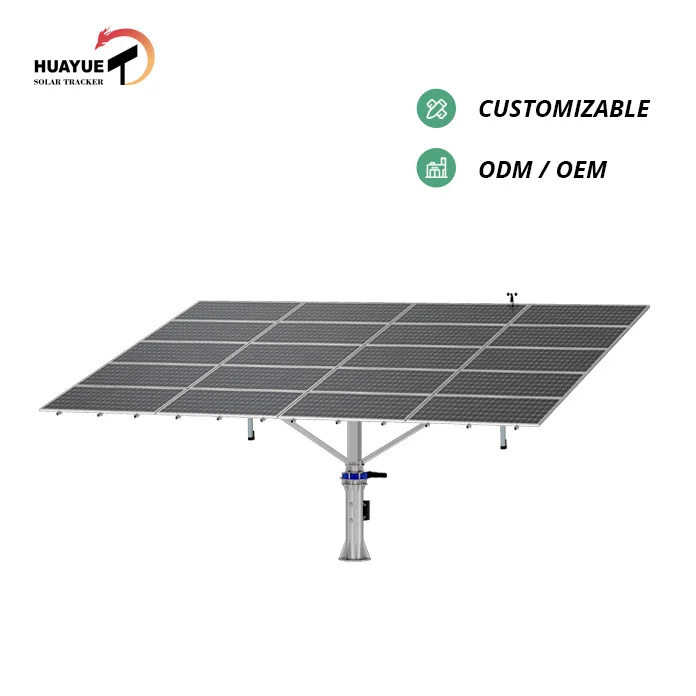

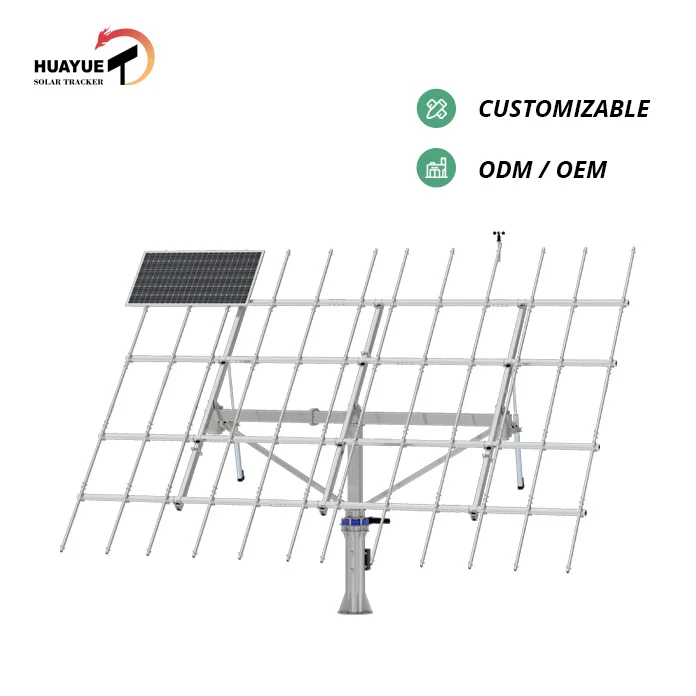

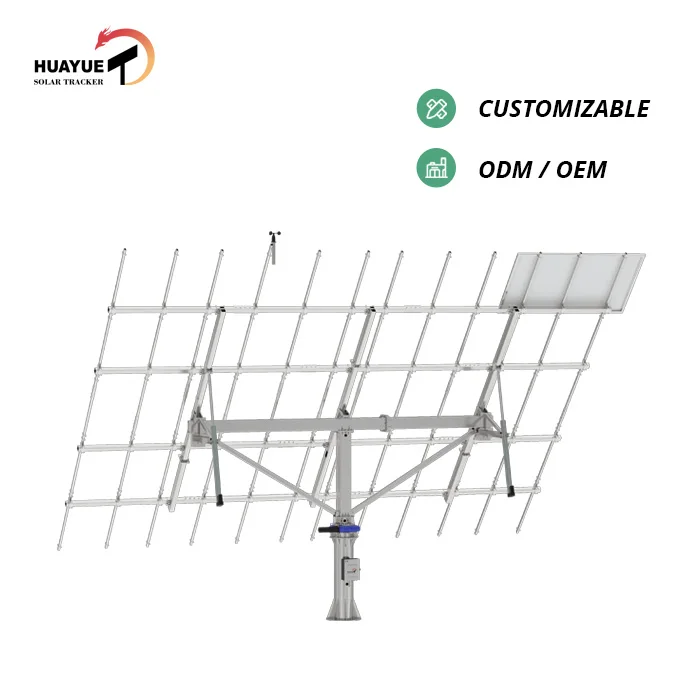

Huayue solar tracker 14kw HYS 20PV 210 2LSD Hot product slew drives solar kit controller 2 axis solar pv tracker
- Category: >>>
- Supplier: Shandong Huayue New Energy Co. Ltd.
Share on (1600217333314):
Product Overview
Description

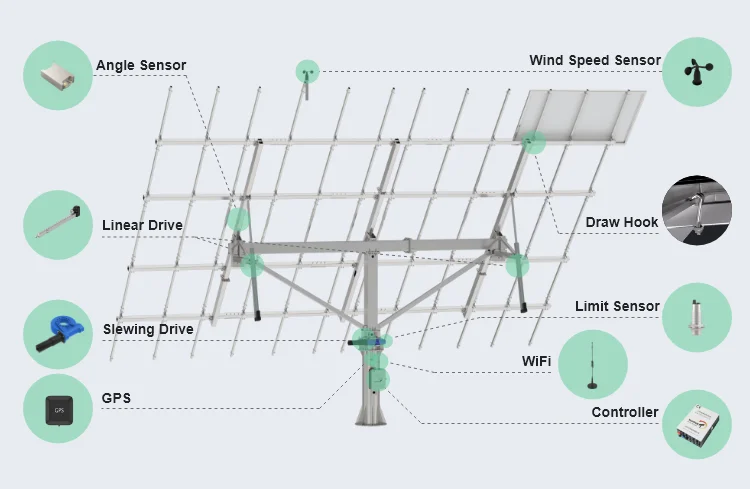

| Tracker Structure | Tracking Controller | ||
| Model | HYS-20PV-210-M-4LSD | Protocol | RS485 |
| Bracket Material | Hot-Dip Galvanized Steel | Wind Protection | Have |
| Main Material | Q235B / Q355B | Night Return Mode | Have |
| Safe Working Wind Speed | 17 m/s | Backtracking Algorithm | Have |
| Control Algorithm | Astronomical Algorithm | ||
| Survival Wind Speed | 37m/s | Position Sensor Closed Loop Control | |
| (Wind Speed Can Be Customized,<60m/s) | Network Communication Type | Local Network: WIFI | |
| Galvanizing Thickness | >85um | Remote Network: WIFI or 4G(Optional) | |
| Fastener Material | SUS304 (A2-70) | Protection Level | IP65 |
| Mechanical Design Life (Y) | >25 | Automatic Positioning And Timing | GPS |
| Foundation Form | Concrete Foundation | Heavy Rain Self-Cleaning | Optional |
| (Customized Steel Structure Foundation) | System Voltage | DC24 | |

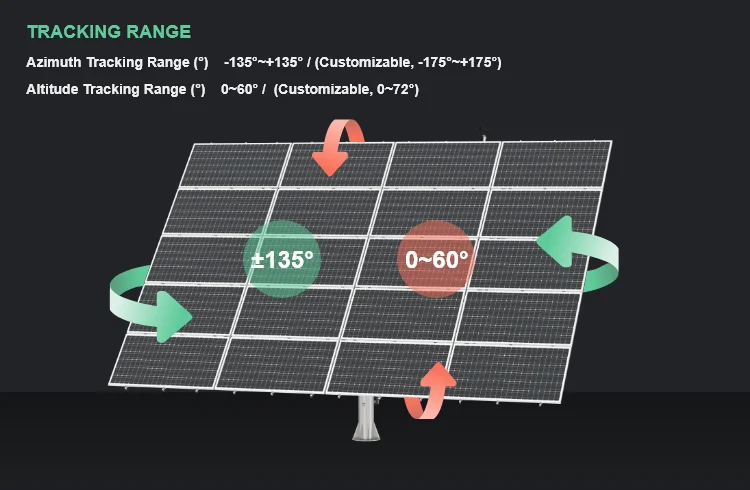

| Azimuth Tracking Range (°) | -135°~+135° | Snow Removal Mode | Optional |
| X Axis | (Any Range Within ±175°) | Rotation Position Protection | Sensor Protection + Software Protection |
| Altitude Tracking Range (°) | 0~60° | System Power Supply | AC 100V~240V |
| Y Axis | (Customizable Angle) | (Optional Lithium Battery Emergency Power) | |

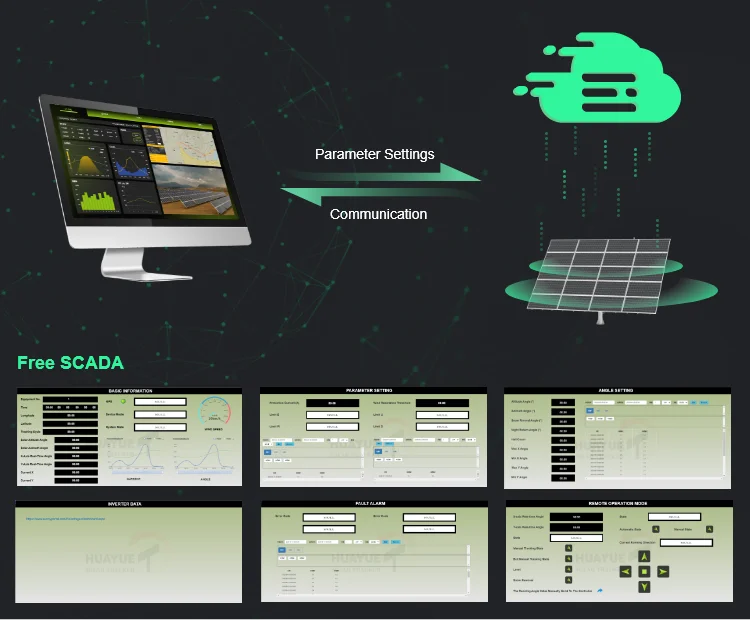

SCADA
Tracker Monitoring & Alarm + System Diagnosis + Intelligent Control
- Remote operation monitoring
- Data management and analysis

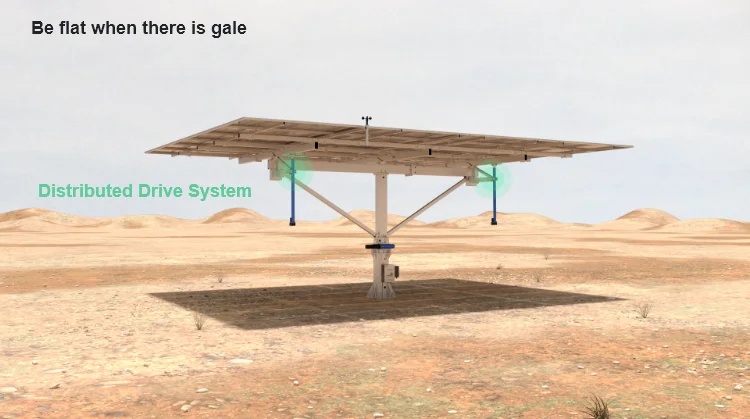

GALE PROTECTION
BRACKET MATERIAL
PLUG AND PLAY
ABOUT US
Shandong HuaYue New Energy Co., Ltd.
Shandong Huayue New Energy Co., Ltd. is located in Tai'an City, Shandong Province,China.
It is a supplier specializing in the design, development and production of solar trackers. We are
user-centered, adhering to the concept of continuous innovation in design and operation, committed to
providing innovative technology and cost-effective solutions to create value for customers, providing
economic and safe solutions and quality products for global solar photovoltaic power plants.
PACKAGE
F&Q
Q: How long is your delivery time?
A: Generally solar tracker is 5-10 working days if the goods are in stock, or it is 20-35 working days if the goods are not in stock,
A: Generally solar tracker is 5-10 working days if the goods are in stock, or it is 20-35 working days if the goods are not in stock,
it is according to quantity.
Q: Does any country support T/T, L/C, D/A, D/P, Western Union, Money Gram?
A: Our method of payment varies according to different countries and regions. Normally, we accept payment by T/T.
Q: Does any country support T/T, L/C, D/A, D/P, Western Union, Money Gram?
A: Our method of payment varies according to different countries and regions. Normally, we accept payment by T/T.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
