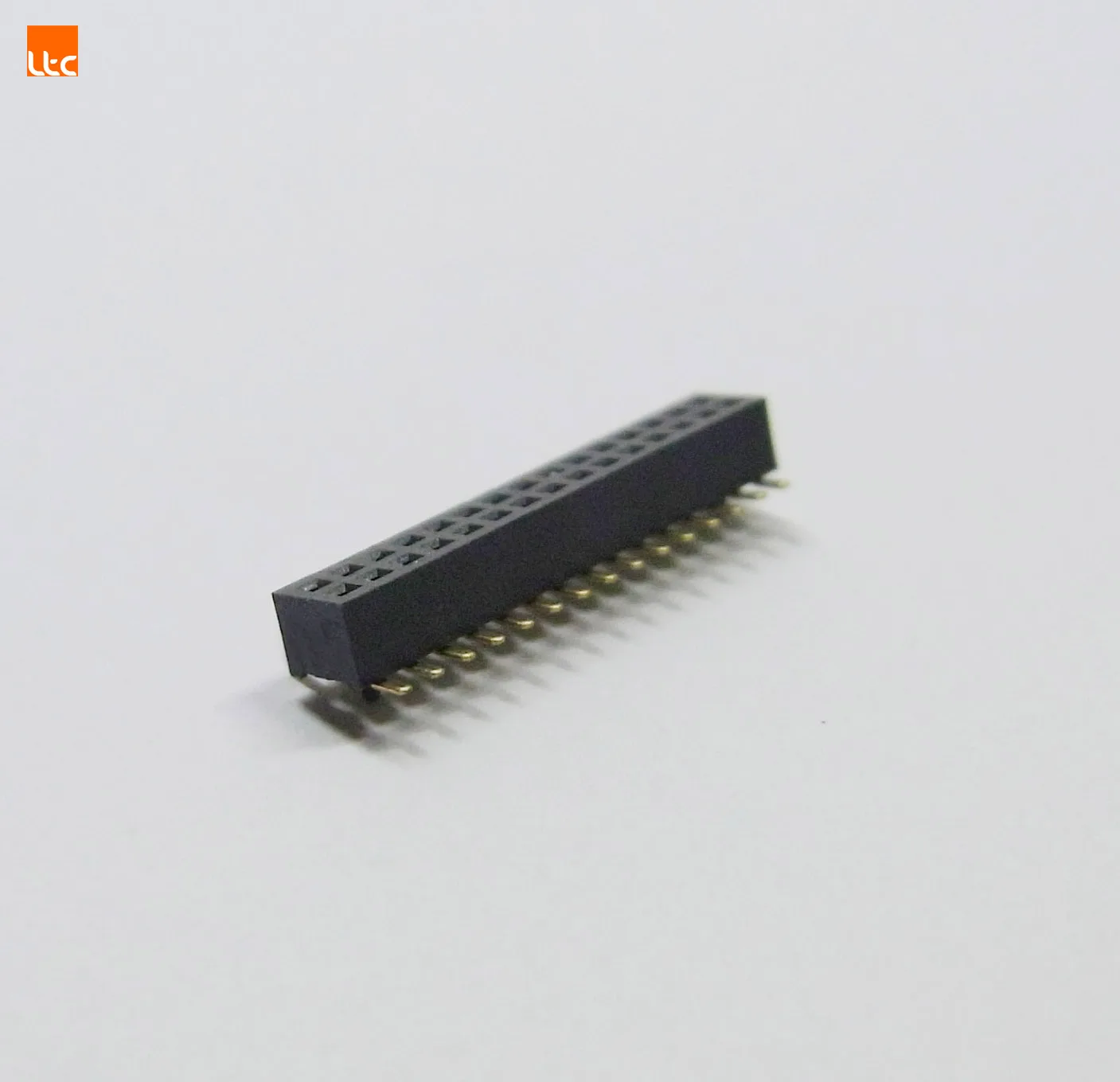

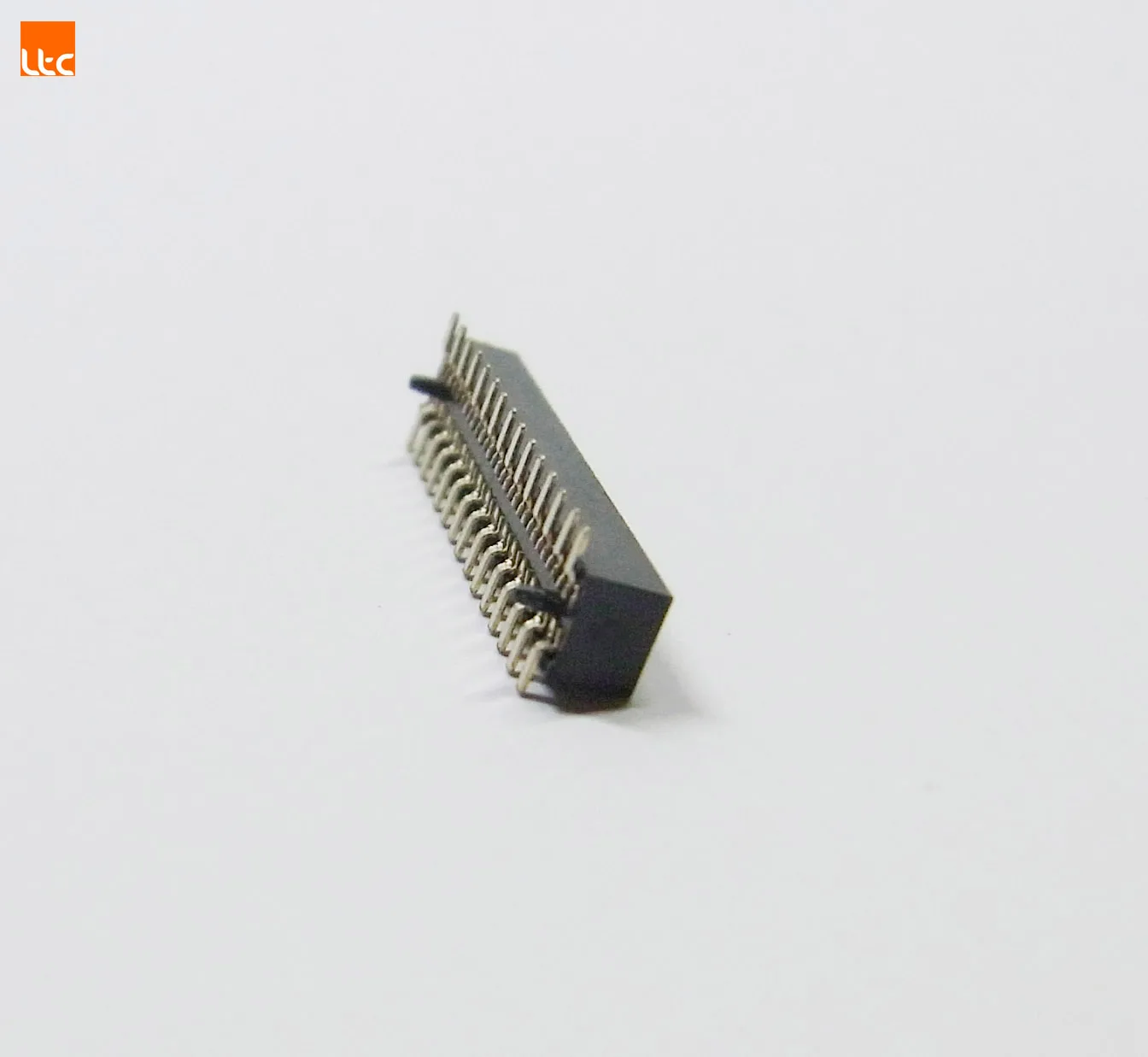

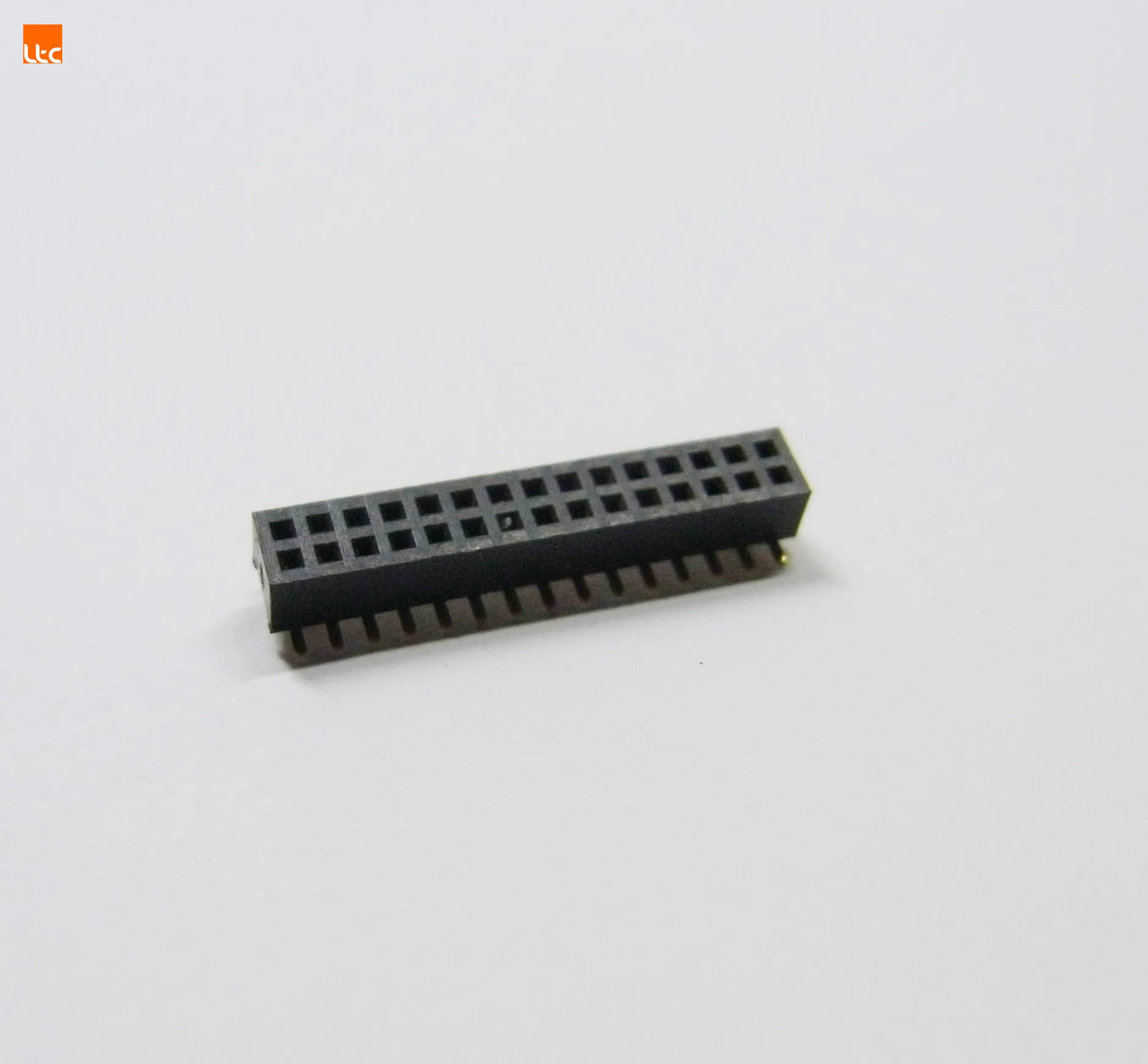

Product Name | SMT Female Header Connector |
Pitch | 1.27 mm |
Rated Current | 1.0A |
Insulation Resistance | 1000mΩ Min |
Withstand Voltage | 1000V AC/DC |
Contact Resistance | 20mΩ Max |
Operation Temperature | -40°c to +105°c |
Contact types | SMT |
Pin / way No | 4 pin to 100 pins |
Insulator Rows | Double row |
Contact material | Copper |
Plating | Gold |
